Grube Tree Runner Rigging Bollard P3000 User manual

EN Rigging Bollard 71-877, 71-879, 71-818 – Operating Manual
EN

EN The original operating manual is in German

3| 07.2020 Tree Runner Rigging Bollard 71-877, 71-879, 71-818
Contents
About this manual 5
Validity 5
Presentation of warnings 5
Symbols in this manual 6
Safety instructions 6
Intended use 7
Improper use 7
Qualication of personnel 7
You must observe these points 8
General safety instructions 8
Safety instructions regarding the workplace 8
Safety information on ergonomics at the workplace 8
Safety information before operation 9
Safety information during operation 9
Safety information after operation 9
Safety instructions regarding load ropes 9
Conduct in emergencies 9
Personal protective equipment 10
Design and function 11
Overview of the Rigging Bollard 11
Function of the Rigging Bollard 13
Wearing parts 13
Included in the delivery 14
Check that the delivery is complete 14
Checking for transport damage 14
Assembly of the Rigging Bollard 15
Assembling the Rigging Bollard 15
Commissioning and operation 16
Activities before use 16
Communication 17
EN

4| 07.2020Tree Runner Rigging Bollard 71-877, 71-879, 71-818
Dynamic lowering 18
Position of the ground man 18
Position of the climber 19
Possibilities of rope layouts 20
Dynamic lowering the load 22
Transport 23
Cleaning and maintenance 24
Cleaning the Rigging Bollard 24
Decommissioning and disposal 25
Storage 25
Repair 26
Technical specications 27
General data 27
Type plate 27
Accessories and spare parts 28
Dealer service 30
Warranty 30
Guarantee 30
Index 31

507.2020 |
About this manual
Tree Runner Rigging Bollard 71-879, 71-877, 71-818
About this manual
Validity
This manual is applicable for the following rigging bollard variants:
Device Type
Tree Runner Rigging Bollard P3000 71-877
Tree Runner Rigging Bollard P500 71-879
Tree Runner Rigging Bollard 71-818
It is intended for professional workers in the tree care sector.
The manual contains important information on the safe and proper
transport, assembly and installation, commissioning, operation, use
and maintenance of the rigging bollard and also how to independently
rectify simple faults.
Presentation of warnings
SIGNAL WORD
Nature and source of hazard!
Consequences
›Hazard avoidance
• The warning sign (warning triangle) indicates risks to life and limb.
• The signal word indicates the severity of the hazard.
• The section "Nature and source of hazard" indicates the nature
or source of the hazard.
• The section "Consequences" describes the possible consequences
of non-observance of the warning.
• The section "Hazard avoidance" indicates how the hazard can be
avoided. It is essential that you implement these hazard avoidance
measures!
EN

6| 07.2020
Safety instructions
Tree Runner Rigging Bollard 71-877, 71-879, 71-818
The signal words have the following meanings:
Warning
word
Meaning
DANGER! Indicates a hazard that certainly will lead to severe,
even fatal injuries if not avoided.
WARNING! Indicates a hazard that will possibly lead to severe,
even fatal injuries if not avoided.
CAUTION! Indicates a hazard that will lead to light to moder-
ately severe injuries if not avoided.
ATTENTION! Indicates possible material damage. The envi-
ronment, material or the device itself may be
damaged if the hazard is not avoided.
Symbols in this manual
Symbol Meaning
iIf this information is ignored, this can result in
impairments to the operating process.
›Required action: Describes actions that must be
performed.
Safety instructions
The rigging bollard has been manufactured in accordance with
generally accepted good engineering practice. Nevertheless, there is a
risk of personal injury and material damage if you do not observe the
following basic safety instructions and the warnings before operating
instructions in this manual.
›Read this manual through carefully and fully before you work with
the rigging bollard.
›Keep the manual in a safe place so that it is in a legible condition.
›Make sure that the manual is always available to all users.
›Always ensure that this manual is passed on to third parties together
with the rigging bollard.

707.2020 |
Safety instructions
Tree Runner Rigging Bollard 71-879, 71-877, 71-818
Intended use
The rigging bollard is used for dynamic catching and releasing of wood
loads (branches, crown parts, trunk pieces etc.) during pruning work. It
is attached to the tree trunk.
Improper use
Any improper use is prohibited. Improper use includes
• converting, modifying or disabling the rigging bollard,
• removing or modifying safety devices,
• any other use of the rigging bollard apart from those uses described
in the "Intended use" chapter,
• using the rigging bollard under operating conditions that deviate
from those specied in this manual.
Improper use of the rigging bollard voids all guarantee claims.
The manufacturer is not liable for damage to the rigging bollard or for
personal injuries that result from improper use.
Qualication of personnel
The rigging bollard may only be operated, maintained and repaired by
persons with appropriate training. It is essential to have been famil-
iarised with the device and the associated hazards by reading this
manual.
People who assemble, operate, disassemble or maintain the rigging
bollard must not be under the inuence of alcohol, drugs or medi-
cation which could impair their reactions.
People under the age of 18 must not be employed on the rigging
bollard. However, it is permissible to allow persons over 16 years of
age to perform such work under the supervision of a qualied person
where this is required to achieve a training objective.
Persons operating the rigging bollard must also be physically capable of
supporting the weight of the tree part removed.
EN

8| 07.2020
Safety instructions
Tree Runner Rigging Bollard 71-877, 71-879, 71-818
You must observe these points
General safety instructions
›Follow the instructions in this manual to avoid hazards and material
damage.
›Observe the relevant accident prevention regulations as well as the
other generally accepted safety, occupational health and road trafc
regulations.
›Set up a suitable safety area.
›Operate the device from a safe distance.
›Do not load the rigging bollard beyond the permissible load capacity
(see chapter „Technische Daten“ auf Seite 27).
›Tie long hair into a braid or use a suitable protective hood.
›When working with the rigging bollard, check the tension of the
rope.
›Participate regularly in advanced training courses (rigging courses).
Safety instructions regarding the workplace
›Do not stand under suspended loads.
›Make sure that the working area is clear of wood scraps, obstacles
and objects likely to cause tripping.
›Keep walking and rope paths clear.
›Ensure that there is as little wood dust as possible in the environment
when working and remove wood dust from the work area.
›Ensure there is sufcient lighting in the workplace.
›Ensure that you have a level area with safe footing and with suf-
cient freedom of movement.
Safety information on ergonomics at the workplace
›Avoid unnatural postures.
›Take the correct working posture.
›Wear personal protective equipment (see „Persönliche Schutzaus-
rüstung“ auf Seite 10).

907.2020 |
Safety instructions
Tree Runner Rigging Bollard 71-879, 71-877, 71-818
Safety information before operation
›Check the device for possible damage and begin the work when the
rigging bollard is functioning faultlessly.
›Check the rope for damage and knots.
Safety information during operation
›Keep a sufcient distance from the rigging bollard.
›Only operate the rigging bollard with two hands.
›Do not wrap the rope around the body or limbs.
Safety information after operation
›Check the device for possible damage and do not use it again until
any damage has been repaired.
›Check the rope and the tension straps for damage.
Safety instructions regarding load ropes
›Only use ropes made of polyester or polyamide bre with an elon-
gation value of < 5 %.
Conduct in emergencies
If, for example, there is a direct risk of personal injuries or damage to
the rigging bollard due to malfunctions or hazardous situations:
›Inform the rigging partner immediately of the danger.
›Abort the work.
EN

10 | 07.2020
Safety instructions
Tree Runner Rigging Bollard 71-877, 71-879, 71-818
Personal protective equipment
›Always wear the following personal protective equipment:
• Head protection
• Safety shoes of safety class S3
• Protective hood for long hair
• Close-tting clothing
• Protective gloves according to DIN EN 388 from 3xxx made of
LEATHER
• Eye protection (when sawing tree parts)
• High visibility vest (in the sphere of public highway trafc)

1107.2020 |
Design and function
Tree Runner Rigging Bollard 71-879, 71-877, 71-818
Design and function

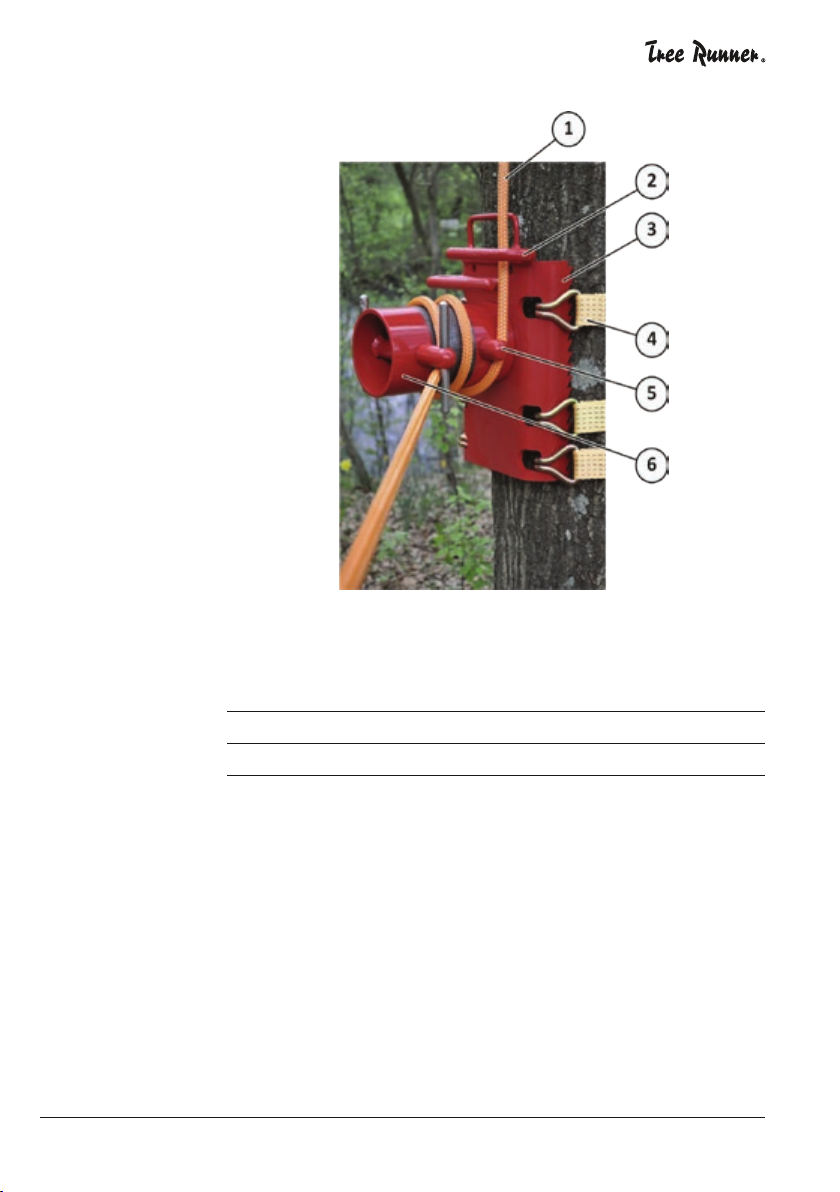

Overview of the Rigging Bollard
Fig. 1: Rigging Bollard 71-879
1Load rope 5Tension strap with hook
2Rope sliding bracket 6Deection tubes
3Rubber plate 7Brake pipe
4Base plate
EN

12 | 07.2020
Design and function
Tree Runner Rigging Bollard 71-877, 71-879, 71-818
Fig. 2: Rigging Bollard 71-877
1Load rope 4Tension strap with hook
2Rope sliding bracket 5Deection tubes
3Base plate 6Brake pipe

1307.2020 |
Design and function
Tree Runner Rigging Bollard 71-879, 71-877, 71-818
Fig. 3: Rigging Bollard 71-818
1Load rope 4Rope sliding bracket
2Base plate 5Deection tubes
3Tension strap 6Brake pipe
Function of the Rigging Bollard
Depending on the model, the rigging bollard is attached to a tree
trunk with one to three tension straps. The removed part of the tree is
lowered in a controlled manner on a rope wrapped around the brake
pipe of the rigging bollard. Depending on the weight of the load, the
number of windings of the rope must be adjusted.
Wearing parts
Wearing parts such as ropes and belts are excluded from warranty
claims.
›You can reorder them if necessary from your dealer.
EN

14 | 07.2020
Included in the delivery
Tree Runner Rigging Bollard 71-877, 71-879, 71-818
Included in the delivery
Check that the delivery is complete
The following are supplied as standard with the rigging bollard:
• Rigging Bollard
• Operating manual
• Tension straps (optional)
Checking for transport damage
You can recognise visible transport damage through damaged pack-
aging or scratched and deformed parts on the rigging bollard.
›Immediately note damage on the delivery note: both on the copy
that you retain and on the delivery note that you must sign.
›Get the delivering party (driver) to countersign.
If the driver refuses to conrm the transport damage, it is better to
completely refuse to accept the delivery and inform us immediately. A
retrospective claim without direct comment on the delivery note will
not be recognised by the carrier or by the transport insurer.
If you suspect hidden transport damage:
›Report the hidden transport damage within two days at the latest,
i.e. you must examine the delivered goods within this period.
Reports of damage after this period are not usually accepted.
›In any event, note on the delivery notes: "The delivery is accepted
subject to reservation because of suspected transport damage."
The insurers of carriers are often sceptical and refuse compensation
payments. Therefore, try to clearly document the damage (with a
photo, for example).

1507.2020 |
Assembly of the Rigging Bollard
Tree Runner Rigging Bollard 71-879, 71-877, 71-818
Assembly of the Rigging Bollard
Assembling the Rigging Bollard
WARNING
Danger due to incorrect attachment of the rigging bollard!
Injuries possible due to loose or twisted straps.
›Check the belt for knots and twists before assembly.
›Attach the rigging bollard to the tree trunk with the tension straps.
Make sure that the strap is as level as possible with the tree trunk.
The rigging bollard must always be attached to a solid, stable
tree trunk. This tree trunk must be free of vegetation such as
moss or ivy.
Fig. 4: Correct assembly of the tension strap
›Check the strap tension.
i
EN

16 | 07.2020
Commissioning and operation
Tree Runner Rigging Bollard 71-877, 71-879, 71-818
Commissioning and operation
Activities before use
WARNING
Risk of injury from damaged materials!
Cracks in the tension strap, the load rope or the bollard can lead to
uncontrolled falling of the loads.
›Check all components of the rigging bollard for damage before
operation.
›Replace any damaged components.

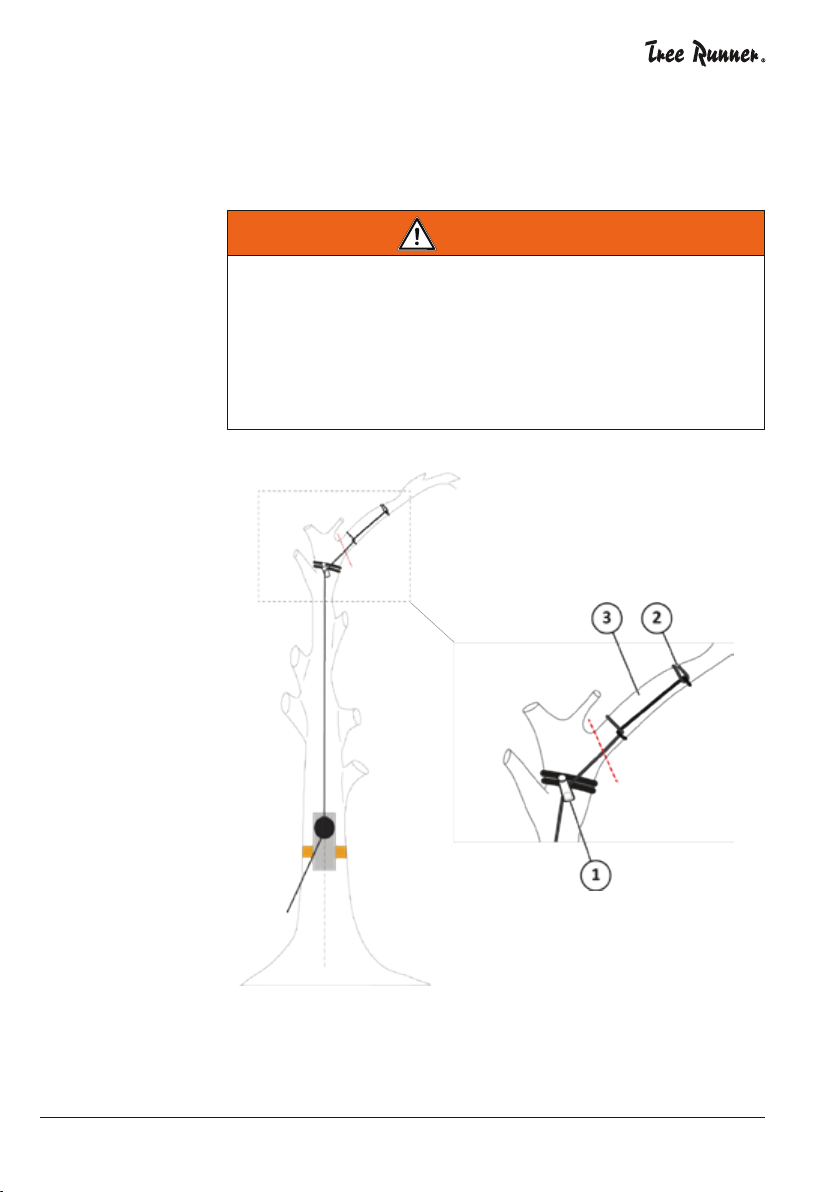

Fig. 5: Preparatory work

1707.2020 |
Commissioning and operation
Tree Runner Rigging Bollard 71-879, 71-877, 71-818
›Attach a pulley (1) to the tree trunk.
›Guide the load rope through the deection pulley.
WARNING
Risk of injury due to obstruction of the load rope!
Due to poor all-round visibility, the climber may inadvertently tie in
the load rope with his safety rope.
›Both as a climber and as a ground man, make sure that the load
rope is not obstructed by safety ropes.
›Attach the end of the rope (2) to the part of the tree to be removed
(3).
›Make sure that the rope runs vertically into the bollard from above.
Communication
Communication between the rigging partners is safety relevant.
Depending on the point of view of the ground man or the climber, the
overview of the course of ropes, cuts, inclinations of tree parts as well
as the estimation of the weight of the tree parts can be very different.
Helmet radio and/or predetermined hand signals facilitate communi-
cation during work.
›Check the procedure of your rigging partner according to the four
eyes principle.
›In the event of unclear and dangerous situations, interrupt work at
short notice with a previously dened stop signal.
Working in a changing position (climber/ground man) allows
a better understanding of the work and safety aspects of the
respective work area.
i
EN

18 | 07.2020
Commissioning and operation
Tree Runner Rigging Bollard 71-877, 71-879, 71-818
Dynamic lowering
The dynamic lowering of loads is used to relieve the load on all compo-
nents that are used during the lowering process. This prevents sudden
impact forces that can affect the load rope, tree trunk and working
position of the ground crew when falling down.

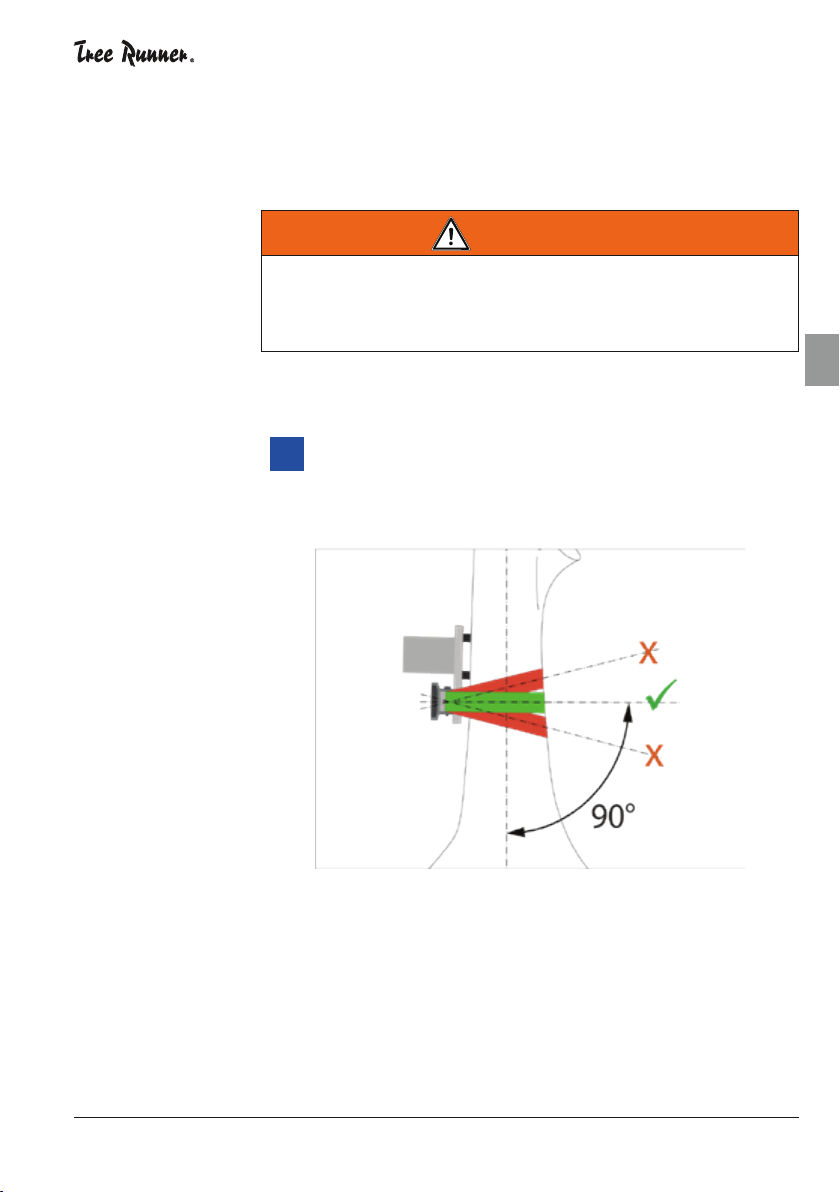

Position of the ground man
The optimum position for the ground man is laterally at a 90° angle to
the rigging bollard. This prevents unnecessary deections of the rope
and the rope cannot slip off the brake tube.
WARNING
Risk of injury through unsuitable gloves!
The load rope can slip through wet or slippery gloves or gloves
unsuitable for gripping. The load can then no longer be lowered in
a controlled manner.
›Use gloves with which you can inspect the load rope.
›Inspect the gloves for damage before each use.
WARNING
Risk of injury from stumbling in the working area!
The ground man may trip over objects in the working area when
lowering.
›Make sure that the working area is clear of wood scraps, obstacles
and objects likely to cause tripping.
›Keep walking and rope paths clear.
›After consultation with the climber, wrap the load rope with the
appropriate assignment (see chapter „Möglichkeiten der Seilbele-
gungen“ auf Seite 20) around the rigging bollard.
›Position yourself at a safe distance to the side of the bollard.
›Let the rope sag slightly. Do not keep the rope taut.
›Make sure that you can always hold the rope securely with both
hands. Do not wrap the rope around the body or limbs.

1907.2020 |
Commissioning and operation
Tree Runner Rigging Bollard 71-879, 71-877, 71-818
Position of the climber
WARNING
Risk of injury due to incorrect position of the climber!
The climber can be thrown away or hit by rocking the separated tree
part.
›Position yourself clearly above the planned braking point when
lowering the detached tree part.
EN

20 | 07.2020
Commissioning and operation
Tree Runner Rigging Bollard 71-877, 71-879, 71-818
Possibilities of rope layouts
CAUTION
Danger due to incorrect rope windings!
Incorrect rope windings have a considerable effect on the braking
behaviour and wear of the rope.
›Wind up the rope with the appropriate covering only in the area
between the deection tubes.
Depending on the weight of the tree part to be lowered, the correct
number of windings of the load rope around the brake pipe must be
selected.
The less windings are made around the brake tube, the more
dynamically the load can be lowered, as there is less friction
between rope and brake tube.
However, too few windings can lead to the load not being held
and falling to the ground uncontrollably.
i
