Gruetzner Lubricus S User manual

User manual
LUB-S-V (24 VDC)

2
Table of contents
Revision history ..............................................................................5
Imprint of the manufacturer...........................................................5
1. General information about this manual................................6
1.1 Signal words................................................................................. 6
1.2 Warning symbols ......................................................................... 7
1.3 Structure of the safety instructions............................................ 7
1.4 Symbols for information.............................................................. 8
2. Safety ....................................................................................8
2.1 EG/EU Directive............................................................................ 8
2.2 Hazards ........................................................................................ 8
2.3 Staff .............................................................................................. 8
2.4 Reasonably predictable misuse.................................................. 9
2.5 Usage for the intended purpose ................................................. 9
2.6 Warranty and liability ................................................................... 9
2.7 General safety instructions .......................................................10
3. Description of function........................................................11
3.1 General information................................................................... 11
3.2 Nameplate and designation......................................................12
3.3 Scope of delivery........................................................................12
3.4 Technical data............................................................................ 13
4. Transport and storage.........................................................14
4.1 Packaging...................................................................................14
4.2 Transport.................................................................................... 14
4.3 Storage ....................................................................................... 14
5. Mounting .............................................................................15
5.1 Preparations............................................................................... 15
5.2 Mechanical mounting................................................................ 15
5.3 Mounting height......................................................................... 16
5.4 Mounting of the LUB-S............................................................... 17
5.5 Start-up....................................................................................... 20

3
6. Operation and settings........................................................21
6.1 General information................................................................... 21
6.2 Menu and display messages ....................................................24
6.3 Actions with the actication and programming key.................. 27
6.3.1 Switching LUB-S on and off ................................................. 29
6.3.2 Get information about the LUB-S.........................................31
6.3.3 Perform a Quick-Check ........................................................ 33
6.3.4 Set operating mode and cartridge size............................... 35
6.3.4.1 Operating mode Setting Lubrication cycle duration .... 38
6.3.4.2 Operating mode Setting Emptying time .......................46
6.3.4.3 Operating mode pulse control.......................................53
6.3.5 Activate the Filling-menu .....................................................54
6.4 Error and information messages on the display......................56
6.5 Empty level warning...................................................................57
7. Output signals – Time control.............................................58
7.1 Pin assignment – Time control................................................. 58
7.2 Output signals – Time control ..................................................59
8. Input and output signals – External control (PLC) .............60
8.1 Pin assignment – External control (PLC).................................60
8.2 Input signals – External control (PLC)...................................... 61
8.2.1 Control/input signal „1 lubrication stroke“..........................63
8.2.2 Control/input signal „Filling“................................................ 65
8.2.3 Control/inputsignal„Cancellling“ ....................................67
8.2.4 Control/input signal „Status request“ .................................68
8.2.5 Control/input signal „Acknowledge error“ ..........................69
8.3 Output signals – External control (PLC)................................... 70
9. Maintenance and disposal...................................................72
9.1 Maintenance schedule .............................................................. 72
9.1.3 Visual inspection .................................................................. 73
9.1.1 Cleaning ................................................................................ 73
9.1.2 Recommissioning after maintenance................................. 73
9.2 Cartridge change ....................................................................... 74
9.3 Disposal...................................................................................... 76
10. Further notes ......................................................................77
10.1 Lubricants................................................................................... 77
10.2 Pipe lengths................................................................................ 77

4
11. Appendix .............................................................................78
11.1 Dimension sheet and installation dimension........................... 78
11.2 EC/EU Declaration of conformity.............................................. 79
The above data and information correspond to the current state of knowledge and our develop-
ment. However, they do not represent any assurance of properties or a guarantee for the suitability
of the products in individual cases. We reserve the right to change the information in this technical
data sheet at any time and without prior notice or to make technical changes. The representation
in the pictures may dier from the original.

5
Revision history
This manual was written in German, all other language versions are translations of this manual.
This user manual is only valid for
Product:
Product designation: Lubricus S (LUB-S)
Product revision: ---
User manual:
Date of creation: 05.2022
Revision of the user manual: 0
Language: EN
This document is protected by copyright.
All rights for layout, content, texts and corporate design are reserved by Gruetzner
GmbH © 2022. All rights, including those of photomechanical reproduction, duplica-
tion and distribution by means of special processes (e.g. data processing, data carriers
and data networks), even in part and/or in extracts, are reserved by Gruetzner GmbH.
The content and technical specications are subject to change without notice.
Imprint of the manufacturer
Adress:
Gruetzner GmbH
Dagobertstr. 15
D-90431 Nürnberg
Tel: [phone]
Fax: [phone]
[email protected]
www.G-LUBE.com
Handelsregister beim Amtsgericht Nürnberg HRB 12109
USt.-ID: DE 160441123
Geschäftsführung: Volker Grützner

6
1. General information about this manual
This user manual contains all necessary information to use the Lubricus-S in the power sup-
ply version, hereinafter referred to as LUB-S, safely and as intended. In the event that sup-
plementary sheets are attached to these instructions, the information and data contained
in the supplementary sheets are valid and replace the corresponding information in this user
manual. Any contradictory information contained in this user manual thus becomes invalid.
If you have any questions regarding special applications, please contact Gruetzner GmbH.
The actual and factual operator must ensure and guarantee that these instructions, including any
supplementary sheets, have been read and understood by all persons responsible for the installa-
tion, operation or maintenance of the LUB-S. Therefore, keep these instructions in a suitable place,
ideally in an easily accessible place, in the surrounding area of the LUB-S.
Inform your colleagues who work in the local area of the machine about safety instructions so that
nobody gets hurt.
This manual was written in German, all other language versions are translations of this manual.
1.1 Signal words
DANGER
WARNING
CAUTION
NOTICE
This signal word points you to an immediate and threatening risk of serious
injury or death.
This signal word indicates a potentially imminent danger which can result in
serious injury or even death.
This signal word indicates a potentially imminent danger that can result in
minor to severe injuries.
This signal word indicates a potentially imminent danger which can result in
damage to property.
INFORMA TION This signal word refers to practical application tips or particularly important
information when using the LUB-S.
The design of the signal boxes is based on ANSI Z535.

7
CAUTION
The text explains the consequences of disregarding the reference.
• The text shows what to do as an instruction.
1.2 Warning symbols
GENERAL
WARNING SIGN
ELECTRICITY
HAZARD
FLAMMABLE
MATERIAL
The following warning symbols are used in this user manual to alert you to hazards, prohibitions
and important information:
1.3 Structure of the safety instructions
The safety instructions in this user manual are structured according to the following system:

8
1.4 Symbols for information
The following information symbols are used in the text and instructions in this manual:
XRequests you to take action
ÂShows the consequences of an action
LAdditional information about the action
2. Safety
All persons working with the LUB-S must follow these operating instructions, in particular the sa-
fety instructions and the rules and regulations applicable at the place of use. Generally applicable
legal regulations and other rules as well as the relevant rules and regulations for accident preven-
tion (e.g. Personal Protective Equipment (PPE)) and environmenal protection must be observed.
2.1 EG/EU Directive
Within the scope of the EC/EU Directive, (re)commissioning of a machine on which the LUB-S has
been installed and/or tted is prohibited until it has been clearly established that the machine
complies with the provisions of the applicable directive.
An EC/EU declaration of conformity for the LUB-S can be found in the appendix.
2.2 Hazards
In order to avoid danger to the user or damage to the machine on which the LUB-S is used, the
LUB-S may only be used for its intended purpose and in a technically safe condition.
Always inform yourself about the general safety instructions before starting to work.
2.3 Sta
Only qualied sta who has read and understood this manual may work with the LUB-S. Local and/
or company regulations apply accordingly.

9
2.4 Reasonably predictable misuse
Any use of the LUB-S which exceeds the maximum permissible technical data is generally conside-
red to be improper and therefore prohibited.
2.5 Usage for the intended purpose
The following points must be observed for the intended purpose of using the LUB-S:
• The LUB-S is exclusively approved for industrial use.
• The LUB-S may be used exclusively in accordance with the technical data.
• Unauthorized structural alterations to the LUB-S are not permitted.
• Read the user manual and act accordingly.
• During operation of the LUB-S, a visual inspection of the LUB-S as well as of the lubrication
point must be carried out regularly. Any anomalies must be eliminated immediately and the cause
rectied.
• Relling the cartridge is not permitted.
• The LUB-S may not be opened or disassembled.
• Only lubricants approved by the manufacturer may be used.
• Relevant regulations and rules on work safety, accident prevention and environmental protection
must be observed.
• Work and activities with and on the LUB-S are only permitted with appropriate authorisation.
All other uses than the aforementioned intended usage or the disregard of one of the above points
shall be deemed improper usage. In this case no liability and/or warranty is assumed.
2.6 Warranty and liability
If the following items are disregarded, all warranty and liability claims for personal injury and/or
damage to property are excluded:
• Non-observance of the instructions for transport and storage;
• misuse;
• Improper or unperformed maintenance or repair work;
• Improper assembly / disassembly or improper operation;
• Operation of the LUB-S with defective protective devices and devices;
• Operation of the LUB-S without lubricant;
• Operation of the LUB-S with non-approved lubricant;
• Operation of heavily contaminated LUB-S;
• Modications or alterations which may be carried out without the written permission of Gruetzner
GmbH have taken place;
• Opening and/or partial or complete disassembly of the LUB-S.

10
2.7 General safety instructions
The following safety instructions are given for the LUB-S:
DANGER
Damaged or incorrect electrical connections or unauthorized live com‑
ponents lead to serious injuries or even death.
• Have all electrical connection work carried out by qualied personnel only.
• Replace damaged cables or plugs immediately.
NOTICE
Loose or overloaded screw connections can cause damage to the
LUB‑S.
• Mount and check all screw connections with the permissible torques specied
for this purpose. Use a calibrated torque wrench.
WARNING
Lubricants are ammable.
• In case of re, do not use a water jet to extinguish the re.
• In case of re, use only suitable extinguishing agents such as powder, foam
and carbon dioxide.
• Observe the relevant safety instructions of the lubricant manufacturer on the
safety data sheet of the lubricant used.
CAUTION
Lubricants can cause skin irritations.
• Avoid direct skin contact.
NOTICE
Lubricants can contaminate soil and water.
• Use and dispose lubricants properly.

11
3. Description of function
3.1 General information

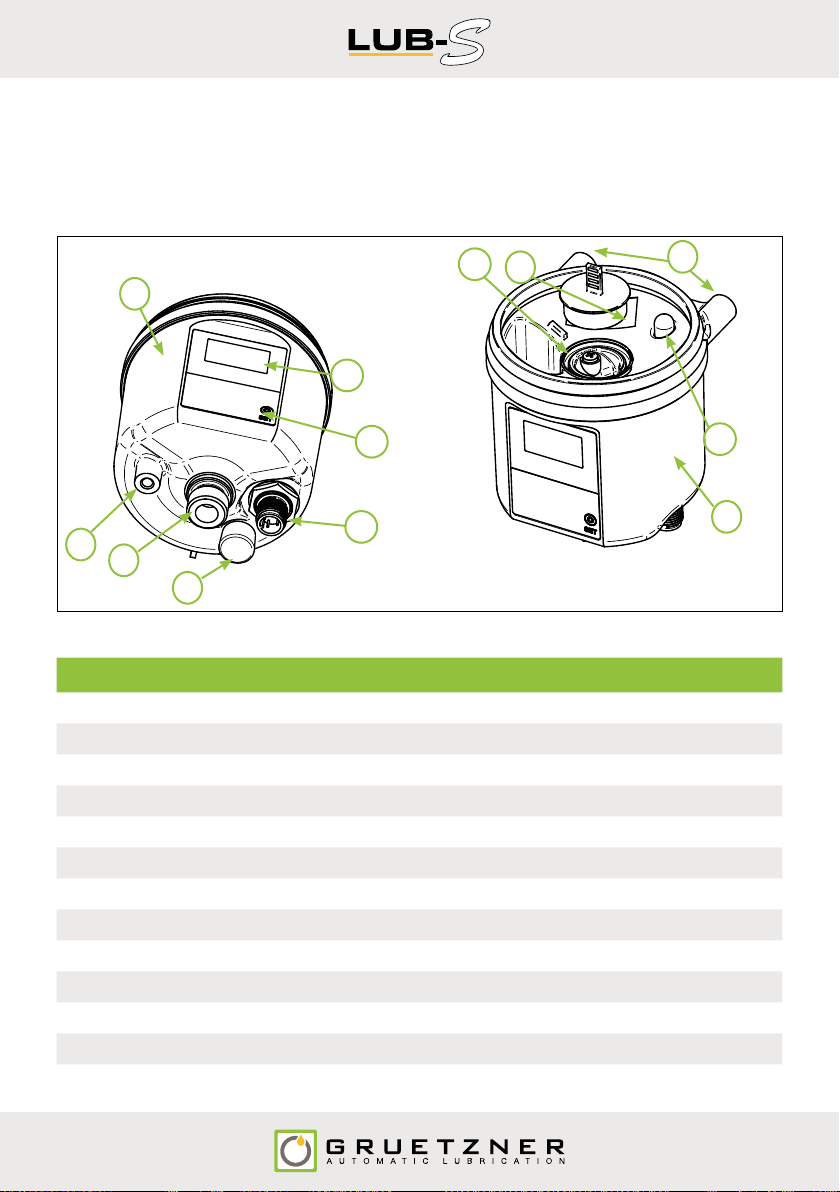

Fig. 1: Overview LUB-S
10
9
7
11
4
5
0
3
1
2
6
8
Nr. Description
0 Lubricus-S (LUB-S)
1 OLED-Display
2 Action area (for actions with the activation and programming key)
3 M12x1 electrical interface
4 Activation and programming key
5 Lubricant outlet / M16 male thread for bottom mounting
6 M5 female thread for bottom mounting
7 Serial number of the LUB-S
8 M5 female thread for rear mounting
9 Cartridge sensor
10 Lubricant inlet with thread for cartridge
11 Nameplate with designation and CE mark

12
The LUB-S is designed as an extremely compact piston pump for the lubricant grea-
se. The outlet is secured by an integrated check valve. Approx. 0.15 ml of lubricant is de-
livered with each lubrication stroke; several lubrication strokes in succession can be set.
The various operating states are shown in the front-mounted display; further information (empty
level warning, empty cartridge level, errors) can be accessed.
The present LUB-S as 24V DC version has an electrical interface. The supplied activation and
programming key can be used to adjust or set the operating mode and the quantity of lubricant
delivered per time in order to supply the lubrication point with the ideal quantity of lubricant.
3.2 Nameplate and designation
The nameplate of the LUB-S is visibly attached to the side of the pump itself. There the CE mark
and the serial number of the LUB-S are visible. Refer to Fig. 1 for the location of the nameplate
and serial number.
3.3 Scope of delivery
The scope of delivery includes the LUB-S and any accessories ordered. The LUB-S is delivered
without lubricant cartridge.
All versions of the LUB-S are prelled with a neutral, food-grade (H1) lubricant (ap-
prox. 3 ml), which can be mixed with the lubricants approved by Gruetzner GmbH, to
simplify the initial commissioning. The manufacturer‘s designation is Total Ceran FG.
Further data and documentation on the lubricant Total Ceran FG are available on request from
Gruetzner GmbH.

13
3.4 Technical data
Housing
Dimensions without cartridge 83 x 82 x 85 (W x H x D)
mm
Dimensions with 125 ml cartridge 83 x 149 x 85 (W x H x D)
Dimensions with 250 ml cartridge 83 x 185 x 85 (W x H x D)
Weight (without cartridge) approx. 350 g
Mounting options Back: female thread M5 (2x)
Bottom: female thread M5 (1x)
Bottom: male thread M6x1,5 (1x)
Preferred mounting position upright
Material housing PA 6.6 GF30 / POM
Material outlet stainless steel
Operating temperature – 20 ... + 70 °C
Lubricant and hydraulics
Volume cartridge 125 / 250 ml
Lubricant characteristics Grease until NLGI class 2
Number of outlets 1
Hydraulic connection via PA-tube Ø 6mm
directly (with adapter)
Number of lubrication points depending on accessories
Max. pressure build‑up 50 bar
Lubricating volume per stroke 0,15 ml
Electrics
Display OLED-Display
Operating voltage 24 (+/- 5%) V DC
Protection 0,75 (träge) A
Protection class IP 54
Current consumption I
max
< 0,3 I
qiescent
< 0,025 A

14
4. Transport and storage
4.1 Packaging
The LUB-S is delivered in an outer packaging (cardboard box) and - depending on the scope of
delivery with a lubricant cartridge and other accessories - in the same package. To protect them
from moisture and dirt, they are also packed in PE lms.
Dispose the packaging materials at the designated disposal points in compliance with the relevant
national and company regulations.
After receiving the LUB-S, check the delivery note for completeness and correctness.
Any missing parts or damage must be reported immediately to the forwarding agent, the insurance
company or Gruetzner GmbH in writing.
4.2 Transport
NOTICE
Hard shocks, e.g. due to falling or setting down too hard, can damage
the LUB‑S.
• Do not throw the LUB-S.
• When using lifting equipment, only use hoists and load handling attachments
in perfect condition and with sucient load capacity.
• The permissible lifting weight of the lifting device must not be exceeded.
4.3 Storage
Store the LUB-S in its original packaging in a vertical position in a dry, frost-free environment at
an ambient temperature of – 20°C to + 40°C. The maximum storage time in unopened condition
is 2 years.
The so-called „First-In-First-Out-Principle“ (FiFo) is recommended for storage logistics.

15
5. Mounting
5.1 Preparations
Before starting to work, inform yourself in detail about the LUB-S using this user manual; in par-
ticular about the general safety instructions (section 2.7). Prepare the installation site carefully.
NOTE
Pressurised air can damage the seals of the LUB‑S and can transport
dirt and foreign matter into the LUB‑S or the lubricant.
• Do not use pressurised air.
• Make sure that there is no coarse dirt in the mounting area.
5.2 Mechanical mounting
Three brass inserts with internal threads on the
housing and an M16x1.5 external thread on the
lubricant outlet are available for fastening the LUB-
S at the intended mounting location.
XFasten the LUB-S using a minimum of two DIN
912 socket head screws of size M5x8 (screw-in
depth on the LUB-S > 6mm) or longer on the
housing or with an M16x1.5 nut on the lubricant
outlet.
XSecure the screws or nuts with suitable thread-
locker.
LSuitable adapters, brackets and plates are also
available as accessories for mounting.

16
5.3 Mounting height
When selecting the mounting location, observe the minimum mounting heights required for the
LUB-S in the version with 125 ml cartridge volume or 250 ml cartridge volume for disassembly and
assembly of the cartridge.
min. mounting height version
125 ml [mm]
min. mounting height ver‑
sion 250 ml [mm]
147,8
43,5
60
16M x1,5
7 3Ø82,9Ø
Schmierstoffanschluss
M10x1-7mm tief innen
85
Stecker M12x1
M12x1 connector
Befestigungsgewinde
M5-8mm tief
Fastening thread
M5-8mm deep
min. 176 mm
11
Lubricant connection
M10x1-7mm deep inside
82,7
183,8
43,5
60
16M x1,5
7 3Ø82,9Ø
Schmierstoffanschluss
M10x1-7mm tief innen
85
Stecker M12x1
M12x1 connector
Befestigungsgewinde
M5-8mm tief
Fastening thread
M5-8mm deep
min. 212 mm
11
Lubricant connection
M10x1-7mm deep inside
82,7

17

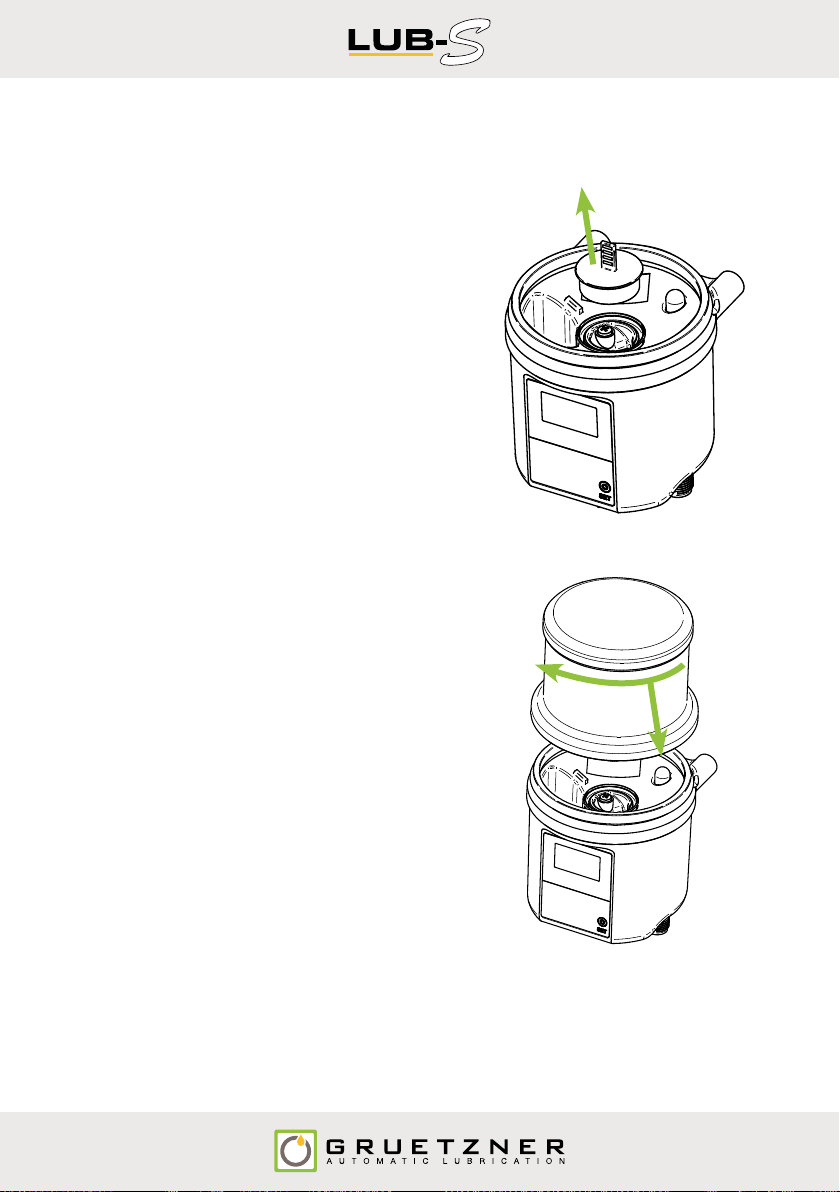

5.4 Mounting of the LUB‑S
1. Remove the protective cap from the top of the LUB-S.
XRemove the yellow protective cap from the top of the
lubricant inlet of the LUB-S.
XDispose of the protective cap properly.
LMake sure that no dirt, water or foreign bodies en-
ter/s the lubricant inlet.
2. Mounting the lubricant cartridge
XTurn the cap on the lubricant cartridge counterclock-
wise and pull it o.
XPlace the full lubricant cartridge on the LUB-S with the
label facing forwards.
XTurn the lubricant cartridge clockwise until it physical-
ly stops on the LUB-S.
LThe end position should be reached after two full ro-
tations when the lubricant cartridge label is aligned with
the front of the LUB-S.

18
4. Connect the electrical interface
XConnect the LUB-S to the external power supply or
controller via the M12x1 interface on the side of the
LUB-S using a suitable connecting cable.
LDepending on the application, both connection ca-
bles with straight or angled socket can be used.
LPlease refer to chapter 7.1 or chapter 8.1 for the
condition of the connection cable.

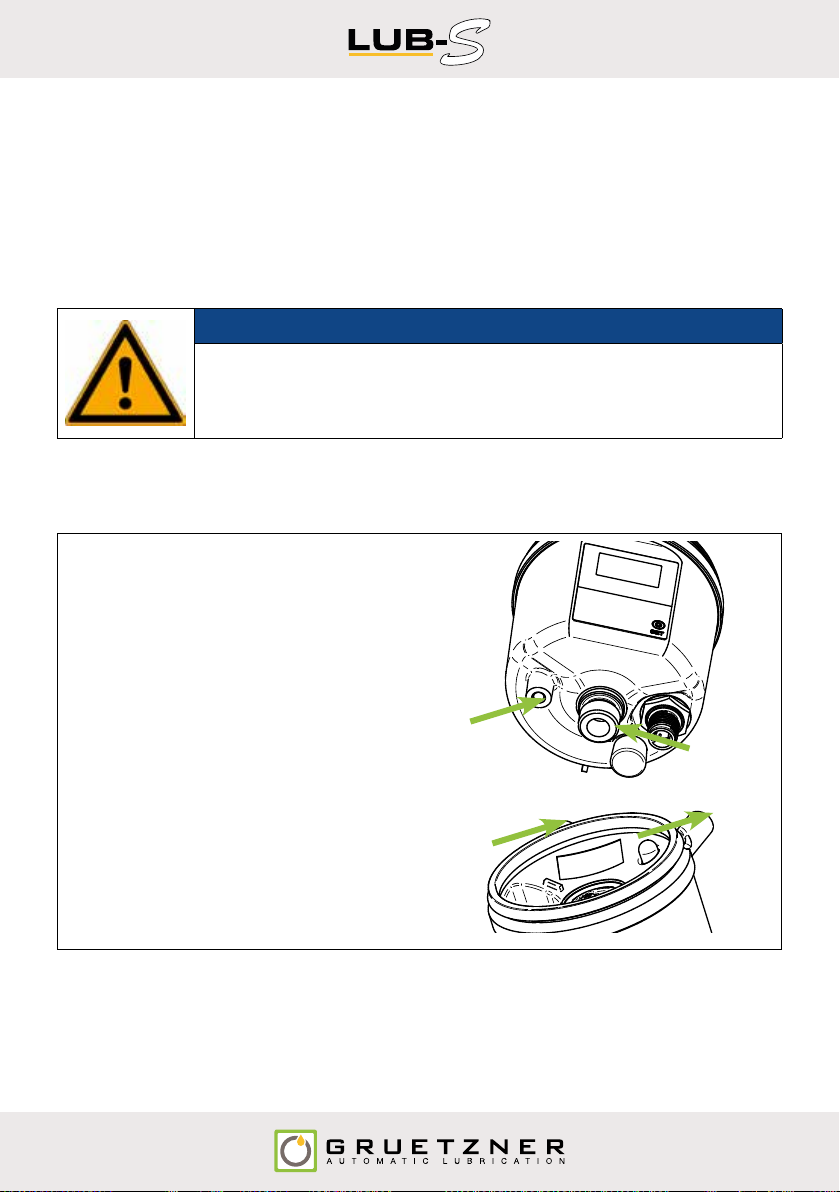

3. Remove the protective caps from the bottom of
the LUB-S.
XUnsrew the yellow protective cap counterclockwise
from the bottom of the lubricant outlet of the LUB-S.
XPull the black protective cap o the M12x1 elec-
trical interface at the bottom in the direction of the
arrow.

19
DANGER
Defective or faulty electrical connections or unauthorized live compo‑
nents can lead to serious injuries or even death.
• Have all electrical connection work carried out by qualied personnel only.
• Replace damaged cables or plugs immediately.
• Before carrying out any electrical installation work, observe the ve safety
rules of electrical engineering:
- Unlocking
- Secure against unintentional restarting.
- Check that there is no voltage.
- Ground and short-circuit.
- Cover adjacent live parts.

20
5.5 Start‑up
Mount the LUB-S carefully according to the steps described in the chapters before. Depending on
the scope of delivery, you must also carry out the following additional measures for the rst-time
commissioning:
1. Check the assembly
Make sure that the LUB-S is properly and completely assembled. In partricular, the battery must be
inserted and a lubricant cartridge must be tted.
2. Power on
If you want to put the LUB-S into operation, switch on the LUB-S. Only if you switch the LUB-S on,
it delivers lubricant to the lubrication point according to the settings. The detailed description for
powering on can be found in chapter 6.3.1.
3. Setting the cartridge size
The LUB-S is factory-set to use cartridges with a 125 cm3capacity. If you use a cartridge with a 125
cm3capacity during operation, you can skip this step. If you use a cartridge with a capacity of 250
cm3 , you must adjust this in the software of the LUB-S in the Settings menu, see Chapter 6.3.4.
4. Hydraulic connection
Connect the consumer hydraulically to the LUB-S. If you connect tubes to the LUB-S, make sure,
that the tubes and connectors are istalled tightly, cleanly and correctly.
LIdeally, use tubes prelled with the appropiate lubricant!
5. Activate lling function
Execute the lling function. The detailes description can be found in chapter 6.3.5. The LUB-S
carries out a pump cycle PZ with a total of 40 lubrication strokes C with the activation.
6. Check the settings on the LUB‑S
Compare the basic settings of the LUB-S with the values required for the lubrication point and ad-
just them if necessary. Changes to the LUB-S must be made in the Settings menu, see Chap. 6.3.4.
