Gruetzner Lubricus LUB-D Series User manual

User manual
LUB-D

02
I. Revision history & imprint
I.I Revision history
The present user manual is the original user manual.
This user manual is only valid for
Product:
Product designation: Lubricus D (LUB-D)
Product revision: ---
User manual:
Date of creation: 02.2020
Revision of the user manual: 1
This document is protected by copyright.
All rights for layout, content, texts and corporate design are reserved by
Gruetzner GmbH, © 2021.
All rights, including those of photomechanical reproduction, duplication and distribution
by means of special processes (e.g. data processing, data carriers and data networks),
even in part and/or in extracts, are reserved by Gruetzner GmbH.
The content and technical specications are subject to change without notice.
I.II Imprint
Adress:
Gruetzner GmbH
Kohlenhofstr. 60
90443 Nuremberg, Germany
Tel: [phone]
Fax: [phone]
[email protected]
www.G-LUBE.com
Commercial Register of Nuremberg Local Court: HRB 12109
USt.-ID: DE 160441123
CEO: Volker Grützner

03
I. Revision history & imprint 02
I.I Revision history 02
I.II Imprint of the manufacturer, distribution and service 02
I.III Table of contents 03
1. General information about this manual 05
1.1 Signal words 05
1.2 Warning symbols 06
1.3 Structure of the safety instructions 06
1.4 Symbols for information 06
2. Safety 07
2.1 EC/EU Directive 07
2.2 Hazards 07
2.3 Sta󰀨 07
2.4 Reasonably predictable misuse 07
2.5 Usage for the intended purpose 08
2.6 Warranty and Liability 08
2.7 General safety instructions 09
3. Description of function 10
3.1 General information 10
3.2 Nameplate and designation 11
3.3 Scope of delivery 11
3.4 Technical data 12
4. Transport and storage 13
4.1 Packaging 13
4.2 Transport 13
4.3 Storage 13
5. Versions 14
5.1 LUB-D-1 14
5.2 LUB-D-2 15
5.3 LUB-D-1-1 16
5.4 LUB-D-3 17
5.5 LUB-D-4 18
I.III Table of contents
Chapter Content Page

04
6. Mounting 19
6.1 Preparations 19
6.2 Assembly 19
6.3 Commissioning 23
7. Operation and settings 24
7.1 General information 24
8. Input and output signals - external control (PLC) 25
8.1 Pin assignment 25
8.2 Input signals 26
8.2.1 Control signal 2 seconds 27
8.2.1 Control signal 5 seconds 29
8.2.1 Control signal 8 seconds 31
8.2.2 Control signal 12 seconds 33
8.2.3 Control signal 14 seconds 35
8.3 Output signals/LCD messages 37
8.3.1 Empty level (E1) 38
8.3.2 Error: overload (E2) 40
8.3.3 Error: undervoltage (E3) 41
8.3.4 Fatal error (E4) 42
9. Maintenance and disposal 43
9.1 Maintenance schedule 43
9.1.1 Visual check 44
9.1.2 Cleaning 44
9.1.3 Recommissioning after maintenance 44
9.2 Cartridge change 45
9.3 Disposal 48
10. Released accessories 49
10.1 Lubricants 50
10.2 Tube lengths 50
11. Appendix 51
11.1 Dimension sheet and installation dimensions 51
11.2 EC/EU declaration of conformity 53
11.3 Flowchart pulse control mode PUL 54
Chapter Content Page

05
1. General information about this manual
This user manual contains all necessary information to use Lubricus D, hereinafter
referred to as LUB-D, safely and as intended. In the event that supplementary
sheets are attached to these instructions, the information and data contained
there are valid and replace the corresponding information in this user manual.
Any contradictory information contained in this user manual thus becomes invalid.
If you have any questions regarding special applications, please contact Gruetzner
GmbH (chapter I.II).
The actual and factual operator must ensure and guarantee that these instructions,
including any supplementary sheets, have been read and understood by all persons
responsible for the installation, operation or maintenance of LUB-D. Therefore, keep
these instructions in a suitable place, ideally in an easily accessible place in the
surrounding area of LUB-D.
Inform your colleagues who work in the local area of the machine about safety instruc-
tions so nobody gets hurt.
This manual was written in German, all other language versions are translations of this
manual.
1.1 Signal words
The following signal words are used in this manual to draw your attention to possible
dangers, prohibitions and other important information:
DANGER
WARNING
CAUTION
NOTICE
INFORMATION
This signal word points you to an immediate and threatening risk of
serious injury or death.
This signal word indicates a potentially imminent danger which can
result in serious injury or even death.
This signal word indicates a potentially imminent danger that can result
in minor to severe injuries.
This signal word indicates a potentially imminent danger which can
result in damage to property.
This signal word refers to practical application tips or particularly
important information when using LUB-D.

06
1.2 Warning symbols
The following warning symbols are used in this user manual to alert you to hazards,
prohibitions and important information:
1.3 Structure of the safety instructions
The safety instructions in this user manual are structured according to the following
system:
CAUTION
This text explains the consequences of disregarding the
reference.
• This text shows what to do as an instruction.
1.4 Symbols for information
The following information symbols are used in the text and instructions in this manual:
lRequests you to take action
ÜShows the consequences of an action
Additional information about the action
General
warning sign
Electricity
hazard
Flammable
material

07
2. Safety
All persons working with LUB-D must follow these operating instructions, in particular the
safety instructions and the rules and regulations applicable at the place of use. Generally
applicable legal regulations and other rules as well as the relevant rules and regulations
for accident prevention (e.g. personal protective equipment (PPE)) and environmental
protection must be observed.
2.1 EC/EU Directive
Within the scope of the EC/EU Directive, (re)commissioning of a machine on which
LUB-D has been installed and/or tted is prohibited until it has been clearly estab-
lished that the machine complies with the provisions of the applicable directive.
An EC/EU declaration of conformity for LUB-D can be found in the appendix (chapter
11.2).
2.2 Hazards
In order to avoid danger to the user or damage to the machine on which LUB-D is used,
LUB-D may only be used for its intended purpose (chapter 2.5) and in a technically safe
condition.
Always inform yourself about the general safety instructions (chapter 2.7) before starting
to work.
2.3 Sta󰀨
Onlyqualiedsta󰀨whohasreadandunderstoodthismanualmayworkwithLUB-D.
Local and/or company regulations apply accordingly.
2.4 Reasonably predictable misuse
Any use of LUB-D which exceeds the maximum permissible technical data is generally
considered to be improper and therefore prohibited.

08
2.5 Usage for the intended purpose
The following points must be observed for the intended purpose of using LUB-D:
• LUB-D is exclusively approved for industrial use.
• LUB-D may be used in accordance with the technical data (chapter 3.4) exclusively.
• Unauthorized structural alterations to LUB-D are not permitted.
• Read the user manual and act accordingly.
• During operation of LUB-D, a visual inspection of LUB-D as well as of the lubrication
point must be carried out regularly. Any anomalies must be eliminated immediately
andthecausemustberectied.
• Rellingthecartridgeisnotpermitted.
• LUB-D may not be opened or disassembled.
• Only lubricants approved by the manufacturer may be used.
• Relevant regulations and rules on work safety, accident prevention and environmen-
tal protection must be observed.
• Work and activities with and on LUB-D are only permitted with appropriate authori-
sation (chapter 2.3).
All other uses than the aforementioned intended usage or the disregard of one of the
above points shall be deemed improper usage. In this case no liability and/or warranty
is assumed.
2.6 Warranty and Liabilty
If the following items are disregarded, all warranty and liability claims for personal injury
and/or damage to property are excluded:
• non-observance of the instructions on transport and storage;
• misuse;
• improper or unperformed maintenance or repair work;
• improper assembly / disassembly or improper operation;
• operation of LUB-D with defective protective devices;
• operation of LUB-D without lubricant;
• operation of LUB-D with non-approved lubricant;
• operation of heavily contaminated LUB-D;
• modicationsoralterationswhichmaybecarriedoutwithoutthewrittenpermission
of Gruetzner GmbH have taken place;
• opening and/or partial or complete disassembly of LUB-D.

09
1.2 General safety instructions
The following safety instructions are given for LUB-D:
DANGER
Damagedorawedelectricalconnectionsorunlicensedhot
components lead to heavy injuries or even death.
• All work on electrical connections shall be provided by
qualiedpersonnelonly.
• Immediately change damaged cables or plugs.
NOTICE
Loose or overloaded screw connections can cause damage to
LUB-D.
• Mount and check all screw connections with the permissible
torques specied for this purpose. Use a calibrated torque
wrench.
WARNING
Lubricantsareammable.
• Incaseofredonotuseawaterjettoextinguish.
• Incaseofreonlyusesuitableextinguishingagentssuchas
powder, foam and carbon dioxide.
• Observe the relevant safety instructions of the lubricant manu-
facturer on the safety data sheet of the lubricant used.
CAUTION
Lubricants can cause skin irritations.
• Avoid direct skin contact.
NOTICE
Lubricants can contaminate soil and water.
• Use and dispose lubricants properly.

10
7
6
4
3
1
2
0
5

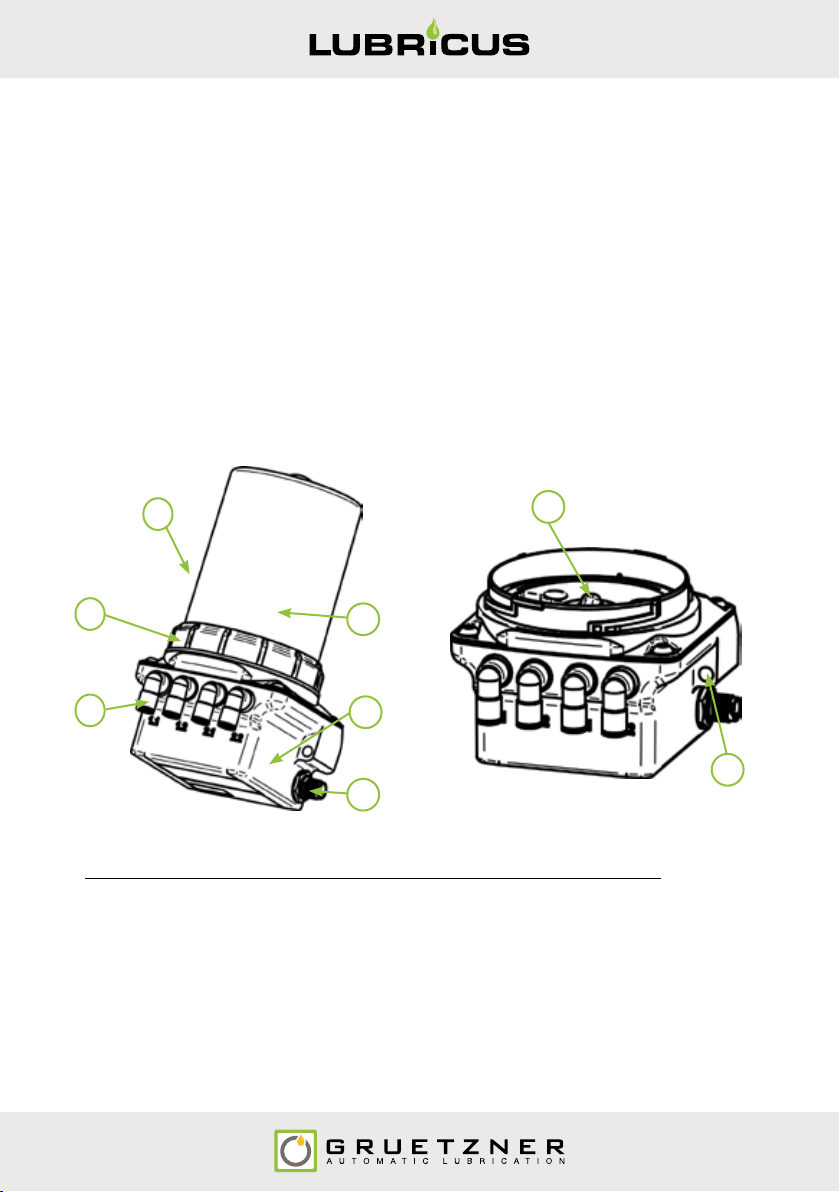

3. Description of function
3.1 General information
No. Description
0 Lubricus D (LUB-D)
1 Lubricant outlet(s) (dierent versions available)
2 Retaining ring
3 Housing (dierent versions available)
4 M12x1 electrical interface
5 Nameplate with designation, CE mark and serial number
6 Clearance hole for assembly
7 Lubricant inlet with thread for cartridge
Fig. 1: Overview LUB-D
LUB-D is designed as an extremely compact double piston pump. The two pistons run
force-controlled and counter-rotating. LUB-D is available with one, two, three or four
lubricant outlets (see chapter 5). The outlets are secured by an integrated non-return
valve. Approx. 0.16 cm³ of lubricant is pumped during each dispensing operation.
The present Lubricus D needs to be embedded into an external control (PLC). It provides
an electrical interface which is used to control and command LUB-D.
Furthermore, output signals of LUB-D enable a remote control which shows possible
error messages (e.g. empty cartridge) and allows to query the status anytime. By means
of various input signals processed by the microelectronics LUB-D is controlled to supply
the lubrication point with the ideal amount of lubricant.

11
3.2 Nameplate and designation
The nameplate of LUB-D is visibly attached to the side of the pump itself. There the
CE mark and the serial number of LUB-D are visible. Refer to chapter 3, Fig. 1 for the
location of the nameplate and serial number.
3.3 Scope of delivery
LUB-Disavailableinseveraldi󰀨erentversions.Theydi󰀨erintype(housingfor250or
400 ml cartridge), number of outlets and accessories supplied.

12
3.4 Technical data
Housing
Dimensions without cartridge
WxHxD
107 x 56.5 x 108
mmDimensions with housing 250 ml 107 x 165 x 108
Dimensions with housing 400 ml 107 x 198.5 x 108
Weight (incl. empty cartridge, depending on
model)
1285 - 1524 g
Mounting options holes for screw M6
Mounting position upright
Material housing zinc die-cast / PA 6.6 GF30 / POM
Material outlet nickel-plated brass
Operating temperature -15 ... +60* °C
Lubricant and hydraulic
Cartridge volume 250 / 400 cm³
Lubricant characteristics oils and greases up to NLGI 2
Number of outlets 1 / 2 / 3 / 4
Hydraulic connection via PA tube
Number of lubrication points* without accessories: up to 4
with splitters: up to 16
with progressive distributors: up to 20
Max. Pressure 70 (-10%/+15%) bar
Grease delivery per
stroke
0.16 (-5%) cm³
Electrics
Operating voltage 24 (+/- 5%) V
Protection 0.75 (slow blow) A
Protection class IP 54
Current draw Imax < 0.3 Irest < 0.025 A
Please see chapters 7 and 8 for more information about electrics.
*The stated value is down to the individual application and may extensively differ in some cases (depending on the lubricant and further conditions).

13
4. Transport and storage
4.1 Packaging
LUB-D is delivered in an outer packaging (cardboard box) and - depending on the scope
of delivery - with a lubricant cartridge and other accessories in the same package. To
protectthemfrommoistureanddirttheyarealsopackedinPElms.
Dispose the packaging materials at designated disposal points in compliance with the
relevant national and company regulations.
After receiving LUB-D check the delivery note for completeness and correctness. Any
missing parts or damages must be reported immediately to the forwarding agent, the
insurance company or Gruetzner GmbH in writing.
4.2 Transport
NOTICE
Hard shocks due to e.g. falling or setting down too hard can
damage LUB-D.
• Do not throw LUB-D.
• When using lifting equipment only use hoists and load hand-
lingattachmentsinperfectconditionandwithsu󰀩cientload
capacity.
• The permissible lifting weight of the lifting device must not be
exceeded.
Store LUB-D in its original packaging in a vertical position in a dry, frost-free environment
at an ambient temperature of +5 °C to +30 °C. The maximum storage time in unopened
condition is 2 years.
Theso-called"rst-in-rst-out"principle(fo)isrecommendedforstoragelogistics.
4.3 Storage

14
Maßstab/Scale
Benennung / Title
Material
NameDatum/Date
Warengruppe
Blatt/Sheet
Gewicht/Weight
Toleranzen / Tolerances: ISO 2768-1 m K
Schaumstoffteile nach DIN 7715 Teil 5 Klasse P2
Dieses Dokument ist Eigentum von: This document is ownership of:
3/3
Zeichnungsnr. / Drawing no.
Bearb.
Gepr.
Änd./Index
a
J. Niederg.
J. Niederg.
1:1,5
DIN A4 Maße in mmVK-Artikel-Nr.
Zus t.
Änderung Datum Name Gepr.
LUB-D-1
21.11.2017
21.11.2017
5. Versions
LUB-D is designed as a compact central lubrication unit for supplying one or more lubri-
cationpoints.DependingonthespecicapplicationLUB-Dcanalsoreliablyandcleanly
supply a limited number of lubrication points with lubricant. In this case accessories (e.g.
splitters, progressive distributors or lubrication gears) can be connected to LUB-D in
order to extend the number of lubrication points beyond the number of outlets. LUB-D
is available as a version with one and as a version with two pump bodies. The outlets of
pump body (PB) 1 are marked on the housing with 1.1 and 1.2, the outlets of pump body
2 with 2.1 and 2.2.
5.1 LUB-D-1 / LUB-D-1-250
LUB-D-1's theoretical two outlets of the built-in one pump unit are combined internally.
The outlet is supplied with 0.16 cm³ lubricant per stroke.
Number of pump units (PU) 1
Number of outlets 1
Differences in dosing volume per PU not applicable (only one PU)

15
Maßstab/Scale
Benennung / Title
Material
NameDatum/Date
Warengruppe
Blatt/Sheet
Gewicht/Weight
Toleranzen / Tolerances: ISO 2768-1 m K
Schaumstoffteile nach DIN 7715 Teil 5 Klasse P2
Dieses Dokument ist Eigentum von: This document is ownership of:
3/3
Zeichnungsnr. / Drawing no.
Bearb.
Gepr.
Änd./Index
a
J. Niederg.
J. Niederg.
1:1,5
DIN A4 Maße in mmVK-Artikel-Nr.
Zus t.
Änderung Datum Name Gepr.
LUB-D-2
21.11.2017
21.11.2017
5.2 LUB-D-2 / LUB-D-2-250
LUB-D-2's two outlets are supplied with the same quantity of lubricant. One outlet is
supplied with 0.16 cm³ lubricant per stroke. The outlets are supplied with lubricant one
after the other.
Number of pump units (PU) 1
Number of outlets 2
Differences in dosing volume per PU not applicable (only one PU)

16
Maßstab/Scale
Benennung / Title
Material
NameDatum/Date
Warengruppe
Blatt/Sheet
Gewicht/Weight
Toleranzen / Tolerances: ISO 2768-1 m K
Schaumstoffteile nach DIN 7715 Teil 5 Klasse P2
Dieses Dokument ist Eigentum von: This document is ownership of:
3/3
Zeichnungsnr. / Drawing no.
Bearb.
Gepr.
Änd./Index
a
J. Niederg.
J. Niederg.
1:1,5
DIN A4 Maße in mmVK-Artikel-Nr.
Zus t.
Änderung Datum Name Gepr.
LUB-D-1-1
21.11.2017
21.11.2017
5.3 LUB-D-1-1 / LUB-D-1-1-250
LUB-D-1-1's theoretical two outlets per installed pump unit are combined internally. One
outlet is supplied with 0.16 cm³ lubricant per stroke. The outlets are supplied with lubri-
cant one after the other.
LUB-D-1-1allowstosetdosingvolumedi󰀨erencesfromoutlet1.1tooutlet2.1byindivi-
dualcontrolofthetwopumpbodies.Anexplanationofthedi󰀨erentcontrolsignalscan
be found in chapter 8.2.
Number of pump units (PU) 2
Number of outlets 2
Differences in dosing volume per PU yes

17
Maßstab/Scale
Benennung / Title
Material
NameDatum/Date
Warengruppe
Blatt/Sheet
Gewicht/Weight
Toleranzen / Tolerances: ISO 2768-1 m K
Schaumstoffteile nach DIN 7715 Teil 5 Klasse P2
Dieses Dokument ist Eigentum von: This document is ownership of:
3/3
Zeichnungsnr. / Drawing no.
Bearb.
Gepr.
Änd./Index
a
J. Niederg.
J. Niederg.
1:1,5
DIN A4 Maße in mmVK-Artikel-Nr.
Zus t.
Änderung Datum Name Gepr.
LUB-D-3
21.11.2017
21.11.2017
5.4 LUB-D-3 / LUB-D-3-250
LUB-D-3'stheoreticaltwooutletsoftherstpumpbodyareinternallycombinedintoone
outlet 1.1. One outlet is supplied with 0.16 cm³ lubricant per stroke. The outlets are sup-
plied with lubricant one after the other.
LUB-D-3allowsyoutosetdosingvolumedi󰀨erencesfromoutlet1.1tooutlets2.1and
2.2bycontrollingthetwopumpbodiesindividually.Anexplanationofthedi󰀨erentcontrol
signals can be found in chapter 8.2.
If the two pump units are controlled equally, outlet 1.1 is supplied with twice the
amount of lubricant of outlets 2.1 or 2.2, due to the internal combination of the outlets of
therstpumpunit.
Number of pump units (PU) 2
Number of outlets 3
Differences in dosing volume per PU yes

18
Maßstab/Scale
Benennung / Title
Material
NameDatum/Date
Warengruppe
Blatt/Sheet
Gewicht/Weight
Toleranzen / Tolerances: ISO 2768-1 m K
Schaumstoffteile nach DIN 7715 Teil 5 Klasse P2
Dieses Dokument ist Eigentum von: This document is ownership of:
3/3
Zeichnungsnr. / Drawing no.
Bearb.
Gepr.
Änd./Index
a
J. Niederg.
J. Niederg.
1:1,5
DIN A4 Maße in mmVK-Artikel-Nr.
Zus t.
Änderung Datum Name Gepr.
LUB-D-4
21.11.2017
21.11.2017
5.5 LUB-D-4 / LUB-D-4-250
At LUB-D-4 each possible outlet is operated individually. One outlet is supplied with
0.16 cm³ lubricant per stroke. The outlets are supplied with lubricant one after the other.
LUB-D-4allowsyoutosetdosingvolumedi󰀨erencesfromoutlets1.1and1.2tooutlets
2.1and2.2byindividuallycontrollingthetwopumpbodies.Anexplanationofthedi󰀨e-
rent control signals can be found in chapter 8.2.
Number of pump units (PU) 2
Number of outlets 4
Differences in dosing volume per PU yes

19
1
2
6. Mounting
6.1 Preparations
Before starting to work, inform yourself in detail about LUB-D using this user manual; and
follow the general safety instructions (section 2.7) in particular. Prepare the installation
site carefully.
NOTICE
Pressurised air can damage the seals of LUB-D and can trans-
port dirt and foreign matter into LUB-D or the lubricant.
• Do not use pressurised air.
• Make sure that there is no coarse dirt in the mounting area.
Remove housing from power unit
lSeparate the housing from the power unit
by turning the retaining ring counterclockwise.
Make sure that no dirt, water or foreign
bodies enter the lubricant inlet.
6.2 Assembly
Condition as delivered
LUB-D is delivered in a cardboard box.
Depending on the version ordered further
accessories such as battery, lubricant
cartridge or brackets are included. It also
contains a short manual for experienced
users to start up and assemble the unit for
thersttime.

20
3Remove cartridge cap
lTurn the cap of the lubricant cartridge
counterclockwiseandpullito󰀨.
Pay attention to cleanliness when
carrying out the work. Be sure to prevent dirt,
liquids and foreign bodies from entering the
cartridge.
