Gruetzner Lubricus LUB-V1 User manual

Operating Instructions: LUB-V
Operating Instructions
(24 VDC)

Operating instructions: LUB-V 2
Table of Contents
Contents 2
1) General Information 2
1.1 Warning 3
1.2 Scope of supply
1.3 Overview – the Lubricus Lubrication System
1.4 Symbols and notes 4
1.5 Intended use
1.6 Liability and extent of guarantee 5
2) Safety Information 6
2.1 General safety information
2.2 Transport and storage 7
2.3 Installation
2.4 Maintenance
3) Function/Principle 9
3.1 Starting
3.2 Setting options
Commissioning (switch on / switch off / resetting) 10
4.1 General information
4.2 Starting Lubricus for the first time
4.3 Switching off Lubricus
4.4 Ventilating the lubrication system 11
4.5 Programming Lubricus 12
4.6 Quick Check – dispensing an individual dose 13
4.7 Switching off Lubricus

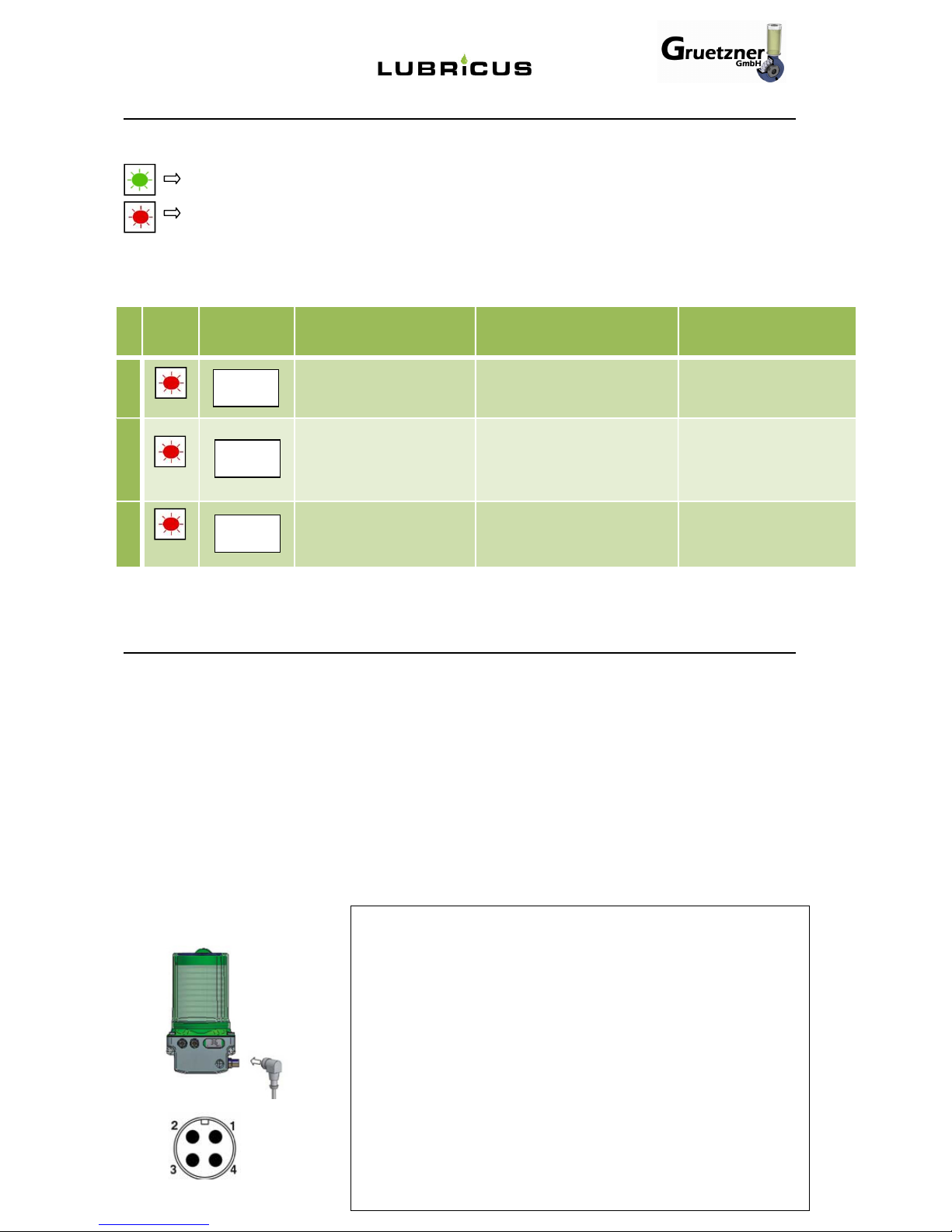

5) Display, Messages, Errors (shown on LCD/LED) 14
5.1 Error messages on the display
6) LED cable / Communication interface (M12x1 connector) 14

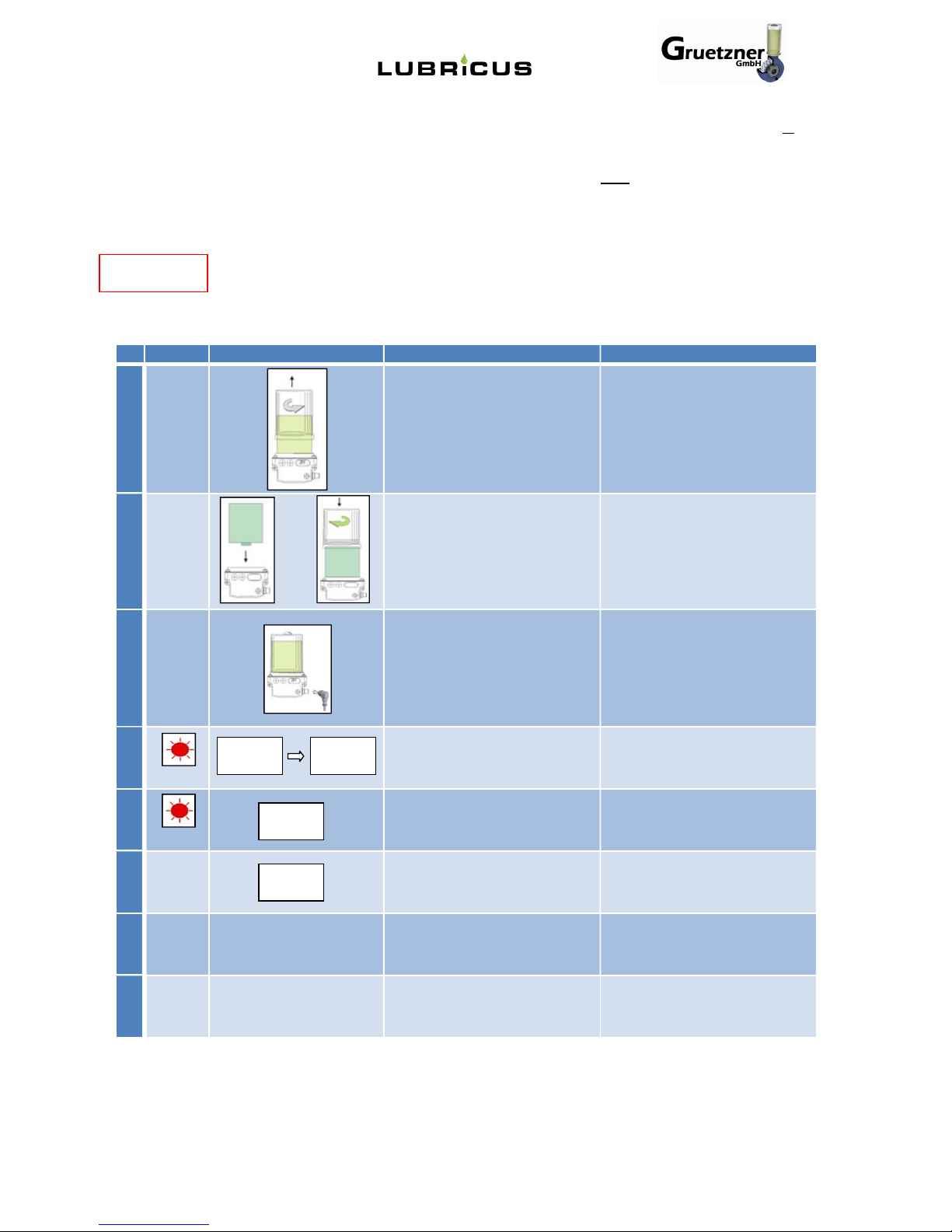

7) Maintenance: cartridge and battery changing 15

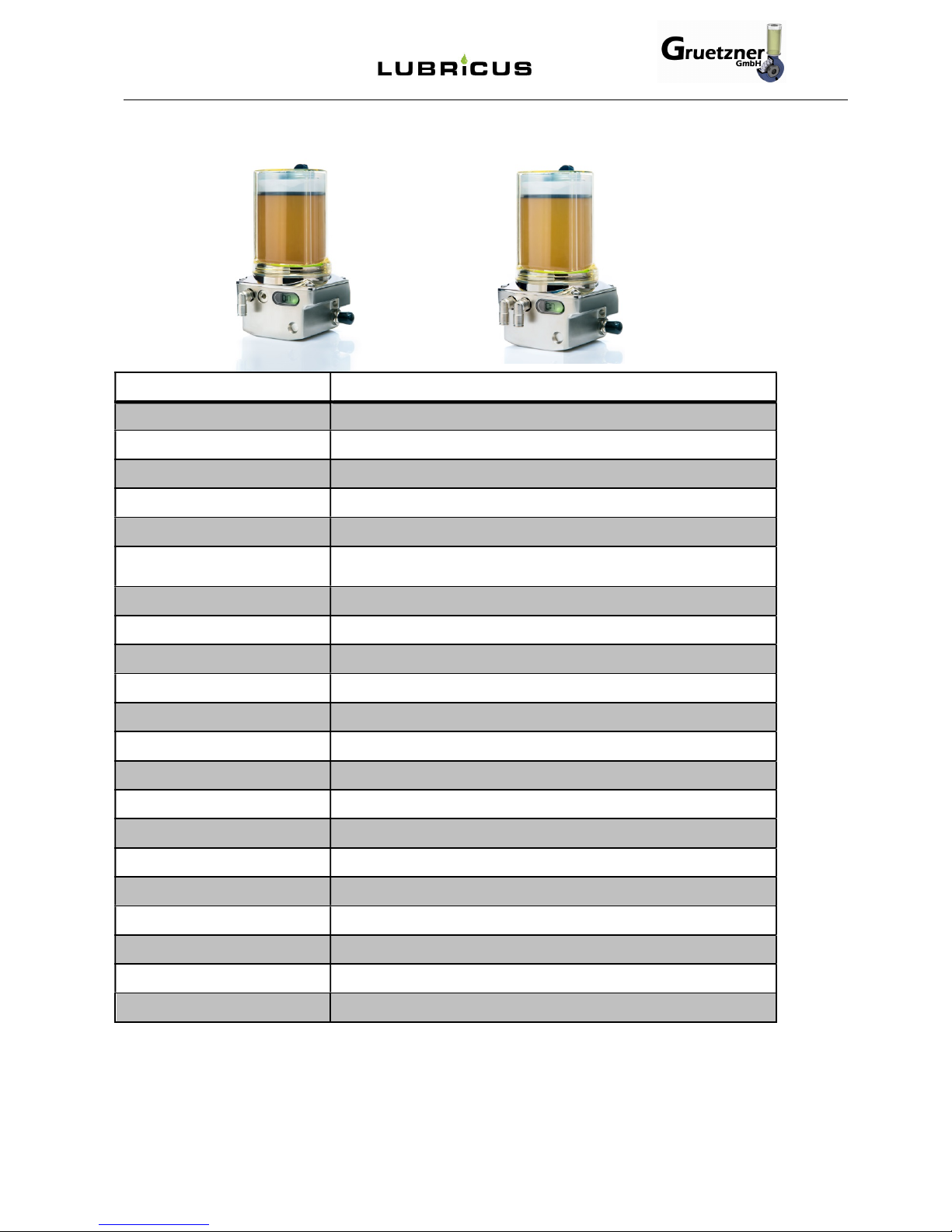

8) Technical Data 16
9) Installation – Lubricus Lubrication System 17
10) Recommended tube lengths 18
11) Disposal 19
12) Appendix 20
12.1 List of tables and diagrams
12.2 Table of lubrication intervals LUB-V-1 21
12.2 Table of lubrication intervals LUB-V-2 22

Operating instructions: LUB-V 3
Please note!
1) General information
Thank you very much for choosing the Lubricus Lubrication System.
Please ensure you familiarise yourself with the safety instructions before using the pump and accessories supplied.
This manual contains important safety information.
 The Lubricus Lubrication System is a very compact lubrication pump for oil and grease up to NLGI class 2.
 The Lubricus types LUB-V1 (1 outlet) and LUB-V2 (2 outlets) are made for a 24 VDC power supply and require a mains
connection.
 The lubricant reservoir (400 cm³) is in a rigid, disposable cartridge.
 Supply pressure is <70 bar.
 Depending on the model, the Lubricus Lubrication System has 1 outlet (LUB-V-1) or 2 outlets (LUB-V-2).
1.1 Warning
The Lubricus Lubrication System is designed for use in normal industrial environments, but not for use in or on motor vehicles.
Use only original Lubricus spare parts and accessories (cartridges, fittings, connectors and tubes).
1.2 Scope of supply
The scope of supply may vary from country to country.
Standard supply includes:
 the Lubricus Lubrication System (1 or 2 outlets);
 tube connector attached to the outlet(s) for medium-pressure PA tube 6 x 4 (Ø 6mm outer and Ø 4mm inner diameter)
 Operating Instructions
1.3 Overview – the Lubricus Lubrication System
Installing the Lubricus Lubrication System is simple. These instructions should help you to install your pump swiftly and easily, and to
quickly learn the basics.
Ventilation for changing the
cartridge (here you will find the
actuation magnet)
Housing/covering
Communication interface
(output M12x1)
Actuation pad
Outlets (1 or 2)
LCD/LED
display
–
shows settings
and messages
Unused outlets should not be closed!
Diagram 1

Operating instructions: LUB-V 4
Please note!
Attention
!
Attention
!
Attention
!
1.4 Symbols & Notes
Please pay attention, not only to these safety instructions, but also to the special safety instructions on other pages.
This symbol warns of electrical voltage.
This general danger symbol denotes safety instructions, the disregarding of which could lead to bodily harm.
This heading is used if incorrect compliance or non-compliance with the Operating Instructions or specified work
procedures etc. may result in damage of the system.
This term will be used to draw your attention to special information.
Instructions attached directly to the machine must be strictly followed and kept in clearly legible condition!
1.5 Intended Use
The Lubricus Lubrication System is only approved for industrial use. The Lubricus Lubrication System may only be used
in accordance with the Technical Data (see chapter “Technical Data”).
Unauthorised structural changes to the Lubricus Lubrication System are not permitted.
We do not assume liability for damages to persons or machines resulting from such.
Additional instructions for use in conformity with the intended use:
 pay attention to all information in the Operating Instructions;
 carry out all maintenance work;
 use only Grützner GmbH lubrication tubes and connectors;
 follow all appropriate regulations for work safety and accident prevention during the entire lifespan of the Lubricus Lubrication
System;
 only qualified and authorized personnel should carry out work of any kind on the Lubricus Lubrication System.
Other uses or uses beyond those described above shall be deemed as not in conformity with the intended use.

Operating instructions: LUB-V 5
1.6 Liability and extent of guarantee
Proper functioning of the Lubricus Lubrication System can only be achieved through use of recommended lubricants from the original
Lubricus range of accessories, and by observation of all installation, operation and maintenance instructions.
Grützner GmbH excludes all liability if these instructions are not observed.
Grützner GmbH grants guarantees concerning operating safety, reliability and performance only under the following conditions:
 assembly, installation, maintenance and repairs are carried out by qualified staff only;
 hazardous hot or cold machine parts must be shielded to prevent skin contact;
 the Lubricus Lubrication System must be used according to the Technical Data and instructions;
 the limit values stated in the Technical Data are under no circumstances to be exceeded;
 retrofitting and repair work on the Lubricus Lubrication System may only be carried out by the manufacturer;
 the lubrication system must be protected against damp and wet.
If a lubricant that has not yet been tested for compatibility with the Lubricus Lubrication System be supplied or requested for use in the
Lubricus Lubrication System by the purchaser/customer, the purchaser/customer undertakes the risk and responsibility.
This product is subject to strict production controls and fulfils our company’s factory specifications. However, guarantee of testing of each
individual case cannot be given due to the numerous factors involved.
We therefore strongly recommend that test runs be carried out.
All liability is excluded.
The Lubricus Lubrication System lubricant cartridge has been constructed and produced for one-time use only. Multiple use of the
lubricant cartridge is not envisaged. After being used once, the lubricant cartridge is to be completely replaced; refilling is not permitted.
Noncompliance will lead to nullification of the guarantee.
For guarantee conditions see the sales and delivery conditions of Grützner GmbH

Operating instructions: LUB-V 6
2) Safety Information
Basic information, which must be followed during assembly, operation and maintenance, is listed as follows. These Operating
Instructions must be read by all installation and operation staff before assembly and operation, and must be permanently available on
site.
All personnel involved in installation, maintenance and operation of the system are to read these instructions carefully before beginning
assembly and operation.
2.1 General safety information
2.1.1 Qualification and training of personnel
All operation, maintenance, service and installation personnel must be appropriately qualified for this work. Responsibility
and supervision of the personnel must be clearly defined by the end user. If staff do not have the necessary knowledge,
they must be trained and instructed. The end user must ensure that staff have completely understood the contents of the
Operating Instructions.
2.1.2 Danger of non-compliance with the safety instructions
Non-compliance with the safety information can be dangerous for people, environment and machines. Non-
compliance with the safety information can mean the loss of any or all damage claims. In certain cases, non-compliance
can, for example, lead to the following hazards:
 malfunction of important system functions.
 malfunction of prescribed methods of maintenance and servicing.
 danger to people due to electrical, mechanical and chemical effects.
 danger to the environment due to leakage of dangerous substances.
2.1.3 Safety information for end user / operating staff
 Moving, rotating, hot or cold machine parts are to be securely shielded on site to prevent accidental contact. The
shielding on moving or rotating parts is not to be removed.
 Leakages of dangerous materials are to be removed in such a way as not to endanger people or the environment.
 Legal regulations are to be complied with.
 Electrical hazards are to be eliminated.
2.1.4. Safety information for maintenance, inspection and assembly work
All maintenance, inspection and installation work may only be carried out by trained specialists who have been
informed appropriately by carefully studying the Operating Instructions.
All work must only be carried out when the machine is witched off and while wearing appropriate protective clothing.
Always comply with the procedures for switching off as described in the Operating Instructions.
All safety and protective equipment must be replaced immediately after completing work.
Environmentally hazardous substances must be disposed of in accordance with local regulations.
Secure the system during maintenance and repair work against intentional or unintentional operation.
Dispose of lubricants in accordance with the safety data sheets of the lubricant manufacturer.
2.1.5 Unauthorised modification and manufacture of spare parts
Modification and alteration of the system is not permitted. Original spare parts and accessories authorised by the
manufacturer are for safety purposes. Using other parts can result in loss of liability for claims resulting out of this.
Grützner GmbH does not guarantee and is not liable for components retrofitted by the end user.
2.1.6 Prohibited methods of operation
Operational security of the Lubricus Lubrication System is only guaranteed if it is operated in accordance with the Operating
Instructions. The limit values listed in the Technical Data are under no circumstances to be exceeded.

Operating instructions: LUB-V 7
2.1.7 General hazard warning
All components of the system are designed in accordance with the prevailing regulations of the construction of technical
machines regarding operational safety and accident prevention. Nevertheless, operation can lead to dangers for the
user, third parties or other technical facilities. Therefore, the Lubricus Lubrication System may only be used for its
intended purpose in technically fault-free condition. This may only be carried out under compliance with the safety
regulations and the Operating Instructions.
Therefore, please regularly check the Lubricus Lubrication System and its attachments for possible damage or leaks.
2.2 Transport and storage
Use suitable lifting gear for transport. Do not throw or expose the Lubricus Lubrication System to heavy buffeting. Store the Lubricus
Lubrication System in a cool and dry place to avoid corrosion of the system’s individual parts.
Comply with valid safety and accident prevention instructions when transporting.
Wear suitable protection clothing if necessary!
2.3 Installation
The following conditions have to be satisfied during the installation of this Lubricus Lubrication System so that it can be
assembled to a complete machine without affecting the health and safety of humans.
To prevent the formation of condensation, the housing of the Lubricus Lubrication System should not
be exposed to direct sunlight or radiant heat.
The Lubricus Lubrication System must be protected against damp and wet. We strongly recommend
that the lubrication system be enclosed in a housing.
Lubricus Lubrication Systems should never be exposed to outside weather conditions. If using
outdoors, ensure the system has suitable protection (e.g. housing) and never use this product in or
under water.
2.3.1 Electrical connection
 Only a qualified electrician should connect the power supply!
 Connection of electrical components is to be carried out professionally.
 Compare the voltage details with the existing power supply voltage!
2.4 Maintenance
Disconnect the system from the mains before starting with maintenance or repair work.
 Maintenance and repair work may only be done with the system completely switched off.
 Check the surface temperature of the Lubricus Lubrication System to avoid burns.
 Always wear heat-resistance gloves!
 Ensure the system cannot be restarted during maintenance and repair work!

Operating instructions: LUB-V 8
Table 1
Table 2
3) Function/Principle
After starting, the integrated pump transports the lubricant to the outlets according to the settings that have been made.
The integrated electronics control and monitor the amount of lubricant and the time intervals between lubrications.
The total operating period of the lubricant cartridge and the desired lubrication intervals have to be programmed before starting the
Lubricus Lubrication System.
3.1 Starting
- Connecting/installing
- Switching on
- Using the basic settings or
- Setting the desired emptying time of the lubricant cartridge
- Setting the desired amount of lubricant per lubrication stroke (P2)
P1
: In wie vielen
Monaten (max. 36)
soll der Faltenbalg
geleert werden ?
P2
: Welche Schmier-
stoffmenge soll pro
Intervall gefördert
werden?
Das integrierte Rück-
schlagventil schützt ihr
Gerät vor Gegendruck
3.2 Setting options
The basic settings P₁: 12 months (emptying time for the cartridge, 400cm³) and P₂: 01 cycle (desired amount of lubricant per interval)
can easily be customised.
Table for LUB-V-1: Operating time and amount of lubricant at different settings
(how often and how much is to be dispensed?).
LUB-V-1 (=1 outlet)
P1 setting (operating
period) = emptying time of
lubricant cartridge (400cm³) in months
Operating time (months) 1 3 6 12 18 24 36
Result: lubricant amount per month (cm³)
400 133 67 33 22 17 11
LUB-V-1 (=1 outlet)
P2 setting (number of strokes) =
amount of lubricant per lubrication interval
Number of strokes 1 5 10 20 30
Amount of lubricant
per interval 0.15cm³ 0.75cm³ 1.5cm³ 3.0cm³ 4.5cm³
Result: number of lubrication intervals per
operating period 2,700 540 270 135 90
P1:
in how many months (max. 36) is
the cartridge to empty?
P2:
how much lubricant is to be
dispensed per interval?
P1:
here, the first step is to set
the emptying time period of the
cartridge.
Time period: 1–36 months
P2:
here you set the number of
strokes per lubrication interval
(0.15cm³ per stroke).
Select: 1–30 strokes
Diagram 2
The
integrated back
pressure valve protects
your device against
back pressure

Operating instructions: LUB-V 9
Table 3
Table 4
Table for LUB-V-2: Operating time and amount of lubricant per outlet at different settings
LUB-V-2 (=2 outlets)
P1 setting (operating
period) = emptying time of
lubricant cartridge (400cm³) in months
Operating time (months) 1 3 6 12 18 24 36
Result: amount of lubricant per outlet
per month (cm³) 200 67 33 17 11 8 5,5
LUB-V-2 (=2 outlets)
P2 setting (number of strokes) =
amount of lubricant per lubrication interval
Number of strokes 1 5 10 20 30
Amount of lubricant
per interval and outlet 0.15cm³ 0.75cm³ 1.5cm³ 3.0cm³ 4.5cm³
Result: number of lubrication intervals per
outlet per operating period 1,350 270 135 68 45
Using the table
1. Establishing operating period:
with how much lubricant is the lubrication point to be lubricated per month?
The result is the emptying time (P₁) of the lubricant cartridge in months.
The cartridge empties itself in the P₁ determined time period irrespective of the strokes selected (P₂).
2. Establishing the amount of lubrication per stroke:
how much lubricant should be regularly dispensed to the lubrication point?
The result is the number of lubrication intervals (P₂) per operating period.
Please note: the total amount of lubricant during the operating period is independent of the selected lubrication interval!
Example LUB-V-2:
During the entire emptying time of the lubricant cartridge (= operating period), the lubrication points are lubricated: at P₂=1 a total of
1,350 times per outlet with 0.15cm³; at P₂=10 a total of 135 times per outlet with 1.5cm³; at P₂=20 a total of 67 times per outlet with
3.0cm³; at P₂=30 a total of 45 times per outlet with 4.5cm³ – always at the same time interval. Intermediate steps are possible.
You will find a detailed overview of the various setting options in the appendix of these Operating Instructions.
You will find a detailed
overview of the various
setting options in the
appendix of these Operating
Instructions.
P
₂
Small: small amounts of lubricant, but dispensed more
frequently.
P₂ Large: large amounts of lubricant, but dispensed less
frequently.
The total amount per lubrication point is determined
by the emptying time P₁ only.
Diagram
3

Operating instructions: LUB-V 10
Table 5
Table 6
Commissioning (switch on / switch off / resetting)
4.1 General information
4.2 Starting Lubricus for the first time
Connect Lubricus to 24V power supply.
LED
Display
Action
to be carried out
Description
1
Release latch (= ventilation) and remove
actuation magnet
Twist Close => Open
2
3 x
Hold the actuation magnet against the
actuation pad
To switch on, hold the actuation magnet
against the actuation pad (press and hold) until
the red LED on the display has blinked 3
times => then remove actuation magnet.
3
- Display changes from “OFF” to “ON”:
Now the basic settings are displayed.
3a
- Display 24: 24 VDC
3b
- Display A01 or A02:
1 or 2 outlets – depending on model
3c
- Display P
₁
:
lubricant cartridge emptying time
(standard setting: 12 months)
3d
-
Display P
₂
:
number of strokes
(= number of pump strokes á 0.15cm³ per
lubrication interval, standard setting: 1)
4
-
“On” flashes on the display for approx. 3
seconds. If no action is taken, Lubricus goes
into operation mode and functions according
to the settings P1 and P2 => screw actuation
magnet into the ventilation recess and twist
OPEN => CLOSE.
4.3 Switching off Lubricus
LED
Display
Action
to be carried out
Description
1
3 x
Hold the actuation magnet against the
actuation pad
If you wish to
switch the device off
again,
hold the actuation magnet against the
actuation pad again until the red LED blinks 3
times => Lubricus switches itself off, the
display shows “OFF”
Actuation pad
The actuation magnet is required to switch the Lubricus Lubrication System on and off, or
change the programming.
You will find the magnet on top of the Lubricus housing/plastic cover
Twist to remove the magnet (Close => Open).
To switch Lubricus on or off, hold the tip of the actuation magnet against the actuation pad
(small recess) on the front of the housing.
Actuation
magnet
OFF
OFF
03
P12
A01
ON
ON OFF
Diagram 4
P01

Operating instructions: LUB-V 11
Attention!
Table 7
4.4 Ventilating the lubrication system
Depending upon scope of supply and ordered specifications (e.g. special filling), the lubricant cartridge is already installed or has been
separately packed.
If the lubricant cartridge has not already been installed, the Lubricus pump body/bodies must be ventilated before commissioning (i.e.
the pump body/bodies must be filled with grease) in order to guarantee proper operation.
It takes approx. 20–25 dispensing strokes to fill a pump body.
Ventilation of the pump body is independent of the desired P₁ and P₂ settings.
If the lubricant cartridge is already installed upon delivery, then ventilation has already
been carried out by the manufacturer!
How to ventilate the Lubricus Lubrication System:
LED
Info
Action
to be
carried out
Description
1
Open the covering of the Lubricus Lubrication
System Unscrew the housing
2
+
Insert the lubricant
cartridge and push down lightly, twist to the
right to secure
Insert lubricant cartridge
and close housing
3
Connect Lubricus to 24V power supply Connect to power
4
3 x
Switch the Lubricus on
by letting the red LED blink 3 times Switch on: see page 10
5
7 x
As soon as the device is in operating mode
(display shows ON), allow the red LED to blink
seven times in order to start the filling function
Activating filling function
6
Lubricus does 20 strokes in a row. While
running the display shows “RUN”
7
Connect the Lubricus Lubrication System to
the tubes that have been pre-filled with the
same lubricant
The lubrication tubes should not be longer than
5m and should have a minimum diameter of
4mm. Use only original Lubricus lubrication
tubes.
8
Now set up the Lubricus Lubrication System as
desired (see page 12).
ON OFF
ON
run

Operating instructions: LUB-V 12
4.5 Programming Lubricus
P₁ (operating period in months) and P₂ (number of pump strokes) are programmable.
P₁: operating period from 1 to 36 months possible.
Lubricus dispenses lubricant evenly according to the number of months and the number of strokes (P₂).
P₂: Stroke number between 1 and 30 possible (0.15cm³ – 4.5cm³ per interval)
LED
Display
Action
to be
carried out
Description
1
Release latch (= ventilation) and remove
actuation magnet.
Twist Close => Open
2
3 x
Hold the actuation magnet against the
actuation pad
To switch on, hold the actuation magnet
against the actuation pad (press and hold) until
the red LED on the display has blinked 3
times => then remove actuation magnet.
3
- Display changes from “OFF” to “ON”:
Now the basic settings are displayed:
3a
- Display 24: 24 VDC
3b
- Display A01 or A02:
1 or 2 outlets – depending on model
3c
- Display P
₁
:
lubricant cartridge emptying time
(standard setting: 12 months)
3d
-
Display P
₂
:
number of strokes
(= number of pump strokes á 0.15cm³ per
lubrication interval, standard setting: 1)
4
While “ON” is blinking, hold the actuation
magnet on the actuation pad (approx. 2
seconds) until the display shows P
₁
. (P
₁
=12)
Now in setting mode
5
The value can be changed by “tapping” the
actuation pad with the magnet.
Holding the magnet on the pad will make the
display “run”; short tapping increases the value
by 1.
If there is a pause of 2 seconds, the current
value is saved and the display changes to P₂.
6
The value can be changed by “tapping” the
actuation pad with the magnet.
Holding the magnet on the pad will make the
display “run”; short tapping increases the value
by 1.
If no more changes are made through touching
the actuation pad, the changes to the basic
settings are completed and the values are
saved in the memory.
7
every 5s
Insert the actuation magnet in the ventilation
recess, twist OPEN => CLOSE
Display changes to ON. Lubricus immediately
operates according to the saved settings.
The green LED blinks every 5 seconds.
8
If the time interval was accidentally missed in order to enter setting mode
(ON blinking):
switch off the device (allow LED to blink 3 times) and restart (allow to blink red again 3 times) and
repeat as described at 4).
OFF
OFF
03
P01
P01
A01
ON
P36
P12
P01 P30
ON

Operating instructions: LUB-V 13
Attention!
Table 9
Table
10
4.6 Quick Check – dispensing an individual dose
For test and sample purposes the installed lubrication pump can easily be used to dispense small amounts of lubricant. For this purpose,
the available pressure between the lubrication point and pump is measured. The value displayed is the back pressure in bar.
To carry out a Quick Check, hold the actuation magnet on the actuation pad until the red LED blinks twice.
An individual dose is dispensed and Lubricus transports 0.15 cm³ per outlet.
LED
Info
Action
to be carried out
Description
1
3 x
Switch the Lubricus on
by letting the red LED blink 3 times Switch on: see page 10
2
2 x
As soon as the device is in operating mode
(display shows ON), allow the red LED to blink
twice in order to dispense an individual dose
Dispensing an individual dose
“Quick Check”
3
- While running the display shows “RUN”.
Lubricus dispenses 0.15 cm³ per outlet once.
4
-
After pumping, the measured back pressure is
shown on the display (in bar). For example:
024 equates to 24 bar.
Individual doses shorten the total life-span of the lubrication system. If you have dispensed several individual doses,
the shortened total operation time has to be taken into consideration with regards to maintenance.
4.7 Switching off Lubricus
To switch off, hold the actuation magnet against the actuation pad.
Duration: until the red LED blinks 3 times on the display.
The display changes to “OFF”; all settings remain stored in the memory.
Holding the actuation magnet to the actuation pad for longer will not switch the device off.
LED
Display
Action
to be
carried out
Description
1
3 x
Hold the actuation magnet against the
actuation pad
If you wish to
switch the device off
again,
hold the actuation magnet against the
actuation pad again until the red LED blinks 3
times => Lubricus switches itself off, the
display shows “OFF”
ON OFF
ON
run
024
ON OFF

Operating instructions: LUB-V 14
Table 11
5) Display, Messages, Errors (shown on LCD/LED)
Malfunctions will be recognised by the Lubricus electronics and shown on the display.
The device will switch itself off and no further lubricant will be dispensed.
As long as the green LED is blinking during operation, everything is working properly.
If the red LED blinks every 5 seconds: malfunction (empty, battery needs changing, excess pressure).
An error message will be displayed.
5.1 Error messages on the display:
LED Display Malfunction Cause Remedy
1
every 5
seconds
Level indicator Lubricant cartridge is empty or missing.
Pumping is stopped! Replace lubricant cartridge
2
every 5
seconds
Back pressure too high
Back pressure was too high three times in a
row The lubrication point may be blocked,
or the tubing is too long, or the grease is
too stiff/hard.
Pumping is stopped!
Fix the excess back pressure (>70
bar), switch “OFF” the pump and
switch back “ON”.
The error counter will reset. Lubricus
restarts.
3
every 5
seconds
Operating voltage is too low Problems with the power supply.
Lubricus stops
Check power supply
System malfunctions: switch the device off and on again, the error counter will reset. Settings in the memory will not be deleted.
6) Communication interface (M12x1 connector)
The Lubricus Lubrication System includes a four-pin plug for connection to a M12x1 socket, facilitating connection to your system
controller.
This enables communication with the controller and connection to the power supply.
Voltage for operation, switching on and off is 24 VDC (PIN 1). The lubrication pump is operable
when connected to the power supply. If power is switched off, the device stops and stores the current operating
conditions. When restarted, the Lubricus will continue operating at the stored settings.
If there are no malfunctions (Pump OK) the input voltage will be transferred to the output (PIN 4) = high signal. Low signal means there
is a malfunction.
The display (integrated in the housing) will show the malfunction type. Messages about the
condition of the lubrication system will also been shown on the display
This combination of information sustains the lubrication point independently of the operating time and facilitates
realtime checking of the lubrication system.
Connections
E1
E2
E3
Connector PIN assignment M 12X1
PIN 1: input voltage +24 VDC (+/- 5%). Colour: brown
PIN 2: not assigned. Colour: white
PIN 3: output/ground (GND). Colour: blue
PIN 4: output signal. Colour: black
Details:
PIN 1: peak current (24 VDC): Imax, approx. 350mA (during pump operation),
typically <200mA, standby current (standby mode) <20mA
pump can be switched ON and OFF
PIN 2: not assigned
PIN 3: ground
PIN 4: high = normal operating mode (= OK) = input voltage;
low = 0 V = error (type of error shown on display)
Max. output current 300mA. Warning, heed polarity – not short-circuit proof
A 1A time delay fuse is recommended
Diagram 5
Diagram 6

Operating instructions: LUB-V 15
Table 12
7) Maintenance: changing the cartridge
Apart from changing the cartridge no maintenance is necessary.
Action Description Action Description
1
Switch off the pump: display – shows
“OFF”
2
Remove housing by twisting to the
left
5
Insert the new cartridge with twisting
movement
3
Remove empty lubrication cartridge
6
Replace housing, pushing down
lightly,
twist to the right to secure
4
Remove protective covering from the
new cartridge.
Use oil felt pad if inserting oil
cartridges!
7
Lubricus is ready to operate again!
Switch on and off using the actuation
magnet
The pump drive and electronics must always be protected against damp and wet.
Please always change the lubrication cartridge in a dry environment.

Operating instructions: LUB-V 16
Table 13
8) Technical Data
Lubricus V-1 / Lubricus V-2
Lubrication volume 400 cm³ in a rigid, disposable cartridge.
Lubricant type Oil or grease up to NLGI 2
Functional principle Piston pump
Dose volume per stroke 0.15cm³
Dose amount per lubrication cycle 0.15 to 4.5cm³
Number of strokes per cartridge LUB-V-2: 2,700
LUB-V2: 1,350 per outlet
Number of outlets 1 (LUB-V-1); 2 (LUB-V-2)
Connection Tube with 6mm outer-diameter, maximum pressure up to 150 bar
Operating period per cartridge 1–36 months
Operating pressure Max. 70 bar
Operating temperature -20°C up to +70ºC
Dimensions, max., W x H x D 112 x 196 x 94mm
Weight without lubricant 1,120g
Integrated controller Microelectronic
Pressure monitoring Integrated, electronic
Level monitoring Integrated , dry reed contact
Capacity monitoring Integrated, LCD
Connector M12x1, 4-pole
Operating voltage 24 VDC
Progressive distributor control Suitable
Individual dose For system controlling, testing and additional lubrication amount (0.15cm³ per dose)
Diagram 7

Operating instructions: LUB-V 17
9) Installation – Lubricus Lubrication System
2 screws (not supplied) Ø 6mm (for example, M6x40 or longer) are required to install your Lubricus. Tightening torque for the screws =
5Nm. 3 points on the rear side assure a secure hold.
Diagram 8

Operating instructions: LUB-V 18
10) Recommended tube lengths
Use only Grützner GmbH lubrication tubes and connectors.
The lubrication tubes must have an inner diameter of at least 4mm
The Lubricus Lubrication System operates at a maximum supply pressure of 70 bar.
At temperatures of 20°C/68°, the lubrication tubes are not to exceed 5m.
The lubrication tubes are to be shortened accordingly for lower temperatures.
The values listed above only apply in the case of a direct connection between the Lubricus Lubrication System and the lubrication
point. If progressive distributors are being used, maximum lubrication tube lengths are to be halved subject to the temperature.
Installation of a progressive distributor must be carried out immediately downstream from the tube connector/outlet of the Lubricus
Lubrication System. Use only original Grützner GmbH progressive distributors.
All values listed above apply to the standard lubricants supplied by Grützner GmbH.
Please note:
the following applies for low temperatures, stiff/hard grease, NLGI class 2 and complex uses with high back pressure:
 keep tube lengths as short as possible
 minimum inner diameter is Ø 4mm
Diagram 9: Required supply pressure dependent upon the tube length (tested with 6x4mm tubing)
Diagram 9
Low temperatures
Stiff lubricants
With 10 bar back pressure
Without back pressure

Operating instructions: LUB-V 19
Please note!
11) Disposal
When changing lubricants, the waste disposal instructions of the lubricant manufacturer must be observed!
Regional applicable laws and regulations are to be observed when disposing of the Lubricus Lubrication System.
See your applicable national/regional disposal guidelines for more information.
Emptied cartridges contain lubrication residue!
Please dispose of together with other oleaginous waste!
Grützner GmbH
Kohlenhofstrasse 60
D-90443 Nürnberg
www.lubricus.de
Tel.: +49 (0)911 - 277 399 0
Fax: +49 (0)911 - 277 399 99

Operating instructions: LUB-V 20
12) Appendix
12.1 List of tables and diagrams
Diagrams
Diagram 1: Lubricus Lubrication System overview 3
Diagram 2: Lubricus Lubrication System / settings 8
Diagram 3: Number of lubrication strokes 9
Diagram 4: Lubricus Lubrication System actuation magnet / actuation 10
Diagram 5: Lubricus Lubrication System communication interface 15
Diagram 6: Lubricus Lubrication System connector pin assignment 15
Diagram 7: Lubricus Lubrication System LUB-V-1 and LUB-V-2 16
Diagram 8: Lubricus Lubrication System / installation 17
Diagram 9: Relationship between tube length and back pressure 18
Tables
Table 1: Setting operating period, Lubricus Lubrication System LUB-V-1 8
Table 2: Setting number of strokes, Lubricus Lubrication System LUB-V-1 8
Table 3: Setting operating period, Lubricus Lubrication System LUB-V-2 9
Table 4: Setting number of strokes, Lubricus Lubrication System LUB-V-2 9
Table 5: Starting Lubricus for the first time 10
Table 6: Switching off Lubricus 10
Table 7: Ventilating the Lubricus Lubrication System 11
Table 7: Programming Lubricus 12
Table 9: Quick Check – dispensing an individual dose 13
Table 10: Switching off Lubricus 13
Table 11: Error messages on the display 14
Table 12: Maintenance: cartridges 15
Table 13: Technical Data 16
