Grunbeck GENO-fine FS-B User manual

We understand water.
Filter |GENO-fine filter FS-B
Operation manual

General Contact
Germany
International Sales
Phone [phone]
Technical Service
Phone [phone]
Fax [phone]
Availability
Monday to Thursday
7:00 am - 6:00 pm
Friday
7:00 am - 4:00 pm
Copyright
The manufacturer reserves the copyright to this manual. Without the
written consent of Grünbeck Wasseraufbereitung GmbH, no part of
this manual may be reproduced in any way, nor may any part be
processed, duplicated or distributed using electronic systems.
Non-compliance with the aforementioned stipulations shall be subject
to compensation for damages.
We reserve the right to technical modifications.
© by Grünbeck Wasseraufbereitung GmbH
Translation of the original operation manual
Edition of the manual: September 2019
Order no.: TD3-AK003en_005

Table of contents
3 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
Table of contents
1About this manual................................ 4
1.1 Other applicable documents ................. 4
1.2 Target group ......................................... 4
1.3 Storage of documents........................... 4
1.4 Symbols used ....................................... 5
1.5 Typographical conventions ................... 6
1.6 Validity of the manual ........................... 6
1.7 Type plate ............................................. 7
2Safety .................................................... 8
2.1 Safety measures................................... 8
2.2 Technical safety instructions................. 9
2.3 Regulations......................................... 10
2.4 Responsibilities of the qualified
specialist ............................................. 10
2.5 Responsibilities of the owner/user ...... 11
2.6 Product-specific safety instructions .... 11
2.7 Shipping and storage.......................... 12
3Product description ........................... 13
3.1 Intended use....................................... 13
3.2 Foreseeable misuse ........................... 13
3.3 Product components........................... 14
3.4 Functional description......................... 15
3.5 Accessories ........................................ 16
4Installation .......................................... 17
4.2 Requirements with regard to the
installation site .................................... 18
4.3 Checking the scope of supply............. 19
4.4 Installing the product .......................... 20
5Start-up ............................................... 22
5.1 Starting up the product ....................... 22
5.2 Handing over the product to the
owner/user.......................................... 23
6Cleaning, inspection, maintenance.. 24
6.1 Cleaning ............................................. 24
6.2 Intervals .............................................. 25
6.3 Inspection ........................................... 25
6.4 Maintenance ....................................... 26
7Troubleshooting................................. 30
8Disposal.............................................. 31
8.1 Packaging........................................... 31
8.2 Product ............................................... 31
9Technical specifications ................... 32
10 Operation log...................................... 35
10.1 Start-up log ......................................... 35
10.2 Maintenance ....................................... 36
10.3 Maintenance ....................................... 37
Index............................................................. 38

About this manual
4 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
1 About this manual
1.1 Other applicable documents
The following documents shall be considered as applicable
documents for the GENO-fine filter FS-B as well:
●The manuals of all accessories used shall apply.
1.2 Target group
This manual is intended for qualified specialists and
owners/users.
1.3 Storage of documents
Keep this manual and all other applicable documents, so that they
are available when needed.

About this manual
5 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
1.4 Symbols used
This symbol identifies instructions that you must comply with for
your personal safety.
This symbol identifies instructions that you must comply with in
order to avoid damage to property.
This symbol identifies important information about the product or
its handling.
This symbol identifies work that may only be carried out by
qualified specialists. In Germany, the installation company must
be registered in an installation directory of a water supply
company acc. to §12(2) AVB Wasser V (German Ordinance on
General Conditions for the Supply of Water).
This symbol identifies information where entries/written
documentation is required.

About this manual
6 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
1.5 Typographical conventions
The following typographical conventions are used in this manual:
Designation
Header text
Instruction
Single-step instruction
or chronological
sequence of actions
does not matter
►Action
Instruction
Multi-step instruction
and chronological
sequence of actions is
important
1. First action
a first step
b second step
2. Second action
Result following an
instruction
» Result
Lists
●Listed item
•Listed sub-item
Menu paths
Status level>Menu
level>Submenu
Display texts
Display text
Operating elements
Button/key
1.6 Validity of the manual
This manual applies to the following products:
●GENO-fine filter FS-B

About this manual
7 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
1.7 Type plate
The type plate is located at the top of the housing.
Please specify the data shown on the type plate in order to speed
up the processing of your inquiries or orders.
►Therefore, enter the necessary information in the table
below to have it readily available whenever necessary.
Item
Designation
Item
Designation
1
Indication of month
2
DVGW test mark
3
Serial number
4
Connection diameter
5
Flow rate
6
Order no.
7
Pore size
8
Product designation
9
DVGW registration number
10
Nominal pressure, max. water temp.
●Product designation: GENO-fine filter FS-B_______
●Order number: 101 _____________________
●Serial number: __________________________

Safety
8 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
2 Safety
WARNING: Contamination of drinking water due to improper
handling.
●Risk of infectious diseases.
►Have the installation, start-up and six-monthly
maintenance carried out by qualified specialists only.
2.1 Safety measures
●Carefully read this manual before operating your product.
●Only operate the product if all components are installed
properly.
●Only have persons working on your product that have read
and understood the present manual and that are qualified
to do such work due to their vocational training.
●Comply with the hygiene instructions in chapter 6. Failure
to comply can result in microbiological contamination of
your drinking water installation.
●Safety equipment must never be removed, bridged or
otherwise tampered with.
●This product can be used by children over 8 years of age
and persons with limited abilities or lack of experience if
they are supervised or instructed in the safe use of the
product and understand the resulting hazards.
●Children are not allowed to play with the product.
●Cleaning and maintenance must not be carried out by
children.

Safety
9 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
2.2 Technical safety instructions
This manual contains instructions that you must comply with for
your own personal safety as well as to avoid damage to property.
The instructions are highlighted by a warning triangle and have
the following structure:
CAUTION: Type and source of danger
●Possible consequences
►Preventive measures
The following signal words were defined subject to the degree of
danger and may be used in the present document:
●DANGER means that death or serious injury will result.
●WARNING means that death or serious injury may result.
●CAUTION means that minor bodily injuries may occur.
●NOTE (without warning triangle) means that damage to
property may occur.

Safety
10 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
2.3 Regulations
When installing and starting up the product, amongst others,
comply with the following regulations and guidelines:
●Statutory regulations on environmental protection
●Provisions of the employers' liability insurance companies
●DIN EN 806 Specifications for installations inside buildings
conveying water for human consumption
●VDI 6023 Part 5 - 7 Specifications for installations inside
buildings conveying water for human consumption
2.4 Responsibilities of the qualified specialist
Comply with the following instructions to ensure the proper and
safe functioning of the product:
●Only perform activities described in this manual.
●Perform all activities in accordance with all applicable
standards and regulations.
●Brief the owner/user on the function and operation of the
product.
●Advise the owner/user of the maintenance of the product.
●Inform the owner/user about possible dangers that can
arise during the operation of the product.
●Fill in the operation log (refer to chapter 10).

Safety
11 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
2.5 Responsibilities of the owner/user
Comply with the following instructions to ensure the proper and
safe functioning of the product:
●Arrange for a qualified specialist to carry out installation,
start-up and maintenance.
●Have the product explained to you by a qualified specialist.
●Only perform activities described in this manual.
●Do not carry out any activities that are explicitly designated
for a qualified specialist.
●Only use this product as intended.
●Make sure that the required inspection and maintenance
work is carried out.
●Keep this manual.
2.6 Product-specific safety instructions
WARNING: If the intervals for inspection and replacement are
not observed, the filter element will become excessively
polluted.
●Health risk due to contamination of the drinking water.
►Observe the intervals and recommendations for
inspection and replacement of the filter element.

Safety
12 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
2.7 Shipping and storage
Transport
►Transport the product in its original packaging.
Storage
►Protect the product from the following:
●Damp, moisture, environmental impacts such as wind, rain,
snow, etc.
●Frost, direct sunlight, severe heat exposure
●Chemicals, dyes, solvents and their vapours

Product description
13 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
3 Product description
3.1 Intended use
●The GENO-fine filters FS-B are designed for the filtration of
drinking water.
●The filters can be used for positive and negative pressure
applications.
●The filters are designed according to the stipulations of
DIN EN 13443-1 and DIN 19628 and are intended for
installation into drinking water system according to DIN EN
806-2 (installation immediately downstream of the water
meter).
●The filters protect the water pipes and connected water-
carrying system parts from malfunctions and corrosion
damage due to undissolved impurities (particles), such as
rust particles, sand, etc.
3.2 Foreseeable misuse
●The filters are not suitable for circulation water that has
been treated with chemicals.
●The filters are neither suitable for oils, greases, solvents,
soaps and other lubricating media, nor for the separation of
water-soluble substances.

Product description
14 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx

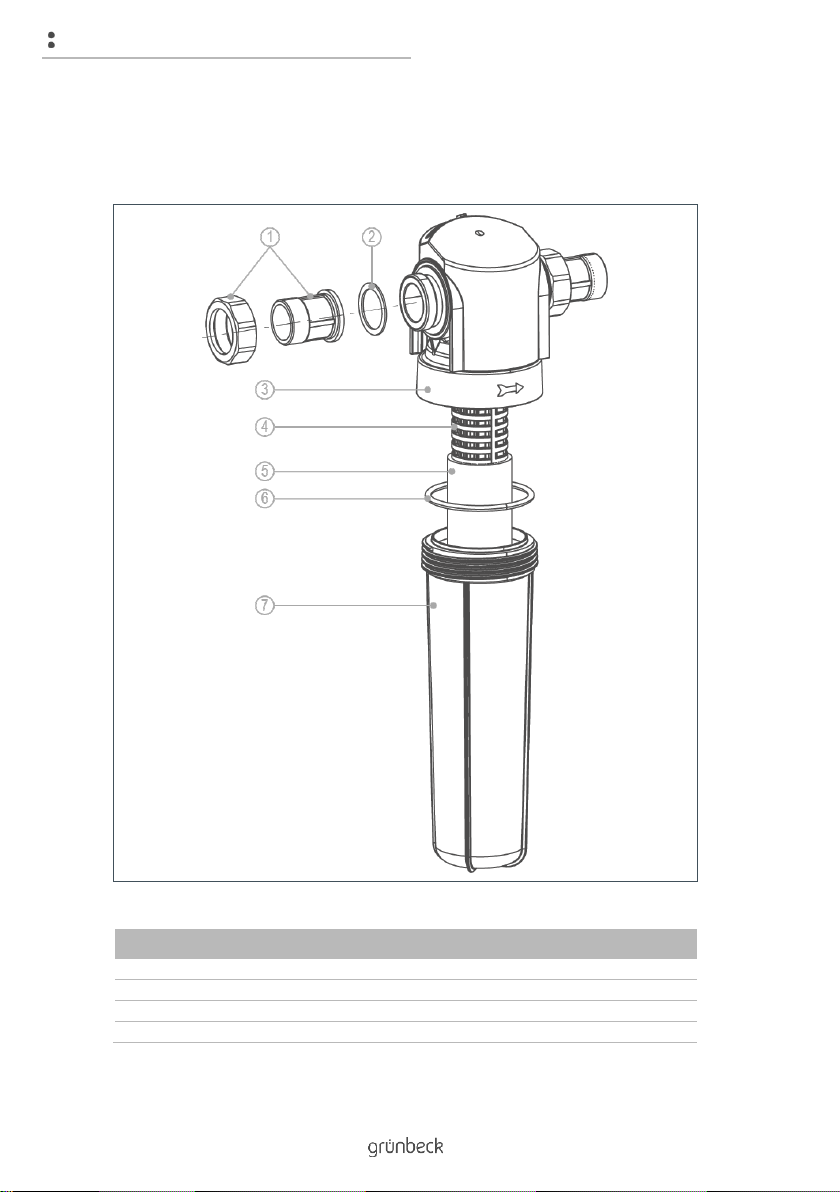

3.3 Product components
Item
Designation
Item
Designation
1
Water meter screw connection
2
Flat seal
3
Filter housing
4
Support mesh
5
Filter element
6
O-ring
7
Filter cylinder

Product description
15 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
3.4 Functional description
The unfiltered drinking water flows into the filter from the inlet side
and then from the outside in through the filter element and to the
pure water outlet.
Thus, foreign particles of a size > 80 µm are retained.
Depending on their size and weight, the foreign particles either
stick to the filter element or they fall straight down into the filter
cylinder.
In order to indicate the operating pressure, a pressure gauge with
brass insert can additionally be installed on the inlet or outlet side.

Product description
16 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
3.5 Accessories
You can retrofit your product with additional accessories. Please
contact your local Grünbeck representative or Grünbeck’s
headquarters in Hoechstaedt/Germany for details.
Product
Order no.
1" - 1¼"
1½" - 2"
DVGW-certified
80 µm filter element (2 pieces)
103 075
103 077
Not tested according to DVGW (German
Association of the Gas and Water Industry)
50 µm filter element (2 pieces)
103 068
103 070
20 µm filter element (2 pieces)
103 071
-
5 µm filter element (2 pieces)
103 081
103 083
Illustration
Product
Order no.
Black filter cylinder
1" - 1¼"
101 266e
1½" - 2"
101 167e
Black filter cylinder (incl. 2 O-rings) instead of
transparent filter cylinder.
To protect the filter from algae growth and UV
radiation.
Pressure gauge
1"
100 860
1¼“
100 865
1½"
100 870
2"
100 875
Pressure gauge with insert, union nut and flat seal.
To indicate the operating pressure on the inlet or
outlet side.
Insert with non-return valve
1"
101 644e
Insert with non-return valve and flat seal for the
filter’s outlet side.
To prevent the water from flowing back into the
drinking water supply line.

Installation
17 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
4 Installation
The installation of a filter represents a major intervention into the
drinking water system and may only be performed by a qualified
specialist.
Installation into the drinking water system
In accordance with DIN EN 806-2 and DIN EN 1717, the product
is installed in the cold-water pipe downstream of the water meter
and upstream of distribution pipes or the systems to be protected.
Item
Designation
Item
Designation
1
Shut-off valve (inlet)
2
Shut-off valve (outlet)

Installation
18 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
Installation into systems (e.g. Osmosis)
Item
Designation
Item
Designation
1
Filter with black filter cylinder
2
Pressure gauge
4.2 Requirements with regard to the
installation site
Observe local installation directives, general guidelines and
technical specifications.
●The installation site must be frost-proof and ensure the
filter's protection from chemicals, dyes, direct sunlight,
solvents and their vapours.
●The installation room must provide a floor drain. If no floor
drain is available, an appropriate safety device must be
installed in order to prevent water damage. We recommend
using a protectliQ:A.
●The installation site must be easily accessible for
maintenance purposes.

Installation
19 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
4.3 Checking the scope of supply
Item
Designation
Item
Designation
1
Water meter screw connection,
flat seal, union nut
2
GENO-fine filter FS-B
3
Operation manual
►Check the scope of supply for completeness and damage.

Installation
20 | 40
BA_TD3-AK003en_005_GENO-Feinfilter-FS-B.docx
4.4 Installing the product
The filter may only be installed in horizontal pipes.
.
►Check the flow direction given on site.
1. Install the water meter screw connections into the pipe (the
installation dimension must be: 100 mm = for 1", 1¼" and
160 mm = for 1½", 2").
2. Check the marking indicating the flow direction on the filter
- the arrow must correspond to the flow direction of the
water.
