Grunbeck pureliQ:A User manual

We understand water.
Filters | Automatic filters pureliQ:A,
pureliQ:AD
Operation manual

Central Contact
Germany
Sales
Phone [phone]
Technical Service
Phone [phone]
Fax [phone]
Availability
Monday to Thursday
7:00 am - 6:00 pm
Friday
7:00 am - 4:00 pm
Your local point of contact: see
accompanying list of
representatives
Copyright
The manufacturer reserves the copyright to this manual. Without the
written consent of Grünbeck Wasseraufbereitung GmbH, no part of
this manual is allowed to be reproduced in any way, nor is any part
allowed be processed, duplicated or distributed using electronic
systems.
Contraventions of the aforementioned requirements shall be subject to
compensation in damages.
We reserve the right to modifications.
© by Grünbeck Wasseraufbereitung GmbH
Translation of the original operation manual
Edition of the manual: May 2018
Order no.: TD3-AA000en_025

Table of contents
3 | 44
BA_TD3-AA000en_025
Table of contents
1About this manual.......................... 4
1.1 Other applicable documents ........... 4
1.2 Target group ................................... 4
1.3 Storage of the documents............... 4
1.4 Symbols used ................................. 5
1.5 Typographical conventions ............. 6
1.6 Validity of the manual ..................... 7
1.7Type plate ....................................... 8
2Safety .............................................. 9
2.1 Safety measures............................. 9
2.2 Technical safety instructions......... 10
2.3 Regulations................................... 11
2.4 Responsibilities of the specialist
installer ......................................... 11
2.5 Responsibilities of the owner-user 12
3Product description ..................... 13
3.1 Intended use................................. 13
3.2 Product components..................... 14
3.3 Functional description................... 15
4Installation .................................... 16
4.1 Requirements in relation to the
installation site .............................. 17
4.2 Checking the scope of supply....... 18
4.3 Installing the product..................... 19
5Start-up ......................................... 22
5.1 How to start up the product .......... 22
5.2 Operating the backwash unit ........ 23
5.3 Setting the month display ............. 24
5.4 Setting pressure reducer (only
pureliQ:AD)................................... 25
5.6 Handing over the operation manual
to the operator .............................. 26
6Cleaning, inspection,
maintenance................................. 27
6.1 Cleaning ....................................... 27
6.2 Inspection and maintenance......... 27
6.3 Wearing parts ............................... 28
6.4 Service kits ................................... 29
6.5 Spare parts ................................... 31
7Faults ............................................ 32
8Disposal........................................ 33
9Technical specifications ............. 34
9.1 Automatic filter pureliQ:A.............. 34
9.2 Automatic filter pureliQ:AD ........... 36
10 Other information......................... 38
10.1 Explanation of terminology ........... 38
11 Operation log................................ 39

About this manual
4 | 44
BA_TD3-AA000en_025
1 About this manual
1.1 Other applicable documents
The following documents also apply in the case of the automatic
filters pureliQ:A und pureliQ:AD:
●The manuals of all accessories used shall apply.
1.2 Target group
This manual is intended for specialist installers and owners/users.
1.3 Storage of the documents
This manual and all other applicable documents must be kept so
as to be available if required. Make sure that your specialist
installer enters the proper start-up in chapter 11 the operation log.

About this manual
5 | 44
BA_TD3-AA000en_025
1.4 Symbols used
This symbol identifies instructions that you must comply with for
your personal safety.
This symbol identifies instructions that you must comply with in
order to avoid damage to property.
This symbol identifies important information about the product or
its handling.
This symbol identifies work that is only allowed to be carried out
by specialist installers. In Germany, the installation company
must be registered in an installation directory of a water supply
company acc. to §12(2) AVB Wasser V (German Ordinance on
General Conditions for the Supply of Water).
This symbol designates tasks that are only allowed to be
performed by Grünbeck’s technical service/authorised service
company or by specialist installers trained by Grünbeck.
This symbol identifies work that is only allowed to be carried out
by qualified electronics experts according to the VDE guidelines
or according to the guidelines of similar local institutions.

About this manual
6 | 44
BA_TD3-AA000en_025
1.5 Typographical conventions
The following typographical conventions are used in this manual:
1.5.1 Instructions
Single-step instructions or instructions where the sequence of the
actions is unimportant are indicated as follows:
►Action
Multi-step instructions in which the sequence must be complied
with are indicated as follows:
1. First step
a First action in the first step
b Second step of the first action
2. Second action
Results of an instruction are indicated as follows:
» Result
1.5.2 Lists
Bullet symbols used:
●First list point (level 1)
•First bullet point (level 2)
•Second bullet point (level 2)
●Second list point (level 1)

About this manual
7 | 44
BA_TD3-AA000en_025
1.6 Validity of the manual
This manual applies to the following products:
●Automatic filter pureliQ:A
●Automatic filter pureliQ:AD

About this manual
8 | 44
BA_TD3-AA000en_025
1.7 Type plate
Type plate is located on the right side of the housing as seen from
the front.
Please specify the data shown on the type plate in order to speed
up the processing of your enquiries or orders. Please enter the
serial number below in order to have the necessary data handy
whenever necessary.
Item
Designation
No.
Designation
1
Observe operation manual
2
SVGW mark of conformity
(registered)
3
DVGW test mark
4
CE mark
5
Disposal information
6
Nominal pressure
7
Pore size
8
Protection/protection class
9
Serial no.
10
Order no.
11
Data matrix code
12
QR code
13
Product designation
14
Power supply
15
Max. electrical power input
16
Max. water temperature
17
Nominal flow rate
18
Nominal connection diameter
●Product designation: Automatic filter pureliQ:____
●Order number: 101 ___
●Serial no.: ________________
2
3
6
7
8
14
9
10
12
11
1
13
15
16
17
18
4
5

Safety
9 | 44
BA_TD3-AA000en_025
2 Safety
WARNING: Contamination of drinking water due to improper
handling.
●Risk of infectious diseases.
►Only have installation and start-up carried out by a
specialist installer.
2.1 Safety measures
●Carefully read this manual before operating your product.
●Install the product in a frost-free room. Otherwise, the
system may suffer irreparable damage. The consequence
can be a water damage.
●Only use genuine spare parts for maintenance or repair. If
unsuitable spare parts are used, the warranty for your
product will be void.
●Do not use products which have a damaged power supply
cable. This can lead to injuries due to electric shock. Have
damaged power supply cables replaced without delay.
●Mains cables are only allowed to be replaced by the
manufacturer or authorised personnel.
●Comply with the hygiene instructions in chapter 6. Failure
to comply can result in microbiological contamination of
your drinking water installation.
●Only have persons working on your system that have read
and understood the present manual and that are qualified
to do such work due to their vocational training.

Safety
10 | 44
BA_TD3-AA000en_025
●Only operate the product if all components are installed
properly.
●Safety device must never be removed, bridged or
otherwise tampered with.
●Children are not allowed to play with the product.
●This product can be used by children over 8 years of age
and persons with limited abilities or lack of experience if
they are supervised or instructed in the safe use of the
product and understand the resulting hazards.
●Cleaning and maintenance must not be carried out by
children.
2.2 Technical safety instructions
This manual contains information and instructions that you must
comply with for your own personal safety as well as to avoid
damage to property. The information and instructions are
highlighted by a warning triangle and have the following structure:
CAUTION: Type and source of danger
●Possible consequences
►Preventive measures
The following signal words were defined subject to the degree of
danger and can be used in the present document:
●DANGER means that serious or fatal injuries will occur if
the corresponding precautionary measures are not taken.
●WARNING means that serious or fatal injuries may occur if
the corresponding precautionary measures are not taken.

Safety
11 | 44
BA_TD3-AA000en_025
●CAUTION means that minor injuries may occur if the
corresponding precautionary measures are not taken.
●NOTE (without a warning triangle) means that damage to
property may occur if the corresponding safety measures
are not taken.
2.3 Regulations
During installing and start-up of the system, amongst other things
comply with the following regulations and guidelines:
●Statutory regulations on environmental protection
●Provisions of the employers' liability insurance associations
●DIN EN 806 Specifications for installations inside buildings
conveying water for human consumption
●VDI 6023 section 6
2.4 Responsibilities of the specialist installer
Comply with the following instructions to ensure the proper and
safe functioning of the product:
●Only perform activities described in this manual.
●Perform all activities in accordance with all applicable
standards and regulations.
●Brief the owner/user on the function and operation of the
product.
●Advise the owner/user of the maintenance of the product.
●Instruct the owner-user about possible dangers that can
arise during operation of the product.

Safety
12 | 44
BA_TD3-AA000en_025
2.5 Responsibilities of the owner-user
Comply with the following instructions to ensure the proper and
safe functioning of the product:
●Assign the installation and start-up to a specialist installer.
●Have the product explained to you by the specialist
installer.
●Only perform activities described in this manual.
●Do not carry out any activities that are explicitly marked for
a specialist installer.
●Only use this product as intended.
●Make sure that the required inspection and maintenance
work is carried out.
●Keep this manual.

Product description
13 | 44
BA_TD3-AA000en_025
3 Product description
3.1 Intended use
●The automatic filters pureliQ:A and pureliQ:AD are
designed for the filtration of drinking and industrial water.
●The automatic filter pureliQ:AD with pressure reducer in
addition is suitable for the adjustment of the after-pressure
on the withdrawal side.
●The filters can be used for positive pressure- and negative
pressure applications. A backwash and the adjustment of
the after-pressure on the withdrawal side, however, are
only possible when applied in the positive pressure range.
●The filters are not suitable for circulation water that is
treated with chemicals.
●The filters are neither suitable for oils, greases, solvents,
soaps and other lubricating media, nor for the separation of
water-soluble substances.
●The filters are designed according to DIN EN 13443-1,
DIN 19628 and DIN EN 1567 (only applies to the automatic
filter pureliQ:AD) and are intended for installation in
drinking water systems according to DIN EN 806-2
(installation directly after the water meter system).
●The filters protect the water pipes and connected water-
carrying system parts from disturbances and corrosion
damage due to undissolved impurities (particles) such as
rust particles and sand.

Product description
14 | 44
BA_TD3-AA000en_025

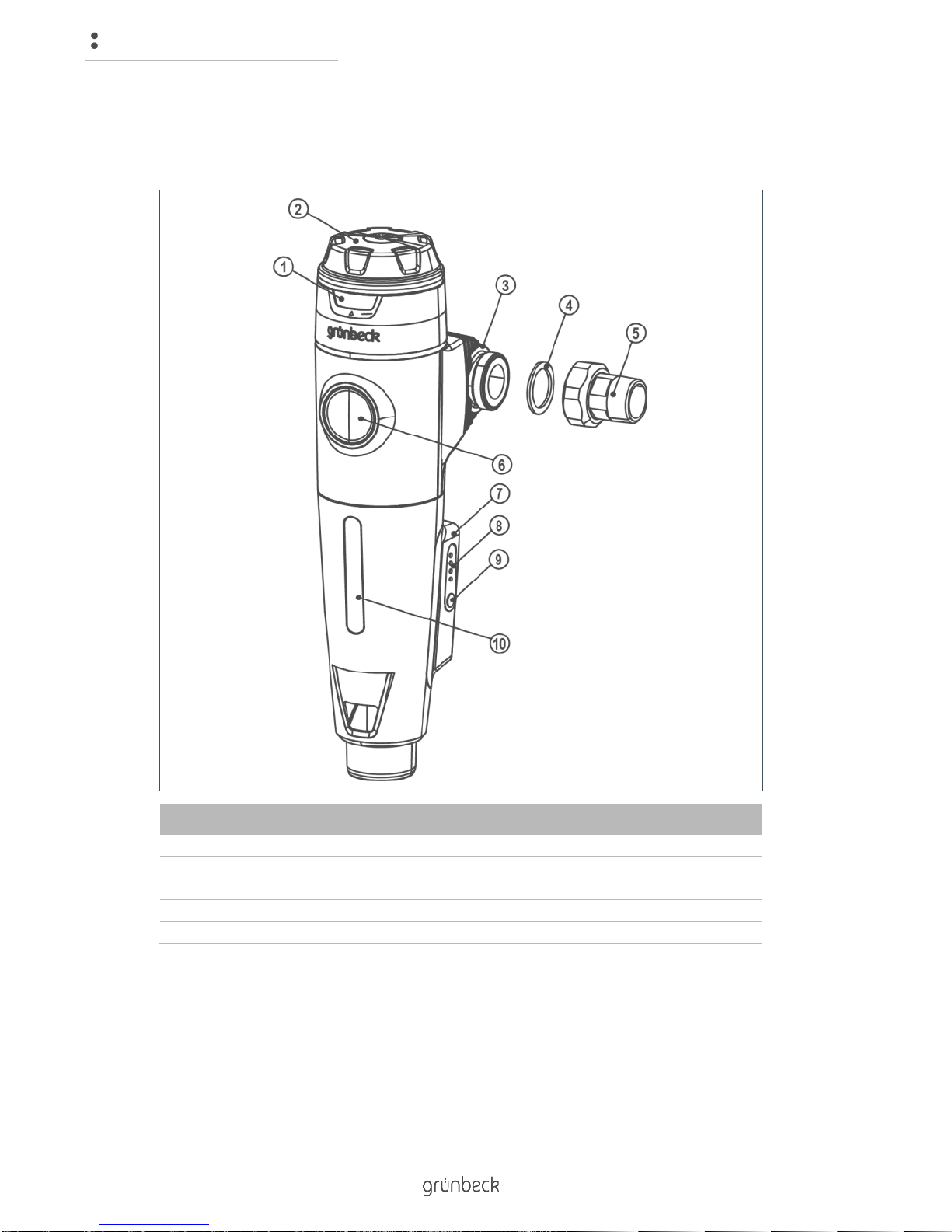

3.2 Product components
No.
Designation
No.
Designation
1
Month display
2
Pressure reducer handwheel
3
Click connection flange
4
Seal
5
Water meter screw connection
6
Pressure gauge
7
Automatic unit
8
LEDs backwash intervals
9
Push-button
10
Inspection window

Product description
15 | 44
BA_TD3-AA000en_025
3.3 Functional description
The unfiltered drinking water flows into the filter from the inlet side
and then from the outside in through the filter element and to the
pure water outlet. Thus, foreign particles of > 100 µm in size are
retained.
Depending on their size and weight, the foreign particles either
stick to the filter element or they fall straight down into the filter
cylinder.
The controller automatically releases the backwash as per the
setting. Possible settings for the backwash intervals are 7, 30, 60
and 90 days. A backwash can be initiated manually at any time.
The drain is opened by triggering a backwash. The water flows
through the primary screen to the filter element and then flows
through the filter element in reverse direction of standard filtration.
Particles adhering to the filter element are freed and rinsed out to
the drain.
The backwash process takes about 50 seconds. In case some
particles still remain on the filter element, the backwash must be
triggered again manually. Grünbeck recommends a backwash
interval of 60 days.
In the automatic filter pureliQ:AD, the flow-optimised pressure
reducer, which is designed according to DIN EN 1567, enables
the after-pressure on the withdrawal side to be set to 1 –6 bar
(factory setting: 4 bar).

Installation
16 | 44
BA_TD3-AA000en_025
4 Installation
The installation of a filter represents a major intervention into the
drinking water system and may only be performed by a
specialist installer.
The pureliQ filters are installed in accordance with DIN EN 806-2
and DIN 1988-200 in the cold water line downstream of the water
meter and upstream of distribution lines or the devices to be
protected.
Pos.
Designation
No.
Designation
1
Inlet shut-off valve
2
Outlet shut-off valve
3
Drain connection

Installation
17 | 44
BA_TD3-AA000en_025
4.1 Requirements in relation to the installation
site
Observe local installation directives, general guidelines and
technical specifications. The installation site must be frost-proof
and ensure the filter's protection from chemicals, dyes, solvents,
vapours and direct sunlight.
The installation location must be away from heat sources (e.g.
washing machines, boilers and hot water pipes).
A drain connection DN 50 must be available to discharge the
flushing water.
There must be push socket with earthing contact in the
installation area.
The installation room must be provided with a floor drain. If none
is available, an appropriate safety device has to be installed to
avoid water damage. We recommend using a protectliQ:A.
The installation site must be well accessible for maintenance
purposes.

Installation
18 | 44
BA_TD3-AA000en_025

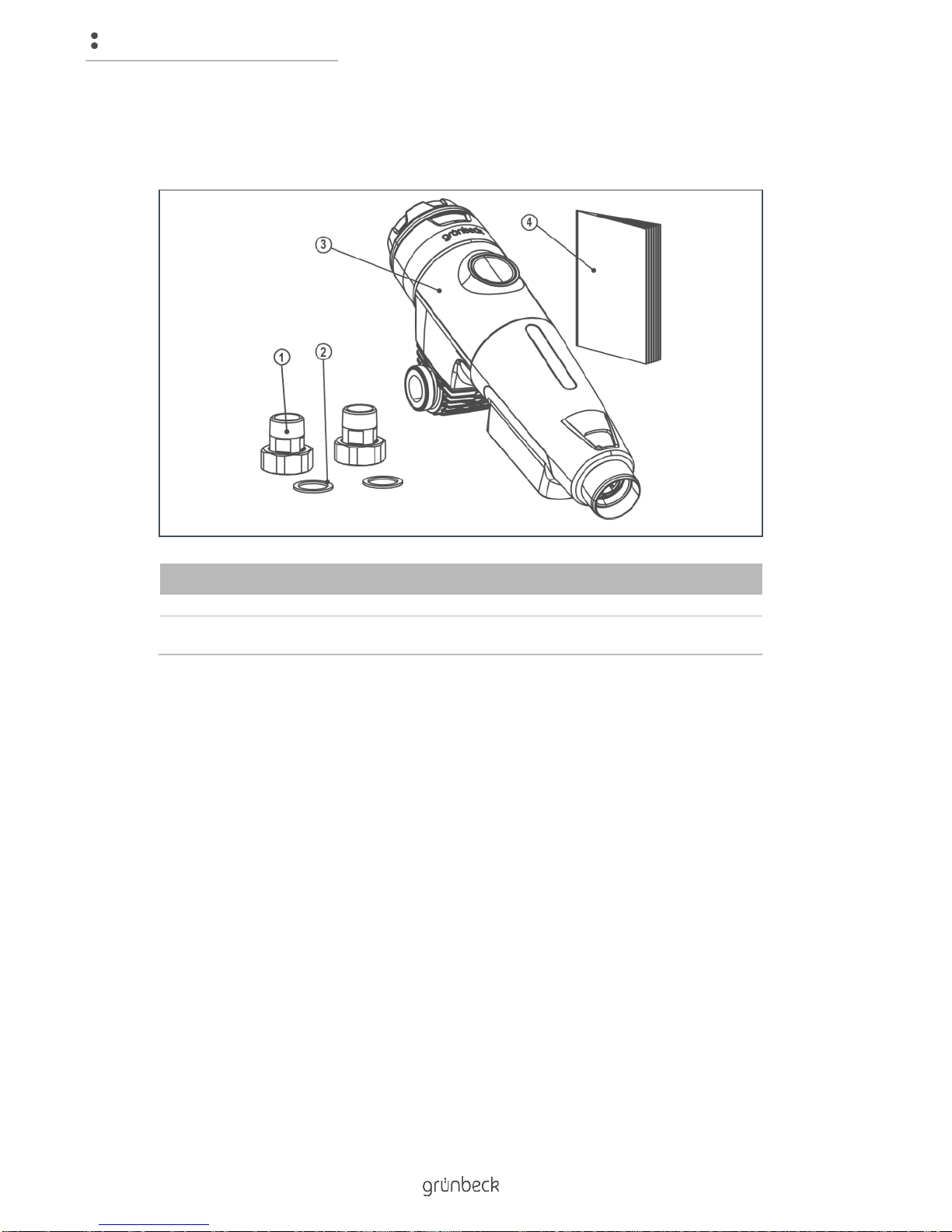

4.2 Checking the scope of supply
No.
Designation
No.
Designation
1
Water meter screw fittings
2
Gaskets
3
Automatic filters pureliQ:A or
pureliQ:AD
4
Operation manual
►Check the scope of supply for completeness and possible
damage.

Installation
19 | 44
BA_TD3-AA000en_025
4.3 Installing the product
In order for the water line on both sides of the filter to be
properly connected to the protective-equipotential bonding, we
recommend establishing a corresponding electrical bypass
according to DIN VDE 0100-540.
Use suitable tools for assembly and be careful not to scratch the
housing with your tool.
The transparent plastic film serves as transport and dirt
protection. We recommend leaving it on the device during
assembly and the construction phase to prevent soiling of the
white housing.
4.3.1 Installing the filter
1. Install the water meter screw connection in the pipe (the
distance between the two seals must be 100 mm).
2. Leave the protective caps on the threads.
The rotatable click-type connection flange allows the filter to be
adapted to any flow direction given on site.

Installation
20 | 44
BA_TD3-AA000en_025
3. Check the flow direction given on site.
4. Rotate the click-type connection flange to the position
suitable for your flow direction (marking on click-type
connection flange).
5. Remove the protective caps.
6. Install the filter without stress and tighten the union nuts.
