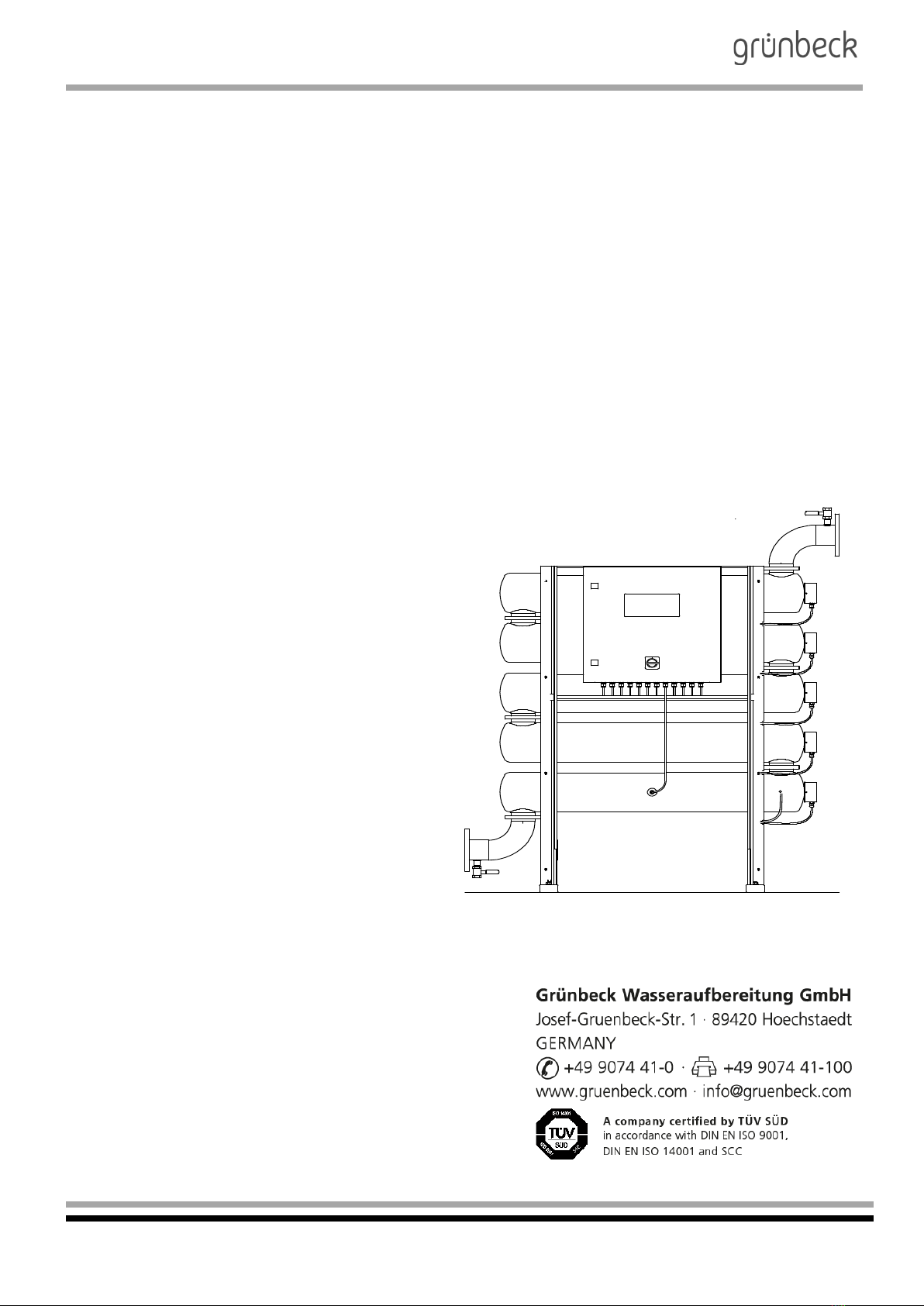

Grunbeck GENO-UV-M2/200 S User manual

Operation Manual
Disinfection System
GENO-UV-M2/200 S
GENO-UV-M3/200 S
GENO-UV-M4/200 S
GENO-UV-M5/200 S
Edition December 2021
Order no. 522 939–inter_105

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
2
Contents
A General..................................................................................
5
1 Preface
2 How to use this operation manual
3 General safety information
4 Shipping and storage
5 Disposal
B Basic Information.................................................................
9
1 Laws, regulations, standards
2 Disinfecting effect of UV light
3 Room irradiation
C Product description .............................................................
11
1 Type designation plate
2 Technical specifications
3 Designated application
4 Application limits
5 Scope of supply
D Installation ............................................................................
16
1 General installation instruction
2 Preliminary works
3 How to connect the system
E Starting Up............................................................................
21
1 How to install the quartz protective pipes
2 How to install UV lamps
3 How to set the control unit
4 How to start up the system
F Operation ..............................................................................
24
1 Introduction
2 How to operate the control unit
3 System menu
4 Disinfection system menu
5 Standard settings
G Troubleshooting...................................................................
43
H Maintenance and care..........................................................
46
1 Basic information
2 Maintenance
3 Information regarding the operation log
4 Spare parts
5 Operation log

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
3
Publisher's information
All rights reserved.
Copyright by Grünbeck Wasseraufbereitung GmbH
Printed in Germany
Effective with the date of edition on the cover sheet.
- We reserve the right to modifications, especially with regard to tech-
nical progress -
Reprints, translations into foreign languages, electronic storage or
copying only with explicit written approval of Grünbeck Wasserauf-
bereitung GmbH.
Any type of duplication not authorized by Grünbeck Wasseraufberei-
tung is a copyright violation and subject to legal action.
Responsible for contents:
Grünbeck Wasseraufbereitung GmbH
Josef-Grünbeck-Str. 1 •89420 Hoechstaedt/Germany
Phone [phone] •Fax [phone]
www.gruenbeck.com •[e-mail]
Print: Grünbeck Wasseraufbereitung GmbH
Josef-Grünbeck-Str. 1, 89420 Hoechstädt/Germany

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
4
EU Declaration of conformity
This is to certify that the system designated below meets the safety and health requirements of
the applicable European guidelines in terms of its design, construction and execution.
Manufacturer:
Grünbeck Wasseraufbereitung GmbH
Josef-Grünbeck-Str. 1
89420 Hoechstaedt/Germany
Responsible for documentation:
Markus Pöpperl
System designation:
Disinfection system
System type:
GENO-UV-M (2-5) 200 S
Serial number:
see type designation plate
Applicable guidelines:
EMC (2014/30/EU)
Low Voltage (2014/35/EU)
Applied harmonized standards, in
particular:
DIN EN 61000-6-2:2006-03
DIN EN 61000-6-3:2011-09
Applied national standards and
technical specifications, in partic-
ular:
DIN 19636-100:2008-02,
DIN EN 14743:2007-09
Place/Date/ Manufacturer’s signa-
ture:
Hoechstaedt, 10.01.2019 i. V.
Markus Pöpperl
Dipl.-Ing. (FH)
Function of signatory:
Head of Technical Product Design

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
5
A General
1 | Preface
Thank you for opting for a Grünbeck product. Backed by decades of
experience in the area of water treatment, we provide solutions for all
kind of processes.
Drinking water is classified as food and requires particular care. There-
fore, always ensure the required hygiene in operating and maintaining
systems for drinking water treatment. This also applies to the treatment
of water for industrial use if repercussions for the drinking water cannot
completely be excluded.
All Grünbeck systems and devices are made of high-quality materi-
als. This ensures reliable operation over many years, provided you
treat the systems with the required care. This operation manual as-
sists you with important information. Therefore, carefully read the op-
eration manual before installing, operating or maintaining your sys-
tem.
Customer satisfaction is our prime objective and providing customers
with qualified advice is crucial. If you have any questions concerning
this system, possible extensions or general water and waste water
treatment, our technical service staff, as well as the experts at our
headquarters in Hoechstaedt, is available to help you.
Advice and assistance
For advice and assistance please contact your local representative
(see www.gruenbeck.com ) or get in touch with our service centre
which can be reached during office hours:
Tel.: [phone]
We can connect you with the appropriate expert more quickly if you
provide the required system data. In order to have access to this data
at all times, please fill in the data given on the (see type plate in chap-
ter C-1)
2 | How to use this operation manual
This operation manual is intended for the operators of our systems. It
is divided into several chapters (a letter is assigned to each of them)
which are listed in the “Table of contents” on page 2 in alphabetical or-
der. In order to find the specific information you are looking for, check
for the corresponding chapter on page 2.
The headers and page numbers with chapter information make it eas-
ier to find your way around in the manual.

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
6
3 | General safety information
3.1 Symbols and
notes
Important notes in this operation manual are characterised by sym-
bols. Please pay particular attention to these notes in order to ensure
a danger-free, safe and productive system operation.
Danger! Failure to adhere to these notes will cause serious or life-
threatening injury, extreme damage to property or inadmissible con-
tamination of drinking water.
Warning! Failure to adhere to these notes may cause injury, damage
to property or contamination of the drinking water.
Attention! Failure to adhere to these notes may result in damage to
the system or other objects.

Note: This symbol characterises notes and tips to make your work
easier.
Tasks with this symbol may only be performed by Grünbeck's tech-
nical service or by persons expressly authorised by Grünbeck.
Tasks with this symbol may only be performed by qualified electrical
experts according to the VDE guidelines or according to the guide-
lines of a similar local institution.
Tasks with this symbol may only be performed by the local water
works or an approved installation company.
3.2 Operating
personnel Only persons who have read and understood this operation manual
are permitted to work with the system. The safety guidelines are to be
strictly adhered to.
3.3 Designated
application
The system may only be used for the purpose outlined in the product
description (chapter C). The guidelines in this operation manual as
well as the applicable local guidelines concerning the drinking water
protection, accident prevention and occupational safety must be ad-
hered to.
In addition, appropriate application also implies that the system may
only be operated when it is in proper working order. Any malfunctions
must be repaired at once.

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
7
3.4 Protection from
water damage
Warning! In order to properly protect the installation site from water dam-
age:
a) a sufficient floor drain system must be available or
b) a water stop device (see chapter C Accessories) must be in-
stalled.
Warning! Floor drains that are discharged to a lifting system do not
work in case of a power failure.
3.5 Indication of
specific dangers
Danger due to electricity! →Do not touch electrical parts with wet
hands! Disconnect the system from mains before starting work on
electrical parts of the system. Have qualified experts replace dam-
aged cables immediately.
Danger due to mechanical energy! System parts may be subject to
overpressure. Danger of injury and damage to property due to escap-
ing water and unexpected movement of system parts. →Check pres-
sure pipes regularly. Depressurise the system before starting repair
or maintenance work on the system.
Hazardous to health due to contaminated drinking water! →The sys-
tem may only be installed by a qualified company. The operation
manual must be strictly adhered to! Ensure that there is sufficient
flow. The pertinent guidelines must be followed for starting-up after
long periods of standstill. Inspections and maintenance must be per-
formed at the intervals specified!

Note: By concluding a maintenance contract, you ensure that all of
the required tasks are performed on time. You may perform the in-
terim inspections yourself.
4 | Shipping and storage
Attention! The system may be damaged by frost or high tempera-
tures. In order to avoid damage of this kind:
Protect from frost during transportation and storage! Do not install or
store system next to objects which radiate a lot of heat.

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
8
5 | Disposal
Comply with the applicable national regulations.
5.1 Packaging
Dispose of the packaging in an environmentally
friendly manner.
5.2 Product
If this symbol (crossed out waste bin) is on the prod-
uct, this product or the electrical and electronic com-
ponents must not be disposed with household waste.
Dispose of the electrical and electronic products or
components in an environmentally friendly manner.

For more information on take-back and disposal, go
to www.gruenbeck.com

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
9
B Basic information
1 | Laws, regulations, standards
In the interest of good health, rules cannot be ignored when it comes
to the processing of drinking water. This instruction manual takes the
applicable German guidelines into account and provides all of the in-
formation you need to safely operate your water treatment system.
Among other things, the regulations stipulate that
•only approved companies are permitted to make major modifica-
tions to water treatment facilities,
•and that tests, inspections and maintenance are to be performed
on installed systems at regular intervals.
Especially then when the water treated by means of this system is
made available for third parties it must be observed that the Drinking
Water Ordinance is kept.
According to § 11 of the Drinking Water Ordinance the UV disinfec-
tion systems are only to be applied if these are inspected correspond-
ing to DVGW worksheet W 294-2. Grünbeck’s UV disinfection sys-
tems GENO-UV 60-200 S comply with this requirement have to be in-
stalled and operated according to DVGW worksheet 294-1 for the
purpose of proper operation.
2 | Disinfecting effect of UV light
UV light (ultraviolet light) is light of wave lengths between 100 and
380 nm which are imperceptible (invisible) to the naked eye.
For the UV disinfection, the wave length of 254 nm is of major im-
portance. This wave length is emitted by mercury-arc lamps whose
built-up is similar to that of common fluorescent lamps.
The disinfecting properties of the UV light are due to the fact that light of a
wave length of 254 nm is absorbed by the nucleic acids in the genetic
material of micro-organisms. The absorption of the high-energy radiation
results in the modification of the genetic material (DNA resp. RNA) and
leads to an incapability to reproduce.
The room irradiation (light dose) required to inactivate the micro-or-
ganisms depends on the species and population. For fungi, spores
and algae a much higher room irradiation is required compared to
bacteria and viruses.
The DVGW’s Technical Regulation W 294 stipulates a minimum room
irradiation of 400 J/m² by which a reduction rate of 99,99% for viruses
and bacteria is achieved.

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
10
3 | Room irradiation
The extent of the irradiation in the room depends on the intensity and
the duration of the irradiation. The irradiation intensity on the other
hand depends on the spectral weakening coefficient of the water at
254 nm (SWC254). With regard to the UV disinfection the organic sub-
stances (e. g. humic acids) and the inorganic salts (e. g. iron or man-
ganese ions) contained in the water are of major importance as these
absorb the UV light at 254 nm and thus reduce the transmission. As
the wave length of 254 nm is invisible to the naked eye, the SWC254
can only be determined by a UV-VIS spectrometer.
The intensity of irradiation furthermore depends on the age of the UV
lamps. The performance of the UV lamps is reduced with the increas-
ing service life. In order to furthermore guarantee the required room
irradiation the lamp must be replaced at the end of its service life.
The period of irradiation results from the flow and the volume of the
UV disinfection system. For the safe operation of UV systems the lim-
itation of the flow is necessary what is also required by the DVGW
worksheet W 294.
Subject to being operated properly, the GENO-UV disinfection sys-
tems provide the effective minimum room irradiation of 400 J/m² re-
quired by the DVGW.

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
11
C Product description
1 | Type plate
The type plate is located in the bottom right-hand corner of the control
cabinet of the GENO-UV disinfection systems. Please specify the
data shown on the type plate of your GENO-UV disinfection system in
order to speed up the processing of enquiries or orders. Please copy
the indicated information to the table below in order to have it readily
available whenever necessary.
Disinfection system GENO-UV-M-

/200 S
Serial number: 
Order no.: 
Fig. C-1 Type plate for the disinfection system GENO-UV-M2/200S
2 | Technical specifications
The GENO-UV disinfection system is used for the continuous disin-
fection of water. It is equipped with a selective GENO-UV disinfection
system sensor.
All the GENO-UV disinfection system data is listed in Table C-1. The
data refers to the standard versions of the GENO-UV disinfection sys-
tems. Possible deviations in case of special versions are listed sepa-
rately, if applicable.
Warning! If the GENO-UV disinfection system fails or is switched off,
there is a risk of the drinking water and downstream piping becoming
contaminated.

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
12
Table C-1: Technical specifications
GENO-UV disinfection systems
M2/200 S
M3/200 S
M4/200 S
M5/200 S
Connection data
Nominal connection diameter
DN 80
DN 100
Min. drain connection
DN 50
Power supply
V/Hz
230/50
Connected load
W
620
735
850
965
Protection/Protection class
IP 54/I
Performance data
Nominal pressure
PN 10
Max. flow*
m³/h
38.0
61.9
89.2
120.0
Pressure loss at max. flow
bar
< 0.2

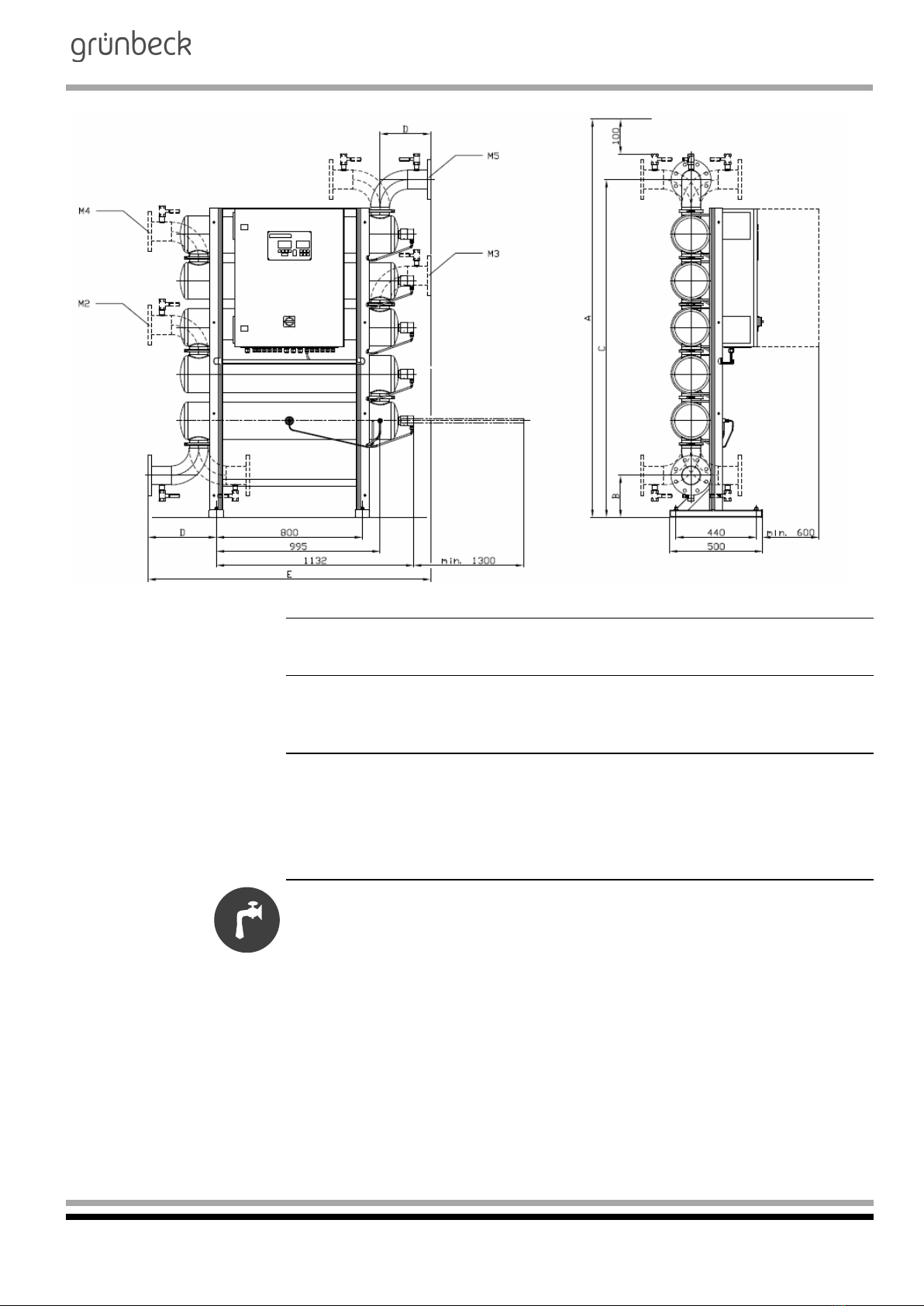

Dimensions and weights
A Total height
mm
1700
1700
1844
2003
B Inlet connection height
mm
226
226
226
226
C Outlet connection height
mm
1091
1347
1598
1854
D Distance between flange and middle of
connection
mm
241
241
277
277
E Connection width**
mm
–
1477
–
1549
Distance pressure pipe inlet and outlet
mm
995
995
995
995
Distance drill holes M16 width
mm
800
800
800
800
Distance drill holes M16 depth
mm
440
440
440
440
Space req. on right of sys. for lamp replacement
mm
1300
1300
1300
1300
Min. space req. in front of system
mm
600
600
600
600
Empty weight
kg
115
130
145
160
Volume
l
80
120
160
200
Ambient data
Inlet water temperature
°C
5-50
Max. ambient temperature
°C
40
Max. relative humidity
%
70
Assemblies
Pressure pipe
Number
2
3
4
5
Material
W 1.4404
Quartz protective
pipe
Number
2
3
4
5
Length / ∅
1200 / 28
UV lamp
Number
2
3
4
5
Capacity
W
200
Max. useful life
h
18,000
UV sensor
Selectivity > 90% at 254 nm
Measuring window tube
as per W 294
2 ball valves
Nominal diameter
R ¾"
Material
W 1.4301
Control cabinet
H x W x D
mm
760 x 600 x 210
Material
Powder-coated steel
GENO-UV-tronic2 control
Displays
Graphic display 128 x 64 pixels, back-lit,
Maintenance and fault display
Inputs
Remote control, UV sensor, lamp monitoring,
temperature sensor
Outputs
External fault and maintenance message, safety device,
flush valve
* The maximum flow depends on the quality of the water and the age of the UV lamps. The values stated above
apply for a min. room irradiation of 400 J/m² with water transmission of 98% (1 cm) at the end of the lamps' use-
ful life.
** with standard design
ÜA registration number
Office of Vienna Provincial Government – City of Vienna
R-15.2.3-21-17496
Order no.
522 320
522 325
522 330
522 335

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
13
3 | Designated application
The GENO-UV disinfection systems are designed to reduce the num-
ber of germs in cold water. They are located downstream of water
treatment units. The inactivation and killing of other micro-organisms,
in particular spores and algae, depends on the size of the relevant
populations. In the case of algae, around 100 times more energy is
required in order to kill these off compared with bacteria.
The GENO-UV disinfection system is adapted to the expected water
needs and quality upon installation. The maximum flow must not be
exceeded under any circumstances. The GENO-UV disinfection sys-
tem can be expanded in the case of increased water demands or a
decrease in water quality.
The GENO-UV disinfection system may only be operated if all com-
ponents are installed properly. Safety devices must never be re-
moved, bridged or otherwise tampered with.
Designated application of the system also implies that the information
contained in these operating instructions and all safety guidelines ap-
plying at the installation site be observed. Furthermore, the mainte-
nance and inspection intervals have to be observed.
The disinfection system GENO-UV-M is exclusively designed for use
in the industrial and commercial field.
4 | Application limits
The application limit is set by the maximum flow. The maximum flow
is based on the transmission of the water (translucency) (see table
C-2).
The following maximum flows apply for a minimum room irradiation of
400 J/m² as a function of water transmission at 253.7 nm and various
measuring cuvette diameters. The calculations were based on the
maximum useful life of the UV lamps.
Table C-2: Application limits
GENO-UV-M (2-5) 200 S
Transmission with 10 mm cuvette
0.98
0.94
0.90
0.85
0.80
Transmission with 50 mm cuvette 0.90 0.73 0.59 0.44 0.33
SAC value
m-1
0.88
2.69
4.60
7.06
9.7
GENO-UV-M2/200 S
m³/h
38.0
28.0
20.7
14.2
9.8
GENO-UV-M3/200 S
m³/h
61.9
47.8
37.0
27.2
20.3
GENO-UV-M4/200 S
m³/h
89.2
71.3
57.3
44.2
34.6
GENO-UV-M5/200 S
m³/h
120.0
98.6
81.6
65.1
52.6

Note: Transmission with a wavelength of 253.7 can only be deter-
mined with a laboratory measuring instrument.

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
14
5 | Scope of supply
5.1 Basic configura-
tion
•1 system rack made of stainless steel
•2 - 5 stainless steel pressure pipes depending on the system.
•2 - 5 quartz protective pipes depending on the system.
•2 - 5 UV lamps depending on the system.

Note: A special warranty restriction of max. 5000 operating hours or
12 months after installation applies for UV lamps
•Control cabinet with GENO-UV-tronic
2
control unit
.
•1 measuring window tube (DVGW W 294 compliant).
•1 GENO-UV disinfection system sensor.
•1 temperature sensor.
•1 operating instructions.
•1 auxiliary tool for installation of the quartz protective pipes.
5.2 Optional
accessories

Note: It is possible to retrofit optional components to existing
GENO-UV disinfection systems. Please contact your local Grünbeck
representative or Grünbeck’s headquarters in Hoechstaedt for details.
•Safety device (stops the water supply in the event of a fault or
power failure to prevent non-disinfected water from entering the
subsequent piping system). Can be adapted to the local conditions
on request.
Order no.
•Flow sensor for GENO-UV-M(2-3)/200 S
for PVC piping DN 80.
522 235
•Flow sensor for GENO-UV-M(4-5)/200 S
for PVC piping DN 100.
522 245
•Flush valve for GENO-UV-M/200 S temperature
regulation.
522 800
•Flush set for industrial UV disinfection systems.
520 025
•Spare UV lamp.
523 132
•Spare quartz protective pipe.
522 628

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
15
5.3 Consumables
You should only use original consumables in order to ensure the reli-
able operation of the GENO-UV disinfection system.
Order no.
•Cleaning agent GENO-Clean CP
(10 x 1 l bottle).
170 022
5.4 Wearing parts
The following points are subject to a certain degree of wear and tear:
•Spare filter mats for the control cabinet ventilator
(not shown).
•Sealing ring for UV lamp.

Note: Although these are wearing parts, we grant a limited warranty
period of 6 months.
•Sealing ring for GENO UV-200 S lamp.
Fig. C-2: Quartz protective
pipe GENO UV-200 S

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
16
D Installation
1 | General installation instructions
The installation site must offer adequate space. The required connec-
tions must be provided prior to the installation.
For dimensions and connection data, please refer to table D-1.
Table D-1: Technical specifications
GENO-UV disinfection systems
M2/200 S
M3/200 S
M4/200 S
M5/200 S
Connection data
Nominal connection diameter
DN 80
DN 100
Min. drain connection
DN 50
Power supply
V/Hz
230/50
Connected load
W
620
735
850
965
Protection type/Protection class
IP 54/
Performance data
Nominal pressure
PN 10
Max. flow*
m³/h
38.0
61.9
89.2
120.0
Pressure loss at max. flow
bar
< 0.2
Dimensions and weights
A Total height
mm
1700
1700
1844
2003
B Inlet connection height
mm
226
226
226
226
C Outlet connection height
mm
1091
1347
1598
1854
D Distance between flange and middle of con-
nection
mm
241
241
277
277
E Connection width**
mm
–
1477
–
1549
Distance pressure pipe inlet and outlet
mm
995
995
995
995
Distance drill holes M16 width
mm
800
800
800
800
Distance drill holes M16 depth
mm
440
440
440
440
Space req. on right of sys. for lamp replace-
ment
mm
1300
1300
1300
1300
Min. space required in front of system
mm
600
600
600
600
Empty weight
kg
115
130
145
160
Volume
l
80
120
160
200
** System with standard design

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
17
Fig. D-1 Dimension drawing

Note: The inlet and outlet flange can be turned through 360° for eas-
ier connection. This changes the dimension marked with a star (*).

Note: Observe the operating instructions that have been supplied
with the optional accessories (see chapter C, 5.2) for your system (if
applicable).
1.1 Water installation
When installing a GENO-UV disinfection system, certain binding rules
must be observed. Additional recommendations are given in order to
facilitate the handling of the systems. The installation information de-
scribed below is also illustrated in fig. D-2.
Binding rules
The installation of a GENO-UV disinfection system represents a major
interference with the drinking water system. Therefore, only author-
ised experts may install such devices.
•Observe the local installation guidelines and the general regula-
tions.
•Install a drinking water filter upstream (e.g., GENO- FM).
•0.5 m upstream and downstream of the GENO-UV disinfection sys-
tem, the water pipe must be made of UV-resistant material (stain-
less steel, galvanised steel or copper). Plastic pipes are not suita-
ble.

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
18
Provide a drain connection (at least DN 50) at the installation site
to discharge the water in case of system cleaning or maintenance
•The installation room must have a sufficiently sized floor drain. If
this is not the case, an appropriate water stop device must be in-
stalled which can reliably prevent water damage.
•A shut-off device is to be fitted up- and downstream of the GENO-
UV disinfection system.
•A safety device which is available as an accessory (see chapter C
5.2) is to be installed in the piping network downstream of the sys-
tem.
•In case the water supply must not be interrupted, a removable (or
closeable/drainable) bypass has to be provided.
•The GENO-UV disinfection system must always be installed down-
stream of a water tank, if present.
Warning! Floor drains that a discharged to a lifting system do not
work in case of a power failure.
1.2 Electrical installa-
tion
A shock-proof plug is adequate for the electrical connection. However,
it must comply with the specifications given in table D-1, may not be
further away from the GENO-UV disinfection system than 1.50 m and
must carry constant voltage.
2 | Preliminary work
1. Unpack all system components.
2. Check for completeness and perfect condition.
3. Place the system at the appropriate location.
4. Screw the system to the floor (4 drill holes M16 in the base of the
rack).
3 | How to connect the system
3.1 Water connection
Make the water connection according to the installation drawing
(fig. D-2) while observing the guidelines and recommendations given
in section 1.
Attention! The system is only tight after proper installation of the
quartz protective pipes. Do not perform leak test upon commissioning
until after they have been installed.

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
19

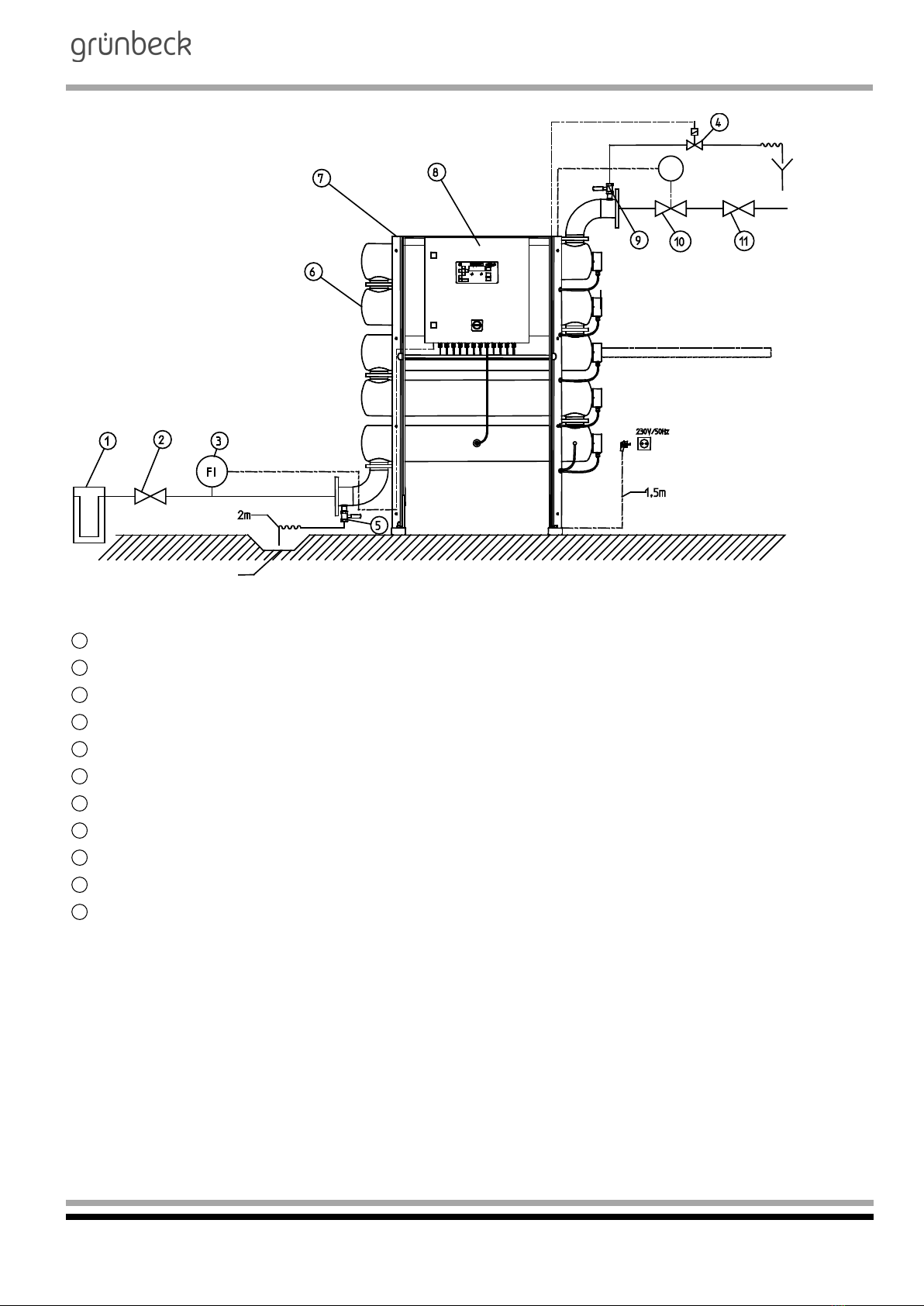

Drinking water filter (accessory)
Shut-off device upstream of UV system (to be provided by others on site)
Flow sensor for GENO-UV-M(2-5)/200 S (accessory)
Flush valve for temperature regulation (accessory)
Sampling tap / flush connection R ¾"
UV pressure pipe
Rack
Control cabinet with GENO-UV-tronic control unit
Sampling tap / flush connection R ¾"
Safety device: Drive to suit local conditions (accessory)
Shut-off device downstream of UV system (to be provided by others on site
Fig. D-2: Installation view
1
2
3
4
5
6
7
8
9
10
11
To drain min. DN 50
To drain
min. DN 50
Space required for replacement of
lamp at least 1.3 m

Disinfection system
GENO-UV-M (2-5) 200 S
Order no. 522 939-inter_105Edited: mal-mrie G:\BA-522939-INTER_105_GENO-UV-M200_S.DOCX
20
3.2 Electrical
connection
The work described here may only be performed by trained electri-
cians.
Attention! Only open the control cabinet when the main switch is
turned off.

Note: The UV system reactor housing must be connected to the
building potential equalisation via a PE cable with a cross-section of 6
mm² - 16 mm².
The GENO-UV disinfection system is completely pre-wired. Only the
accessories supplied and message outputs, where relevant, have to
be connected to terminal block X1 (also seen the circuit plan in the ap-
pendix).
•Safety device terminal 4 – 6.
•Flush valve for temperature regulation terminal 7 – 9.
•Horn terminal 10 – 12
•Maintenance message output terminal FM 13 – 15
•Fault message output terminal 16 – 18
•Remote control terminal 19 – 20.
•Flow sensor terminal 21 – 23.
Danger due to electrical energy! The main switch is still supplied
with line voltage. Do not connect system to mains before you have
finished this work.
