Grunbeck thermaliQ:SB13 User manual

We understand water.
Filling group | thermaliQ:SB13
Operation manual

General Contact
Germany
International Sales
Phone [phone]
Technical Service
Phone [phone]
Fax [phone]
Availability
Monday to Thursday
7:00 am - 6:00 pm
Friday
7:00 am - 4:00 pm Copyright
The manufacturer reserves the copyright to this manual. Without the
written consent of Grünbeck Wasseraufbereitung GmbH, no part of
this manual may be reproduced in any way, nor may any part be
processed, duplicated or distributed using electronic systems.
Non-compliance with the aforementioned stipulations shall be subject
to compensation for damages.
We reserve the right to technical modifications.
© by Grünbeck Wasseraufbereitung GmbH
Translation of the original operation manual
Edition of the manual: February 2021
Order no.: TD3-GS003en_045

Table of contents
3 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
Table of contents
1About this manual................................ 4
1.1 Other applicable documents................. 4
1.2 Target group ......................................... 4
1.3 Storage of documents........................... 4
1.4 Symbols used ....................................... 5
1.5 Typographical conventions................... 6
1.6 Validity of the manual ........................... 6
1.7 Type plate............................................. 7
2Safety .................................................... 8
2.1 Safety measures................................... 8
2.2 Technical safety instructions................. 9
2.3 Regulations......................................... 10
2.4 Responsibilities of the specialist
installer ............................................... 10
2.5 Responsibilities of the owner/user ...... 11
3Product description........................... 12
3.1 Intended use....................................... 12
3.2 Product components........................... 13
3.3 Accessories ........................................ 14
3.4 Functional description......................... 15
4Installation .......................................... 16
4.1 Requirements in relation to the
installation site .................................... 16
4.2 Checking the scope of supply............. 17
4.3 Installing the product........................... 17
5Start-up ............................................... 19
5.1 Setting the pressure reducer .............. 19
5.2 Filling the heating system ................... 20
5.3Handing over the product to the
owner/user.......................................... 20
6Operation............................................ 21
6.1 Functional check of system
separator ............................................ 21
7Cleaning, inspection, maintenance.. 22
7.1 Cleaning ............................................. 22
7.2 Inspection ........................................... 23
7.3 Maintenance ....................................... 24
7.4 Spare parts ......................................... 26
7.5 Wearing parts ..................................... 26
8Troubleshooting................................. 27
9Disposal.............................................. 28
9.1 Packaging........................................... 28
9.2 Product ............................................... 28
10 Technical specifications ................... 29
11 Operation log...................................... 30

About this manual
4 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
1 About this manual
1.1 Other applicable documents
For the filling group thermaliQ:SB13, the following documents
shall also be deemed as applicable documents:
●The manuals of all accessories used.
1.2 Target group
This manual is intended for specialist installers and owners/users.
1.3 Storage of documents
Keep this manual and all other applicable documents, so that they
are available when needed. Make sure that your specialist
installer enters the proper start-up and annual maintenance in
chapter 11 of the operation log.

About this manual
5 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
1.4 Symbols used
This symbol identifies instructions that you must comply with for
your personal safety.
This symbol identifies instructions that you must comply with in
order to avoid damage to property.
This symbol identifies important information about the product or
its handling.
This symbol identifies work that may only be carried out by
specialist installers. In Germany, the installation company must
be registered in an installation directory of a water supply
company acc. to §12(2) AVB Wasser V (German Ordinance on
General Conditions for the Supply of Water).

About this manual
6 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
1.5 Typographical conventions
The following typographical conventions are used in this manual:
Designation Depiction
Instruction
Single-step instruction or
chronological sequence of
actions does not matter
Action
Instruction
Multi-step instruction and
chronological sequence of
actions is important
1. First action
a first step
b second step
2. Second action
Result following an instruction » Result
Lists ●Listed item
• Listed sub-item
Menu paths Status level>Menu
level>Submenu
Display texts Display text
Operating elements Button/key
1.6 Validity of the manual
This manual applies to the following products:
●Filling group thermaliQ:SB13

About this manual
7 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx

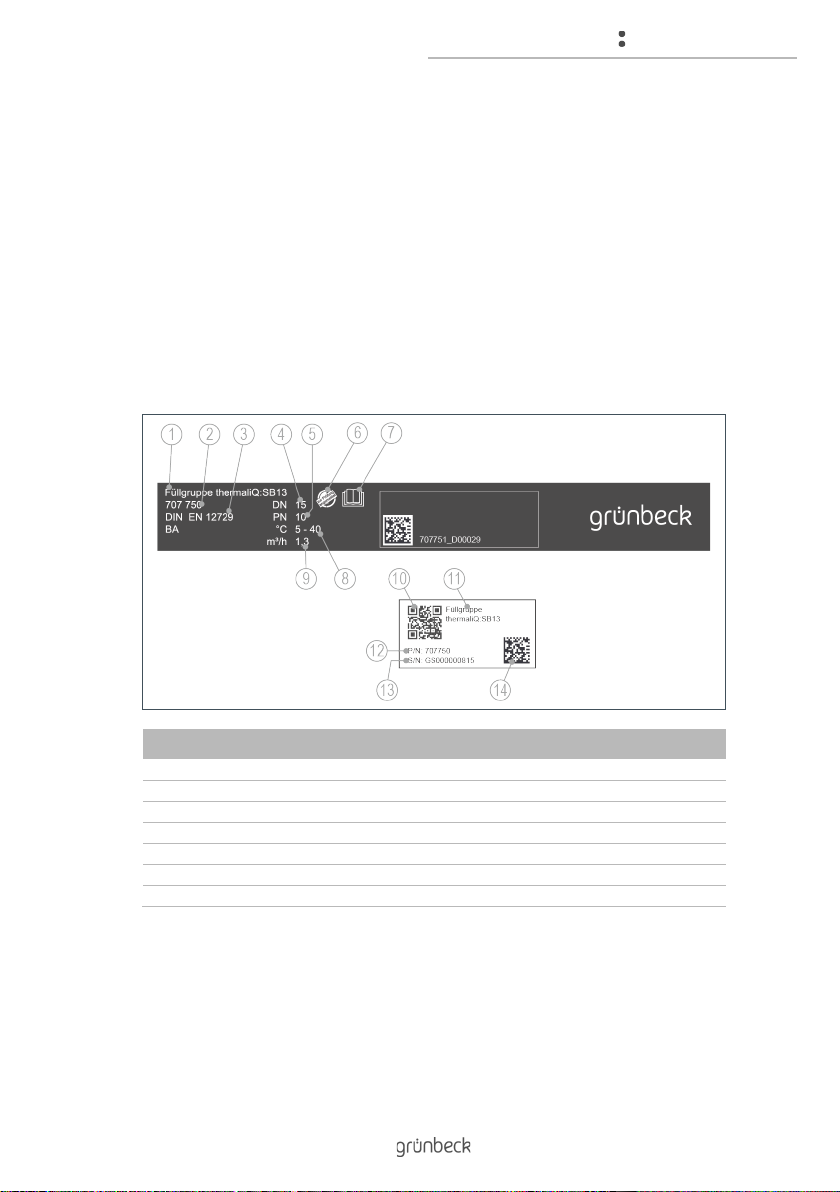

1.7 Type plate
The type plate is located at the drain funnel.
Please specify the data shown on the type plate in order to speed
up the processing of your inquiries or orders.
►Enter the necessary information in the table below to have
it readily available when necessary.
Item Designation Item Designation
1
Product designation
2
Order no.
3
DIN
4
Nominal diameter
5
Nominal pressure
6
DVGW test pending
7
Observe operation manual
8
Ambient temperature
9
Nominal flow
10
QR code
11
Product designation
12
Order no.
13
Serial no.
14
Data matrix code
●Product designation: Filling group thermaliQ:SB13
●Order no.: 707 750
●Serial no.: ______________________

Safety
8 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
2 Safety
WARNING: Contamination of drinking water due to improper
handling.
●Risk of infectious diseases.
►Have the installation, start-up and annual maintenance
carried out by specialist installers only.
2.1 Safety measures
●Carefully read this manual before operating your product.
●Install the product in a frost-free room. Otherwise, the
product may suffer irreparable damage. Water damage
may occur as a result.
●Only use genuine spare parts for maintenance or repair. If
unsuitable spare parts are used, the warranty for your
product will be void.
●Only have persons working on your product that have read
and understood the present manual and that are qualified
to do such work due to their vocational training.
●Only operate the product if all components are installed
properly.
●Safety equipment must never be removed, bridged or
otherwise tampered with.

Safety
9 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
2.2 Technical safety instructions
This manual contains instructions that you must comply with for
your own personal safety as well as to avoid damage to property.
The instructions are highlighted by a warning triangle and have
the following structure:
CAUTION: Type and source of danger
●Possible consequences
►Preventive measures
The following signal words were defined subject to the degree of
danger and may be used in the present document:
●DANGER means that death or serious injury will result.
●WARNING means that death or serious injury may result.
●CAUTION means that minor bodily injuries may occur.
●NOTE (without warning triangle) means that damage to
property may occur.

Safety
10 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
2.3 Regulations
When installing and starting up the system, amongst others,
comply with the following regulations and guidelines:
●Statutory regulations on environmental protection
●Provisions of the employers' liability insurance companies
●DIN EN 806 Specifications for installations inside buildings
conveying water for human consumption
●VDI 6023 Part 5 - 7 Specifications for installations inside
buildings conveying water for human consumption
2.4 Responsibilities of the specialist installer
Comply with the following instructions to ensure the proper and
safe functioning of the product:
●Only perform activities described in this manual.
●Perform all activities in accordance with all applicable
standards and regulations.
●Brief the owner/user on the function and operation of the
product.
●Advise the owner/user of the maintenance of the product.
●Inform the owner/user about possible dangers that can
arise during the operation of the product.

Safety
11 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
2.5 Responsibilities of the owner/user
Comply with the following instructions to ensure the proper and
safe functioning of the product:
●Arrange for a specialist installer to carry out installation,
start-up and maintenance.
●Have the product explained to you by the specialist
installer.
●Only perform activities described in this manual.
●Do not carry out any activities that are explicitly designated
for a specialist installer.
●Only use this product as intended.
●Make sure that the required inspection and maintenance
work is carried out.
●Keep this manual.

Product description
12 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
3 Product description
3.1 Intended use
The filling group thermaliQ:SB13 is designed for the safe
connection of a heating system to a drinking water installation in
accordance with the standards.
The filling group thermaliQ:SB13 secures the drinking water
against water flowing back from the heating circuit.
The pressure reducer of filling group thermaliQ:SB13 regulates
the filling pressure.

Product description
13 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx

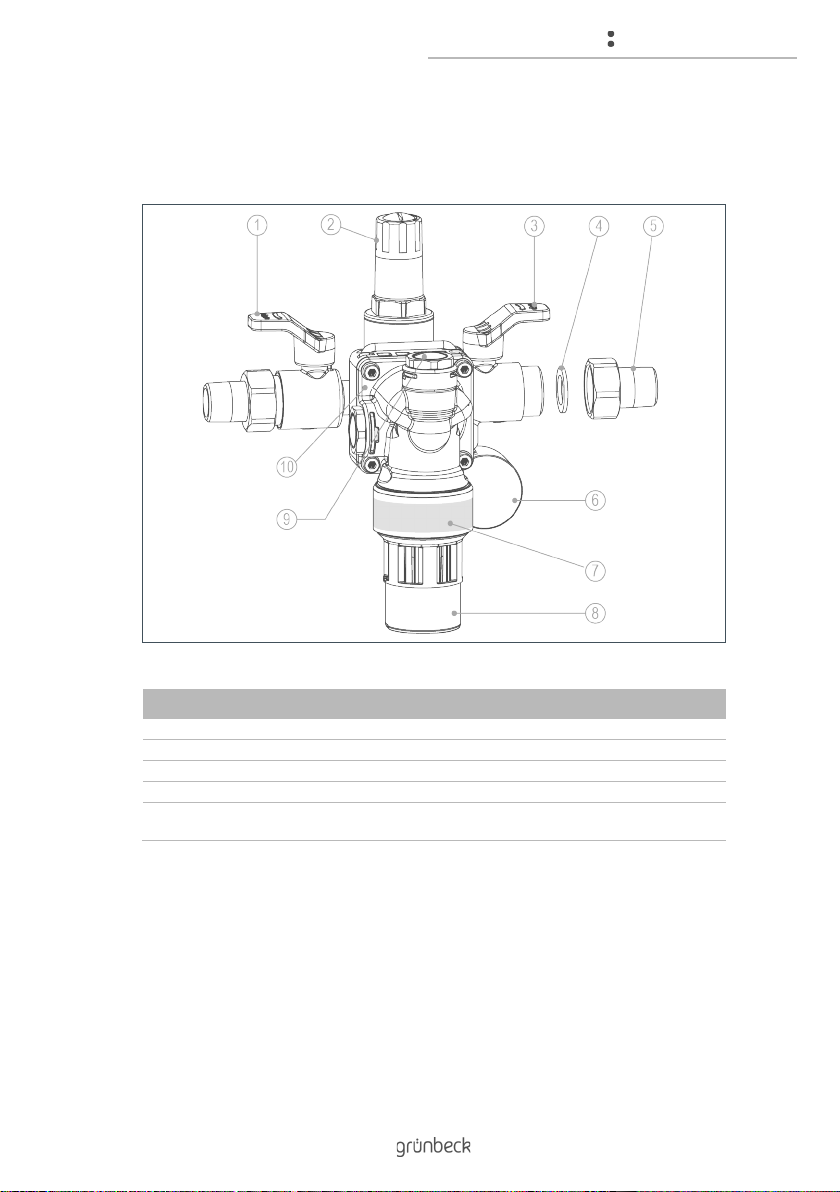

3.2 Product components
Item Designation Item Designation
1
Shut-off valve (inlet)
2
Pressure reducer
3
Shut-off valve (outlet)
4
Gasket
5
Water meter screw connection
6
Pressure gauge
7
Type plate
8
Drain funnel
9 Test connection of upstream
pressure zone
10 Rotary flange

Product description
14 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx

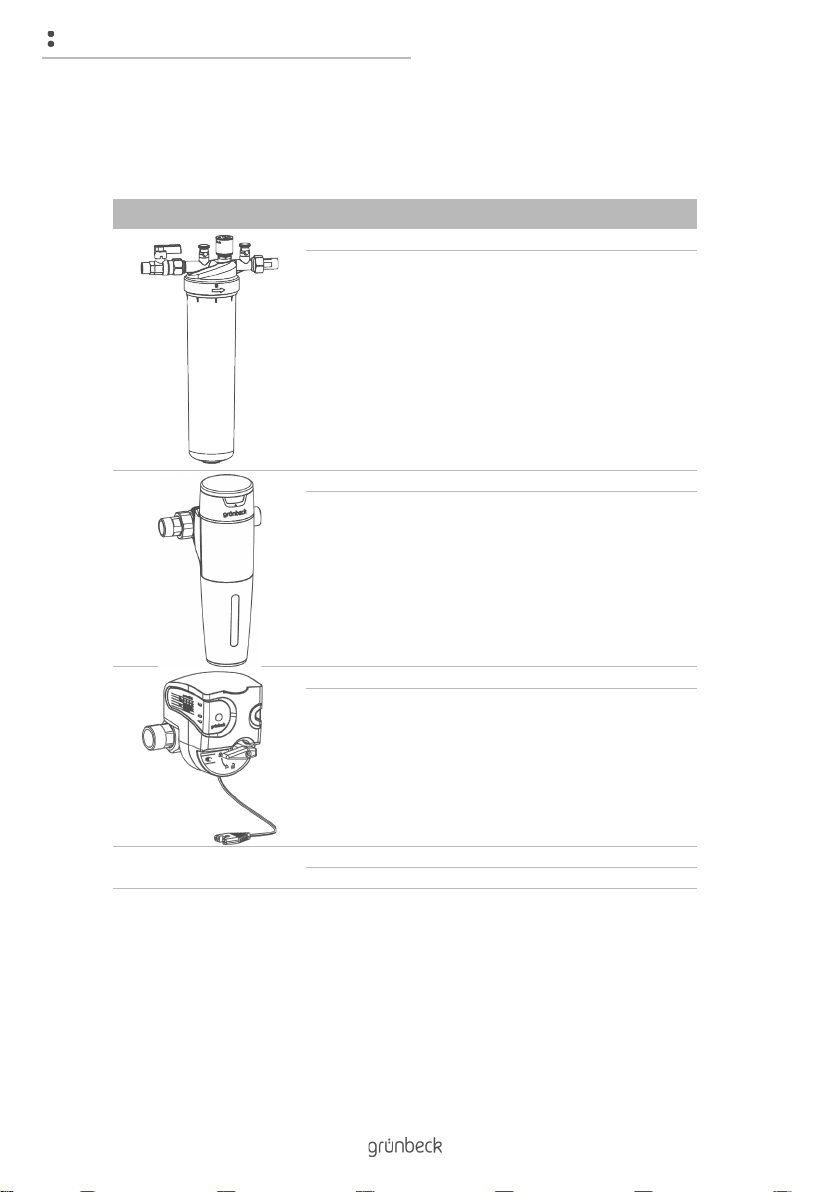

3.3 Accessories
Illustration Product Order no.
Treatment group thermaliQ:HB2
707 755
Fine filter pureliQ:K20
101 220
The fine filter pureliQ:K filters the drinking water and
protects the residential water system as per DIN EN 806.
Safety device protectliQ
126 400
The protectliQ safety device is a product to protect against
water damage in single and two-family homes.
Without illustration
Service kit
132 095
Service kit for the maintenance of system separators.

Product description
15 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
3.4 Functional description
The filling group thermaliQ:SB13 consists of a system separation
unit and a pressure reducer.
The raw water to fill the heating system flows through the shut-off
valve at the inlet side and the dirt trap into the system separator.
After the system separator, the water flows through the pressure
reducer. The pressure reducer ensures that the filling pressure in
the heating system is not exceeded. The filling pressure is
indicated at the pressure gauge.
3.4.1 System separator
The system separator BA as per DIN EN 12729 is a safety device
and protects the drinking water from impurities up to category 4.
The system separator consists of an upstream, an intermediate
and a downstream pressure zone. If pressure fluctuations occur
in the system and the upstream pressure thus drops below the
downstream pressure, the intermediate pressure zone is emptied
via the relief valve.
This prevents the water from flowing back into the drinking water
system.
3.4.2 Pressure reducer
The pressure reducer decreases the pressure on the inlet side
(inlet pressure) to the desired pressure on the outlet side (outlet
pressure).

Installation
16 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
4 Installation
The installation of a filling group represents a major intervention
into the drinking water system and may only be performed by a
specialist installer.
Item Designation Item Designation
1
Drinking water filter pureliQ:KD
2
Treatment group thermaliQ: HB2
4.1 Requirements for the installation site
Observe local installation directives, general guidelines and
technical specifications. The installation site must be frost-proof

Installation
17 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
and ensure the product's protection from chemicals, dyes,
solvents and vapours.
A floor drain must be provided in the installation room. If no floor
drain is available, an appropriate safety device must be installed
in order to prevent water damage.
A drinking water filter must be installed upstream of the product.

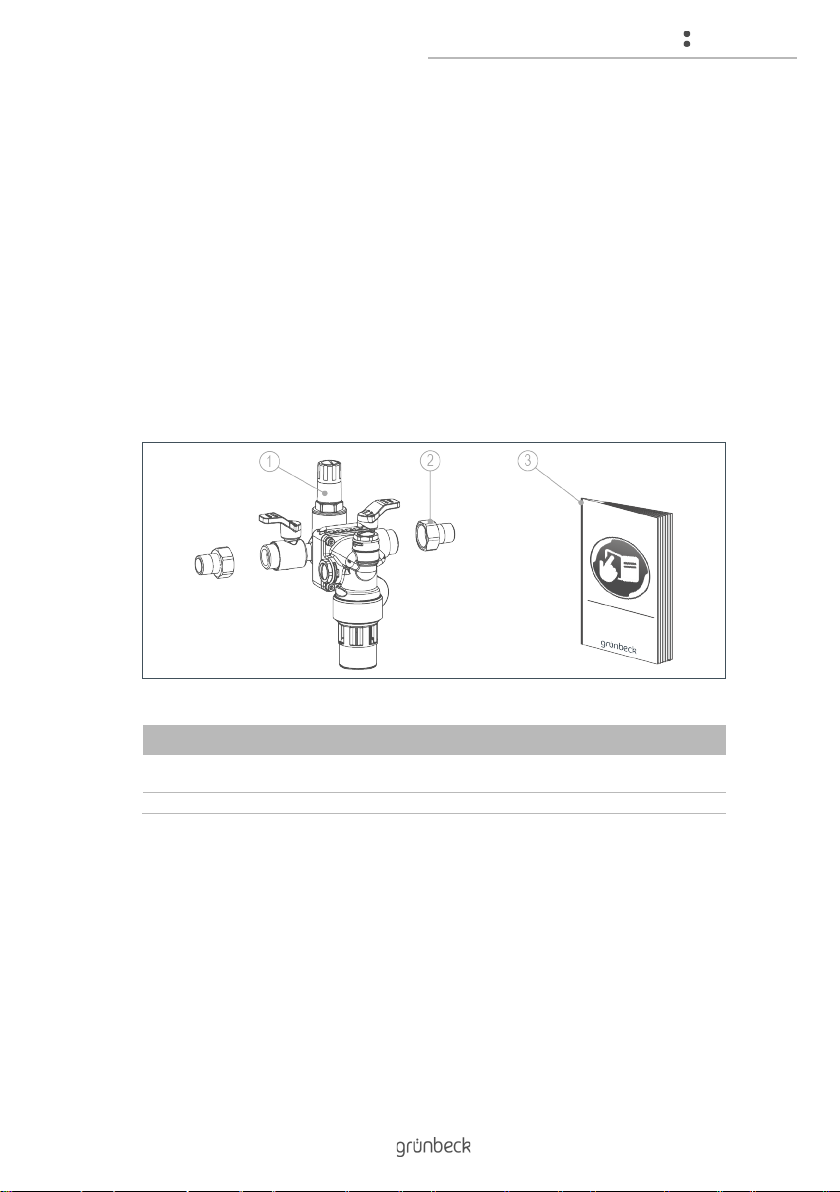

4.2 Checking the scope of supply
Item Designation Item Designation
1 Filling group with built-in system
separator, drain funnel
2 Water meter screw connection
3
Operation manual
►Check the scope of supply for completeness and possible
damage.
4.3 Installing the product
1. Flush the pipe.

Installation
18 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
2. Observe the flow direction.
(Directional flow arrow located under the shut-off valves).
3. Install the filling group into the pipe horizontally or vertically
and without any mechanical stress.
4. Turn the system separator unit on the rotary flange in a
way that the drain funnel points vertically downwards.
5. Install a DN 40 drain connection (not included in the scope
of supply).
6. Make sure there is a free outlet.
» The product is installed.

Start-up
19 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
5 Start-up
5.1 Setting the pressure reducer
Item Designation Item Designation
1
Adjusting handle
2
Screw
The pressure reducer is factory-set to 1.5 bar.
The pressure reducer can be adjusted as follows:
1. Loosen the screw.
2. Adjust the filling pressure at the adjusting handle.
a Turn to the left -to lower the pressure.
b Turn to the right +to increase the pressure.
3. Tighten the screw.

Start-up
20 | 36
BA_TD3-GS003en_045_Füllgruppe_thermaliQ-SB13.docx
5.2 Filling the heating system
1. Slowly open both shut-off valves.
» The filling process begins.
2. Open the screw plugs at the test connections.
» The filling group is being vented.
3. Close the screw plugs when no more air is escaping.
4. Visually check for leaks.
5. Close both shut-off valves after filling.
5.3 Handing over the product to the owner/user
When handing over the product, proceed as follows:
1. Inform the owner/user how the product works.
2. Hand over all documents to the owner/user for keeping.
3. Use the manual to brief the owner/user and answer any
questions.
4. Inform the owner/user about the need for inspections and
maintenance.
