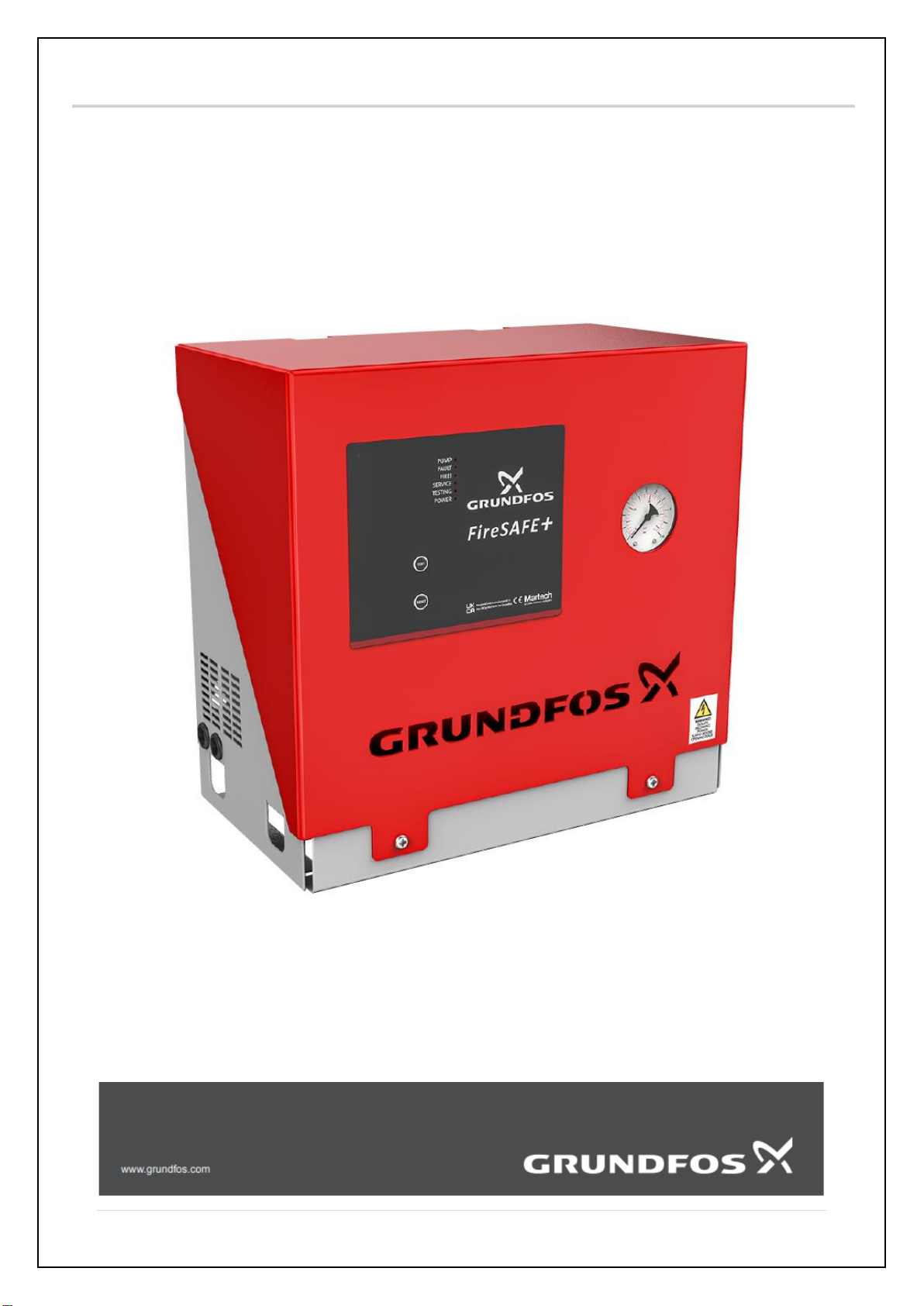

Grundfos FireSAFE+ User manual

1 | P a g e
GRUNDFOS INSTRUCTIONS
FireSAFE+
Grundfos firefighting systems, domestic range
•Safety Instructions
•Installation & Operating Instructions
•CE & UKCA Declarations of Conformity

2 | P a g e
Table of Contents
1.0 Safety Instructions
2.0 When and how to use the FireSAFE+
Installation & Operating instructions
2.1 Symbols used in this document
2.2 Scope of these Instructions
2.3 Product Identification
2.4 Product Description
2.5 Key product components
3.0 Installation and Operating Instructions
3.1 Sequence of Operation
3.2 Modes of operation
3.3 Integration of Signals.
3.4 Mains power monitoring / Controller
internal fuse monitoring
3.5 Button Press Functions

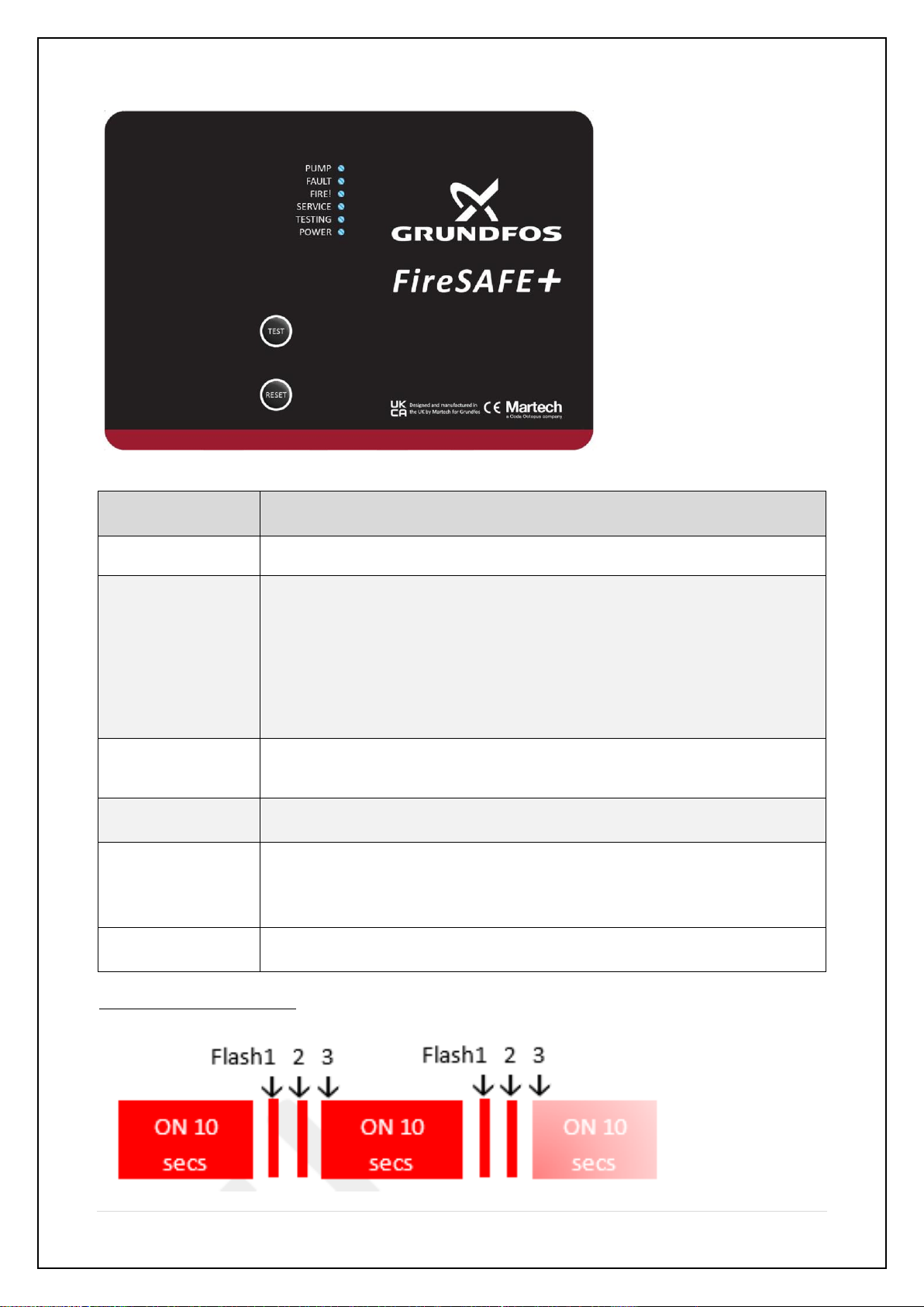

3.6 LED Operation
3.7 Programming settings

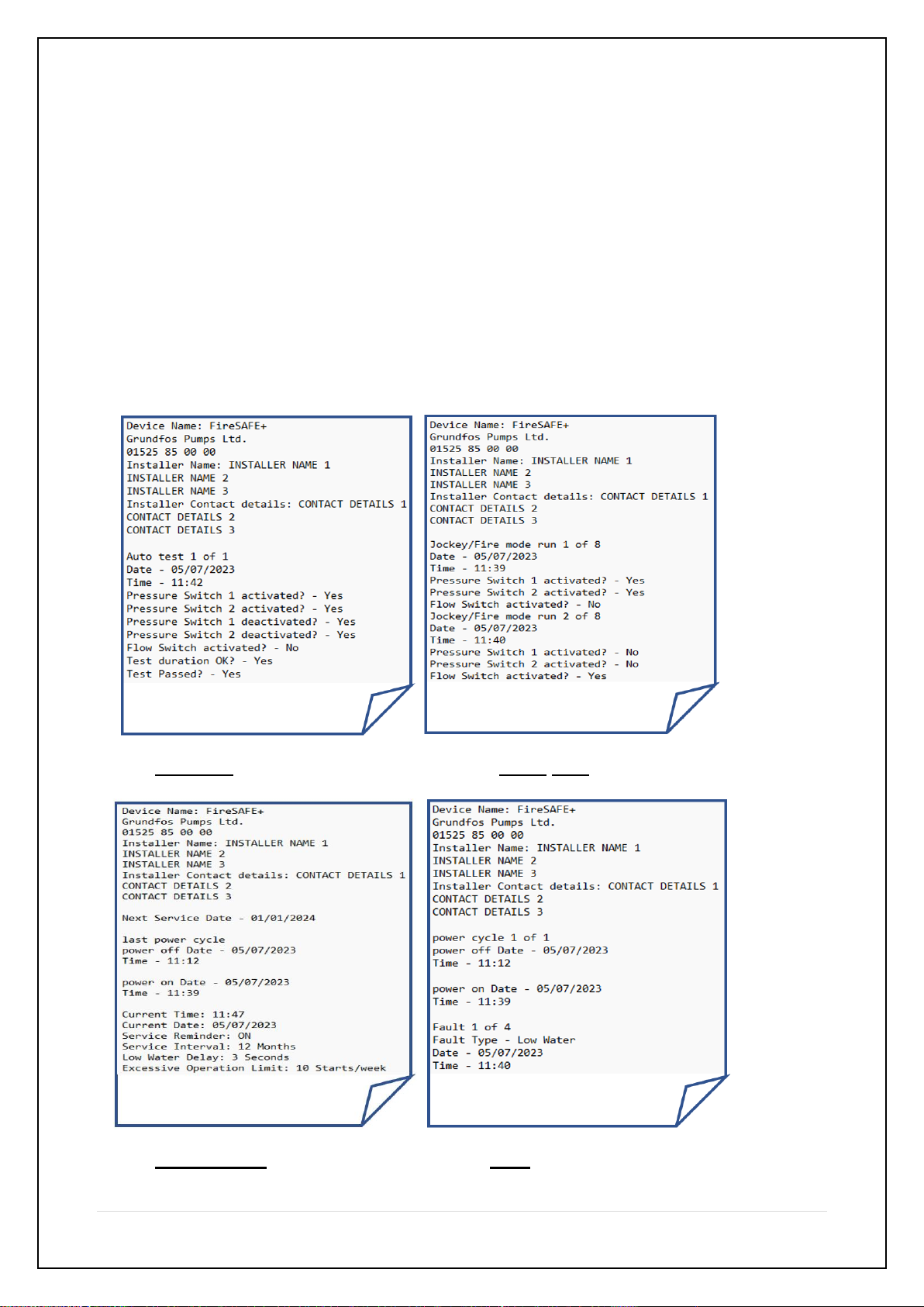

3.8 Extracting Data
3.9 Factory settings
3.10 Optional Features –Power Loss Alarm
back up.
3.11 Annual service reminder
3.12 Excessive pump operation / Leak
detection
4.0 General Information
4.1 Delivery and handling
4.2 Delivery inspection upon receipt
4.3 Warranty
4.4 Site storage
4.5 Frost protection
4.6 Operating environment
4.7 Installation location
4.8 Break tanks and mains water connection
4.9 Installation - General requirements
4.10 Wall fixing dimensions
4.11 Operating conditions
4.12 Installation and commissioning
recommendations
4.13 Pressure Switch settings
4.14 Electrical connections
5.0 Installation checklist
5.1 Commission checklist
5.2 System Verification checklist
5.3 Operation
5.4 User Inspection
5.5 User maintenance
5.6 Service & Annual test/Inspection
5.7 Service & Annual test checklist
5.8 Cooling Line Accessory
6.0 Technical Information
6.1 Product Range –Electrical Requirement
6.2 Product Range –Pressures and Flows
6.3 Product Range –Overall Dimensions
6.4 Product Range - Weights
7.0 Spare Parts List
7.1 De-commissioning
7.2 Dismantling
7.3 Disposal
8.0 Fault finding
9.0 UKCA Declaration of Conformity
10.0 EU Declaration of Conformity

3 | P a g e
1.0 Safety Instructions
Original Safety Instructions
These safety instructions give an overview of the safety precautions to be taken in connection
with any work on this product. Observe these safety instructions during handling, installation,
operation, maintenance, service, and repair of this product.
These safety instructions are an explanatory section, and all safety instructions will appear
again in the relevant sections of the installation and operating instructions.
Keep these safety instructions at the installation site for future reference.
Read this document before installing the product. Installation and
operation must comply with local regulations and accepted codes of good
practice.
This appliance should not be used by children and persons with reduced
physical, sensory, or mental capabilities or lack of experience and
knowledge. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children.
Hazard: Transporting the Product
WARNING - Falling objects.
Death or serious personal injury.
-Secure the product during transportation to prevent it from tilting or
falling down.
-Do Not stack the product
CAUTION - Crushing of feet/Harm of body.
Minor or moderate personal injury.
- Wear safety shoes when moving the product.
Hazard: Handling the product
CAUTION - Back injury/Harm of body.
Minor or moderate personal injury.
-Use lifting equipment.
CAUTION - Crushing of feet/Harm of body.
Minor or moderate personal injury.
- Wear safety shoes and gloves when moving the product.
Hazard: Mounting
CAUTION - Crushing of feet/Harm of body.
Minor or moderate personal injury.
- Place the product on a solid, level foundation suitable for the weight of
the product when full of water.

4 | P a g e
Hazard: Mounting (continued)
CAUTION –Noise in operation, structural vibration
Minor or moderate personal injury.
- Ensure that the foundation will not transmit noise and vibration created
by the unit that could be harmful. Avoid loft space installations.
Hazard: Electrical installation
DANGER - Electric shock.
Death or serious personal injury.
If requiring repair consult Grundfos, details on back page.
DANGER - Electric shock.
Death or serious personal injury.
- Check that the supply voltage and frequency correspond to the values
stated on the nameplate.
Hazard: Protection against electric shock, indirect contact
DANGER - Electric shock.
Death or serious personal injury.
- Ensure that the unit is connected to protective earth and provide
protection against indirect contact in accordance with local regulations.
Hazard: Cable cross-section
DANGER - Electric shock.
Death or serious personal injury.
- Always comply with local regulations as to cable cross-sections.
Hazard: Mains supply
DANGER - Electric shock.
Death or serious personal injury.
-Always use the recommended fuse size.
Hazard: Additional protection
DANGER - Electric shock.
Death or serious personal injury.
-Only use Residual Current Breaker with Over-Current (RCBO).

5 | P a g e
Hazard: Changing settings
DANGER - Electric shock.
Death or serious personal injury
- Switch off the power supply to the unit.
Remove the plug from the socket. Wait at least 5 minutes before starting
any work on the unit.
Make sure that the power supply cannot be accidentally reconnected.
Hazard: User interfaces
DANGER - Electric shock
Death or serious personal injury
- If the control panel is cracked, perforated, or damaged, immediately
isolate, and contact Grundfos, details on back page, to arrange a
repair/replacement.
Hazard: Repair/Servicing the product
DANGER - Electric shock
Death or serious personal injury
- Switch off the power supply to the unit.
- Isolate the product from the power supply. Wait at least 5 minutes
before starting any work on unit. Make sure that the power supply cannot
be accidentally reconnected. Any work should only be carried out by a
skilled and qualified person
DANGER - Magnetic field
Death or serious personal injury
- Do not handle the motor or rotor if you have a pacemaker.
Hazard: Cleaning the product
DANGER - Electric shock
Death or serious personal injury
- Isolate the product from the power supply. Wait at least 5 minutes
before starting any work on unit. Make sure that the power supply cannot
be accidentally reconnected. Check that the front controller cover is
intact before spraying water or any non-abrasive, non-solvent cleaning
solution on the product.
Hazard: Disposing of the product
The crossed-out wheelie bin symbol on a product means that it must be
disposed of separately from household waste. When a product marked
with this symbol reaches its end of life, take it to a collection point
designated by the local waste disposal authorities.
See also end-of-life information at www.grundfos.com/product-recycling.

6 | P a g e
2.0 When and how to use the FireSAFE+ Installation & Operating instructions
Prior to Installation, Commissioning and System Verification of this product, the installer
should fully read these Safety, Installation and Operating instructions.
The Installation and operation must also comply with local regulations and accepted codes of
good practice.
The user is responsible for periodic inspection of the product, at a recommended interval of no
more than 12 months.
The use of this product requires experience with and knowledge of the product.
Children and persons with reduced physical, sensory, or mental capabilities must not use this
product, unless they are under supervision or have been instructed in the use of the product by
a person responsible for their safety.
2.1 Symbols used in this document
WARNING/CAUTION
DANGER
2.2 Scope of these Instructions
These Installation and Operating instructions apply to the: FireSAFE+
For Technical Information consult the FireSAFE+ Datasheet
For CM Pump specific information please consult the CM Installation and Operating
manual and datasheets.
All the above documents can also be found on the Grundfos Product Centre
website at: www.grundfos.com/uk
If these safety instructions are not observed, it may
result in personal injury or damage to
property/equipment.
If these safety instructions are not observed, it may lead
to electric shock with consequent risk of serious
personal injury or death.

7 | P a g e
2.3 Product Identification
The FireSAFE+ unit has a silver nameplate attached to the back cover.
This label gives the following key information.
2.4 Product Description
The Grundfos FireSAFE+ (Safe Active Fire Equipment) range of pump packages is designed to
comply with the requirements of the following:
(BS 9251:2021 - Fire sprinkler systems for domestic and residential occupancies.
Code of practice)
(EN 16925:2018 - Fixed firefighting systems. Automatic residential sprinkler systems.
Design, installation, and maintenance
(LPS 1667 (pre-released version) - Requirements for pump sets used in domestic and residential:
automatic sprinkler and low-pressure water mist installations
The following components are supplied with the FireSAFE+ product:
Product, Installation and Operating Manual, Stop Operation sticker, CM Quick guide, and Pump
booklet.
The following accessories are available from Grundfos:
Cooling line components (for user assembly). Grundfos reference: 92869350
To make up a BS or LPC compliant system you will need the following additional components:
A - Flow switch
Grundfos only recommends the use of Fire standards approved flow switches.
B - Cooling line (Solenoid Valve and Coil):
Manufacturer - Danfoss
Coil –Part No. - 018F6701 –Description - 230VAC, 50 Hz, 10W
Valve –Part No. - 032U1251 –G1/2”- Description - Normally Closed
We also recommend that a filtration component (Y-strainer or similar) is used to
protect the Solenoid valve. This is available in the Cooling line accessory supplied by Grundfos.
Additionally, a Battery Backup module to sustain the buzzer alarm in the event of extended
local power loss is available from RS. RS Part number: 176-9373.
Description - 2.4V NiMH Rechargeable Battery Pack (700mAh) with lead.

8 | P a g e
2.5 Key product components
The FireSAFE+ unit is contained within a two-piece steel cabinet.
The following components are integrated within the FireSAFE+ product
Images 1-4
Identification
Component Description
1
Controller Membrane, LED’s and Buttons
2
Pressure Gauge
3
Security Screw –secured byTX30 screws (Security head)
4
Suction port and Priming screw
5
Discharge port
6
CM Pump
7
5-way valve including:
oNon return valve
oDrain cock
oFlow check port
8
Twin head Pressure switch
9
Keyway for wall mounting
10
Accessory –Cooling line/Dump Valve
11
PCB Controller - secured by T20 screws
10
4
11
2
11
1
Access requires a TX30
security screwdriver
3
9
8
6
7
5
11

9 | P a g e
Pump (Item 6, Images 1-4)
From the Grundfos high quality CM centrifugal horizontal multi-stage
range. Choice of seven sizes available within the FireSAFE+ range.
Refer to Pump data sheet for more info.
Pressure gauge (Item 2, Images 1-4)
Providing visual indication of the system pressure and for fine-tuning the pressure
switch setting. Range of gauge 0 - 10 bar or 0 - 145 psi.
Pressure switches (Twin head device) (Item 8, Images 1-4)
The FireSAFE+ unit operates directly from a pair of integrated pressure switches. The
Pressure switches need adjusting to meet the site-specific requirements. Refer to section 4.13
5 Way Valve (Item7, Images 1-4)
Includes:
•Integral non-return valve to prevent back flow.
•Draincock to tap off pressure when servicing.
Also doubles as connection point for Cooling line.
•Flow test connection from PTFE sealed 1” BSP plug
If using a flow meter, it is possible that the pipe diameter may need up-sizing, see guide
below.
The below provides the necessary diameter for each flow range:
Pipe diameter 1" Flow range 20 -200 L/min
Pipe diameter 1.5" Flow range 200 - 400 L/min
Pipe diameter 2" Flow range over 400 L/min
•Discharge port for system connection.
•Pressure switch and Pressure gauge connection.
PCB Membrane/Controller (Items 1 and 11, Images 1-4)
User interface and PCB Controller for all functions and interactions.
Cooling Line/Dump valve (Accessory only, not included) (Item 10, Images 1-4)
Provision has been made for a Solenoid valve/Y strainer connection on the inside of the
cabinet. This assembly can be purchased from Grundfos.
Grundfos recommendation can be found in section 2.4

10 | P a g e
3.0 Installation and Operating Instructions
Original Installation and Operating Instructions
3.1 Sequence of Operation
The Grundfos FireSAFE+ supplies water, usually from a storage tank, via a riser system within
the building to a system of sprinkler heads.
Should the pressure in the sprinkler system decay, through minor leakage, then the FireSAFE+
unit will detect this pressure drop, via inbuilt pressure switches and run the pump to
re- pressurize the system (Jockey Mode). If the pressure switches remain active or re-activate
within a small-time window, then the FireSAFE+ will enter Possible Fire Mode.
Possible Fire Mode runs the pump until it is manually stopped via the restoration of pressure
in the system and the pressing and holding of the Reset button on the front of the cabinet.
If the unit is connected to a Fire Alarm panel, it will send a Fault signal from the FireSAFE+ unit
to the Fire Alarm Panel. During Possible Fire Mode the cooling line is active. This protects the
pump from a potential no flow condition.
Should a sprinkler head activate then the resulting flow in the system will trigger the system
flow switch which will report a flow of water to the FireSAFE+ unit which in turn will put the
pump in Fire Mode. Fire Mode runs the pump until it is manually stopped via the restoration
of pressure in the system, resulting in the end of the flow signal, and the pressing and holding
of the Reset button on the front of the cabinet. If the unit is connected to a Fire Alarm panel, it
will send a Fire signal from the FireSAFE+ unit to the Fire Alarm Panel.
The FireSAFE+ unit also performs an Auto test on a weekly basis to ensure that it is fault free
and the pump is available on demand. During this test the Cooling line valve opens, releasing a
small amount of water, causing a system pressure drop. The controller monitors both pressure
switches and detects the drop in pressure. The controller activates the pump and continues to
monitor. It runs the pump to increase the pressure until it detects the de-activation of both
pressure switches. Upon de-activation of both pressure switches, the pump is stopped, and
the system should be back up to desired pressure. The Auto test result is recorded in the Log
file. A failed Auto test results in the unit flagging a Fault condition.
Auto test can be replicated at any time, Refer to section 3.2
All Controller/Pump activities are logged in the FireSAFE+ units’ memory for extraction via USB
in report formats.

11 | P a g e
3.2 Modes of Operation
The FireSAFE+ unit has been specifically designed by Grundfos to assist system designers
and installers with complying to the BS, EN and LPS standards, integrating key system
signals, monitoring system conditions and to operate automatically.
The FireSAFE+ controller has the following modes of Operation:
oJockey Mode - Pressure maintenance
oPossible Fire Mode –Pressure Switch triggered only
oFire Mode –Flow switch confirmed Fire
oAuto Test Mode –Weekly self-test
oManual Test Mode –Same as Auto Test Mode
Jockey Mode –System pressure maintenance.
If the system pressure decays enough to activate one or both pressure switches, the
FireSAFE+ unit will run the pump for a programmable short period of time (Factory set at
10 seconds). This should be sufficient to re-pressurize the system.
The maximum number of maintenance cycles within a 7-day period before the system
registers this as a fault is programmable up to a maximum of 30 (Factory set at 10
starts/week). It can also be programmed off, but this is the responsibility of the installer/user
thereafter. This cycle count excludes the automatic weekly pump self-tests.
On exceeding the maximum maintenance cycles the Fault LED on the Control panel
and Fault Digital output is activated requiring attendance to reset. The FireSAFE+ units’
operation is not impaired.
Possible Fire Mode –Dual Pressure switch detected Fire, Flow switch failure
Following a Jockey Mode operation, the FireSAFE+ monitors the pressure switches during a
small programmable time frame window. If the pressure switches remain active or re-activate
during this time window, the FireSAFE+ will run the pump in Possible Fire Mode.
Possible Fire Mode runs the pump until it is manually stopped via the restoration of
pressure in the system and the pressing and holding of the Reset button on the front
of the cabinet. Possible Fire Mode activates the Fault LED on the Control panel and
Fault Digital output requiring attendance to reset. The FireSAFE+ units’ operation is not
impaired.
During Possible Fire Mode the cooling line is active, protecting against running the pump
against a potential no flow condition. A Fire Alarm signal will not be generated; hence no
contact will be made to the Fire Brigade. A Fault alarm will be raised.

12 | P a g e
Fire! Mode –Flow switch = Confirmed Fire
Should a sprinkler head activate then the resulting flow in the system will trigger the system
flow switch which will report a flow of water to the FireSAFE+ unit which in turn will put the
pump in Fire Mode. Fire Mode runs the pump until it is manually stopped via the restoration
of pressure in the system, resulting in the end of the flow signal, and the pressing and holding
of the Reset button on the front of the cabinet. Fire Mode activates the Fire! LED on the
Control panel and Fire Digital output requiring attendance to reset.
Auto test Mode –Weekly test
The FireSAFE+ unit performs an Auto test on a weekly basis to ensure that it is fault free and
the pump is available on demand. During this test the cooling line valve opens, releasing a
small amount of water, causing a system pressure drop. The controller listens for the
activation of both pressure switches then runs the pump to restore the pressure while
listening for the de-activation of both pressure switches.
The Auto test result is recorded in the Autotest Log file. A failed Auto test results in the
activation of the Fault LED on the Control panel and Fault Digital output requiring attendance
to investigate the problem and reset.
Manual test Mode
Auto test can be replicated at any time, this is called the Manual test. Refer to section 3.5
3.3 Integration of Signals.
The FireSAFE+ unit has been specifically designed with the ability to power and relay
digital signals. The signals could be from any source, but Grundfos suggest the following
important signals are used:
oFlow Switch
oLow Water Level
The Flow switch device, the only device allowable under BS9251:2021 to determine the
presence of a fire and to activate Fire Mode. Water flow switches normally incorporate an
adjustable delay option. This should be optimized with the programmable delay in the
controller to the site conditions to prevent activating the Fire Alarm unnecessarily or delaying
Fire activation. Consult the documentation supplied with your device.
The Low water level switch device, to give a warning once the water storage capacity has
been reduced below the low-level mark. The signal needs to be present for more than the
programmable delay in the units’ settings, Factory set at 3 seconds, before the controller
activates the output.
The digital inputs are supplied with a current limited 12V DC Voltage which can be applied to
digital switching devices. Upon switching, the digital inputs are coupled to the volt-free
outputs. This allows Volt-Free output to Alarm Control Panels, Sirens, etc.
Voltage wetted inputs negate the requirement for an additional power source to supply the
digital signalling device. The inputs are optically connected to the outputs and therefore
voltage/current isolated from each other.

13 | P a g e
3.4 Mains power monitoring / Controller internal fuse monitoring
On the application of mains electrical power, the Power LED on the controller front
panel illuminates and the Fault output moves to its healthy position.
Upon failure of the mains power or the controller’s internal fuse the LED extinguishes, the
Fault relay moves to its unhealthy position and after more than 2 hours without power the
internal buzzer activates for 1 second every 30 minutes. This will continue until the mains
power is restored or the internal battery fails. The loss of mains power and the restoration of
mains power are both recorded in the data logs.
3.5 Button Press Functions
Function
Button
Action
Run Pump
Press and hold Test for
1-2 secs but <5 secs
Runs pump for duration of Jockey mode.
Manual Test
Press and hold Test for
>10 secs, until beep
Manual weekly test
Silence sounder
Press and hold Reset for
1-2 secs
Silence sounder
Stop pump
Press and hold Reset for
>10 secs
Stops pump –when in Fire/Possible Fire
mode. Only if pressure and flow signals
stop.
Emergency start
Press and hold Test + Reset for
>10 secs
Emergency start (Fire mode)
Clear Faults
Press and hold Reset for
>20 sec till second beep.
Clears faults.
Service reminder
Press and hold Reset for
>25 secs, till third beep.
Set/Reset Service reminder for another
period
Auto Test
Press and hold Reset for
>10 secs till beep, followed by
Press and hold Test > 10 secs till beep
Sets/Resets Auto Test timer on second
beep

14 | P a g e
3.6 LED Operation
LED
Function
PUMP
ON = Pump running
FAULT
ON, Two Flashes = Auto Test Failure
ON, Three Flashes = Low Water
ON, Four Flashes = Pressure Switch 1 Failure
ON, Five Flashes = Pressure Switch 2 Failure
ON, Six Flashes = Excessive Operation
ON, Nine Flashes = Cooling line Failure
ON, Ten Flashes = Possible Fire Mode
FIRE!
ON, Flashing = Fire Mode
SERVICE
ON = Service required
TESTING
ON = Cooling line open
ON = Auto test in progress
ON = Writing to/from USB
POWER
ON = Mains power available
How to Count the Flashes

15 | P a g e
3.7 Programming settings
FireSAFE+ is factory-configured with standard settings that should be suitable for most
installations. These settings should be verified onsite by the commissioning engineer. Where
required, these settings can be changed. See below for instructions on downloading advanced
settings from a USB memory stick.
The USB configuration feature is intended for use by qualified installers ONLY.
Changing the settings incorrectly could result in the system failing to operate correctly.
USB device requirements:
Formatted FAT32, Size 1Gb < > 65Gb, no other files on the device, root directory
only to be used (no folders).
This process is only for suitably qualified electrical persons, not the end user.
Process: (Programming settings/Extracting Data Logs):
•TURN OFF - Follow a Safe Isolation Procedure before working on the unit.
•Remove the Front cover and lay it flat, face down on a soft surface to
prevent scratching of the paint.
•Remove the Red plug in the PCB cover.
•Insert USB memory stick device into the USB port.
•Turn ON, wait a few seconds for the unit to beep.
•TURN OFF - Follow a Safe Isolation Procedure before working on the unit.
•Remove USB memory stick device, replace the Red plug, re-assemble the
Front cover.
Programming settings
A text file called settings.txt, available from Grundfos, can be used to customize the unit values
with the aid of a laptop before saving these to the USB device. Then performing the process
described above.
This text file is pre-formatted and allows for the customization of settings by editing the values
with a laptop/pc in the Windows Notepad editor.
Settings files MUST follow the settings.txt file syntax exactly.
Additional or missing characters and spaces are not permitted and may prevent correct
operation. All text after the semi-colon (;) are comments only and are not used by the system.
The USB configuration feature is intended for use by qualified installers ONLY.
Changing the settings incorrectly could result in the system failing to operate correctly.
On completion the unit will be updated, USB device will have a record saved to it from the
FireSAFE+ unit of the settings and history before the change. The settings.txt file will also have
been changed to settings.old. This is a safety measure to prevent it be accidentally used again.
To revert the settings.old file to settings.txt simply rename the extension back to .txt.
Time and date enables an approximate time/date to be set on the FireSAFE+ for time stamping
of activity logs.

16 | P a g e
3.8 Extracting Data logs
Perform the above process. The USB memory device will now have 4 text files on.
•Autotest Log
(records results of all Autotest cycles, Auto or Manually initiated)
•Fault
(records the number and name of the fault and when it occurred)
•Configuration
(records current configuration of the unit)
•Pump Run Log
(records Pressure switch and flow switch activation)
The name of these files will have a date and time stamp on them.
Examples of Log Files.
Auto Test Pump Run
Configuration Fault

17 | P a g e
3.9 Factory settings
The FireSAFE+ unit will come preset with the below values. The Time and Date will be
programmed in the factory and supported by the internal battery, however if not connected to
a power supply for an extended time (> 4 weeks) then the Time and Date will need to be
checked and possibly updated.
Current Time:-{{Time}}; See note above
Current Date:-{{Date}}; See note above
Service Reminder:-ON; ON or OFF
Service Interval:-12; 1 to 12 Months
Low Water Delay:-3; 0 to 60 Seconds
Maximum Run:-OFF; click to change
Maximum Run Time:-480; 1 to 480 Minutes
Excessive Operation Limit:-10; 0 to 30 Starts/week
Jockey Pump Duration:-10; 5 to 120 Seconds
Flow Switch Delay:-1; 0 to 25 Seconds
Pressure Switch Delay:-3; 0 to 10 Seconds
Fire Mode Wait:-5; 1 to 30 Seconds
Device Name:-FireSAFE+
Grundfos Pumps Ltd.
01525 85 00 00; three lines each less than 21 characters
Installer Name:-INSTALLER NAME 1
INSTALLER NAME 2
INSTALLER NAME 3; three lines each less than 21 characters
Installer Contact details:-CONTACT DETAILS 1
CONTACT DETAILS 2
CONTACT DETAILS 3; three lines each less than 21 characters
Auto test Duration:-60; 60 to 600 Seconds
Auto test Open:-5; 1 to 90 Seconds
Auto test Period:-7; 1 to 30 Days
Cooling line Duration:-5; 0 to 60 Seconds
Cooling line Cycles:-30; 1 to 60 times/hour
Model Variant:-1; 0 watchdog 1 domestic 2 residential
Timer override:-0; 0 to 60 minutes set to zero normal for operation
We recommend that these settings are suitable for most installations, but the system designer
will still need to confirm, and the installer will still need to verify the operation.
3.10 Optional Features –Power Loss Alarm back up
Optional rechargeable NiMH battery can be fitted to extend the life of the audible alarm in the
event of a power failure (2.4V NiMH Rechargeable Battery Pack (700mAh) with lead).
RS Part number: 176-9373. Fit to J35, Refer to section 4.14
3.11 Annual service reminder (12 month)
At the end of every 12-month period the Service LED is activated to remind the user that
the unit is due its yearly service, Refer to sections 5.6 & 5.7
3.12 Excessive pump operation / Leak detection (> 10 operations in a 7-day period)
If the pump is activated more than ten times in any 7-day period, the system is deemed to
have a leak and hence maintenance is required. The Fault Digital output and Fault LED are
activated. These can be reset after being attended too refer to section 3.5
Note –
The device name, Installer name,
Installer Contact details are also
programmable up to 21 characters.

18 | P a g e
4.0 General information
4.1 Delivery and handling
The FireSAFE+ unit is supplied from the factory in a cardboard box
which will be mounted on a wooden pallet suitable for handling by
forklift equipment.
The weight and size of the FireSAFE+ unit may require the use of proprietary lifting
equipment to be handled safely. Please observe the weight indicated on the box label before
selecting lifting method. Do not stack items on top of the box. Do not drop the pallet. The
weight of the unit can also be found in the Product range –Weights section 6.4.
4.2 Delivery inspection upon receipt
The FireSAFE+ should be immediately unpacked and inspected.
Any damage must be reported to the supplier within seven days in writing.
It is important that this Installation and Operating manual is studied carefully
before any installation takes place. The installation and operation should also be
in accordance with local regulations and accepted codes of practice.
Under no circumstances should the unit be operated until correctly installed in
the system pipework and ensure that the controller box cover and product cover
are secured in their appropriate positions.
4.3 Warranty
1. The Grundfos warranty covers all defects within the FireSAFE+ originating from faulty
workmanship and/or materials for a period of two years from the date of installation or
thirty months from the date of dispatch from the factory, whichever is the shorter.
2. The warranty covers the replacement of any faulty parts and our labour cost to replace the
faulty parts. It does not cover the cost of removing, returning, and refitting the FireSAFE+ unit
or any secondary losses arising from the failure.
3. Under no circumstances should faulty equipment be dismantled.
Failure to comply with this instruction could invalidate the warranty.
4. Defects arising from incorrect installation, installation outside temperature limits
(+3°C to 40°C), water containing debris, water containing harmful chemicals, inadequate
electrical protection, faulty ancillary equipment, lightning, or other circumstances beyond our
control, are not covered by the warranty.
4.4 Site storage
It is strongly recommended once the FireSAFE+ unit has been delivered to site, that it is
placed immediately into a dust, moisture and frost-free area which has been secured to
prevent unauthorised interference.

19 | P a g e
4.5 Frost protection
The FireSAFE+ unit must be protected from freezing conditions. The unit may
require trace heating or lagging. If the FireSAFE+ unit is being stored during
periods of frost the whole unit should be drained to avoid damage. Remove all
drain and vent plugs and allow the pump to drain. Do not replace the plugs
until the FireSAFE+ unit is to be used again.
The pump must be vented/primed before it is
started again. Loosen but do not remove the
priming screw until water flows from the hole.
4.6 Operating environment
The FireSAFE+ unit must not be used in an environment which has been
classified as hazardous where it could provide a source of ignition and
therefore cause an explosion by flame path.
Grundfos do not accept any responsibility for the use of FireSAFE+ unit to pump liquids
which could be construed as being hazardous to health either by touch, ingestion or
inhalation of fumes or gases given off by the liquid.
4.7 Installation location
Careful consideration must be given to the location of the FireSAFE+
unit. The following are minimum requirements:
The FireSAFE+ unit should ideally be placed in a location where the Control
panel LEDs can readily be seen, and the internal buzzer heard without
obstruction.
These are primary warning and alarm events and should be available to be
observed and heard. Additional system provision for alerting the inhabitants to
the FireSAFE+ warnings/alarm must also be made.
The FireSAFE+ also needs to be protected against the extremes of temperature
such as during a Fire or during the winter. Provision to maintain the FireSAFE+
within operating conditions needs to be made within the overall system
design.
The FireSAFE+ unit should be sited in a dry, well ventilated, and frost-free
position, where it will not be subjected to extremes of temperature.
The FireSAFE+ may be located outdoors in a weather, frost, and rodent proof
enclosure with adequate ventilation especially during hot weather. All pipe work
subject to freezing conditions must be adequately protected. Alternative system
provision must be made for alerting the inhabitants to the FireSAFE+ warnings
and alarms.
To enable maintenance and service of the FireSAFE+ unit to be carried out
satisfactorily, the area should have adequate lighting for this work to be carried
outsafely.

20 | P a g e
Ensure that the FireSAFE+ is positioned to allow access for examination and
service. A minimum of 50cm should be left all around the FireSAFE+ unit with
100 cm infront. Adequate drainage facilities and protection from water damage
in the immediate vicinity of the FireSAFE+ unit must be provided.
The FireSAFE+ unit should not be installed in an unventilated small space,
ensure adequate ventilation for the motor.
4.8 Break tanks and mains water connection
With the permission of the Water Utility company, it may be possible to
connect the FireSAFE+ unit directly to the town water mains. A dedicated
suction pipe will be required, the diameter of which should match the pump
suction as an absolute minimum. Suitable backflow prevention devices as
per byelaws should be included.
In situations where the town mains supply cannot be utilized directly it will be necessary to
install a water storage tank (break tank) between the incoming mains water supply and the
FireSAFE+ unit, it must however have a type AB Air Gap and be supplied and installed in
accordance with the Water Byelaws Regulations.
Check that the water storage tank has adequate capacity to meet/exceed the
demand. Refer to the standards requirements.
4.9 Installation - General requirements
The suction and discharge pipework must be at least the same size as the
FireSAFE+ suction and discharge ports, as a smaller size may result in reduced
pump performance or increased system resistance leading to a reduced flow.
The installation suction and discharge pipework may need to be properly
supported before being connected to the FireSAFE+ unit so that the FireSAFE+
unit is not stressed.
The pipework installation to and from the FireSAFE+ unit should be in
accordance with local water authority regulations, best industry practice and
according to the design recommendations in BS 9251 latest revision.
The electrical installation of the FireSAFE+ unit should be in accordance with
the latest issue of the I.E.E. regulations and according to BS 9251 latest
revision.
