Grundfos TPE 1000 Series User manual

NBE, NBGE, NKE, NKGE, TPE Series 1000, TPE
Series 2000
(from 30 kW 2-pole and 18.5 kW 4-pole)
Installation and operating instructions
NBE, NBGE, NKE, NKGE, TPE
Series 1000, TPE Series 2000
Installation and operating instructions
Other languages
http://net.grundfos.com/qr/i/99457466
GRUNDFOS INSTRUCTIONS

NBE, NBGE, NKE, NKGE, TPE Series 1000, TPE Series 2000
English (GB)
Installation and operating instructions ..........................................................5
Български (BG)
Упътване за монтаж и експлоатация.........................................................27
Čeština (CZ)
Montážní a provozní návod .................................................................50
Deutsch (DE)
Montage- und Betriebsanleitung .............................................................73
Dansk (DK)
Monterings- og driftsinstruktion ..............................................................97
Eesti (EE)
Paigaldus- ja kasutusjuhend ...............................................................119
Español (ES)
Instrucciones de instalación y funcionamiento ..................................................141
Suomi (FI)
Asennus- ja käyttöohjeet ..................................................................164
Français (FR)
Notice d'installation et de fonctionnement .....................................................187
Ελληνικά (GR)
Οδηγίες εγκατάστασης και λειτουργίας........................................................210
Hrvatski (HR)
Montažne i pogonske upute ................................................................233
Magyar (HU)
Telepítési és üzemeltetési utasítás...........................................................256
Italiano (IT)
Istruzioni di installazione e funzionamento .....................................................278
Lietuviškai (LT)
Įrengimo ir naudojimo instrukcija ............................................................300
Latviešu (LV)
Uzstādīšanas un ekspluatācijas instrukcija ....................................................323
Nederlands (NL)
Installatie- en bedieningsinstructies ..........................................................345
Polski (PL)
Instrukcja montażu i eksploatacji ............................................................368
Português (PT)
Instruções de instalação e funcionamento .....................................................391
Română (RO)
Instrucţiuni de instalare şi utilizare ...........................................................414
Srpski (RS)
Uputstvo za instalaciju i rad ................................................................437
Русский (RU)
Паспорт, Руководство по монтажу и эксплуатации.............................................459
Svenska (SE)
Monterings- och driftsinstruktion.............................................................482
Slovensko (SI)
Navodila za montažo in obratovanje .........................................................504
3
Table of contents

Slovenčina (SK)
Návod na montáž a prevádzku..............................................................526
Türkçe (TR)
Montaj ve kullanım kılavuzu ................................................................549
Українська (UA)
Інструкції з монтажу та експлуатації ........................................................571
Bahasa Indonesia (ID)
Petunjuk pengoperasian dan pemasangan ....................................................594
Macedonian (MK)
Упатства за монтирање и ракување ........................................................616
Norsk (NO)
Installasjons- og driftsinstruksjoner ..........................................................640
Shqip (SQ)
Udhëzimet e instalimit dhe funksionimit .......................................................662
Íslenska (IS)
Uppsetningar- og notkunarleiðbeiningar.......................................................685
(AR) ةيبرعلا
    ......................................................................707
4NBE, NBGE, NKE, NKGE, TPE Series 1000, TPE Series 2000
Table of contents

English (GB) Installation and operating instructions
Original installation and operating instructions
Table of contents
1. General information ........................5
1.1 Original installation and operating instructions .........5
1.2 Hazard statements..........................5
1.3 Notes ..................................5
1.4 References ..............................6
2. Product introduction........................6
2.1 Identification..............................6
3. Receiving the product.......................6
3.1 Delivery ................................6
3.2 Handling ................................6
4. Installation requirements .....................7
4.1 IT mains ................................8
4.2 Aggressive environment ......................8
4.3 Reduced performance under certain condition .........8
5. Mechanical installation ......................8
5.1 Enclosure types ...........................8
5.2 Location ................................8
6. Electrical connection .......................8
6.1 Electrical protection .........................9
6.2 EMC-correct installation.......................9
6.3 RFI filters ..............................10
6.4 Mains and motor connection ...................10
6.5 STO installation, optional .....................11
6.6 Connecting the signal terminals .................12
6.7 Connecting the signal relays ...................16
7. Starting up the product .....................18
7.1 Switching on the product .....................18
7.2 Activating the optional STO function ..............18
8. Control functions .........................19
8.1 Operating panel ..........................19
8.2 Menu overview ...........................19
8.3 Operating modes..........................19
8.4 Control modes ...........................20
9. Servicing the product ......................21
10. Fault finding the product ....................22
10.1 Overview of warnings and alarms................22
11. Technical data ...........................25
11.1 Enclosure ..............................25
11.2 Operating conditions........................25
11.3 Mechanical data ..........................25
11.4 Electrical data............................25
11.5 Miscellaneous data ........................26
12. Disposing of the product ....................26
1. General information
Read this document before you install the product. Instal-
lation and operation must comply with local regulations
and accepted codes of good practice.
1.1 Original installation and operating instructions
These instructions are a supplement to the installation and
operating instructions for the standard pump NB, NBG, NK, NKG,
TP. For instructions not mentioned specifically in this manual, see
the installation and operating instructions for the standard pump. In
these instructions the frequency converter part of the NBE, NBGE,
NKE, NKGE, TPE Series 1000 and TPE Series 2000 is referred to
as CUE.
1.2 Hazard statements
The symbols and hazard statements below may appear in Grundfos
installation and operating instructions, safety instructions and
service instructions.
DANGER
Indicates a hazardous situation which, if not avoided, will
result in death or serious personal injury.
WARNING
Indicates a hazardous situation which, if not avoided,
could result in death or serious personal injury.
CAUTION
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate personal injury.
The hazard statements are structured in the following way:
SIGNAL WORD
Description of the hazard
Consequence of ignoring the warning
•Action to avoid the hazard.
1.3 Notes
The symbols and notes below may appear in Grundfos installation
and operating instructions, safety instructions and service
instructions.
Observe these instructions for explosion-proof products.
A blue or grey circle with a white graphical symbol indi-
cates that an action must be taken.
A red or grey circle with a diagonal bar, possibly with a
black graphical symbol, indicates that an action must not
be taken or must be stopped.
If these instructions are not observed, it may result in mal-
function or damage to the equipment.
Tips and advice that make the work easier.
5
English (GB)

1.4 References
Technical documentation for Grundfos CUE:
•The manual contains all information required for putting CUE
into operation.
• The data booklet contains all technical information about the
construction and applications of CUE.
• The service instructions contain all required instructions for
dismantling and repairing the frequency converter.
Technical documentation is available on Grundfos Product Center
at www.grundfos.com.
If you have any questions, please contact the nearest Grundfos
company or service workshop.
2. Product introduction
2.1 Identification

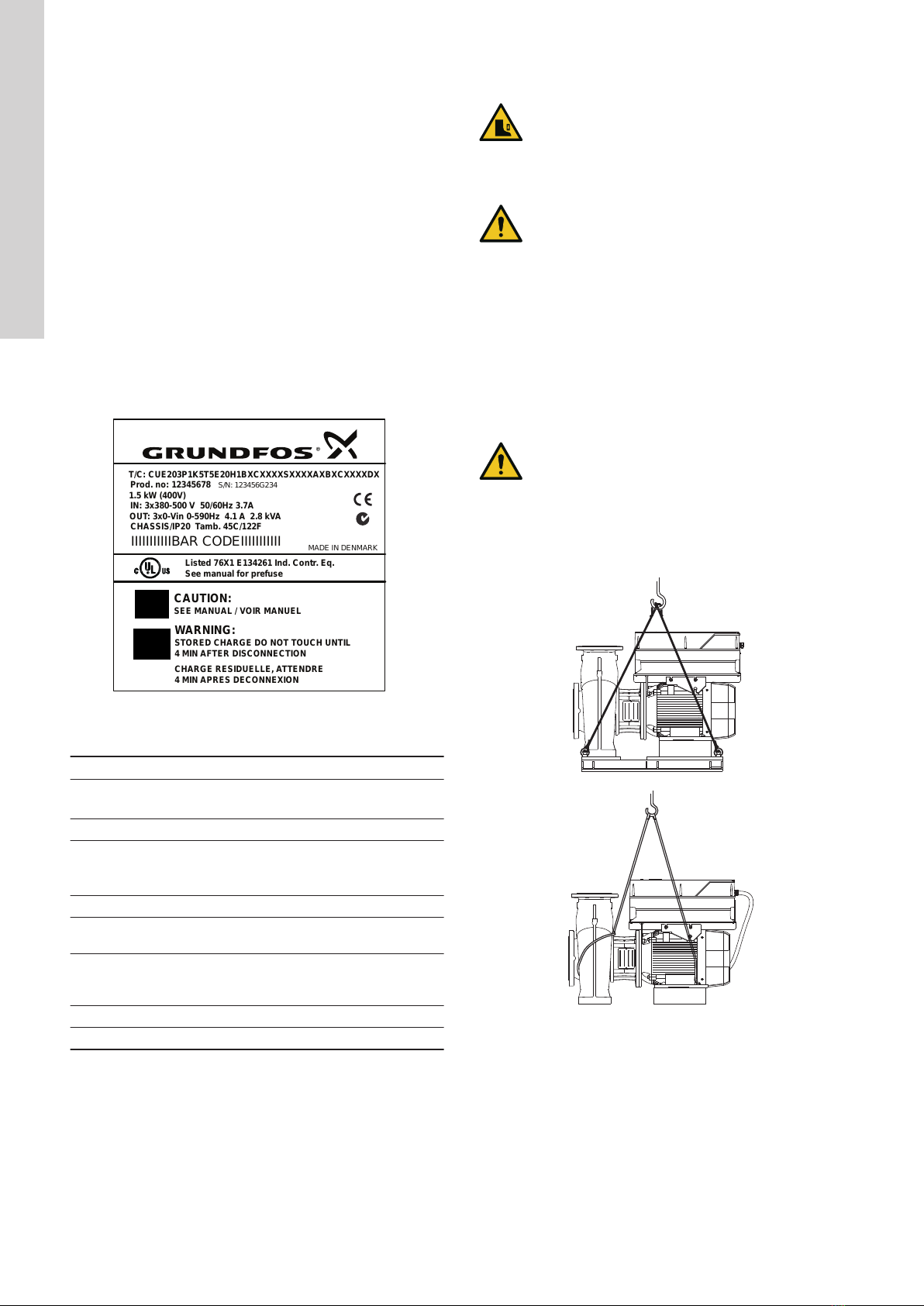

2.1.1 Nameplate
CUE can be identified by means of the nameplate. An example is
shown below.
T/C: CUE203P1K5T5E20H1BXCXXXXSXXXXAXBXCXXXXDX
Prod. no: 12345678
S
/
N
:
123456
G
234
IN: 3x380-500 V 50/60Hz 3.7A
OUT: 3x0-Vin 0-590Hz 4.1 A 2.8 kVA
CHASSIS/IP20 Tamb. 45C/122F
IIIIIIIIIIIBAR CODEIIIIIIIIIII
MADE IN DENMARK
Listed 76X1 E134261 Ind. Contr. Eq.
See manual for prefuse
CAUTION:
SEE MANUAL
/
VOIR MANUEL
WARNING:
STORED CHARGE DO NOT TOUCH UNTIL
4
MIN AFTER DISCONNECTION
CHARGE RESIDUELLE
,
ATTENDRE
4
MIN APRES DECONNEXION
1.5 kW (400V)
TM043272
Example of nameplate
Text Description
T/C: CUE (product name)
202P1M2... (internal code)
Prod. no: Product number: 12345678
S/N:
Serial number: 123456G234
The last three digits indicate the production
date: 23 is the week, and 4 is the year 2004.
1.5 kW (2 hp) Typical shaft power on the motor
IN: Supply voltage, frequency and maximum input
current
OUT:
Motor voltage, frequency and maximum output
current. The maximum output frequency usually
depends on the pump type.
CHASSIS/IP20 Enclosure class
Tamb. Maximum ambient temperature
3. Receiving the product
WARNING
Crushing of feet
Death or serious personal injury
‐Use safety shoes during transport and avoid stacking
the boxes.
CAUTION
Heavy lifting
Minor or moderate personal injury
‐Use proper lifting equipment when handling the prod-
uct.
‐Follow local regulations.
3.1 Delivery
The pump is delivered from the factory in a wooden package, which
is specially designed for transport by fork-lift truck or a similar
vehicle.
3.2 Handling
WARNING
Heavy dumping
Death or serious personal injury
‐Make sure that the pump remains in a stable position
during unpacking and installation by means of the
straps used for lifting the pump.
‐Note that typically the centre of gravity of the pump is
close to the motor.
The pump must be lifted by means of straps and shackles. See
figures below.
TM080646TM080601
6
English (GB)

TM080600TM071343
4. Installation requirements
Any installation, maintenance and inspection must be car-
ried out by trained persons.
WARNING
Sharp element
Death or serious personal injury
‐Use safety knives and protective gloves when unpack-
ing the product.
WARNING
Heavy lifting
Death or serious personal injury
‐Use proper lifting equipment when handling the prod-
uct.
‐Follow local regulations.
WARNING
Electric shock
Death or serious personal injury
‐Before starting any work on the product, make sure
that the power supply has been switched off at least
for as long as stated below and that it cannot be acci-
dentally switched on.
‐Touching the electrical parts may be fatal, even after
CUE has been switched off.
Voltage Min. waiting time
380-500 V 15 minutes
11-90 kW (15-125 hp)
Only wait for a shorter period of time if stated on the nameplate of
the product in question.
Safety regulations
•The OFF button of the operating panel does not disconnect
CUE from the power supply and must therefore not be used as
a safety switch.
• CUE must be earthed correctly and protected against indirect
contact according to local regulations.
• The leakage current to protective earth exceeds 3.5 mA.
• Enclosure class IP20/21 must not be installed freely accessible,
but only in a panel.
• Enclosure class IP54/55 must not be installed outdoors without
additional protection against weather conditions and the sun.
• The STO function does not disconnect CUE from the power
supply and must therefore not be used as a safety switch.
• The STO function does not prevent unwanted movement from
external forces on the motor, for example, back pressure, and
the motor shaft must be covered.
Always observe local regulations concerning cable cross-section,
short-circuit protection and overcurrent protection.
The general safety necessitates special considerations as to these
aspects:
• fuses and switches for overcurrent and short-circuit protection
• selection of cables (mains current, motor, load distribution and
relay)
• net configuration (IT, TN, earthing)
• safety on connecting inputs and outputs (PELV).
7
English (GB)

4.1 IT mains
Do not connect 380-500 V CUE frequency converters to
mains supplies with a voltage between phase and protec-
tive earth of more than 440 V.
In connection with IT mains and earthed delta mains, the mains
voltage may exceed 440 V between phase and protective earth.
4.2 Aggressive environment
CUE must not be installed in an environment where the air
contains liquids, particles or gases which may affect and
damage the electronic components.
CUE contains a large number of mechanical and electronic
components. They are all vulnerable to environmental impact.
4.3 Reduced performance under certain condition
CUE reduces its performance under the condition of low air
pressure (at high altitude).
The required measures are described in the next section.
4.3.1 Reduction at low air pressure
At altitudes above 2000 m (6600 ft), the PELV require-
ments cannot be met.
PELV = Protective Extra Low Voltage.
At low air pressure, the cooling capacity of air is reduced, and CUE
automatically reduces the performance to prevent overload.
It may be necessary to select a CUE unit with a higher
performance.
5. Mechanical installation
The individual CUE cabinet sizes are characterised by their
enclosures. The table in section Enclosure shows the relationship
between enclosure class and enclosure type.
5.1 Enclosure types
Products with integrated STO function must be installed in an IP54
cabinet according to IEC 60529 or in an equivalent environment. In
special applications, a higher IP degree may be necessary.
5.2 Location
To ensure sufficient motor and CUE cooling, leave at least 50 mm
between the end of the fan covers of both motor and CUE and a
wall or another fixed object.
6. Electrical connection
WARNING
Electric shock
Death or serious personal injury
‐Before starting any work on the product, make sure
that the power supply has been switched off and that it
cannot be accidentally switched on. See Installation
requirements.
‐Touching the electrical parts may be fatal, even after
CUE has been switched off.
The owner or installer is responsible for ensuring correct
earthing and protection according to local standards.
For products with STO, ensure short-circuit protection of
the cable between terminal 37 and the external safety de-
vice.
Security measures are the responsibility of the user.
The frequency converter parameters can be password
protected.
L1
L2
L3
PE ELCB
L1
L2
L3
PE
91
92
93
TM038525
Example of three-phase mains connection of CUE with main
switch, backup fuses and additional protection
8
English (GB)

6.1 Electrical protection
6.1.1 Protection against electric shock, indirect contact
CAUTION
Electric shock
Minor or moderate personal injury
‐CUE must be earthed correctly and protected against
indirect contact according to local regulations.
The leakage current to protective earth exceeds 3.5 mA,
and a reinforced earth connection is required.
Protective conductors must always have a yellow and green (PE) or
yellow, green and blue (PEN) colour marking.
Instructions according to EN IEC 61800-5-1:
• CUE must be stationary, installed permanently and connected
permanently to the mains supply.
• The protective earth connection must be carried out with
duplicate protective conductors or with a single reinforced
protective conductor with a cross-section of minimum 10 mm2.
6.1.2 Protection against short circuit, fuses
CUE and the supply system must be protected against short circuit.
Grundfos requires that the backup fuses mentioned in section
Cable cross-section to signal terminals are used for protection
against short circuit.
CUE offers complete short-circuit protection in case of a short circuit
on the motor output.
6.1.3 Additional protection
WARNING
Electric shock
Death or serious personal injury
‐The leakage current to protective earth exceeds 3.5
mA.
If CUE is connected to an electrical installation where an earth
leakage circuit breaker (ELCB/RCD) is used as additional
protection, the circuit breaker must be of a type marked with the
following symbols:
ELCB/RCD
The circuit breaker is type B.
The total leakage current of all the electrical equipment in the
installation must be taken into account.
The leakage current of CUE in normal operation can be seen in
section Electrical data.
During startup and in asymmetrical supply systems, the leakage
current can be higher than normal and may cause the ELCB/RCD
to trip.
6.1.4 Motor protection
The motor requires no external motor protection. CUE protects the
motor against thermal overloading and blocking.
6.1.5 Protection against overcurrent
CUE has an internal overcurrent protection for overload protection
on the motor output.
6.1.6 Protection against mains voltage transients
CUE is protected against mains voltage transients according to EN
61800-3, second environment.
6.2 EMC-correct installation
The motor cable must be screened for CUE to meet EMC
requirements.
This section provides guidelines for good practice when installing
CUE. Follow these guidelines to meet EN 61800-3, first
environment.
•Use only motor and signal cables with a braided metal screen in
applications without output filter.
• There are no special requirements to supply cables, apart from
local requirements.
• Leave the screen as close to the connecting terminals as
possible. See fig. Example of stripped cable with screen.
• Avoid terminating the screen by twisting the ends. See fig. Do
not twist the screen ends. Use cable clamps or EMC screwed
cable entries instead.
• Connect the screen to frame at both ends for both motor and
signal cables. See fig. Example of connection of a 3-conductor
bus cable with screen connected at both ends. If the controller
has no cable clamps, connect only the screen to the CUE
cabinet. See fig. Example of connection of a 3-conductor bus
cable with screen connected to CUE (controller with no cable
clamps).
• Avoid unscreened motor and signal cables in electrical cabinets
with frequency converters.
• Make the motor cable as short as possible in applications
without output filter to limit the noise level and minimise leakage
currents.
• Screws for frame connections must always be tightened
whether a cable is connected or not.
• Keep mains cables, motor cables and signal cables separated in
the installation if possible.
Other installation methods may give similar EMC results if the
above guidelines for good practice are followed.
TM021325
Example of stripped cable with screen
TM038812
Do not twist the screen ends
9
English (GB)

1 2
TM038732
Example of connection of a 3-conductor bus cable with screen
connected at both ends
Pos. Description
1 Controller
2 CUE
1 2
TM038731
Example of connection of a 3-conductor bus cable with screen
connected to CUE (controller with no cable clamps)
Pos. Description
1 Controller
2 CUE
6.3 RFI filters
To meet the EMC requirements, CUE comes with the following
types of built-in radio-frequency interference filter (RFI).
Voltage
[V]
Typical shaft power P2
[kW (hp)] RFI filter type
3 x 380-500 0.55 - 90
(0.75 - 125 hp) C1
Description of RFI filter type
C1: For use in domestic areas.
RFI filter type is according to EN 61800-3.
6.4 Mains and motor connection
Check that the mains voltage and frequency correspond
to the values on the nameplate of CUE and the motor.
The motor cable must be screened for CUE to meet EMC
requirements.
The supply voltage and frequency are marked on the CUE
nameplate. Make sure that CUE is suitable for the power supply of
the installation site.
6.4.1 Main switch
A main switch can be installed before the CUE cabinet according to
local regulations. See fig. Example of three-phase mains
connection of CUE with main switch, backup fuses and additional
protection.
6.4.2 Wiring diagram
The wires in the terminal box must be as short as possible.
Excepted from this is the protective conductor which must be so
long that it is the last one to be disconnected in case the cable is
inadvertently pulled out of the cable entry.
TM038799
Wiring diagram, three-phase mains connection
Terminal Function
91 (L1)
Three-phase mains supply92 (L2)
93 (L3)
95/99 (PE) Protective earth connection
96 (U) Three-phase motor connection, 0-100 % of mains
voltage
97 (V)
98 (W)
6.4.3 Mains connection, enclosures B2
Enclosure
Torque Nm (ft*lb)
Mains Motor Protective
earth Relay
B2 4.5 (3.3) 4.5 (3.3) 3 (2.2) 0.6 (0.4)
1. Connect the earth conductor to terminal 95 (PE). See fig. Mains
connection, B2.
2. Connect the mains conductors to terminals 91 (L1), 92 (L2), 93
(L3).
3. Fix the mains cable with a cable clamp.
TM039019
Mains connection, B2
For single-phase connection, use L1 and L2.
10
English (GB)

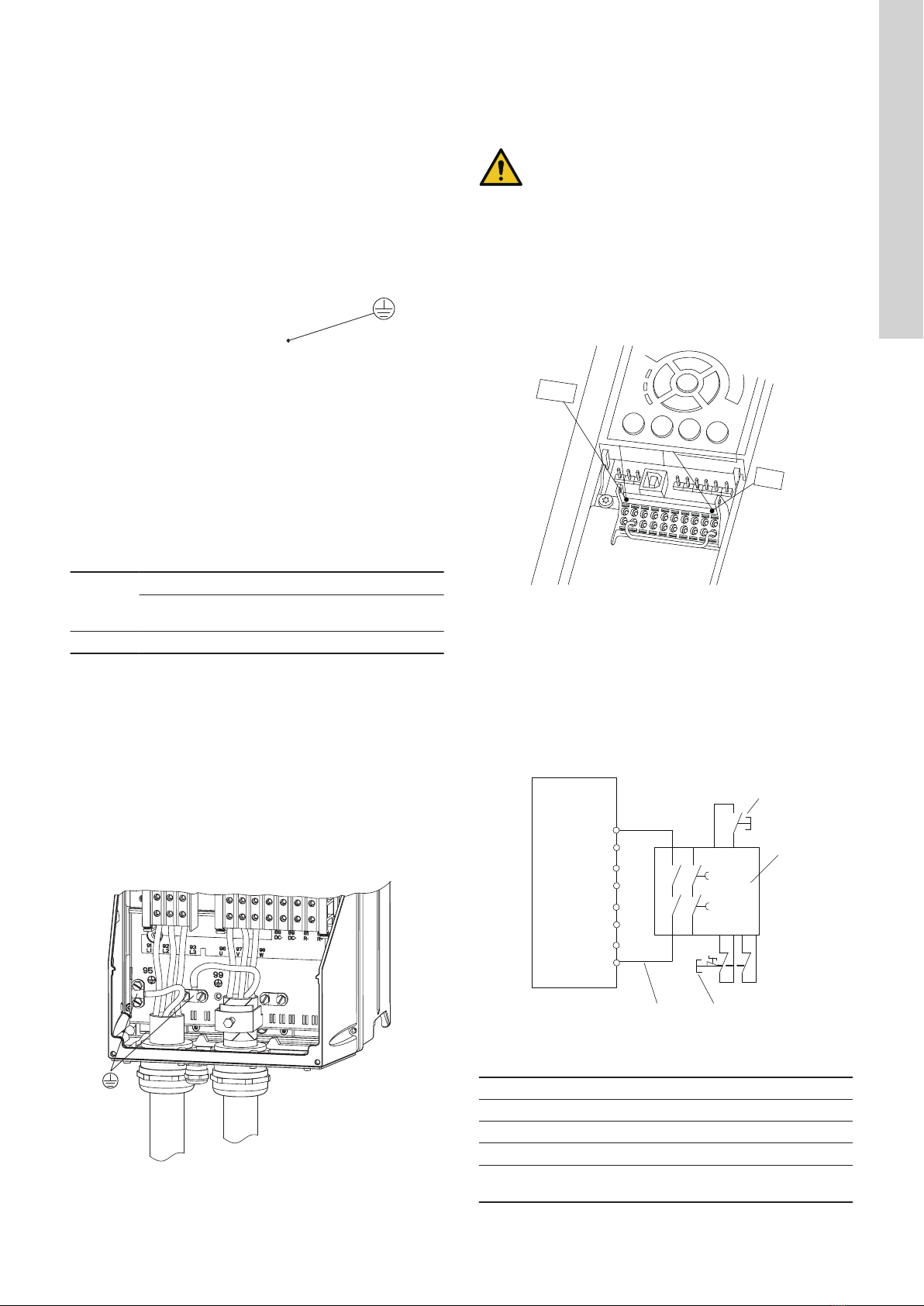

6.4.4 Motor connection, enclosures B2
1. Connect the earth conductor to terminal 99 (PE). See the figure
below.
2. Connect the motor conductors to terminals 96 (U), 97 (V), 98
(W).
3. Fix the screened cable with a cable clamp.
TM039020
Motor connection, B2
6.4.5 Mains connection, enclosures C1
Enclosure
Torque Nm (ft*lb)
Mains Motor Protective
earth Relay
C1 10 (7.4) 10 (7.4) 3 (2.2) 0.6 (0.4)
1. Connect the earth conductor to terminal 95 (PE). See fig. Mains
and motor connection, C1.
2. Connect the mains conductors to terminals 91 (L1), 92 (L2), 93
(L3).
6.4.6 Motor connection, enclosures C1
1. Connect the earth conductor to terminal 99 (PE). See the figure
below.
2. Connect the motor conductors to terminals 96 (U), 97 (V), 98
(W).
3. Fix the screened cable with a cable clamp.
TM039016
Mains and motor connection, C1
6.5 STO installation, optional
DANGER
Exposure to high pressure or toxic liquids
Death or serious personal injury
‐Failure to remove the jumper will disable the STO
function and the motor might not stop as intended and
can cause severe injury or death.
‐Failure to use safety-monitoring relay compliant with
Category 3 /PL "d", ISO 13849-1 or SIL 2, EN 62061
and IEC 61508. Perform a functional test every 12
months to ensure that the system works properly.
To enable the integrated STO, follow these steps:
1. Remove the jumper wire between control terminals 37 and 12 or
13. Cutting or breaking the jumper is not sufficient to avoid
short-circuiting.
12/13
37
TM074595
Remove jumper
2. Connect an external safety-monitoring relay via a NO safety
function to terminal 37 (STO) and either terminal 12 or 13, 24 V
DC.
Select and apply the components in the safety control system
appropriately to achieve the desired level of operational safety.
Before integrating and using STO in an installation, carry out a
thorough risk analysis on the installation to determine whether the
STO functionality and safety levels are appropriate and sufficient.
12
37
1
3
FC
4
2
TM074594
STO wiring
Pos. Description
1 Reset button
2 Safety relay (category 3, PL d or SIL2)
3 Emergency stop button
4Short-circuit protected cable if the product is not installed
inside an IP54 cabinet.
11
English (GB)

6.5.1 Restart behaviour after STO activation
By default the STO function is set to unintended-restart prevention
behaviour. To terminate STO and resume normal operation with
manual reset, do the following:
• Reapply 24 V DC supply to terminal 37.
• Send a reset signal via bus, Digital I/O or the reset button.
• Set the STO function to automatic restart by changing the value
of 5-19 terminal 37 "Safe Stop" from default value 1. "Safe Stop
Alarm" to value 3, "Safe Stop Warning".
Automatic restart means that STO is terminated, and normal
operation is resumed, as soon as the 24 V DC is applied to terminal
37. No reset signal is required.
6.5.2 Restart settings
• Remove the 24 V DC voltage supply to terminal 37 using the
interrupt device while the frequency converter drives the motor,
that is the mains supply is not interrupted.
• Check that the motor coasts and that the alarm Safe Stop
displays in the local operating panel if mounted.
• Reapply 24 V DC to terminal 37.
• Ensure that the motor remains in the coasted state.
• Send reset signal via bus, Digital I/O or the reset button.
• Ensure that the motor becomes operational again.
6.6 Connecting the signal terminals
As a precaution, signal cables must be separated from
other groups by reinforced insulation in their entire
lengths.
Connect the signal cables according to the guidelines for good
practice to ensure EMC-correct installation. See section Restart
behaviour after STO activation.
• Use screened signal cables with a conductor cross-section of
minimum 0.5 mm2 and maximum 1.5 mm2.
• Use a 3-conductor screened bus cable in new systems.
12
English (GB)

6.6.1 Wiring diagram, signal terminals
61 68 69
39 42 50 53 54 55
12 13 18 19 27 29 32 33 20 37
61 68 69
A53 A54
UIUI
156789
432
17 18
20
21
10 11 12 13 22 23 14 15 16 24
19
TM051506
Pos. Description
1 GND
2 RS-485 B
3 RS-485 A
4 RS-485 GND Y
5 AO 1
6 +10 V out
7 Ext. setpoint
8 Sensor 1
9 GND
10 +24 V out
11 +24 V out
12 DI 1
13 DI 2
14 DI 3
15 DI 4
16 GND
17 External setpoint, voltage input
18 0-10 V
19 Terminals
20 U: 0-10 V
21 I: 0/4-20 mA
22 DI/O 1
23 DI/O 2
24 Safe stop
61 68 69
61 68 69 39 42 50 53 54 55
12 13 18 19 27 29 32 33 20 37
A53 A54
UIUI
6781234516
18
17
910 11 12 22 23 13 14 15 24
20
21
19
TM051508
Pos. Description
1 GND
2 AO 1
3 +10 V out
4 Ext. setpoint
5 Sensor 1
6 RS-485 GND Y
7 RS-485 A
8 RS-485 B
9 +24 V out
10 +24 V out
11 DI 1
12 DI 2
13 DI 3
14 DI 4
15 GND
16 GND
17 Two-wire sensor
18 0/4-20 mA
19 Terminals
20 U: 0-10 V
21 I: 0/4-20 mA
22 DI/O 1
23 DI/O 2
24 Safe stop
13
English (GB)

61 68 69
61 68 69 39 42 50 53 54 55
12 13 18 19 27 29 32 33 20 37
A53 A54
UIUI
6781234516
18
17
910 11 12 22 23 13 14 15 24
20
21
19
TM051507
Pos. Description
1 GND
2 AO 1
3 +10 V out
4 Ext. setpoint
5 Sensor 1
6 RS-485 GND Y
7 RS-485 A
8 RS-485 B
9 +24 V out
10 +24 V out
11 DI 1
12 DI 2
13 DI 3
14 DI 4
15 GND
16 GND
17 External setpoint, current input
18 0/4-20 mA
19 Terminals
20 U: 0-10 V
21 I: 0/4-20 mA
22 DI/O 1
23 DI/O 2
24 Safe stop
39 42 50 53 54 55
61 68 69
61 68 69
12 13 18 19 27 29 32 33 20 37
A53
UIUI
A54
678123459
18
17
15 14 13 12 22 23 11 10 16 24
20
21
19
TM075269
Pos. Description
1 GND
2 AO 1
3 +10 V out
4 Ext. setpoint
5 Sensor 1
6 RS-485 GND Y
7 RS-485 A
8 RS-485 B
9 GND
10 DI 4
11 DI 3
12 DI 2
13 DI 1
14 +24 V out
15 +24 V out
16 GND
17 Three-wire sensor
18 0/4-20 mA
19 Terminals
20 U: 0-10 V
21 I: 0/4-20 mA
22 DI/O 1
23 DI/O 2
24 Safe stop
Default connections made in TPE Series 1000:
•DI1 connected to GND.
Default connections made in TPE Series 2000:
• DI1 connected to GND.
• A three-wire sensor is connected to terminal 12, 54 and 55.
14
English (GB)

Terminal Type Function Terminal Type Function
12 +24 V out Supply to sensor 39 GND Frame for analog output
13 +24 V out Additional supply 42 AO 1 Analog output, 0-20 mA
18 DI 1 Digital input, programmable 50 +10 V out Supply to potentiometer
19 DI 2 Digital input, programmable 53 AI 1 External setpoint, 0-10 V, 0/4-20 mA
20 GND Common frame for digital inputs 54 AI 2 Sensor input, sensor 1, 0/4-20 mA
27 DI/O 1 Digital input/output, programmable 55 GND Common frame for analog inputs
29 DI/O 2 Digital input/output, programmable 61 RS-485 GND Y GENIbus, frame
32 DI 3 Digital input, programmable 68 RS-485 A GENIbus, signal A (+)
33 DI 4 Digital input, programmable 69 RS-485 B GENIbus, signal B (-)
37 Safe stop Safe stop
The RS-485 screen must be connected to frame.

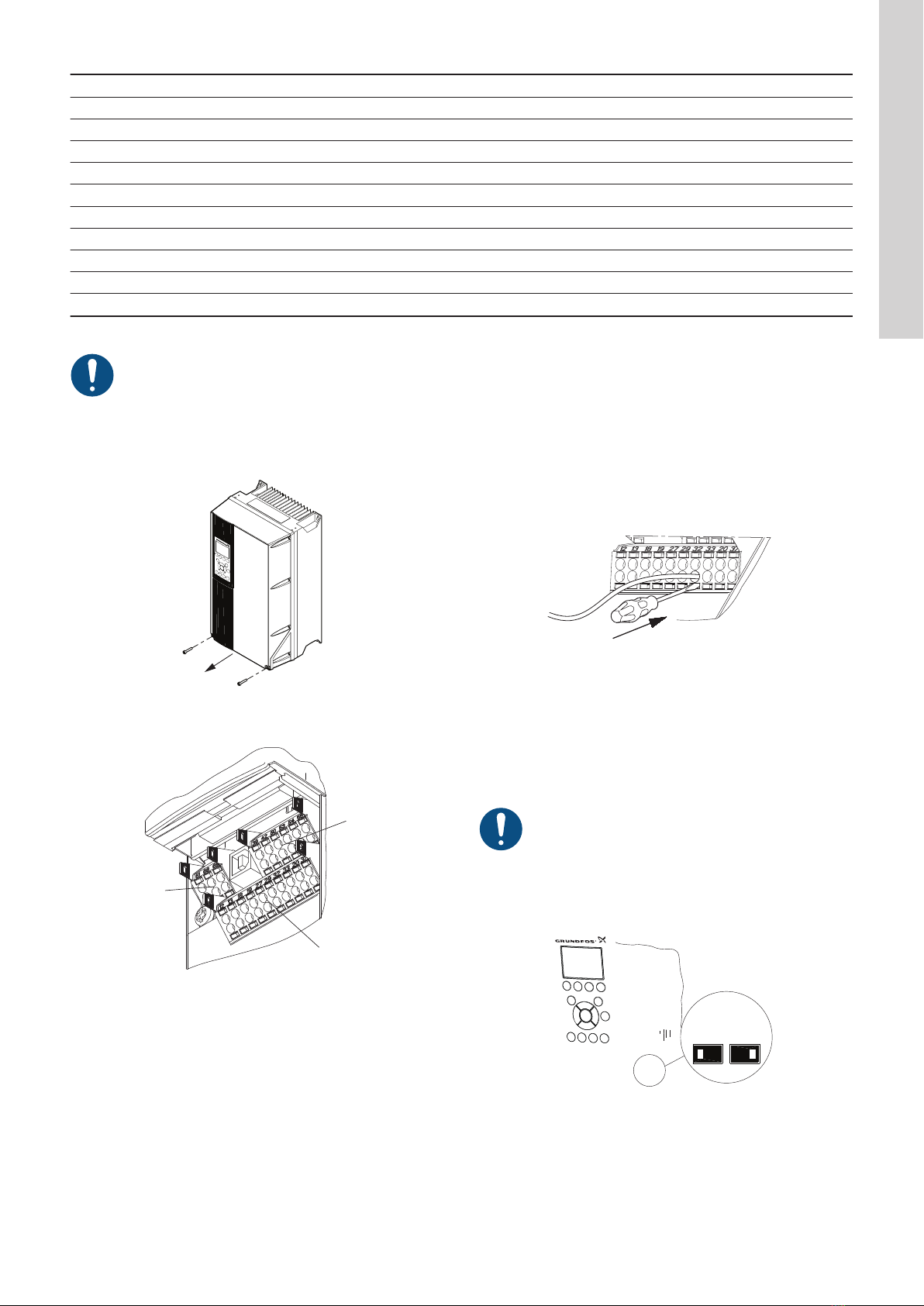

Access to signal terminals
All signal terminals are behind the terminal cover of the CUE front.
Remove the terminal cover as shown in the figure below.
TM039004
Access to signal terminals, B2, C1
1
2
3
TM039025
Signal terminals, all enclosures
Fitting the conductor
1. Remove the insulation at a length of 9 to 10 mm.
2. Insert a screwdriver with a tip of maximum 0.4 x 2.5 mm into the
square hole.
3. Insert the conductor into the corresponding round hole. Remove
the screwdriver. The conductor is now fixed in the terminal.
TM039026
Fitting the conductor into the signal terminal
Setting the analog inputs, terminals 53 and 54
Contacts A53 and A54 are positioned behind the operating panel
and used for setting the signal type of the two analog inputs.
The factory setting of the inputs is voltage signal "U" and "U".
The factory setting of TPE Series 2000 inputs is voltage signal "U"
and "I".
If a 0/4-20 mA sensor is connected to terminal 54, the in-
put must be set to current signal "I".
Switch off the power supply before setting contact A54.

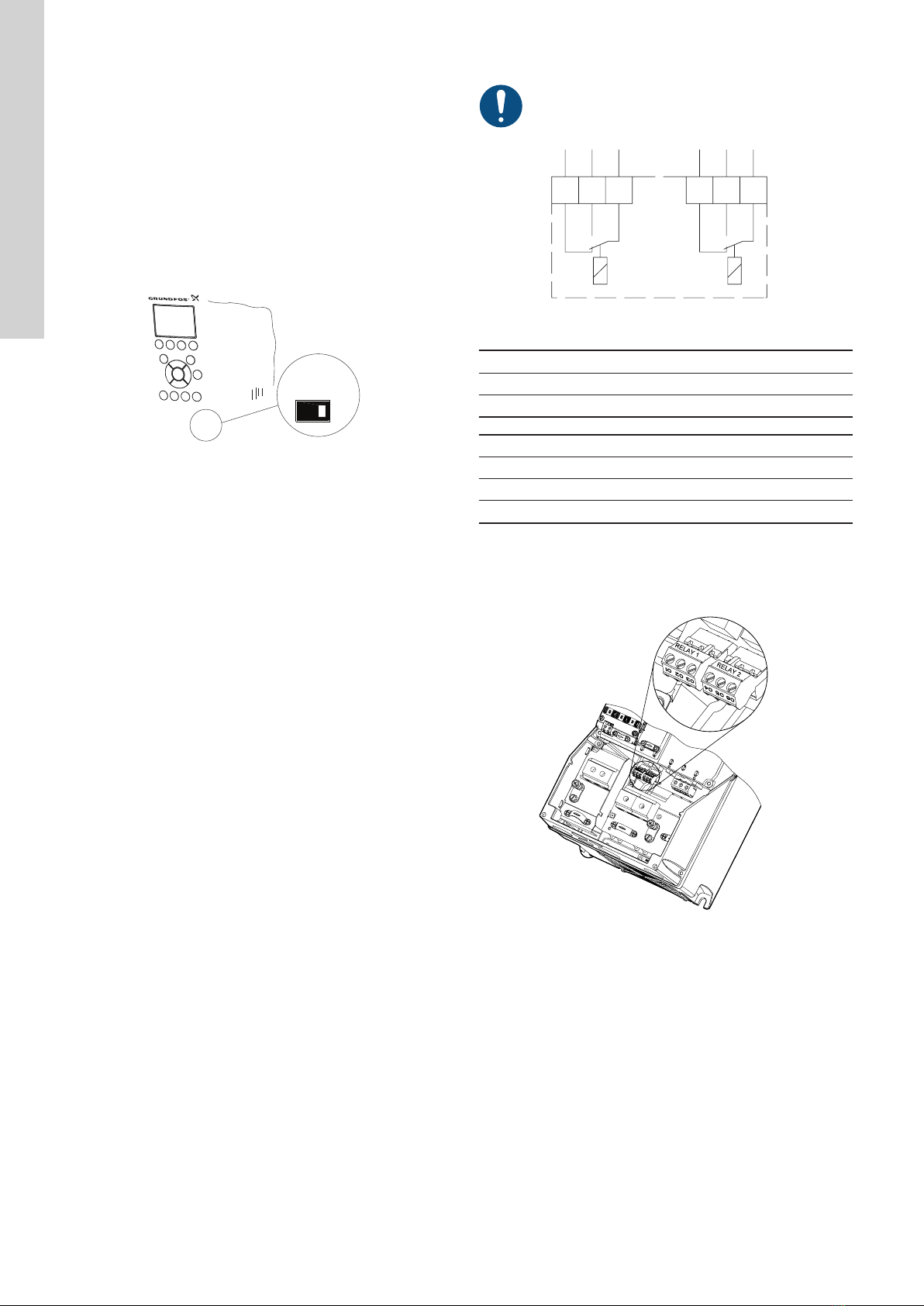

Remove the operating panel to set the contact. See the figure
below.
U I
A53 U I
A54
TM039104
Setting contact A54 to current signal "I"
15
English (GB)

RS-485 GENIbus network connection
One or more CUE units can be connected to a control unit via
GENIbus.
The reference potential, GND, for RS-485 (Y) communication must
be connected to terminal 61.
If more than one CUE unit is connected to a GENIbus network, the
termination contact of the last CUE must be set to "ON" (termination
of the RS-485 port).
The factory setting of the termination contact is "OFF" (not
terminated).
Remove the operating panel to set the contact. See the figure
below.
OFF ON
BUS TER
TM039006
Setting the termination contact to "ON"
6.7 Connecting the signal relays
As a precaution, signal cables must be separated from
other groups by reinforced insulation in their entire
lengths.
R1 R2
03 02 01 06 05 04
NC 1
N0 1
C1
NC 2
N0 2
C2
TM038801
Terminals for signal relays in normal state (not activated)
Pos. Description
R1 RELAY 1
R2 RELAY 2
Terminal Function
C 1 C 2 Common
NO 1 NO 2 Normally open contact
NC 1 NC 2 Normally closed contact
6.7.1 Access to signal relays
The relay outputs are positioned as shown in figs Terminals for
relay connection, B2, Terminals for relay connection, C1Connecting
the MCB 114 sensor input module.
TM039008
Terminals for relay connection, B2
16
English (GB)

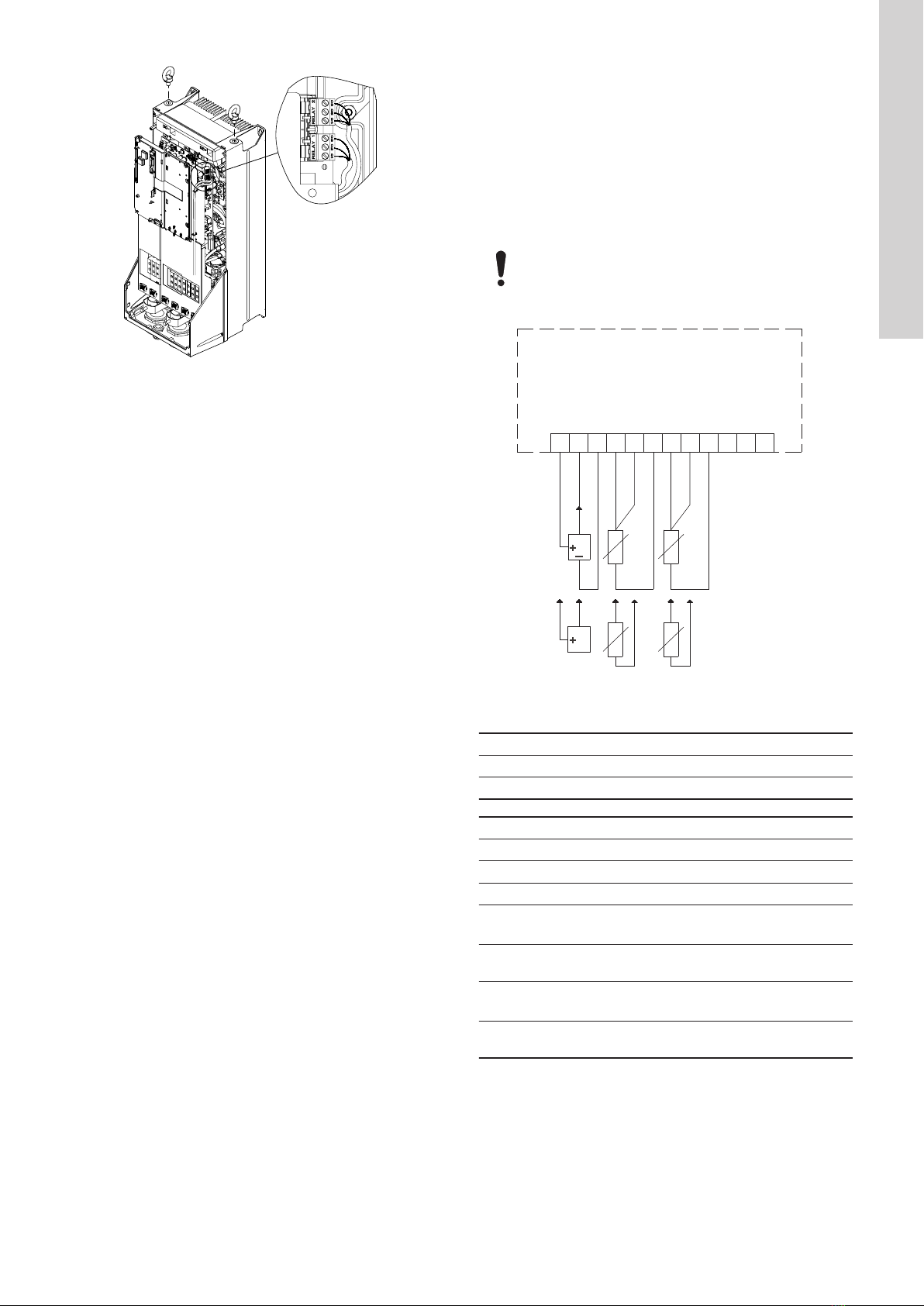

TM039009
Terminals for relay connection, C1Connecting the MCB 114
sensor input module
The MCB 114 is an option offering additional analog inputs for CUE.
Configuration of MCB 114
MCB 114 is equipped with three analog inputs for the following
sensors:
• One additional sensor 0/4-20 mA.
• Two Pt100/Pt1000 temperature sensors for measurement of
motor bearing temperature or an alternative temperature, such
as liquid temperature.
When MCB 114 has been installed, CUE automatically detects if the
sensor is Pt100 or Pt1000 when it is switched on.
Wiring diagram, MCB 114
When using Pt100 with a 3-wire cable, the resistance
must not exceed 30 Ω.
12345678910 11 12
A
B
TM075432
Wiring diagram, MCB 114
Pos. Description
A 3-wire
B 2-wire
Terminal Type Function
1 (VDO) +24 V out Supply to sensor
2 (I IN) AI 3 Sensor 2, 0/4-20 mA
3 (GND) GND Common frame for analog input
4 (TEMP)
5 (WIRE) AI 4 Temperature sensor 1, Pt100/Pt1000
6 (GND) GND Common frame for temperature sensor
1
7 (TEMP)
8 (WIRE) AI 5 Temperature sensor 2, Pt100/Pt1000
9 (GND) GND Common frame for temperature sensor
2
Terminals 10, 11 and 12 are not used.
17
English (GB)

6.7.2 Fitting MCB 114 in CUE
Enclosures B2, C1
1. Switch off the power to CUE. See section RFI filter type is
according to EN 61800-3..
2. Remove the operating panel and the cradle from CUE. See fig.
Enclosures B2, C1.
3. Fit MCB 114 into port B.
4. Connect the signal cables, and fasten the cables with the
enclosed cable strips. See fig. Enclosures B2, C1.
5. Fit the cradle and the operating panel.
6. Connect power to CUE.
CUE
1
2
TM040027
Enclosures B2, C1
Pos. Description
1 Cradle
2 Port B
7. Starting up the product
Any installation, maintenance and inspection must be car-
ried out by trained persons.
Before you switch on the power supply, you must do the following:
• Close the cover.
• Ensure that all cable glands are tightened properly.
• Check that there are no loose connections on the terminals.
• Confirm that the supply voltage matches the voltage of the
frequency converter and the motor.
7.1 Switching on the product
• Confirm that the input voltage is balanced within 3 %. If not,
correct the input-voltage imbalance before proceeding. Repeat
this procedure after the voltage correction.
•Ensure that any optional equipment wiring matches the
installation application.
• Ensure that all operator devices are in the OFF position.
• Apply power to the unit, but do not start the frequency converter
yet. For units with a disconnect switch, turn it to the ON position
to apply power to the frequency converter.
7.2 Activating the optional STO function
The STO function is activated by removing the voltage at terminal
37 of the frequency converter. By connecting the frequency
converter to external safety devices providing a safe delay, an
installation for a Safe Stop 1 is obtained. External safety devices
need to fulfil Cat./PL or SIL when connected to terminal 37.
The STO function can be used for the following motor types:
• asynchronous
• synchronous
• permanent magnet motors.
When terminal 37 is activated, the frequency converter issues an
alarm, trips the unit and coasts the motor to a stop. A manual
restart is required. Use the STO function to stop the frequency
converter in emergency stop situations. In normal operating mode,
the STO terminal 37 must be deactivated to start the motor.
A successful commissioning test of the STO function is re-
quired after the initial installation and after each subse-
quent change to the installation.
18
English (GB)

8. Control functions
The display contrast can be adjusted by pressing [Status]
and then pressing [Up] or [Down].
8.1 Operating panel
The operating panel consists of a display and several buttons. It
enables manual setting and monitoring of the system, such as
follows:
•Start, stop and control of speed.
• Reading of operating data and warnings and alarms.
• Setting functions for the frequency converter.
• Manual reset of the frequency converter.
1
AUTO
ON RESET
HAND
ON OFF
Status 1(1)
36.4 kW
Auto Remote Ramping
0.000
ON
ALARM
WARN.
7.83 A
799 RPM
53.2 % 2
3
4
5
6
7
8
9101112
13
14
15
16
17
18
19
20
21
TM074597
Operating panel
Pos. Buttons Description
1 Power [kW]
2 Reference [%]
3
[Alarm log]: shows a list of current warn-
ings, the last 10 alarms and the mainte-
nance log.
4[Main menu]: allows access to all program-
ming settings.
5
[Cancel]: cancels the last change or com-
mand as long as the display mode has not
changed.
6[Info]: press for a definition of the function
being displayed.
7
[Up]/[Down]/[Left]/[Right]: use the four ar-
row buttons to navigate between items in
the menu.
8[OK]: used to access parameter groups or
to accept a selection.
9
RESET
[RESET]: resets the frequency converter
manually after a fault has been cleared.
10
AUTO
ON
[AUTO ON]: puts the system in remote op-
erational mode.
• Responds to an external start command
by control terminals or serial communica-
tion.
11
OFF
[OFF]: stops the motor but does not re-
move power to the frequency converter.
12
HAND
ON
[HAND ON]: starts the frequency converter
in local control.
• An external stop signal by control input or
serial communication overrides the local
[Hand On] function.
Pos. Buttons Description
13 [Alarm]
Red
A fault condition causes the red alarm light
to flash and an alarm text is displayed.
14 [Warn.]
Yellow
When warning conditions are met, the yel-
low warning light comes on and text ap-
pears in the display area identifying the
problem.
15 [On]
Green
The On light activates when the frequency
converter receives power from the mains
voltage, a DC bus terminal or an external
24 V supply.
16 [Back]: reverts to the previous step or list
in the menu structure.
17
[Favourites]: allows access to program-
ming parameters for initial set-up instruc-
tions and many detailed application in-
structions.
18 [Status]: shows operational information.
19 Frequency
20 Motor current
21 Speed, RPM
8.2 Menu overview
Overview of the main menus. The ** represents a number to a
submenu.
•"0-** Operation / Display"
• "1-** Load and Motor"
• "2-** Brakes"
• "3-** Reference / Ramps"
• "4-** Limits / Warnings"
• "5-** Digital In/Out"
• "6-** Analog In/Out"
• "8-** Comm.and Options"
• "14-** Special Functions"
• "15-** Drive Information"
• "16-** Data Readouts"
• "18-** Info & Readouts"
• "20-** Drive Closed Loop"
• "21-** Ext. Closed Loop"
• "22-** Appl. Functions"
• "23-** Timer-based Functions"
• "27-** Cascade CTL Option"
• "29-** Water Application Functions"
• "30-** Special Features"
• "35-** Sensor Input Option"
• "200 - Operation Settings"
• "201- Key Functions"
• "202 - Sensors"
• "203 - Status Monitor"
Example: To get to the menu "1-28 Motor Rotation Check", you
must do the following:
1. Navigate to "1-** Load and Motor", and press [OK].
2. Use the [Up] and [Down] buttons to navigate to "1-2* Motor
Data", and press [OK].
3. Use the [Up] and [Down] buttons to navigate to "1-28 Motor
Rotation Check", and press [OK] to select the menu.
8.3 Operating modes
The following operating modes are set on the operating panel using
the [Favourites] menu.
19
English (GB)

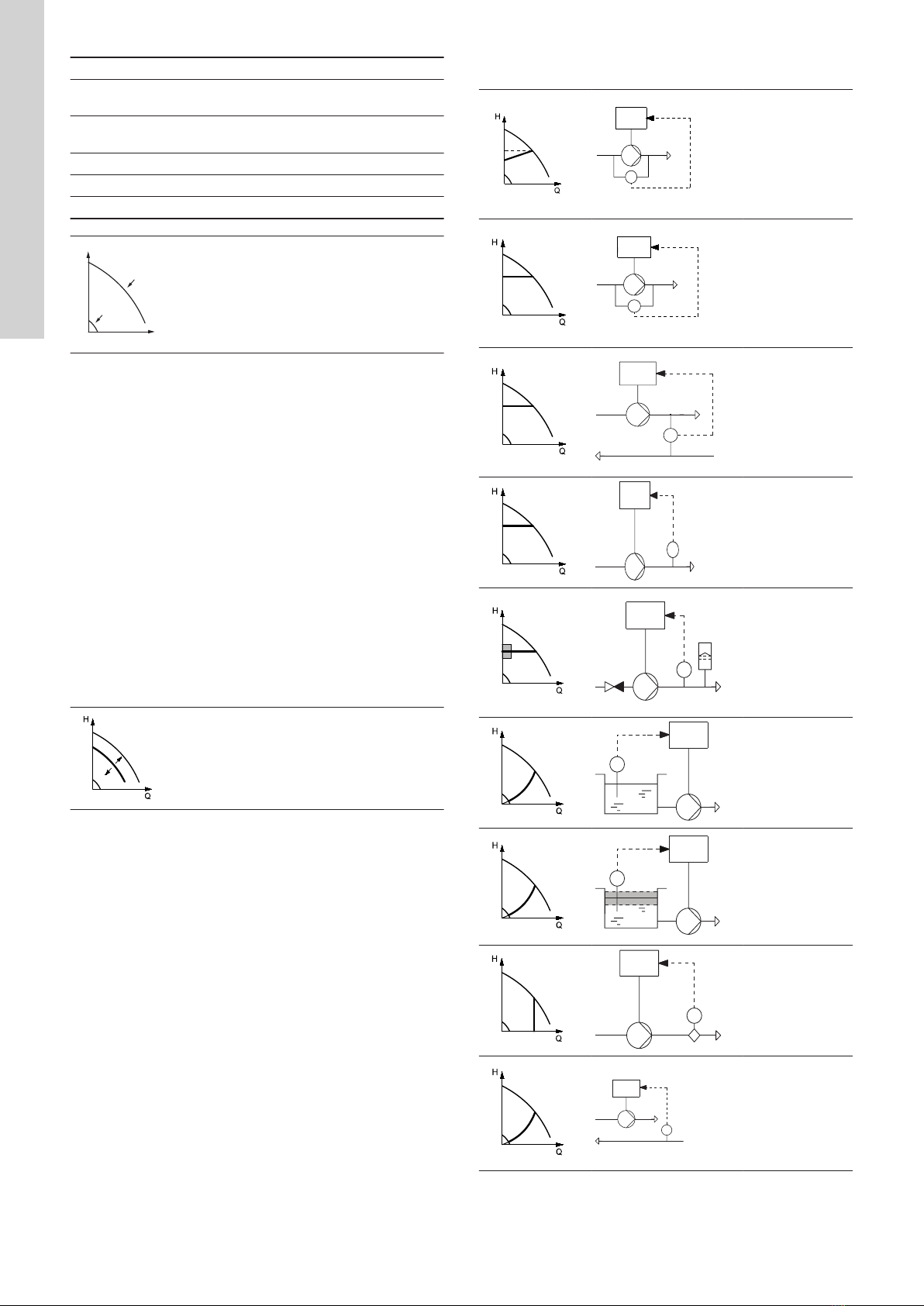

Operating mode Description
Normal The pump is running in the operating mode se-
lected.
Stop The pump has been stopped, and the green in-
dicator light is flashing.
Min. The pump is running at minimum speed.
Max. The pump is running at maximum speed.
User curve The pump is running at user-defined speed.
H
Q
Min.
Max.
TM038813
Minimum and maximum curves.
The pump speed is kept at a given set value
for minimum and maximum speed.
Example: Maximum curve operation can for instance be used in
connection with venting the pump during installation.
Example: Minimum curve operation can for instance be used in
periods with a very small flow rate requirement.
8.4 Control modes
The control mode is set in the [Favourites] menu.
There are two basic control modes:
•Uncontrolled operation (open loop).
• Controlled operation (closed loop) with a sensor connected.
See sections Uncontrolled operation (open loop) and Controlled
operation (closed loop).
Default control mode made in NBE, NBGE, NKE, NKGE, TPE
Series 1000:
• Open loop.
Default control mode made in TPE Series 2000:
• Proportional differential pressure.
8.4.1 Uncontrolled operation (open loop)
TM038479
Constant curve.
The speed is kept at a set value in the range
between the minimum and maximum curves.
The setpoint is set in % corresponding to the
required speed.
Example: Operation on constant curve can for instance be used for
pumps with no sensor connected.
Example: Typically used in connection with an overall control
system such as MPC or another external controller.
8.4.2 Controlled operation (closed loop)
TM038475
CUE
Δp
Proportional differ-
ential pressure.
The differential
pressure is re-
duced at falling
flow rate and in-
creased at rising
flow rate.
TM038476
CUE
Δp
Constant differen-
tial pressure,
pump.
The differential
pressure is kept
constant, inde-
pendently of the
flow rate.
TM038476
CUE
Δp
Constant differen-
tial pressure, sys-
tem.
The differential
pressure is kept
constant, inde-
pendently of the
flow rate.
TM038476
CUE
p
Constant pres-
sure.
The pressure is
kept constant, in-
dependently of the
flow rate.
TM038477
CUE
p
Constant pressure
with stop function.
The outlet pres-
sure is kept con-
stant at high flow
rate. On/off opera-
tion at low flow
rate.
TM038482
CUE
L
Constant level.
The liquid level is
kept constant, in-
dependently of the
flow rate.
TM038482
CUE
L
Constant level
with stop function.
The liquid level is
kept constant at
high flow rate.
On/off operation at
low flow rate.
TM038478
Q
CUE
Constant flow
rate.
The flow rate is
kept constant, in-
dependently of the
head.
TM038482
CUE
t
Constant tempera-
ture.
The liquid temper-
ature is kept con-
stant, independ-
ently of the flow
rate.
20
English (GB)
