Grundfos RSI Series User manual

RSI, 1.5 - 37 kW
Installation and operating instructions
GRUNDFOS INSTRUCTIONS

English (GB)
2
English (GB) Installation and operating instructions
Original installation and operating instructions
CONTENTS Page
1. Symbols used in this document
2. Purchase inspection before
installation
If any deviation from the order is found, please
contact Grundfos. Once you get the product, please
perform the following inspections before installation:
1. Symbols used in this document 2
2. Purchase inspection before installation 2
3. Technical data 3
3.1 Product range 3
3.2 Technical data 6
4. Installation 7
4.1 Installation example 7
4.2 Electrical connection 8
5. Operation 9
5.1 Control panel 9
5.2 Control panel operation 11
5.3 Quick setup parameter description 13
6. Fault finding 14
6.1 Fault codes and remedies 14
6.2 Fault codes reset 20
6.3 Fault history 20
7. Service and maintenance 20
7.1 Routine inspection 20
7.2 Inspection and replacement of wear parts 22
7.3 Storage and warranty 22
8. Disposal 22
Warning
Prior to installation, read these installation
and operating instructions. Installation and
operation must comply with local
regulations and accepted codes of good
practice.
Advanced IO
http://net.grundfos.com/Appl/
ccmsservices/public/literature/filedata/
Grundfosliterature-5261450.pdf
Warning
If these safety instructions are not
observed, it may result in personal injury.
Warning
If these instructions are not observed, it
may lead to electric shock with consequent
risk of serious personal injury or death.
Warning
The surface of the product may be so hot
that it may cause burns or personal injury.
Caution
If these safety instructions are not
observed, it may result in malfunction or
damage to the equipment.
Note
Notes or instructions that make the job
easier and ensure safe operation.
Caution
Check the condition of the inverter before
installation. Please do not install the
inverter if the equipment appears to be
damaged.
Inspection item Inspection method
Consistency with
ordered product
Inspect the product's
nameplate
Damage or scratches Inspect the product
visually
Completeness of main
inverter and accessories
Check carefully
according to the product
list
Are fastening parts,
such as screws,
tightened properly
Check with screwdriver,
if necessary

English (GB)
3
3. Technical data
3.1 Product range
3.1.1 Dimensions

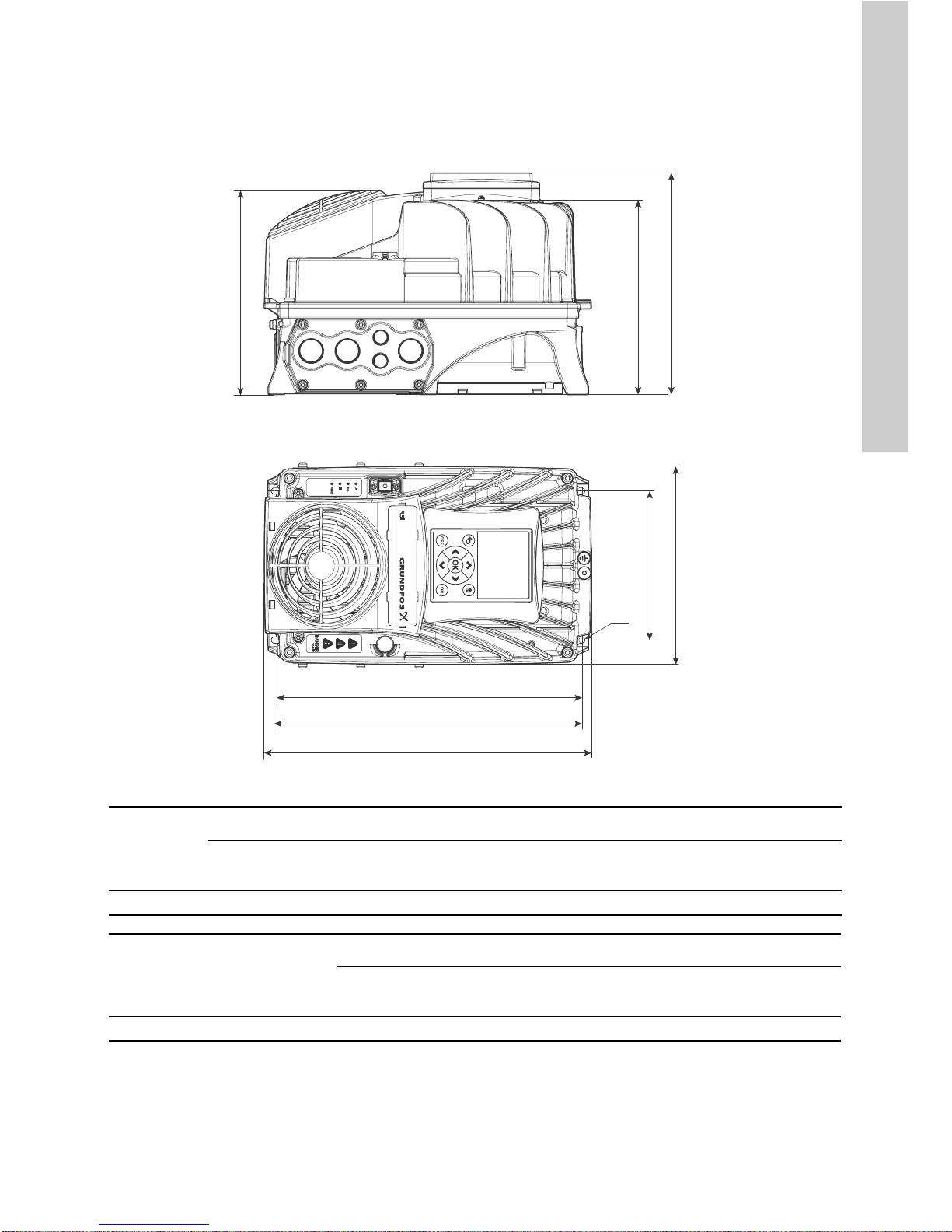

Fig. 1 Frame A 1.5 - 5,5 kW
TM06 6526 1813
E
W
W2
L1
L
L2
H
H2
H1
Frame Size
Product
Net weight
[kg] E [mm] W [mm] W2 [mm] L [mm] L1 [mm] L2 [mm] H [mm] H1 [mm] H2 [mm]
Frame A 8.8 ∅5.9 143.5 191.0 297.0 293.0 315.0 188.0 197.0 214.0
Frame Size
Package
Gross weight
[kg] Length [mm] Width [mm] Height [mm]
Frame A 310 250 200 295

English (GB)
4

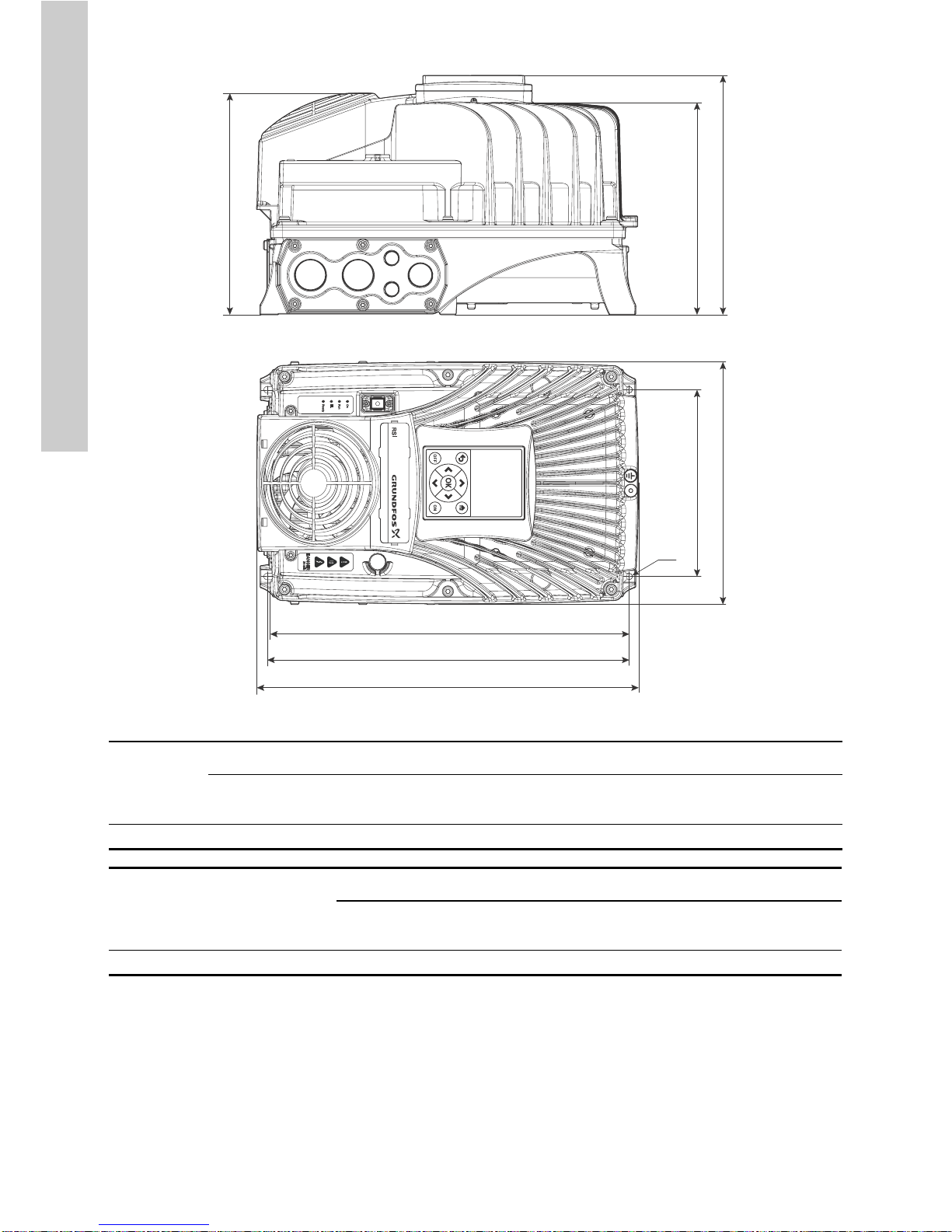

Fig. 2 Frame B 7.5 - 15 kW
TM06 6527 1813
E
W
W2
H
H2
H1
L1
L
L2
Frame Size
Product
Net weight
[kg] E [mm] W [mm] W2 [mm] L [mm] L1 [mm] L2 [mm] H [mm] H1 [mm] H2 [mm]
Frame B 14.9 ∅6.1 180.0 233.0 349.0 345.2 368.0 204.0 214.0 231.0
Frame Size
Package
Gross weight
[kg] Length [mm] Width [mm] Height [mm]
Frame B 310 250 200 295

English (GB)
5

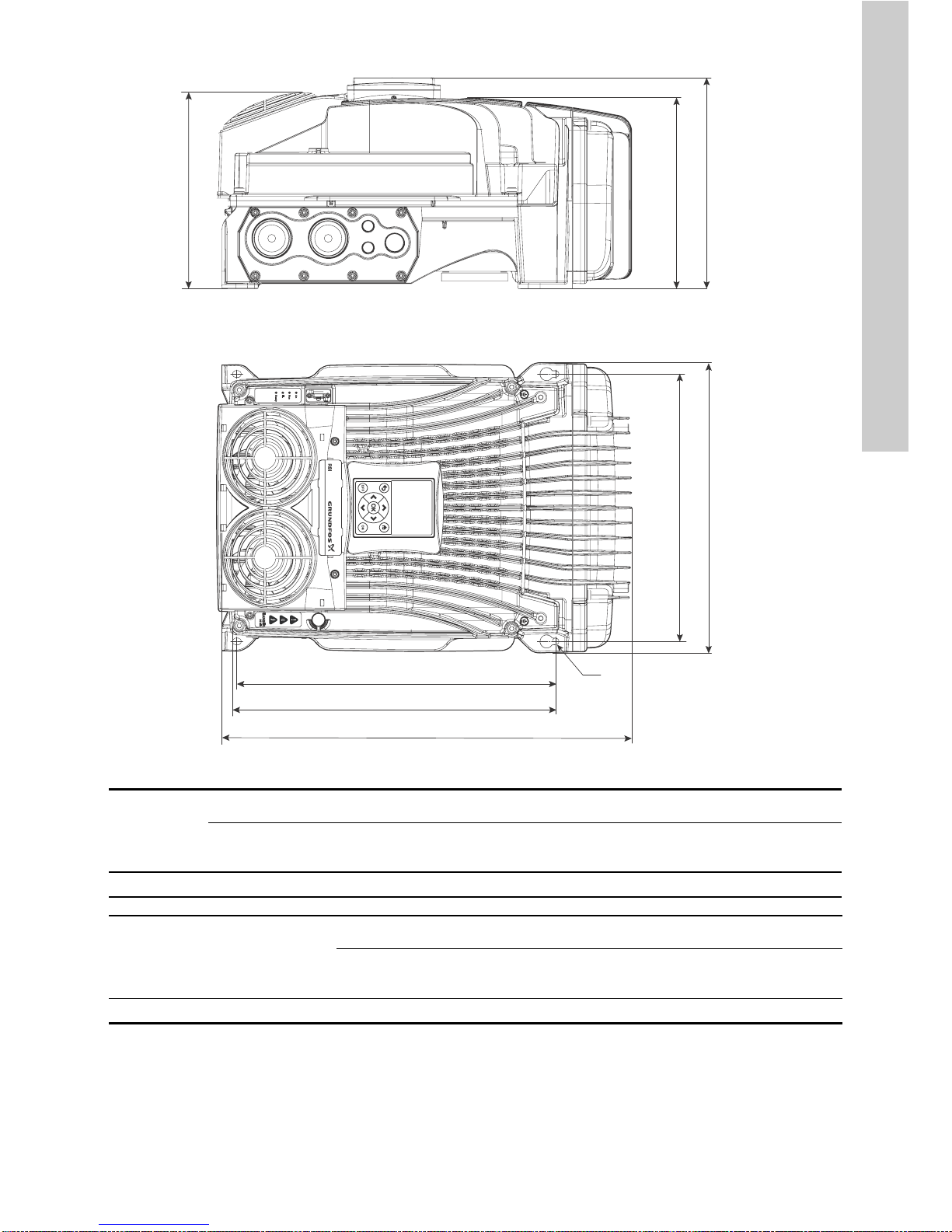

Fig. 3 Frame C 18,5 - 37 kW
TM06 6528 1914
E
W
W2
H
H2
H1
L1
L
L2
Frame Size
Product
Net weight
[kg] E [mm] W [mm] W2 [mm] L [mm] L1 [mm] L2 [mm] H [mm] H1 [mm] H2 [mm]
Frame C 31.5 ∅8.2 322.0 350.0 385.0 382.5 500.0 230.0 236.0 254.0
Frame Size
Package
Gross weight
[kg] Length [mm] Width [mm] Height [mm]
Frame C 310 250 200 295

English (GB)
6
3.2 Technical data
3.2.1 Low Voltage Range (3 x 208-240 V)
3.2.2 High Voltage Range (3 x 380-415 V)
Voltage 3 x 208-240 V 3 x 380-415 V
Installation
environment
Min. ambient temperature [°C] -10 -10
Max. ambient temperature [°C] 60 60
Max. relative humidity [%] 100 100
Electrical data
Min. recommended MPP voltage [VDC] 230 400
Max. Input voltage [VDC] 380 800
Min. frequency [Hz] 5 5
Max. frequency [Hz] 60 60
Phases 3
Rated output voltage [VAC] 220 380
Enclosure class IP66 IP66
Power
[kW] Product number
Electrical Data
Frame size
Max. P2
[kW] Rated Output Current [A]
1.5 99090622 1.5 8 A
2.2 99090633 2.2 11 A
3.0 99090634 3.0 12.5 A
4.0 99090635 4.0 18 A
5.5 99090636 5.5 24.2 A
7.5 99090637 7.5 31 B
11 99090638 11 48 B
15 99090639 15 62 B
Power
[kW] Product number
Electrical Data
Frame size
Max. P2
[kW] Rated Output Current [A]
2.2 99044348 2.2 5.6 A
3.0 99044349 3.0 8 A
4.0 99044350 4.0 9.6 A
5.5 99044351 5.5 12 A
7.5 99044352 7.5 16 B
11 99044363 11 23 B
15 99044364 15 31 B
18.5 99044365 18.5 38 C
22 99044366 22 46 C
30 99044367 30 61 C
37 99044368 37 72 C

English (GB)
7
4. Installation
4.1 Installation example
Fig. 4 Installation example showing the required clearance when mounting the product
Warning
Installation must be carried out by qualified
staff.
Caution
You must adjust the minimum frequency to
a value that ensures water is discharged
from the outlet of the pump
Note
To adjust the min Frequency click the
home button on the control panel and
select min Frequency
Caution
To ensure a good convective cooling
effect, install the inverter vertically with at
least 10 cm free space at the top and
bottom.
To be installed indoors. Do not install the
equipment in direct sunlight.
Caution
Please ensure that the mounting wall can
support the weight of the inverter. Find
weight in 3.2 Technical data.
TM06 6529 1813
A
C B
A
Type A B C
сůĞĂƌĂŶĐĞůĞŌĂŶĚƌŝŐŚƚĨƌŽŵƚŚĞĚƌŝǀĞ
сůĞĂƌĂŶĐĞĂďŽǀĞƚŚĞĚƌŝǀĞ
сůĞĂƌĂŶĐĞůƵŶĚĞƌŶĞĂƚŚƚŚĞĚƌŝǀĞĚƌŝǀĞ
80 160 60
DŝŶĐůĞĂƌĂŶĐĞ΀ŵŵ΁
ůůƚLJƉĞƐ
100X
T
A = Clearance left and right from the drive
B = Clearance above the drive
C = Clearance underneath the AC drive
Min clearance
[mm]
Type A B C
All types 80 160 60

English (GB)
8

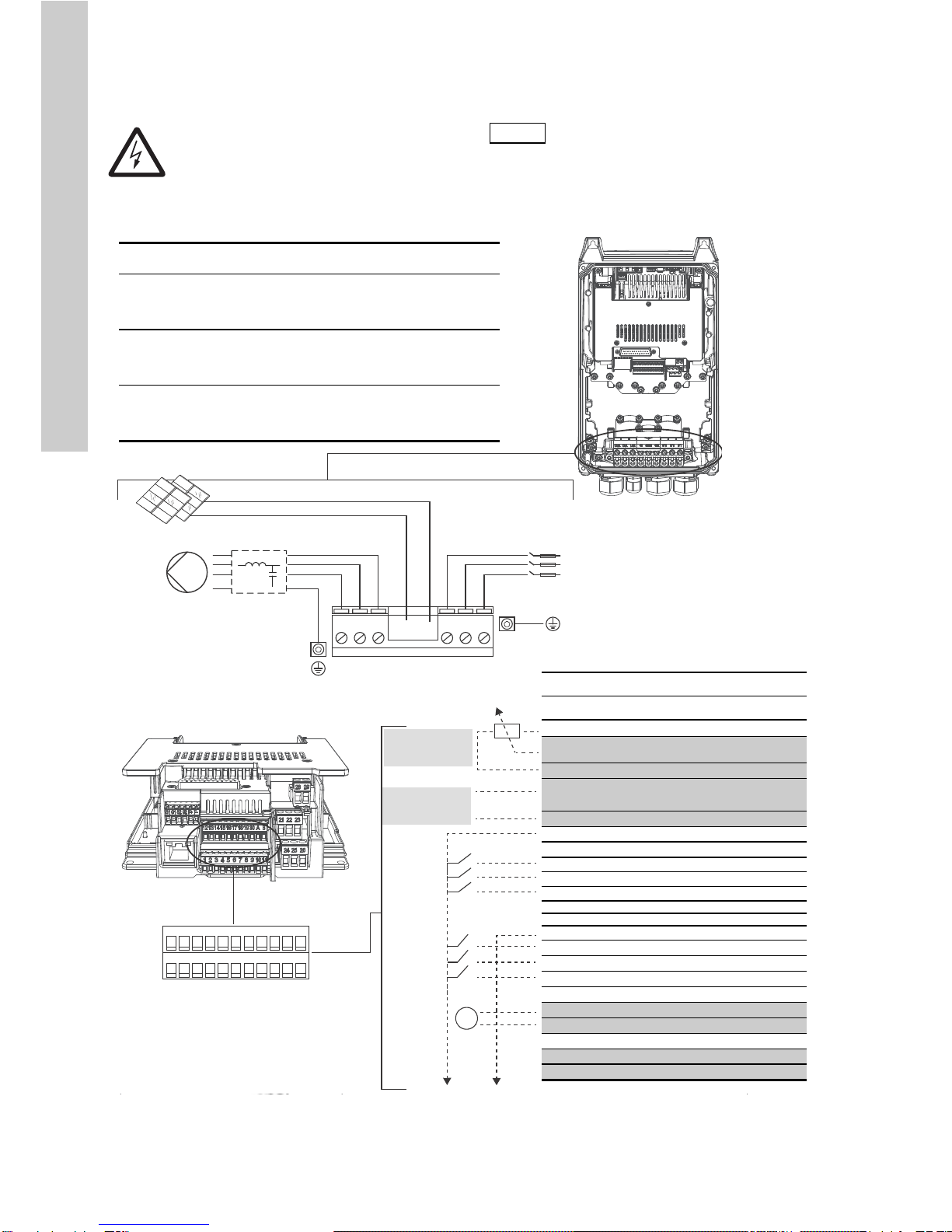

4.2 Electrical connection
Fig. 5 Position of terminals
Warning
To avoid the risk of electric shock or fire,
make sure that the power supply has been
cut off before connecting the equipment.
To avoid live voltage on the cabinet, make
sure the earth terminal is reliably
grounded.
Caution
To avoid arcing and fire, tighten all
terminals with the specified torque.
For distances (pump to inverter) exceeding
30 m, we recommend a reactor with
matching current ratings.
TM06 6530 1914
Terminal DescripƟon
L1
L2
L3
These terminals are the input cŽŶŶĞĐƟŽŶƐ for the power
supply.
DC-
DC+/R+
R-
DC bus terminals (DC- DC+)
and
Brake resistor terminals (R+ R-)
U/T1
V/T2
W/T3
These terminals are for motor cŽŶŶĞĐƟŽŶƐ
FILTER
AC power supply
PUMP
W/T3 V/T2
(V)
(U)
(W)
(PE)
U/T1 DC+/R+R+ DC- L3 L2 L1
(PE)
3
1
12
2
13
3
14
4
15
5
16
6
17
7
18
8
19
9
30
10
A
11
B
Standard I/O
Terminal Signal
1 +10 Vref Reference output
2AI1+ Analogue input,
voltage or current
3AI1- Analogue input com-
mon
4AI2+ Analogue input,
voltage or current
5AI2- Analogue input com-
mon
624Vout 24V aux. voltage
7GND I/O ground
8DI1 Digital input 1
9DI2 Digital input 2
10 DI3 Digital input 3
11 CM Common for DI1-DI6 *
* Can be isolated from ground see chap
12 24Vout 24V aux. voltage
13 GND I/O ground
14 DI4 Digital input 4
15 DI5 Digital input 5
16 DI6 Digital input 6
17 CM Common for DI1-DI6*
18 AO1+ Analogue output,
voltage or current
19 AO-/GND Analogue output com-
mon
30 +24 Vin 24V auxiliary input
voltage
A RS485 Serial bus, ŶĞŐĂƟve
B RS485 Serial bus, ƉŽƐŝƟve
Reference
poteŶƟŽŵĞƚĞƌ 1...10 k ё
Remote reference
4...20mA/0...10V
mA
100X
Terminal Description
L1
L2
L3
These terminal are the input connections
for the power supply.
DC-
DC+/R+
R-
DC bus terminal (DC- DC+)
and
Break resistor terminals (R+ R-)
U/T1
V/T2
W/T3
These terminal are for motor connections.
Pump Filter
AC power supply
3~
Standard I/O
Terminal Signal
1 +10 Vref Reference output
2AI1+ Analogue input,
voltage or current
3AI1- Analogue input common
4AI2+ Analogue input,
voltage or current
5AI2- Analogue input common
6 24 Vout 24 V aux. voltage
7 GND I/O ground
8 DI1 Digital input 1
9 DI2 Digital input 2
10 DI3 Digital input 3
11 CM Common for DI1-DI6
12 24 Vout 24 V aux. voltage
13 GND I/O ground
14 DI4 Digital input 4
15 DI5 Digital input 5
16 DI6 Digital input 6
17 CM Common for DI1-DI6
18 AO1+ Analogue output, voltage or current
19 AO-/GND Analogue output common
30 +24 Vin 24 V auxiliary input voltage
ARS485 Serial bus, negative
BRS485 Serial bus, positive
Reference
potentiometer
1...10 kΩ
Remote reference
4...20mA / 0...10V

English (GB)
9
5. Operation
5.1 Control panel
The Renewable Solar Inverter control panel is shown
in fig. 6below. The control panel has four LEDs, a
digital display and nine operating keys.
Fig. 6 Control panel layout
Warning
Check all electrical connections before
powering up the system.
Warning
The heat sink becomes hot during running
and stays hot for a long time. Touching it
while it is hot will cause burns.
Caution
In case of altitudes over 1000 m, the
output current should be reduced by 10 %
for every 1500 m increase in altitude.
Note
Adjust control parameters according to the
steps indicated in this manual before the
first start.
TM05 4446 2412
Digital display control panel
Operating keys
(The function of the keys is shown in the
table below.)
Mode indicator lights (LEDs):
On
RUN
FLT (FAULT)
Ready
Indicator lights and keys Function description
On On indicator light Yellow On: Inverter is on.
Run Run indicator light Green On: Inverter is running.
FLT Fault indicator light Red On: System fault.
Ready Ready indicator light Yellow On: System is ready to run.
Return key Returns to previous screen in the control panel and is
used to reset faults.
Home key Returns to home screen in the control panel.

English (GB)
10
Off key Turns the inverter output OFF.
On key Turns the inverter output ON.
Up key Navigate control panel and edit parameter values.
Down key Navigate control panel and edit parameter values.
Right key Navigate control panel and edit parameter values.
Left key Navigate control panel and edit parameter values.
OK key Confirm selection and parameter values.
Indicator lights and keys Function description
