Grundfos GT-H User manual

GT-H, GT-HR, GT-U
Installation and operating instructions
GRUNDFOS INSTRUCTIONS

GT-H, GT-HR, GT-U
English (GB)
Installation and operating instructions ..................................5
Български (BG)
Упътване за монтаж и експлоатация.................................13
Čeština (CZ)
Montážní a provozní návod ........................................21
Deutsch (DE)
Montage- und Betriebsanleitung .....................................29
Dansk (DK)
Monterings- og driftsinstruktion ......................................37
Español (ES)
Instrucciones de instalación y funcionamiento............................45
Suomi (FI)
Asennus- ja käyttöohjeet ..........................................53
Français (FR)
Notice d'installation et de fonctionnement...............................61
Ελληνικά (GR)
Οδηγίες εγκατάστασης και λειτουργίας.................................69
Magyar (HU)
Telepítési és üzemeltetési utasítás ...................................77
Italiano (IT)
Istruzioni di installazione e funzionamento ..............................85
Nederlands (NL)
Installatie- en bedieningsinstructies ...................................93
Polski (PL)
Instrukcja montażu i eksploatacji....................................101
Português (PT)
Instruções de instalação e funcionamento .............................109
Română (RO)
Instrucţiuni de instalare şi utilizare...................................117
Русский (RU)
Паспорт, Руководство по монтажу и эксплуатации......................125
Svenska (SE)
Monterings- och driftsinstruktion ....................................134
3
Table of contents

Slovenčina (SK)
Návod na montáž a prevádzku .....................................142
Türkçe (TR)
Montaj ve kullanım kılavuzu .......................................150
Operating manual EAC .........................................158
4GT-H, GT-HR, GT-U
Table of contents

English (GB) Installation and operating instructions
Original installation and operating instructions
Table of contents
1. General information ............. 5
1.1 Hazard statements .............. 5
1.2 Notes ..................... 5
1.3 Target group.................. 6
2. Product introduction ............ 6
2.1 Product description .............. 6
2.2 Intended use ................. 6
2.3 Identification.................. 6
3. Receiving the product............ 7
3.1 Lifting the product ............... 7
4. Installation requirements .......... 7
4.1 Location .................... 7
4.2 Precharge pressure.............. 7
4.3 Maximum operating pressure......... 7
4.4 System check ................. 8
4.5 Isolating valves ................ 8
4.6 Installing the relief valve ........... 8
4.7 Installation examples ............. 9
5. Mechanical installation ...........11
5.1 Positioningthe product ............11
6. Maintenance .................11
6.1 Maintenance schedule ............11
6.2 Checking the GT tank for damage ......11
7. Technical data ................11
8. Disposing of the product ..........11
9. Declaration of Conformity .........12
10. Certificates ..................12
1. General information
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not
be made by children without supervision.
Read this document before you install the
product. Installation and operation must
comply with local regulations and accepted
codes of good practice.
1.1 Hazard statements
The symbols and hazard statements below may
appear in Grundfos installation and operating
instructions, safety instructions and service
instructions.
DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious
personal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a hazardous situation which, if
not avoided, could result in minor or
moderate personal injury.
The hazard statements are structured in the following
way:
SIGNAL WORD
Description of the hazard
Consequence of ignoring the warning
• Action to avoid the hazard.
1.2 Notes
The symbols and notes below may appear in
Grundfos installation and operating instructions,
safety instructions and service instructions.
Observe these instructions for explosion-
proof products.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol,
indicates that an action must not be taken
or must be stopped.
5
English (GB)

If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
Tips and advice that make the work easier.
1.3 Target group
These installation and operating instructions are
intended for professional as well as non-professional
users.
2. Product introduction
2.1 Product description

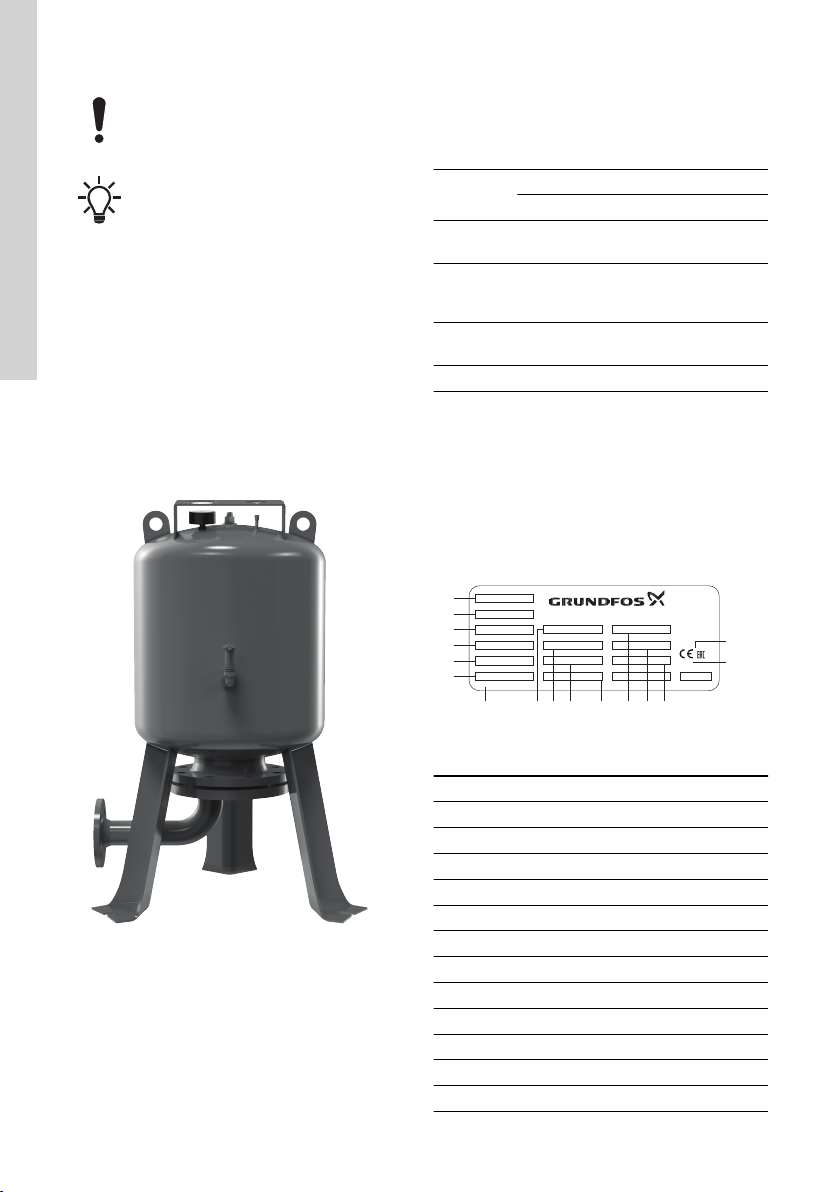

The Grundfos GT-U, GT-H, and GT-HR are long-life
pressure tanks ideally suited for controlling the
pressure in domestic and industrial applications.
GR-1032823
Example of GT-U tank
2.2 Intended use
• GT-U is a vertical tank for use in cold-water
systems.
• GT-H is a horizontal tank for use in cold-water
systems. The tank has a base plate for mounting
a pump.
• GT-HR for use in cooling or heating systems.
The table below shows the tank types in relation to
the application.
Application Tank type
GT-U GT-H GT-HR
Drinking
water ● ● -
Grey
wastewater
*
● ● -
Chilled
water ● - ●
Heating - - ●
● Recommended
- Not recommended
* Grey wastewater is domestic wastewater, for
example, from dishwashers, washing machines, and
cabinet showers.
2.3 Identification
2.3.1 Nameplate for GT-H, GT-HR, GT-U
Part No.
Serial No.
Commercial Type Factory Precharge Connection
Max. Work. Temperature (TS)
Prod. Year/Week/Day
identical in construction with
Max. Work. Pressure (PS)
Test Pressure (PT)
Precharge Pressure on-site
Drawing No.
Nominal Volume
Eective Volume
Manufactured for GRUNDFOS by - Reex Winkelmann GmbH - Gersteinstrasse 19 - 59227 Ahlen / Germany - Made in Poland
0045
DK - 8850 Bjerringbro, Denmark
1
2
3
4
5
6
7 8 9 13
15
14
10 11 1216
TM077015
Nameplate
Pos. Description
1 Product number
2 Serial number
3 Type designation
4 Drawing number
5 Nominal volume
6 Effective volume
7 Factory precharge
8 Max. operating pressure
9 Test pressure
10 Precharge pressure
11 Connection
12 Max. operating temperature
6
English (GB)

Pos. Description
13 Production code (year and week)
14 Marks of approval
15 Notified body
16 Production company
3. Receiving the product
3.1 Lifting the product
If the GT tank has lifting eyes, use all lifting eyes.
TM050220
Lifting the tank
4. Installation requirements
Installation and operation must comply
with local regulations and accepted codes
of good practice.
Before installation, check the following:
• Do the GT tank specifications correspond to your
order?
• Are all visible parts intact?
• Is the maximum system pressure lower or equal
to the maximum operating pressure for the GT
tank? See tank nameplate.
4.1 Location
• The GT tank must be installed in the outlet pipe as
close to the pump as possible.
• The GT tank must be installed in a frost-free
room. It must be possible to inspect the GT tank
from all sides.
• The gas-filling valve, water shut-off, and outlet
must be accessible, and the nameplate must be
visible.
• The GT tank must be installed so that it is not
stressed by the pipes. If vibrations are likely to
occur, we recommend that the GT tank is installed
so that vibrations are absorbed.
4.2 Precharge pressure
The GT tanks are supplied from factory with a
precharge pressure. See tank nameplate.
The precharge pressure must be adjusted according
to the actual application and the installed pump.
The precharge pressure must be slightly below the
pump cut-in setting.
Recommended precharge pressures:
• 0.9 x setpoint for fixed-speed pumps
• 0.7 x setpoint for variable-speed pumps.
TM050225
Precharge pressure
4.2.1 Adjusting the precharge pressure
If there is no precharge pressure in the
tank, you must fill the tank with nitrogen.
If the precharge pressure is not suitable for the
application, it should be adjusted according to the
following steps:
1. Use a suitable pressure gauge to check the
precharge pressure.
2. We recommend using nitrogen to achieve the
recommended precharge pressure.
4.3 Maximum operating pressure
The maximum operating pressure of the pump (P2)
and the actual inlet pressure (P1) must not exceed
the maximum operating pressure of the GT tank (P3).
See fig. Maximum operating pressure.
See pump and tank nameplates.
7
English (GB)

TM050227
Maximum operating pressure
4.4 System check
The GT tank must be bypassed if the system
pressure exceeds the maximum operating pressure
of the GT tank during a system check.
4.5 Isolating valves
We recommend installing an isolating valve on either
side of the GT tank.
TM050226
Isolating valves
4.6 Installing the relief valve
1. Set the relief valve to open at the maximum
operating pressure. This will protect the GT tank
and other system components.
2. Install the relief valve at the connection of the GT
tank to the pipe system. It should have an outlet
equal to the pump capacity at maximum operating
pressure.
TM050228
Relief valve
8
English (GB)

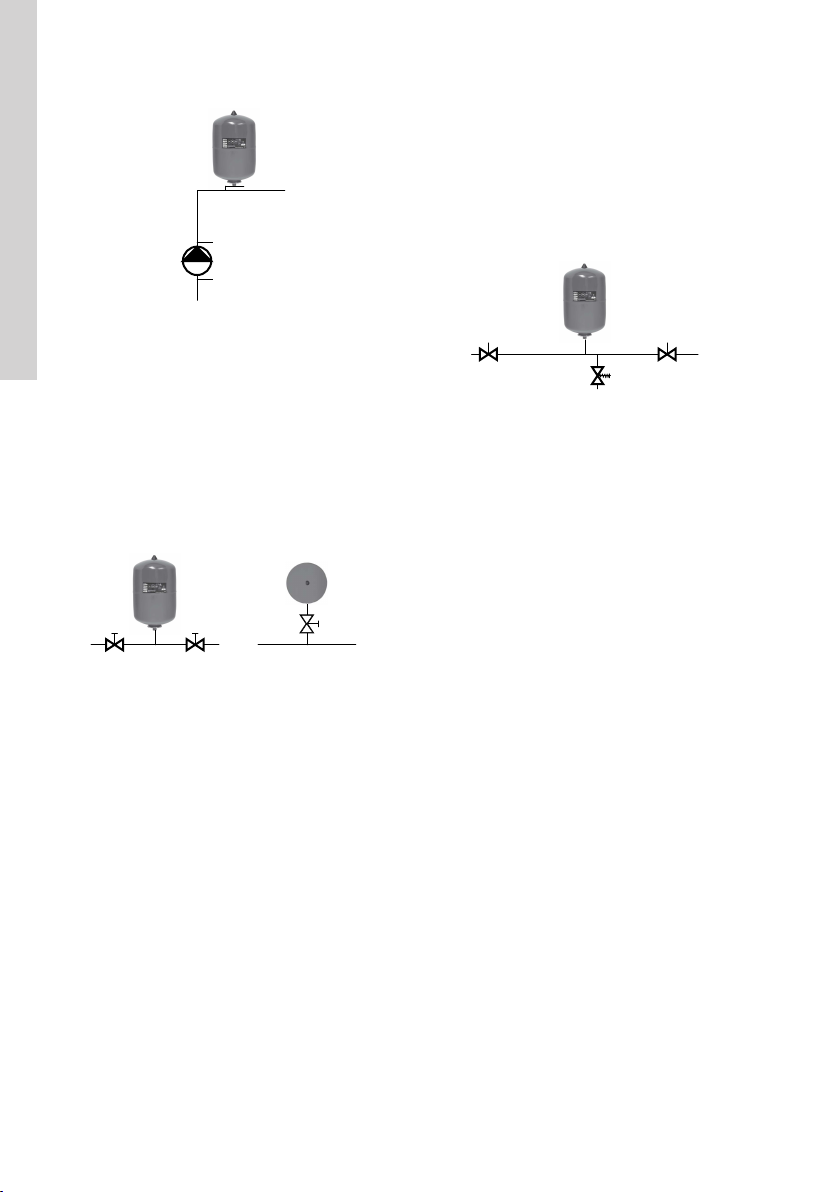

4.7 Installation examples
TM010499
TM010503
TM010502
TM010500TM010501
9
English (GB)

Symbol Description
TM027804
Isolating valve
TM027806
Pressure gauge
TM027805
Relief valve
TM027807
Non-return valve
TM027808
Pressure switch
TM027809
Drain
10
English (GB)

5. Mechanical installation
5.1 Positioning the product
We recommend following these steps:
1. Lift and position the GT tank.
2. Level as required (horizontally and vertically).
3. Secure the GT tank.
4. Connect the pipes and fittings.
5. Check/adjust the precharge pressure.
6. Start the pump or application.
No additional loads from the pipe system
or equipment are allowed.
5.1.1 Floor installation
GT tanks must be placed on the floor without bolts.
5.1.2 Wall installation
Small GT tanks of up to 33 litres must be secured to a
wall or similar.
TM050224
Example of wall installation with wall bracket
(product no. 00ID9070)
6. Maintenance
The GT tank is maintenance-free, but we recommend
checking the tank for damage two times a year.
If the tank is removed, when the tank
and /or the system is still pressurized,
make sure that the tank is without
pressure.
Close the isolating valves and remove the
precharge pressure through the air valve.
6.1 Maintenance schedule
• Check the precharge pressure annually.
• Before checking the pressure, make sure that
there is no water in the GT tank (switch off the
pump, and open a tap).
• If water escapes during the precharge pressure
check, the bladder is defective.
GT tank bladder with a volume larger than 80 litres
can be replaced.
6.2 Checking the GT tank for damage
During maintenance, check the following:
1. Is corrosion visible?
2. Are scratches, dents, etc. visible?
In case of serious damage, contact your nearest
Grundfos company.
7. Technical data
See tank nameplate.
8. Disposing of the product
This product or parts of it must be disposed of in an
environmentally sound way.
1. Use the public or private waste collection service.
2. If this is not possible, contact the nearest
Grundfos company or service workshop.
The crossed-out wheelie bin symbol
on a product means that it must be
disposed of separately from household
waste. When a product marked with
this symbol reaches its end of life, take
it to a collection point designated by
the local waste disposal authorities.
The separate collection and recycling
of such products will help protect the
environment and human health.
See also end-of-life information at
www.grundfos.com/product-recycling.
11
English (GB)

9. Declaration of Conformity
For more information on the Declaration of
Conformity, scan the QR code to access Reflex
Winkelmann GmbH website:
QRTM078112
https://www.reflex-winkelmann.com/en/the-company/
company-quality/conformity-and-standards/
10. Certificates
For more information on the product certificates,
scan the QR code to access Reflex Winkelmann
GmbH website:
QRTM078113
https://www.reflex-winkelmann.com/en/the-company/
company-quality/norms-and-certificates/
12
English (GB)

Operating manual EAC
RUS
GT-H, GT-HR, GT-U
Расширительные баки GT сертифицированы на соответствие требованиям Технического регламента
Таможенного союза ТР ТС 010/2011 «О безопасности машин и оборудования».
Сертификат соответствия:
№ ЕАЭС № RU Д-DK.БЛ08.В.02746, сроком действия с 21.12.2017 по 17.12.2022г.
Расширительные баки GT прошли подтверждение соответствия требованиям Технического
регламента Таможенного союза ТР ТС 032/2013 «О безопасности оборудования, работающего под
избыточным давлением».
Декларации о соответствии:
№ ЕАЭС N RU Д-DK.БЛ08.В.02751, сроком действия с 21.12.2017 по 19.12.2022г. (1 категория,
исполнения: GT-U, GT-H, GT-HR)
№ ЕАЭС N RU Д-DK.БЛ08.В.02752, сроком действия с 21.12.2017 по 19.12.2022г. (2 категория,
исполнения: GT-U, GT-H, GT-HR, GT-D)
Сертификаты соответствия:
№ TC RU C-DK.БЛ08.В.01057, сроком действия с 21.12.2017 по 19.12.2022г. (3 категория, исполнения:
GT-H, GT-U, GT-HR, GT-D)
№ TC RU C-DK.БЛ08.В.01058, сроком действия с 21.12.2017 по 19.12.2022г. (4 категория, исполнения:
GT-U, GT-HR, GT-D)
Выданы: Органом по сертификации продукции «ИВАНОВО-СЕРТИФИКАТ» ООО «Ивановский
Фонд Сертификации». Адрес: 153032, Российская Федерация, г. Иваново, ул. Станкостроителей, д.1.
Истра, 03.09.2020г.
3581131-GT-H-HR-U-PIOI-LIGHT-P1
158
Operating manual EAC

Argentina
Bombas GRUNDFOS de Argentina S.A.
Ruta Panamericana km. 37.500industin
1619 - Garín Pcia. de B.A.
Tel.: [phone]
Fax: [phone]
Australia
GRUNDFOS Pumps Pty. Ltd.
P.O. Box 2040
Regency Park
South Australia 5942
Tel.: [phone]
Fax: [phone]
Austria
GRUNDFOS Pumpen Vertrieb
Ges.m.b.H.
Grundfosstraße 2
A-5082 Grödig/Salzburg
Tel.: [phone]
Fax: [phone]
Belgium
N.V. GRUNDFOS Bellux S.A.
Boomsesteenweg 81-83
B-2630 Aartselaar
Tel.: [phone]
Fax: [phone]
Belarus
Представительство ГРУНДФОС в
Минске
220125, Минск
ул. Шафарнянская, 11, оф. 56, БЦ
«Порт»
Тел.: [phone]
[phone]
Факс: [phone]
E-mail: [email protected]
Bosnia and Herzegovina
GRUNDFOS Sarajevo
Zmaja od Bosne 7-7A
BiH-71000 Sarajevo
Tel.: [phone]
Fax: [phone]
www.ba.grundfos.com
E-mail: [email protected]
Brazil
BOMBAS GRUNDFOS DO BRASIL
Av. Humberto de Alencar Castelo
Branco, 630
CEP 09850 - 300
São Bernardo do Campo - SP
Tel.: [phone]
Fax: [phone]
Bulgaria
Grundfos Bulgaria EOOD
Slatina District
Iztochna Tangenta street no. 100
BG - 1592 Sofia
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Canada
GRUNDFOS Canada inc.
2941 Brighton Road
Oakville, Ontario
L6H 6C9
Tel.: [phone]
Fax: [phone]
China
GRUNDFOS Pumps (Shanghai) Co. Ltd.
10F The Hub, No. 33 Suhong Road
Minhang District
Shanghai 201106 PRC
Tel.: [phone]
Fax: [phone]
Columbia
GRUNDFOS Colombia S.A.S.
Km 1.5 vía Siberia-Cota Conj. Potrero
Chico,
Parque Empresarial Arcos de Cota Bod.
1A.
Cota, Cundinamarca
Tel.: [phone]
Fax: [phone]
Croatia
GRUNDFOS CROATIA d.o.o.
Buzinski prilaz 38, Buzin
HR-10010 Zagreb
Tel.: [phone]
Fax: [phone]
www.hr.grundfos.com
Czech Republic
GRUNDFOS Sales Czechia and Slovakia
s.r.o.
Čajkovského 21
779 00 Olomouc
Tel.: [phone]
Denmark
GRUNDFOS DK A/S
Martin Bachs Vej 3
DK-8850 Bjerringbro
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
www.grundfos.com/DK
Estonia
GRUNDFOS Pumps Eesti OÜ
Peterburi tee 92G
11415 Tallinn
Tel.: + 372 606 1690
Fax: + 372 606 1691
Finland
OY GRUNDFOS Pumput AB
Trukkikuja 1
FI-01360 Vantaa
Tel.: [phone]
France
Pompes GRUNDFOS Distribution S.A.
Parc d’Activités de Chesnes
57, rue de Malacombe
F-38290 St. Quentin Fallavier (Lyon)
Tel.: [phone]
Fax: [phone]
Germany
GRUNDFOS GMBH
Schlüterstr. 33
40699 Erkrath
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Service in Deutschland:
[email protected]
Greece
GRUNDFOS Hellas A.E.B.E.
20th km. Athinon-Markopoulou Av.
P.O. Box 71
GR-19002 Peania
Tel.: [phone]
Fax: [phone]
Hong Kong
GRUNDFOS Pumps (Hong Kong) Ltd.
Unit 1, Ground floor, Siu Wai industrial
Centre
29-33 Wing Hong Street & 68 King Lam
Street, Cheung Sha Wan
Kowloon
Tel.: [phone]
Fax: [phone]
Hungary
GRUNDFOS Hungária Kft.
Tópark u. 8
H-2045 Törökbálint
Tel.: [phone]
Fax: [phone]
india
GRUNDFOS Pumps india Private Limited
118 Old Mahabalipuram Road
Thoraipakkam
Chennai 600 097
Tel.: [phone]
indonesia
PT GRUNDFOS Pompa
Graha intirub Lt. 2 & 3
Jln. Cililitan Besar No.454. Makasar,
Jakarta Timur
ID-Jakarta 13650
Tel.: [phone]
Fax: [phone]
Ireland
GRUNDFOS (Ireland) Ltd.
Unit A, Merrywell Business Park
Ballymount Road Lower
Dublin 12
Tel.: [phone]
Fax: [phone]
Italy
GRUNDFOS Pompe Italia S.r.l.
Via Gran Sasso 4
I-20060 Truccazzano (Milano)
Tel.: [phone]
Fax: [phone]
Japan
GRUNDFOS Pumps K.K.
1-2-3, Shin-Miyakoda, Kita-ku
Hamamatsu
431-2103 Japan
Tel.: [phone]
Fax: [phone]
Korea
GRUNDFOS Pumps Korea Ltd.
6th Floor, Aju Building 679-5
Yeoksam-dong, Kangnam-ku, 135-916
Seoul, Korea
Tel.: [phone]
Fax: [phone]
Grundfos companies

Latvia
SIA GRUNDFOS Pumps Latvia
Deglava biznesa centrs
Augusta Deglava ielā 60
LV-1035, Rīga,
Tel.: + 371 714 9640, 7 149 641
Fax: + 371 914 9646
Lithuania
GRUNDFOS Pumps UAB
Smolensko g. 6
LT-03201 Vilnius
Tel.: + 370 52 395 430
Fax: + 370 52 395 431
Malaysia
GRUNDFOS Pumps Sdn. Bhd.
7 Jalan Peguam U1/25
Glenmarie industrial Park
40150 Shah Alam, Selangor
Tel.: [phone]
Fax: [phone]
Mexico
Bombas GRUNDFOS de México
S.A. de C.V.
Boulevard TLC No. 15
Parque industrial Stiva Aeropuerto
Apodaca, N.L. 66600
Tel.: [phone]
Fax: [phone]
Netherlands
GRUNDFOS Netherlands
Veluwezoom 35
1326 AE Almere
Postbus 22015
1302 CA ALMERE
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
New Zealand
GRUNDFOS Pumps NZ Ltd.
17 Beatrice Tinsley Crescent
North Harbour Industrial Estate
Albany, Auckland
Tel.: [phone]
Fax: [phone]
Norway
GRUNDFOS Pumper A/S
Strømsveien 344
Postboks 235, Leirdal
N-1011 Oslo
Tel.: [phone]
Fax: [phone]
Poland
GRUNDFOS Pompy Sp. z o.o.
ul. Klonowa 23
Baranowo k. Poznania
PL-62-081 Przeźmierowo
Tel.: [phone]
Fax: [phone]
Portugal
Bombas GRUNDFOS Portugal, S.A.
Rua Calvet de Magalhães, 241
Apartado 1079
P-2770-153 Paço de Arcos
Tel.: [phone]
Fax: [phone]
Romania
GRUNDFOS Pompe România SRL
S-PARK BUSINESS CENTER, Clădirea
A2, etaj 2
Str. Tipografilor, Nr. 11-15, Sector 1, Cod
013714
Bucuresti, Romania
Tel.: [phone]
E-mail: [email protected]
Russia
ООО Грундфос Россия
ул. Школьная, 39-41
Москва, RU-109544, Russia
Тел. [phone] [phone]
Факс [phone]
E-mail [email protected]
Serbia
Grundfos Srbija d.o.o.
Omladinskih brigada 90b
11070 Novi Beograd
Tel.: [phone]
Fax: [phone]
www.rs.grundfos.com
Singapore
GRUNDFOS (Singapore) Pte. Ltd.
25 Jalan Tukang
Singapore 619264
Tel.: [phone]
Faxax: [phone]
Slovakia
GRUNDFOS s.r.o.
Prievozská 4D 821 09 BRATISLAVA
Tel.: [phone]
sk.grundfos.com
Slovenia
GRUNDFOS LJUBLJANA, d.o.o.
Leskoškova 9e, 1122 Ljubljana
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
South Africa
GRUNDFOS (PTY) LTD
16 Lascelles Drive, Meadowbrook Estate
1609 Germiston, Johannesburg
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Spain
Bombas GRUNDFOS España S.A.
Camino de la Fuentecilla, s/n
E-28110 Algete (Madrid)
Tel.: [phone]
Fax: [phone]
Sweden
GRUNDFOS AB
Box 333 (Lunnagårdsgatan 6)
431 24 Mölndal
Tel.: [phone]
Fax: [phone]
Switzerland
GRUNDFOS Pumpen AG
Bruggacherstrasse 10
CH-8117 Fällanden/ZH
Tel.: [phone]
Fax: [phone]
Taiwan
GRUNDFOS Pumps (Taiwan) Ltd.
7 Floor, 219 Min-Chuan Road
Taichung, Taiwan, R.O.C.
Tel.: [phone]
Fax: [phone]
Thailand
GRUNDFOS (Thailand) Ltd.
92 Chaloem Phrakiat Rama 9 Road
Dokmai, Pravej, Bangkok 10250
Tel.: [phone]
Fax: [phone]
Turkey
GRUNDFOS POMPA San. ve Tic. Ltd.
Sti.
Gebze Organize Sanayi Bölgesi
Ihsan dede Caddesi
2. yol 200. Sokak No. 204
41490 Gebze/ Kocaeli
Tel.: +90 - 262-679 7979
Fax: +90 - 262-679 7905
E-mail: [email protected]
Ukraine
Бізнес Центр Європа
Столичне шосе, 103
м. Київ, 03131, Україна
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
United Arab Emirates
GRUNDFOS Gulf Distribution
P.O. Box 16768
Jebel Ali Free Zone, Dubai
Tel.: [phone]
Fax: [phone]
United Kingdom
GRUNDFOS Pumps Ltd.
Grovebury Road
Leighton Buzzard/Beds. LU7 4TL
Tel.: [phone]
Fax: [phone]
U.S.A.
GRUNDFOS Water Utility Head Quarters
Brookshire, Texas 77423 USA
Uzbekistan
Grundfos Tashkent, Uzbekistan
The Representative Office of Grundfos
Kazakhstan in Uzbekistan
38a, Oybek street, Tashkent
Tel.: [phone]
Fax: [phone]
Revision Info
Last revised on 09-09-2020
Grundfos companies

96550312 02.2021
ECM: 1307749
Trademarks displayed in this material, including but not limited to Grundfos, the Grundfos logo and “be think innovate” are registered trademarks owned by The Grundfos Group. All rights reserved. © 2021 Grundfos Holding A/S,
all rights reserved.
