English (GB) Installation and operating instructions
Original installation and operating instructions
CONTENTS
Page
1. Symbols used in this document
1. Symbols used in this document 5
2. General information 6
3. General description 6
3.1 Pumps without factory-fitted sensor 6
3.2 Pumps with pressure sensor 6
3.3 Settings 6
4. Mechanical installation 6
4.1 Motor cooling 6
4.2 Outdoor installation 6
5. Electrical connection 6
5.1 Three-phase pumps, 1.1 - 7.5 kW 6
5.2 Three-phase pumps, 11-22 kW 9
5.3 Signal cables 12
5.4 Bus connection cable 12
6. Modes 12
6.1 Overview of modes 12
6.2 Operating mode 12
6.3 Control mode 13
7. Setting up the pump 13
7.1 Factory setting 13
8. Setting by means of control panel 13
8.1 Setting of operating mode 13
8.2 Setpoint setting 14
9. Setting by means of R100 14
9.1 Menu OPERATION 16
9.2 Menu STATUS 17
9.3 Menu INSTALLATION 18
10. Setting by means of PC Tool E-products 23
11. Priority of settings 23
12. External forced-control signals 24
12.1 Start/stop input 24
12.2 Digital input 24
13. External setpoint signal 24
14. Bus signal 25
15. Other bus standards 25
16. Indicator lights and signal relay 25
17. Insulation resistance 27
18. Emergency operation (only 11-22 kW) 27
19. Maintenance and service 28
19.1 Cleaning of the motor 28
19.2 Relubrication of motor bearings 28
19.3 Replacement of motor bearings 28
19.4 Replacement of varistor (only 11-22 kW) 28
19.5 Service parts and service kits 28
20. Technical data - three-phase pumps, 1.1 - 7.5 kW 29
20.1 Supply voltage 29
20.2 Overload protection 29
20.3 Leakage current 29
20.4 Inputs/output 29
21. Technical data - three-phase pumps, 11-22 kW 29
21.1 Supply voltage 29
21.2 Overload protection 29
21.3 Leakage current 29
21.4 Inputs/output 30
21.5 Other technical data 30
22. Disposal 31
Warning
Prior to installation, read these installation and
operating instructions. Installation and operation
must comply with local regulations and accepted
codes of good practice.
Warning
If these safety instructions are not observed, it may
result in personal injury!
Warning
The surface of the product may be so hot that it may
cause burns or personal injury.
Caution
If these safety instructions are not observed, it may
result in malfunction or damage to the equipment.
Note
Notes or instructions that make the job easier and
ensure safe operation.

English (GB)
6
2. General information
These installation and operating instructions are a supplement to
installation and operating instructions for the corresponding
standard pumps CR, CRI, CRN, CRT, SPK, MTR, CM and
BMS hp.
For instructions not mentioned specifically here, please see
installation and operating instructions for the standard pump.
3. General description
Grundfos E-pumps have standard motors with integrated
frequency converter. The pumps are for three-phase mains
connection.
3.1 Pumps without factory-fitted sensor
The pumps have a built-in PI controller and can be set up for an
external sensor enabling control of the following parameters:
•pressure
• differential pressure
• temperature
• differential temperature
• flow rate.
From factory, the pumps have been set to control mode
uncontrolled. The PI controller can be activated by means of
R100 or Grundfos GO Remote.
3.2 Pumps with pressure sensor
The pumps have a built-in PI controller and are set up with a
pressure sensor enabling control of the pump discharge
pressure.
The pumps are set to control mode controlled. The pumps are
typically used to hold a constant pressure in variable-demand
systems.
3.3 Settings
The description of settings apply both to pumps without factory-
fitted sensor and to pumps with a factory-fitted pressure sensor.
Setpoint
The desired setpoint can be set in three different ways:
• directly on the pump control panel
• via an input for external setpoint signal
• by means of the Grundfos wireless remote control R100 or
Grundfos GO Remote.
Other settings
All other settings can only be made by means of R100 or
Grundfos GO Remote.
Important parameters such as actual value of control parameter
and power consumption can be read via R100 or Grundfos GO
Remote.
If special or customized settings are required, use the Grundfos
PC Tool E-products. Contact your local Grundfos company for
more information.
4. Mechanical installation
The pump must be secured to a solid foundation by means of
bolts through the holes in the flange or base plate.
4.1 Motor cooling
To ensure sufficient cooling of motor and electronics, observe the
following requirements:
• Make sure that sufficient cooling air is available.
• Keep the temperature of the cooling air below 40 °C.
• Keep cooling fins and fan blades clean.
4.2 Outdoor installation
When installed outdoors, the pump must be provided with a
suitable cover to avoid condensation on the electronic
components. See fig. 1.
Fig. 1 Examples of covers
Remove the drain plug pointing downwards in order to avoid
moisture and water build-up inside the motor.
Vertically mounted pumps are enclosure class IP55 after removal
of the drain plug. Horizontally mounted pumps change enclosure
class to IP54.
5. Electrical connection
For description of how to connect E-pumps electrically, see the
following pages:
5.1 Three-phase pumps, 1.1 - 7.5 kW, page 6
5.2 Three-phase pumps, 11-22 kW, page 9.
5.1 Three-phase pumps, 1.1 - 7.5 kW
Note
In order to retain the UL/cUL approval, follow the
additional installation procedures on page 768.
TM00 8622 0101 - TM02 8514 0304
Warning
The user or the installer is responsible for the
installation of correct earthing and protection
according to current national and local standards. All
operations must be carried out by qualified
personnel.
Warning
Never make any connections in the pump terminal
box unless all electric supply circuits have been
switched off for at least 5 minutes.
Note for instance that the signal relay may be
connected to an external supply which is still
connected when the mains supply is disconnected.
The above warning is indicated on the motor terminal
box by this yellow label:

English (GB)
7
5.1.1 Preparation
Before connecting the E-pump to the mains, take the issues
illustrated in the figure below into consideration.

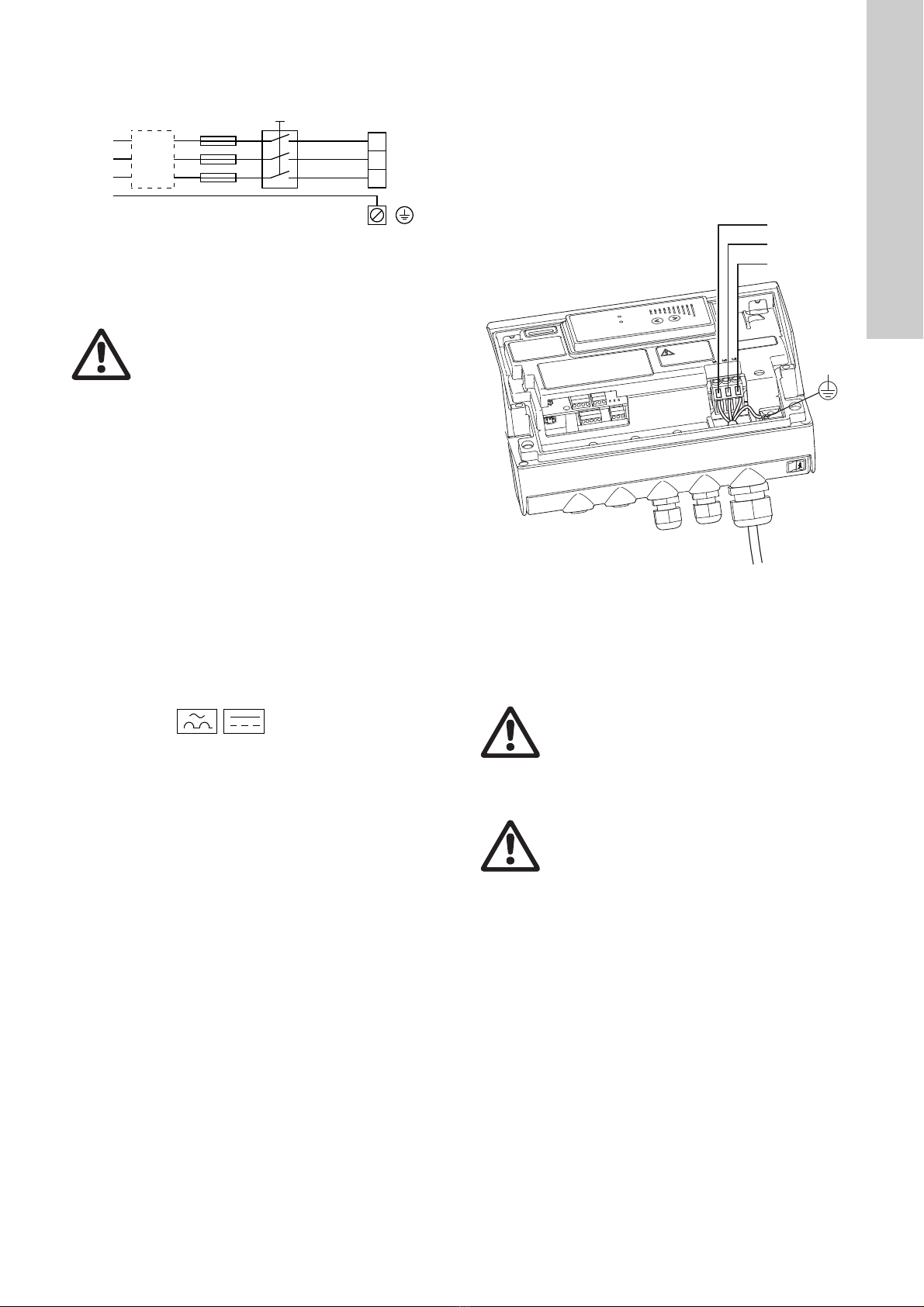

Fig. 2 Mains-connected pump with mains switch, backup
fuses, additional protection and protective earthing
5.1.2 Protection against electric shock - indirect contact
EN 50178 and BS 7671 specify the following precautions when
leakage current > 3.5 mA:
• The pump must be stationary and installed permanently.
• The pump must be permanently connected to the power
supply.
• The earth connection must be carried out as duplicate
conductors.
Protective earth conductors must always have a yellow/green (PE)
or yellow/green/blue (PEN) colour marking.
5.1.3 Backup fuses
For recommended fuse sizes, see section 20.1 Supply voltage.
5.1.4 Additional protection
If the pump is connected to an electric installation where an earth
leakage circuit breaker (ELCB) is used as additional protection,
the circuit breaker must be of a type marked with the following
symbols:
This circuit breaker is type B.
The total leakage current of all the electrical equipment in the
installation must be taken into account.
The leakage current of the motor in normal operation can be seen
in section 20.3 Leakage current.
During start and at asymmetrical supply systems, the leakage
current can be higher than normal and may cause the ELCB to
trip.
5.1.5 Motor protection
The pump requires no external motor protection. The motor
incorporates thermal protection against slow overloading and
blocking (IEC 34-11, TP 211).
5.1.6 Protection against mains voltage transients
The pump is protected against voltage transients by built-in
varistors between the phases and between phases and earth.
5.1.7 Supply voltage and mains
3 x 380-480 V - 10 %/+ 10 %, 50/60 Hz, PE.
The supply voltage and frequency are marked on the pump
nameplate. Make sure that the pump is suitable for the power
supply of the installation site.
The wires in the terminal box must be as short as possible.
Excepted from this is the protective earth conductor which must
be so long that it is the last one to be disconnected in case the
cable is inadvertently pulled out of the cable entry.
Fig. 3 Mains connection
Cable glands
Cable glands comply with EN 50626.
• 2 x M16 cable gland, cable diameter ∅4-∅10
• 1 x M20 cable gland, cable diameter ∅9-∅17
• 2 x M16 knock-out cable entries.
Grid types
Three-phase E-pumps can be connected to all grid types.
TM00 9270 4696
Warning
The pump must be earthed in accordance with
national regulations.
As the leakage current of 4 - 7.5 kW motors is > 3.5
mA, take extra precautions when earthing these
motors.
L1
L2
L3
L2
L1
L3
PE
ELCB
ELCB
TM03 8600 2007
Warning
If the supply cable is damaged, it must be replaced
by qualified personnel.
Warning
Do not connect three-phase E-pumps to a mains
supply with a voltage between phase and earth of
more than 440 V.
L1
L2
L3
L1
L2
L3

English (GB)
8
5.1.8 Start/stop of pump
When the pump is switched on via the mains, it will start after
approximately 5 seconds.
If a higher number of starts and stops is desired, use the input for
external start/stop when starting/stopping the pump.
When the pump is switched on via an external on/off switch, it will
start immediately.
Automatic restart
However, automatic restart only applies to fault types set up to
automatic restart. These faults could typically be one of these
faults:
• temporary overload
• fault in the power supply.
5.1.9 Connections Advanced I/O module
As standard the CRE, CRIE, CRNE, CRTE, SPKE, MTRE, BMS
hp pump types come with the Advanced I/O module. Optional the
pump types can be acquired with the basic Pump I/O module see
5.1.10 Connections basic Pump I/O module.
Advanced I/O module
The module has a number of inputs and outputs enabling the
motor to be used in advanced applications where many inputs
and outputs are required.
The Advanced I/O module has these connections:
• start/stop terminals
• three digital inputs
• one setpoint input
• one sensor input
• one analog output
• GENIbus connection.
As a precaution, the wires to be connected to the following
connection groups must be separated from each other by
reinforced insulation in their entire lengths:
Group 1: Inputs
• start/stop (terminals 2 and 3)
• digital inputs (terminals 1 and 9, 10 and 9, 11 and 9)
• setpoint input (terminals 4, 5 and 6)
• sensor input (terminals 7 and 8)
• GENIbus (terminals B, Y and A).
All inputs are internally separated from the mains-conducting
parts by reinforced insulation and galvanically separated from
other circuits.
All control terminals are supplied with protective extra-low voltage
(PELV), thus ensuring protection against electric shock.
Group 2: Output (relay signal, terminals NC, C, NO)
The output is galvanically separated from other circuits.
Therefore, the supply voltage or protective extra-low voltage can
be connected to the output as desired.
• analog output (terminal 12 and 13).
Group 3: Mains supply (terminals L1, L2, L3)
A galvanic separation must fulfil the requirements for reinforced
insulation including creepage distances and clearances specified
in EN 60335.
Fig. 4 Connection terminals Advanced I/O module
Caution
The number of starts and stops via the mains voltage
must not exceed 4 times per hour.
Note
If a pump set up for automatic restart is stopped due
to a fault, it will restart automatically when the fault
has disappeared.
Note
If no external on/off switch is connected, connect
terminals 2 and 3 using a short wire.
TM02 9032 0904
NC C NO L1 L2 L3
10K
RUN
STOP
1987
65432
BYA
0-10 V
0/4-20 mA 4-20 mA
0/4-20 mA 0-10 V
10111213
1/0
1/0
1/0
6: GND (frame)
5: +10 V
4: Setpoint input
3: GND (frame)
2: Start/stop
Group 1
Group 3 Group 2
13: GND (frame)
12: Analog output
11: Digital input 4
10: Digital input 3
1: Digital input 2
9: GND (frame)
8: +24 V
7: Sensor input
B: RS-485B
Y: Screen
A: RS-485A

English (GB)
9
5.1.10 Connections basic Pump I/O module
As standard the CME pump types come with the basic Pump I/O
module. Optional the pump types can be acquired with the
Advanced I/O module see 5.1.9 Connections Advanced I/O
module.
As a precaution, the wires to be connected to the following
connection groups must be separated from each other by
reinforced insulation in their entire lengths:
Group 1: Inputs
• start/stop terminals 2 and 3
• digital input terminals 1 and 9
• setpoint input terminals 4, 5 and 6
• sensor input terminals 7 and 8
• GENIbus terminals B, Y and A
All inputs (group 1) are internally separated from the mains-
conducting parts by reinforced insulation and galvanically
separated from other circuits.
All control terminals are supplied with protective extra-low voltage
(PELV), thus ensuring protection against electric shock.
Group 2: Output (relay signal, terminals NC, C, NO)
The output (group 2) is galvanically separated from other circuits.
Therefore, the supply voltage or protective extra-low voltage can
be connected to the output as desired.
Group 3: Mains supply (terminals N, PE, L)
A galvanic separation must fulfil the requirements for reinforced
insulation including creepage distances and clearances specified
in EN 60335.
Fig. 5 Connection terminals Pump I/O module
5.2 Three-phase pumps, 11-22 kW
5.2.1 Preparation
Before connecting the E-pump to the mains, take the issues
illustrated in the figure below into consideration.
Fig. 6 Mains-connected pump with mains switch, backup
fuses, additional protection and protective earthing
5.2.2 Protection against electric shock - indirect contact
EN 61800-5-1 specifies that the pump must be stationary and
installed permanently when the leakage current is > 10 mA.
One of the following requirements must be fulfilled:
• A single protective earth conductor having a cross-sectional
area of min. 10 mm2copper.
Fig. 7 Connection of a single protective earth conductor
using one of the conductors of a 4-core mains cable
(with cross-sectional area of min. 10 mm2)
Note
If no external on/off switch is connected, connect
terminals 2 and 3 using a short wire.
TM03 8608 2007
1: Digital input
9: GND (frame)
8: +24 V
7: Sensor input
B: RS-485B
Y: Screen
A: RS-485A
6: GND (frame)
5: +10 V
4: Setpoint input
3: GND (frame)
2: Start/stop
Group 1
Group 2 Group 3
Warning
The user or the installer is responsible for the
installation of correct earthing and protection
according to current national and local standards. All
operations must be carried out by qualified
personnel.
Warning
Never make any connections in the pump terminal
box unless all electric supply circuits have been
switched off for at least 5 minutes.
Note for instance that the signal relay may be
connected to an external supply which is still
connected when the mains supply is disconnected.
Warning
The surface of the terminal box may be above 70 °C
when the pump is operating.
TM00 9270 4696
Warning
The pump must be earthed in accordance with
national regulations.
As the leakage current of 11-22 kW motors is
> 10 mA, take extra precautions when earthing these
motors.
TM04 3021 3508
L1
L2
L3
L2
L1
L3
PE
ELCB

English (GB)
10
• Two protective earth conductors of the same cross-sectional
area as the mains conductors, with one conductor connected
to an additional earth terminal in the terminal box.
Fig. 8 Connection of two protective earth conductors using
two of the conductors of a 5-core mains cable
Protective earth conductors must always have a yellow/green (PE)
or yellow/green/blue (PEN) colour marking.
5.2.3 Backup fuses
For recommended fuse sizes, see section 21.1 Supply voltage.
5.2.4 Additional protection
If the pump is connected to an electric installation where an earth
leakage circuit breaker (ELCB) is used as additional protection,
the circuit breaker must be of a type marked with the following
symbols:
This circuit breaker is type B.
The total leakage current of all the electrical equipment in the
installation must be taken into account.
The leakage current of the motor in normal operation can be seen
in section 21.3 Leakage current.
During start and at asymmetrical supply systems, the leakage
current can be higher than normal and may cause the ELCB to
trip.
5.2.5 Motor protection
The pump requires no external motor protection. The motor
incorporates thermal protection against slow overloading and
blocking (IEC 34-11, TP 211).
5.2.6 Protection against mains voltage transients
The pump is protected against mains voltage transients in
accordance with EN 61800-3 and is capable of withstanding a
VDE 0160 pulse.
The pump has a replaceable varistor which is part of the transient
protection.
Over time this varistor will be worn and need to be replaced.
When the time for replacement has come, R100 and PC Tool
E-products will indicate this as a warning. See section
19. Maintenance and service.
5.2.7 Supply voltage and mains
3 x 380-480 V - 10 %/+ 10 %, 50/60 Hz, PE.
The supply voltage and frequency are marked on the pump
nameplate. Make sure that the motor is suitable for the power
supply of the installation site.
The wires in the terminal box must be as short as possible.
Excepted from this is the protective earth conductor which must
be so long that it is the last one to be disconnected in case the
cable is inadvertently pulled out of the cable entry.
Fig. 9 Mains connection
Cable glands
Cable glands comply with EN 50626.
• 1 x M40 cable gland, cable diameter ∅16-∅28
• 1 x M20 cable gland, cable diameter ∅9-∅17
• 2 x M16 cable gland, cable diameter ∅4-∅10
• 2 x M16 knock-out cable entries.
Grid types
Three-phase E-pumps can be connected to all grid types.
5.2.8 Start/stop of pump
When the pump is switched on via the mains, it will start after
approximately 5 seconds.
If a higher number of starts and stops is desired, use the input for
external start/stop when starting/stopping the pump.
When the pump is switched on via an external on/off switch, it will
start immediately.
TM03 8606 2007
ELCB
TM03 8605 2007 - TM04 3048 3508
Warning
If the supply cable is damaged, it must be replaced
by qualified personnel.
Warning
Do not connect three-phase E-pumps to a mains
supply with a voltage between phase and earth of
more than 440 V.
Caution
The number of starts and stops via the mains voltage
must not exceed 4 times per hour.
Torques, terminals L1-L3:
Min. torque: 2.2 Nm
Max. torque: 2.8 Nm

English (GB)
11
5.2.9 Connections
As standard the pump types come with the Advanced I/O module.
Advanced I/O module
The Advanced I/O module is the standard functional module in all
MGE motors from 11 to 22 kW.
The module has a number of inputs and outputs enabling the
motor to be used in advanced applications where many inputs
and outputs are required.
The Advanced I/O module has these connections:
• start/stop terminals
• three digital inputs
• one setpoint input
• one sensor input (feedback sensor)
• one sensor 2 input
• one analog output
• two Pt100 inputs
• two signal relay outputs
• GENIbus connection.
As a precaution, the wires to be connected to the following
connection groups must be separated from each other by
reinforced insulation in their entire lengths:
Group 1: Inputs
• Start/stop (terminals 2 and 3)
• digital inputs (terminals 1 and 9, 10 and 9, 11 and 9)
• sensor input 2 (terminals 14 and 15)
• Pt100 sensor inputs (terminals 17, 18, 19 and 20)
• setpoint input (terminals 4, 5 and 6)
• sensor input (terminals 7 and 8)
• GENIbus (terminals B, Y and A).
All inputs are internally separated from the mains-conducting
parts by reinforced insulation and galvanically separated from
other circuits.
All control terminals are supplied with protective extra-low voltage
(PELV), thus ensuring protection against electric shock.
Group 2: Output (relay signal, terminals NC, C, NO)
The output is galvanically separated from other circuits.
Therefore, the supply voltage or protective extra-low voltage can
be connected to the output as desired.
• Analog output (terminal 12 and 13).
Group 3: Mains supply (terminals L1, L2, L3)
A galvanic separation must fulfil the requirements for reinforced
insulation including creepage distances and clearances specified
in EN 61800-5-1.
Fig. 10 Connection terminals Advanced I/O module
Note
If no external on/off switch is connected, connect
terminals 2 and 3 using a short wire.
TM05 7035 0313
Group 2 Group 3
Group 1
20: Pt100 B
19: Pt100 B
18: Pt100 A
17: Pt100 A
16: GND (frame)
15: 24 V
14: Sensor input 2
13: GND
12: Analog output
11: Digital input 4
10: Digital input 3
1: Digital input
9: GND (frame)
8: +24 V
7: Sensor input
B: RS-485B
Y: Screen
A: RS-485A
6: GND (frame)
5: +10 V
4: Setpoint input
3: GND (frame)
2: Start/stop

English (GB)
12

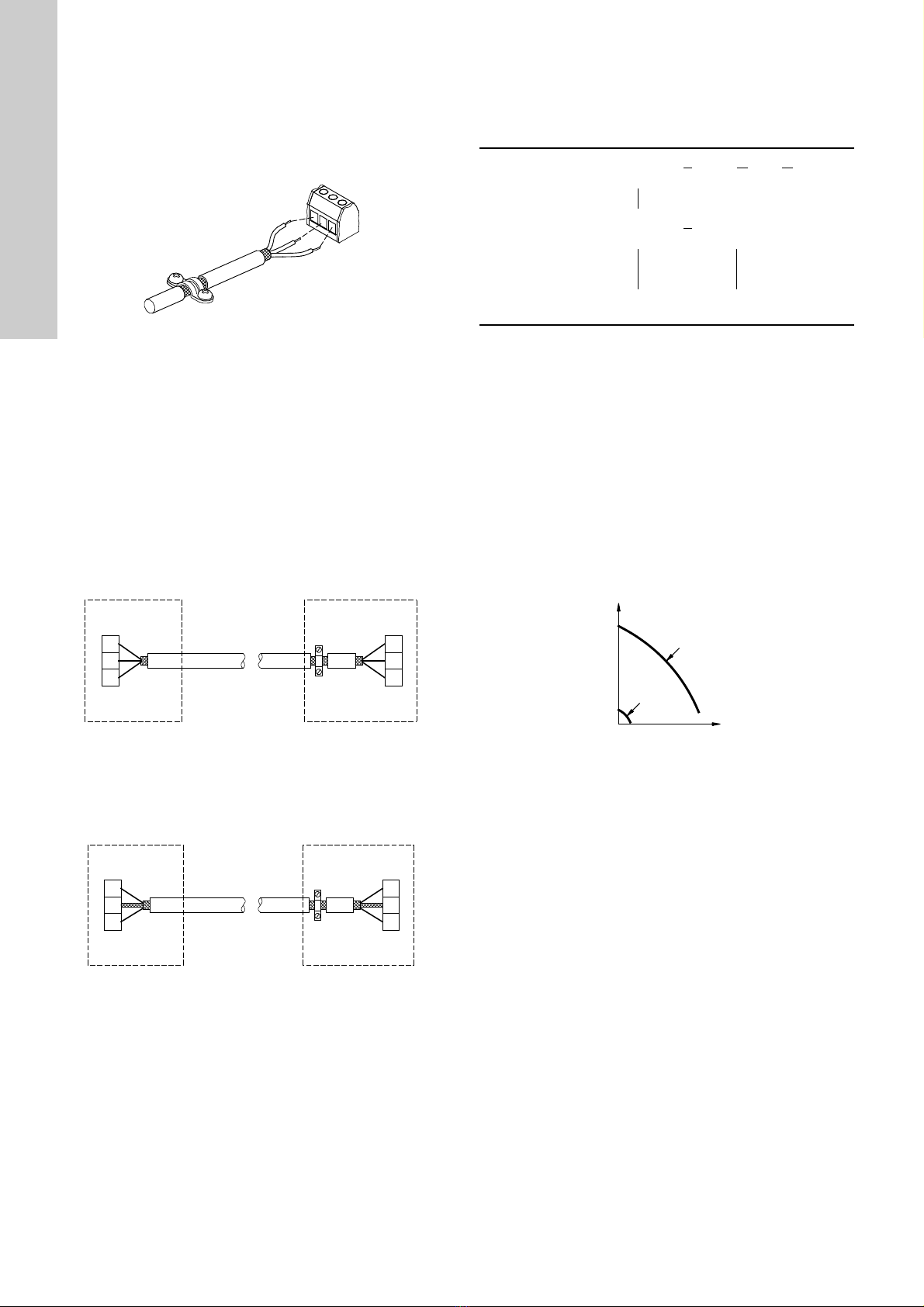

5.3 Signal cables
• Use screened cables with a conductor cross-section of min.
0.5 mm2and max. 1.5 mm2for external on/off switch, digital
input, setpoint and sensor signals.
• Connect the screens of the cables to frame at both ends with
good frame connection. The screens must be as close as
possible to the terminals. See fig. 11.
Fig. 11 Stripped cable with screen and wire connection
• Always tighten screws for frame connections whether a cable
is fitted or not.
• Make the wires in the pump terminal box as short as possible.
5.4 Bus connection cable
5.4.1 New installations
For the bus connection, use a screened 3-core cable with a
conductor cross-section of 0.2 mm2- 1.5 mm2.
• If the pump is connected to a unit with a cable clamp which is
identical to the one on the pump, connect the screen to this
cable clamp.
• If the unit has no cable clamp as shown in fig. 12, leave the
screen unconnected at this end.
Fig. 12 Connection with screened 3-core cable
5.4.2 Replacing an existing pump
• If a screened 2-core cable is used in the existing installation,
connect it as shown in fig. 13.
Fig. 13 Connection with screened 2-core cable
• If a screened 3-core cable is used in the existing installation,
follow the instructions in section 5.4.1 New installations.
6. Modes
Grundfos E-pumps are set and controlled according to operating
and control modes.
6.1 Overview of modes
1) For this control mode the pump is equipped with a pressure
sensor. The pump may also be equipped with a temperature
sensor in which case the description would be constant
temperature in control mode controlled.
6.2 Operating mode
When the operating mode is set to Normal,the control mode can
be set to controlled or uncontrolled. See section 6.3 Control
mode.
The other operating modes that can be selected are Stop, Min. or
Max.
• Stop: the pump has been stopped
• Min.: the pump is operating at its minimum speed
• Max.: the pump is operating at its maximum speed.
Figure 14 is a schematic illustration of min. and max. curves.
Fig. 14 Min. and max. curves
The max. curve can for instance be used in connection with the
venting procedure during installation.
The min. curve can be used in periods in which a minimum flow is
required.
If the power supply to the pump is disconnected, the mode setting
will be stored.
The remote control R100 offers additional possibilities of setting
and status displays. See section 9. Setting by means of R100.
TM02 1325 0901TM02 8841 0904TM02 8842 0904
A
Y
B
A
Y
B
12
3
1
2
3
Pump
A
Y
B
A
Y
B
1
2
1
2
Pump
Operating modes Normal Stop Min. Max.
Control modes Uncontrolled Controlled
Constant
curve
Constant
pressure1)
TM00 5547 0995
Q
H
Max.
Min.

English (GB)
13

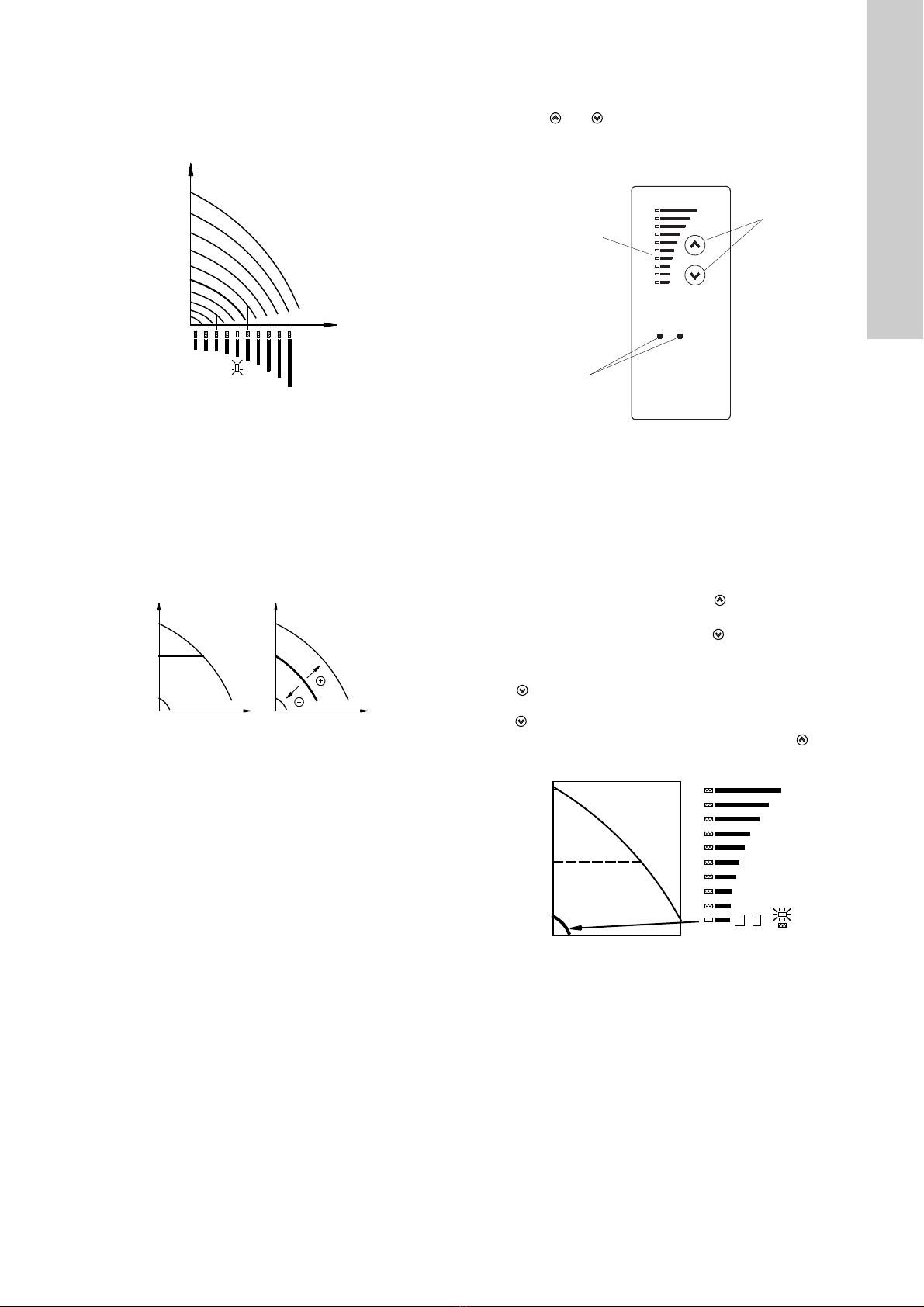

6.3 Control mode
6.3.1 Pumps without factory-fitted sensor
The pumps are factory-set to control mode uncontrolled.
In control mode uncontrolled, the pump will operate according to
the constant curve set, see fig. 15.
Fig. 15 Pump in control mode uncontrolled (constant curve)
6.3.2 Pumps with pressure sensor
The pump can be set to one of two control modes, i.e. controlled
and uncontrolled, fig. 16.
In control mode controlled, the pump will adjust its performance,
i.e. pump discharge pressure, to the desired setpoint for the
control parameter.
In control mode uncontrolled, the pump will operate according to
the constant curve set.
Fig. 16 Pump in control mode controlled (constant pressure)
or uncontrolled (constant curve)
7. Setting up the pump
7.1 Factory setting
Pumps without factory-fitted sensor
The pumps have been factory-set to control mode uncontrolled.
The setpoint value corresponds to 100 % of the maximum pump
performance (see data sheet for the pump).
Pumps with pressure sensor
The pumps have been factory-set to control mode controlled.
The setpoint value corresponds to 50 % of the sensor measuring
range (see sensor nameplate).
8. Setting by means of control panel
The pump control panel, see fig. 17, incorporates the following
buttons and indicator lights:
• Buttons, and , for setpoint setting.
• Light fields, yellow, for indication of setpoint.
• Indicator lights, green (operation) and red (fault).
Fig. 17 Control panel, three-phase pumps, 1.1 - 22 kW
8.1 Setting of operating mode
Settings available:
•Normal
•Stop
•Min.
•Max.
Start/stop of pump
Start the pump by continuously pressing until the desired
setpoint is indicated. This is operating mode Normal.
Stop the pump by continuously pressing until none of the light
fields are activated and the green indicator light flashes.
Setting to Min.
Press continuously to change to the min. curve of the pump
(bottom light field flashes). When the bottom light field is on,
press for 3 seconds until the light field starts flashing.
To return to uncontrolled or controlled operation, press
continuously until the desired setpoint is indicated.
Fig. 18 Min. curve duty
TM00 7746 1304TM00 7668 0404
H
Q
Q
H
set
H
Q
H
UncontrolledControlled
TM02 8513 0304TM00 7346 1304
Buttons
Indicator lights
Light fields
H
Q

English (GB)
14

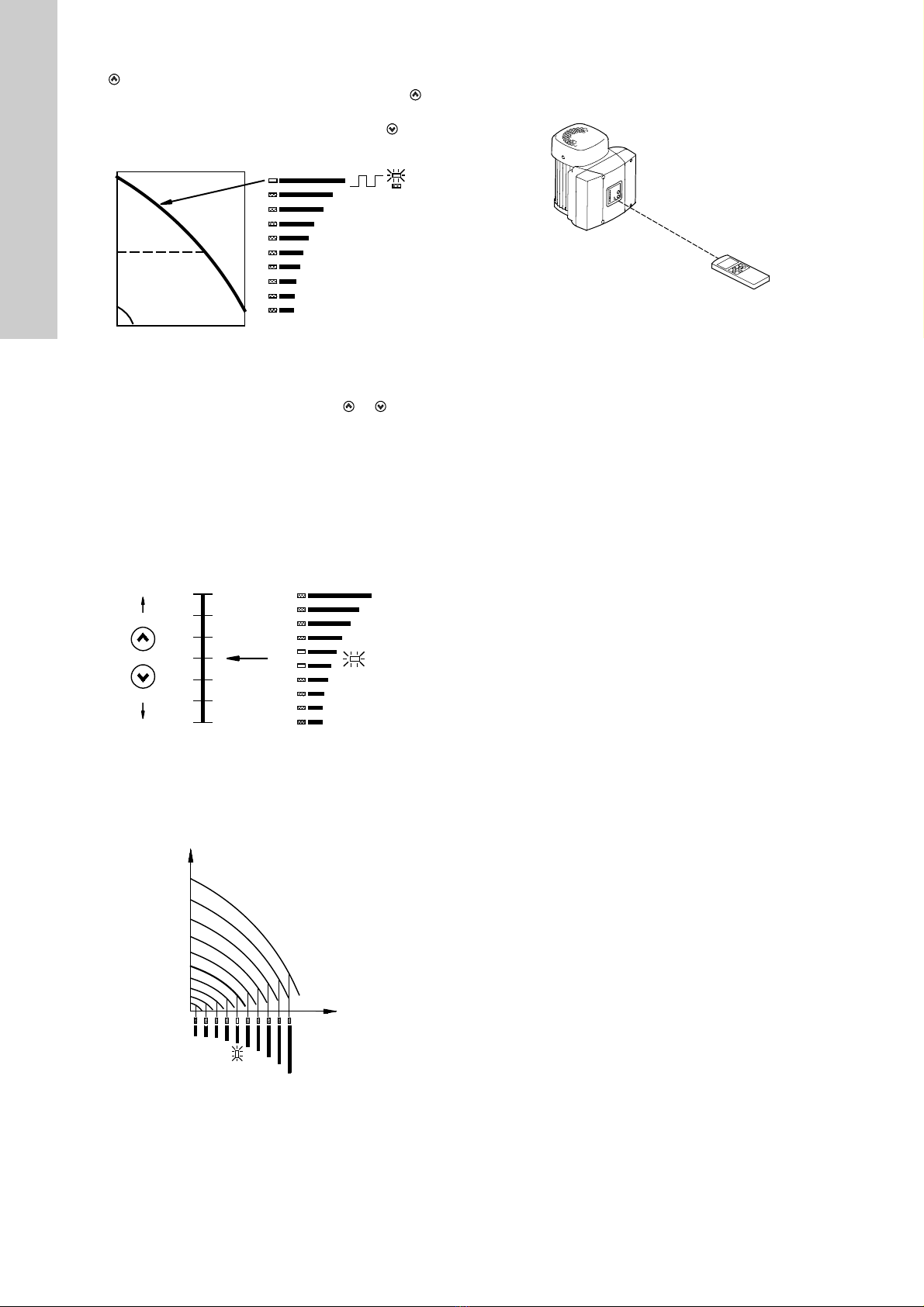

Setting to Max.
Press continuously to change to the max. curve of the pump
(top light field flashes). When the top light field is on, press for
3 seconds until the light field starts flashing.
To return to uncontrolled or controlled operation, press
continuously until the desired setpoint is indicated.
Fig. 19 Max. curve duty
8.2 Setpoint setting
Set the desired setpoint by pressing the button or .
The light fields on the control panel will indicate the setpoint set.
See examples in sections 8.2.1 Pump in control mode controlled
(pressure control) and 8.2.2 Pump in control mode uncontrolled.
8.2.1 Pump in control mode controlled (pressure control)
Example
Figure 20 shows that the light fields 5 and 6 are activated,
indicating a desired setpoint of 3 bar. The setting range is equal
to the sensor measuring range (see sensor nameplate).
Fig. 20 Setpoint set to 3 bar, pressure control
8.2.2 Pump in control mode uncontrolled
Example
In control mode uncontrolled, the pump performance is set within
the range from min. to max. curve. See fig. 21.
Fig. 21 Pump performance setting, control mode uncontrolled
9. Setting by means of R100
The pump is designed for wireless communication with the
Grundfos remote control R100.
Fig. 22 R100 communicating with the pump via infra-red light
During communication, the R100 must be pointed at the control
panel. When the R100 communicates with the pump, the red
indicator light will flash rapidly. Keep pointing the R100 at the
control panel until the red LED diode stops flashing.
The R100 offers setting and status displays for the pump.
The displays are divided into four parallel menus (see fig. 23):
0. GENERAL (see operating instructions for the R100)
1. OPERATION
2. STATUS
3. INSTALLATION
The figure above each individual display in fig. 23 refers to the
section in which the display is described.
TM00 7345 1304TM00 7743 0904TM00 7746 1304
H
Q
0
6
3
[bar]
H
Q
TM02 0936 0501

English (GB)
15

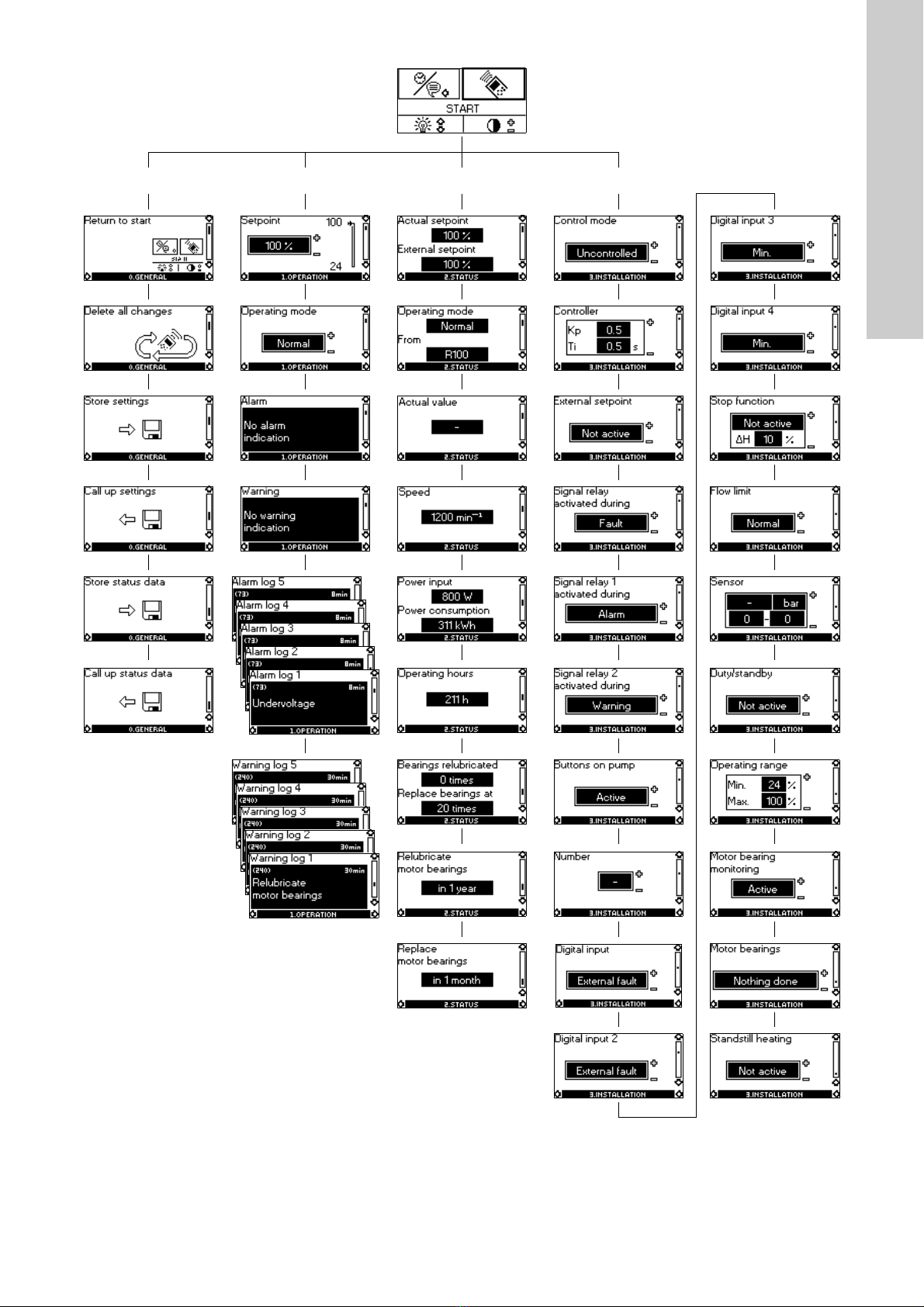

Fig. 23 Menu overview
0. GENERAL 1. OPERATION 2. STATUS 3. INSTALLATION
9.1.1 9.2.1 9.3.1 9.3.7 (4)
9.1.2 9.2.2 9.3.2 9.3.7 (4)
9.1.3 9.2.3 9.3.3 9.3.8
9.1.3 (1) 9.2.4 9.3.4 (3) 9.3.9 (1)
9.1.4 9.2.5 9.3.4 - 1 (2) 9.3.10
9.2.6 9.3.4 - 2 (2) 9.3.11 (1)
9.1.4 (1) 9.2.7 (2) 9.3.5 9.3.12
9.2.8 (2) 9.3.6 9.3.13 (1)
9.2.9 (1) 9.3.7 (4) 9.3.14 (1)
9.3.7 (4) 9.3.15 (1)
(1) This display only appears for three-phase pumps, 1.1 - 22 kW.
(2) This display only appears for three-phase pumps, 11-22 kW.
(3) This display only appears for three-phase pumps, 1.1 - 7.5 kW.
(4) This display only appears if an advanced I/O module is installed.

English (GB)
16
Displays in general
In the following explanation of the functions, one or two displays
are shown.
One display
Pumps without or with factory-fitted sensor have the same
function.
Two displays
Pumps without or with factory-fitted pressure sensor have
different functions and factory settings.
9.1 Menu OPERATION
The first display in this menu is this:
9.1.1 Setpoint
In control mode uncontrolled, the setpoint is set in % of the
maximum performance. The setting range will lie between the
min. and max. curves.
In control mode controlled, the setting range is equal to the
sensor measuring range.
If the pump is connected to an external setpoint signal, the value
in this display will be the maximum value of the external setpoint
signal. See section 13. External setpoint signal.
Setpoint and external signal
The setpoint cannot be set if the pump is controlled via external
signals (Stop, Min. curve or Max. curve). R100 will give this
warning: External control!
Check if the pump is stopped via terminals 2-3 (open circuit) or
set to min. or max. via terminals 1-3 (closed circuit).
See section 11. Priority of settings.
Setpoint and bus communication
The setpoint cannot be set either if the pump is controlled from an
external control system via bus communication. R100 will give
this warning: Bus control!
To override bus communication, disconnect the bus connection.
See section 11. Priority of settings.
9.1.2 Operating mode
Set one of the following operating modes:
• Normal (duty)
• Stop
•Min.
•Max.
The operating modes can be set without changing the setpoint
setting.
9.1.3 Fault indications
In E-pumps, faults may result in two types of indication: alarm or
warning.
An "alarm" fault will activate an alarm indication in R100 and
cause the pump to change operating mode, typically to stop.
However, for some faults resulting in alarm, the pump is set to
continue operating even if there is an alarm.
A "warning" fault will activate a warning indication in R100, but
the pump will not change operating or control mode.
Alarm

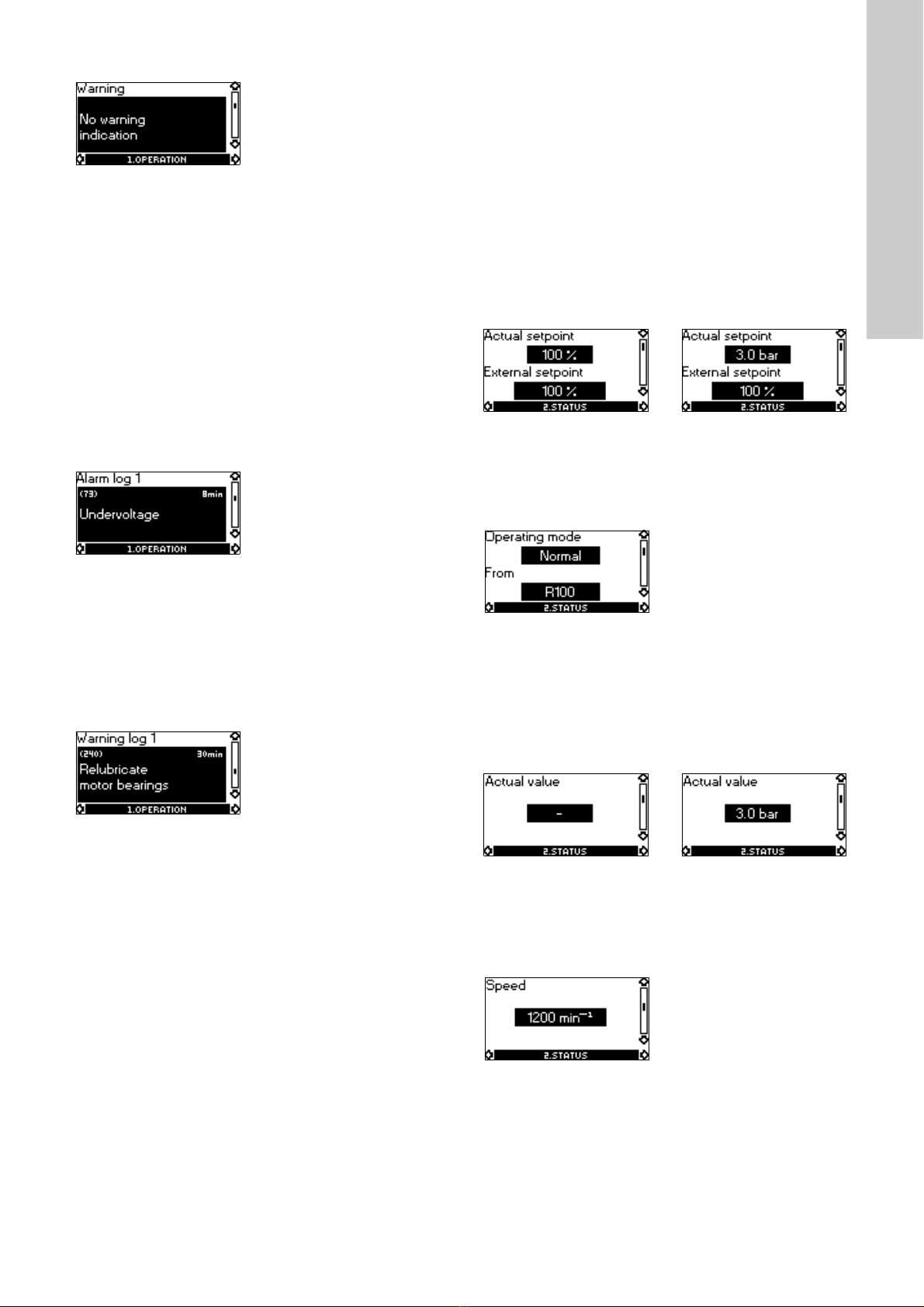

In case of alarm, the cause will appear in this display.
Possible causes:
• No alarm indication
• Too high motor temperature
• Undervoltage
• Mains voltage asymmetry (11-22 kW)
• Overvoltage
• Too many restarts (after faults)
• Overload
• Underload (only three-phase pumps)
• Sensor signal outside signal range
• Setpoint signal outside signal range
• External fault
• Duty/standby, Communication fault
• Dry running (only three-phase pumps)
• Other fault.
If the pump has been set up to manual restart, an alarm indication
can be reset in this display if the cause of the fault has
disappeared.
Without sensor
(uncontrolled)
With pressure sensor
(controlled)
Setpoint set
Actual setpoint
Actual value
Set the setpoint in %.
Setpoint set
Actual setpoint
Actual value
Set the desired pressure in
bar.
Note
The indication, Warning, only applies to three-phase
pumps.

English (GB)
17
Warning (only three-phase pumps)
In case of warning, the cause will appear in this display.
Possible causes:
• No warning indication
• Sensor signal outside signal range
• Relubricate motor bearings, see section 19.2 Relubrication of
motor bearings
• Replace motor bearings, see section 19.3 Replacement of
motor bearings
• Replace varistor, see section 19.4 Replacement of varistor
(only 11-22 kW).
A warning indication will disappear automatically once the fault
has been remedied.
9.1.4 Fault log
For both fault types, alarm and warning, the R100 has a log
function.
Alarm log
In case of "alarm" faults, the last five alarm indications will appear
in the alarm log. "Alarm log 1" shows the latest fault, "Alarm log 2"
shows the latest fault but one, etc.
The example above gives this information:
• the alarm indication Undervoltage
• the fault code (73)
• the number of minutes the pump has been connected to the
power supply after the fault occurred, 8 min.
Warning log (only three-phase pumps)
In case of "warning" faults, the last five warning indications will
appear in the warning log. "Warning log 1" shows the latest fault,
"Warning log 2" shows the latest fault but one, etc.
The example above gives this information:
• the warning indication Relubricate motor bearings
• the fault code (240)
• the number of minutes the pump has been connected to the
power supply since the fault occurred, 30 min.
9.2 Menu STATUS
The displays appearing in this menu are status displays only. It is
not possible to change or set values.
The displayed values are the values that applied when the last
communication between the pump and the R100 took place. If a
status value is to be updated, point the R100 at the control panel
and press "OK". If a parameter, e.g. speed, should be called up
continuously, press "OK" constantly during the period in which the
parameter in question should be monitored.
The tolerance of the displayed value is stated under each display.
The tolerances are stated as a guide in % of the maximum values
of the parameters.
9.2.1 Actual setpoint
This display shows the actual setpoint and the external setpoint in
% of the range from minimum value to the setpoint set.
See section 13. External setpoint signal.
9.2.2 Operating mode
This display shows the actual operating mode (Normal (duty),
Stop, Min., or Max.). Furthermore, it shows where this operating
mode was selected (R100, Pump, Bus, External or Stop func.).
For further details about the stop function (Stop func.), see
section 9.3.8 Stop function.
9.2.3 Actual value
This display shows the value actually measured by a connected
sensor.
If no sensor is connected to the pump, "-" will appear in the
display.
9.2.4 Speed
Tolerance: ± 5 %
The actual pump speed will appear in this display.
Without sensor
(uncontrolled)
With pressure sensor
(controlled)
Tolerance: ± 2 %. Tolerance: ± 2 %.
Without sensor
(uncontrolled)
With pressure sensor
(controlled)

English (GB)
18

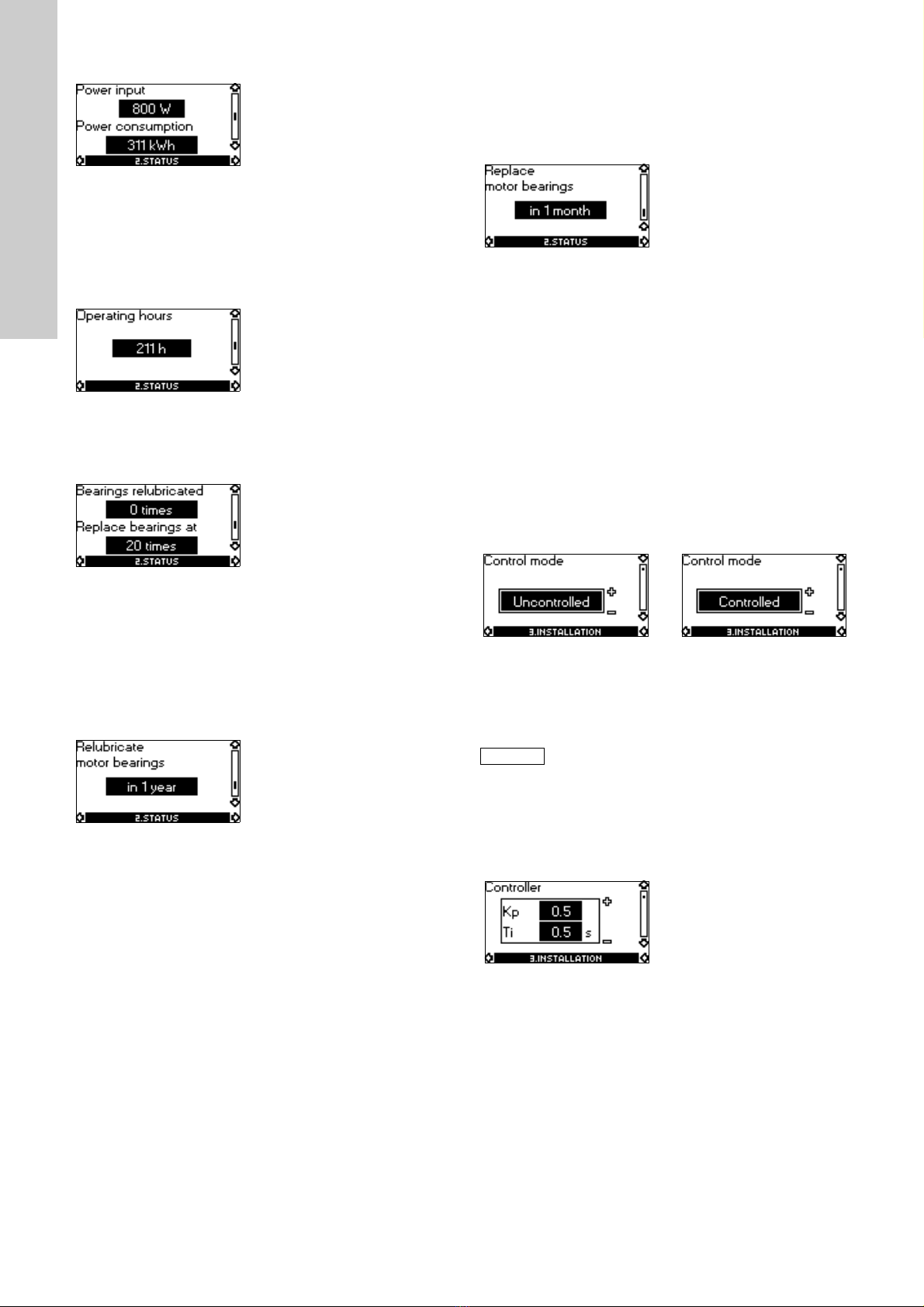

9.2.5 Power input and power consumption
Tolerance: ± 10 %
This display shows the actual pump input power from the mains
supply. The power is displayed in W or kW.
The pump power consumption can also be read from this display.
The value of power consumption is an accumulated value
calculated from the pump's birth and it cannot be reset.
9.2.6 Operating hours
Tolerance: ± 2 %
The value of operating hours is an accumulated value and cannot
be reset.
9.2.7 Lubrication status of motor bearings (only 11-22 kW)
This display shows how many times the motor bearings have
been relubricated and when to replace the motor bearings.
When the motor bearings have been relubricated, confirm this
action in the INSTALLATION menu.
See section 9.3.14 Confirming relubrication/replacement of motor
bearings (only three-phase pumps). When relubrication is
confirmed, the figure in the above display will be increased by
one.
9.2.8 Time till relubrication of motor bearings (only 11-22 kW)
This display shows when to relubricate the motor bearings.
The controller monitors the operating pattern of the pump and
calculates the period between bearing relubrications. If the
operating pattern changes, the calculated time till relubrication
may change as well.
The displayable values are these:
• in 2 years
• in 1 year
• in 6 months
• in 3 months
• in 1 month
• in 1 week
•Now!
9.2.9 Time till replacement of motor bearings
(only three-phase pumps)
When the motor bearings have been relubricated a prescribed
number of times stored in the controller, the display in section
9.2.8 Time till relubrication of motor bearings (only 11-22 kW) will
be replaced by the display below.
This display shows when to replace the motor bearings.
The controller monitors the operating pattern of the pump and
calculates the period between bearing replacements.
The displayable values are these:
• in 2 years
• in 1 year
• in 6 months
• in 3 months
• in 1 month
• in 1 week
•Now!
9.3 Menu INSTALLATION
9.3.1 Control mode
9.3.2 Controller
E-pumps have a factory default setting of gain (Kp) and integral
time (Ti). However, if the factory setting is not the optimum
setting, the gain and the integral time can be changed in the
display below.
•Thegain(K
p) can be set within the range from 0.1 to 20.
• The integral time (Ti) can be set within the range from 0.1 to
3600 s. If 3600 s is selected, the controller will function as a
P controller.
• Furthermore, it is possible to set the controller to inverse
control, meaning that if the setpoint is increased, the speed
will be reduced. In the case of inverse control, the gain (Kp)
must be set within the range from -0.1 to -20.
Without sensor
(uncontrolled)
With pressure sensor
(controlled)
Select one of the following
control modes (see fig. 16):
• Controlled
• Uncontrolled.
Select one of the following
control modes (see fig. 16):
• Controlled
• Uncontrolled.
Note
If the pump is connected to a bus, the control mode
cannot be selected via the R100. See section
14. Bus signal.

English (GB)
19

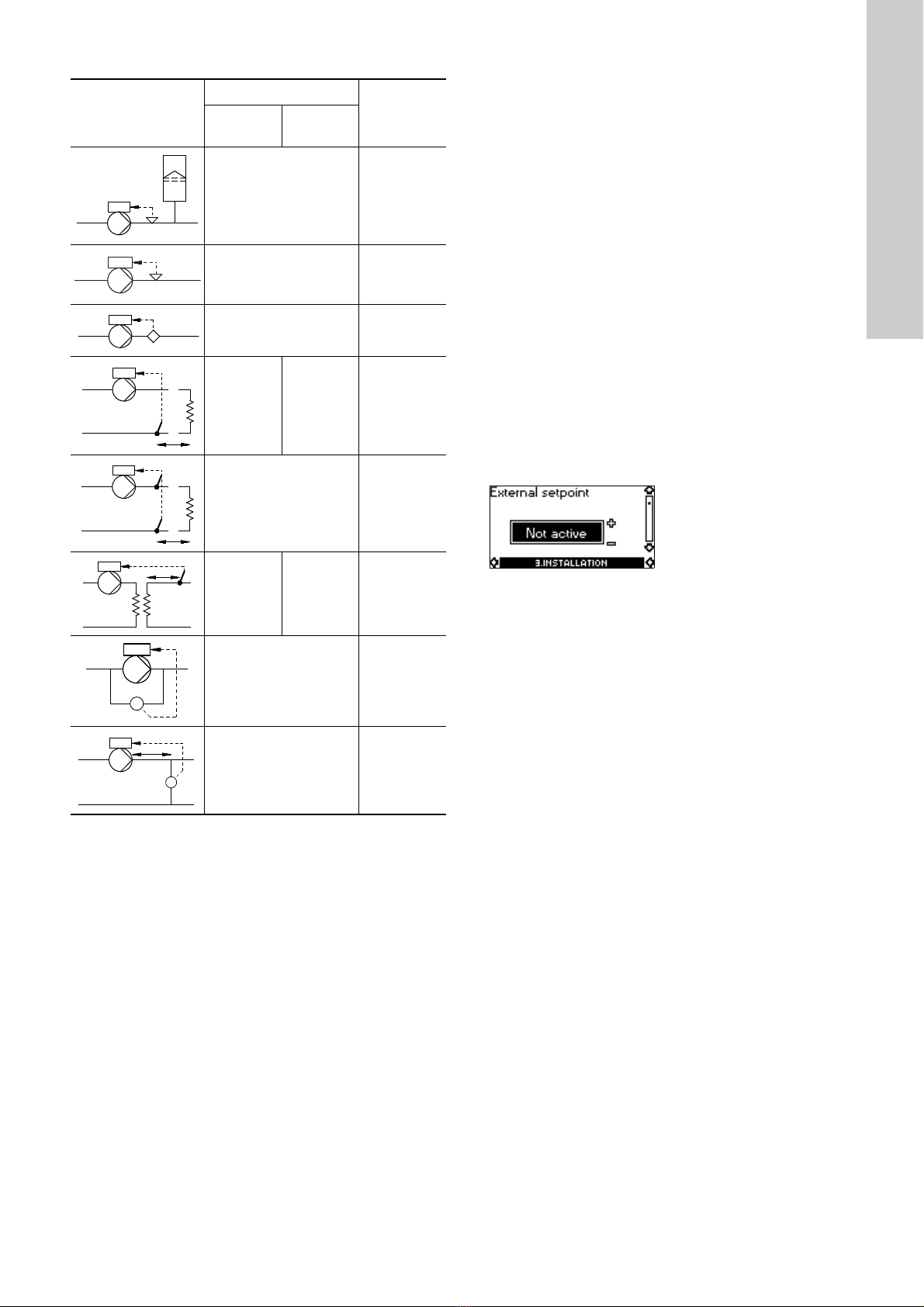

The table below shows the suggested controller settings:
1) Heating systems are systems in which an increase in pump
performance will result in a rise in temperature at the sensor.
2) Cooling systems are systems in which an increase in pump
performance will result in a drop in temperature at the sensor.
L1= Distance in [m] between pump and sensor.
L2= Distance in [m] between heat exchanger and sensor.
How to set the PI controller
For most applications, the factory setting of the controller
constants Kpand Tiwill ensure optimum pump operation.
However, in some applications an adjustment of the controller
may be needed.
Proceed as follows:
1. Increase the gain (Kp) until the motor becomes unstable.
Instability can be seen by observing if the measured value
starts to fluctuate. Furthermore, instability is audible as the
motor starts hunting up and down.
Some systems, such as temperature controls, are slow-
reacting, meaning that it may be several minutes before the
motor becomes unstable.
2. Set the gain (Kp) to half of the value which made the motor
unstable. This is the correct setting of the gain.
3. Reduce the integral time (Ti) until the motor becomes
unstable.
4. Set the integral time (Ti) to twice the value which made the
motor unstable. This is the correct setting of the integral time.
General rules of thumb:
• If the controller is too slow-reacting, increase Kp.
• If the controller is hunting or unstable, dampen the system by
reducing Kpor increasing Ti.
9.3.3 External setpoint
The input for external setpoint signal can be set to different signal
types.
Select one of the following types:
• 0-10 V
• 0-20 mA
• 4-20 mA
•Notactive.
If Not active is selected, the setpoint set by means of the R100 or
on the control panel will apply.
If one of the signal types is selected, the actual setpoint is
influenced by the signal connected to the external setpoint input.
See section 13. External setpoint signal.
System/application
Kp
Ti
Heating
system1) Cooling system2)
0.5 0.5
0.1 0.5
0.5 0.5
0.5 -0.5 10 + 5L2
0.5 10 + 5L2
0.5 -0.5 30 + 5L2
0.5 0.5
0.5
L1 < 5 m: 0.5
L1 > 5 m: 3
L1 > 10 m: 5
p
p
Q
t
L2[m]
Δt
L2[m]
t
L2[m]
Δp
Δp
L1[m]

English (GB)
20
9.3.4 Signal relay
Pumps of 0.37 - 7.5 kW have one signal relay. The factory setting
of the relay will be Fault.
Pumps of 11-22 kW have two signal relays. Signal relay 1 is
factory set to Alarm and signal relay 2 to Warning.
In one of the displays below, select in which one of three or six
operating situations the signal relay should be activated.
For further information, see section 16. Indicator lights and signal
relay.
9.3.5 Buttons on pump
The operating buttons and on the control panel can be set
to these values:
•Active
• Not active.
When set to Not active (locked), the buttons do not function.
Set the buttons to Not active if the pump should be controlled via
an external control system.
9.3.6 Pump number
A number between 1 and 64 can be allocated to the pump. In the
case of bus communication, a number must be allocated to each
pump.
9.3.7 Digital inputs
The digital inputs of the pump (terminal 1, fig. 5, 4or 10) can be
set to different functions.
Select one of the following functions:
• Min. (min. curve)
• Max. (max. curve)
• External fault
• Flow switch
• Dry running (from external sensor) (only three-phase pumps).
The selected function is activated by closing the contact between
terminals 1 and 9, 1 and 10 or 1 and 11. See figures 5, 4and 10.
See also section 12.2 Digital input.
Min.:
When the input is activated, the pump will operate according to
the min. curve.
Max.:
When the input is activated, the pump will operate according to
the max. curve.
External fault:
When the input is activated, a timer will be started. If the input is
activated for more than 5 seconds, the pump will be stopped and
a fault will be indicated. If the input is deactivated for more than
5 seconds, the fault condition will cease and the pump can only
be restarted manually by resetting the fault indication.
Flow switch:
When this function is selected, the pump will be stopped when a
connected flow switch detects low flow.
It is only possible to use this function if the pump is connected to
a pressure sensor.
If the input is activated for more than 5 seconds, the stop function
incorporated in the pump will take over. See section 9.3.8 Stop
function.
Dry running (only three-phase pumps):
When this function is selected, lack of inlet pressure or water
shortage can be detected. This requires the use of an accessory,
such as these:
• a Grundfos Liqtec®dry-running sensor
• a pressure switch installed on the suction side of a pump
• a float switch installed on the suction side of a pump.
When lack of inlet pressure or water shortage (Dry running) is
detected, the pump will be stopped. The pump cannot restart as
long as the input is activated.
0.37 - 7.5 kW
• Ready
•Fault
• Operation
• Pump running (only three-phase pumps, 0.55 - 7.5 kW)
• Warning (only three-phase pumps, 0.55 - 7.5 kW).
11-22 kW 11-22 kW
• Ready
•Alarm
• Operation
• Pump running
• Warning
• Relubricate.
• Ready
•Alarm
• Operation
• Pump running
• Warning
• Relubricate.
Note
Fault and Alarm cover faults resulting in Alarm.
Warning covers faults resulting in Warning.
Relubricate covers only that one individual event. For
distinction between alarm and warning, see section
9.1.3 Fault indications.
