Grundfos DDI 209 User manual

GRUNDFOS INSTRUCTIONS
DDI 209
Dosing pump
Installation and operating instructions

Declaration of conformity
2
Declaration of conformity
GB Declaration of Conformity
We, Grundfos, declare under our sole responsibility
that the products DDI 209, to which this declaration
relates, are in conformity with these Council
directives on the approximation of the laws of the
EC member states:
– Machinery Directive (2006/42/EC).
Standards used: EN 809: 1998, EN ISO 12100-
1+A1: 2009, EN ISO 12100-2+A1: 2009
– Low Voltage Directive (2006/95/EC).*)
Standard used: EN 60204-1+A1: 2009
– EMC Directive (2004/108/EC).
Standards used: EN 61000-6-2: 2005, EN
61000-6-4: 2007
*) This applies only to products with supply voltage
> 50 V AC
or > 75 V DC.
BG Декларация за съответствие
Ние, фирма Grundfos, заявяваме спълна
отговорност, че продуктите DDI 209, за които се
отнася настоящата декларация, отговарят на
следните указания на Съвета за уеднаквяване
на правните разпоредби на държавите членки на
ЕС:
–Директива за машините (2006/42/EC).
Приложен стандарт: EN 809: 1998, EN ISO
12100-1+A1: 2009 иEN ISO 12100-2+A1: 2009.
–Директива за нисковолтови системи (2006/95/
EC).*)
Приложени стандарти: EN 60204-1+A1: 2009.
–Директива за електромагнитна съвместимост
(2004/108/EC).
Приложени стандарти: EN 61000-6-2: 2005 и
EN 61000-6-4: 2007.
*) Това еприложимо само за продукти със
захранващо напрежение > 50 V AC или > 75 V
DC.
CZ Prohlášení o shodě
My firma Grundfos prohlašujeme na svou plnou
odpovědnost, že výrobky DDI 209, na něž se toto
prohlášení vztahuje, jsou v souladu s ustanoveními
směrnice Rady pro sblížení právních předpisů
členských státůEvropského společenství v
oblastech:
–Směrnice pro strojní zařízení (2006/42/ES).
Použitá norma: EN 809: 1998, EN ISO 12100-
1+A1: 2009 a EN ISO 12100-2+A1: 2009.
–Směrnice pro nízkonapět’ové aplikace (2006/95/
ES).*)
Použité normy: EN 60204-1+A1: 2009.
–Směrnice pro elektromagnetickou kompatibilitu
(EMC) (2004/108/ES).
Použité normy: EN 61000-6-2: 2005 a EN 61000-
6-4: 2007.
*) Používá se pouze u výrobkůs napájecím
napětím > 50 V AC nebo > 75 V DC.
DK Overensstemmelseserklæring
Vi, Grundfos, erklærer under ansvar at produkterne
DDI 209 som denne erklæring omhandler, er i
overensstemmelse med disse af Rådets direktiver
om indbyrdes tilnærmelse til EF-medlemsstaternes
lovgivning:
– Maskindirektivet (2006/42/EF).
Anvendt standard: EN 809: 1998, EN ISO 12100-
1+A1: 2009 og EN ISO 12100-2+A1: 2009.
– Lavspændingsdirektivet (2006/95/EF).*)
Anvendte standarder: EN 60204-1+A1: 2009.
– EMC-direktivet (2004/108/EF).
Anvendte standarder: EN 61000-6-2: 2005 og
EN 61000-6-4: 2007.
*) Dette gælder kun for produkter med
forsyningsspænding
> 50 V AC eller > 75 V DC.
DE Konformitätserklärung
Wir, Grundfos, erklären in alleiniger Verantwortung,
dass die Produkte DDI 209, auf die sich diese
Erklärung bezieht, mit den folgenden Richtlinien
des Rates zur Angleichung der Rechtsvorschriften
der EU-Mitgliedsstaaten übereinstimmen:
– Maschinenrichtlinie (2006/42/EG).
Norm, die verwendet wurde: EN 809: 1998,
EN ISO 12100-1+A1: 2009 und EN ISO 12100-
2+A1: 2009.
– Niederspannungsrichtlinie (2006/95/EG).*)
Normen, die verwendet wurden: EN 60204-
1+A1: 2009.
– EMV-Richtlinie (2004/108/EG).
Normen, die verwendet wurden: EN 61000-6-2:
2005 und EN 61000-6-4: 2007.
*) Dies gilt nur für Produkte mit einer
Versorgungsspannung
> 50 V AC oder > 75 V DC.
EE Vastavusdeklaratsioon
Meie, Grundfos, deklareerime enda ainuvastutusel,
et tooted
DDI 209, mille kohta käesolev juhend käib, on
vastavuses EÜ Nõukogu direktiividega EMÜ
liikmesriikide seaduste ühitamise kohta, mis
käsitlevad:
– Masinate ohutus (2006/42/EC).
Kasutatud standard: EN 809: 1998, EN ISO
12100-1+A1: 2009 ja EN ISO 12100-2+A1: 2009.
– Madalpinge direktiiv (2006/95/EC).*)
Kasutatud standardid: EN 60204-1+A1: 2009.
– Elektromagnetiline ühilduvus (EMC direktiiv)
(2004/108/EC).
Kasutatud standardid: EN 61000-6-2: 2005 ja
EN 61000-6-4: 2007.
*) See kehtib ainult toodetele toitepingega > 50 V
AC või
> 75 V DC.

Declaration of conformity
3
GR ∆ήλωση Συμμόρφωσης
Εμείς, ηGrundfos, δηλώνουμε με αποκλειστικά δική
μας ευθύνη ότι τα προϊόντα DDI 209 στα οποία
αναφέρεται ηπαρούσα δήλωση, συμμορφώνονται
με τις εξής Οδηγίες του Συμβουλίου περί
προσέγγισης των νομοθεσιών των κρατών μελών
της ΕΕ:
–Οδηγία για μηχανήματα (2006/42/EC).
Πρότυπο που χρησιμοποιήθηκε: EN 809: 1998,
EN ISO 12100-1+A1: 2009 και EN ISO 12100-
2+A1: 2009.
–Οδηγία χαμηλής τάσης (2006/95/EC)*).
Πρότυπα που χρησιμοποιήθηκαν: EN 60204-
1+A1: 2009.
–Οδηγία Ηλεκτρομαγνητικής Συμβατότητας
(EMC) (2004/108/EC).
Πρότυπα που χρησιμοποιήθηκαν: EN 61000-6-
2: 2005 και
EN 61000-6-4: 2007.
*) Ισχύει μόνο για προϊόντα με τάση τροφοδοσίας >
50 V AC ή
> 75 V DC.
ES Declaración de Conformidad
Meie, Grundfos, deklareerime enda ainuvastutusel,
et tooted
DDI 209, mille kohta käesolev juhend käib, on
vastavuses EÜ Nõukogu direktiividega EMÜ
liikmesriikide seaduste ühitamise kohta, mis
käsitlevad:
– Masinate ohutus (2006/42/EC).
Kasutatud standard: EN 809: 1998, EN ISO
12100-1+A1: 2009 ja EN ISO 12100-2+A1: 2009.
– Madalpinge direktiiv (2006/95/EC).*)
Kasutatud standardid: EN 60204-1+A1: 2009.
– Elektromagnetiline ühilduvus (EMC direktiiv)
(2004/108/EC).
Kasutatud standardid: EN 61000-6-2: 2005 ja
EN 61000-6-4: 2007.
*) See kehtib ainult toodetele toitepingega > 50 V
AC või
> 75 V DC.
FR Déclaration de Conformité
Nous, Grundfos, déclarons sous notre seule
responsabilité, que les produits DDI 209, auxquels
se réfère cette déclaration, sont conformes aux
Directives du Conseil concernant le rapprochement
des législations des Etats membres CE relatives
aux normes énoncées ci-dessous :
– Directive Machines (2006/42/CE).
Norme utilisée : EN 809 : 1998, EN ISO 12100-
1+A1 : 2009 et EN ISO 12100-2+A1 : 2009.
– Directive Basse Tension (2006/95/CE).*)
Normes utilisées : EN 60204-1+A1 : 2009.
– Directive Compatibilité Electromagnétique CEM
(2004/108/CE).
Normes utilisées : EN 61000-6-2 : 2005 et EN
61000-6-4 : 2007.
*) Cela s'applique uniquement aux produits dont la
tension d'alimentation est > à 50 V AC ou > à 75
V DC.
HR Izjava o usklađenosti
Mi, Grundfos, izjavljujemo pod vlastitom
odgovornošću da je proizvod DDI 209, na koji se
ova izjava odnosi, u skladu s direktivama ovog
Vijeća o usklađivanju zakona država članica EU:
– Direktiva za strojeve (2006/42/EZ).
Korištena norma: EN 809: 1998, EN ISO 12100-
1+A1: 2009 i EN ISO 12100-2+A1: 2009.
– Direktiva za niski napon (2006/95/EZ).*)
Korištene norme: EN 60204-1+A1: 2009.
– Direktiva za elektromagnetsku kompatibilnost
(2004/108/EZ).
Korištene norme: EN 61000-6-2: 2005 i EN
61000-6-4: 2007.
*) Ovo se odnosi samo na proizvode s opskrbnim
naponom
> 50 V AC ili > 75 V DC.
IT Dichiarazione di Conformità
Grundfos dichiara sotto la sua esclusiva
responsabilità che i prodotti DDI 209, ai quali si
riferisce questa dichiarazione, sono conformi alle
seguenti direttive del Consiglio riguardanti il
riavvicinamento delle legislazioni degli Stati membri
CE:
– Direttiva Macchine (2006/42/CE).
Norma applicata: EN 809: 1998, EN ISO 12100-
1+A1: 2009 e EN ISO 12100-2+A1: 2009.
– Direttiva Bassa Tensione (2006/95/CE).*)
Norme applicate: EN 60204-1+A1: 2009.
– Direttiva EMC (2004/108/CE).
Norme applicate: EN 61000-6-2: 2005 e EN
61000-6-4: 2007.
*) Questo è applicabile solo a prodotti con tensione
di alimentazione
> 50 VAC o > 75 VDC.
HU Megfelelőségi nyilatkozat
Mi, a Grundfos, egyedüli felelősséggel kijelentjük,
hogy a DDI 209 termékek, amelyekre jelen
nyilatkozik vonatkozik, megfelelnek az Európai
Unió tagállamainak jogi irányelveit összehangoló
tanács alábbi előírásainak:
– Gépek (2006/42/EK).
Alkalmazott szabvány: EN 809: 1998EN 809:
1998, EN ISO 12100-1+A1: 2009 és EN ISO
12100-2+A1: 2009.
– KisfeszültségűDirektíva (2006/95/EK).*)
Alkalmazott szabványok: EN 60204-1+A1: 2009.
– EMC Direktíva (2004/108/EK).
Alkalmazott szabványok: EN 61000-6-2: 2005 és
EN 61000-6-4: 2007.
*) Ez csak a > 50 V AC vagy > 75 V DC
tápfeszültségűtermékekre vonatkozik.

Declaration of conformity
4
NL Overeenkomstigheidsverklaring
Wij, Grundfos, verklaren geheel onder eigen
verantwoordelijkheid dat de producten DDI 209
waarop deze verklaring betrekking heeft, in
overeenstemming zijn met de Richtlijnen van de
Raad in zake de onderlinge aanpassing van de
wetgeving van de EG Lidstaten betreffende:
– Machine Richtlijn (2006/42/EC).
Gebruikte norm: EN 809: 1998, EN ISO 12100-
1+A1: 2009 en EN ISO 12100-2+A1: 2009.
– Laagspannings Richtlijn (2006/95/EC).*)
Gebruikte normen: EN 60204-1+A1: 2009.
– EMC Richtlijn (2004/108/EC).
Gebruikte normen: EN 61000-6-2: 2005 en EN
61000-6-4: 2007.
*) Dit is alleen van toepassing voor producten met
voedingsspanning 50 V AC of > 75 V DC.
PL Deklaracja zgodności
My, Grundfos, oświadczamy z pełną
odpowiedzialnością, że nasze wyroby DDI 209,
których deklaracja niniejsza dotyczy, sązgodne z
następującymi wytycznymi Rady d/s ujednolicenia
przepisów prawnych krajów członkowskich WE:
– Dyrektywa Maszynowa (2006/42/WE).
Zastosowana norma: EN 809: 1998, EN ISO
12100-1+A1: 2009 oraz EN ISO 12100-2+A1:
2009.
– Dyrektywa Niskonapięciowa (LVD) (2006/95/
WE).*)
Zastosowane normy: EN 60204-1+A1: 2009.
– Dyrektywa EMC (2004/108/WE).
Zastosowane normy: EN 61000-6-2: 2005 oraz
EN 61000-6-4: 2007.
*) Dotyczy to tylko produktów o napięciu zasilania
> 50 AC lub
> 75 V DC.
PT Declaração de Conformidade
A Grundfos declara sob sua única responsabilidade
que os produtos DDI 209, aos quais diz respeito
esta declaração, estão em conformidade com as
seguintes Directivas do Conselho sobre a
aproximação das legislações dos Estados
Membros da CE:
– Directiva Máquinas (2006/42/CE).
Norma utilizada: EN 809: 1998, EN ISO 12100-
1+A1: 2009 e EN ISO 12100-2+A1: 2009.
– Directiva Baixa Tensão (2006/95/CE).*)
Normas utilizadas: EN 60204-1+A1: 2009.
– Directiva EMC (compatibilidade
electromagnética) (2004/108/CE).
Normas utilizadas: EN 61000-6-2: 2005 e EN
61000-6-4: 2007.
*) Isto aplica-se apenas a produtos com tensão de
alimentação
> 50 V AC ou > 75 V DC.
RU Декларация осоответствии
Мы, компания Grundfos, со всей
ответственностью заявляем, что изделия DDI
209, ккоторым относится настоящая
декларация, соответствуют следующим
Директивам Совета Евросоюза об унификации
законодательных предписаний стран-членов
ЕС:
–Механические устройства (2006/42/ЕС).
Применявшийся стандарт: EN 809: 1998,
EN ISO 12100-1+A1: 2009 иEN ISO 12100-
2+A1: 2009.
–Низковольтное оборудование (2006/95/EC).*)
Применявшиеся стандарты: EN 60204-1+A1:
2009.
–Электромагнитная совместимость (2004/108/
EC).
Применявшиеся стандарты: EN 61000-6-2:
2005 иEN 61000-6-4: 2007.
*) Относится только кпродуктам ссетевым
напряжением > 50 Впеременного тока или >
75 Впостоянного тока.
RO Declaraţie de Conformitate
Noi, Grundfos, declarăm pe propria răspundere că
produsele
DDI 209, la care se referăaceastădeclaraţie, sunt
în conformitate cu aceste Directive de Consiliu
asupra armonizării legilor Statelor Membre CE:
– Directiva Utilaje (2006/42/CE).
Standard utilizat: EN 809: 1998, EN ISO 12100-
1+A1: 2009 şi EN ISO 12100-2+A1: 2009.
– Directiva Tensiune Joasă(2006/95/CE).*)
Standarde utilizate: EN 60204-1+A1: 2009.
– Directiva EMC (2004/108/CE).
Standarde utilizate: EN 61000-6-2: 2005 şi
EN 61000-6-4: 2007.
*) Se aplicănumai produselor cu tensiunea de
alimentare
> 50 V AC ori > 75 V DC.
SK Prehlásenie o konformite
My firma Grundfos prehlasujeme na svoju plnú
zodpovednost’, že výrobky DDI 209, na ktoré sa toto
prehlásenie vzt’ahuje, sú v súlade s ustanovením
smernice Rady pre zblíženie právnych predpisov
členských štátov Európskeho spoločenstva v
oblastiach:
– Smernica pre strojové zariadenie (2006/42/EC).
Použitá norma: EN 809: 1998, EN ISO 12100-
1+A1: 2009 a EN ISO 12100-2+A1: 2009.
– Smernica pre nízkonapät’ové aplikácie (2006/95/
EC).*)
Použité normy: EN 60204-1+A1: 2009.
– Smernica pre elektromagnetickú kompatibilitu
(2004/108/EC).
Použité normy: EN 61000-6-2: 2005 a EN 61000-
6-4: 2007.
*) To sa vzťahuje len na výrobky s napájacím
napätím > 50 V AC alebo > 75 V DC.

Declaration of conformity
5
SI Izjava o skladnosti
V Grundfosu s polno odgovornostjo izjavljamo, da
so naši izdelki DDI 209, na katere se ta izjava
nanaša, v skladu z naslednjimi direktivami Sveta o
približevanju zakonodaje za izenačevanje pravnih
predpisov držav članic ES:
– Direktiva o strojih (2006/42/ES).
Uporabljena norma: EN 809: 1998, EN ISO
12100-1+A1: 2009 in EN ISO 12100-2+A1: 2009.
– Direktiva o nizki napetosti (2006/95/ES).*)
Uporabljeni normi: EN 60204-1+A1: 2009.
– Direktiva o elektromagnetni združljivosti (EMC)
(2004/108/ES).
Uporabljeni normi: EN 61000-6-2: 2005 in EN
61000-6-4: 2007.
*) To velja samo za proizvode z napajalno
napetostjo > 50 V AC ali
> 75 V DC.
FI Vaatimustenmukaisuusvakuutus
Me, Grundfos, vakuutamme omalla vastuullamme,
että tuotteet DDI 209, joita tämä vakuutus koskee,
ovat EY:n jäsenvaltioiden lainsäädännön
yhdenmukaistamiseen tähtäävien Euroopan
neuvoston direktiivien vaatimusten mukaisia
seuraavasti:
– Konedirektiivi (2006/42/EY).
Sovellettu standardi: EN 809: 1998, EN ISO
12100-1+A1: 2009 ja EN ISO 12100-2+A1: 2009.
– Pienjännitedirektiivi (2006/95/EY).*)
Sovellettavat standardit: EN 60204-1+A1: 2009.
– EMC-direktiivi (2004/108/EY).
Sovellettavat standardit: EN 61000-6-2: 2005 ja
EN 61000-6-4: 2007.
*) Koskee vain tuotteita, joiden käyttöjännite on >
50 V AC tai
> 75 V DC.
SE Försäkran om överensstämmelse
Vi, Grundfos, försäkrar under ansvar att
produkterna DDI 209, som omfattas av denna
försäkran, är i överensstämmelse med rådets
direktiv om inbördes närmande till
EU-medlemsstaternas lagstiftning, avseende:
– Maskindirektivet (2006/42/EG).
Tillämpad standard: EN 809: 1998, EN ISO
12100-1+A1: 2009 och EN ISO 12100-2+A1:
2009.
– Lågspänningsdirektivet (2006/95/EG).*)
Tillämpade standarder: EN 60204-1+A1: 2009.
– EMC-direktivet (2004/108/EG).
Tillämpade standarder: EN 61000-6-2: 2005 och
EN 61000-6-4: 2007.
*) Detta gäller bara för produkter med
försörjningsspänning
> 50 V AC eller > 75 V DC.
TR Uygunluk Bildirgesi
Grundfos olarak bu beyannameye konu olan DDI
209 ürünlerinin,
AB Üyesi Ülkelerin kanunlarınıbirbirine yaklaştırma
üzerine Konsey Direktifleriyle uyumlu olduğunun
yalnızca bizim sorumluluğumuz altında olduğunu
beyan ederiz:
– Makineler Yönetmeliği (2006/42/EC).
Kullanılan standart: EN 809: 1998, EN ISO
12100-1+A1: 2009 ve EN ISO 12100-2+A1:
2009.
–Düşük Voltaj Yönetmeliği (2006/95/EC).*)
Kullanılan standartlar: EN 60204-1+A1: 2009.
– EMC Diretifi (2004/108/EC).
Kullanılan standartlar: EN 61000-6-2: 2005 ve
EN 61000-6-4: 2007.
*) Bu sadece > 50 V AC ve > 75 V DC ürünler için
geçerlidir.
CN 产品合格声明书
我们格兰富在我们的全权责任下声明，产品 DDI
209，即该合格证所指之产品，符合欧共体使其成员
国法律趋于一致的以下欧共理事会指令：
– 机械设备指令 (2006/42/EC)。
所用标准 : EN 809: 1998, EN ISO 12100-1+A1:
2009 和EN ISO 12100-2+A1: 2009。
– 低电压指令 (2006/95/EC)。 *)
所用标准 : EN 60204-1+A1: 2009。
– 电磁兼容性指令 (2004/108/EC)。
所用标准: EN 61000-6-2: 2005 和EN 61000-6-4:
2007。
*) 仅适用于工作电压 > 50 VAC 或 > 75 VDC 的产
品。
Pfinztal, 1st November 2010
Ulrich Stemick
Technical Director
Grundfos Water Treatment GmbH
Reetzstr. 85, D-76327 Pfinztal, Germany
Person authorised to compile technical file and
empowered to sign the EC declaration of
conformity.

English (GB)
6
English (GB) Installation and operating instructions
Original installation and operating instructions.
CONTENTS
Page
1. General information
1.1 Introduction
These installation and operating instructions contain
all the information required for starting up and
handling the DDI 209 diaphragm dosing pump.
If you require further information or if any problems
arise, which are not described in detail in this
manual, please contact the nearest Grundfos
company.
1.2 Service documentation
If you have any questions, please contact the
nearest Grundfos company or service workshop.
1. General information 6
1.1 Introduction 6
1.2 Service documentation 6
1.3 Information about the product 7
1.4 Applications 12
1.5 Warranty 12
2. Safety 12
2.1 Identification of safety instructions in this
manual 12
2.2 Marking at the pump 12
2.3 Qualification and training of personnel 13
2.4 Risks when safety instructions are not
observed 13
2.5 Safety-conscious working 13
2.6 Safety instructions for the operator/user 13
2.7 Safety instructions for maintenance,
inspection and installation work 13
2.8 Unauthorised modification and
manufacture of spare parts 13
2.9 Improper operating methods 13
2.10 Safety of the system in the event of
a failure in the dosing system 13
3. Transport and intermediate storage 14
3.1 Transport 14
3.2 Delivery 14
3.3 Unpacking 14
3.4 Intermediate storage 14
3.5 Return 14
4. Technical data 14
4.1 Identification 14
4.2 Type key 15
4.3 General description 16
4.4 Dimensional sketches 20
4.5 Weight 22
4.6 Materials 22
4.7 Control unit 22
5. Installation 23
5.1 General information on installation 23
5.2 Installation location 23
5.3 Mounting 23
5.4 Installation examples 24
5.5 Installation tips 25
5.6 Tube / pipe lines 26
6. Electrical connections 27
6.1 Connecting the signal lines for DDI 209 28
6.2 Connecting the power supply cable 31
7. Start-up / shutdown 31
7.1 Initial start-up / subsequent start-up 31
7.2 Operating the pump 34
7.3 Shutdown 34
8. Operation 35
8.1 Control and display elements 35
8.2 Switching on/off 35
8.3 Checking the dosing flow with Plus3
system 35
8.4 Deaeration 36
8.5 Changing the tank with Plus3system 36
9. How to use the control unit 36
9.1 Menu levels 36
9.2 General functions of the control unit 36
9.3 Signal outputs 38
9.4 First function level 39
9.5 Second function level 41
9.6 Calibration 44
9.7 Service level 47
9.8 Resetting to default settings 50
9.9 Current signal control 0-20 mA / 4-20 mA 50
9.10 Flow Monitor 57
9.11 Batch menu / batch mode 62
9.12 Timer menu / timer mode 63
9.13 Creating a master/slave application 65
9.14 Hotkeys / info keys 66
10. Maintenance 67
10.1 General notes 67
10.2 Maintenance intervals 67
10.3 Cleaning suction and discharge valves 67
10.4 Replacing the diaphragm 68
11. Fault finding chart 70
12. Disposal 71
Warning
These complete installation and
operating instructions are also
available on www.Grundfosalldos.com.
Prior to installation, read these
installation and operating instructions.
Installation and operation must comply
with local regulations and accepted
codes of good practice.

English (GB)
7
1.3 Information about the product
1.3.1 Pump types
The DDI 209 dosing pump is available for a variety of
performance ranges in various sizes:
The following is indicated on the pump nameplate
(see section 4.1 Identification):
• The pump type which specifies the stroke
volume, connection size and performance data
(see below).
• The pump serial number which is used to identify
the pump.
• The most important characteristics of the pump
configuration, e.g. dosing head and valve
materials. They are described in section
4.2 Type key.
• Maximum flow rate and maximum
counter-pressure.
• Supply voltage or mains voltage and mains
frequency.
1.3.2 Connection size
Pump types
DDI 0.4-10
DDI 2.2-16
DDI 2.5-10
DDI 5.5-10
DDI 13.8-4
DDI 20-3
Note
The pump for viscous liquids is called
HV variant in the following.
Pump type Connection size HV variant
DDI 0.4-10 DN 4 DN 4
DDI 2.2-16 DN 4 DN 8
DDI 2.5-10 DN 4 DN 8
DDI 5.5-10 DN 4 DN 8
DDI 13.8-4 DN 8/10 DN 8
DDI 20-3 DN 8/10 DN 8

English (GB)
8
1.3.3 Pump performance
Performance data at maximum pump counter-pressure
* Observe the maximum permissible temperatures and that the friction loss increases with the viscosity of
the dosing medium.
** The maximum dosing flow of HV-variant pumps is up to 10 % lower.
*** At counter-pressures lower than 10 bar, the maximum dosing flow of the DDI 0.4-10 gradually increases to
up to 1 l/h.
Pump type
Normal operation Slow-mode operation
Q**
p max.*
Max.
stroke
rate
Q**
p max.*
Max.
stroke
rateStandard
With
Plus3
system
Standard
With
Plus3
system
[l/h] [l/h] [bar] [n/min] [l/h] [l/h] [bar] [n/min]
DDI 0.4-10 0.4*** 0.4*** 10 180 0.26*** 0.26*** 10 120
DDI 2.2-16 2.2 1.9 16 180 1.5 1.2 16 120
DDI 2.5-10 2.5 2.2 10 180 1.7 1.4 10 120
DDI 5.5-10 5.5 4.9 10 180 3.7 3.2 10 120
DDI 13.8-4 13.8 — 4 180 9.2 — 4 120
DDI 20-3 20 — 3 180 13.3 — 3 120
Note
The pump can be operated in the range
between 1 % and 100 % of the
maximum dosing capacity.
Note
The maximum display indication is
higher than the nominal capacity of the
pump because it refers to the default
setting.

English (GB)
9
1.3.4 Accuracy
• Applies to:
– water as dosing medium
– fully deaerated dosing head
– standard pump version.
• Dosing flow fluctuation and linearity deviation:
± 1.5 % of the full-scale value.
• Construction tolerance: according to
VDMA 24284.
1.3.5 Inlet pressure and counter-pressure /
suction lift during operation
Maximum inlet pressure
* For pumps with pressure sensor (Flow Monitor
pump option), the inlet pressure on the suction side
must not exceed 1 bar.
Minimum counter-pressure at the pump
discharge valve
* For pumps with pressure sensor (Flow Monitor
pump option), the minimum system pressure is
2 bar and the minimum pressure difference
between the suction and discharge sides is 2 bar.
If the volume flow is not constant (as, for example,
in the case of contact or analog control), even
small volume flows should not fall below the
minimum pressure or the minimum pressure
difference.
Maximum suction lift* (start-up) for media with a
viscosity similar to water
* Deaeration valve open.
** Pumps with Plus3system are delivered with a
special start-up device.
Pump type
Operating conditions / version*
Normal operation Slow-mode operation With Plus3system
[bar] [bar] [bar]
DDI 0.4-10 -
DDI 5.5-10 22
No flooded
suction, no
positive inlet
pressure!
DDI 13.8-4 2 2 —
DDI 20-3 1.5 1.5 —
Pump type
Operating conditions / version*
All*
[bar]
DDI 0.4-10 -
DDI 20-3 1
Pump type
Operating conditions / version
Continuous
operation
Continuous
operation with
Plus3 system
[m] [m]
DDI 0.4-10 Flooded suction **
DDI 2.2-16 1.5 **
DDI 2.5-10 1.5 **
DDI 5.5-10 2.0 **
DDI 13.8-4 2.8 —
DDI 20-3 2.8 —

English (GB)
10
Maximum suction lift* (continuous operation) for non-degassing media with a viscosity similar to water
* Dosing head and valves moistened.
1.3.6 Sound pressure level
45 dB(A), testing according to DIN 45635-01-KL3.
1.3.7 Enclosure class
• Pump with mains plug: IP65.
• Pump without mains plug: IP65 can only be
ensured if the power supply cable is connected
with IP65 protection.
1.3.8 Required energy
Power supply for AC voltage
• Rated voltage range: 110-240 V.
Deviation from the rated value: ± 10 %.
• Mains frequency: 50/60 Hz.
• Maximum input power: 20 W including all sensors
(reduced input power according to pump type
and connected sensors).
24 V DC power supply
• Supply voltage: 24 V.
Deviation from the rated value: ± 15 %.
• Quality of the DC voltage: smoothed, ripple below
3.6 V.
• Maximum input power: 20 W including all sensors
(reduced input power according to pump type
and connected sensors).
1.3.9 Ambient and operating conditions
• Permissible ambient temperature:
0 °C to +40 °C.
• Permissible storage temperature:
–10 °C to +50 °C.
• Permissible air humidity: max. relative humidity:
92 % (non-condensing).
Pump type
Operating conditions / version
Normal operation Slow-mode
operation
Normal operation
with Plus3system
Slow-mode
operation
with Plus3system
[m] [m] [m] [m]
DDI 0.4-10 Flooded suction Flooded suction 1.5 1.5
DDI 2.2-16 4 6 1.5 1.5
DDI 2.5-10 4 6 1.5 1.5
DDI 5.5-10 4 6 1.5 1.5
DDI 13.8-4 3 3 — —
DDI 20-3 3 3 — —
Note
At dosing capacities up to 10 % of the
maximum dosing capacity of the pump,
resonance noise may temporarily
occur at the stepper motor.
Caution
The enclosure class is only met if the
sockets are protected! The data
regarding the enclosure class applies
to pumps with correctly inserted plugs
or screwed-on caps.
Note
The power supply must be electrically
isolated from the signal inputs and
outputs.
Warning
The DDI 209 is NOT approved for
operation in potentially explosive
areas!
Caution
The installation site must be under
cover!
Ensure that the enclosure class of
motor and pump is not affected by
the atmospheric conditions.
Pumps with electronics are only
suitable for indoor use!
Do not install outdoors!

English (GB)
11
1.3.10 Dosing medium
The dosing medium must have the following basic
characteristics:
• liquid
• non-abrasive
• non-inflammable.
For degassing dosing media, note the following:
• The DDI 209 without Plus3system can be used in
flooded suction for moderately degassing media
such as chlorine bleaching agents.
See section 5. Installation.
• The DDI 209 with Plus3system can be used for
moderately degassing media such as chlorine
bleaching agents. Using the DDI 5.5-10 with
Plus3system at a maximum system pressure of
3 bar, H2O2up to a maximum of 31 % can be
dosed. No flooded suction!
Maximum permissible viscosity at operating temperature*
* The stated values are approximate values and apply to Newtonian liquids.
Note that the viscosity increases with decreasing temperature!
Caution
In the event of questions regarding the
material resistance and suitability of
the pump for specific dosing media,
please contact Grundfos.
Pump type
Maximum viscosity*
Normal
operation
Slow-mode
operation
Normal operation
with Plus3 system
Slow-mode operation
with Plus3 system
[mPa s] [mPa s] [mPa s] [mPa s]
DDI 0.4-10 -
DDI 2.5-10 200 200 200 200
DDI 5.5-10 100 200 100 200
DDI 13.8-4 -
DDI 20-3 100 200 — —
Pump type HV variant
DDI 0.4-10 500 1000 500 500
DDI 2.2-16 -
DDI 2.5-10 200 1000 — —
DDI 5.5-10 -
DDI 20-3 200 500 — —

English (GB)
12
Permissible media temperature
* A temperature of 120 °C at a counter-pressure
of max. 2 bar is permitted for a short period
(15 minutes).
** At 70 °C, the maximum counter-pressure is 3 bar.
1.4 Applications
1.4.1 Appropriate, acceptable and correct usage
The DDI 209 pump is suitable for liquid,
non-abrasive and non-inflammable media strictly in
accordance with the instructions in this manual.
1.5 Warranty
Warranty in accordance with our general terms of
sale and delivery is only valid
• if the pump is used in accordance with the
information within this manual.
• if the pump is not dismantled or incorrectly
handled.
• if repairs are carried out by authorised and
qualified personnel.
• if original spare parts are used for repairs.
2. Safety
This manual contains general instructions that must
be observed during installation, operation and
maintenance of the pump. This manual must
therefore be read by the installation engineer and the
relevant qualified personnel/operators prior to
installation and start-up, and must be available at the
installation location of the pump at all times.
It is not only the general safety instructions given in
this "Safety" section that must be observed, but also
all the specific safety instructions given in other
sections.
2.1 Identification of safety instructions in
this manual
If the safety instructions or other advice in this
manual are not observed, it may result in personal
injury or malfunction and damage to the pump.
The safety instructions and other advice are
identified by the following symbols:
Information provided directly on the pump, e.g.
labelling of fluid connections, must be observed and
must be maintained in a readable condition at all
times.
2.2 Marking at the pump
The pumps with Plus3system are provided with the
following danger notice:
Dosing
head
material
Min. media
temperature
Max. media
temperature
p <
10 bar
p <
16 bar
[°C] [°C] [°C]
PVC 0 40 20
Stainless
steel,
DIN 1.4571*
–10 70 70
PP 0 40 20
PVDF** –10 60* 20
Warning
Observe the manufacturer's safety
instructions when handling chemicals!
Caution
The dosing medium must be in liquid
form!
Observe the freezing and boiling points
of the dosing medium!
Caution
The resistance of the parts that come
into contact with the media depends on
the media, media temperature and
operating pressure. Ensure that parts
in contact with the media are
chemically resistant to the dosing
medium under operating conditions!
Make sure that the pump is suitable for
the actual dosing medium!
Warning
Other applications or the operation
of pumps in ambient and operating
conditions, which are not approved,
are considered improper and are not
permitted. Grundfos accepts no
liability for any damage resulting from
incorrect use.
Warning
If these safety instructions are not
observed, it may result in personal
injury!
Caution
If these safety instructions are not
observed, it may result in malfunction
or damage to the equipment!
Note
Notes or instructions that make the job
easier and ensure safe operation.
Beware of caustic liquids!
Risk of causticisation by the dosing
medium!
If the pump is filled, keep the cover
closed and do not touch inside the
priming chamber!
Before dismantling and transporting
the pump, empty the priming chamber
completely and clean it, if necessary!

English (GB)
13
2.3 Qualification and training of personnel
The personnel responsible for the operation,
maintenance, inspection and installation must be
appropriately qualified for these tasks. Areas of
responsibility, levels of authority and the supervision
of the personnel must be precisely defined by the
operator.
If the personnel do not have the necessary
knowledge, the necessary training and instruction
must be given. If necessary, training can be
performed by the manufacturer/supplier at the
request of the operator of the pump. It is the
responsibility of the operator to make sure that the
contents of this manual are understood by the
personnel.
2.4 Risks when safety instructions are not
observed
Non-observance of the safety instructions may have
dangerous consequences for the personnel, the
environment and the pump. If the safety instructions
are not observed, all rights to claims for damages
may be lost.
Non-observance of the safety instructions may lead
to the following hazards:
• failure of important functions of the pump/system
• failure of specified methods for maintenance
• harm to humans from exposure to electrical,
mechanical and chemical influences
• damage to the environment from leakage of
harmful substances.
2.5 Safety-conscious working
The safety instructions in this manual, applicable
national health and safety regulations and any
operator internal working, operating and safety
regulations must be observed.
2.6 Safety instructions for the
operator/user
Hazardous hot or cold parts on the pump must be
protected to prevent accidental contact.
Leakages of dangerous substances (e.g. hot, toxic)
must be disposed of in a way that is not harmful to
the personnel or the environment. Legal regulations
must be observed.
Damage caused by electrical energy must be
prevented (for more details, see for example the
regulations of the VDE and the local electricity
supply company).
2.7 Safety instructions for maintenance,
inspection and installation work
The operator must ensure that all maintenance,
inspection and installation work is carried out by
authorised and qualified personnel, who have been
adequately trained by reading this manual.
All work on the pump should only be carried out
when the pump is stopped. The procedure described
in this manual for stopping the pump must be
observed.
Pumps or pump units which are used for media that
are harmful to health must be decontaminated.
All safety and protective equipment must be
immediately restarted or put into operation once
work is complete.
Observe the points described in the initial start-up
section prior to subsequent start-up.
2.8 Unauthorised modification and
manufacture of spare parts
Modification or changes to the pump are only
permitted following agreement with the
manufacturer. Original spare parts and accessories
authorised by the manufacturer are safe to use.
Using other parts can result in liability for any
resulting consequences.
2.9 Improper operating methods
The operational safety of the supplied pump is only
ensured if it is used in accordance with
section 1. General information. The specified limit
values must under no circumstances be exceeded.
2.10 Safety of the system in the event of
a failure in the dosing system
DDI 209 dosing pumps are designed according to
the latest technologies and are carefully
manufactured and tested. However, a failure may
occur in the dosing system. Systems in which dosing
pumps are installed must be designed in such a way
that the safety of the entire system is still ensured
following a failure of the dosing pump. Provide the
relevant monitoring and control functions for this.
Warning
Electrical connections must only be
carried out by qualified personnel!
The pump housing must only be
opened by personnel authorised by
Grundfos!

English (GB)
14
3. Transport and intermediate storage
3.1 Transport
3.2 Delivery
The DDI 209 dosing pump is delivered in a
cardboard box. Place the pump in the packaging
during transport and intermediate storage.
3.3 Unpacking
Retain the packaging for future storage or return, or
dispose of the packaging in accordance with local
regulations.
3.4 Intermediate storage
• Permissible storage temperature:
–10 °C to +50 °C.
• Permissible air humidity: max. relative humidity:
92 % (non-condensing).
3.5 Return
Return the pump in its original packaging or
equivalent.
The pump must be thoroughly cleaned before it is
returned or stored. It is essential that there are no
traces of toxic or hazardous media remaining on the
pump.
Before returning the pump to Grundfos Water
Treatment for service, the safety declaration at the
end of these instructions must be filled in by
authorised personnel and attached to the pump in a
visible position.
If Grundfos Water Treatment is requested to service
the pump, it must be ensured that the pump is free
from substances that can be injurious to health or
toxic. If the pump has been used for such
substances, the pump must be cleaned before it is
returned.
If proper cleaning is not possible, all relevant
information about the chemical must be provided.
If the above is not fulfilled, Grundfos Water
Treatment can refuse to accept the pump for service.
Possible costs of returning the pump are paid by the
customer.
The safety declaration can be found at the end of these
instructions.
4. Technical data
4.1 Identification
Fig. 1 DDI 209 nameplate
Caution
Do not throw or drop the pump.
Caution
Grundfos accepts no liability for
damage caused by incorrect
transportation or missing or unsuitable
packaging of the pump!
Caution
If a pump has been used for a medium
which is injurious to health or toxic, the
pump will be classified as
contaminated.
Caution
The replacement of the power supply
cable must be carried out by an
authorised Grundfos service
workshop.
TM03 8687 2207
Pos. Description
1 Type designation
2 Model
3 Maximum capacity [l/h]
4 Voltage [V]
5 Frequency [Hz]
6 Product number
7 Country of origin
8 Year and week code
9 Marks of approval, CE mark, etc.
10 Maximum pressure [bar]
11 Serial number

English (GB)
15
4.2 Type key
Example: DDI 2- 16 AR PVC /V /G -F -3 1 3 B1 B
Type range Mains plug
DDI X No plug
Maximum flow [l/h] F EU (Schuko)
Maximum counter-pressure [bar] B USA, Canada
Control variant I Australia, New Zealand, Taiwan
AR Standard E Switzerland
AF AR with Flow Monitor Connection, suction/discharge
AP AR with PROFIBUS B6 Pipe, 4/6 mm
APF AR with Flow Monitor and
PROFIBUS 3 Tube, 4/6 mm
Dosing head variant A5 Tube, 5/8 mm
PP Polypropylene 4 Tube, 6/9 mm
PV PVDF (polyvinylidene
fluoride) 6 Tube, 9/12 mm
PVC Polyvinyl chloride C4 Tube, 1/8" / 1/4"
SS Stainless steel, DIN 1.4401 R Tube, 1/4" / 3/8"
PP-P3 PP with Plus3system S Tube, 3/8" / 1/2"
PVC-P3 PVC with Plus3system A Threaded, Rp 1/4, female
PP-L PP + integrated diaphragm
leakage detection V Threaded, 1/4" NPT, female
PV-L PV + integrated diaphragm
leakage detection A9 Threaded, 1/2" NPT, male
PVC-L PVC + integrated diaphragm
leakage detection B1 Tube, 6/12 mm/ cementing d. 12 mm
SS-L SS + integrated diaphragm
leakage detection B2 Tube, 13/20 mm/ cementing d. 25 mm
Gasket material Valve type
E EPDM 1 Standard
VFKM
2
Spring-loaded
0.05 bar suction opening pressure;
0.05 bar discharge opening pressure
TPTFE
Valve ball material
C Ceramics
3
Spring-loaded
0.05 bar suction opening pressure;
0.8 bar discharge opening pressure
GGlass
TPTFE
SS Stainless steel, DIN 1.4401
4Spring-loaded, discharge side only
0.8 bar opening pressure
Control panel position
F Front-mounted
T Top-mounted
Supply voltage
3 1 x 100-240 V, 50/60 Hz
1 24 V DC

English (GB)
16
4.3 General description
The DDI 209 is a dosing pump with a stepper motor
and electronic power control. The pump is operated
via the diagonal or horizontal display in a
user-friendly menu structure.
The DDI 209 is available in various versions. See
also section 1. General information.
In the general description, a distinction is made
between pumps with dosing heads with the following
features:
• manual deaeration (standard)
•Plus
3system
• diaphragm leakage detection.
Option:
The pump can also be equipped with the following:
• Flow Monitor
• interface for PROFIBUS.
The functions are described, but only apply to the
relevant pump version.
4.3.1 DDI 209 with manual deaeration
Fig. 2 DDI 209 with manual deaeration
TM03 6589 4506
3b
3a
V
I
2a
Pos. Components
3a Suction valve
3b Discharge valve
2a Dosing head with manual deaeration
I Connection for deaeration line
V Deaeration screw for manual deaeration

English (GB)
17
4.3.2 DDI 209 Plus3system with priming and calibration system for moderately degassing liquids
(chlorine bleaching agents) (only for DDI 209 0.4-10 to DDI 209 5.5-10)
Fig. 3 DDI 209 Plus3system
4.3.3 Functional principle of the Plus3system
Plus3system in operation:
• The priming chamber (F) is filled with the dosing
medium via the suction valve (3a).
– The calibration tube (E) is filled from the
priming chamber.
– Unused dosing medium flows back into the
tank via the overflow line (H).
• The dosing medium flows from the calibration
tube (E) to the discharge valve (3b) via the small
dosing diaphragm.
TM03 6590 4506
D
3b
V
2c
3a
K
1e
A
L
F
G
1e
I
J
H
D
V
E
D
V
2c
L
M
N
Pos. Components
3a Suction valve
3b Discharge valve
2c Dosing head Plus3system
I Connection for deaeration line
V Deaeration screw
A Suction line from tank
1e Line from calibration tube (E) to dosing
head (2c)
D Isolating valve at calibration tube (E)
E Calibration tube
F Priming chamber
G Connection for overflow line (H)
H Overflow line to tank (PVC tube 8/11)
J Deaeration line to tank
K Discharge line
L Cover
M Adhesive label
N Deaeration hole
Note
The isolating valve (D) must be open
during operation!

English (GB)
18
Fig. 4 Functional principle of the Plus3system
4.3.4 DDI 209 with diaphragm leakage detection
Fig. 5 DDI 209 with diaphragm leakage detection
TM03 6214 4506
TM03 6591 4506
O
P
3b
3a
V
I
2b
Pos. Components
3a Suction valve
3b Discharge valve
2b Dosing head with flange for diaphragm
leakage detection
I Connection for deaeration line
V Deaeration screw for manual deaeration
O Opto-sensor
P M12 plug for socket 1

English (GB)
19
4.3.5 Functional principle of diaphragm leakage
detection
Pumps with diaphragm leakage detection (MLS)
have a special dosing head flange for an
optoelectronic sensor. The pump is supplied with the
diaphragm leakage sensor (MLS) already installed.
The optoelectronic sensor contains:
• infrared transmitter
• infrared receiver.

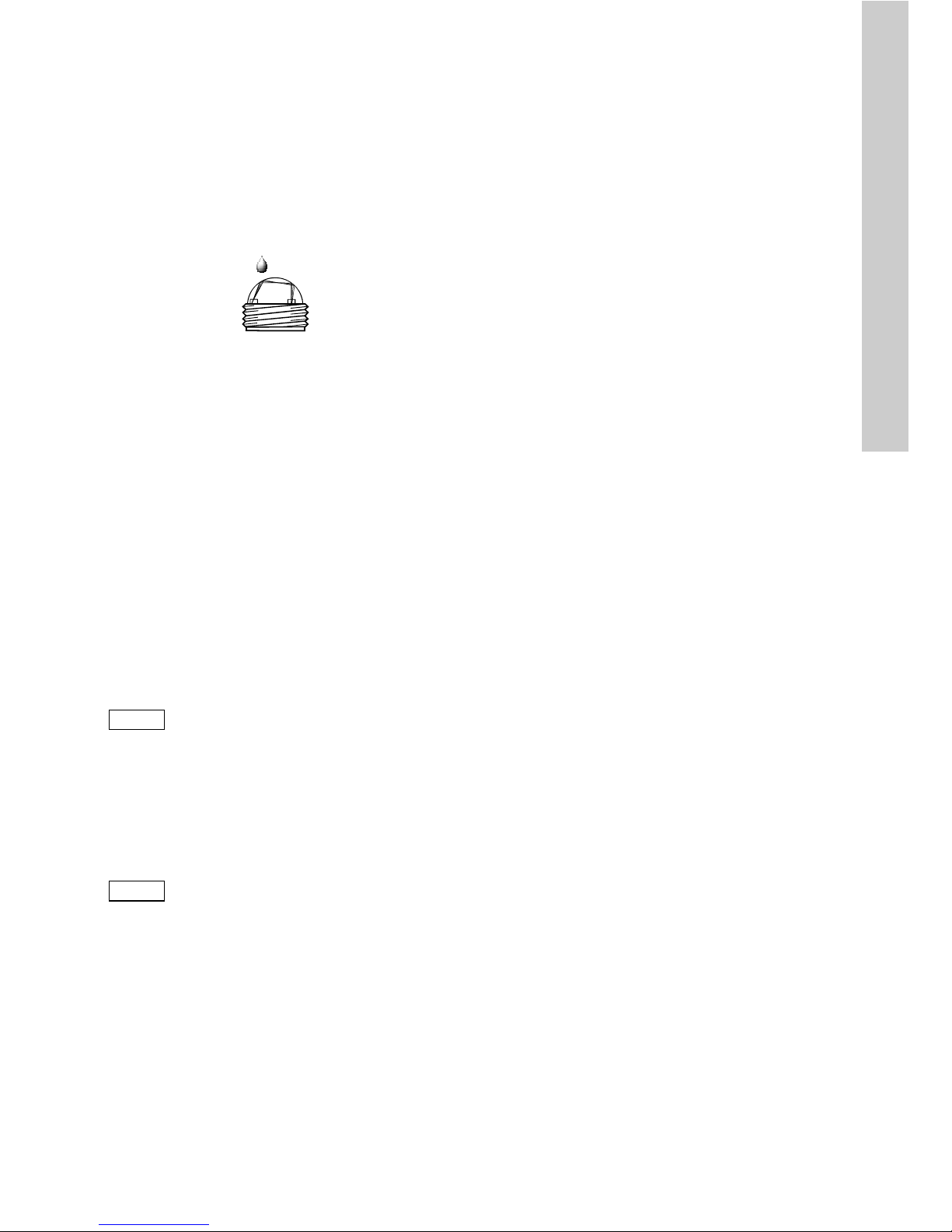

Fig. 6 Diaphragm leakage sensor (MLS)
If the diaphragm leaks,
• the liquid enters the dosing head flange.
• the light refraction changes.
• the sensor emits a signal.
The electronics operates two contacts, which can be
used, for example, to trigger an alarm signal or to
switch off the pump.
4.3.6 Flow Monitor for dosing control
The pressure sensor (Flow Monitor pump option) is
used as a dosing controller and to monitor the
pressure for the whole power ranges.
The Flow Monitor for dosing control consists of a
pressure sensor integrated in the dosing head.
The pressure sensor is available as Flow Monitor
pump option. The pressure sensor is fitted to the
pump on delivery. Upgrades are not possible.
4.3.7 HV variant for liquids which are more
viscous than water
All HV-variant pumps are equipped with
spring-loaded valves, some have a larger nominal
diameter and adapters.
TM03 6216 4506
Note
Pressure control is primarily used to
protect the pump. This function is not
a substitute for the overflow valve.
Note
Note that the HV-variant pump has
other dimensions and that other
connection line dimensions might be
required!

English (GB)
20

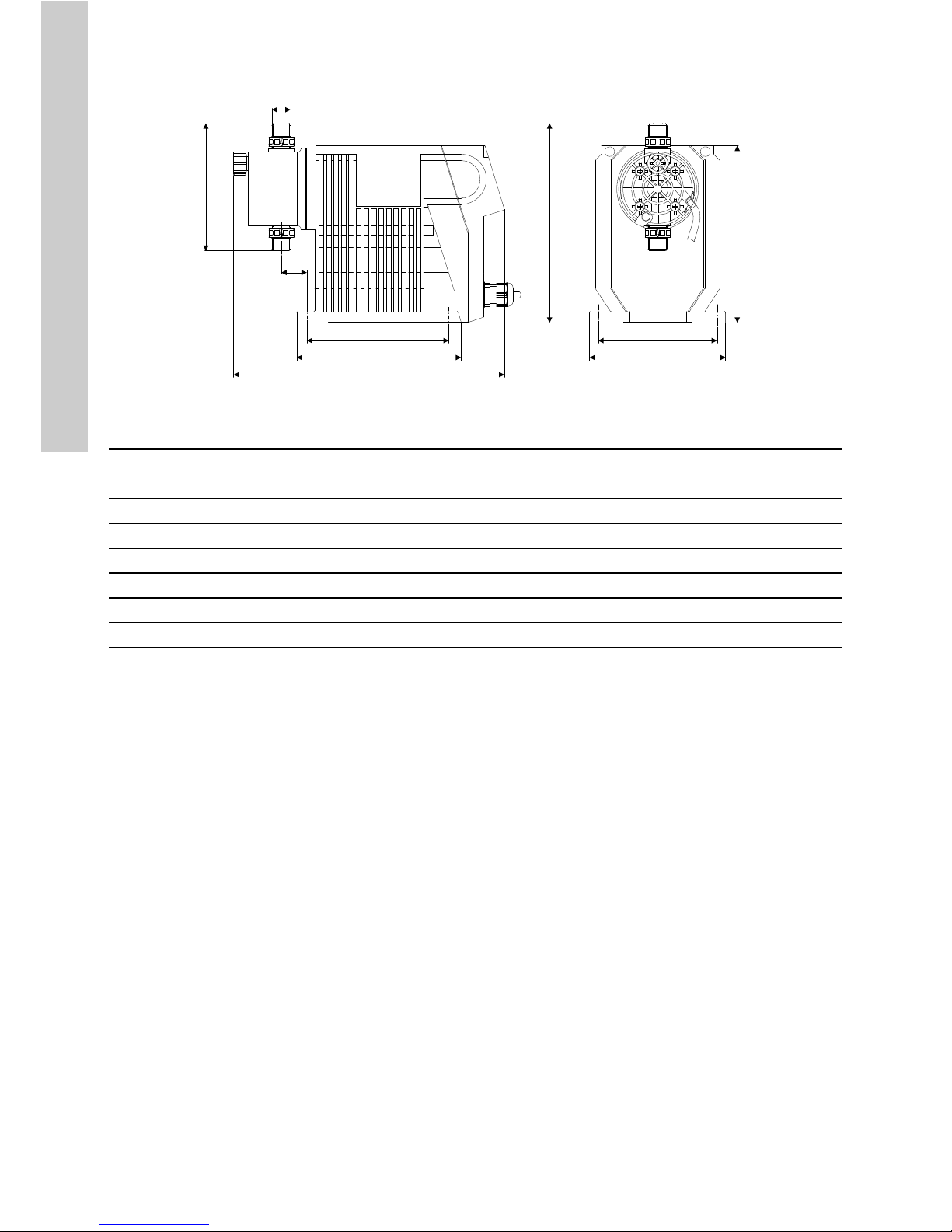

4.4 Dimensional sketches
Fig. 7 DDI 209
Dimensions for DDI 209
TM03 6592 4506
156
105
120
e
b
a145
c
d
113
a
[mm]
b
[mm]
c
[mm]
d
[mm] ec HV [mm]
d HV
[mm] e HV
DDI 0.4-10 239 23 175.5 112 G 3/8 175.5 112 G 3/8
DDI 2.2-16 239 23 175.5 112 G 3/8 207.5 176 G 5/8
DDI 2.5-10 239 23 175.5 112 G 3/8 207.5 176 G 5/8
DDI 5.5-10 239 23 175.5 112 G 3/8 207.5 176 G 5/8
DDI 13.8-4 240 29 185 133 G 5/8 185 133 G 5/8
DDI 20-3 240 29 185 133 G 5/8 185 133 G 5/8
