Grundig VIVANCE GV 3242 NIC/2 User manual

VIDEORECORDER
ǵ
VIVANCE
GV 3242 NIC/2
ENGLISH
SVENSKA
NORSK
DANSK
SUOMI

CONTENTS________________________________________________________
2
4 GV 3242 NIC/2 video recorder
Packing contents
Special features of your video recorder
5 Set-up and safety
6 Overview
The front of the video recorder
The back of the video recorder
The remote control
The display on the video recorder
The OSD display on the television
11 Connection and preparation
Connecting the rooftop antenna or cable connection and the television
Connecting the satellite receiver and the television
Inserting batteries in the remote control
Switching the video recorder on and off (power save mode)
15 Tuning
Tuning the video recorder and the television
Tuning television stations
Tuning television stations with the Megalogic function
Tuning television station with the automatic station search
19 Playback
Basic playback functions
Additional playback functions
Continuous playback
23 Search functions
Zero setting
Finding recordings using the Video Index Search System (VISS)
24 Recording
The recording options
The Video Programming System (VPS/PDC)
25 Recording – immediate
Recording television programs from the antenna or the cable connection
Recording television programs from the satellite receiver
Entering the switch-off time
Seamless compilation of recordings (Assemble)

CONTENTS_____________________________________________________________
ENGLISH
3
27 Recording – delayed
– by entering the ShowView number
– by entering the data for the required television program
Checking, modifying or deleting recording information
Interrupting recording stand-by mode
Reactivating recording stand-by mode
– controlled by a satellite receiver
35 Copying
Connection and preparation
Recording from external devices
37 Using a Decoder
Connection and preparation
Recording PAY TV programs
39 Audio playback
40 Special settings
Sorting, deleting and renaming television stations
Re-tuning television channels
Skipping television stations
Tuning new television stations
Switching the station on the video recorder on and off
45 Setting the date and time
Automatically updating the time and date
Setting the time and date manually
46 Special features
Selecting special features in the »MODE« menu
Selecting special features in the »SERVICE« menu
50 Parental lock
51 Television remote control
52 Information
Rectifying minor problems
Technical data
GRUNDIG Service (page 55 ,)

GV 3242 NIC/2 VIDEORECORDER_____
4

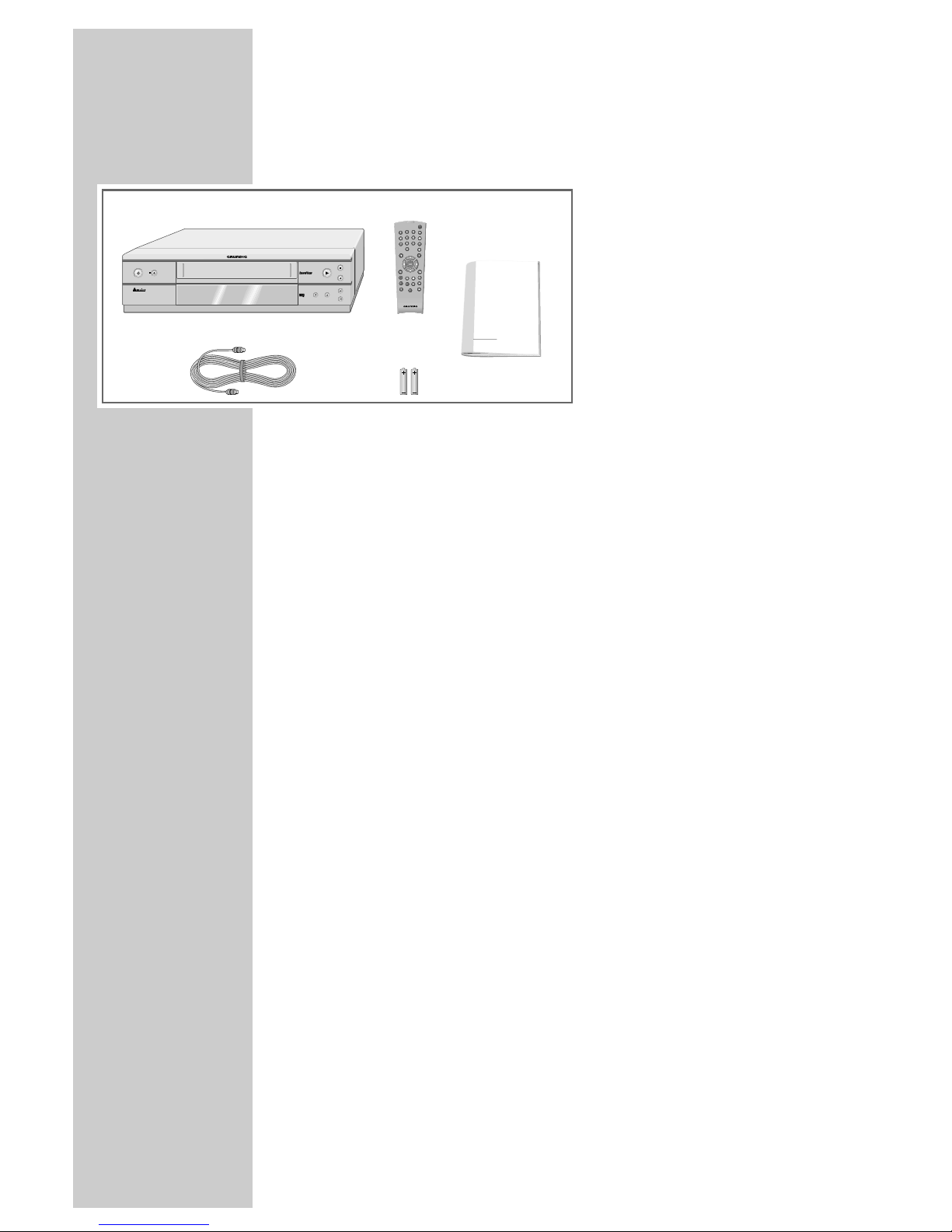

Packing contents
1GV 3242 NIC/2 video
recorder
2Remote control
3Operating manual
42 batteries, 1.5 V, mignon
type
5Antenna cable
Special features of your video recorder
The recording options
– Immediate recording, in which you select the required chan-
nel on the video recorder and start recording immediately.
– Delayed recording using the ShowView number.
– Delayed recording by entering the time and channel of the
programme you want to record (if you do not know the
ShowView number).
– Delayed recording by entering the data in the TIMER menu of
a Grundig television with the Megalogic function.
ShowView* recording
This function makes recording child’s play. Find the program in
your TV guide, enter the code number and the video recorder
is programmed automatically.
GRUNDIG Megalogic
Megalogic options:
– Receiving television stations from the television set – in the
same order, see page 16.
– Starting playback on the video recorder automatically selects
the video channel position on the television (page 19).
– The television station currently being shown on the television
screen is immediately recorded after the start of the recording
(page 25).
– You can enter the data for a program in the TIMER menu of
the television, and the television then controls the recording of
the video recorder. The video recorder can be switched off
(power-saving mode) during this procedure.
* SHOWVIEW® is a registered trademark of the Gemstar Development Cor-
poration. The SHOWVIEW system was manufactured under licence from the
Gemstar Development Corporation.
P
ǵ
VIDEORECORDER
TelePilot 92 V
DigitalFX
OSD
Clear
Timer/SV
SP/LP Timeron
Index
Dub
Audio Monitor
TV
1
3
54
2

SET-UP AND SAFETY___________________________________
ENGLISH
5
This video recorder is designed to receive, record and play
back video and audio signals.
Any other use is expressly prohibited.
If the video recorder is subject to sudden changes in temperatu-
re, for example if it is brought in from the cold to a warm
room, connect it to the mains supply and let it stand for at least
two hours before you insert a video cassette.
The video recorder is designed for use in dry rooms. If you do
use it in the open, please ensure that it is protected from moi-
sture, such as rain or water splashes. Do not expose the video
recorder or cassettes to moisture.
Place the video recorder on a hard, level surface. Do not place
any objects (newspapers, for example) on top of the video
recorder or any cloth or similar items underneath it.
Do not place the video recorder near heating units or in direct
sunlight, as this will impair cooling. Keep the video recorder
away from devices which generate magnetic fields, such as
loudspeakers.
Do not insert any foreign objects into the video tape compart-
ment, as this may damage its precision mechanics.
Do not place any vessels such as vases on the video recorder
as they may spill liquid and present an electrical safety risk.
Thunderstorms present a danger to all electrical devices. Even
when the video recorder is switched off it can be damaged by
a lightning strike to the mains or antenna cable. Always
disconnect the mains and antenna plugs during a storm.
Do not open the video recorder casing under any circumstan-
ces. The manufacturer accepts no liability for damage resulting
from improper handling.
P
°C2h
P
°C
P
P
Krieg im Balkan
P

OVERVIEW_____________________________________________________________
6

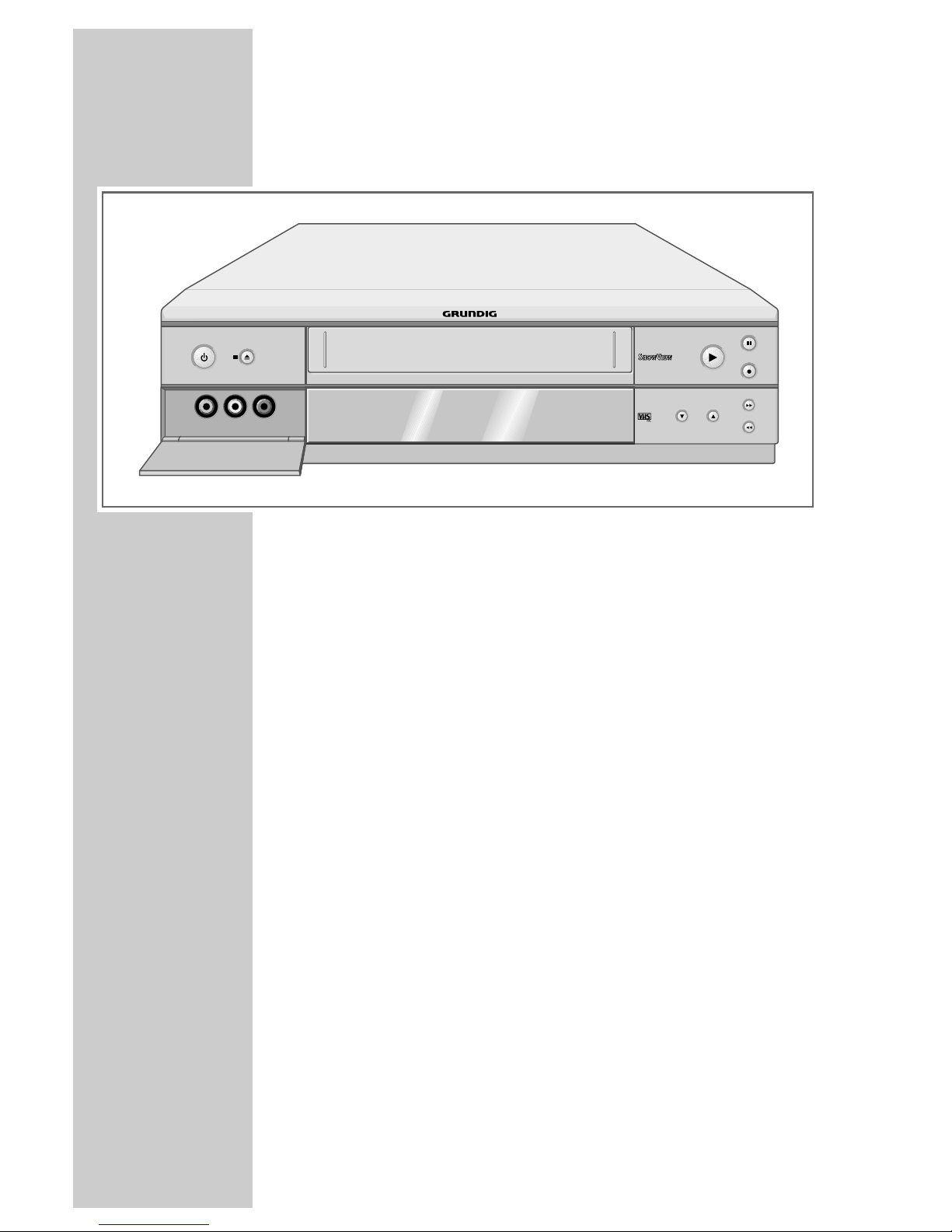

The front of the video recorder
ASwitches the video recorder in and out of stand-
by mode (in stand-by mode the time is display-
ed; in power-saving mode there is no display).
■ NTerminates all drive functions;
ejects the cassette.
VIDEO IN Camcorder video input (socket located behind
the cover panel).
L AUDIO IN R Left and right camcorder audio inputs (sockets
located behind the cover panel).
ıStarts playback.
II Pause during recording, freeze-frame during
playback.
●Starts recording.
*PSelects the next channel down.
P ÜSelects the next channel up.
ıı During playback: forward search;
when stopped: fast forward.
ľľ During playback: reverse search;
when stopped: fast rewind.
P
VIDEO IN L AUDIO IN R

OVERVIEW_____________________________________________________________
ENGLISH
7

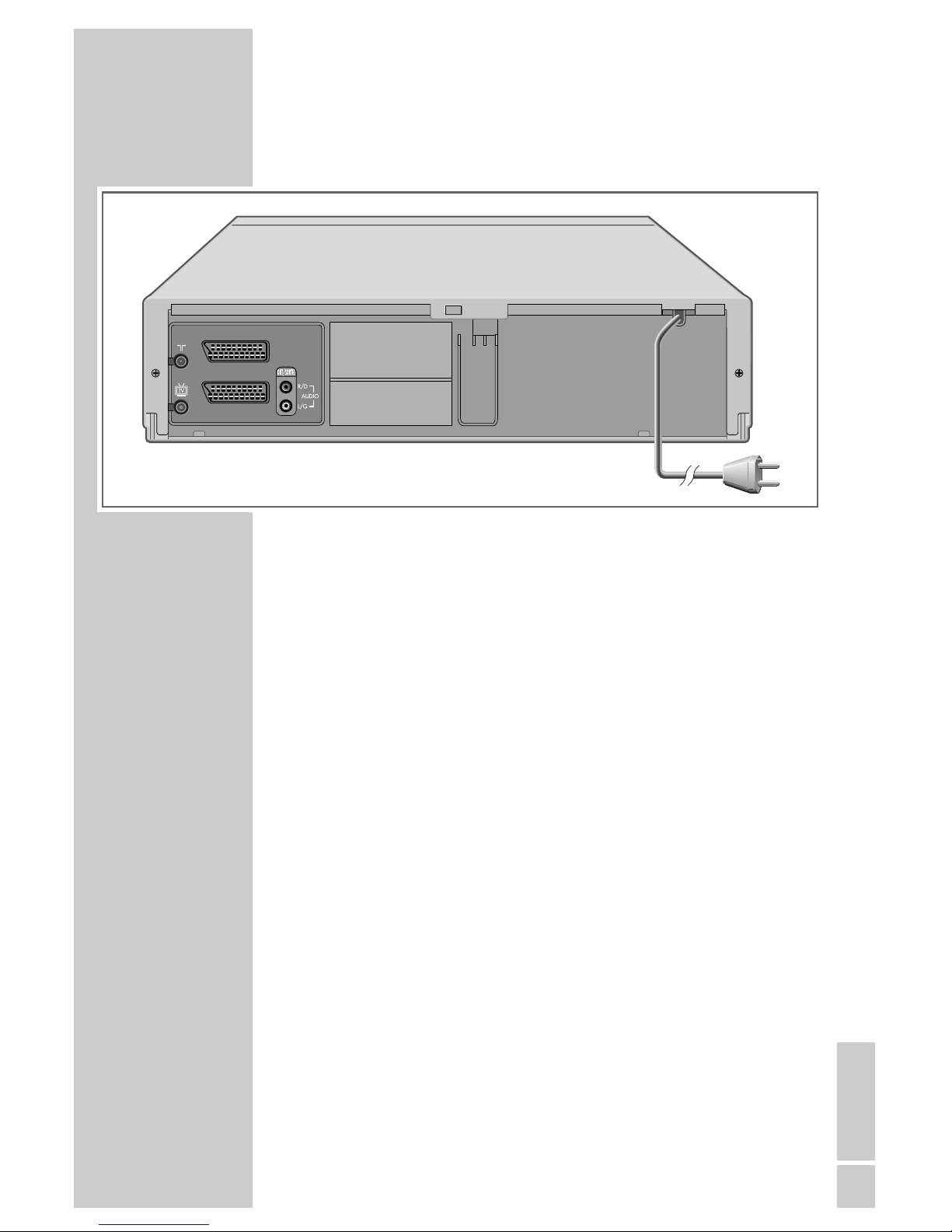

The back of the video recorder
ÄAntenna input jack
(for the rooftop antenna).
ÖAntenna output jack
(to the television).
AV2 (DEC./EXT.) Euro-AV (Scart) socket
(to an external device).
AV1 (EURO AV) Euro-AV (Scart) socket
(to the television).
OUT/SORTIE Audio outputs to the HiFi system.
R/D AUDIO L/G
ÜMains cable for wall socket.
AV2 (DEC./EXT.)
AV1 (EURO AV)

OVERVIEW_____________________________________________________________
8
The remote control
The following section describes the most important features of
the remote control. See the relevant chapters in this manual for
information on how to operate the remote control.
Point the remote control at the video recorder.
ǼPressing once switches the video recorder to
stand-by mode;
pressing again switches off the video recorder
(power-saving mode).
1 ... 0 Switch the video recorder on from stand-by;
numeric keys for various inputs,
»0« selects channel positions » A I «, » A2 « or
» CV «.
Digital FX Key has no function.
OSD Activates/deactivates the function and playing
time displays on the television screen.
Clear Deletes data, activates settings, sets the playing
time indicator to »
0:00:00 «.
dSwitches off the sound on a Grundig television.
iSwitches between the main menu and the TV
image.
Timer/SV Activates ShowView recording.
+ – Select channels, » +« up, » –« down;
Select various menu functions.
OK Calls up, confirms and saves data.
® † Select various functions in the menus.
SP/LP Switches between standard and long play
mode (select playing time before recording).
Timer on Press briefly to activate TIMER-recording;
press and hold down (ca. 3 seconds) to deacti-
vate TIMER recording.
Tele Pilot 92 V
Digital FX
OSD
Clear
Timer/SV
SP/LP Timer on
Index
Dub
Audio Monitor
TV

OVERVIEW_____________________________________________________________
ENGLISH
9
● Starts recording.
II Pause during recording, freeze-frame during play-
back.
■Terminates all drive functions and switches the
video recorder to ”Stop”.
ıStarts playback.
ľľ Reverse search during playback;
Fast rewind in ”Stop” mode;
selects the direction of the INDEX search function.
ıı Forward frame search during playback;
Tape advance in ”Stop” mode;
selects the direction of the INDEX search function
and the zero setting function.
Monitor Switches off the switch voltage of the EURO-AV
socket.
This deactivates the AV channel position on the
television and activates the previously selected
channel position (Monitor mode).
TV Switches the remote control from video recorder
operation to television operation. The available
options are described starting on page 51.
Dub Displays the menus on a blue background.
Index Activates the INDEX search functions.
Audio Selects the audio channel for recording and play-
back.
Tele Pilot 92 V
Digital FX
OSD
Clear
Timer/SV
SP/LP Timer on
Index
Dub
Audio Monitor
TV

OVERVIEW_____________________________________________________________
10
The display on the video recorder
ßCassette inserted.
ıPlayback.
VIDEO PIN-8 switch voltage activated.
Ȅilluminates when a TIMER is programmed;
flashes when a TIMER is programmed but not
activated.
˲Recording.
STEREO Stereo or two-channel sound transmission.
-O:OO:OO Shows various functions and conditions:
The OSD display on the television
1ıPlayback
ıı Forward frame search or tape advance
ľľ Backward frame search or tape rewind
II Freeze-frame
II ıSlow motion or frame advance
●Record
●II Pause in recording
2ACC PLUS AUTO Sharpness
END OF TAPE End of tape reached
A.DUB Dubbing function
SP LP Standard or long-playing mode
INTRO-SCAN: Search function
INDEX-SEARCH: Search function
GOTO 0: 00:00 Zero setting
312:33 Time
21/06 02 Date
4USED Elapsed playing time
REM Remaining playing time
2:26.12 Tape display in hours, minutes and
seconds
ı
ACC PLUS AUTO
SP
USED 2:55
12:33 REM 1:05
21/06 02 2:26.12
1
34
2
ßȄ
ı˲
VIDEO STEREO
-8:88:88
Display Function Display Function
Auto Auto-tracking ; PLAY Playback;
ASrRecording, controlled by the switch- PSE Recording pause;
timer of a satellite receiver; rERewind tape;
CASS No tape inserted; rEC Recording;
Cant Continuous playback; SECU Parental lock activated;
dub No function; StILL Freeze-frame during playback;
FF Fast forward tape; SLO Slow motion;
FSF Forward frame search; StOP Stop playback/recording;
FSrBackwards frame search;
