Grundig MT 6742 User manual

PROFESSIONAL
MULTI
HAIR TRIMMER
MT 6742
ENGLISH

________________________________________________________
1 2 3 4
7
5 6
8 9
2

________________________________________________________
3
A
B
E
B
C
D
F

________________________________________________________
4
ENGLISH 18-29

18 ENGLISH
SAFETY ___________________________________
Please note the following instructions
when using the appliance.
7The appliance is designed for
domestic use only.
7Observe these instructions in
order to prevent damage to the
appliance or danger arising
from improper use. Keep them
in a safe place.
7Never use the appliance in the
bath, shower or over a wash
basin filled with water; nor should
it be operated with wet hands.
7Do not immerse the appliance in
water or let it come into contact
with water, even during cleaning.
7Do not drop the appliance.
7If not already present, for addi-
tional protection it is recommend
to install a residual-current-oper-
ated protective device (RCD)
with a rated residual operating
current not exceeding 30 mA in
the electrical circuit of your bath-
room. Ask your electrician for
advice.
7Always disconnect the power
supply unit if the appliance is
not being charged or used.
7Never use the appliance if it is
visibly damaged.
7Keep the appliance away from
children.
7The appliance may not be used
by the following people, includ-
ing children: those with limited
physical, sensory or mental
capabilities and also those with a
lack of experience and know-
ledge. This does not apply to the
latter if they were instructed in
the use of the appliance or if
they use it under the supervision
of a person responsible for safe-
ty. Children should always be
supervised to ensure that they do
not play with the appliance.
7Do not open the appliance under
any circumstances. No warranty
claims are accepted for damage
resulting from improper handling.

ENGLISH 19
OVERVIEW _______________________________
Dear customer,
Congratulations on the purchase of
your MT 6742 multi-hair trimmer.
Read the following user notes care-
fully to ensure you can enjoy your
quality product from Grundig for
many years to come.
The high-quality and professional
styling appliances in the new prod-
uct range fulfil the highest standards
for salon results at home.
A responsible approach!
GRUNDIG focuses on
contractually agreed
social working conditi-
ons with fair wages for
both internal employees and supp-
liers, as well as on the efficient use
of raw materials with continual
waste reduction of several tonnes of
plastic each year – and availability
of at least 5 years for all accessories.
For a future worth living.
For a good reason. Grundig.
Special features
This appliance has five separate
functions:
– precise hair cutting at a width of
38 mm.
– precise beard trimming at a width
of 30 mm.
– hair or beard trimming with
various cutting lengths (2, 4, 8,
12, 16, 20 mm) at widths of
38 mm or 30 mm.
– thinning out hair.
– close shaving.

20 ENGLISH
OVERVIEW _______________________________
Controls
See the illustrations on pages 2
and 3.
Professional cutting head
made from ceramic/stainless
steel (width 38 mm)
Side catches for removing
attachments
On/off switch
Charging display (LED). Lights
up red when charging and
green when it is fully charged
Socket for plugging into the
charging unit or connecting the
power supply unit
Charging unit
F
E
D
C
B
A
Accessories
Six comb attachments for
to various cutting lengths
(2 to 20 mm), suitable for both
cutting heads
Attachment for thinning out
hair
Shaving attachment with single
blade foil for a smooth shave
Beard trimming attachment
(width 30 mm)
Power supply unit
Cleaning brush
Oil
Comb
Storage case
9
8
7
6
1

ENGLISH 21
POWER SUPPLY __________________________
Rechargeable battery
operation
When operating the appliance with
the built-in nickel metal hydride bat-
tery, only use the power unit sup-
plied for charging.
Check that the voltage indicated on
the type plate of the power supply
unit corresponds to your local
power supply.
1Plug the power cord into the
appliance socket and the
power supply unit into the wall
socket.
E
Notes
7Charge up the batteries complete-
ly before you use them for the
first time or if you have not used
them for a long time (approx.
24 hours timer-controlled charg-
ing).
– The charging display lights
up red when charging and
changes to green when it is
fully charged.
7After the batteries are first char-
ged, the charging time is approx.
12 hours when the appliance is
switched off. If you switch on the
appliance while it is charging,
charging will stop.
– The charging display goes
out.
7The ambient temperature should
be between 5 °C and 40 °C.
7When fully charged, the applian-
ce works for about 40 to 60 min-
utes.
This depends on the attachment
being used. It is not advisable to
charge the batteries after every
use, especially if you do not use
the appliance for the full 30 min-
utes.
Charge the batteries at your con-
venience only when they are
completely discharged.
This increases their service life.
Avoid charging every day.
D
D

22 ENGLISH
POWER SUPPLY __________________________
Using the charging unit
1Plug the socket of the appli-
ance into the charging unit.
2Plug the power cord into the
socket on the charging unit.
3Plug the power supply unit into
the wall socket.
E
Mains operation
(with the power supply
unit)
Check that the voltage indicated on
the type plate of the power supply
unit corresponds to your local
power supply.
The only way to disconnect the
appliance from the power supply is
to unplug the power supply unit.
1Insert the power cord into the
socket on the appliance.
2Plug the power supply unit into
the wall socket.
Caution
7When in the bathroom or next to
a water connection, you must only
use the appliance in battery mode;
never run it from the mains.
E

ENGLISH 23
Cutting hair ...
... using the ceramic/stainless steel
cutting head (width 38 mm).
1If necessary, remove the attach-
ment by pressing in both side
catches and lifting off.
2Insert ceramic/stainless steel
cutting head carefully at the
top and press down until it clicks
into place.
3Place a towel around the neck
and shoulders of the person
whose hair you are trimming.
A
B
A
OPERATION ______________________________
4Make sure the person is seated
so that their head is roughly at
your eye level. Before trimming,
comb the hair so that it falls nat-
urally and you can see the direc-
tion in which it grows.
5Press the button to switch on
the appliance.
6Begin use.
7Press the button to switch off
the appliance after use.
C
C

24 ENGLISH
Beard trimming ...
... using the beard trimming attach-
ment (width 30 mm).
1If necessary, remove the attach-
ment by pressing in both side
catches and lifting off.
2Insert beard trimming
attachment carefully at the
top and press down until it clicks
into place.
3Loosen the beard hair by
combing the beard in the
direction the hair grows.
4Press the button to switch on
the appliance.
5Begin use.
6Press the button to switch off
the appliance after use.
C
C
9
B
9
Trimming hair or beards
to a certain length ...
... using the comb attachments
to .
1If necessary, remove the attach-
ment by pressing in both side
catches and lifting off.
2Insert attachment (width
38 mm) or (width 30 mm)
carefully at the top and press
down until it clicks into place.
9
A
B
6
1
Comb #1
Comb #2
Comb #3
Comb #4
Comb #5
Comb #6
Comb #7*
2 mm
4 mm
8 mm
12 mm
16 mm
20 mm
* is designed for thinning out hair.
OPERATION ______________________________

ENGLISH 25
Note
7The comb attachments fit both
cutting heads.
3Push the comb attachment care-
fully and firmly onto the rounded
rear half of the cutting head
from above and let it click into
place.
4Press the button to switch on
the appliance.
5Begin use.
6Press the button to switch off
the appliance after use.
7After use, remove the comb
attachment to by press-
ing the locking tab at the back
and removing the comb attach-
ment.
61
C
C
Thinning out hair ...
... using the comb attachment
(thinning to a length of 2 mm).
1If necessary, remove the attach-
ment by pressing in both side
catches and lifting off.
2Insert attachment (width
38 mm) or (width 30 mm)
carefully at the top and press
down until it clicks into place.
3Push the comb attachment
carefully and firmly onto the
rounded rear half of the cutting
head from above and let it click
into place.
4Press the button to switch on
the appliance.
5Begin use.
6Press the button to switch off
the appliance after use.
7After use, remove the comb
attachment by pressing the
locking tab at the back and
removing the attachment.
7
C
C
7
9
A
B
7
OPERATION ______________________________

26 ENGLISH
OPERATION ______________________________
Close shaving ...
... using the shaving attachment .
1If necessary, remove the attach-
ment by pressing in both side
catches and lifting off.
2Insert shaving attachment
carefully at the top and press
down until it clicks into place.
3Press the button to switch on
the appliance.
4Begin use.
5Press the button to switch off
the appliance after use.
Note
7Do not apply strong pressure
when shaving, as this could
damage the single blade foil.
C
C
8
B
8
Note
7You can remove the single blade
foil of the shaving attachment.
To do this, press both side catches
on the shaving attachment. Clean
the blade head with the cleaning
brush supplied.

ENGLISH 27
CLEANING AND CARE ____________________
Cleaning and care
7Switch off the appliance and
unplug the power supply unit
from the mains.
7Remove the attachment and clean
the blade head with the brush
supplied.
Caution
7If cleaning with the brush is not
sufficient, you can also rinse the
attachment under running water.
However, only do this once the
attachment has been removed.
7The cutting head on the
attachment does not normally
need to be oiled. If you clean the
attachment under running water
regularly but you also want to
maintain the original condition of
the cutting head for as long as
possible, it is worth oiling it at
regular intervals with the oil
provided.
7Use a soft, dry cloth or the brush
supplied to clean the appliance
housing and the charging unit.
Caution
7Never put the appliance, charging
unit or power supply unit in water
or any other liquid.
7Before using the appliance again,
ensure that all attachments have
been carefully dried using a soft
towel.
7Do not use cleaning agents.
Note
7Remove any clippings after each
use.

28 ENGLISH
CLEANING AND CARE_____________________
Storage
If you do not want to use the appli-
ance for a long period of time,
please store it carefully.
1Make sure it is unplugged, has
completely cooled down and all
the accessories are completely
dry.
2Store the parts in the original
box in a cool, dry place.
3Make sure the appliance is kept
out of reach of children.
Environmental note
This product has been made from
high-quality parts and materials
which can be re-used and recycled.
Therefore, do not dispose of the
product along with normal house-
hold waste at the end of its service
life. Take it to a collection point for
the recycling of electrical and elec-
tronic equipment where the batter-
ies are taken out of the device and
disposed of separately. This is indi-
cated by this symbol on the product,
in the operating manual and on the
packaging.
Please find out about collection
points operated by your local
authority.
Help protect the environment by
recycling used products.

ENGLISH 29
INFORMATION ___________________________
Technical data

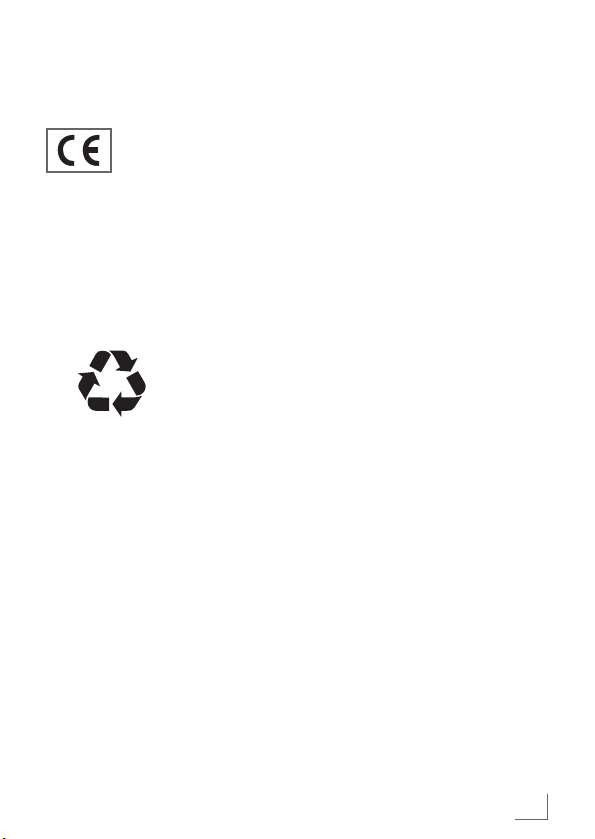

This product fulfils the
European directives
2004/108/EC,
2006/95/EC and 2009/125/EC.
Power supply
Batteries: Nickel metal hydride
Mains adapter:
100 – 240 V˜, 50/60 Hz
3.4 V DC 1000 mA
Ni-MH
Technical and design modifications are reserved.

www.grundig.com
72011 908 2500 11/49
AUS GUTEM GRUND
