Grundig S350DL User manual

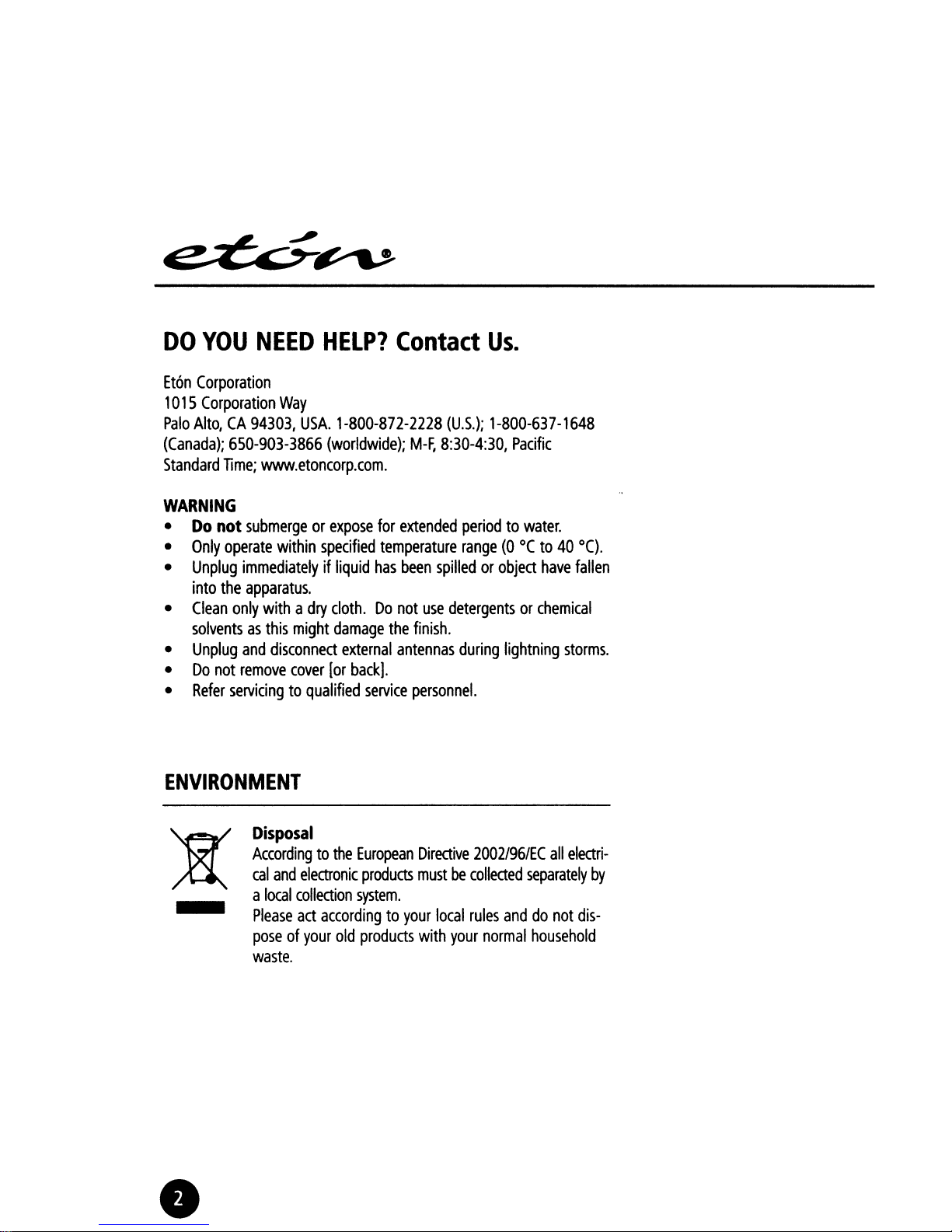

DO YOU NEED HELP? Contact Us.
Et6n Corporation
1015 Corporation Way
Palo Alto, CA 94303, USA. 1-800-872-2228 (U.S.); 1-800-637-1648
(Canada); 650-903-3866 (worldwide); M-F, 8:30-4:30, Pacific
Standard Time; www.etoncorp.com.
WARNING
• Do not submerge or expose for extended period to water.
• Only operate within specified temperature range (0 °C to 40°C).
• Unplug immediately if liquid has been spilled or object have fallen
into the apparatus.
• Clean only with a dry cloth. Do not use detergents or chemical
solvents as this might damage the finish.
• Unplug and disconnect external antennas during lightning storms.
• Do not remove cover (or backl.
• Refer servicing to qualified service personnel.
ENVIRONMENT
Disposal
According to the European Directive 2002/96/EC all electri-
cal and electronic products must be collected separately by
a local collection system.
Please act according to your local rules and do not dis-
pose of your old products with your normal household
waste .
•

OPERATION MANUAL

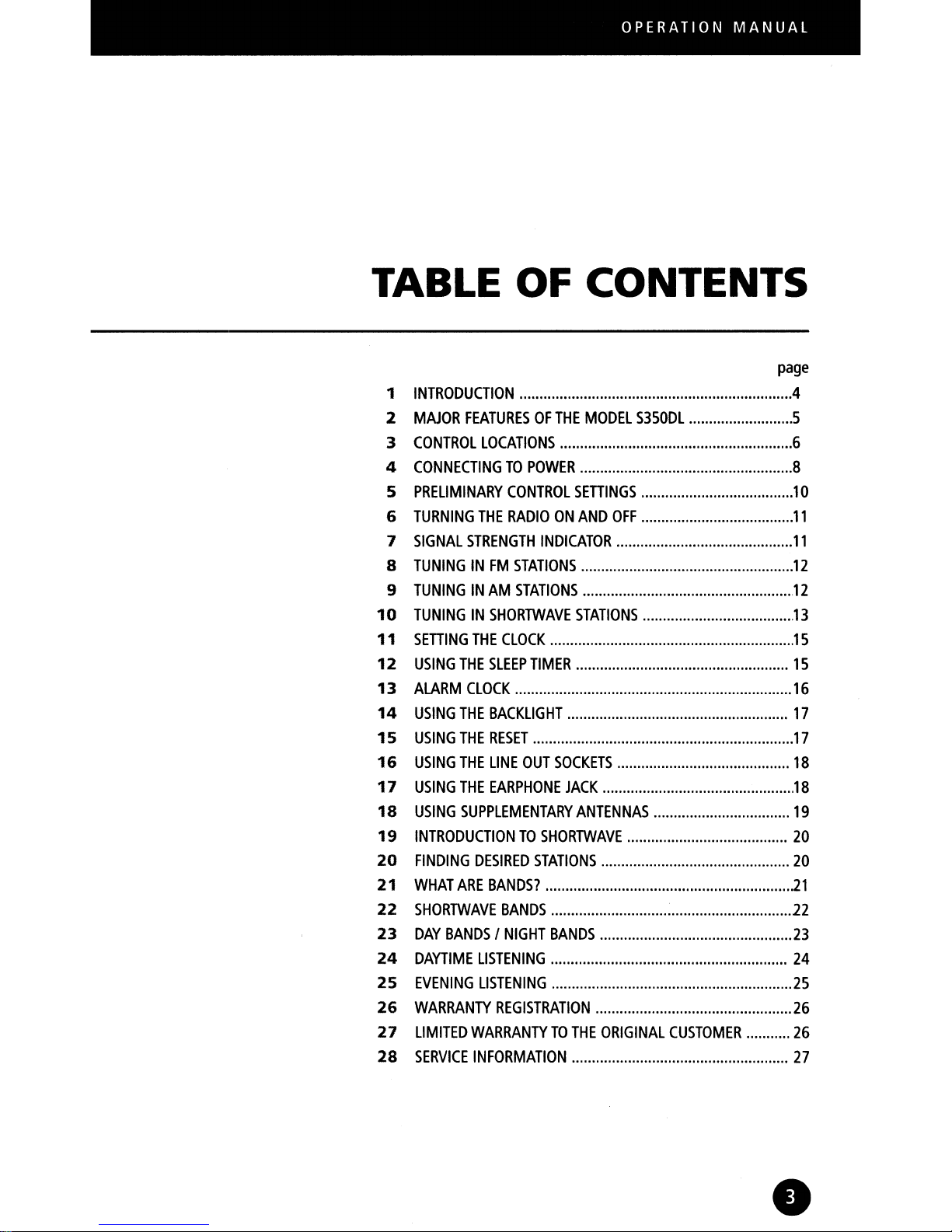

TABLE OF CONTENTS
page
1 INTRODUCTION 4
2
MAJOR FEATURES OF THE MODEl S350DL 5
3 CONTROL LOCATIONS 6
4 CONNECTING TO POWER 8
5 PRELIMINARY CONTROL SETIINGS 10
6 TURNING THE RADIO ON AND OFF 11
7 SIGNAL STRENGTH INDICATOR 11
8 TUNING IN FM STATIONS 12
9 TUNING IN AM STATIONS 12
10 TUNING IN SHORTWAVE STATIONS 13
11 SETIING THE CLOCK 15
12 USING THE SLEEP TIMER 15
13 ALARM CLOCK 16
14 USING THE BACKLIGHT 17
15 USING THE RESET 17
16 USING THE LINE OUT SOCKETS 18
17 USING THE EARPHONE JACK 18
18 USING SUPPLEMENTARY ANTENNAS 19
19 INTRODUCTION TO SHORTWAVE 20
20 FINDING DESIRED STATIONS 20
21 WHAT ARE BANDS? 21
22 SHORTWAVE BANDS 22
23 DAY BANDS / NIGHT BANDS 23
24 DAYTIME LISTENING 24
25 EVENING LISTENING 25
26 WARRANTY REGISTRATION 26
27 LIMITED WARRANTY TO THE ORIGINAL CUSTOMER 26
28 SERVICE INFORMATION 27
•

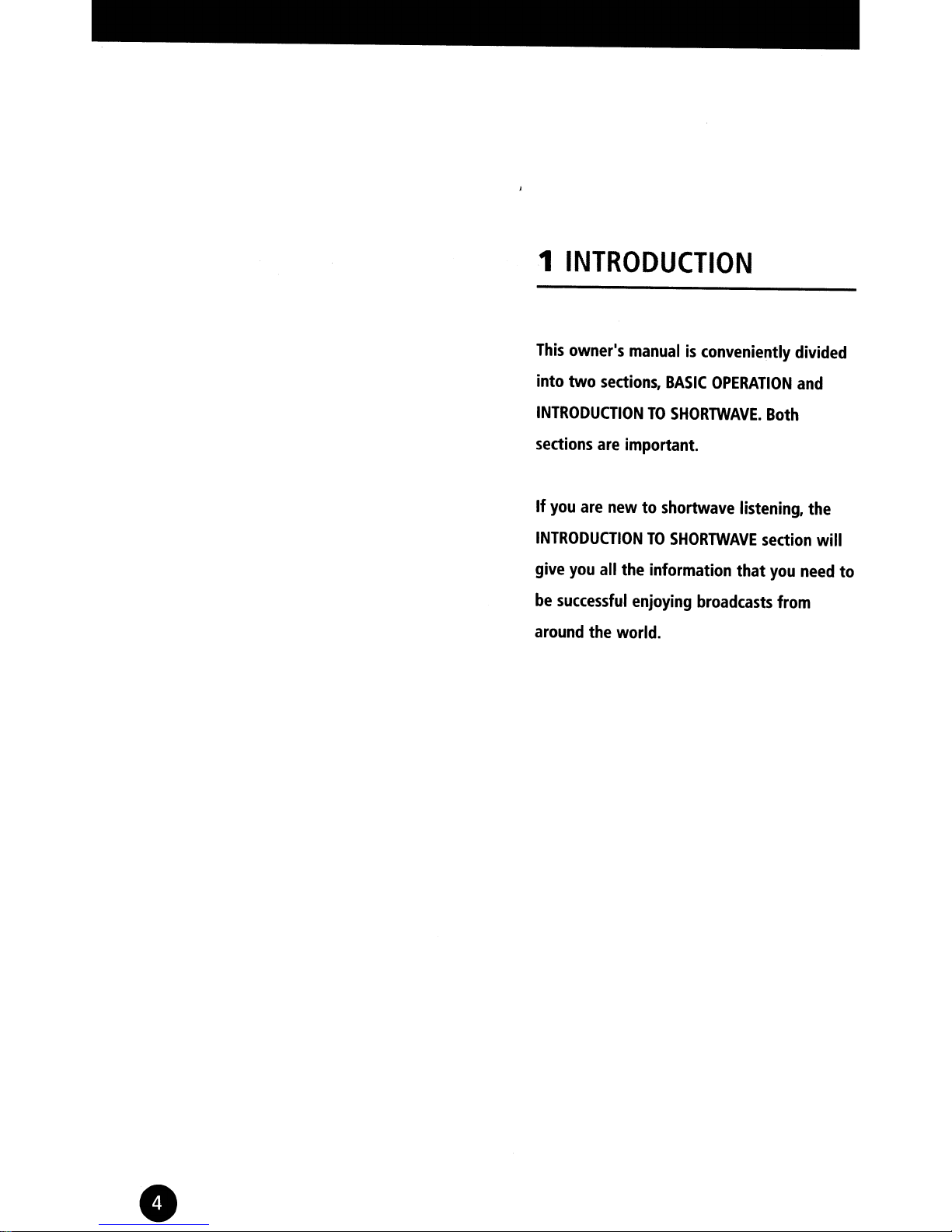

1 INTRODUCTION
This owner's manual is conveniently divided
into two
sections, BASIC OPERATION and
INTRODUCTION TO SHORTWAVE. Both
sections are important.
If you are new to shortwave listening, the
INTRODUCTION TO SHORTWAVE section will
give
you all the information that you need to
be successful enjoying broadcasts from
around the world.
•

OPERATION MANUAL

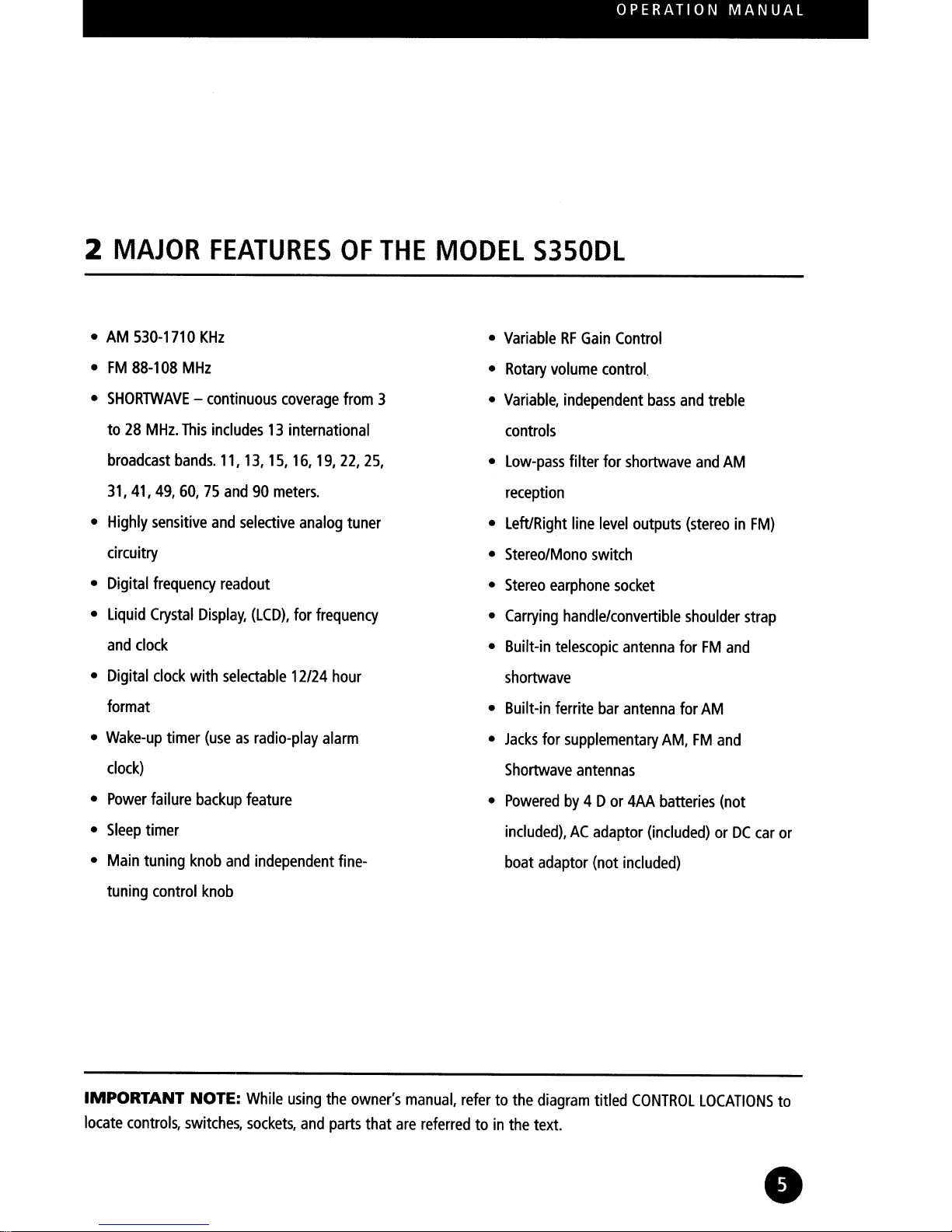

2 MAJOR FEATURES OF THE MODEL S350DL
• AM 530-1710 KHz
• FM 88-108 MHz
• SHORTWAVE - continuous coverage from 3
to 28 MHz. This includes 13 international
broadcast bands. 11, 13, 15, 16, 19, 22, 25,
31, 41, 49, 60, 75 and 90 meters.
• Highly sensitive and selective analog tuner
circuitry
• Digital frequency readout
• Liquid Crystal Display, (LCD), for frequency
and clock
• Digital clock with selectable 12/24 hour
format
• Wake-up timer (use as radio-play alarm
clock)
• Power failure backup feature
• Sleep timer
• Main tuning knob and independent fine-
tuning control knob
• Variable RF Gain Control
• Rotary volume control.
• Variable, independent bass and treble
controls
• Low-pass filter for shortwave and AM
reception
• Left/Right line level outputs (stereo in FM)
• Stereo/Mono switch
• Stereo earphone socket
• Carrying handlelconvertible shoulder strap
• Built-in telescopic antenna for FM and
shortwave
• Built-in ferrite bar antenna for AM
• Jacks for supplementary AM, FM and
Shortwave antennas
• Powered by 4 D or 4AA batteries (not
included), AC adaptor (included) or DC car or
boat adaptor (not included)
IMPORTANT NOTE: While using the owner's manual, refer to the diagram titled CONTROL LOCATIONS to
locate controls, switches, sockets, and parts that are referred to in the text.
•

3 CONTROL LOCATION
1
Power & Sleep Button
17
Volume Knob
2 Alarm Set Button
18
Bass Knob
3 Time Set Button
19
MW/SW1/SW2/SW3 Band Select
4 Hour Set Button 20 Bandwidth/FM Band Select
S Minute Set Button
21 Telescopic Antenna for FM/SW
6 Alarm On/Off Button
22
Carrying Handle
7 Backlight/Snooze Button
23 Shoulder Strap
8
Battery Power Indicator 24 DC Jack
9 Signal/Strength Indicator
2S Battery Compartment
10
Digital Frequency Readout
26 MW/SW Antenna Jack
11 LCD Display
27 FM Antenna Jack
12
Turning Knob (fast) 28
SW LPF On/Off
13
Turning Knob (slow) 29 Stereo/Mono switch
14 Reset Button
30 L&R Line Out
1S
MW/SW RF Gain Knob
31
Stereo Earphone Jack
16 Treble Knob
•

12 3 4 5
OPERATION MANUAL
6 7
8
9
10
~-11
1--- 12
1--- 13
r--.- 14
--15
28--
29--
27--
30--
26
31--
20 19 18 17 16
._--- 21
._----22
._----23
24
25
o

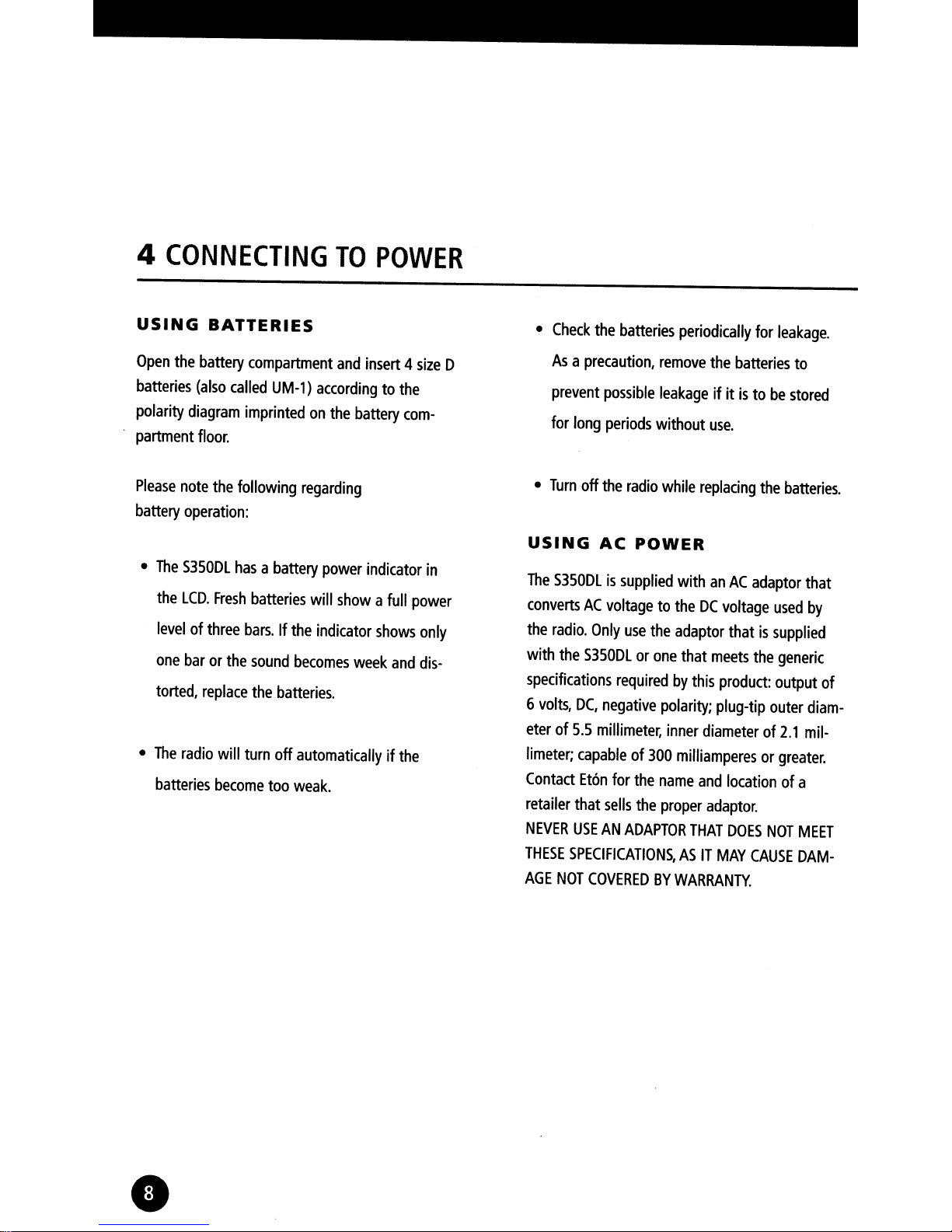

4 CONNECTING TO POWER
USING BATTERIES
Open the battery compartment and insert 4 size 0
batteries (also called UM-l) according to the
polarity diagram imprinted on the battery com-
partment floor.
Please note the following regarding
battery operation:
• The S350DL has a battery power indicator in
the LCD. Fresh batteries will show a full power
level of three bars. If the indicator shows only
one bar or the sound becomes week and dis-
torted, replace the batteries.
• The radio will turn off automatically if the
batteries become too weak.
•
• Check the batteries periodically for leakage.
As a precaution, remove the batteries to
prevent possible leakage ifit is to be stored
for long periods without use.
• Turn off the radio while replacing the batteries.
USING AC POWER
The S350DL is supplied with an AC adaptor that
converts AC voltage to the DC voltage used by
the radio. Only use the adaptor that is supplied
with the S350DL or one that meets the generic
specifications required by this product: output of
6
volts, DC, negative polarity; plug-tip outer diam-
eter of 5.5 millimeter, inner diameter of 2.1 mil-
limeter; capable of 300 milliamperes or greater.
Contact Eton for the name and location of a
retailer that sells the proper adaptor.
NEVER USE AN ADAPTOR THAT DOES NOT MEET
THESE SPECIFICATIONS, AS IT MAY CAUSE DAM-
AGE NOT COVERED BY WARRANTY .

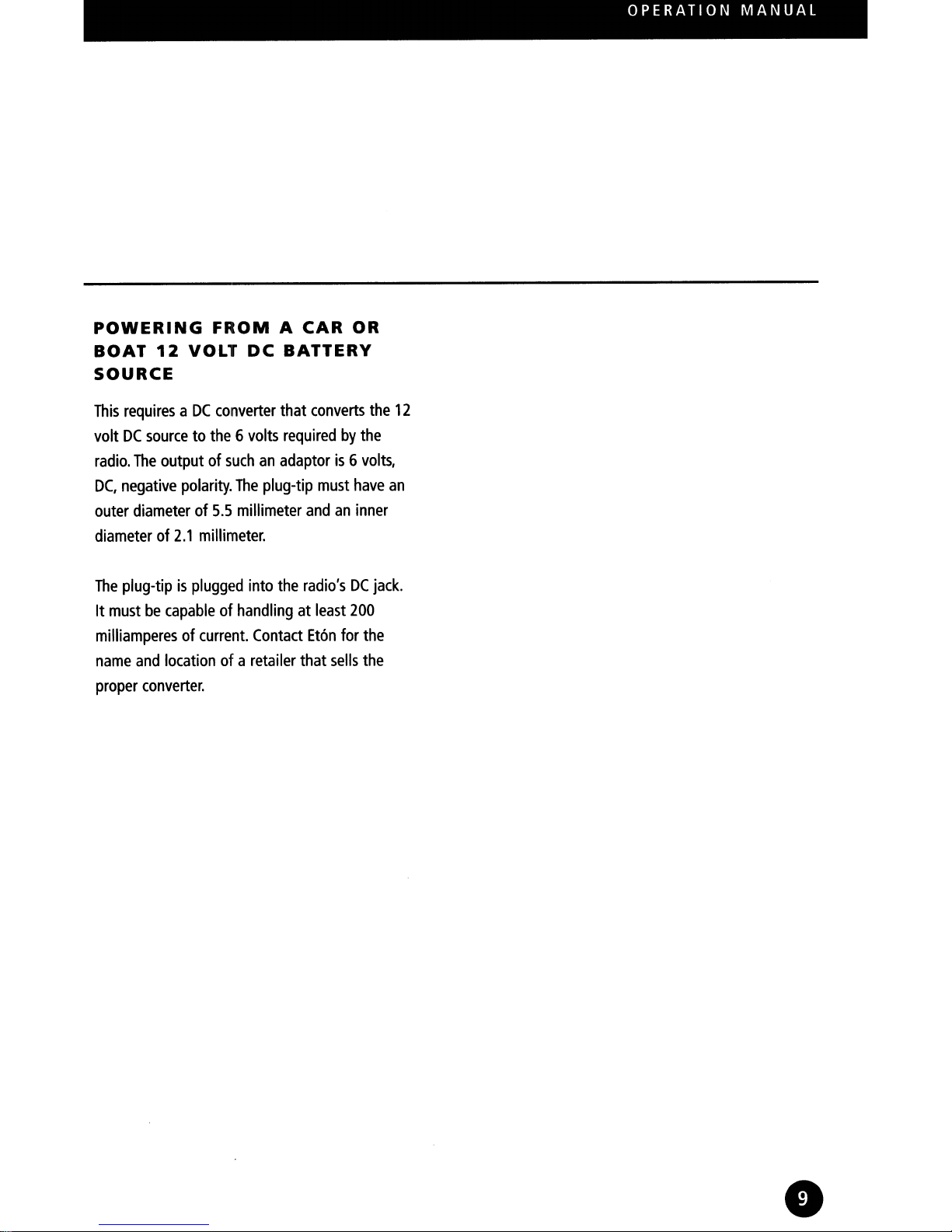

POWERING FROM A CAR OR
BOAT 12 VOLT DC BATTERY
SOURCE
This requires a DC converter that converts the 12
volt DC source to the 6 volts required by the
radio. The output of such an adaptor is 6 volts,
DC, negative polarity. The plug-tip must have an
outer diameter of 5.5 millimeter and an inner
diameter of 2.1 millimeter.
The plug-tip is pluggE!d into the radio's DC jack.
It must be capable of handling at least 200
milliamperes of current. Contact Et6n for the
name and location of a retailer that sells the
proper converter.
OPERATION MANUAL
•

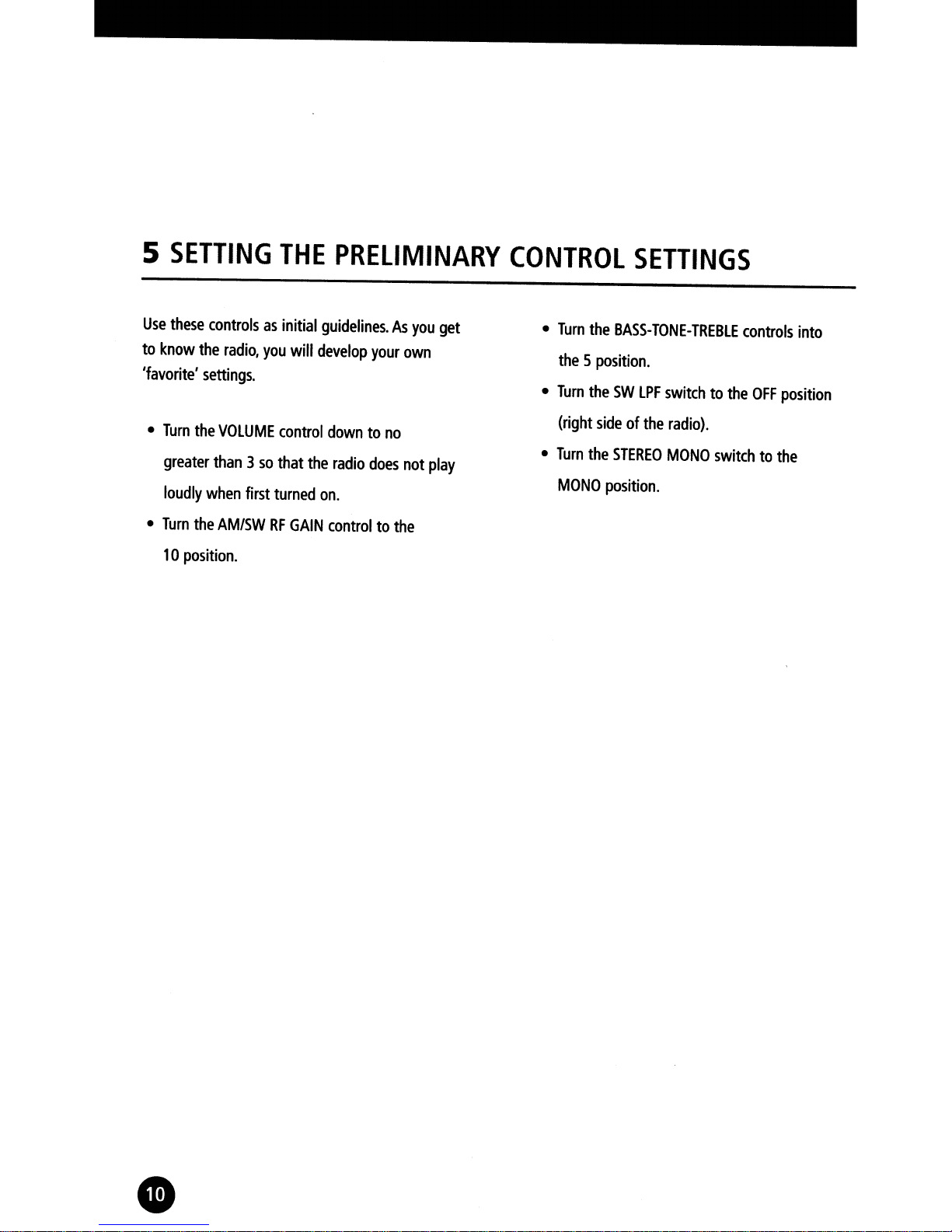

5 SETTING THE PRELIMINARY CONTROL SETTINGS
Use these controls as initial gUidelines. As you get
to know the radio, you will develop your own
'favorite' settings.
• Tum the VOLUME control down to no
greater than 3 so that the radio does not play
loudly when first turned on.
• Tum the AM/SW RF GAIN control to the
10 position.
• Turn the BASS- TONE-TREBLE controls into
the 5 position.
• Turn the SW LPF switch to the OFF position
(right side of the radio).
• Turn the STEREO MONO switch to the
MONO position.

OPERATION MANUAL
6 TURNING THE RADIO ON AND OFF
There are two ways to turn the radio on, with the
gO-minute timer feature or without the gO-minute
timer. To turn it off at any time, press the 'POWER
& SLEEP' button for about one second.
NOTE: When SLEEP TImes is off, the clock
always shows in the display.
1. WITH TIMER: A quick, short press of the
'POWER & SLEEP' button turns the radio on.
'90' shows in the display for about three sec-
onds, then the radio's normal frequency dis-
play shows. Turning it on this way causes it
play for 90 minutes, after which its timer turns
it off automatically (to minimize excess bat-
tery drain). To change this automatic turn-off
time from 90 minutes to a shorter time, see
the section titled USING THE SLEEP TIMER.
2. WITHOUT TIMER: A long press of approxi-
mately 3 seconds of the 'POWER & SLEEP'
button turns the radio on without engaging
the automatic 90-minute timer feature, caus-
ing the radio to play indefinitely when using
the AC adaptor, and turning off only when the
batteries drain or the radio is turned off.
When you are listening to stations, the signal
strength meter, in the upper right area of the dis-
play, will show the $trength level of reception.
•

8
TUNING
IN
FM
STATIONS
Fully
extend
the
telescopic
antenna
and
turn
on
the
radio.
Switch
the
BAND
WIDTH
FM
AFC
selec-
tor
to
the
FM
AFC
ON
position.
FM
appears
in
the
display,
as
well
as
FM
frequency
numbers
in
the
range
of
about
87-108
megahertz,
abbreviated
MHz.
Use
the
outer
'fast'
tuning
knob
to
find
sta-
tions,
fine
tuning
with
the
inner
'slow'
knob
when
needed.
When
Automatic
Frequency
Control
(AFC)
is
ON,
strong
signals
will
automatically
be
cap-
tured
and
given
precedence
over
weaker
ones.
With
AFC
turned
OFF,
the
weak
stations
inbe-
tween
stronger
ones
will
be
tuned
in
easier.
AFC
ON
is
generally
the
preferred
position.
•
Placing
the
STEREO
MONO
switch
in
the
STEREO
position
enables
FM
reception
in
stereo.
•
NOTE:
The
stereo
is
heard
from
earphones
or
headphones
and
it
is
also
heard
from
the
stereo
line-level
outputs
when
feeding
their
output
to
amplified
speakers
or
a
stereo
system.
•
Placing
the
STEREO
MONO
switch
in
the
MONO
position
will
improve
the
quality
of
a
poorly
received
station,
but
it will
not
be
heard
in
stereophonic
sound
from
the
line
level
outputs.
•
When
listening
through
the
built-in
speaker,
stereophonic
sound
is
not
heard.
Only
monau-
ral
sound
is
heard
from
the
built-in
speaker.
•If a
station
is
not
being
received
clearly,
swiveling
the
telescopic
antenna
may
result
in
improved
reception
.

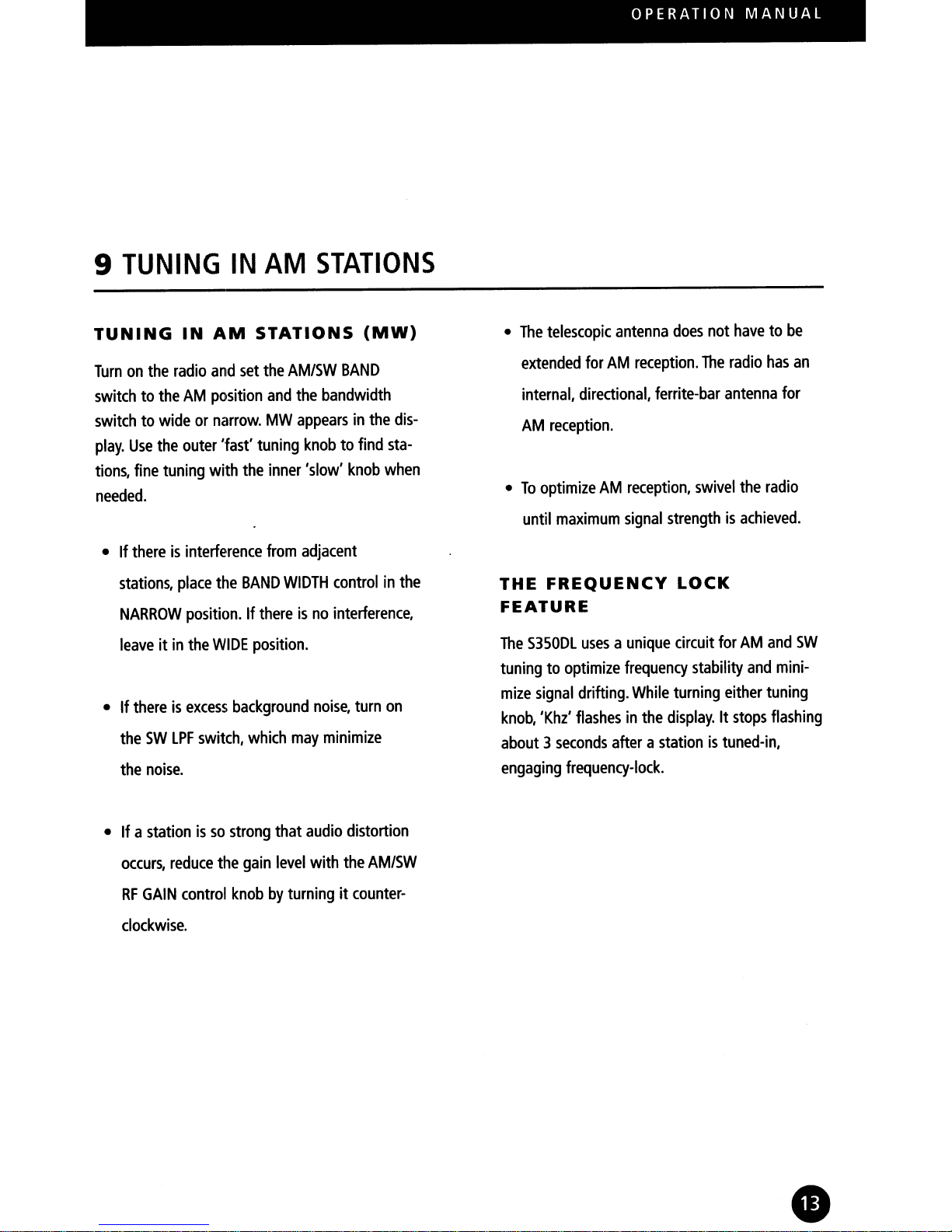

9 TUNING IN AM STATIONS
TUNING IN AM STATIONS (MW)
Turn on the radio and set the AM/SW BAND
switch to the AM position and the bandwidth
switch to wide or narrow. MW appears in the dis-
play. Use the outer 'fast' tuning knob to find sta-
tions, fine tuning with the inner 'slow' knob when
needed.
•If there is interference from adjacent
stations, place the BAND WIDTH control in the
NARROW position. If there is no interference,
leave it in the WIDE position.
•If there is excess background noise, turn on
the SW lPF switch, which may minimize
the noise.
•If a station is so strong that audio distortion
occurs, reduce the gain level with the AM/SW
RF GAIN control knob by turning it counter-
clockwise.
OPERATION MANUAL
• The telescopic antenna does not have to be
extended for AM reception. The radio has an
internal, directional, ferrite-bar antenna for
AM reception.
• To optimize AM reception, swivel the radio
until maximum signal strength is achieved.
THE FREQUENCY LOCK
FEATURE
The S350Dl uses a unique circuit for AM and SW
tuning to optimize frequency stability and mini-
mize signal drifting. While turning either tuning
knob, 'Khz' flashes in the display. It stops flashing
about 3 seconds after a station is tuned-in,
engaging frequency-lock.
•

10 TUNING IN SHORTWAVE STATIONS
IF YOU ARE ALREADY
FAMILIAR WITH SHORTWAVE:
Fully extend the telescopic antenna and turn on
the radio. Set the AM/SW BAND switch to the
SW1, SW2 or SW3 position and the BANDWIDTH
switch to wide or narrow. SHORTWAVE 1, 2
.
or 3 appears in the display. Use the outer 'fast'
tuning knob to quickly go to a desired frequency
that you already know or to the band' that you
want to tune around in, then fine tune stations
with the inner 'slow' knob when needed. If a sta-
tion is so strong that audio distortion occurs,
reduce the gain level with the AM/SW RF
GAIN control knob by turning it
counter-clockwise.
IF YOU ARE NEW TO SHORT-
WAVE OR NEED A REFRESHER
(also see the section titled INTRODUCTION TO
SHORTWAVE, later in this manual) Fully extend
the telescopic antenna and turn on the radio.
Get close to a window and fully extend the tele-
scopic antenna. Follow the instructions below,
depending on day or night listening.
If it is daytime, turn the AM/SW BAND switch
to the SW2 position. Use the fast tuning knob
and tune to 15100 KHz. This is the beginning of
the shortwave 19 meter band, one of the three
best daytime bands, extending from 15100-15600
KHz. Using the slow tuning knob, tune through
•
this band, carefully listening for stations.
Also try the 13 meter band (21450-21850 KHz)
and 16 meter band (17480-17900 KHz),
both in SW3.
If it is night, turn the AM/SW BAND switch to
the SW1 position. Use the fast tuning knob and
tune to 5800 KHz. This is the beginning of the
shortwave 49 meter band, one of the four best
night bands, extending from 5800-6200 KHz.
Using the slow tuning knob, tune through this
band. carefully listening for stations. Also try the
25 meter band in SW2 (11600-12200 KHz), 31
meters in SW2 (9400-9900 KHz) and 41 meters in
SW1 (7150-7600 KHz).
NOTE: If there is interference from adjacent sta-
tions, place the BAND WIDTH control in the NAR-
ROW position. If there is no interference, leave it
in the WIDE position. If there is excess back-
ground noise, turn on the SW lPF switch, which
may minimize the noise. If a station is so strong
that audio distortion occurs, reduce the gain level
with the AM/SW RF GAIN control knob by turning
it counter-clockwise.
The Frequency lock feature, described on page
13, also works with shortwave.

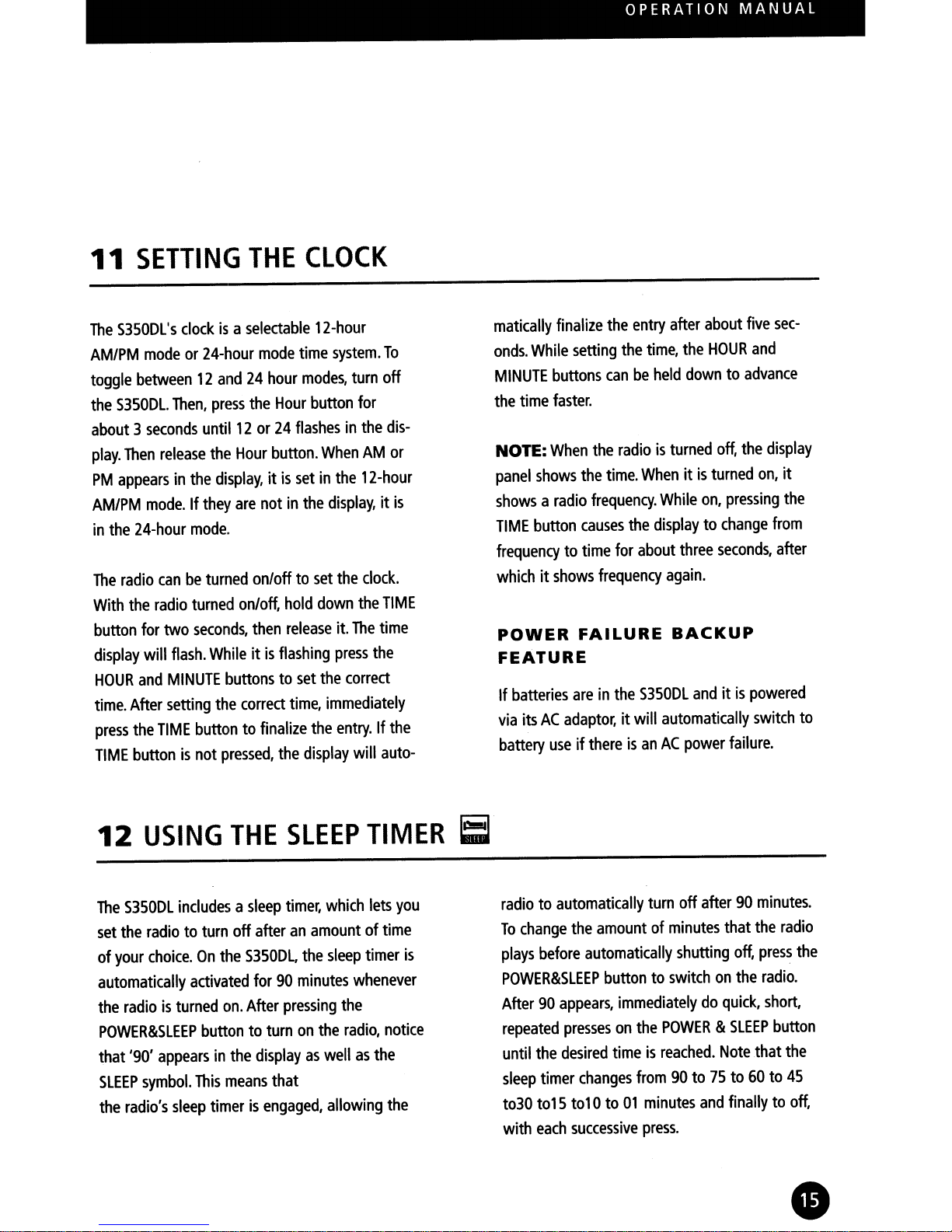

11 SETTING THE CLOCK
The S350DL's clock is a selectable 12-hour
AM/PM mode or 24-hour mode time system. To
toggle between 12 and 24 hour modes, turn off
the S350DL. Then, press the Hour button for
about 3 seconds until 12 or 24 flashes in the dis-
play. Then release thE! Hour button. When AM or
PM appears in the display, it is set in the 12-hour
AM/PM mode. If they are not in the display, it is
in the 24-hour mode"
The radio can be turned on/off to set the clock.
With the radio turned on/off, hold down the TIME
button for two seconds, then release it. The time
display will flash. While it is flashing press the
HOUR and MINUTE buttons to set the correct
time. After setting the correct time, immediately
press the TIME button to finalize the entry. If the
TIME button is not pressed, the display will auto-
12 USING THE SLEEP TIMER ~.
The S350DL includes a sleep timer, which lets you
set the radio to turn off after an amount of time
of your choice. On the S350DL, the sleep timer is
automatically activated for 90 minutes whenever
the radio is turned on. After pressing the
POWER&SLEEP button to turn on the radio, notice
that '90' appears in the display as well as the
SLEEP symbol. This means that
the radio's sleep timer is engaged, allowing the
OPERATION MANUAL
matically finalize the entry after about five sec-
onds. While setting the time, the HOUR and
MINUTE buttons can be held down to advance
the time faster.
NOTE: When the radio is turned off, the display
panel shows the time. When it is turned on, it
shows a radio frequency. While on, pressing the
TIME button causes the display to change from
frequency to time for about three seconds, after
which it shows frequency again.
POWER FAILURE BACKUP
FEATURE
If batteries are in the S350DL and it is powered
via its AC adaptor, it will automatically switch to
battery use if there is an AC power failure.
radio to automatically turn off after 90 minutes.
To change the amount of minutes that the radio
plays before automatically shutting off, press the
POWER&SLEEP button to switch on the radio.
After 90 appears, immediately do quick, short,
repeated presses on the POWER & SLEEP button
until the desired time is reached. Note that the
sleep timer changes from 90 to 75 to 60 to 45
t030 to15 tol0 to 01 minutes and finally to off,
with each successive press.
•

13
ALARM
CLOCK
SETTING,
ACTIVATING
AND
DEACTIVATING
(ALARM
CLOCK)
The
S350DL
includes
a
programmable
turn-on
timer,
which
allows
it
to
turn
on
at
preset
times,
like
an
alarm
clock.
With
the
radio
powered
on
or
off,
hold
down
the
ALARM
button
for
about
three
seconds
or
until
the
time
digits
start
flashing,
then
release
it.
While
they
are
still
flashing
press
the
HOUR
and
MINUTE
buttons
to
set
the
turn-on
time,
then
immediately
press
the
AL
ARM
button.
If
the
ALARM
button
is
not
pressed,
the
turn-on
time
will
automatically
be
set
at
the
time
you
selected
after
5
seconds.
To
activate/deactivate
the
turn-on
timer
feature,
with
the
radio
turned
on
or
off,
press
the
AL
ON/OFF
button,
causing
the
symbol
of a
speaker
to
appear
in
the
lower
right
corner
of
the
display.
When
the
speaker
symbol
is
in
the
display,
the
turn-on
timer
feature
is
activated.
When
it
is
not
in
the
display,
it
is
deactivated.
When
the
alarm
radio
is
on,
press
power
&
sleep
button
to
turn
it
off.
USING
THE
SNOOZE
FEATURE
When
the
timer
activates
and
turns
the
radio
on,
the
timer
activation
symbol
appears
flashing
the
display.
While
it
is
flashing,
press/release
SNOOZE/LIGHT
button.
The
radio
will
turn
off
and
then
turn
on
again
in
10
minutes.
This
process
can
be
repeated
3
times.
To
see
the
turn-on
time
at
any
time,
with
the
radio
on
or
off,
press
the
ALARM
button.
The
turn-
on
time
will
then
appear
in
the
display
for
about
four
seconds.
IMPORTANT
NOTES
ABOUT
THE
TURN-ON
TIMER
FEATURE
•
The
radio
can
be
turned
on/off
for
the
turn-on
timer
feature
to
function.
•
The
radio
will
automatically
turn
off
after
playing
for
30
minutes.
USING
THE
SNOOZE
FEATURE
When
the
timer
activates
and
turns
the
radio
on,
the
timer
activation
symbol
appears
flashing
in
the
display.
While
it
is
flashing,
press/release
the
SNOOZE/LIGHT
button.
The
radio
will
turn
off
and
then
turn
on
again
in
10
minutes.
This
process
can
be
repeated
3
times.

14 USING THE BACKLIGHT
The S350Dl has a backlight to light the display in
low light situations. It can be activated with the
following two methods.
1. To temporarily light the display, perform a
quick, short press on the BACKLIGHT button.
The backlight automatically turns off after
eight seconds.
2. To permanently light the display, press and
hold BACKLIGHT button for more than one
second. The backlight will be turned on until
the BACKLIGHT button is pressed again.
15 USING THE RESET
S350DL incorporates with a computer microchip
(the component that controls how the radio oper-
ates). If the radio has been subjected to abnormal
environmental conditions, the computer microchip
may malfunction and the following symptoms
may appear.
• The display shows nothing and the radio
cannot be turned on by pressing POWER &
SLEEP button.
OPERATION MANUAL
3. When the radio turn on/off, press the
following keys can turn on the back light for 8
seconds (ALARM SET button, TIME SET but-
ton, HOUR or MINUTE SET button, AL ON/OFF
button and BACKLIGHT button)
4. Moreover, when the radio turns on, rotate
the tuning knob (fast & slow) can also turn on
the backlight for 8 seconds.
CAUTION: leaving the backlight permanently
on will drain the batteries more rapidly.
• The display shows random characters or
does not work properly although the radio
can receive stations normally.
In these cases, you might need to reset the radio.
To reset the S350DL, unplug the external adaptor
(if one is being used) and remove the batteries
from the battery compartment. Insert a pointed
object, such as straightened paper clip, into the
RESET hole on the right, front side of the radio
and gently press and release the button inside the
hole. Then plug in the AC adaptor or reinstall the
batteries.
•

16 USING THE LINE OUT SOCKETS
The line out sockets (RCA sockets), labeled L, R,
provide industry standard left and right stereo
line level outputs that can be used to feed audio
to a tape recorder, stereo system, or any device
17 USING THE EARPHONE JACK
The earphone jack can be used with stereo head-
phones using a 1/8 inch (3.5 millimeter) plug.
Sound is in stereo .
•
with audio line level inputs. The output is stereo
when the radio is tuned to an FM station broad-
casting in stereo.

OPERATION MANUAL
18 USING SUPPLEMENTARY ANTENNAS
SHORTWAVE ANTENNAS. This radio can be
used with basic, 10n£1 wire antennas and other
high impedance shortwave antennas (optimally
500 ohm). The length of a long-wire antenna
should be anywhere from about 30·100 feet (10-
30 meters). Best performance is from copper wire.
The antenna should be above ground, preferably
running in a straight line. Non-conductive
insulators should be used on both ends of the
wire to prevent signal loss. The wire is plugged
into the red colored spring socket, AM,SW
ANT., on the back of the radio. Connecting a
ground wire to the black spring socket, GND,
often helps reception, but is not mandatory. The
ground wire should be connected to a cold water
pipe or a ground rod. If no water pipe or ground
rod is available, connect a wire about the same
length as the antenna wire and lay it on the
ground. NEVER CONNECT THE GROUND WIRE TO
A GAS PIPE.
AM ANTENNAS: Any high impedance (opti-
mally 500 ohm) AM antenna can be used, includ-
ing long-wires and tuned loops. A ground wire, as
discussed under SHORTWAVE ANTENNAS, is even
more helpful during AM reception and often
improves reception considerably, even when no
supplementary AM antenna is used.
FM ANTENNAS: Connect FM antennas to the
FM ANT. CABLE FM socket on the back of the
radio. These antennas should have an impedance
of 75 ohms. Most antennas fed with coaxial cable
are 75 ohm antennas. If your coaxial cable has a
'F' plug, like that used on North American TV's
and VCR's, use a F to PAL converter plug to fit the
European style PAL socket on the radio. (Radio
Shack part number 278-265).
•

19 INTRODUCTION TO SHORTWAVE
Shortwave enables you to hear stations from
around the world. Now that you have a short-
wave radio, no doubt you'll want to hear
worldwide stations right away. If you're new to
shortwave, please take some time to learn the
basics outlined below. To successfully listen to
shortwave stations you must know how to find
20 FINDING DESIRED STATIONS
HOW TO IDENTIFY WHAT
YOU'RE LISTENING TO AND
HOW TO FIND STATIONS THAT
YOU WANT TO HEAR
We recommend the use of a comprehensive
shortwave directory, especially if you want to hear
specific countries or to identify the station you're
listening to. Such a directory will alphabetically
list the countries broadcasting on shortwave,
showing their language, target area, broadcast
time, and frequency that is used. The best short-
•
them. They are found in the shortwave 'bands'. If
you're an experienced shortwave listener, you'll
already know what bands are and how to use
them, but if you're new, you'll need to learn
about bands first. After that, you will have excel-
lent success. Please read on.
wave directory is PASSPORT TO WORLD BAND
RADIO, available in major bookstores. Published
by International Broadcasting Services, Ltd., Box
300, Penn's Park, Pennsylvania 18943 or available
at www.passband.com.This publication has sepa-
rate chapters for English and non-English broad-
casts, titled World-Wide Broadcasts In English and
Voices From Home.
