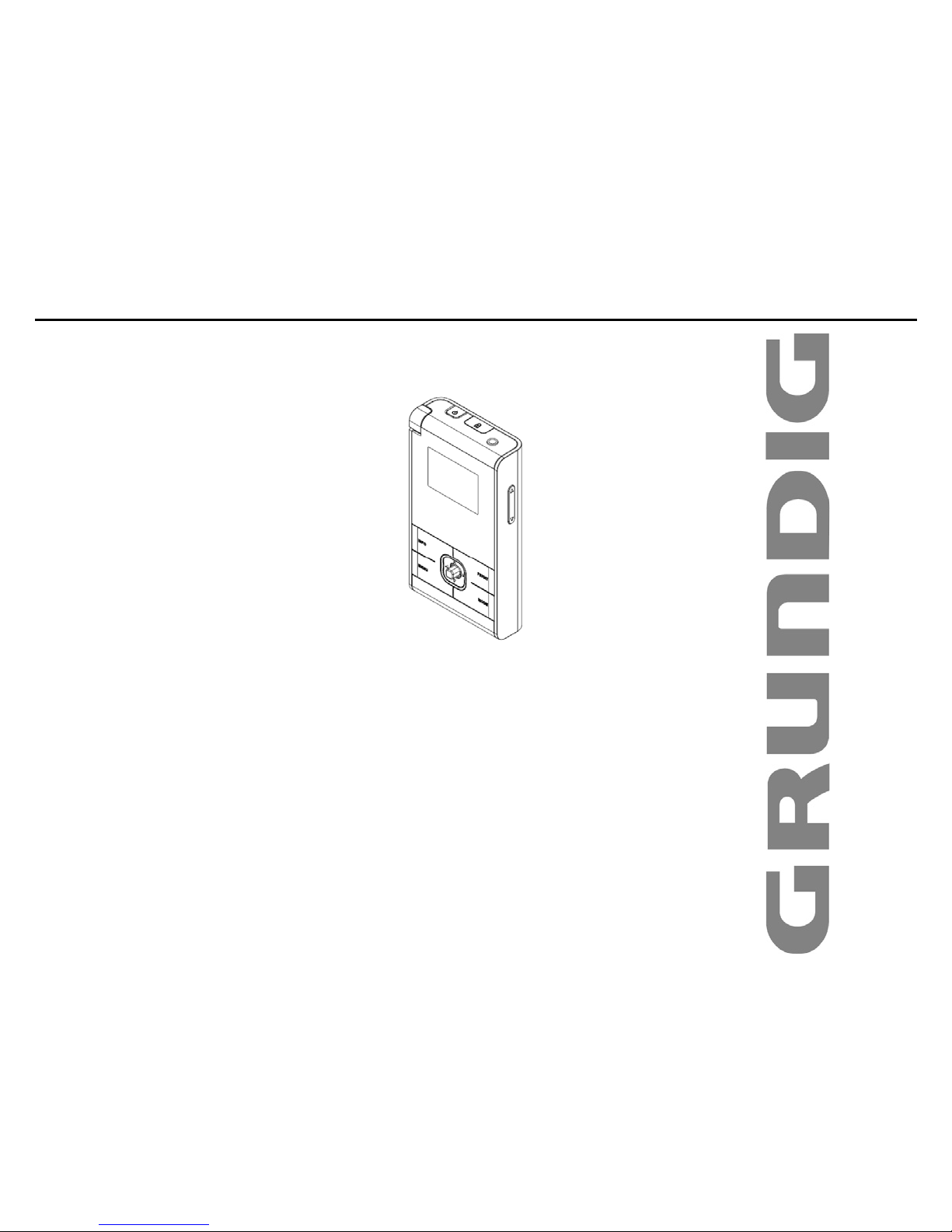

Grundig Roam GPR800DAB User manual

Grundig Roam
1
DAB+ PORTABLE DIGITAL RADIO
GPR800DAB
The Gold Technical Support Line: 1902 215 259
(Charges will apply at $2.95 per minute)

Grundig Roam
Introduction
Thank you for buying this GRUNDIG product, which is
designed to give you many years of trouble-free service.
You may already be familiar with using a similar unit, but
please take the time to read these instructions.
Safety is important
Your safety and the safety of others is very important.
Therefore, please ensure you read the “Safety
Instructions carefully” before you operate this unit.
Warranty
In the unlikely event that your product fails to work
normally, please call the below free phone numbers to
discussthe problem with one of our qualified service
engineers.
Australia
GRUNDIG Warranty: 1800 509 394
New Zealand
GRUNDIG Warranty: 0800 450 259
1

Grundig Roam
CONTENTS
Introduction………………………………………….
1 Generation Operation………………………………
15-16
Safety Instructions….………………………………
3-5 Troubleshooting…………………………………….
17
Controls and Features…………………………….
6-8 Specification………………………………………..
18
Basic Operation…………………………………….
9 Warranty…………………………………………….
19
DAB+Station List…………………………………..
01
FM Mode…………………………………………….
11-01
Store and Play Preset Stations…………………..
21
Setting Menu………………………………………..
41-31
2

Grundig Roam
Safety Instructions
Ensure that you read all of these safety instructions
carefully, before operating this unit.
Safety Considerations
•Do not use the unit in humid or damp conditions.
•Do not allow the radio to get wet. You must keep it
away from dripping or splashing water.
•Do not cover the ventilation holes as this may cause
the unit to overheat.
•No naked flame sources, such as candles or
cigarettes, should be used near the unit.
•Do not place any objects filled with liquids, such as
vases or jugs, on or near the unit.
Battery Pack
The battery pack which is built into your radio is designed to
provide several years of service. When the batteries can no
longer store sufficient energy to power your radio after
having been charged they should be replaced.
Replacement battery packs will be available from GRUNDIG.
The old battery pack should be recycled or disposed of in an
environmentally friendly way as prescribed by your local
regulations.
Cleaning
Do not use any liquids or aerosol cleaners, as this may
damage the unit. Use a soft, dust free cloth.
Servicing
There are no user serviceable parts in the unit. When
servicing, refer to qualified service person.
Consult your retailer if you are ever in doubt about the
installation/operation/safety of the product.
3

Grundig Roam
What is DAB+
DAB+ was developed in Europe by a consortium of
broadcasters and manufacturers. DAB+ uses digital
compression techniques to transform the source material,
i.e. music and speech, into better quality audio.
Interference Free Reception
Analogue systems suffer from an effect called “multipath
distortion”. This is because waves do not behave in an
orderly fashion, but bounce and reflect off buildings etc.
DAB+sees this as an advantage and uses the directed
and reflected signals to reinforce the end result, allowing
for better service more of the time.
No Need to Re-tune
A single DAB+frequency can be used to cover the whole
of the Australia, so solving many problems experienced
with the earlier analogue system. DAB+scans
automatically and tunes-in all of the available stations in
your area.
Scrolling Text
Broadcasters can transmit text to your radio. This way you
can read the name of the DJ, artist, song title or any other
information they choose.
DAB+ Coverage
Check your local coverage at
www.digitalradioplus.com.au, or alternatively text
0409-DRPLUS to receive an SMS confirming whether you
reside in a DAB+ broadcast area.
4

Grundig Roam
1
Getting Started Using Headphones
Carefully remove your DAB+ Digital Radio from the box.
We recommend keeping the packaging for future reference.
In the Box
Inside the box you will find:
•DAB+ Radio (Main Unit)
•Headphones
•User Guide
To listen to your DAB+ Digital Radio via Headphones, you will
require headphones with a 3.5 mm diameter stereo plug
(included). The Headphone Socket is located on the back of
the unit. Plug the Headphone Jack into the Headphone socket,
the speaker sound will automatically turn off once the
headphones are plugged in.
5
•
•Plug Type Power Adaptor•
•USB Cable

Grundig Roam
FRONT VIEW
1. Antenna
2. Display Screen
3. Navigate Button
4. Preset Button
5. Mode Button
6. Info Button
7. Menu Button
6
CONTROLS AND FEATURES

Grundig Roam

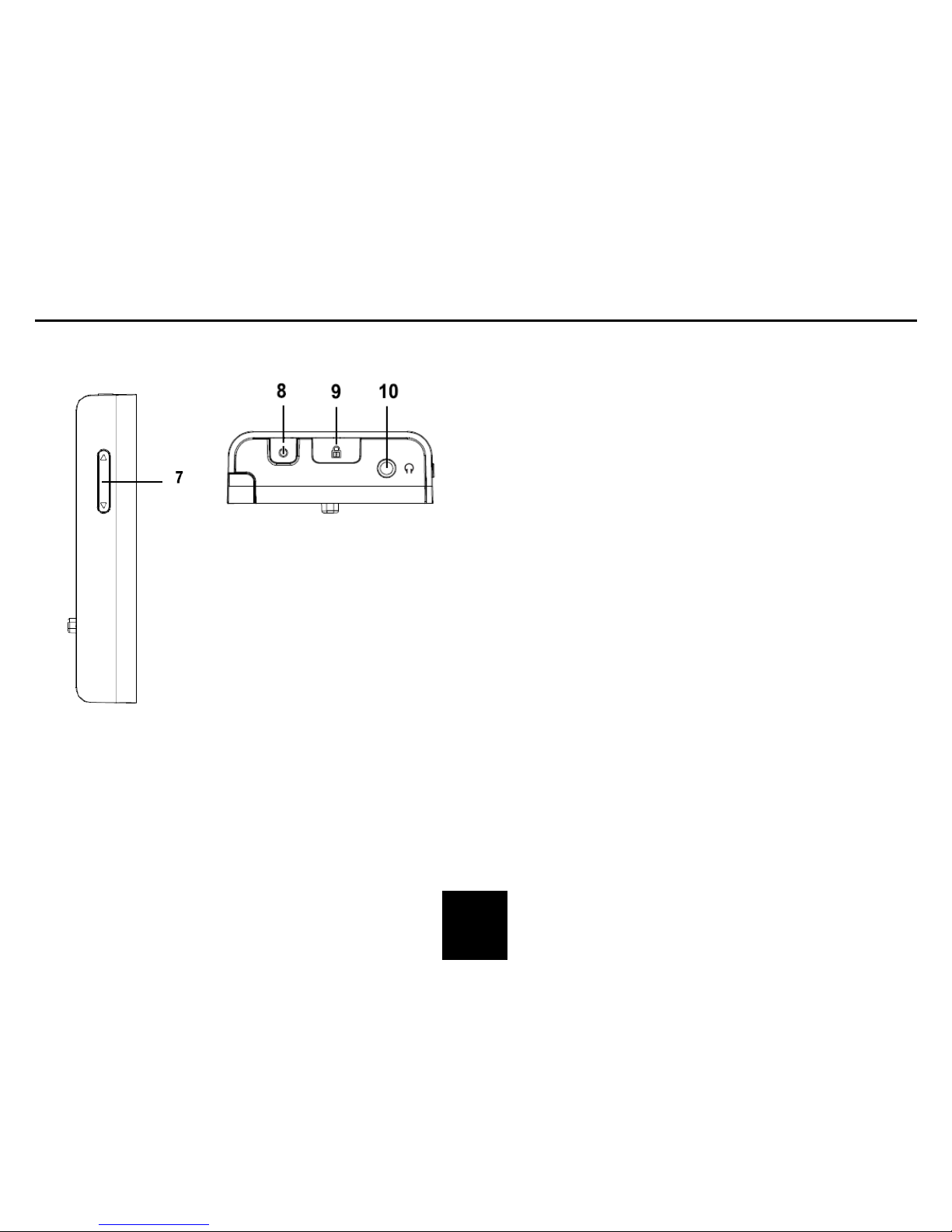

SIDE VIEW TOP VIEW
Rechargeable Battery
This unit includes a rechargeable Li-ion Polymer battery pack.
For most efficient use, please make sure you charge the unit
overnight before using. However if this is not possible then
charge for 4 hours prior to operation (this is the minimum time).
The Grundig Roam has a charge management circuit that
ensures that it is never over-charged. It will automatically stop
charging, when the battery is full.
7. Volume Button
8. Standby Button
9. Key-Lock Button
10.
Headphone Socket
7

Grundig Roam
BOTTOM VIEW
BACK VIEW
13. Loudspeaker
SCREEN VIEW
11. Recharge Socket
12.
Recharge Indicator
Light (The blue light
displays when the
unit is charging)
8

Grundig Roam
BASIC OPERATIONS
Press the button to switch the radio on or off.
Note: When you switch on your Roam Digital Radio for
the first time, it will automatically scan and store all
available DAB+ Stations. When the scan is complete the
last radio station found will begin to play.
Press the Navigation Buttons to browse through the radio
station list.
Adjusting the volume level
Press the or buttons on the side of radio to adjust the
volume level.
Changing Stations
To change the radio station, press the MENU button and the
‘station list’ will appear on the display. Press the Navigate Button
to confirm. Then push the Navigate Button left or right to scroll
through the station list and find the station you want to listen to.
9

Grundig Roam
DAB+ STATION LIST
Station Scan
Note: For best results - place your radio in an area with
strong signal position. Press the Navigate Button
backwards to return to the previous Menu, if required.
To search for new digital radio stations, press the Menu
Button and then use the Navigate Button to scroll through and
find ‘Full scan’. Then press the Navigate Button to confirm.
The radio will search for any new stations and update the
station list automatically.
Tuning to a FM station
Manual Tuning
To manual search for a FM station move the Navigate Button
to the left or right to manually change the frequency by
0.05MHz per step.
Auto Tuning
To conduct an auto scan in FM Mode push the Navigate
Button to the left or right to select Auto Scan from the Main
Menu. Then press the Navigate Button to confirm. The radio
will automatically search for the next available station and
begin to play.
FM MODE
To listen to FM stations on your ROAM Digital Radio, press the
Mode Button to select the FM option. To go back to DAB+,
press the Mode Button again.
10

Grundig Roam
Scan Setting
To change the Scan Settings, press the Menu Button and
scroll through the options to find the ‘Scan Setting’
Sub-Menu. Once found, press the Navigate Button to
confirm.
In the Scan Setting Sub-Menu, move the Navigate Button up
or down to select either Strong Stations Only (this will only
show the strong signal stations and remove weak stations) or
All Stations (this will display all possible stations). When you
have highlighted your selected option, press the Navigate
Button to confirm.
Note: If you wish to go back to the previous Menu to
change any options, move the Navigate Button
downwards to go back.
Audio Setting
To change the Audio Settings, press the Menu Button and
scroll through the options to find the ‘Audio Setting’
Sub-Menu. Once found press the Navigate button to confirm.
In the Audio Setting Sub-Menu, move the Navigate Button up
or down to select either Stereo Allowed or Forced Mono.
When you have highlighted your selected option, press the
Navigate Button to confirm.
11

Grundig Roam
Store and PlayPreset Stations
Storing Preset Stations
You can store up to 40 of your favourite stations in both DAB+
and FM mode.
Storing a Station
To store a DAB+ or FM Station as a preset, select and
play the station you want to store. Then press & hold the
Navigate Button until ‘Preset Stored’ is displayed on the
screen. Use the Navigate Button to select the preset
number you want to store. If the chosen preset location
already contains a station, this will be shown on the
display. Press the Navigate Button to confirm and store
the preset.
Playing a Station Preset
To play a station preset, press the Mode Button to select
either DAB+ or FM. Then press the Preset Button. ‘Preset
Recall’ will be shown on the display and then you can use
the Navigate Button to select the preset number you want
to play and press to confirm and play.
12

Grundig Roam
Setting Menu
Please refer to the Menu chart on the right. This shows
you the setting options provided to you in this radio. To
enter the Main Menu, press the Menu Button and the
first item you will see on your display will be ‘Station
list’. Move the Navigation Button in an upwards or
downwards motion to cycle through the following
options. To confirm press the Navigate Button.
DAB MODE
FM MODE
System
13

Grundig Roam
DRC (Dynamic Range Control)
Setting the DRC allows you to set the compression level of the
station being played.
Note: If you set the DRC to off, there will be no sound
compression. If you set the DRC to low, there will be little
compression and if you set the DRC to high, there will be
maximum compression placed on the station you are
listening to.
Press the Menu Button and then move the Navigation Button
upwards or downwards to select the ‘DRC’ Menu.
Press the Navigate Button to confirm and then select the setting
in the Menu you which to set.
Station Order
You can change the station order that the DAB+ stations are
displayed in.
You can choose from Alphanumeric (this will display all
stations in alphanumeric order) and Ensemble (this will list all
active stations first).To access and change these settings,
press the Menu Button and then move the Navigation Button
upwards or downwards to select the ‘Station Order’ Menu.
Press the Navigate Button to confirm and then select the
setting in the Menu you which to set.
Trim
The Trim setting allows you to remove any non-receptive
stations from your station list in DAB+ Mode. This will mean
only strong stations will be included in the DAB+ List.
To change the Trim setting, enter the Main Menu and use the
Navigate Button to scroll through the settings. Press the
Navigate Button to confirm and select Trim option.
14

Grundig Roam
Backlight Settings
If you wish to change the backlight display, press the Menu
Button and then move the Navigation Button upwards or
downwards to select the ‘System’ Menu. Press the Navigate
Button to confirm and then select the ‘Backlight’ setting in the
Menu. Press the Navigate Button to confirm. Select from
‘High’ (this will set the backlight display to strong bright light),
‘Medium’ (this will set the backlight display to medium bright
light), and ‘low’ (this will set the backlight display to weak
light).
Language
If you wish to change the display language, press the Menu
Button and then move the Navigation Button upwards or
downwards to select the ‘System’ Menu. Press the Navigate
Button to confirm and then select the ‘Language’ setting in the
Menu. Press the Navigate Button to confirm. Then select the
language you wish to use and confirm.
SW Version
If you wish to view the radio software, press the Menu Button and
then move the Navigation Button upwards or downwards to
select the ‘System’ Menu. Press the Navigate Button to confirm
and then select the ‘SW Version’ setting in the Menu. Press the
Navigate Button to confirm and the information will be displayed.
15

Grundig Roam
Enable Key-lock
When key-lock is enabled, the control buttons are deactivated
to avoid accidental operation in your bag etc.
Press and hold the button on top of unit, until
‘Key-locked’ is displayed on the screen. The buttons will now
be locked. Press and hold the button again and the lock
function will be disabled.
Information
To view the station information, press the INFO Button
repeatedly and the information will be displayed in the second
line of the display.
Factory Reset
Conducting a Factory Reset, will erase all unit settings, and will
return the unit back to the initial settings. The radio will
automatically run a full DAB+ scan and compile a new station list.
To activate the Factory Reset, press the Menu Button and then
move the Navigation Button upwards or downwards to select the
‘System’ Menu. Then select the “Factory Reset” option and select
Yes with the Navigation Button to confirm.
16

Grundig Roam
Troubleshooting
If a fault occurs, first check the points listed below before taking the radio for repair. If you are unable to solve a problem by following the
below hints we suggest you consult you retailer or service professional.
WARNING: Under no circumstances should you try to repair the unit yourself, as this would invalidate the warranty.
NOITULOSESUACELBISSOPMELBORP
No Sound Headphones may not be connected properly.
The volume may have been set to low.
Reconnect your Headphones firmly.
Adjust the Volume level of the radio.
The Buttons on the Unit
are not Responding
Electrostatic discharge or interference from
other electrical equipment.
Turn the unit off and wait for 5 – 10 seconds
and turn the unit back on
Radio Poor Reception There is weak aerial signal or there may be
interference from other electrical equipment.
Keep the unit away from other electrical
equipment, where possible.
17

Grundig Roam
SPECIFICATIONS
Model number …………………......... GPR800DAB
Power Supply…………………............ DC 3.7V (Built-in Rechargeable Battery)
Frequency range (DAB+) ………......... DAB+ (174-240MHz)
FM (87.5-108MHz)
Weight (incl. headphones) ………....... 48 grams
18

Grundig Roam
Warranty
Please keep your receipt as proof of purchase. This
product is warranted for any defect in the materials or
workmanship for one year after the original date of
purchase. This product is for normal domestic and office
use only. This warranty does not cover damage from
misuse or neglect, accidental damage, vermin infestation,
excessive voltages such as lightning or power surges or
any alteration that affects the performance or reliability of
the product.
In the unlikely event that your product fails to work
normally, please contact the GRUNDIG Warranty on
1800 509 394 (Australia) or 0800 450 259 (New
Zealand) and have your receipt of purchase on hand.
This warranty is in addition to, and does not diminish,
your statutory or legal rights.
PO BOX 6287
Silverwater NSW 1811
www.grundig.net.au
19
