GSi 40 Series Instructions for use

78 Ft Diameter Bin
Models:
2.66 IN. CORRUGATION 40–SERIES BIN
Construction Manual
PNEG-4078-O15
Version 1.2
Date: 12-18-20
PNEG-4078-O15

All information, illustrations, photos, and specifications in this manual are based on the latest
information available at the time of publication. The right is reserved to make changes at any
time without notice.
2Pneg-4078-O15 78 Ft Diameter 40-Series Bin

Table of Contents
Contents
Chapter 1 Safety Precautions ....................................................................................................................7
Safety Guidelines ........................................................................................................................7
Cautionary Symbols ....................................................................................................................9
Safety Decals............................................................................................................................10
Safety Sign-off Sheet.................................................................................................................13
Chapter 2 General Overview ....................................................................................................................15
General Information...................................................................................................................15

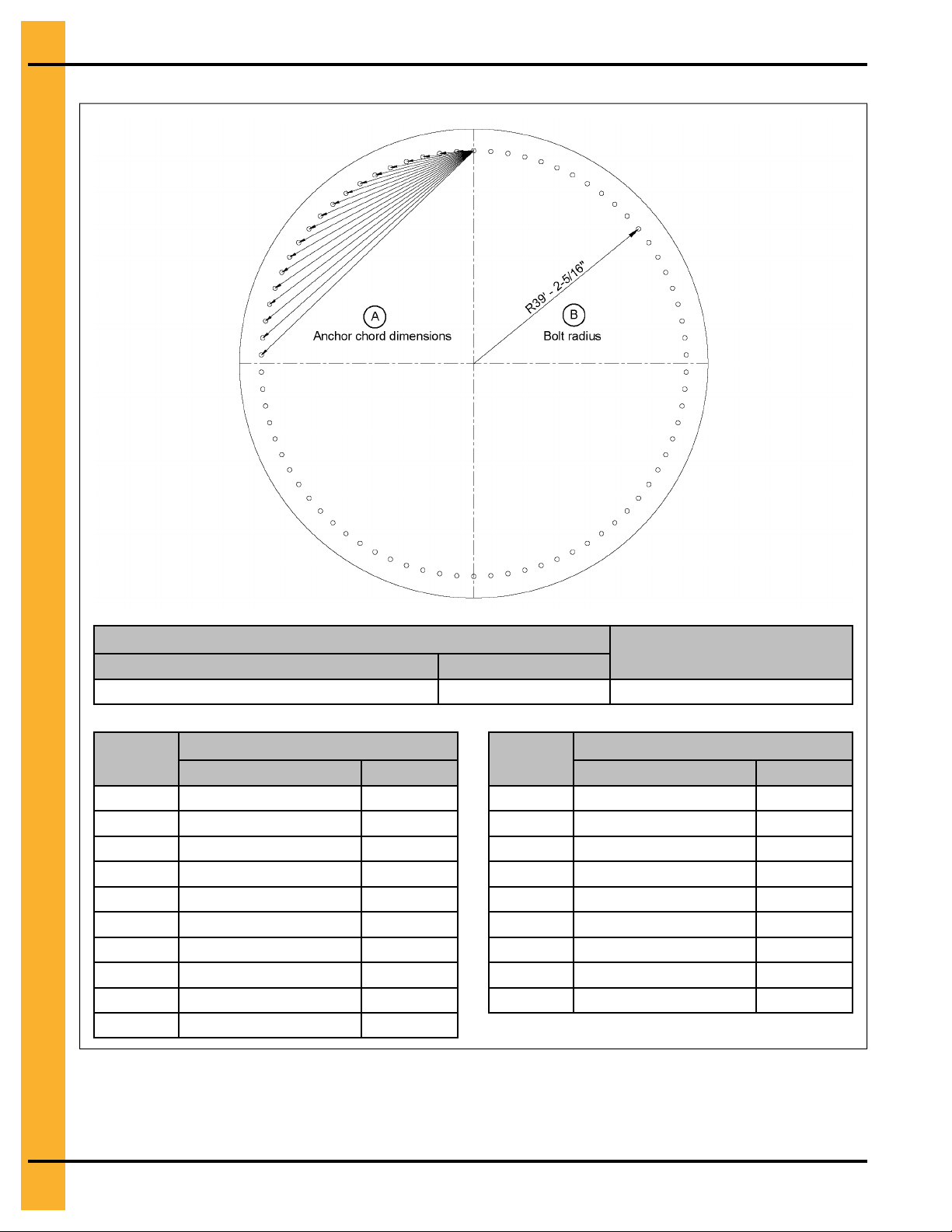

Anchor Bolt Charts ....................................................................................................................15
Tools Required for Construction..................................................................................................17
Guidelines for Proper Storage of Grain Bin Materials Prior to Construction .....................................17
Overview for a Typical Bin Installation .........................................................................................18
Guidelines for Construction Procedures and Lifting Jack Usage ....................................................19
Guidelines for Placement of the Decal Sidewall Sheet ..................................................................20
Sample Gauge Sheet ................................................................................................................20
Chapter 3 Hardware Requirements..........................................................................................................23
Bolt and Nut Pairings .................................................................................................................23
Hardware for 3–Post Sidewall Sheets on bins that are 18 to 90 Ft in Diameter and 105 Ft Bins that are
27 Rings and Shorter.....................................................................................................23
Bolt Torque Specifications ..........................................................................................................25
Identifying Bolt Grades...............................................................................................................25
Color Chart for Bin Hardware Bucket Lids....................................................................................26
Bolt Identification.......................................................................................................................27
Bolt S-275.................................................................................................................................27
Bolt S-10260.............................................................................................................................27
Bolt S-277.................................................................................................................................27
Bolt S-7485...............................................................................................................................28
Bolt S-7487...............................................................................................................................28
Bolt S-7486...............................................................................................................................28
Bolt S-7488...............................................................................................................................29
Bolt S-10252.............................................................................................................................29
Bolt S-10261.............................................................................................................................30
Bolt S-10274.............................................................................................................................30
Chapter 4 Assembling Sidewall Sheets ...................................................................................................31
Color Codes for Sidewall Gauge Identification..............................................................................31
Orientation Detail for Top Sidewall Sheets ...................................................................................31
Caulking Detail for Standard (Non-Laminated) Sheets ..................................................................32
Caulking Detail for Laminated Quad Pattern Sheets .....................................................................35
Chapter 5 Base Angle Installation............................................................................................................37
Installing the Base Angle............................................................................................................37
Anchor Bolt Detail......................................................................................................................39
Installing the Base Angle Shims..................................................................................................40
Anchor Bolt Washer Installation ..................................................................................................41
Chapter 6 Stiffeners.................................................................................................................................43
Stiffener Part Number Description...............................................................................................44
Color Codes for Stiffener Gauge Identification..............................................................................44
Standard Stiffeners....................................................................................................................45
Top Stiffeners............................................................................................................................46
Stiffeners Splice ........................................................................................................................47
Base Stiffeners..........................................................................................................................48
Base Boots ...............................................................................................................................49
Close-Punch Connection for a One-Ring Top Stiffener (16 Ga) and a Two-Ring Stiffener (16
Ga) ..............................................................................................................................50
Two-Ring Top Stiffener to a Two-Ring Stiffener (15–16 Ga) Connection..........................................50
Pneg-4078-O15 78 Ft Diameter 40-Series Bin 3

Table of Contents
Close-Punch Connection for a Two-Ring Top Stiffener to a Two-Ring Stiffener (16 Ga)....................51
Two-Ring Stiffener (15-16 Ga) to a Two-Ring Stiffener (15–16 Ga) Connection ...............................51
Close-Punch Connection for a Two-Ring Stiffener (16 Ga) to a Two-Ring Stiffener (16 Ga) ..............52
Two-Ring Stiffener (0–14 Ga) to a Two-Ring Stiffener (0–14 Ga) Connection..................................52
Close-Punch Connection for a Two-Ring Stiffener (0–14 Ga) to a Two-Ring Stiffener (0–14
Ga) ..............................................................................................................................53
Two-Ring Stiffener (0–14 Ga) to a Close-Punch Base Stiffener (2–8 Ga) Connection ......................53
Close-Punch Connection for a Two-Ring Stiffener (0–14 Ga) to a Base Stiffener (2–8 Ga) ...............54
Two-Ring Stiffener (0–14 Ga) to a Base Stiffener (10–16 Ga) Connection ......................................54
Two-Ring Stiffener (2–14 Ga) to a Base Stiffener (10–16 Ga) Connection ......................................55
Two-Ring Stiffener (15–16 Ga) to a Base Stiffener (10–16 Ga) Connection.....................................55
Close-Punch Connection for a Two-Ring Stiffener (16 Ga) to a Base Stiffener (10–16 Ga) ...............56
Close-Punch Two-Ring Stiffener (2–14 Ga) to a Laminated Stiffener (2 Ga) with an Insert (10–14
Ga) ..............................................................................................................................57
Close-Punch Laminated Stiffeners (2 Ga) with Inserts (10–14 Ga) .................................................57
Close-Punch Laminated Stiffener (2 Ga) with an Insert (10–14 Ga) to a Laminated Base Stiffener (2–5
Ga) with a Base Insert (2–14 Ga)....................................................................................58
Base Stiffener (10–16 Ga) to a Base Boot Connection..................................................................59
Close-Punch Connection for a Base Stiffener (10–16 Ga) to a Base Boot.......................................59
Close-Punch Connection for a Base Stiffener (2+2 Ga – 8 Ga) to a Base Boot................................60
Close-Punch Laminated Base Stiffener (2 Ga) with Insert (2+14 to 2+10 Ga) to a Base Boot ...........61
Close-Punch Standard Stiffener to a 12–Bolt Pattern Laminated Stiffener with Insert.......................61
12–Bolt Pattern Close-Punch Laminated Stiffeners with Insert.......................................................62
Close-Punch 12–Bolt Pattern Laminated Stiffener to Laminated Base Stiffener with an Inserts to a
Base Boot.....................................................................................................................63
Close-Punch 12–Bolt Pattern Laminated Stiffener to Laminated Base Stiffener with an Inserts to a
Base Boot.....................................................................................................................64
Chapter 7 Roof Assembly........................................................................................................................67
Attaching the Inside Stiffener to the Top Outside Stiffener .............................................................67
Attaching the Eave Bracket to the Inside Stiffener.........................................................................70
Attaching the Eave Angle to the Sidewall Sheet ...........................................................................71
Connecting the Tension Member to the Eave Bracket ...................................................................73
Attaching the Center Collar Rafter Clips to the Rafter....................................................................74
About Temperature Cable Brackets and A-Frame Assemblies.......................................................75
Assembling the Temperature Cable Bracket ................................................................................77
Attachment Locations of Purlins to Rafters...................................................................................80
Assembling Purlin Number 4 ......................................................................................................81
Assembling Purlin Number 3 ......................................................................................................83
Assembling Purlin Number 2 ......................................................................................................85
Assembling Purlin Number 1 ......................................................................................................87
Assembling the Center Collar .....................................................................................................89
Center Collar Placement ............................................................................................................97
Guidelines for Assembling and Lifting the A-Frame Rafter Sections ............................................. 100
Attaching the A-Frames to the Center Collar .............................................................................. 101
Attaching the A-Frame to the Eave Bracket................................................................................ 102
Assembling the Roof Panel Clips ..............................................................................................103
Installing the Intermediate Purlins ............................................................................................. 104
Attaching the Roof Panels........................................................................................................105
Installing the Roof Flashing ...................................................................................................... 112
Installing the Cap Plates Assembly ........................................................................................... 114
Installing the Conveyor Support Brackets to the Peak Cap .......................................................... 116
Chapter 8 Accessories .......................................................................................................................... 119
Installing Roof Ladder Steps.....................................................................................................120
Roof Ring Placement...............................................................................................................122
Installing a Roof Ring...............................................................................................................123
Installation of Peak–To– Exhauster Ladder Kit ........................................................................... 125
4Pneg-4078-O15 78 Ft Diameter 40-Series Bin

Table of Contents
Preparation for Roof Exhauster Installation ................................................................................ 126
Assembling the Roof Exhauster................................................................................................ 128
Installing Roof Exhauster Assembly ..........................................................................................129
Assembling the Auto Roof Vent ................................................................................................ 132
Assembling Grill Guard Roof Vent............................................................................................. 133
Installing the Roof Vents...........................................................................................................135
Installing the Manway Cover.....................................................................................................136
Ladder Section Assembly......................................................................................................... 137
Inside Ladder Placement..........................................................................................................138
Installing Inside Ladder Bottom Bracket..................................................................................... 142
Guidelines for Installing a Sidedraw System............................................................................... 143
Installing the Sidedraw Baffle Chute (Two Post Stiffener) ............................................................ 146
Installing the Sidedraw Baffle Chute (Three Post Stiffener).......................................................... 147
Installing the Sidedraw Discharge Chute ................................................................................... 149
Wind Ring Requirements .........................................................................................................156
Installing Wind Rings ............................................................................................................... 158
Assembling Weather Cover for Roller Valve ............................................................................... 160
GSI Group, LLC Limited Warranty.......................................................................................... 161
Pneg-4078-O15 78 Ft Diameter 40-Series Bin 5

NOTES
6Pneg-4078-O15 78 Ft Diameter 40-Series Bin

1Safety Precautions
Topics Covered in this Chapter
▪ Safety Guidelines
▪ Cautionary Symbols
▪ Safety Decals
▪ Safety Sign-off Sheet
Safety Guidelines
Safety guidelines are general-to-specific safety rules that must be respected at all times in the grain stor-
age environment.
Our foremost concern is your safety and the safety of others associated with grain handling equipment.
This manual is to help you understand safe operating procedures and some problems that can be encoun-
tered by the operator and other personnel.
As owner and/or operator, you are responsible to know what requirements, hazards, and precautions exist
and inform all personnel associated with the equipment or in the area. Avoid any alterations to the equip-
ment. It can produce a very dangerous situation, where SERIOUS INJURY or DEATH can occur.
This equipment shall be installed in accordance with the current installation codes and applicable regula-
tions, which should be carefully followed in all cases. Authorities having jurisdiction must be consulted
before installations are made.
You should consider the location of the bin site relative to power line locations or electrical transmission
equipment. Contact your local power company to review your installation plan or for information concerning
required equipment clearance. Clearance of portable equipment that can be taken to the bin site must also
be reviewed and considered. Any electrical control equipment in contact with the bin must be properly
grounded and installed in accordance with National Electric Code provisions and all local codes.
This product is intended for the use of grain storage only. Any other use is a misuse of the product.
CAUTION
This product has sharp edges, which may cause serious injury. To avoid injury,
handle sharp edges with caution and always use proper protective clothing and
equipment.
Sidewall bundles or sheets must be stored in a safe manner. The safest method of storing sidewall bundles
is laying horizontally with the arch of the sheet upward, like a dome. Sidewall sheets stored on edge must
be secured so that they cannot fall over and cause injury. Use care when handling and moving sidewall
bundles.
Personnel operating or working around equipment must read this manual. This manual must be delivered
with equipment to its owner. Failure to read this manual and its safety instructions is a misuse of the
equipment.
Pneg-4078-O15 78 Ft Diameter 40-Series Bin 7

Chapter 1: Safety Precautions
Follow Safety Instructions — Read and Understand Manual
• Carefully read all safety messages in this manual and safety
signs on your machine. Keep signs in good condition.
Replace missing or damaged safety signs. Be sure new
equipment components and repair parts include the current
safety signs. Replacement safety signs are available from
the manufacturer.
• Learn how to operate the machine and how to use controls
properly. Do not let anyone operate without instruction.
• Keep your machinery in proper working condition. Unauthor-
ized modifications to the machine can impair the function
and/or safety and affect machine life.
• If you do not understand any part of this manual or need
assistance, contact your dealer.
Practice Safe Maintenance — Maintain Equipment and Work
Area
• Understand service procedures before doing work. Keep
area clean and dry.
• Never lubricate, service, or adjust machine while it is in oper-
ation. Keep hands, feet, and clothing away from rotating
parts.
• Keep all parts in good condition and properly installed. Fix
damage immediately. Replace worn or broken parts. Remove
any built-up grease, oil, and debris.
Prepare for Emergencies — Keep Emergency Equipment
Accessible
• Be prepared if fire starts.
• Keep a first aid kit and fire extinguisher handy.
• Keep emergency numbers for doctors, ambulance service,
hospital, and fire department near your telephone.
Wear Protective Clothing
• Wear close-fitting clothing and safety equipment appropri-
ate to the job.
• Remove all jewelry
• Tie long hair up and back.
• Wear safety glasses at all times to protect eyes from
debris.
Eye Protection
8Pneg-4078-O15 78 Ft Diameter 40-Series Bin

Chapter 1: Safety Precautions
• Wear gloves to protect your hands from sharp edges on
plastic or steel parts.
Gloves
• Wear steel-toed boots to help protect your feet from falling
debris. Tuck in any loose or dangling shoestrings.
Steel-Toed Boots
• A respirator may be needed to prevent breathing poten-
tially toxic fumes and dust.
Respirator
• Wear a hard hat to help protect your head. Hard Hat
• Wear appropriate fall protection equipment when working
at elevations greater than 6 ft (1.8 m).
Fall Protection
Cautionary Symbols
Cautionary symbols appear in the various decals of your product, and alerts the user of potential or immi-
nent risk of danger.
This manual contains information that is important for you, the owner/operator, to know and understand.
This information relates to protecting personal safety and preventing equipment problems.
It is the responsibility of the owner/operator to inform anyone operating or working in the area of this equip-
ment of these safety guidelines. To help you recognize this information, we use the symbols that are
defined below. Please read the manual and pay attention to these sections. Failure to read this manual
and its safety instructions is a misuse of the equipment and may lead to serious injury or death.
DANGER
Make sure to familiarize yourself with these symbols prior to installing, operating, or
servicing your grain equipment. Failure to do so may lead to serious injury or death.
Table 1-1 Description of the different cautionary symbols
Symbol Description
This symbol indicates an imminently hazardous situation which, if
not avoided, will result in serious injury or death.
This symbol indicates a potentially hazardous situation which, if not
avoided, may result in serious injury or death.
Pneg-4078-O15 78 Ft Diameter 40-Series Bin 9

Chapter 1: Safety Precautions

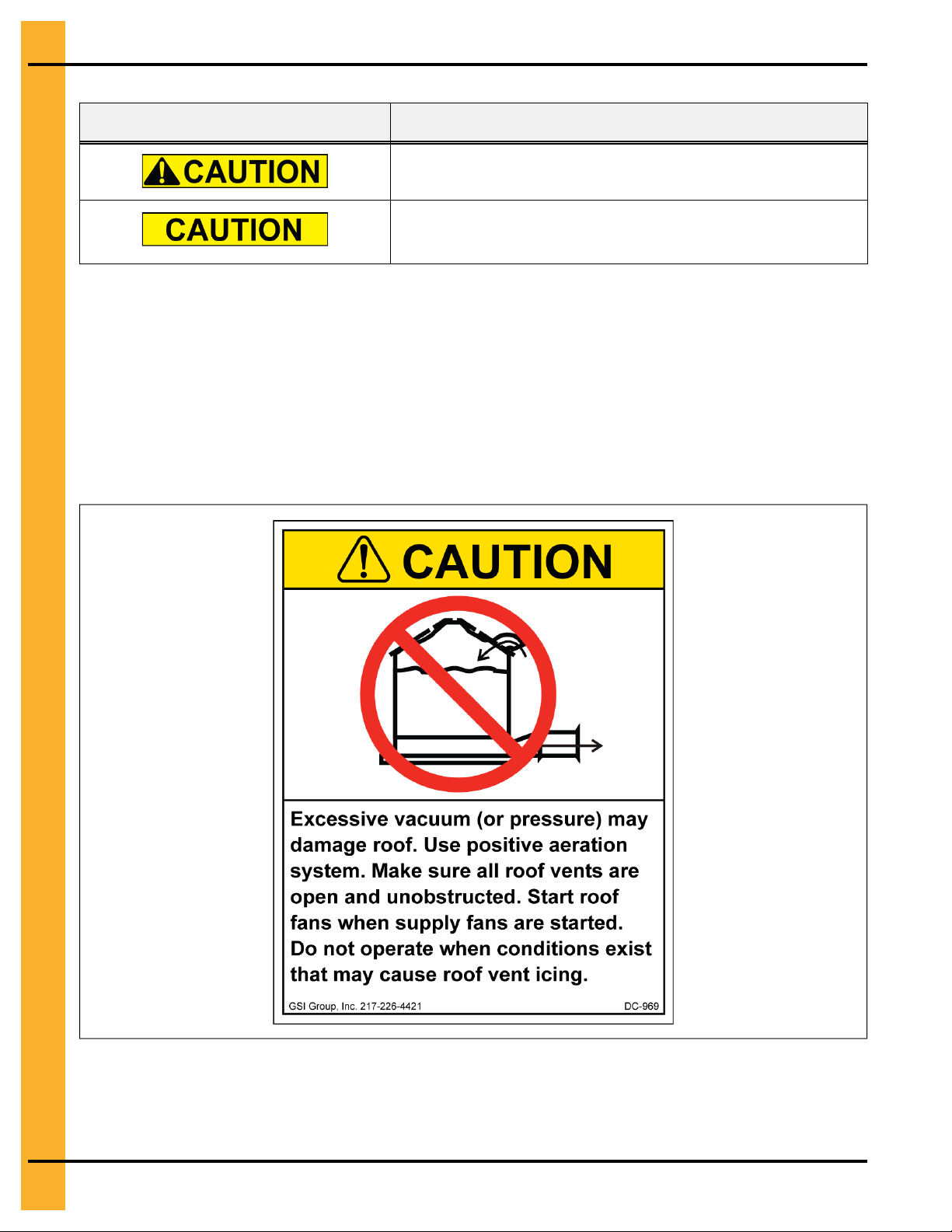

Table 1-1 Description of the different cautionary symbols (cont'd.)
Symbol Description
This symbol indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
This symbol indicates a potentially hazardous situation which, if not
avoided, may result in property damage.
Safety Decals
The safety decals on your grain equipment are safety indicators which must be carefully read and under-
stood by all personnel involved in the installation, operation, service, and maintenance of the grain
equipment.
The manufacturer does not warrant any roof damage caused by excessive vacuum or internal pressure
from fans or other air moving systems. Adequate ventilation and/or “makeup air” devices should be pro-
vided for all powered air handling systems. The manufacturer does not recommend the use of downward
flow systems (suction). Severe roof damage can result from any blockage of air passages. Running fans
during high humidity and cold weather conditions can cause air exhaust or intake ports to freeze.
10 Pneg-4078-O15 78 Ft Diameter 40-Series Bin

Chapter 1: Safety Precautions

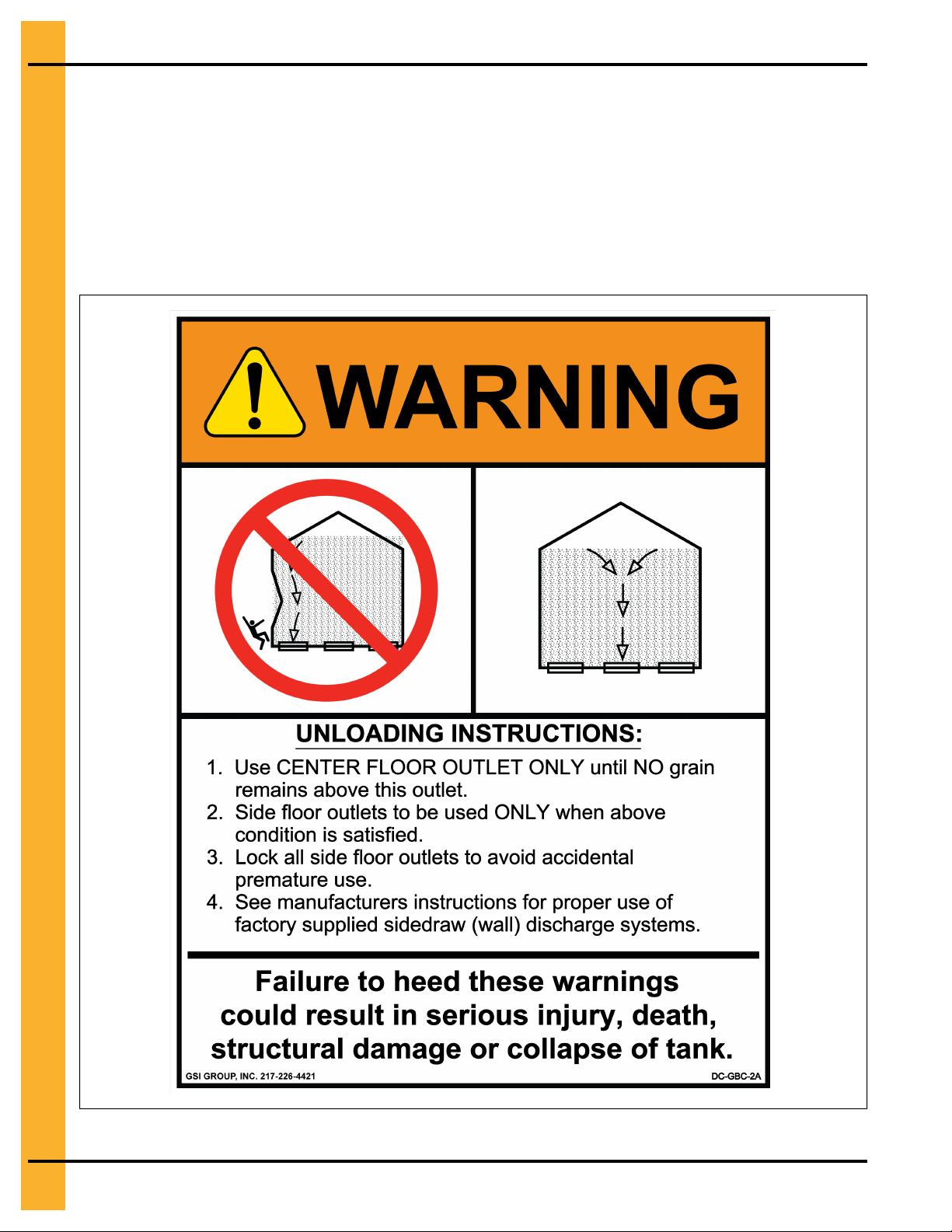

ATTENTION: Decal shown below must be present on the outside of the door cover of the two ring, 24 in.
(61 cm) porthole door cover and the roof manway cover. If a decal has been damaged or is missing in any
of these locations, contact the manufacturer for a free replacement decal.
GSI Decals
1004 E. Illinois Street
Assumption, IL 62510
Phone: [phone]
Pneg-4078-O15 78 Ft Diameter 40-Series Bin 11

Chapter 1: Safety Precautions

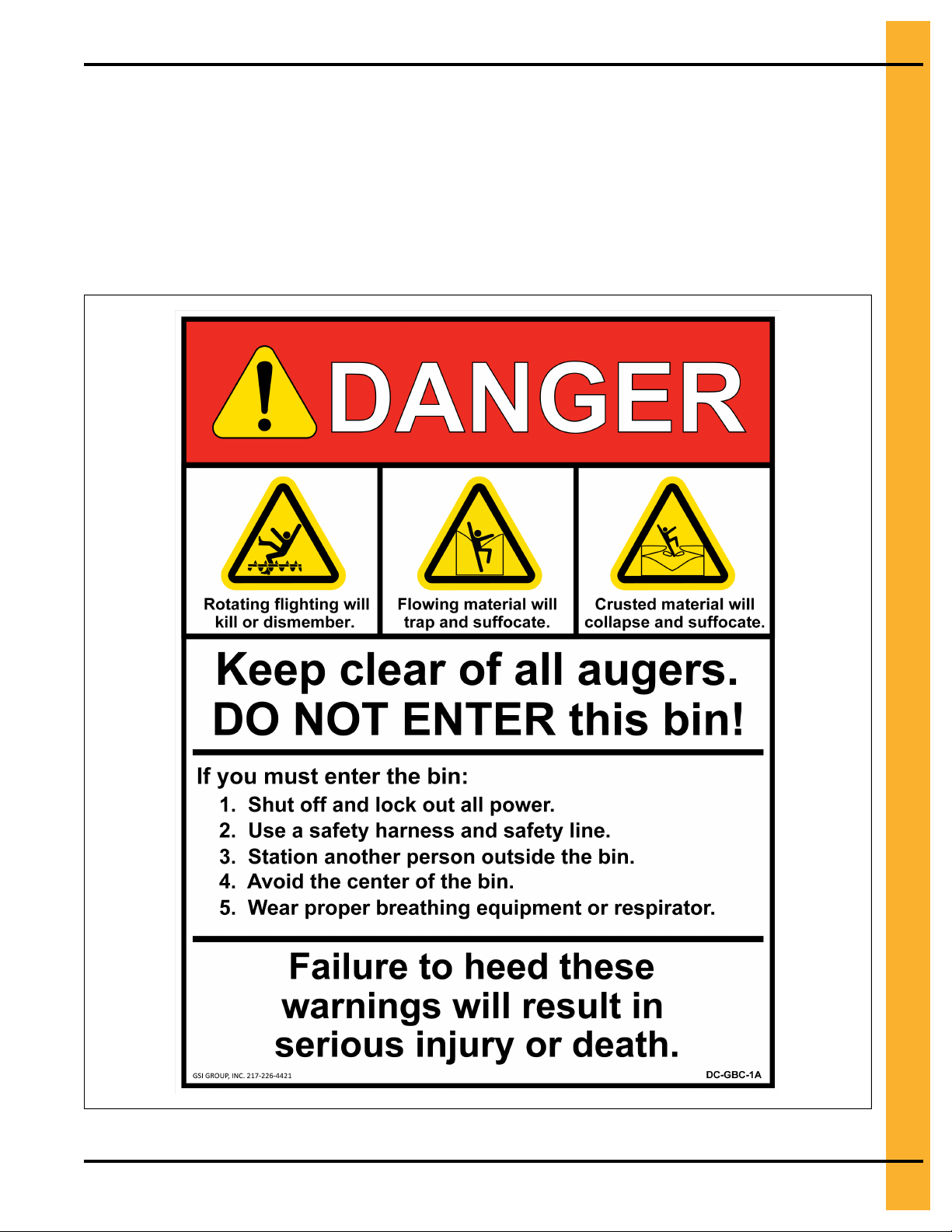

ATTENTION: Decal shown below must be present on the outside of the door cover of the two ring, 24 in.
(61 cm) porthole door cover and the roof manway cover. If a decal has been damaged or is missing in any
of these locations, contact the manufacturer for a free replacement decal.
GSI Decals
1004 E. Illinois Street
Assumption, IL 62510
Phone: [phone]
12 Pneg-4078-O15 78 Ft Diameter 40-Series Bin

Chapter 1: Safety Precautions
Safety Sign-off Sheet
Sign-off sheet verifying that all personnel have read and understood the safety instructions.
As a requirement of O.S.H.A., it is necessary for the employer to train the employee in the safe operating
and safety procedures for this equipment. This sign-off sheet is provided for your convenience and per-
sonal record keeping. All unqualified persons must stay out of the work area at all times. It is strongly rec-
ommended that another qualified person who knows the shutoff procedure be in the area in the event of
an emergency.
Date Employee Name Supervisor Name
Pneg-4078-O15 78 Ft Diameter 40-Series Bin 13

NOTES
14 Pneg-4078-O15 78 Ft Diameter 40-Series Bin

2General Overview
Topics Covered in this Chapter
▪ General Information
▪ Anchor Bolt Charts
▪ Tools Required for Construction
▪ Guidelines for Proper Storage of Grain Bin Materials Prior to Construction
▪ Overview for a Typical Bin Installation
▪ Guidelines for Construction Procedures and Lifting Jack Usage
▪ Guidelines for Placement of the Decal Sidewall Sheet
▪ Sample Gauge Sheet
General Information
General information, overview and instructions needed before performing work.
Read this manual carefully. This manual will provide instructions on building the sidewall and stiffeners.
You will also need to consult other instructions in building the bin.
These include, but may not be limited to:
• A stiffener and sidewall gauge layout chart. If such a chart is not included with this manual, contact
GSI.
• Roof instructions must be followed. Roof instructions are included in this manual.
• Ladders, roof stairs, roof handrails and other products are covered by separate instruction manuals.
Consult the appropriate accessory manual. Inside ladder instructions are included in this manual.
• Aeration systems and transitions are to be installed according to the instructions provided with the
system or transition.
• It is critical that the anchor bolts are installed and spaced correctly.
Anchor Bolt Charts
Prior to setting any anchor bolts, you must be sure to have the correct anchor bolt placement. This is very
critical for stiffener alignment during bin erection.
NOTE: Refer to the proper chart to find the anchor chord dimensions that correspond to the bin that is
being built.
Start with one anchor bolt and work from it to the left to locate one quarter of the anchor bolts then to the
right to locate another quarter of the bolts. Working off of the last anchor bolts in each quarter, locate the
remaining anchor bolts in the last two quarters.
Pneg-4078-O15 78 Ft Diameter 40-Series Bin 15

Chapter 2: General Overview
Figure 2-1 Anchor bolt chords for 78 diameter 3–post bin
Bolt Radius (B) Anchor Quantity
ft and in m
39 – 2-5/16 11.946 78
Chord (A) Length
ft and in m
1 3 – 1-15/16 0.964
2 6 – 3-3/4 1.924
3 9 – 5-7/16 2.881
4 12 – 6-15/16 3.834
515 – 8-3/16 4.780
6 18 – 9-1/8 5.718
721 – 9-3/4 6.648
8 24 – 9-7/8 7.556
9 27 – 9-9/16 8.472
10 30 – 8-3/4 9.366
Chord (A) Length
ft and in m
11 33 – 7-1/4 10.243
12 36 – 5-3/16 11.105
13 39 – 2-3/8 11.948
14 41 – 10-3/4 12.770
15 44 – 6-3/8 13.576
16 47 – 1-1/8 14.354
17 49 – 6-15/16 15.111
18 51 – 11-13/16 15.845
19 54 – 3-5/8 16.551
16 Pneg-4078-O15 78 Ft Diameter 40-Series Bin

Chapter 2: General Overview
Tools Required for Construction
General tools needed to perform this construction:
• Combination wrench set 7/16 in. to 1 in.
• Alignment punches 12 in. long
• 1/2 in. Drive socket set and ratchet
• Nail aprons or tool pouches to hold supplies
• Gloves for hand protection
• Tape measure
• 1/2 in. Drive electric or pneumatic torque gun with variable impact capabilities
• 1/2 in. Drive impact socket set
• Lifting jacks
• Center pole roof support
• Step ladders
• Large C-clamp or welding V-grip for clamping
NOTE: Quantities required will depend on the number of workers and size of the bin.
Guidelines for Proper Storage of Grain Bin Materials Prior to
Construction
Storage of the build materials prior to construction is important. Do not to allow moisture to remain between
sheets or panels.
Wet storage stain (rust) will develop when closely packed bundles of galvanized material, such as sidewall
and roof sheets, have moisture present. Inspect roof and sidewall bundles on arrival for any moisture. If
moisture is present, it must not be allowed to remain between the sheets. Separate the sheets or panels
immediately and wipe them down. Spray with a light oil or diesel fuel.
If possible, sidewall bundles, roof sheets and other closely packed galvanized materials should be stored
in a dry, climate controlled building. If outdoor storage is unavoidable, the materials should be stored so
that they are raised above the ground and vegetation. Any stacking and spacing materials should not be
corrosive or wet. Be sure to protect materials from the weather, but permit air movement around the bun-
dles if possible.
Storing roof bundles and sidewall sheets at a slight incline can also help minimize the presence of mois-
ture. Storing the bundles with the center of the dome up (like an arch) is one option for minimizing moisture
during storage. Sidewall bundles can also be stored on edge but must be secured so that they do not fall
over and cause injury.
If “white rust” or “wet storage stain” occurs, contact the manufacturer immediately about ways to minimize
the adverse effect upon the galvanized coating.
Pneg-4078-O15 78 Ft Diameter 40-Series Bin 17

Chapter 2: General Overview
Overview for a Typical Bin Installation
These are the typical steps one would perform when constructing a grain bin. Procedures may vary
depending on the different site requirements.
Pre-Assembly Activities
• Sorting and grouping parts
• Assemble A-frames
• Assemble center collar
• Assemble cap plate
• Install vent to roof panels
• Install wind ring bracket to the stiffeners
Assembly
• Build two rings of sidewall sheets for even ringed bins or one ring or three rings for odd ringed bins,
making sure to caulk all seams.
• Add top outside stiffeners and inside stiffeners at the same time to the two rings of sidewall sheets
(Note: These top stiffeners are the lightest gauge stiffeners and will get heavier as the bin is raised.
Therefore, the heaviest stiffeners are located at the bottom of the bin and are installed last.
• Install the wind ring to help support the rings
• Install the center collar tower support in the center of the bin
• Install the eave brackets to the inside stiffeners
• Install the eave angles to the sidewall sheets (Note how these are aligned.)
• Install the tension member or tension channels to the eave brackets
• Lift the pre-assembled A-frames, installing them in “opposite pairs” (across from one another) to bal-
ance out the load as you install
• Install the lower roof panels
• Install the upper roof panels
• Cut roof exhauster holes evenly spaced in upper panels
• Install the upper flashing
• Install the roof exhauster
• Install the flat top
18 Pneg-4078-O15 78 Ft Diameter 40-Series Bin

Chapter 2: General Overview
Guidelines for Construction Procedures and Lifting Jack Usage
The following procedure is a guideline when using a lifting jack. Follow this general guideline when lifting
the bin as sidewall sheets are being installed.
NOTE: The roof and the top ring for odd ringed bins or the roof and two rings for even ringed bins, will be
installed prior to the beginning of bin lifting procedures. Refer to all other procedures on sidewall
and stiffener installation prior to the start of construction.
IMPORTANT: Begin building with the bin oriented for doors and material handling equipment to be in the
correct position when bin construction is complete.
1. Consider the starting location of the bin, relative to the location of the doors and other accessories.
Proper placement of lifting jacks in relationship to anchor bolts could make a difference in final loca-
tions. Note that the sidewall sheets will be staggered.
2. The bin is lifted by the use of lifting jacks. Lifting jacks are used to slowly and evenly lift the bin during
construction. Lifting jacks must be properly sized and designed to carry all loads and job site condi-
tions associated with the construction of the bin.
The number of lifting jacks required is best determined by personal experience and expertise. Factors
such as bin size, jack design, construction conditions, support surface, etc., are all to be considered
when deciding how many to use. If in doubt, use one jack on every sheet. The lifting jack must be
adequate to carry all loads. Heavy duty jacks, generally hydraulic or electric powered in the case of
large bins, should be used for commercial installation. All jacks should be secured with braces or oth-
erwise maintained in a stable condition.
Lifting of the bins should not be done under windy conditions.
Follow the jack manufacturers recommendations on capacity and operations.
3. Lifting brackets should be attached through the stiffener bolt holes. Normally you will need to attach
to at least four (4) bolts per stiffener.
4. Raise the bin just high enough to assemble the next ring. When lifting the bin, all jacks must lift at
an equal rate. Monitor the lift to ensure even lifting is occurring.
5. To the inside of the first ring, bolt the next ring. Be sure to stagger the sheets and select the proper
gauge material.
6. Lower the bin onto the foundation after assembling and tightening bolts on the new ring or rings.
7. Attach stiffeners to the body sheets every two (2) tiers (on the external surface of the bin). You may
want to leave sheets loose to make the attachment of the stiffeners easier.
8. Now re-bolt the lifting brackets to the lowest ring in place thus far. Continue ring additions by repeat-
ing Step 5 and Step 6.
9. Add inside and outside ladders as you continue to raise the bin. (Refer to the manual supplied with
the ladders and platforms.)
10.Add platforms as you raise the bin. (Refer to the manual supplied with the ladders and platforms.)
11.Lower the tank and secure to the foundation before leaving the job site.
12.At the completion of the tank, set stiffeners over the anchor bolts and measure the tank to ensure it
is in a round condition. Consult with GSI for questions on tolerances.
NOTE: For 2 ring doors or vehicle traffic doors, special placement issues may apply. Consult the special
instructions provided with two ring doors or vehicle traffic doors for these options.
Pneg-4078-O15 78 Ft Diameter 40-Series Bin 19

Chapter 2: General Overview
Guidelines for Placement of the Decal Sidewall Sheet
Use the following as a general guideline for the proper placement of the decal sheet.
NOTE: Refer to the stiffener to sidewall attachment detail and specific gauge sheet for the bin. The decal
sheets are located in the third ring from the top. They are to be spaced evenly around the diameter
of the bin.
Figure 2-2 3-Post Bin with three columns of stiffeners used on each sidewall sheet
NOTE: Dashed lines represent stiffener locations.
Sample Gauge Sheet
A gauge sheet should be supplied with every bin and contains important information specific to your bin.
The gauge sheet contains the specific details that are unique to your bin. You must reference this sheet to
know the correct order to install the sidewall sheets and stiffeners. The gauge of the sidewall and stiffeners
are marked with colors for identification.
It is important to use the correct hardware for each type of connection. The gauge sheet will identify what
hardware should be used in a vertical seam, horizontal seam, and an overlapping seam for each gauge.
The gauge sheet will also identify the sidewall rings where the wind rings must be installed.
Doors are to be installed in the ring or rings denoted with (D).
20 Pneg-4078-O15 78 Ft Diameter 40-Series Bin
