GSL electronics HB 12/24 User manual

Warranty Conditions: The product is warranted to be free from defects in materials and workmanship under normal use and service for a period
of 24 months from the date of sale. This warranty covers defective parts and workmanship provided that the product is shipped prepaid to the
seller within 24 months of purchase of goods. This warranty is limited to the repair or replacement (at the manufacturers’ discretion) of parts and
shipping prepaid to the original despatch destination. We regret that no liability can be accepted for consequential or special damages of any
kind howsoever arising in connection with products supplied by the seller. This warranty is in lieu of all other warranties expressed or implied.
No representative is authorised to assume for the seller any other liability in connection with the seller’s products.
Yellow - Dome Light
Green - Handbrake Switch
Black - Ground
Purple- Battery Positive
Grey - Auxillary Alarm
Overview
The HB 12/24 has been desigined to work with both 12V/24V vehicles, acting on either a positive or negative
handbrake and door switches. If the door is opened with out the Handbrake applied a latched alarm (both
audiable and visual) will go off and cannot be reset until the Hand Brake has been engaged.
This aids the driver in reducing the incident of exiting the vehicle with out the Handbrake engaged.
Also provided there is a optional Auxillary Alarm feed that can be used to drive a relay to activate the vehicles
horn or similar external alarm device.
Setup
your vehicle.
Ensure vehicle is on a level surface and that you remain in the vehicle in the drivers seat.
Apply the Hand Brake and keep the door of the vehicle closed during this setup.
Press and hold the [Setup] button for 2 seconds on the unit facia. The LED will light up and then the buzzer
will sound when the unit has successfully set up.
To test for a successful installation whilst holding your foot down on the brake pedal, release the Hand brake
and open the door. The alarm should be sounding and will continue to sound until you engage the Hand
Brake
If there is no alarm then restart the Setup procedure from the start again.
HB1224-R1
Page 1 of 2
Model:
HB 12/24
Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia

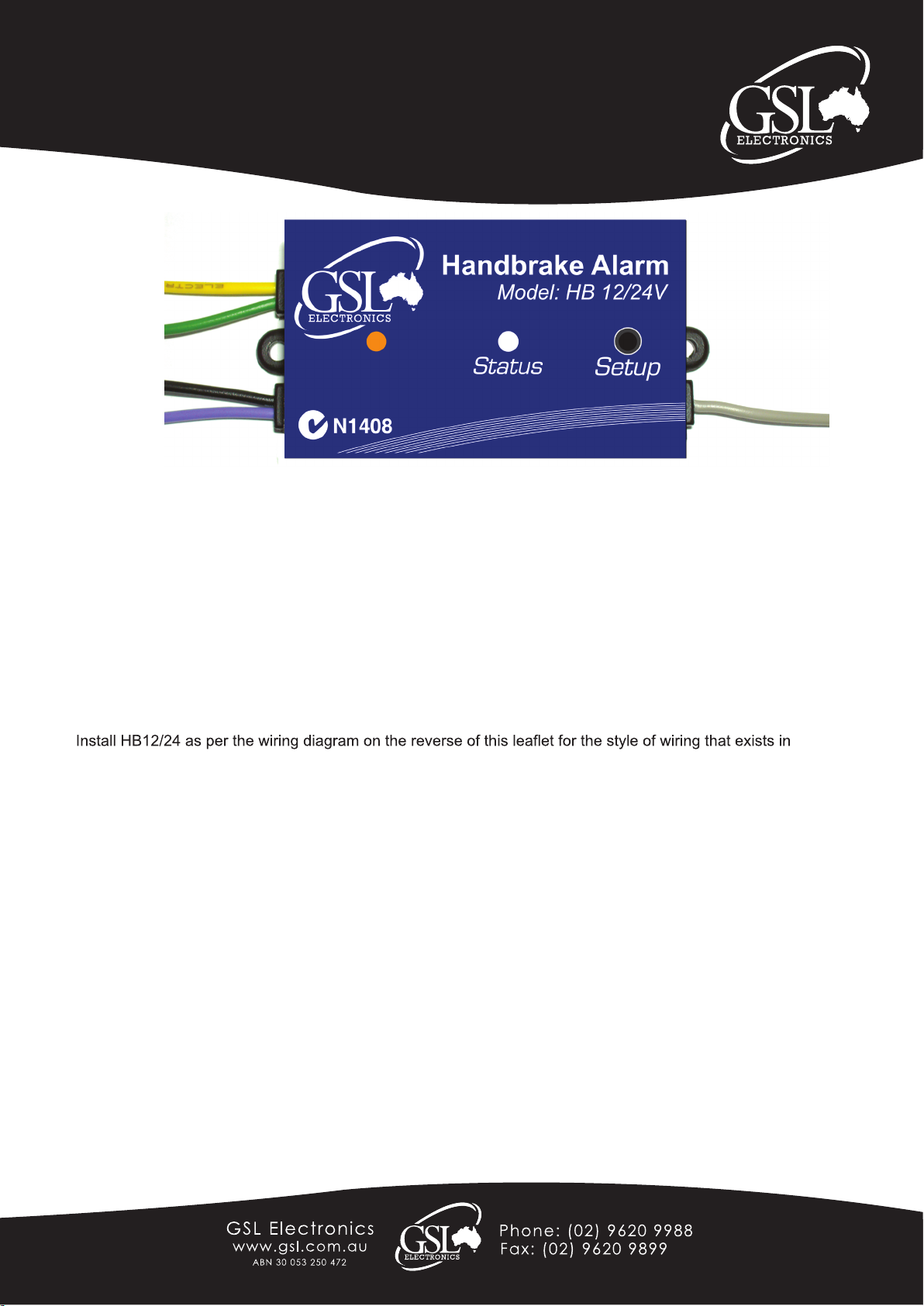

Hand Brake Alarm 12V / 24V
Operating Instructions
Please read these instructions before use
“More information https://www.caravansplus.com.au"

Wiring Guide
GND GND
Dashboard
Handbrake
Light
Handbrake
Switch
Door
Switch
AUX
GREY
Door Switch
YELLOW
Ground
BLACK
Vin
PURPLE
Handbrake
GREEN
Optional External
Buzzer or Relay
GND
GND GND
GND
Dashboard
Handbrake
Light
Handbrake
Switch Door
Switch
AUX
GREY
Door Switch
YELLOW
Ground
BLACK
Vin
PURPLE
Handbrake
GREEN
Optional External
Buzzer or Relay
CUT
CUT
Negative Door and Negative Brake Switch
Positive Door and Positive Brake Switch
Page 2 of 2
