GSL MPPT60-1 User manual

Page 1 of 8
Model:
MPPT60-1
Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia
Operating Instructions
Please read these instructions before use
A simple, compact low cost MPPT to efficiently charge lead acid and lithium iron
batteries from a wide range of photovoltaic panels.
1700W Solar Battery Charger
Maximum Power Point Tracker
MPPT60-1-R10
PATENT APPLIED FOR - 2010901565
More information https://www.caravansplus.com.au

Page 2 of 8
Model:
MPPT60-1 1700W Solar Battery Charger
Maximum Power Point Tracker
Operating Instructions
Please read these instructions before use
MPPT60-1 Specifications
Efficiency typical 97%
Input voltage 16V to 84V
Output voltage
Lead Acid Batteries
Float - 13.5V / 27V
Absorption – Vented 14.5V / 29V
– Sealed 14.2V / 28.4V
Output Voltage
Lithium Iron Phosphate
Batteries
Maintenance - 14.1V / 28.2V
Saturation - 14.8V / 29.6V
Output power 1700W / 60A MAX
Quiescent current 0.05A
Thermal protection Multilevel Type
Dimensions (mm) 255 X 145 X 67mm
Indications LED display – OUTPUT STATUS

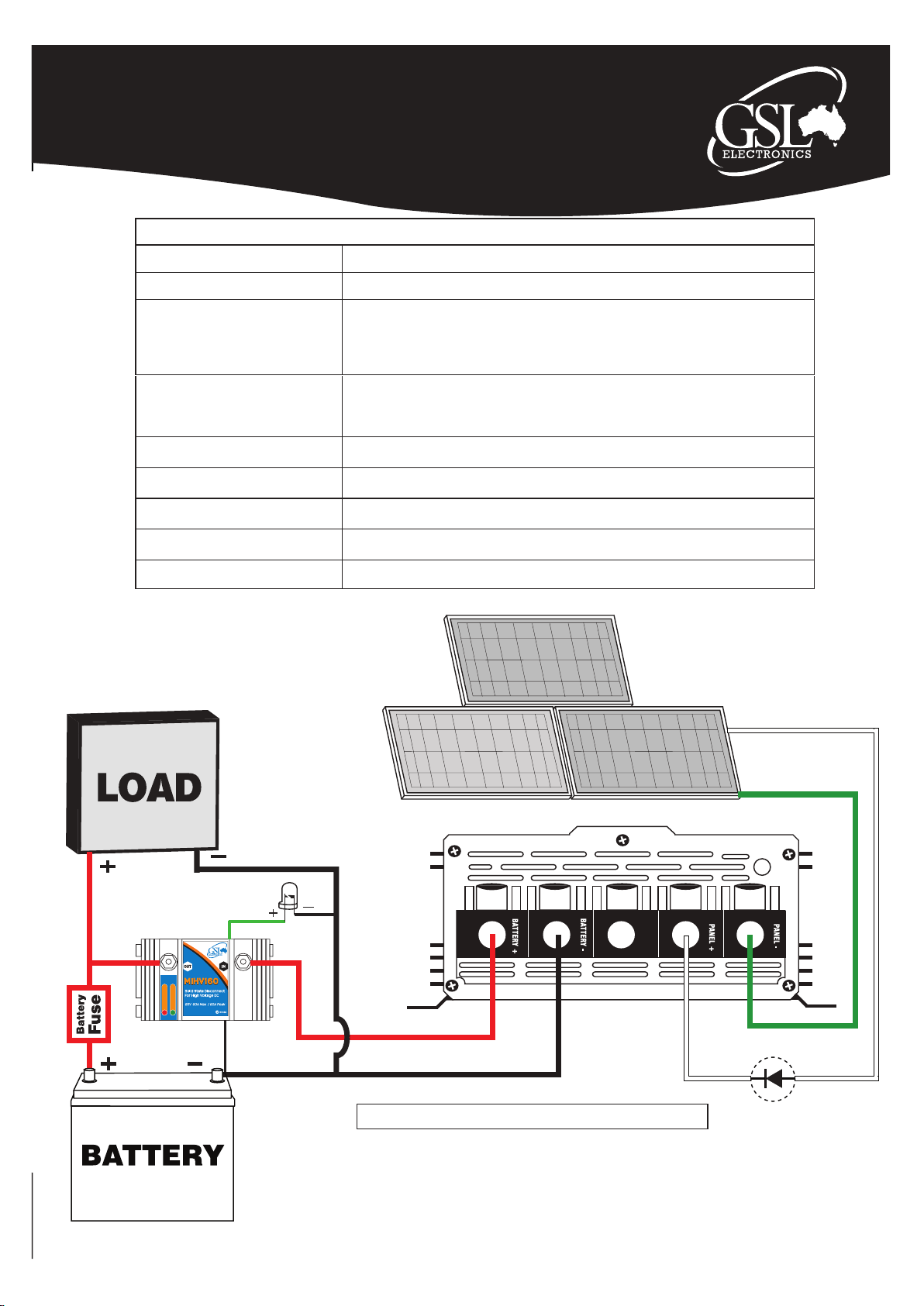

Basic Wiring Instructions:
Dis c o n n e c t e d Con ne c te d
Panel +
Panel -
Battery +
Battery -
* Optional Diode
Note: First start up may take up to one minute.
MIHV Remote LED
MIHV
MPPT
More information https://www.caravansplus.com.au

Page 3 of 8
Model:
MPPT60-1
Operating Instructions
Please read these instructions before use
1700W Solar Battery Charger
Maximum Power Point Tracker
MPPT60-1 General Information:
• Green LED On – Battery Ok.
•Green LED Flashing – Battery Low.
• This MPPT is designed to auto detect 12V or 24V battery systems and select a suitable charge
regime.
• The MPPT 60-1 is shipped in a sealed battery setting which is the safest setting but if your batteries are
vented or Lithium Iron then, BEFORE wiring the MPPT, follow the CHANGING BATTERY TYPE
SETTING PROCEDURE.
• The maximum absorption voltage is 14.5V or 29V and the float voltage is 13.5V or 27V
for 12V or 24V batteries respectively.
•The Absorption Mode is entered following a “low battery condition” at dawn and that mode is
maintained for the remainder of the day. If the battery is not in a “low condition” at dawn then
the Maintenance (Float) Mode is entered and that mode is maintained for the remainder of
the day.
•Custom float and absorption voltages and thresholds are possible but minimum orders apply.
•This MPPT has a built in multilevel over temperature protection to improve product reliability
while maximising output power availability.
•The maximum continuous output power is 1700W in 24V systems and 850W in 12V systems.
The output current is limited to 60A.
•Can now be installed in parallel on the output for increased charge current. Multiple chargers on
separate solar
The MPPT60-1 is designed to charge lead acid and lithium batteries from photovoltaic panels.
Silicon based panels such as monocrystalline, polycrystalline and amorphous are suitable.
Basic Wiring Instructions - Parallel Installation:
Dis c on n e c t e d Conn ec t ed Dis c on n e c t e d
Conn ec t ed
Battery +
Battery -
Battery +
Battery -
Panel +
BANK
Panel -
Panel +
Panel -
Solar Panel Bank 1
Solar Panel Bank 2
MPPT60-1 (Unit 1)
MPPT60-1 (Unit 2)
*
*
* Optional Diode
More information https://www.caravansplus.com.au

Page 4 of 8
Model:
MPPT60-1
Operating Instructions
Please read these instructions before use
1700W Solar Battery Charger
Maximum Power Point Tracker
Important notes:
• This MPPT should only be operated with a suitable battery connected.
• To enhance Battery and load protection the use of the MIHV or equivalent is recommended
• Before any maintenance ensure that the panels are disconnected or de-energised.
• Use only PV Systems with open circuit voltage below 84V
• This equipment must be installed by qualified personnel only and incorrect wiring can cause
fire, injury or death – GSL will accept no responsibility for MPPT misconnection or misuse.
• Use only 12V or 24V Lead Acid or Lithium batteries and confirm the MPPT settings,
charge voltages and currents are correct for your battery system – if in any doubt seek
qualifed advice!
• Use wires suitable for at least 80A, but if wire runs are over 3m then larger wires are
recommended to limit voltage drop and losses.
• Install the unit in a dry place out of direct sunlight and away from flammable liquids or gases.
• Battery fuse ( BF ) is always required and must be located as close to the battery as possible,
its sizing depends on the wire size and load ratings. Typically a 80A 60VDC fuse would do.
• Before connecting the battery always check the battery and PV panel polarity.
• Optional Diode A suitably heatsinked schottky diode rated at or above 80A 60V (its anode
connected to the + panel and cathode to the MPPT + input white wire) may be used, see wiring
diagram. This diode will protect against panel short and block any voltage on the panel but will
slightly decrease the battery charge current.
WARNING
• DO NOT Disconnect battery and/or load whilst charger is operating. Disconnect charger
from the PV first
• IF the optional Diode is not installed then shorting the panels when the batteries are
connected may damage the MPPT
• Lithium batteries must have a battery management system with built in under votlage
and over voltage protection.
• The lowest Maximum Power Point system voltages are 18V for 12V batteries or 36V for 24V batteries
to ensure full output power.
More information https://www.caravansplus.com.au

Page 5 of 8
Model:
MPPT60-1
Operating Instructions
Please read these instructions before use
1700W Solar Battery Charger
Maximum Power Point Tracker
Changing Battery Type Setting Procedure
1.Ensure all the MPPT wires are disconnected. Disconnecting PV first.
2.Remove the 5 front panel screws and the move the front panel ajar. Then remove 1 middle rear screw
on the back panel (bottom middle below fan) then slide out bottom cover – see Figure 1.

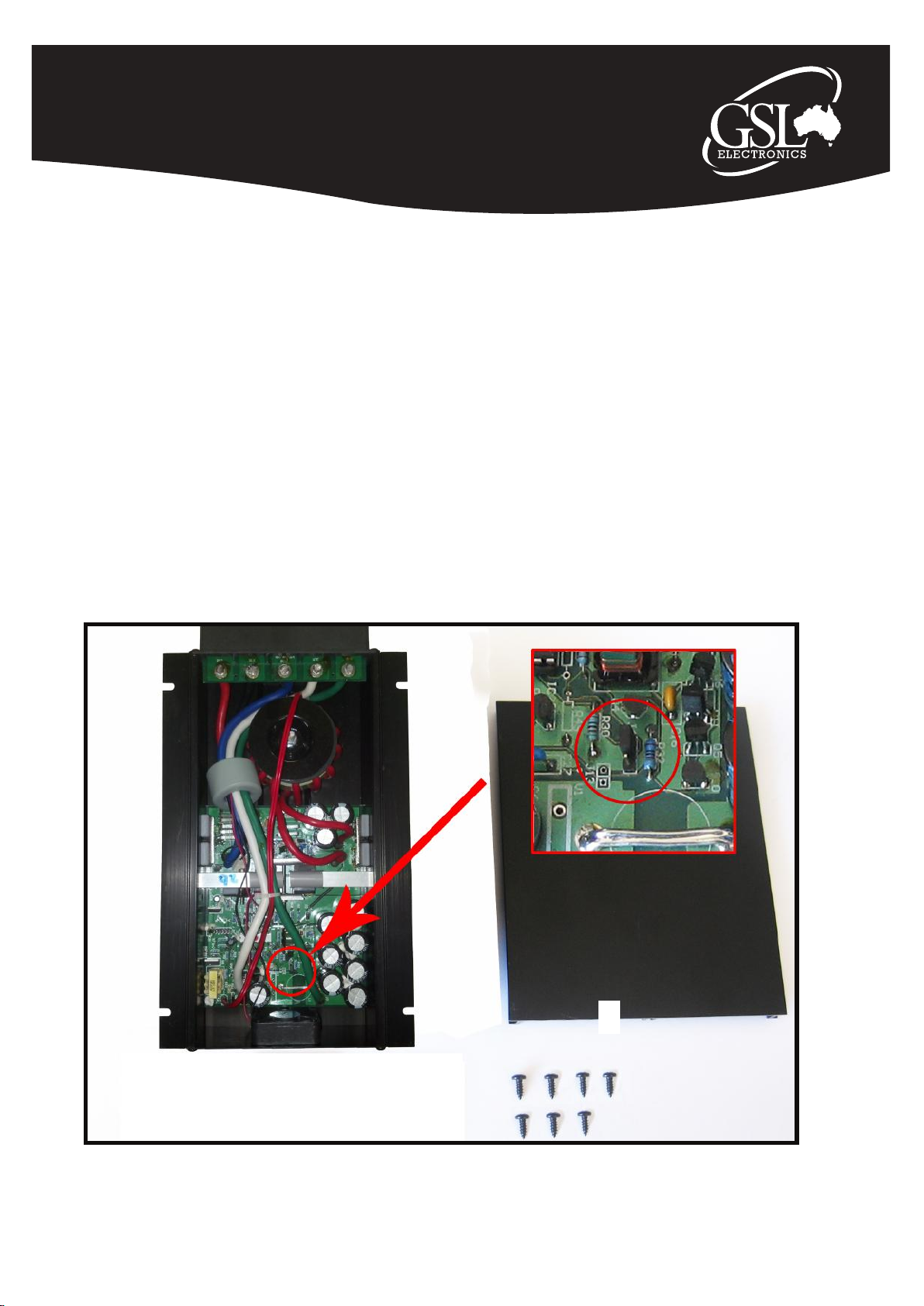

3.Locate connector J4 – see zoom window in Figure 1.
4.Move link on J4 to vented position or Remove link for Lithium batteries – see Figures 2 ,3 ,4.
5.Slide in the cover and fit front panel carefully, secure the front panel again with the 5 screws and
the 1 rear screw.
•The above procedure can be repeated to revert a different battery chemistry setting – see Figure 3.
Figure 1.
More information https://www.caravansplus.com.au

Page 6 of 8
Model:
MPPT60-1
Operating Instructions
Please read these instructions before use
1700W Solar Battery Charger
Maximum Power Point Tracker
Figure 2 (Left): Vented Battery Setting
Figure 3 (Right): Sealed Battery Setting
Figure 4 (Left): Lithium Battery Setting
More information https://www.caravansplus.com.au

Page 7 of 8
Model:
MPPT60-1
Operating Instructions
Please read these instructions before use
1700W Solar Battery Charger
Maximum Power Point Tracker
MPPT FAQs
Q: What is an MPPT?
MPPT stands for Maximum Power Point Tracker and is a specialized converter designed to
maintain the PV voltage at the level in which it delivers maximum power to the load or battery.
The panel’s nominal output power can only be obtained with the use of an MPPT.
Q: What are the GSL MPPT’s advantages compared to standard solar regulators?
1. Suitable for lower cost non battery type PV since the MPPT can eff ciently charge the
batteries from relatively high voltage, say 24V batteries from 40Vmp panels.
2. Less interference and more accurate voltages during absorption and f oat.
Q: What sorts of loads can I power with the MPPT60-1?
1.The maximum bulk charge current with the MPPT60-1 on a 12V battery and 800W panel is
approximately 60A, so you can expect about 200Ah per day which means a 200W load for
about 10 hours daily.
2. Following the same reasoning with a 24V 1600W panel the MPPT60-1 will supply a daily
load of 400W for about 10 hours.
Q: Why are MPPT not more common in standalone solar systems?
Until now and despite their overwhelming advantages MPPTs have not been commonly used
in standalone solar systems because of cost. The new GSL MPPT specifically addresses this
issue making economic sense in a wide range of solar systems.
Q: What sort of batteries should I use?
1. A deep cycle battery is a must due to the cyclical nature of the solar system with a
recommended battery capacity of at least 180Ah.
2. A larger battery will not only give longer run time during low light but also will be able to
avoid available PV power being unstored such as when the battery reaches the float stage.
Q: How do PV temperatures affects charge current?
Temperature increase brings down the PVs maximum power point voltage reducing the
MPPTs current gain available. In principle at 25C it is possible to achieve 30% gain but at
40C, a more realistic average temperature, about 20% is still available.
Q: What happens at low PV currents?
The MPPT will outperform the conventional regulator above 3% of nominal panel power.
Below 3%, about 10W in a 400W panel, the MPPT will have a slightly lower output current
than a non MPPT.
Q: Is interference possible? and If so what do I do?
GSL’s MPPTs produce far less interference than a conventional solar regulator during
the absorption and float stages, that is during most of its operating time, and its
designed to comply with local and international EMI standards however some
interference is still possible. If interference occurs first try and reorient the aerial or move
the sensitive equipment away from the MPPT wires. Ensure the MPPT chassis is grounded.
Grounding a battery terminal may also help and finally you can try adding ferrite clamps.
Warranty Conditions: Our products come with guarantees that cannot be excluded under the Australian Consumer Law.
The customer is entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
The customer is also entitled to have the products repaired or replaced if the products fail to be of acceptable quality and the failure does not
amount to a major failure.
GSL Electronics (GSL) warrants that its products will, under normal use and service, be free of defects in material and workmanship for a
period of two (2) years from the date of the original purchase by the customer as marked on the customer’s original invoice. Please refer to our
website for full warranty and return information which can be found at http://www.gsl.com.au/faq.html
More information https://www.caravansplus.com.au

Page 8 of 8
Model:
MPPT60-1
Operating Instructions
Please read these instructions before use
Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia
1700W Solar Battery Charger
Maximum Power Point Tracker
MPPT60-1-R11
VOC
VMP
12V Charging 24V Charging
21 16
42 32 �
63 48 ��
84 64 ��
42 32 �
84 64 ��
Grid Connect Panel
(size = no. cells in grid)
1x18 Cell Grid 10 8
1x48 Cell Grid 28 23 �
2x48 Cell Grid 56 46 ��
3x48 Cell Grid 84 69 ��
1x52 Cell Grid 31 25 �
2x52 Cell Grid 62 50 ��
1x54 Cell Grid 32 26 �
2x54 Cell Grid 64 52 ��
1x60 Cell Grid 36 29 �
2x60 Cell Grid 72 58 ��
1x72 Cell Grid 44 36 ��
1x96cgsp 65 55 ��
For optimal performance from panel and MPPT please use the following table to
determine the best setup for your situation.
More information https://www.caravansplus.com.au
