GVA G24TDC12V15 User manual

23.6’’HD LED LCD TV
G24TDC12V15
with Built-in DVD Player

11
Contents
Guide to the Television
Caring for the Environment
2
6
7
9
10
12
15
31
32

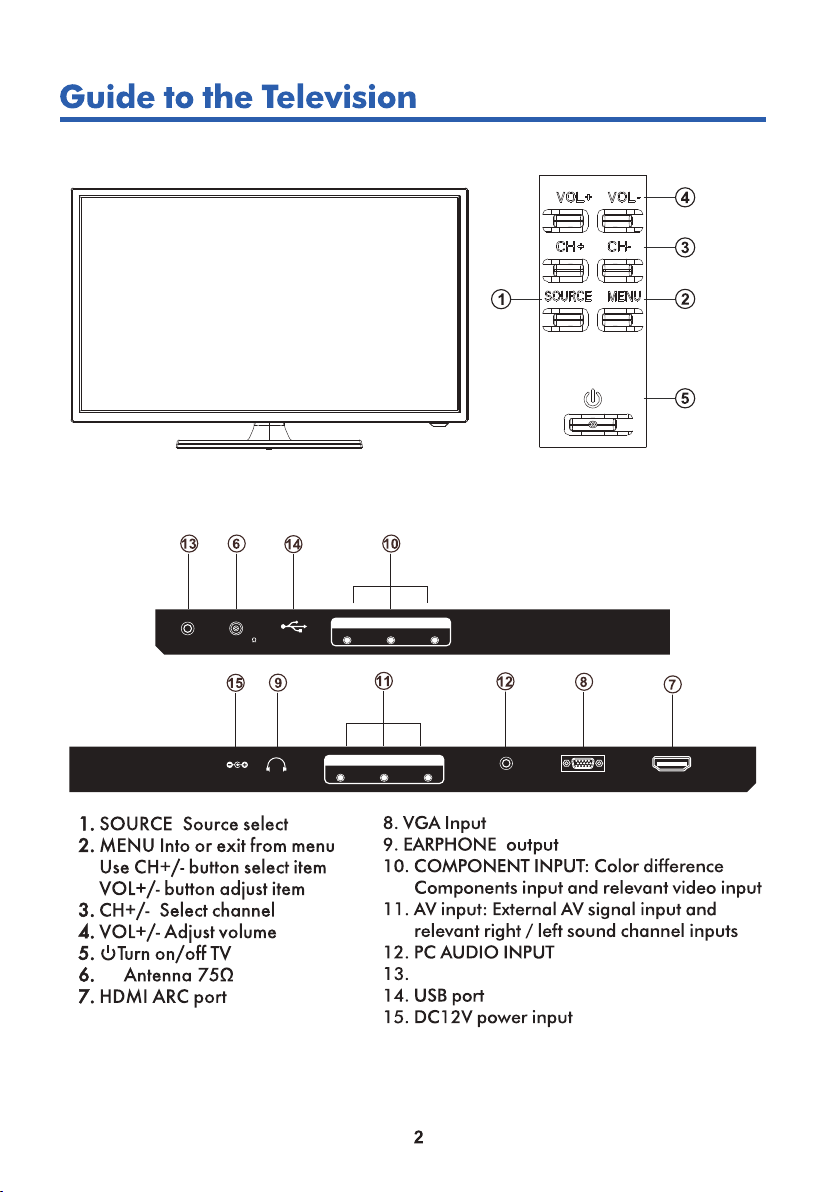

Function Description

CO AXI AL R F A NT 75 US B
CO MP ON EN T IN PU T
Y Pb P r
DC 1 2V
EA RP HO NE
AV INPU T
VI DE O R
L
PC AU DIO
IN PUT VGA
HDMI ARC
COAXIAL digital audio output
RF

3
5
9
6
0
7
4
8
D.Menu D.Title Goto D.Disp
PROG STEP REPEAT A-B
1 2 3
MENUMENU SOURCE
ENTERENTER
VOL
+
-
CH
+
-
Zoom Angle Subtitle
Audio
EXIT DISPLAY
SLEEPSLEEP
P.MODE S.MODE
MTS
INDEX
RED GREEN YELLOW CYAN
REVEAL SIZE
CANCEL
HOLD TEXT
GUIDE ASPECT FAV/LIST
FREEZE
DTV/ATVDTV/ATV
D.setup
TV/RADIO
REC TIMESHIFT
SUB.PG SUBTITLE
RECLIST
1. Power : Set your TV to power on or standby mode
2. MUTE: Press to mute the sound. Press again or press
VOL+ to unmute.
3. 0-9: Press 0-9 to select a TV channel directly while
watching TV. The channel will change after 2 seconds.
4. DTV/ATV: Switch between Analog and Digital TV
5. Return to the previous viewed program.
6. S.MODE: Press to cycle through the different sound setting.
7. SLEEP: Select amount of time before TV turns itself off
automatically.
8. MTS: Press to search the Audio modes.
9. P.MODE: Press to cycle through the different picture settings.
10. MENU: Open the main menu.
11. SOURCE: Press to view and select available input sources
12. ENTER: Allow you to navigate the on-screen
Menus and adjust the system settings to your preference.
13. EXIT: Exit from the menu or sub- menu and cancel
the current in process ( if applicable )
14.DISPLAY: Press to display the source and channel's info.
Battery installation:
Remove the battery compartment lid on the rear
of the remote control .
Put two AAA batteries inside the battery
compartment with their + and – ends aligned as
indicated. Do not mix old and new batteries or
different types of batteries.
Insert the lid until you hear it click into place.
Guide to the Television

4
5
9
6
0
7
4
8
D.Menu D.Title Goto D.Disp
PROG STEP REPEAT A-B
1 2 3
MENUMENU SOURCE
ENTERENTER
VOL
+
-
CH
+
-
Zoom Angle Subtitle Audio
EXIT DISPLAY
SLEEPSLEEP
P.MODE S.MODE
MTS
INDEX
RED GREEN YELLOW CYAN
REVEAL SIZE
CANCEL
HOLD TEXT
GUIDE ASPECT FAV/LIST
FREEZE
DTV/ATVDTV/ATV
D.setup
TV/RADIO
REC TIMESHIFT
SUB.PG SUBTITLE
RECLIST
33
32
15. VOL+/VOL-: press to increase / decrease the sound level
16. TV/RADIO: 1. When watching channel, allows you to switch between TV and Radio modes.
2.Previous chapter reverse in PVR or Media Player mode.
17. GUIDE: 1. Launches the EPG(Electronic Program Guide)
2.Fast reverse in PVR or Media Player mode.
18. REC LIST: list of PVR recordings.
19. CANCEL: When a page is selected in the mode of
text, it may take some time before it becomes available,
pressing the CANCEL key will return to the TV model.
When the required page is found. The page number will
appear at the top of the TV picture, press the CANCEL key
to return to the mode of text for you to browse this page.
20. INDEX: Request the index page in Teletext mode.
21. SIZE: Change the size of display in Teletext model.
22. REVEAL: Reveal or Hide the hidden words.
23. COLOR BUTTONS: In the on-screen menus, these
buttons have different functions as specified by the
colors shown on-screen. See next page for their
DVD-playback functionality.
24. CH+/CH-: Press to scan through channels.
25. FAV/LIST: 1. Press to open the favorite list.
Then you can select the favorite channel.
2.Next chapter in PVR or Media Player mode.
26. ASPECT: 1.Select picture scale.
2.fast forward in PVR or Media Player mode.
27. FREEZE: press to 'pause' the picture (actual broad
cast continues in background)
28. SUB.PG: Press to access sub page.
29. SUB TITLE: To show subtitles when watching
DTV( broadcast-dependent)
30. HOLD: HOLD On or Off for current page display.
31. TEXT: Switch the teletext on and off.
32. TIMESHIFT:
1.DTV channel time shift Function.
2.Play / pause during PVR or media playback.
33. REC: Begin recording current program to connected.
USB memory device, in PVR mode.
Note: Teletext is not currently broadcast in Australia.
Guide to the Television

5
34． :DVD EJECT.
35． :play /pause DVD program.
36． :DVD previous chapter.
37． :DVD next chapter.
38． :DVD fast reverse.
39． :DVD fast forward.
40． :stop DVD program.
41. D.setup: DVD system setup.
42. ZOOM: in DVD source adjust DVD picture size.
43.Angle: select DVD picture angle.
44.Audio: select DVD disc language.
45.Subtitle: select DVD disc subtitle.
46.D.MENU: DVD disc menu. press this to access
the menu.
47.D.Title: Press to select the DVD title.
48.GOTO: play your favorite title/chapter/track.
49.D.DISP: press to display the source and channel'
s info.
50.PROG: Press this button to change the playback
order. It varies according to the different discs.
51.STEP: Entrance of DVD OSD features.
52.REPEAT: Repeat playing the title or chapter.
53.A-B: Whilst watching a DVD, press this button
Button functionality when watching DVD
(Note that some features are disc-dependent):
the start and again at the end of a desired section
to watch it repeatedly.
47
5
9
6
0
7
4
8
D.Menu D.Title Goto D.Disp
PROG STEP REPEAT A-B
1 2 3
MENUMENU SOURCE
ENTERENTER
VOL
+
-
CH
+
-
Zoom Angle Subtitle
Audio
EXIT DISPLAY
SLEEPSLEEP
P.MODE S.MODE
MTS
INDEX
RED GREEN YELLOW CYAN
REVEAL SIZE
CANCEL
HOLD TEXT
GUIDE ASPECT FAV/LIST
FREEZE
DTV/ATVDTV/ATV
D.setup
TV/RADIO
REC TIMESHIFT
SUB.PG SUBTITLE
RECLIST
37
35
40
34
39
38
42
46
50
43
53
49
48
44
45
36
52
51
41
Guide to the Television

6
television
television
packing
Caring for the Environment

Safety information and warnings
SYMBOLS
The graphic symbols used in this manual or on the back cover of the set
mean the following:
Read this manual in full before use
The lightning flash symbol is intended to alert the user to the
enclosures that contain hazardous voltages
The exclamation symbol is intended to alert the user to the
presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Important safety instructions
When using any electrical apparatus always observe safety regulations
and use basic safety precautions to reduce the risk of fire, electric shock
and personal injury, including the following.
1. Read, keep and follow these instructions, heeding all Warnings.
2. Keep out of reach of young children. This apparatus is not suitable for use by
young children or infirm persons without supervision. Young children must be
supervised to ensure that they do not play with the apparatus.
3. Do not insert any objects into any openings of an electrical
apparatus
4. Do not touch any moving parts of any electrical apparatus.
5. Where the mains plug or an appliance coupler is used to as the
disconnect device, the disconnect device shall remain readily operable.
The AC/DC adaptor and it’s connection to the T.V. is the disconnect device for this TV.
6. Do not use this apparatus near water.
7. The apparatus shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases, shall be placed on the apparatus.
WARNING.
WARNING.
WARNING.
WARNING.
WARNING.
7
8. immerse in any liquid whilst in use or in cleaning. Clean only with a damp DO NOT
cloth, dry with a dry towel. Do not use harsh abrasives as these may damage
plastic parts.
9. block any ventilation openings. Keep away from curtains, newspapers andDO NOT
restricted areas. Install in accordance with any specific manufacturer's instructions.
Always allow a sufficient gap around the apparatus to avoid overheating.
10. install near any heat sources such as radiators, gas heaters, stoves or DO NOT
other apparatus (including amplifiers) that produce heat. Do not leave in direct
sunlight.
11. Do not place any naked flame source, such as lighted candles on any WARNING.
electrical apparatus.

Safety information and warnings
8
If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling.
Many injuries, particularly to children, can be avoided by taking simple precautions such as:
Using cabinets or stands recommended by the manufacturer of the television.
Only using furniture that can safely support the television.
Ensuring the television is not overhanging the edge of the supporting furniture.
Not placing the television on tall furniture (for example, cupboards or book cases)
without anchoring both the furniture and the television to a suitable support.
Not standing the television on a cloth or other materials placed between the
television and supporting furniture.
Educating children about the dangers of climbing on furniture to reach the
television or its controls.
12. Connect to a suitable 230-240V~ 50Hz power supply only. If a class 1 WARNING!
product it must be connected to a suitably earthed mains socket.
13.Always unplug from the power source when any electrical apparatus is not in use.
14. abuse or damage a power cord. If any power cord is damaged, it must be DO NOT
replaced by the manufacturer, its service agent or a similarly qualified person in
order to avoid a hazard. A replaceable cord must be replaced with an authorised
replacement from an authorised service agent only.
15.Only use attachments/accessories specified by the manufacturer.
16.Unplug this apparatus during lightening storms or when unused for long periods
of time.
17.Attention is drawn to the environmental aspects of disposing of any battery.
18.Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the power supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
19. attempt to service any double insulated apparatus. Double insulated DO NOT
apparatus requires specialist servicing and knowledge to retain the safety of
the apparatus.
20.WARNING. This Television is for indoor use only.
21.For household use only, this apparatus is not intended for commercial use.
22.If this apparatus is to be used by a third party, please supply these instructions
with it.
23.No liability will be accepted for any personal injury or damage caused by failure
to follow these instructions.
24. Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.
WARNING.
The AC/DC adaptor supplied with this T.V. is a double insulated product.

MENU SOUR CE
ENTE R
EXIT
SLEEP P.MODE S.MODE
MTS
INDEX
REVEAL SIZE
CANCEL
HOLD
SUB .PG
RED GREEN YELLOW CYAN
D.Menu D.Title Goto D.Disp
PROG STEP REPEAT A-B
Zoom Angle Subtitle Audio
D.setup
DTV/ATV
DISPLAY
RECLIST
REC TIMESHIFT FREEZE
GUIDE ASPECT TV/RADIO FAV/LIST
SUBTITLE
TEXT
Television
Stand
Remote control
Two AAA Batteries
Instruction Manual
9
Quick-start guide
Power adaptor
Screws
Items in the Box

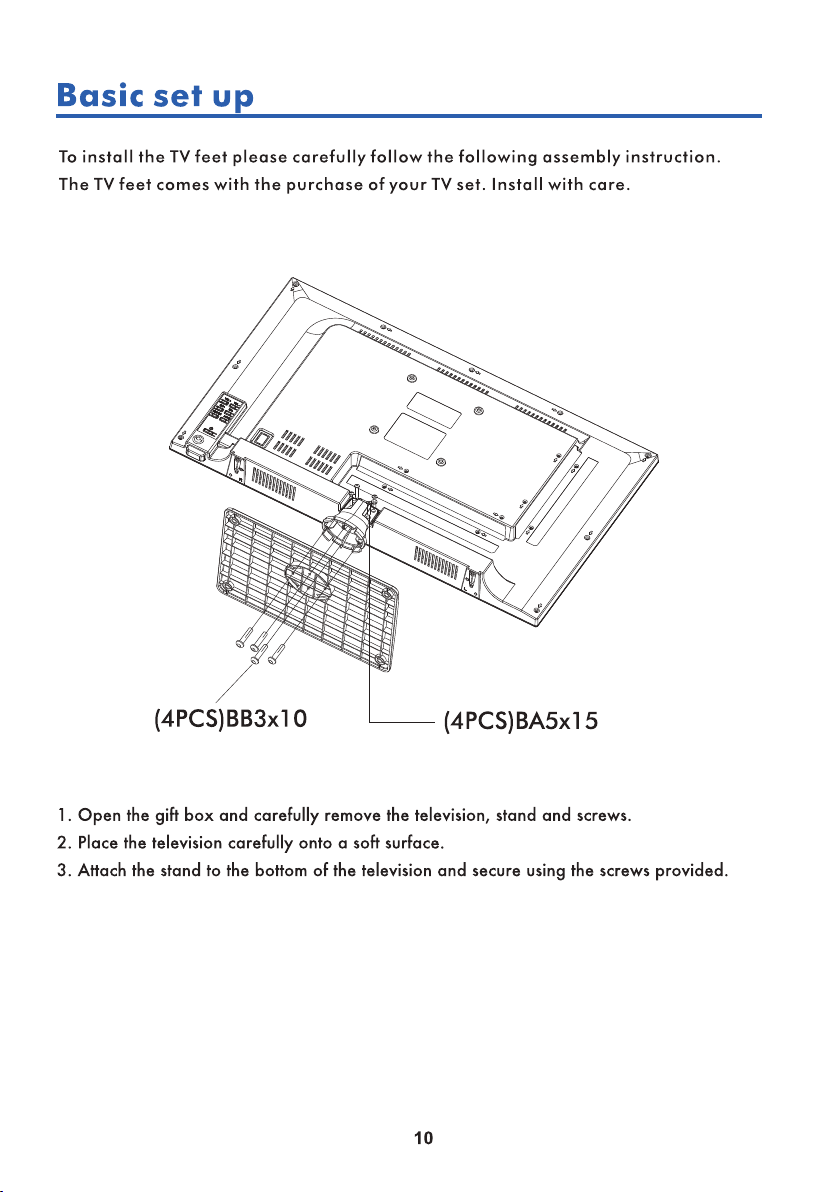

23.6’’HD LED LCD TV
G24T DC12 V15
with Built-in DVD Player

11
Setting up your TV
Connect antenna and power
Turn on TV
1.Connect one end of the antenna
cable to the ANT 75 (Antenna socket)
in the rear of your television set. Plug
the other end of the Antenna Cable into
a desired antenna wall socket. (Note
Antenna cable not included)
2.Connect the power adapter into the
mains power socket, and connect DC
power plug to the TV DC12V power input.
TV signal output
AC POWER socket
3.Press the Standby button on the
remote control to turn on the power to
the unit. The indication light will turn
on to Green and the TV screen will
display "First Time Setup" menu.
4.First Time Setup menu refer to P19.
NOTE Picture for reference
purposes only.
Ensure to put your TV in a firm place which
can bear the weight of the TV.
To avoid any danger, please do not expose
or place the TV near water, fire place
And / or heating apparatuses.
(such as heaters, candles, strong lights)
Do not block the ventilation at the back
of the TV.
Basic set up

12
1.AV input
Video/Audio input, press the SOURCE button using either the remote control or the button
Located on the side of the TV set and select the AV option.
Advanced connection diagrams
Below diagrams show the basic connection options available.
DVD AV R/L OUTPUT
Earphone
2.
Earphone output
DC 1 2V
EA RP HO NE
AV INPU T
VI DE O R
L
PC AU DIO
IN PUT VGA
HDMI ARC
DC 1 2V
EA RP HO NE
AV INPU T
VI DE O R
L
PC AU DIO
IN PUT VGA
HDMI ARC

13
3.PC input
PC(VGA)Input, press the SOURCE button on either the remote control or the button
located on the side of the TV set and select the PC option.
4.HDMI input
HDMI Input, press the SOURCE button on either the remote control or the button located
on the side of the TV set and select the appropriate HDMI option.
HDMI OUTPUT
Advanced connection diagrams
PC AUDIO
OUTPUT
VGA OUTPUT
DVD VGA
OUTPUT
DC 1 2V
EA RP HO NE
AV INPU T
VI DE O R
L
PC AU DIO
IN PUT VGA
HDMI ARC
DC 1 2V
EA RP HO NE
AV INPU T
VI DE O R
L
PC AU DIO
IN PUT VGA
HDMI ARC

14
6.USB input
USB
5. Component video input
Component Video Input, press the SOURCE button on either the remote control or the
button
located on the side of the TV set and select COMPONENT source.
Media Input, press the SOURCE button on either the remote control or the button located
on the side of the TV set and select the MEDIA option.
Advanced connection diagrams
CO AXI AL USB
CO MP ON EN T IN PU T
Y Pb P r
Audio
Output
DC 1 2V
EA RP HO NE
AV INPU T
VI DE O R
L
PC AU DIO
IN PUT VGA
HDMI ARC
YPbPr
Output
CO AXI AL R F A NT 75 US B
CO MP ON EN T IN PU T
Y Pb P r
RF AN T 75

15
Function Description
Press MENU button to display the main menu
Press ENTER/RIGHT button select Picture in the main menu. then press ENTER/RIGHT button to enter
Picture Menu
1. Press UP/DOWN button to select the option that you want to adjust in the Picture menu.
2. Press ENTER/RIGHT button to enter, hen press LEFT/RIGHT button to adjust.
3. After finishing your adjustments. Press MENU/ENTER button to save and return back to the previous menu.
Picture Mode
Note: You can press P.MODE button to change the Picture Mode directly.
Below adjustments only available in USER mode.
Brightness/Contrast/Sharpness/Colour /Tint
Brightness Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture
Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.
Sharpness Adjust the peaking in the detail of the picture.
Colour Adjust the color of the color based on your own like.
Tint It is not available unless Picture Mode is set to be user and the current TV system is NTSC.
Colour Temperature
Change the overall color cast of the picture.
Aspect Ratio
Change the overall color cast of the picture.
Note: You can press ASPECT button to change the Picture Mode directly.
Noise Reduction
Noise reduction of the picture. To reduce noise and improve the appearance of the picture. No noise reduction
operation if it’s “off”.
From Low->Middle->High, noise reduction effects better but it will cause a blur on picture.
Noise Reduction
Noise reduction of the picture. To reduce noise and improve the appearance of the picture. No noise reduction
operation if it's "off". From Low->Middle->High, noise reduction effects better but it will cause a blur on picture.

16
Function Description

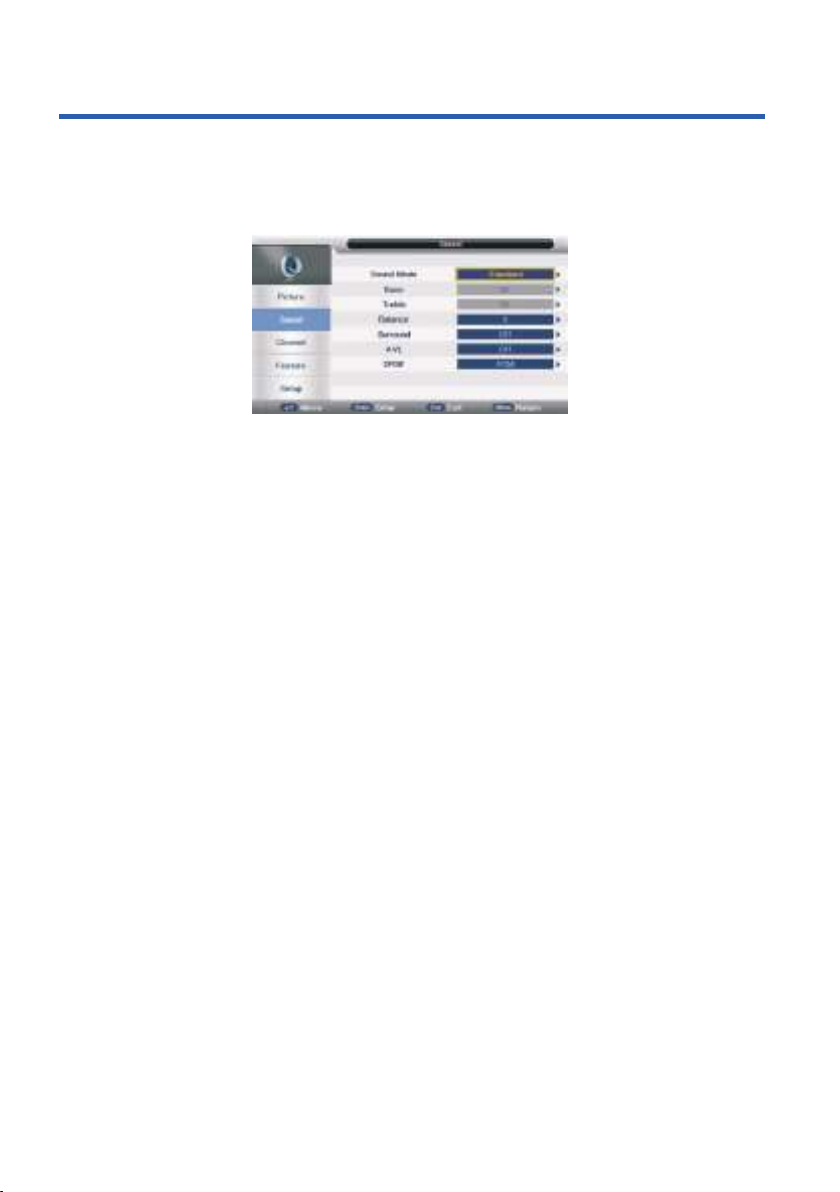

Sound Menu
Press MENU button to display the main menu.
Press ENTER/RIGHT button select Sound Menu in the main menu.then press ENTER/RIGHT button to enter
1. Press UP/DOWN button to select the option that you want to adjust in the Sound menu.
2. Press ENTER/RIGHT button to enter, then press LEFT/RIGHT button to adjust.
3. After finishing your adjustments. Press MENU/ENTER button to save and return back to the previous menu.
Sound Mode
Note: You can press S.MODE button to change the sound mode directly.
Treble/Bass/Balance
Treble/Bass adjustments only available in USER mode.
Treble Adjust the treble effect. Increases or decreases high-pitched sounds.
Bass Adjust the bass effect. Increases or decreases lower-pitched sounds.
Balance Adjust the balance between left and right speakers to adapt to your listening position.
Surround
Press ENTER/RIGHT button to enter, then press UP/DOWN button to select On or Off.
AVL
Press UP/DOWN button to select On or Off. Set the auto volume control.
SPDIF
Press ENTER/RIGHT button to enter, then press UP/DOWN button to select Off / Auto / PCM.

17
Function Description
Press MENU button to display the main menu.
Press ENTER/RIGHT button select Channel Menu in the main menu.then press ENTER/RIGHT button to enter.
1.Press UP/DOWN button to select the option that you want to adjust in the Channel menu.
2.Press ENTER/RIGHT button to enter,then press LEFT/RIGHT button to adjust.
3.After finishing your adjustments.Press MENU/ENTER button to save and return back to the previous menu.
Channel Manager
The operation interface shows as follow.
Channel Menu

18
Function Description

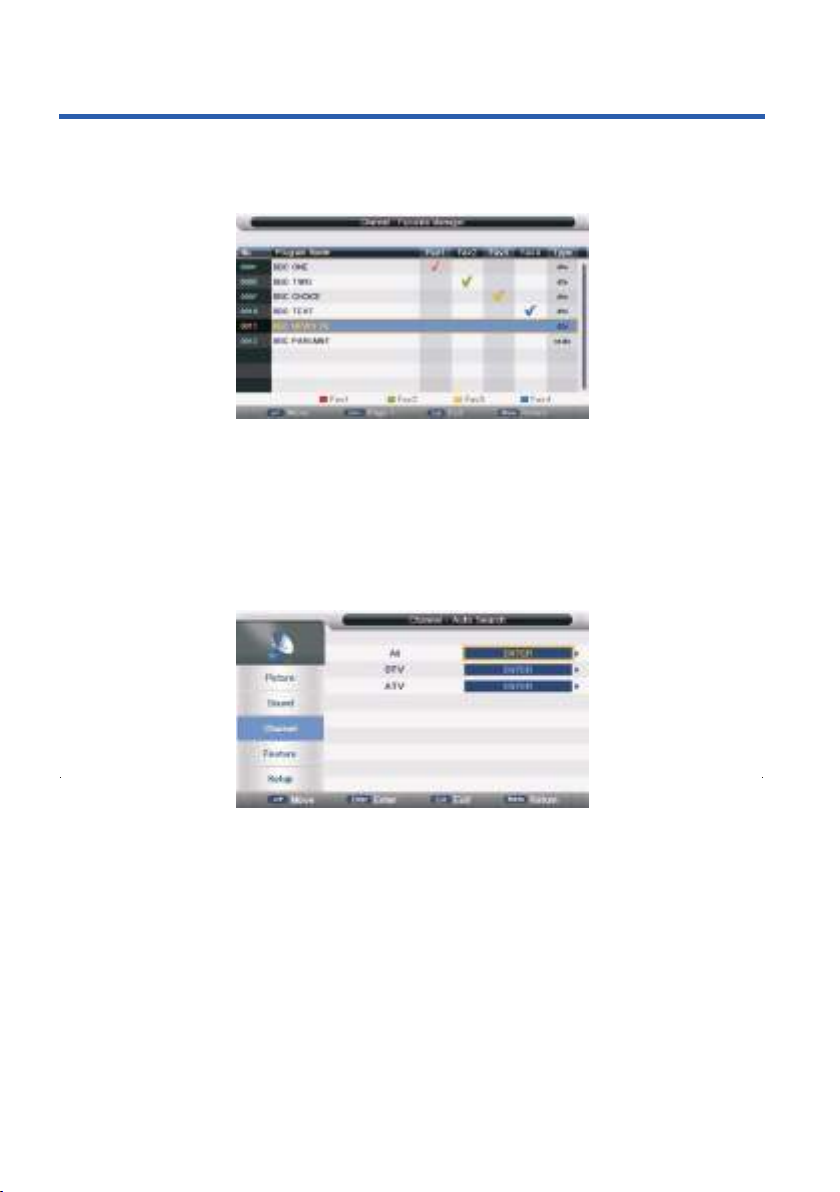

Favorite Management
To manage (Add/Delete) Favorite channels
Press UP /DOWN button to select the programs to be added into favorite list and press "RED","GREEN1 ,
"YELLOW" or "BLUE"button to mark them.
"
Countr y
Press UP/DOWN button to select Country.
Auto Search
All Mode: Select "All" item to scan all digital channels carried by current signal mode firstly and then switch
to scan all analog channels in selected country automatically. User can skip digital search to analog search
directly by entering EXIT/MENU button and can also stop auto scan directly by entering EXIT/MENU button
during analog scanning.
Digital Mode: Select "Digital" item to search all digital channels in selected country carried by current signal
mode. User can stop search directly by entering EXIT/MENU button.
Analog Mode: Select "Analogue" item to search all digital channels in selected country carried by current
signal mode. User can stop search directly by entering EXIT/MENU button.

19
Function Description
DTV Manual Search
Select channel number by ENTER/RIGHT button or entering number directly. The strength and the quality
shows at the bottom. Press ENTER button on "Start" item to start current channel search.
DTV manual search only available in source DTV mode.
ATV Manual Search
Press UP/DOWN button to select option. Press ENTER/RIGHT button to enter,Press UP/DOWN button to select
these parameters. Select "Search" item to enter analog channel tune, then press LEFT/RIGHT button to adjust.
ATV manual search only available in source ATV mode.
Feature Menu
Press MENU button to display the main menu.
Press ENTER/RIGHT button to select Feature Menu in the main menu.then press ENTER/RIGHT button to enter
1. Press UP/DOWN button to select the option that you want to adjust in the Feature menu.
2. Press ENTER/RIGHT button to enter,then press LEFT/RIGHT button to adjust.
3. After finishing your adjustments.Press MENU/ENTER button to save and return back to the previous menu.
