GVA G32TDC15 User manual

32’’HD LED LCD TV
G32TDC15
with Built-in DVD Player

11
2
6
7
9
10
12
15
24
25
Guide to the Television
Caring for the Environment
Contents

2
14
7 8
9
EARPHONE
COMPO NENT INPUT
Y Pb Pr
HDMI CRC
PC AU DI O
INPUT VGA COAXIAL
AC 100-240V~
50/60Hz ANT 75
HDMI 2 HDMI 3 USB
AV INPUT
VIDEO L R
131210
11
6
7
Guide to the Television
1. SOURCE Source select
2. MENU Into or exit from menu
Use CH+/- button select item
VOL+/- button adjust item
3.CH+/- Select channel
4.VOL+/- Adjust Volume
5. Turn on/off TV
6.Antenna 75Ω
7.HDMI: HDMI connection port.
8. VGA Input
9. EARPHONE Earphone OUTPUT
10. Y Pb/Cb Pr/Cr: Color difference
Components input and relevant video input
11. AV input : External AV signal input and
relevant right / left sound channel inputs.
12. PC AUDIO INPUT
13. COAXIAL Output
14. USB Input.

3
5
9
6
0
7
4
8
D.Menu D.Title Goto D.Disp
PROG STEP REPEAT A-B
1 2 3
MENUMENU SOURCE
ENTERENTER
VOL
+
-
CH
+
-
Zoom Angle Subtitle
Audio
EXIT DISPLAY
SLEEPSLEEP
P.MODE S.MODE
MTS
INDEX
RED GREEN YELLOW CYAN
REVEAL SIZE
CANCEL
HOLD TEXT
GUIDE ASPECT FAV/LIST
FREEZE
DTV/ATVDTV/ATV
D.setup
TV/RADIO
REC TIMESHIFT
SUB.PG SUBTITLE
RECLIST
1. Power : Set your TV to power on or standby mode
2. MUTE: Press to mute the sound. Press again or press
VOL+ to unmute.
3. 0-9: Press 0-9 to select a TV channel directly while
watching TV. The channel will change after 2 seconds.
4. DTV/ATV: Switch between Analog and Digital TV
5. Return to the previous viewed program.
6. S.MODE: Press to cycle through the different sound setting.
7. SLEEP: Select amount of time before TV turns itself off
automatically.
8. MTS: Press to search the NICAM modes.
9. P.MODE: Press to cycle through the different picture settings.
10. MENU: Open the main menu.
11. SOURCE: Press to view and select available input sources
12. ENTER: Allow you to navigate the on-screen
Menus and adjust the system settings to your preference.
13. EXIT: Exit from the menu or sub- menu and cancel
the current in process ( if applicable )
14.DISPLAY: Press to display the source and channel's info.
Battery installation:
Remove the battery compartment lid on the rear
of the remote control by sliding the lid down. Then
off. Put two AAA batteries inside the battery
compartment with their + and – ends aligned as
indicated. Do not mix old and new batteries or
different types of batteries.
Slide the lid until you hear it click into place.
Guide to the Television

4
5
9
6
0
7
4
8
D.Menu D.Title Goto D.Disp
PROG STEP REPEAT A-B
1 2 3
MENUMENU SOURCE
ENTERENTER
VOL
+
-
CH
+
-
Zoom Angle Subtitle Audio
EXIT DISPLAY
SLEEPSLEEP
P.MODE S.MODE
MTS
INDEX
RED GREEN YELLOW CYAN
REVEAL SIZE
CANCEL
HOLD TEXT
GUIDE ASPECT FAV/LIST
FREEZE
DTV/ATVDTV/ATV
D.setup
TV/RADIO
REC TIMESHIFT
SUB.PG SUBTITLE
RECLIST
33
32
15. VOL+/VOL-: press to increase / decrease the sound level
16. TV/RADIO: 1. When watching channel, allows you to switch between TV and Radio modes.
2.Previous chapter reverse in PVR or Media Player mode.
17. GUIDE: 1. Launches the EPG(Electronic Program Guide)
2.Fast reverse in PVR or Media Player mode.
18. REC LIST: list of PVR recordings.
19. CANCEL: When a page is selected in the mode of
text, it may take some time before it becomes available,
pressing the CANCEL key will return to the TV model.
When the required page is found. The page number will
appear at the top of the TV picture, press the CANCEL key
to return to the mode of text for you to browse this page.
20. INDEX: Request the index page in Teletext mode.
21. SIZE: Change the size of display in Teletext model.
22. REVEAL: Reveal or Hide the hidden words.
23. COLOR BUTTONS: In the on-screen menus, these
buttons have different functions as specified by the
colors shown on-screen. See next page for their
DVD-playback functionality.
24. CH+/CH-: Press to scan through channels.
25. FAV/LIST: 1. Press to open the favorite list.
Then you can select the favorite channel.
2.Next chapter in PVR or Media Player mode.
26. ASPECT: 1.Select picture scale.
2.fast forward in PVR or Media Player mode.
27. FREEZE: press to 'pause' the picture (actual broad
cast continues in background)
28. SUB.PG: Press to access sub page.
29. SUB TITLE: To show subtitles when watching
DTV( broadcast-dependent)
30. HOLD: HOLD On or Off for current page display.
31. TEXT: Switch the teletext on and off.
32. TIMESHIFT:
1.DTV channel time shift Function.
2.Play / pause during PVR or media playback.
33. REC: Begin recording current program to connected.
USB memory device, in PVR mode.
Note: Teletext is not currently broadcast in Australia.
Guide to the Television

5
34． :DVD EJECT.
35． :play /pause DVD program.
36． :DVD previous chapter.
37． :DVD next chapter.
38． :DVD fast reverse.
39． :DVD fast forward.
40． :stop DVD program.
41. D.setup: DVD system setup.
42. ZOOM: in DVD source adjust DVD picture size.
43.Angle: select DVD picture angle.
44.Audio: select DVD disc language.
45.Subtitle: select DVD disc subtitle.
46.D.MENU: DVD disc menu. press this to access
the menu.
47.D.Title: Press to select the DVD title.
48.GOTO: play your favorite title/chapter/track.
49.D.DISP: press to display the source and channel'
s info.
50.PROG: Press this button to change the playback
order. It varies according to the different discs.
51.STEP: Entrance of DVD OSD features.
52.REPEAT: Repeat playing the title or chapter.
53.A-B: Whilst watching a DVD, press this button
Button functionality when watching DVD
(Note that some features are disc-dependent):
the start and again at the end of a desired section
to watch it repeatedly.
47
5
9
6
0
7
4
8
D.Menu D.Title Goto D.Disp
PROG STEP REPEAT A-B
1 2 3
MENUMENU SOURCE
ENTERENTER
VOL
+
-
CH
+
-
Zoom Angle Subtitle
Audio
EXIT DISPLAY
SLEEPSLEEP
P.MODE S.MODE
MTS
INDEX
RED GREEN YELLOW CYAN
REVEAL SIZE
CANCEL
HOLD TEXT
GUIDE ASPECT FAV/LIST
FREEZE
DTV/ATVDTV/ATV
D.setup
TV/RADIO
REC TIMESHIFT
SUB.PG SUBTITLE
RECLIST
37
35
40
34
39
38
42
46
50
43
53
49
48
44
45
36
52
51
41
Guide to the Television

6
television
television
packing
Caring for the Environment

Safety information and warnings
SYMBOLS
The graphic symbols used in this manual or on the back cover of the set
mean the following:
Read this manual in full before use
The lightning flash symbol is intended to alert the user to the
enclosures that contain hazardous voltages
The exclamation symbol is intended to alert the user to the
presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Important safety instructions
When using any electrical apparatus always observe safety
regulations and use basic safety precautions to reduce the
risk of fire, electric shock and personal injury, including the
following.
1. Read, keep and follow these instructions, heeding all Warnings.
2. Keep out of reach of young children. This apparatus is not suitable for use by
young children or infirm persons without supervision. Young children must be
supervised to ensure that they do not play with the apparatus.
3. Do not insert any objects into any openings of an electrical
apparatus
4. Do not touch any moving parts of any electrical apparatus.
5. Where the mains plug or an appliance coupler is used to as the
disconnect device, the disconnect device shall remain readily operable.
6. Do not use this apparatus near water.
7. The apparatus shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases, shall be placed on the apparatus.
WARNING.
WARNING.
WARNING.
WARNING.
WARNING.
7

Safety information and warnings
8
If a television is not positioned in a sufficiently stable location, it can be
potentially hazardous due to falling. Many injuries, particularly to children,
can be avoided by taking simple precautions such as:
Using cabinets or stands recommended by the manufacturer of the television.
Only using furniture that can safely support the television.
Ensuring the television is not overhanging the edge of the supporting furniture.
Not placing the television on tall furniture (for example, cupboards or book cases)
without anchoring both the furniture and the television to a suitable support.
Not standing the television on a cloth or other materials placed between the
television and supporting furniture.
Educating children about the dangers of climbing on furniture to reach the
television or its controls.
8. immerse in any liquid whilst in use or in cleaning. Clean only with a damp DO NOT
cloth, dry with a dry towel. Do not use harsh abrasives as these may damage
plastic parts.
9. block any ventilation openings. Keep away from curtains, newspapers andDO NOT
restricted areas. Install in accordance with any specific manufacturer's instructions.
Always allow a sufficient gap around the apparatus to avoid overheating.
10. install near any heat sources such as radiators, gas heaters, stoves or DO NOT
other apparatus (including amplifiers) that produce heat. Do not leave in direct
sunlight.
11. Do not place any naked flame source, such as lighted candles on any WARNING.
electrical apparatus.
12. Connect to a suitable 230-240V~ 50Hz power supply only. If a class 1 WARNING!
product it must be connected to a suitably earthed mains socket.
13.Always unplug from the power source when any electrical apparatus is not in use.
14. abuse or damage a power cord. If any power cord is damaged, it must be DO NOT
replaced by the manufacturer, its service agent or a similarly qualified person in
order to avoid a hazard. A replaceable cord must be replaced with an authorised
replacement from an authorised service agent only.
15.Only use attachments/accessories specified by the manufacturer.
16.Unplug this apparatus during lightening storms or when unused for long periods
of time.
17.Attention is drawn to the environmental aspects of disposing of any battery.
18.Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the power supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
19. attempt to service any double insulated apparatus. Double insulated DO NOT
apparatus requires specialist servicing and knowledge to retain the safety of
the apparatus.
20.WARNING. This Television is for indoor use only.
21.For household use only, this apparatus is not intended for commercial use.
22.If this apparatus is to be used by a third party, please supply these instructions
with it.
23.No liability will be accepted for any personal injury or damage caused by failure
to follow these instructions.

MENU SO URCE
ENTE R
EXIT
SLEE P P.MODE S.MO DE
MTS
INDEX
REVEAL SIZE
CANCEL
HOLD
SUB .PG
RED GREEN YELLOW CYAN
D.Menu D.Title Goto D.Disp
PROG STEP REPEAT A-B
Zoom Angle Subtitle Audio
D.setup
DTV/ ATV
DISPLAY
RECLIST
REC TIMESHIFT FREEZE
GUIDE ASPECT TV/RADIO FAV/LIST
SUBTITLE
TEXT
Television
Stand
Screws
Remote control
Two AAA Batteries
Instruction Manual
9
Quick-start guide

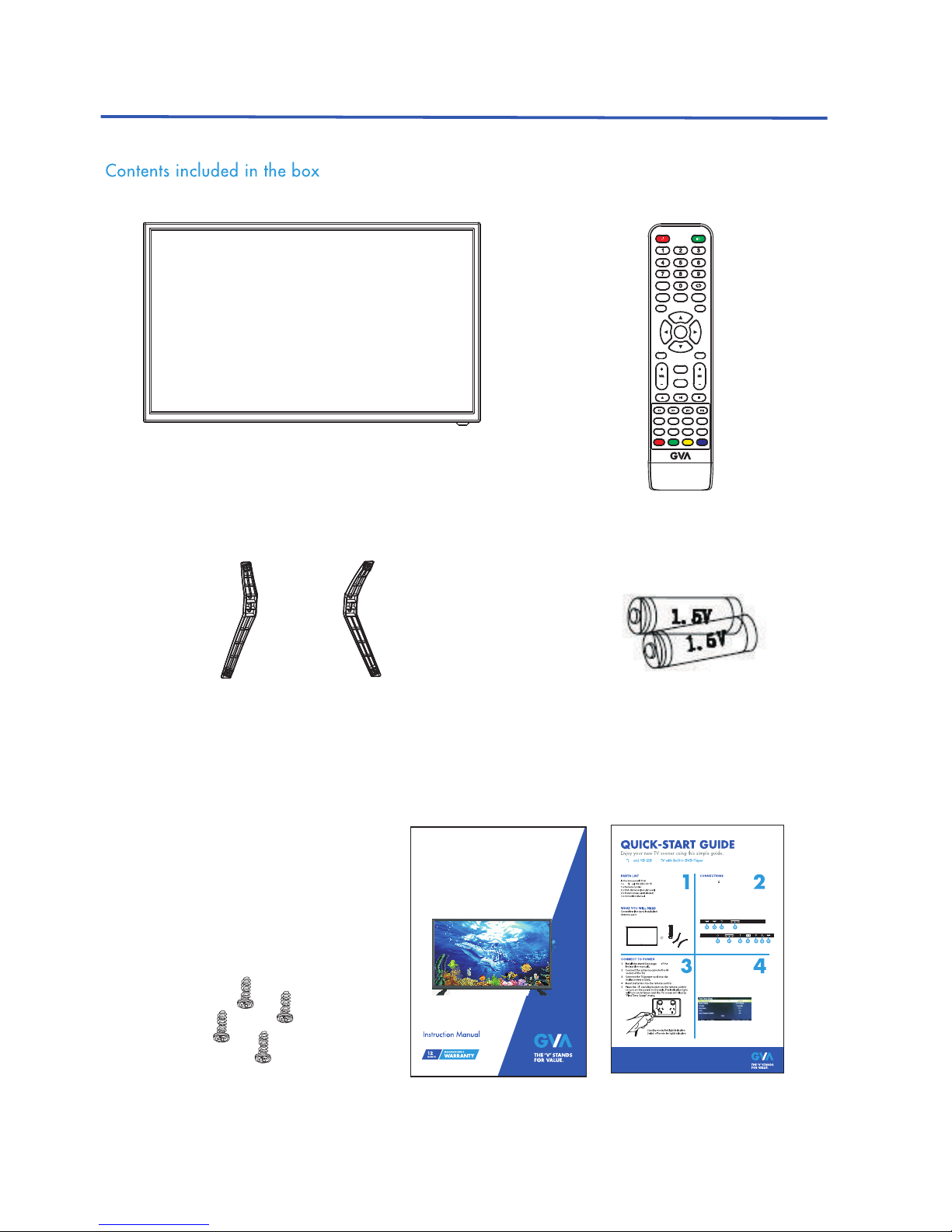

Items in the Box
EARPHONE
COMPONENT INPU T
Y Pb Pr
HDMI ARC
PCIN APUUDTIO VGA COAXIAL
AC 100-240V~
50/60Hz ANT 75
HDMI 2 HDMI 3 USB
AV INPUT
VIDEO L R
MENU SOURCE
ENTER
EXIT
SLEEP P.MODE S.MODE
MTS
INDEX
REVEALSIZE
CANCEL
HOLD
SUB .PG
RED GREEN YELLOW CYAN
D.MenuD.Title Goto D.Disp
PROG STEP REPEAT A-B
Zoom Angle Subtitle Audio
D.setup
DTV/ATV
DISPLAY
RECLIST
REC TIMESHIFT FREEZE
GUIDE ASPECT TV/RADIOFAV/LIST
SUBTITLE
TEXT
32 80
G32T DC 15
32 80
3. PC VGA Input.
5. Components Video input
6. AV Input
7. PC AUDIO Input
9. USB Input.
8. COAX IAL Ou tput .
1. RF ANT 75
2. HDMI :HDMI connection port.
FIRST TIME SETUP
LCD
10
ANT
The on -sc reen d ispl ay giv es you e asy
inst ruct ion for se ttin g up the uni t.
Plea se ref er to the in stru ction ma nual
for de tail ed infor mati on.
Usin g the ▼ bu tton to se lect “ Start" a nd pre ss
ENTE R on the r emote. T he TV wi ll autom atic ally
tune a ll the d igital c hann els.
4. EARPHONE Earphone output
32’’HD LED LCD TV
G32T DC 15
with Built-in DVD Player

10

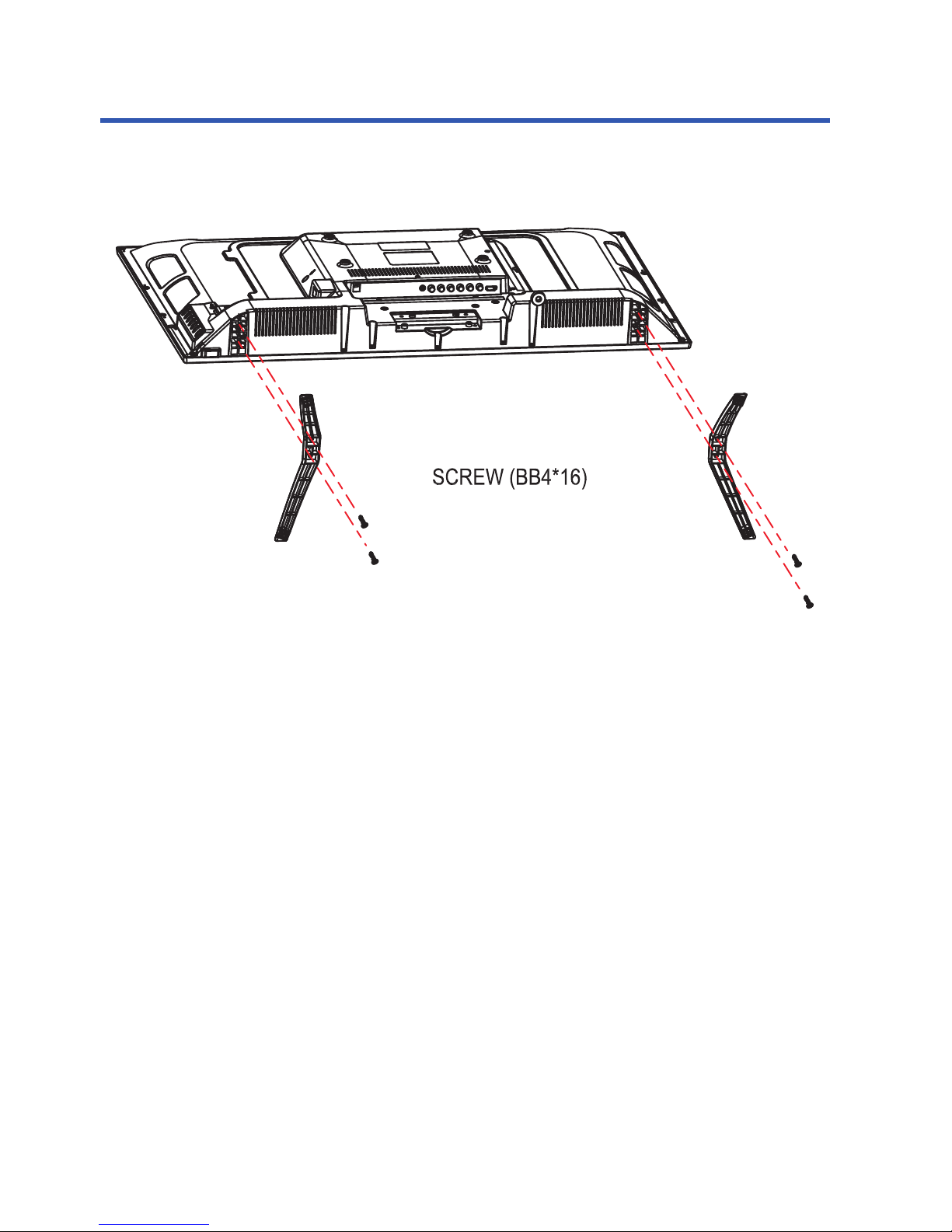

To install the TV feet please carefully follow the following assembly instruction.
The TV feet comes with the purchase of your TV set. Install with care.
Basic set up
Before beginning TV feet assembly please check you have the following;
-2 X Stand ( 1 X Left + 1 X Right)
-4 X Screw (BB4*16)
Important: There is a LEFT and RIGHT foot for the stand, the left foot must only align with the left
hand side and the right foot must only align
and right
with the right hand side. The feet for the TV are not left
reversible.
To begin set up; lay the TV on a soft and clean flat surface with the TV panel facing upwards.
Take the left hand foot and align with the left hand side of the TV.
Using the appropriate size screw driver please fix the foot with the screws provided.
Repeat the same process with right hand side using the right foot.
IMPORTANT: DO NOT OVER TIGHTEN SCREWS.
IMPORTANT: ENSURE THE PINS ON THE FEET PROVIDED ALIGN WITH THE BASE OF THE TV.

11
Setting up your TV
Ensure to put your TV in a firm place which
can bear the weight of the TV.
To avoid any danger, please do not expose
or place the TV near water, fire place
And / or heating apparatuses.
(such as heaters, candles, strong lights)
Do not block the ventilation at the back
Of the TV.
Connect antenna and power
Turn on TV
1.Connect one end of the antenna
cable to the ANT 75 (Antenna socket)
in the rear of your television set. Plug
the other end of the Antenna Cable into
a desired antenna wall socket. (Note
Antenna cable not included)
2.Your TV power cord already wired into
the rear of your television set. Plug the
power lead into an easily accessible
power outlet
TV signal output
AC POWER socket
3.Press the Standby button on the
remote control to turn on the power to
the unit. The indication light will turn
on to Green and the TV screen will
display "First Time Setup" menu.
4.First Time Setup menu refer to P19.
NOTE Picture for reference
purposes only.
Basic set up

12
1.AV input
Video/Audio input, press the SOURCE button using either the remote control or the button
Located on the side of the TV set and select the AV option.
HDMI 2 HDMI 3 USB
AV INPUT
VIDEO L R
EARPHONE
COMPO NENT INPUT
Y Pb Pr
HDMI ARC
PC AU DI O
INPUT VGA COAXIAL
AC 100-240V~
50/60Hz ANT 75
Advanced connection diagrams
Below diagrams show the basic connection options available.
DVD AV R/L OUTPUT
Earphone
2.
Earphone output

13
3.PC input
PC(VGA)Input, press the SOURCE button on either the remote control or the button
located on the side of the TV set and select the PC option.
4.HDMI input
HDMI Input, press the SOURCE button on either the remote control or the button located
on the side of the TV set and select the appropriate HDMI option.
HDMI 1 OUTPUT
EARPHONE
COMPONENT INPUT
Y Pb Pr
HDMI ARC
PC AU DI O
INPU T VGA COAXIAL
AC 100-240V~
50/60Hz ANT 75
EARPHONE
COMPONENT INPUT
Y Pb Pr
HDMI ARC
PC AU DI O
INPU T VGA COAXIAL
AC 100-240V~
50/60Hz ANT 75
HDMI 2 HDMI 3 USB
AV INPUT
VIDEO L R
HDMI 3 OUTPUT HDMI 2 OUTPUT
Advanced connection diagrams
PC AUDIO
OUTPUT
VGA OUTPUT
DVD VGA
OUTPUT

14
6.USB input
USB
5. Component video input
Component Video Input, press the SOURCE button on either the remote control or the
button
located on the side of the TV set and select COMPONENT source.
Media Input, press the SOURCE button on either the remote control or the button located
on the side of the TV set and select the MEDIA option.
HDMI 2 HDMI 3 USB
AV INPUT
VIDEO L R
EARPHONE
COMPONENT INPUT
Y Pb Pr
HDMI ARC
PC AU DI O
INPU T VGA COAXIAL
AC 100-240V~
50/60Hz ANT 75
HDMI 2 HDMI 3 USB
AV INPUT
VIDEO L R
Advanced connection diagrams
YPbPr
Output
Audio
Output

15
Input source
Note: The above is for reference only, to
prevail any kind
Press Source button to display the input source list,
Press ▼ /▲ o r button to select the input source you want to,
Press ENTER button to enter the input source,
Press EXIT button to quit.
Source
Picture menu
Press MENU button to display the main menu.
ress
to enter.
Press button select PICTURE in the main menu,then p ENTER / ▼
1. Press ▼ / ▲ button to select the option that you want to adjust in the
PICTURE menu.
2. Press Enter/ button to adjust.
3. After finishing your adjustment, Press MENU button to save and return
back to the previous menu.
Picture MODE
Press ▼ / ▲ button to select Picture Mode, then press button
to select.
TIPS: You can press PMODE button to change the Picture Mode directly.
Brightness/Contrast/ Sharpness/Saturation/Hue
Press button to select option, then press button
to adjust.
Brightness Adjust the optical fiber output of the entire picture,
it will effect the dark region of the picture.
Contrast Adjust the highlight intensity of the picture, but the
shadow of the picture is invariable.
Sharpness Adjust the peaking in the detail of the picture.
Saturation Adjust the saturation of the color based on your
own like.
Hue Use in compensating color changed with the
transmission in the NTSC code.
Color Temp
Change the overall color cast of the picture.
button to select Standard/Cool/Warm.
Standard Produces a vivid image.
Cool Produces a gentle blue-hued image.
Warm Produces a red-hued image.
Aspect Ratio
Press ▼ / ▲ button to select Aspect Ratio, then press
button to select.
Auto Automatically adjust Aspect Ratio based on TV size
and TV program.
Full/4:3 /Zoom1/Zoom2 To select the available display format.
PC Setting
Source
M
ENTER / ▼ ▼
Press
Press
to select PC source.
ENU to enter the main menu,then press button
to select PICTURE menu.
Press to enter and press to select PC Setting.
Color TempPress ▼ / ▲ button to select , then press
Advanced Settings
Adjust advanced video features to fine tune the picture.
Advanced SettingsPress ▼ / ▲ button to select , then press
Enter / button to enter sub-menu.
YPBPR
DVD
HDMI
AV
PC
MEDIA
Advanced features
screen mode: this mode is only use for HDMI
Video: it is use for HDMI signal
PC: it is usd ofr DVI signal
Auto: can auto choose the signal model

16
Channel menu
1. Press ▼ / ▲ button to select the option that you want to adjust in the
SOUNDmenu.
2. Press Enter/ button to adjust.
3. After finishing your adjustment, Press MENU button to save and return
back to the previous menu.
Sound Mode
Sound ModePress ▼ / ▲ button to select , then press
button to select.
Treble/Bass/Balance
Press ▼ / ▲ button to select option, then press button to adjust.
Treble Adjust the treble effect.Increases or decreases
high-pitched sounds.
Bass Adjust the bass effect.Increases or decreases
lower-pitched sounds.
Balance Adjust the balance between left and right speakers
to adapt to your listening position.
Surround Sound
Press ▼ / ▲ button to select Surround Sound, then press
button to select On or Off.
Press ▼ / ▲ button to select , then press Enter /
button to enter sub-menu.
EQ Setting
EQ Setting
Adjust the curve of 7 bands equalizer.
AVL
Set the auto volume control.
Press ▼ / ▲ button to select AVL, then press button to
select On or Off.
SPDIF
Press button to select SPDIF, then press button
to select Off / Auto / PCM.
Audio Description
Audio DescriptionPress ▼ / ▲ button to select , then press Enter /
button to enter sub-menu.
Sound Type
Press ▼/ ▲ button to select Sound Type, then press button to select.
(Available Sound Type: Stereo,Dual I,Dual II,Mixed).
Press MENU button to display the main menu.
Press button to select CHANNEL in the main menu,then p
ENTER / ▼
ress
to enter.
1. Press ▼ / ▲ button to select the option that you want to select in the
CHANNEL menu.
2. Press Enterbutton to enter sub-menu.
3. Press MENU button to return back to the previous menu.
Auto Scan
Auto Scan
Press ▼ / ▲ button to select , then press Enter / button to
enter sub-menu.
Sound menu
Press MENU button to display the main menu.
ress
to enter.
Press button select SOUND in the main menu,then p ENTER / ▼
Manual Scan
Manual ScanPress ▼ / ▲ button to select , then press Enter / button
to enter sub-menu.
Digital Manual Scan
Press ▼ / ▲ button to select Digital Manual Scan, then press
Enter / button to enter sub-menu.
Advanced features

17
Analog manual scan
Press ▼ / ▲ button to select Analog Manual Scan, then press
Enter / button to enter sub-menu.
Analog scan
Press button to select Analog Scan.
Color system
Press button to select Color System:Auto,PAL or SECAM.
Sound system
Press button to select Sound System :Auto,DK,BG,I or L.
AFC
press button to select On or Off.
Start
Press Enter / button to start the channel searching.
Automatic Fine tuning.
Channel edit
Press ▼ / ▲ button to select Channel Edit, then press Enter /
button to enter sub-menu.
The three colored key is the shortcut key for
programming the channel.
First press ▼ / ▲ to highlight the channel you want to delete or
move or skip, then:
Press the button to delete the channel.
Press the button to skip the select channel.
(Your TV set will skip the channel automatically when using
CH+/- to view the channels.)
Press the button to to set the channel to moving state.
then press ▼ / ▲ to move it to the position you want to put.
Red
Green
Blue
Signal Information
about the signal. Only
available under DTV mode.
Press ▼ / ▲ button to select Signal Information, then press the
Enter button to see the detail information
Advanced features

18
Press MENU button to display the main menu.
ress
to enter.
Press button select Lock System
Lock System
in the main menu,then
p
ENTER / ▼
1. Press ▼ / ▲ button to select the option that you want to adjust in the
menu.
2. Press Enter/ button to adjust.
3. After finishing your adjustment, Press MENU button to save and return
back to the previous menu.
Default password is 0000,and if forget what you set, please
call the service center.
P ,ress ▼ / ▲ button to select Enable then press button
to select On or Off.
Channel Locks,Parental Rating and Lock Keypad are
available when Enable is On.
Channal Locks
Channal LocksPress ▼ / ▲ button to select , then press
Enter / button to enter sub-menu.
Lock Keypad
Set to prevent it from being used by young children,or other
unexpected usage.
Lock Keypad ,Press ▼ / ▲ button to select then press
button to select On or Off.
Parental Rating
Parental RatingPress ▼ / ▲ button to select , then press
button to select.
New Password
Press ▼ / ▲ button to select New Passwor nter a
4-digital number you want to set twice.
,then e
Lock system menu
Clear Lock
Press ▼ / ▲ button to select Clear Lock.
Hotel mode
Press ▼ / ▲ button to select Hotel mode.
Setup menu
Press MENU button to display the main menu.
ress
to enter.
Press button select SETUP in the main menu,then p ENTER / ▼
1. Press ▼ / ▲ button to select the option that you want to adjust in
the SETUP menu.
2. Press Enter/ button to adjust.
3. After finishing your adjustment, Press MENU button to save and
return back to the previous menu.
Press ▼ / ▲ button to select OSD Language, then press button to select.
Audio Languages
Press ▼ / ▲ button to select Audio Languages, then press Enter button to enter
sub-menu.
Press ▼ / ▲ / button to select the Audio Primary Language and Audio
Secondary Language.
OSD Language
Subtitle
Press ▼ / ▲ button to select Subtitle, then press Enter button to enter sub-menu.
Teletext
Adjust Teletext settings. Only available under DTV and ATV source.
TeletextPress ▼ / ▲
▲
button to select , then press Enter / button
to enter sub-menu.
Mode Setting
Mode Setting.Press ▼ / ▲ button to select
Time Settings
Time SettingsPress ▼ / ▲ button to select , then press
Enter / button to enter sub-menu.
PVR Settings
Press ▼ / ▲ button to select PVR Settings, then press Enter
button to enter sub-menu.
It will check the USB .
HDMI CEC Control
HDMI ARC:on/off
CEC Menu Control
Device List
Advanced features

19
USB operation
Note: Before operating Media menu,Plug in USB device, then press
SOURCEbutton to set the Input Source to
Press button to select in the Source menu, then
press Enter button to enter.
Press button to select the option you want to adjust in
the main menu,
then press Enter button to enter.
Media .
Media
Media
First time setup
Press ▼ / ▲ button to select First time Setup, then press Enter
button to enter.
PVR settings
Press ▼ / ▲ button to select PVR Settings, then press Enter button to
enter sub-menu. It will check the USB .
Press ◄ / ► button to select File Manager,then press Enter button to
sub-menu.enter
Press Device List,then press Enter button to ◄ / ► button to select
enter sub-menu.
Press Scheduled Record,then press Enter ◄ / ► button to select
button to enter sub-menu.
Connect an RF cable from the TV’s input called “RF-In” and to your TV Aerial socket.
OSD Language
Press ◄ / ► button to select the language to be used for menus and message.
Mode Setting
Country
Press ◄ / ► button to select the country you want to.
Press ◄ / ► button to select home mode.
Auto Scan
Press ◄ / ► button to select Mode: DTV.
LCN
Press ◄ / ► button to select : On, Off.
Auto Channel Update
Press ◄ / ► button to select : On, Off.
Press Start to finish Setting
Advanced features
Start
