GW Instek PEL-3000 Series User manual

DC Electronic Load
PEL-3000(H) Series
QUICK START GUIDE
GW INSTEK PART NO. 82EL-31110MD1
ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is
protected by copyright. All rights are reserved. No part
of this manual may be photocopied, reproduced or
translated to another language without prior written
consent of Good Will Corporation.
The information in this manual was correct at the time
of printing. However, Good Will continues to improve
its products and therefore reserves the right to change
the specifications, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd. No. 7-1, Jhongsing Rd., Tucheng
Dist., New Taipei City 236, Taiwan.

SAFETY INSTRUCTIONS
This section contains the basic safety symbols that may
appear on the accompanying User Manual CD or on the
instrument. For detailed safety instructions and
precautions, please see the Safety Instructions chapter
in the user manual CD.

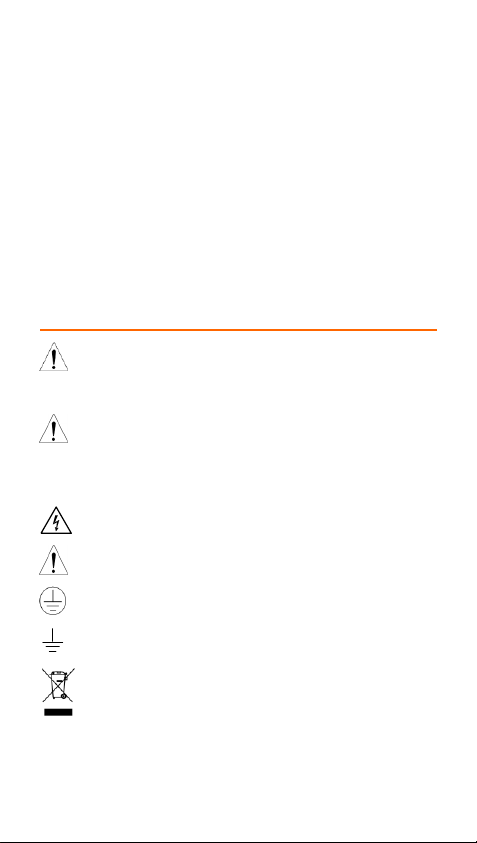

Safety Symbols
These safety symbols may appear in the user manual or
on the instrument.
Warning
Warning: Identifies conditions or
practices that could result in injury or
loss of life.
Caution
Caution: Identifies conditions or
practices that could result in damage
to the instrument or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal
Do not dispose electronic equipment
as unsorted municipal waste. Please
use a separate collection facility or
contact the supplier from which this
instrument was purchased.

Power Cord for the United Kingdom
When using the instrument in the United Kingdom,
make sure the power cord meets the following safety
instructions.
NOTE: This lead/appliance must only be wired by
competent persons.
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in
accordance with the following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed as
follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal
marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or
contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable of
0.75mm2should be protected by a 3A or 5A fuse. Larger conductors
would normally require 13A types, depending on the connection
method used.
Any exposed wiring from a cable, plug or connection that is engaged
in a live socket is extremely hazardous. If a cable or plug is deemed
hazardous, turn off the mains power and remove the cable, any
fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.

GETTING STARTED
The Getting Started chapter introduces the instrument’s
main features, appearance, and set up procedure.
Overview
The PEL-3000(H) Series is a family of high performance
DC electronic loads positioned to test a wide range of
different power sources. The DC electronic loads are
fully programmable to simulate anything from basic
static loads to complex dynamic loads. With the ability
to operate independently or in parallel, the PEL-3000(H)
Series is extremely robust and capable of molding to
any test environment.
Model Line Up
Model
Voltage (DC)
Current
Power
PEL-3021(H)
0V~150V/0V-800V
35A/8.75A
175W
PEL-3041(H)
0V~150V/0V-800V
70A/17.5A
350W
PEL-3111(H)
0V~150V/0V-800V
210A/52.5A
1050W
PEL-3211(H)
(Booster)
0V~150V/0V-800V
420A/105A
2100W
Main Features
Performance
•High slew rates of up to
16A/μS(PEL-3111),0.8A/μS(PEL-
3111H) for a fast response speed

•High capacity when used in
parallel:
5250W, 1050A(262.5A),
PEL-3111(H) x 5)
9450W, 1890A(472.5A),
PEL-3111(H) + PEL-3211(H) x 4)
•High resolution –16 bit
Features
•7 operating modes: CC, CV, CR,
CP, CC+CV, CR+CV, CP+CV
•Independent and parallel
operation
•Fully programmable with normal
and fast sequences
•Soft start
•Dynamic mode
•OCP, OVP and other protection
features
•Remote sense
•Integrated meter
•Rack-mountable
•Load booster
Interface
•USB, RS232 and GPIB
•External voltage or resistance
control
•Front panel trigger out BNC
•Front panel current (voltage)
monitoring BNC
•Analog external control

Package Contents and Accessories
Standard Accessories
Item
Part Number
User /Programming Manual CD
Quick Start Guide (this document)
Load input terminal Cover, M3
screw x1
PEL-011
Terminal fittings: 2 sets of
bolts/nuts/springs/washers (type:
M8), terminal cover x1 (for PEL-
3000H series only), monitor out
cover x 1(for PEL-3021H, PEL-
3041H, PEL-3111H only)
PEL-012
Flexible terminal cover: 2x rubber
sheeting, 4x Velcro fasteners.(for
PEL-3211(H)only)
PEL-013
J1/J2 Protection plug x2 (It is
installed on the device)
PEL-014
Front terminal washers (M6) x2
61SF-062104N1
Power Cord x1
Region Dependent
300mm Frame Link Cable (for
linking units that are stacked).
Note that this accessories is
optional for the PEL-3021(H)/
3041(H)
GTL-255
Optional Accessories
Item
Part Number
Rack mount bracket for booster
PEL-3211(H) (EIA + JIS)
GRA-413
Rack mount frame for PEL-
3021(H), PEL-3041(H), PEL-
3111(H)/EIA
GRA-414-E

Rack mount frame for PEL-
3021(H), PEL-3041(H), PEL-
3111(H)/JIS
GRA-414-J
GPIB cable, 2.0m
GTL-248
USB cable. Type A - Type B
GTL-246
Dust filter
PEL-010
CR123A 3V lithium battery for
clock.
3813-030D0501
Connect Cu Plate
PEL-005
Connect Cu Plate
PEL-006
Connect Cu Plate
PEL-005
Connect Cu Plate
PEL-005
Connect Cu Plate
PEL-005

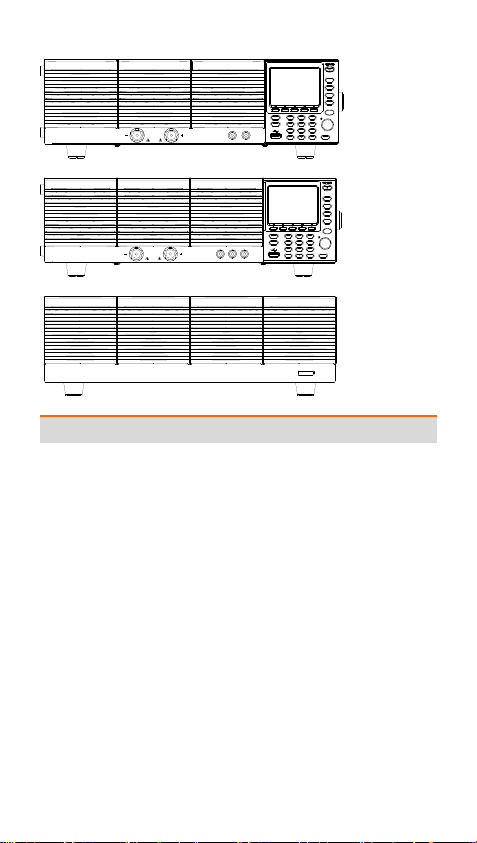

Front Panel
PEL-3021 and PEL-3041
I MON OUT TRIG OUT
1.5 - 150V
175W
0 - 35A
P0
P1
P4
P7
CAL.
P2
P5
P8
Lock
P3
P6
P9
Utility
Local
File
0
1
4
7
2
5
8
3
6
9
EnterClear
Shift
Preset
Load On/
Off
Main
Help
FUNC
Short
1 2 3 4
5
6
7
8
9
10
11
12
1314
PEL-3021H and PEL-3041H
V
MON OUT TRIG OUT
5- 800V
350W
0- 8.75A
P0
P1
P4
P7
CAL.
P2
P5
P8
Lock
P3
P6
P9
Utility
Local
File
0
1
4
7
2
5
8
3
6
9
EnterClear
Shift
Preset
Load On/
Off
Main
Help
FUNC
Short
I
MON OUT
A/ B
1 2 34
5
6
7
8
9
10
11
12
1314

PEL-3111
P0
P1
P4
P7
CAL.
P2
P5
P8
Lock
P3
P6
P9
Utility
Local
File
0
1
4
7
2
5
8
3
6
9
EnterClear
Shift
Preset
LoadOn/
Off
Main
Help
FUNC
Short
TRIG
OUT
I MON
OUT
1.5 - 150V
1050W
0 - 70A
PEL-3111H
P0
P1
P4
P7
CAL.
P2
P5
P8
Lock
P3
P6
P9
Utility
Local
File
0
1
4
7
2
5
8
3
6
9
EnterClear
Shift
Preset
LoadOn/
Off
Main
Help
FUNC
Short
TRIG OUT
I
MON OUT
5 - 800V
1050W
0 –52.5A V
MON OUT
A/B
PEL-3211(H) Booster Pack
LINK STBY

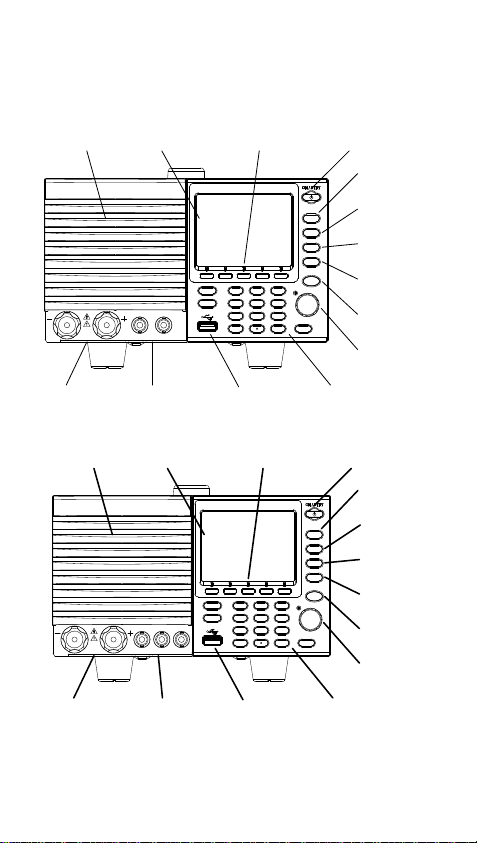

Description
1. Air inlet
2. LCD Display
3. Function keys
4. Power key
5. Main/Local key
6. FUNC/File key
7. Help/Utility key
8. Short key
9. Load On/Off
10. Scroll wheel
11. Number pad, Clear/
Lock and Enter keys
12. USB port, Preset and
Shift keys
13. I MON OUT and TRIG
OUT(for PEL-3000
series)
I MON OUT, V MON
OUT, TRIG OUT(for
PEL-3000H series)
14. Input terminals

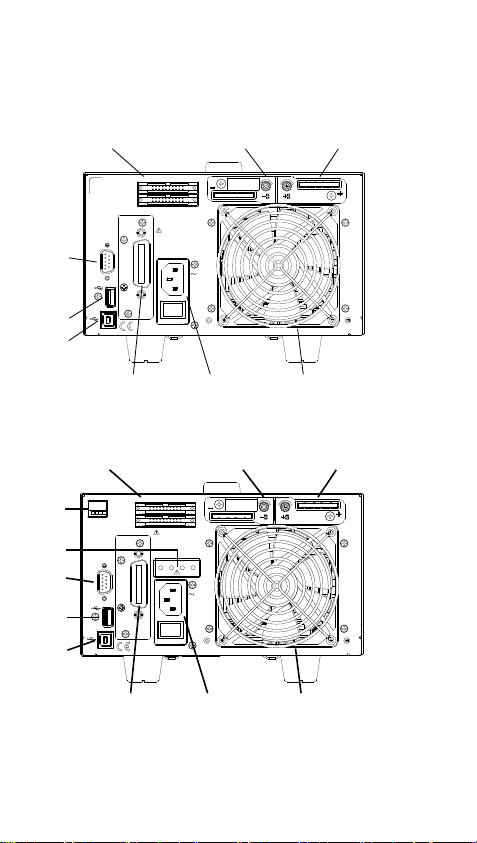

Rear Panel
PEL-3021 and PEL-3041
47 - 63 Hz
90 VA MAX.
AC
100 - 120 VAC
200 - 240 VAC
FRAME CONT
J 1
J 2
SER. NO. LB
RS232C
GPIB
WARNING
TO AVOID ELECTRIC SHOCK THE POWER CORD
DO NOT REMOVE COVERS.
NO OPERATOR SERVICEABLE COMPONENTS INSIDE.
PROTECTIVE GROUNDING CONDUCTOR MUST BE
REFER SERVICING TO QUALIFIED PERSONNEL.
CONNECTED TO GROUND.
123
456
7
8
9
PEL-3021H and PEL-3041H
47- 63Hz
90 VA MAX.
AC
100- 120 VAC
200- 240 VAC
FRAME CONT
J 1
J 2
RS232C
GPIB
VR1 VR2 VR3 VR4
V/I MON OUT
1
1 2 3
9
8
7
654
10
11

PEL-3111
P0
P1
P4
P7
CAL.
P2
P5
P8
Lock
P3
P6
P9
Utility
Local
File
0
1
4
7
2
5
8
3
6
9
EnterClear
Shift
Preset
LoadOn/
Off
Main
Help
FUNC
Short
TRIG
OUT
I MON
OUT
1.5 - 150V
1050W
0 - 70A
PEL-3111H
PEL-3211 Booster Pack
PEL-3211H Booster Pack
Description
1. Frame control ports, J1, J2
2. Remote sense inputs
3. Rear panel inputs
4. Exhaust fan
5. Power socket and switch
6. GPIB (optional)
7. USB device port
8. USB port
9. RS232C port
10. Variable Resistor
11. Monitor Out ports J3

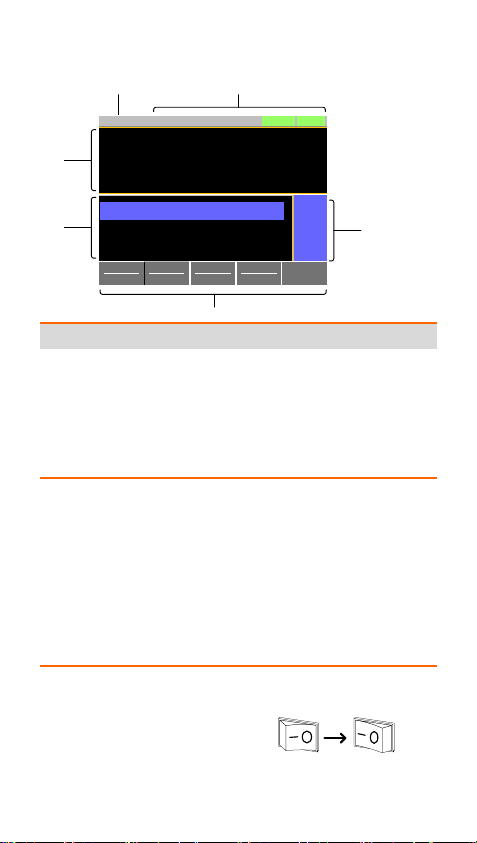

Display Overview
1 2
3
4
5
6
Mode
CV I Range H 35A V Range L 15V Function Static Configure
0.000V
0.000A0.00w
SlewRate 2500.00
CC B Value 0.000
CC A Value 0.000
LOADRS232
A Value
Fine
03/Sep/2012
mA/us
A
A
Description
1. Date and time
2. Main frame status panel
3. Operation status panel
4. Soft keys
5. Setting area
6. Measurement area
First Time Use Instructions
Use the following procedures when first using the
PEL-3000(H) to power up the instrument, set the
internal clock, restore the factory default settings and
check the firmware version. Lastly, the Conventions
section will introduce you to the basic operating
conventions used throughout the user manual.
Power Up
1. Insert the AC power cord into the power socket.
2. Turn the power switch on
from the rear panel.

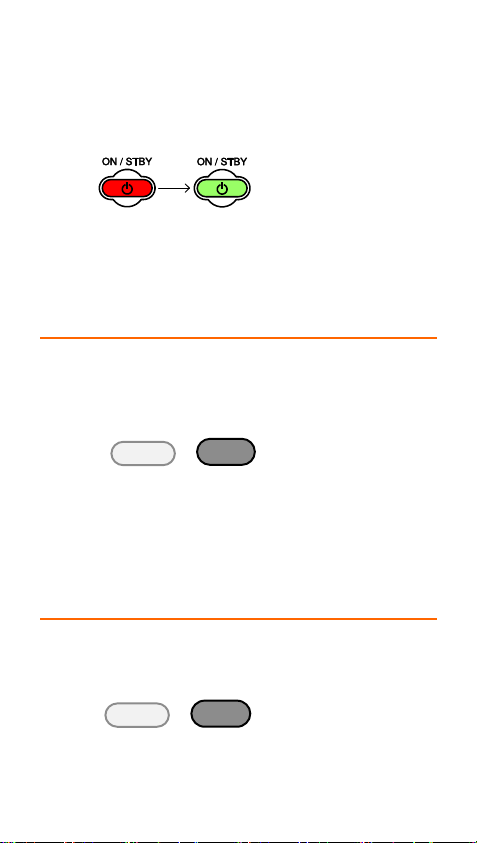

(O →—)

3. If the unit doesn’t turn on, press the ON/STBY key
on the front panel.
The ON/STBY key will go from standby (red)
to ON (green).
4. The unit will show the splash screen and then load
the settings from when the unit was last powered
down.
Load Default Settings
When first using the PEL-3000(H), recall the factory
default settings to ensure the unit is in a known state.
See the user manual for a list of the default settings.
1. Press
Shift
+
File
FUNC
.
2. Select Media/Default [F1].
3. Select Factory Default [F2].
4. Press Factory Default [F2] again to confirm.

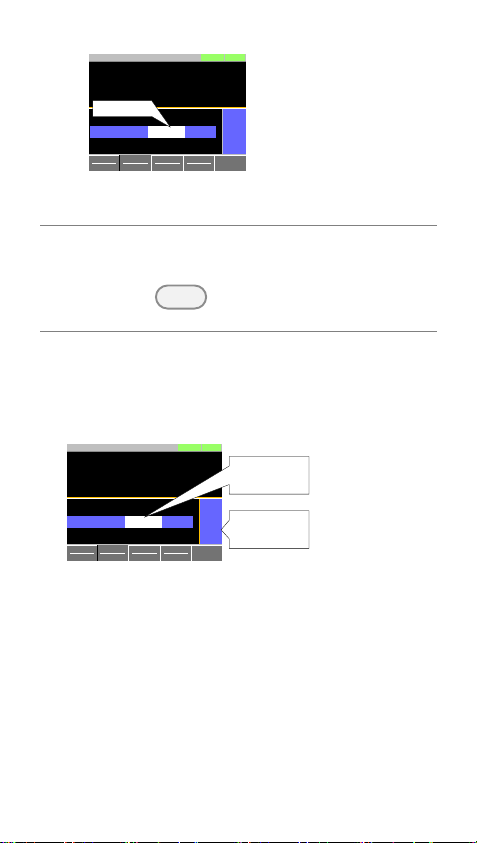

Setting the Date and Time
The date and time settings are used to time-stamp files
when saving files.
1. Press
Shift
+
Utility
Help
> Time Set[F4] to set the
date and time.
Settings: Month, Day, Year, Hour, Minute

Updating the Firmware
The PEL-3000(H) allows the firmware to be updated by
end-users. Before using the PEL-3000(H), please check
the GW Instek website or ask your local distributor for
the latest firmware. Before updating the firmware,
please check the firmware version.
View Firmware Version
1. Press
Shift
+
Utility
Help
.
2. Select System/Info[F1].
3. The system information is listed in the display.
Model: PEL-3000(H) model number.
Serial Number: XXXXXXXX
Firmware Ver.: Firmware version number.
Website address.
Firmware update
1. Insert a USB drive into the USB port. Ensure the
USB drive has the firmware file located in the root
directory.
2. Press
Shift
+
File
FUNC
.
3. Select USB with the Media [F1] soft-key.
4. Press the File Utility [F5] soft-key.
5. Select the *.UPG upgrade file and press Select[F1]
twice. Once to select the file and once to confirm.
6. Wait for the update to complete and reset the
power.

Warning
Do not turn the load generator off or
remove the USB memory when the
firmware is being read or upgraded.
Conventions
The following conventions are used throughout the
user manual. Read the conventions below for a basic
grasp of how to operate the PEL-3000(H) menu system
using the front panel keys.
Soft-menu keys
The F1 to F5 function keys at the bottom of the
display correspond directly to the soft-menu keys
on top.
I MON OUT TRIG OUT
1.5 - 150V
175W
0 - 35A
P0
P1
P4
P7
CAL.
P2
P5
P8
Lock
P3
P6
P9
Utility
Local
File
0
1
4
7
2
5
8
3
6
9
EnterClear
Shift
Preset
Load On/
Off
Main
Help
FUNC
Short
F1 ~ F5
function keys
Soft-menu
keys
Mode
CV I Range H 35A V Range L 15V Function Static Configure
0.000V
0.000A0.00w
SlewRate 2500.00
CC B Value 0.000
CC A Value 0.000
LOADRS232
A Value
Fine
03/Sep/2012
mA/us
A
A
Select Sub Menu
Configure
Pressing this type of soft-menu key will enter a
submenu.

Toggle Parameter or State
Mode
CC Function/Item
Parameter or State
This type of soft-menu icon has the function/item
on the top of the label and the selected setting or
mode on the bottom of the label.
Repeatedly press the associated function key
(F1~F5) to cycle through each setting.
For some parameters, a popup window will also
appear. Selection of the setting is the same.
Repeatedly pressing the relevant function key
(F1~F5) will cycle through each setting.
Parameter Input
The scroll wheel, Enter key and number pad can be
used to edit parameter values.
1. Use the scroll wheel to move the cursor to the
desired parameter.
A scroll bar is shown when there are additional
parameters off-screen.
Mode
CP I Range H 35A V Range L 15V Function Dynamic Configure
0.000V
0.000A0.00w
Timer1 0.025
Level2 0.00
Level1 0.00
LOADRS232
Fine
03/Sep/2012
ms
W
W
Scroll bar
Cursor
2. Press the
Enter
key to select the parameter.
3. Then use umber pad* or scroll wheel** to edit the
parameter value.

Mode
CC I Range H 35A V Range L 15V Function Static Configure
0.000V
0.000A0.00w
SlewRate 2500.00
CC B Value
CC A Value 0.000
LOADRS232
A Value
Fine
03/Sep/2012
mA/us
A
A
1.000
Parameter
4. Press the Enter key again to finish editing the
parameter value.
Clearing a Value
*When editing a parameter with the number pad,
pressing the
Clear
key will restore the parameter
to the previous value.
Coarse/Fine Adjustment
**When a parameter is highlighted (step 3 above)
pressing the scroll wheel will toggle the scroll wheel
resolution between fine and coarse.
Mode
CC I Range H 35A V Range L 15V Function Static Configure
0.000V
0.000A0.00w
SlewRate 2500.00
CC B Value
CC A Value 0.000
LOADRS232
A Value
Fine
03/09/12
mA/uS
A
A
1.000
+Coarse/Fine
adjustment
Higlighted
parameter

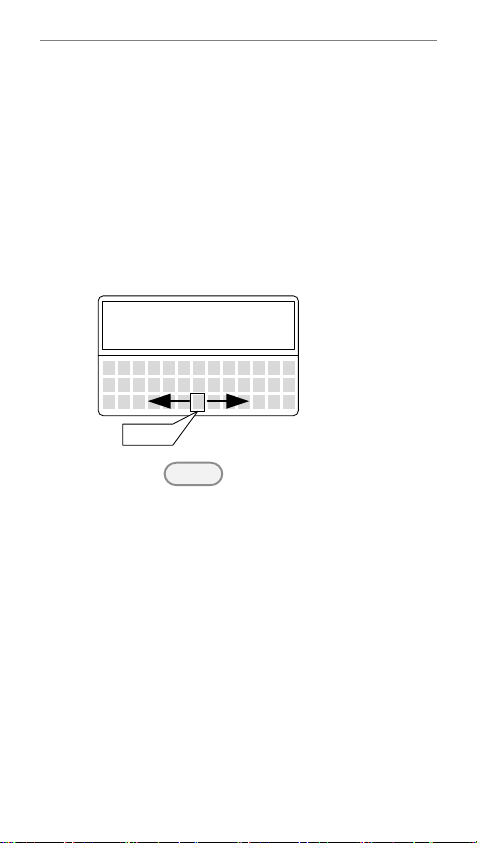

Note: There is a second method of fine adjustment
that allows you to edit parameters one digit value at
a time using the scroll wheel. This is called
Cursor mode. Please see the user manual for more
information.

Entering Alphanumeric Characters
When renaming files, creating memos or notes,
you will be required to enter alphanumeric
characters when the character entry screen
appears.
Only alphanumeric characters as well as
space [ ], underscore [_] and minus [-]
characters are allowed.
1. Use the scroll wheel to move the cursor to the
desired character.
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
1234567890 _1
Rename: Filename
Cursor
2. Press the
Enter
key or Enter Character[F1] to
select a character.
3. To delete a character, press Back Space[F2].
4. To save the file name or memo, press Save[F3].

SPECIFICATIONS
The following are the basic specifications for the PEL-
3000(H) series. For detailed specifications, please see
the user manual
Rating
Model
PEL-3021(H)
PEL-3041(H)
PEL-3111(H)
Voltage
0V-150V(0V/800V)
Current
35A(8.75A)
70A(17.5A)
210A(52.5A)
Min. Operating
Voltage
1.5V at 35A
(5V at 8.75A)
1.5V at 70A
(5V at 17.5A)
1.5V at 210A
(5V at 52.5A)
Power
175W
350W
1050W
CC Mode Operating Range
Model
PEL-3021(H)
PEL-3041(H)
PEL-3111(H)
H Range
0A-35A
(0-8.75A)
0A-70A
(0-17.5A)
0A-210A
(0-52.5A)
M Range
0A-3.5A
(0-875mA)
0A-7A
(0-1.75A)
0A-21A
(0-5.25A)
L Range
0A-0.35A
(0-87.5mA)
0A-0.7A
(0-175mA)
0A-2.1A
(0-525mA)
CR Mode Operating Range
Model
PEL-3021(H)
PEL-3041(H)
PEL-3111(H)
H Range
23.3336S-400μS
(42.857mΩ-
2.5kΩ)/(H)
1.75S-30μS
(571mΩ-33.3kΩ)
46.6672S-800μS
(21.428mΩ
-1.25kΩ)/(H)
3.5S-60μS
(285mΩ-16.6kΩ)
140.0016S~2.4mS
(7.1427mΩ-
416.6667Ω)/(H)
10.5S-200μS
(95.2mΩ-5kΩ)
M Range
2.33336S-40μS
(428.566mΩ
-25kΩ)/(H)
175mS-3μS
(5.71mΩ-333MΩ)
4.6667S-80μS
(214.28mΩ
-12.5kΩ)/(H)
35mS-6μS
(2.85mΩ-166kΩ)
14.0001S-242.4μS
(71.427mΩ
-4.16667kΩ)/(H)
1.05S-20μS
(952mΩ-50kΩ)
