GW Instek GPT-9000 series User manual

Electrical Safety Tester
GPT-9000 / GPT-9000A Series
USER MANUAL
GW INSTEK PART NO. 82PT-90000EF1
ISO-9001 CERTIFIED MANUFACTURER
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com
all-guides.com

This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the
rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

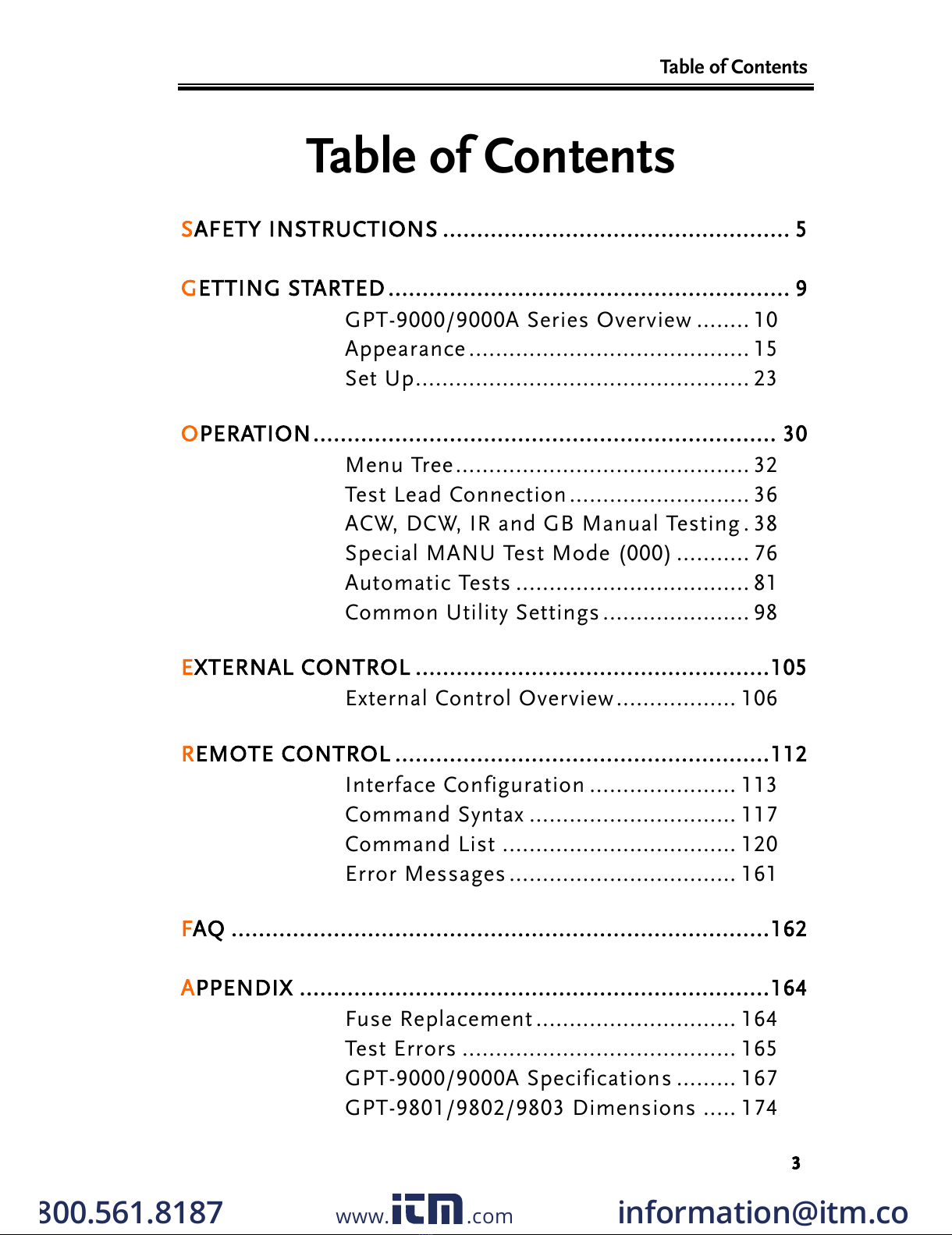

Table of Contents
3
Table of Contents
SAFETY INSTRUCTIONS ................................................... 5
GETTING STARTED ........................................................... 9
GPT-9000/9000A Series Overview ........ 10
Appearance .......................................... 15
Set Up.................................................. 23
OPERATION.................................................................... 30
Menu Tree ............................................ 32
Test Lead Connection ........................... 36
ACW, DCW, IR and GB Manual Testing . 38
Special MANU Test Mode (000) ........... 76
Automatic Tests ................................... 81
Common Utility Settings ...................... 98
EXTERNAL CONTROL ....................................................105
External Control Overview .................. 106
REMOTE CONTROL .......................................................112
Interface Configuration ...................... 113
Command Syntax ............................... 117
Command List ................................... 120
Error Messages.................................. 161
FAQ ...............................................................................162
APPENDIX .....................................................................164
Fuse Replacement .............................. 164
Test Errors ......................................... 165
GPT-9000/9000A Specifications ......... 167
GPT-9801/9802/9803 Dimensions ..... 174
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

GPT-9000/9000A Series User Manual
4
GPT-9804 Dimensions ....................... 175
GPT-9903 Dimensions ....................... 176
GPT-9904 Dimensions ....................... 177
GPT-9901A/9902A/9903A Dimensions178
Declaration of Conformity (9800 ........ 179
Declaration of Conformity (GPT ......... 180
INDEX............................................................................181
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

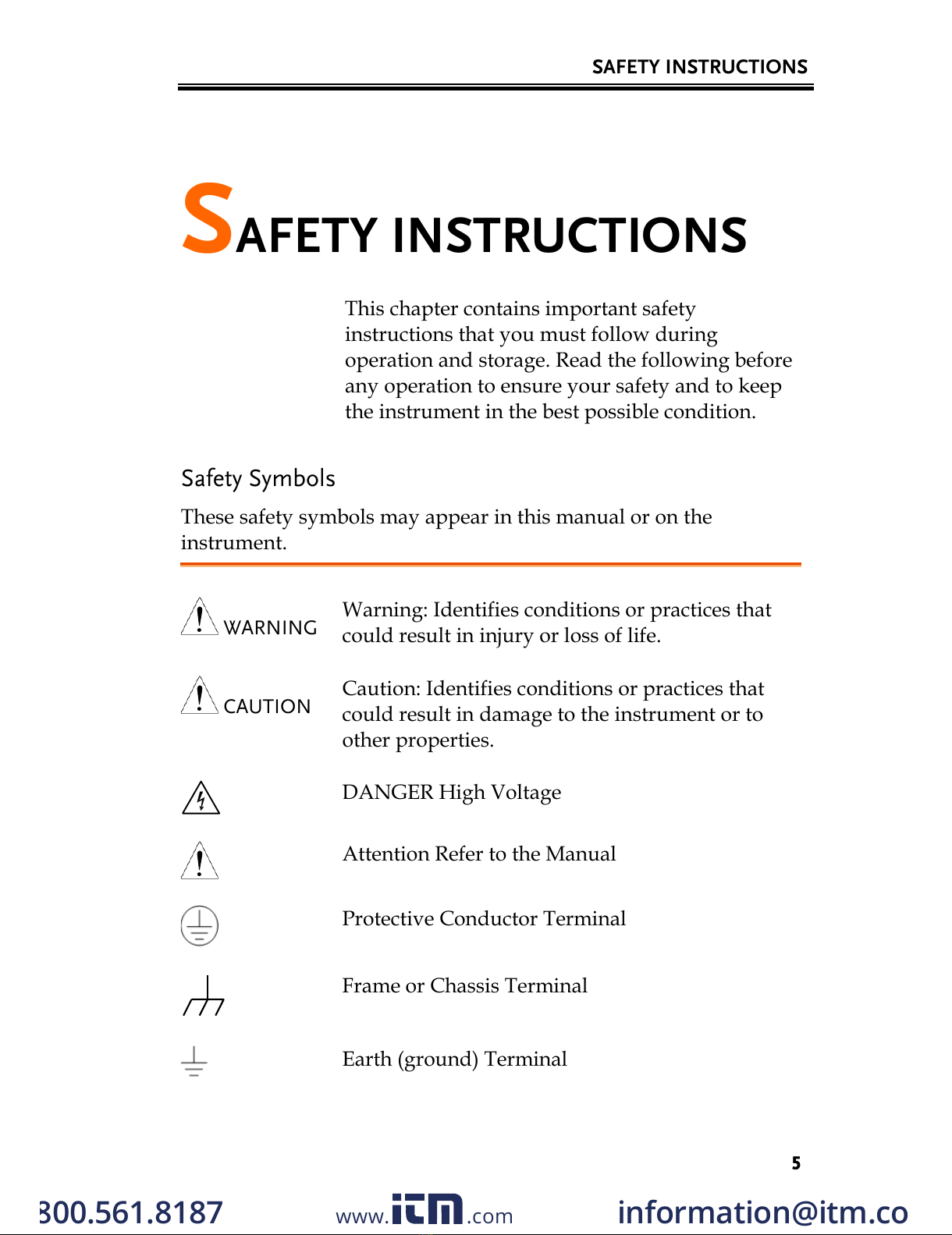

SAFETY INSTRUCTIONS
5
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to ensure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the instrument or to
other properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Frame or Chassis Terminal
Earth (ground) Terminal
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

GPT-9000/9000A Series User Manual
6
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
Safety Guidelines
General
Guideline
CAUTION
 Do not place any heavy object on the
instrument.
 Avoid severe impact or rough handling that
leads to damaging the instrument.
 Do not discharge static electricity to the
instrument.
 Use only mating connectors, not bare wires, for
the terminals.
 Do not block the cooling fan opening.
 Do not disassemble the GPT-9000/GPT-9000A
unless you are qualified.
(Measurement categories) EN 61010-1:2010 specifies the
measurement categories and their requirements as follows. The
GPT-9000/GPT-9000A does not fall under category II, III or IV.
 Measurement category IV is for measurement performed at the
source of low-voltage installation.
 Measurement category III is for measurement performed in the
building installation.
 Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Power Supply
WARNING
 AC Input voltage range:
100/120/220/230VAC ±10%
 Frequency: 50Hz/60Hz
 To avoid electrical shock connect the protective
grounding conductor of the AC power cord to
an earth ground.
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com
all-guides.com

SAFETY INSTRUCTIONS
7
Cleaning the
GPT-9000/
GPT-9000A
 Disconnect the power cord before cleaning.
 Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
 Do not use chemicals containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
 Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
 Relative Humidity: ≤70% (no condensation)
 Altitude: < 2000m
 Temperature: 0˚C~40˚C
(Pollution Degree) EN 61010-1:2010 specifies the pollution degrees
and their requirements as follows. The GPT-9000/GPT-9000A falls
under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
 Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
 Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
 Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
 Location: Indoor
 Temperature: -10°C to 70°C
 Relative Humidity: ≤ 85% (no condensation)
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

GPT-9000/9000A Series User Manual
8
Power cord for the United Kingdom
When using the safety tester in the United Kingdom, make sure the
power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed
as follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the
terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment
or contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable
of 0.75mm2should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the
connection method used.
Any exposed wiring from a cable, plug or connection that is
engaged in a live socket is extremely hazardous. If a cable or plug is
deemed hazardous, turn off the mains power and remove the cable,
any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

GETTING STARTED
9
GETTING STARTED
This chapter describes the safety tester in a
nutshell, including its main features and front /
rear panel introduction. After going through the
overview, please read the safety considerations in
the Set Up chapter.
POWER
START STOP
REMOTE
MANU/AUTO EDIT/SAVE UTILITY
ESC PAGE
GPT-9803 Tester
HIGH VOLTAGE
CAUTION 5.0 kVAC MAX.
6.0 kVDC MAX.
AC / DC Withstanding Voltage /
Insulation Resistance
RETURN
PASS FAIL READY TEST
GPT-9000/9000A Series Overview .................................... 10
Series lineup............................................................................................. 10

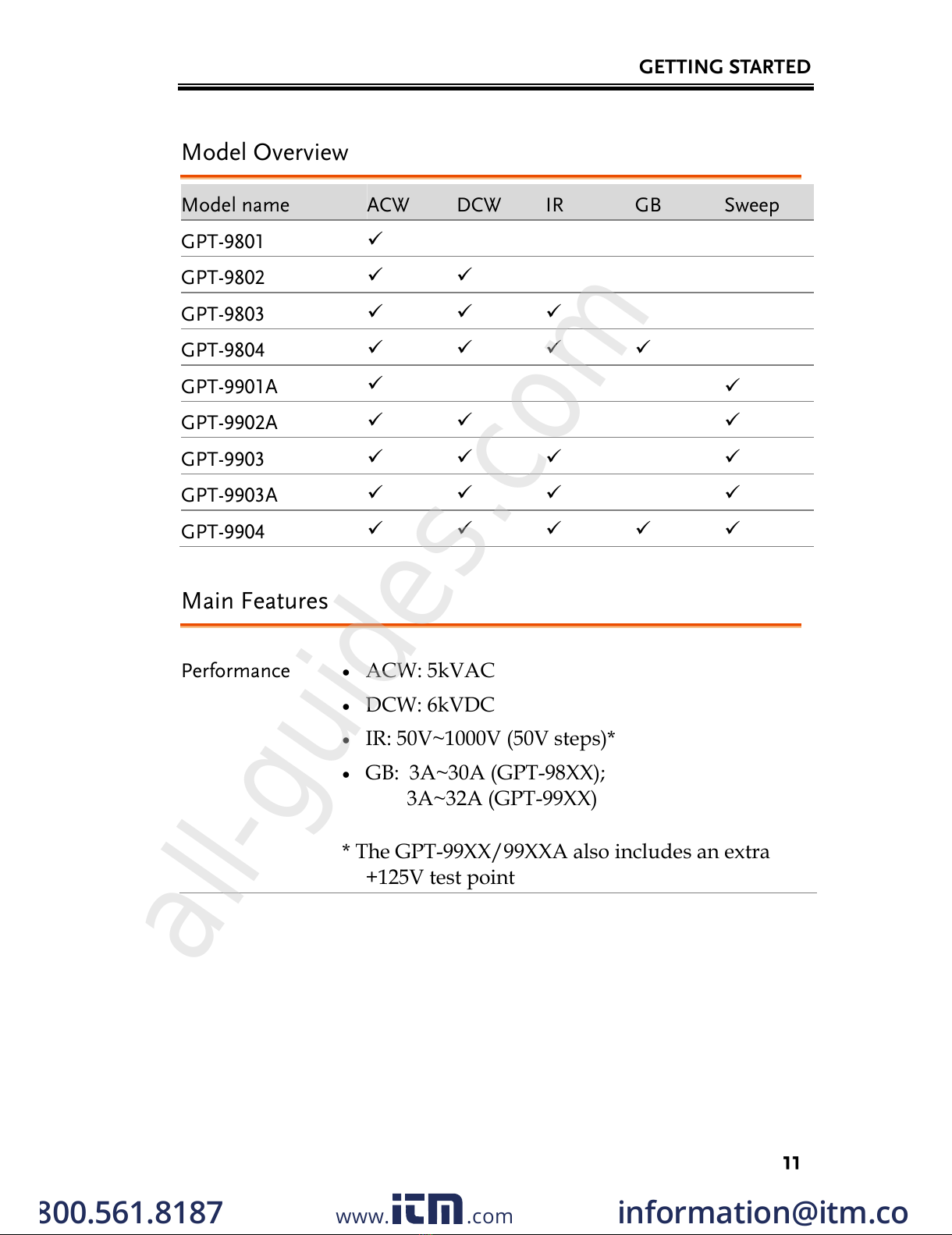

Model Overview...................................................................................... 11
Main Features .......................................................................................... 11
Accessories ............................................................................................... 12
Package Contents .................................................................................... 14
Appearance ..................................................................... 15

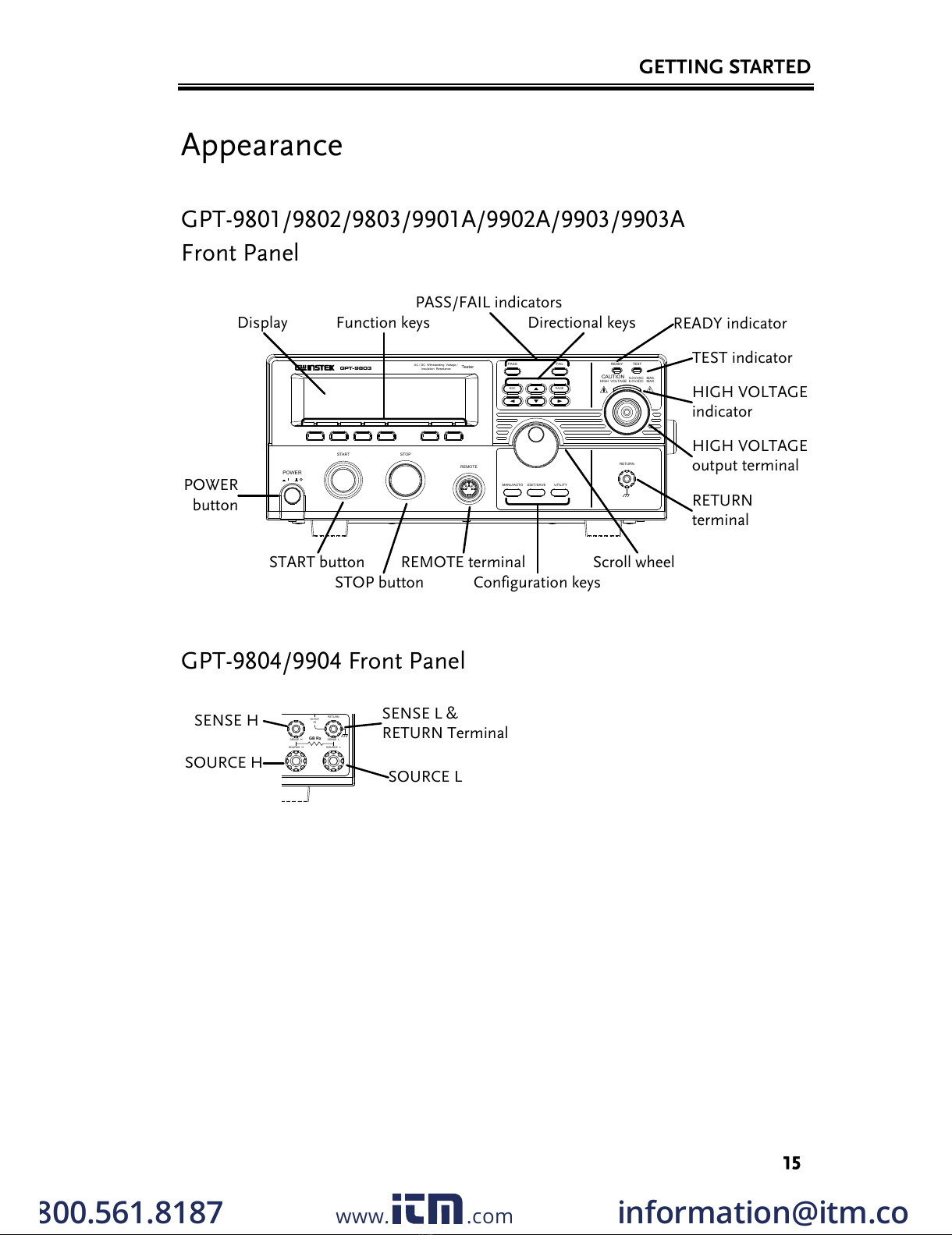

GPT-9801/9802/9803/9901A/9902A/9903/9903A Front Panel...... 15
GPT-9804/9904 Front Panel................................................................... 15
GPT-9801/9802/9803/9804 Rear Panels.............................................. 19
GPT-9901A/9902A/9903/9903A Rear Panel ...................................... 19
GPT-9904 Rear Panel............................................................................... 20
Set Up............................................................................. 23
Line Voltage Connection and Power Up ............................................. 23
Installing the Optional GPIB Card........................................................ 25
Workplace Precautions........................................................................... 26
Operating Precautions............................................................................ 27
Basic Safety Checks ................................................................................. 29
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

GPT-9000/9000A Series User Manual
10

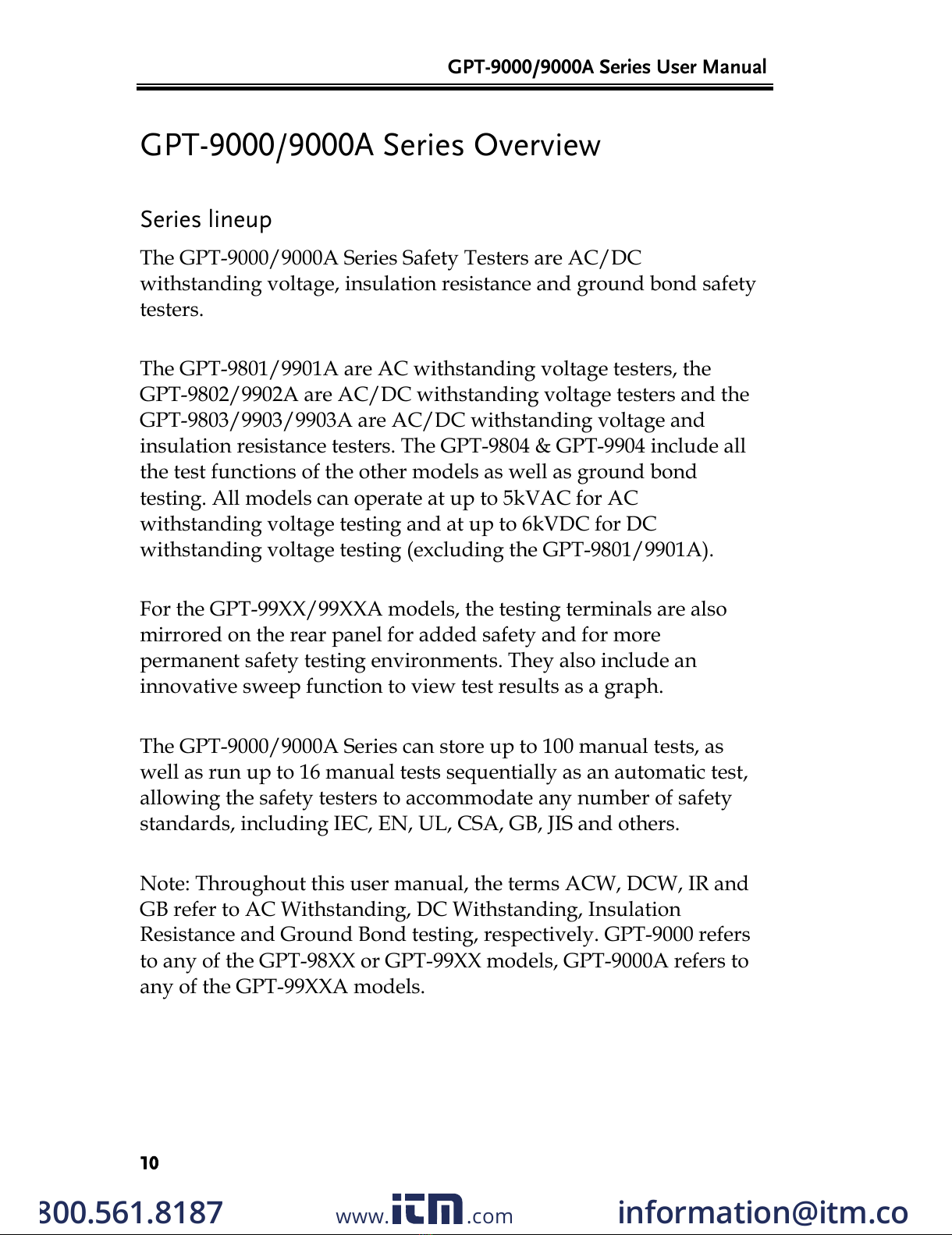

GPT-9000/9000A Series Overview
Series lineup
The GPT-9000/9000A Series Safety Testers are AC/DC
withstanding voltage, insulation resistance and ground bond safety
testers.
The GPT-9801/9901A are AC withstanding voltage testers, the
GPT-9802/9902A are AC/DC withstanding voltage testers and the
GPT-9803/9903/9903A are AC/DC withstanding voltage and
insulation resistance testers. The GPT-9804 & GPT-9904 include all
the test functions of the other models as well as ground bond
testing. All models can operate at up to 5kVAC for AC
withstanding voltage testing and at up to 6kVDC for DC
withstanding voltage testing (excluding the GPT-9801/9901A).
For the GPT-99XX/99XXA models, the testing terminals are also
mirrored on the rear panel for added safety and for more
permanent safety testing environments. They also include an
innovative sweep function to view test results as a graph.
The GPT-9000/9000A Series can store up to 100 manual tests, as
well as run up to 16 manual tests sequentially as an automatic test,
allowing the safety testers to accommodate any number of safety
standards, including IEC, EN, UL, CSA, GB, JIS and others.
Note: Throughout this user manual, the terms ACW, DCW, IR and
GB refer to AC Withstanding, DC Withstanding, Insulation
Resistance and Ground Bond testing, respectively. GPT-9000 refers
to any of the GPT-98XX or GPT-99XX models, GPT-9000A refers to
any of the GPT-99XXA models.
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

GETTING STARTED
11
Model Overview
Model name
ACW
DCW
IR
GB
Sweep
GPT-9801

GPT-9802


GPT-9803



GPT-9804




GPT-9901A


GPT-9902A



GPT-9903




GPT-9903A




GPT-9904





Main Features
Performance
 ACW: 5kVAC
 DCW: 6kVDC
 IR: 50V~1000V (50V steps)*
 GB: 3A~30A (GPT-98XX);
3A~32A (GPT-99XX)
* The GPT-99XX/99XXA also includes an extra
+125V test point
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com
all-guides.com

GPT-9000/9000A Series User Manual
12
Features
 Ramp up time control
 Safety discharge
 100 test conditions (MANU mode)
 100 automatic tests (AUTO mode)
 Over temperature, voltage and current
protection
 Pass, Fail, Test, High Voltage and Ready
indicators
 PWM output (90% efficiency, increased
reliability)
 Interlock (configurable)
 Sweep Function
 Rear panel output (GPT-9000 series only)
Interface
 Remote control start/stop interface terminal
 RS232/USB interface for programming
 Optional GPIB interface for programming
 Signal I/O port for pass/fail/test monitoring
and start/stop control/interlock
Accessories
Standard
Accessories
Part number
Description
GHT-114 x1
Test lead
Region dependent
Power cord
GTL-115 x1
GB Test leads
(GPT-9804/9904 only)
N/A
Remote terminal male plug
N/A
Interlock key
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

GETTING STARTED
13
Optional
Accessories
Part number
Description
GHT-205
High Voltage Test Probe
GHT-113
High Voltage Test Pistol
GTL-232
RS232C cable
GTL-248
GPIB cable
GTL-247
USB cable
GRA-417
Rack Adapter Panel
(19”, 4U)
(GPT-9801/9802/9803/
9804/9901A/9902A/9903A
only)
Options
Part number
Description
Opt.01 GPIB Interface
GPIB module
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

GPT-9000/9000A Series User Manual
14
Package Contents
Check the contents before using the GPT-9000/GPT-9000A.
Opening the box
Contents
(single unit)
 GPT-9000/9000A unit
 Quick Start guide
 User manual CD
 CTC (Calibration
Traceable Certificate)
 Power cord x1 (region
dependent)
 GHT-114 test leads x1
 GTL-115 test leads x1
(GPT-9804/9904)
 Remote terminal male
plug
 Interlock key
Note
Keep the packaging, including the box, polystyrene
foam and plastic envelopes should the need arise
to return the unit to GW Instek.
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

GETTING STARTED
15
Appearance
GPT-9801/9802/9803/9901A/9902A/9903/9903A
Front Panel
POWER
START STOP
REMOTE
MANU/AUTO EDIT/SAVE UTILITY
ESC PAGE
GPT-9803 Tester
HIGH VOLTAGE
CAUTION 5.0 kVAC MAX.
6.0 kVDC MAX.
AC / DC Withstanding Voltage /
Insulation Resistance
RETURN
PASS FAIL READY TEST
PASS/FAIL indicators
Directional keys
Function keys
HIGH VOLTAGE
indicator
RETURN
terminal
REMOTE terminal
STOP button
START button
POWER
button
Display
Scroll wheel
Configuration keys
READY indicator
TEST indicator
HIGH VOLTAGE
output terminal
GPT-9804/9904 Front Panel
POWER
START STOP
REMOTE
MANU/AUTO EDIT/SAVE UTILITY
ESC PAGE
HIGH VOLTAGE
CAUTION 5.0 kVAC MAX.
6.0 kVDC MAX.
GB Rx
SENSE H
SOURCE H
SENSE L
SOURCE L
RETURN
PASS FAIL READY TEST
HI-POT
IR
GPT-9904 Tester
AC / DC Withstanding Voltage /
Insulation Resistance / Ground Bond
SOURCE L
SENSE L &
RETURN Terminal
SENSE H
SOURCE H
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

GPT-9000/9000A Series User Manual
16
Display
240 X 64 dot matrix display (LCD)
Function keys
The function keys correspond to the soft-keys
directly above on the main display.
Pass/Fail
indicators
PASS
FAIL
The PASS and FAIL indicators
light up upon a PASS or FAIL test
result at the end of a manual test
or automatic test.
ESC key
ESC
The ESC key is used to exit out of
a menu or cancel a setting.
PAGE key
PAGE
The PAGE key is used to view
automatic test information and
test results.
Directional arrow
keys
The directional arrow keys are
used to navigate menus and
parameter settings.
READY indicator
READY
The READY indicator is lit when
the tester is ready to begin testing.
The STOP button is used to put
the tester into READY status.
TEST indicator
TEST
The TEST indicator is lit when a
test is on. The START button is
used to put the tester into TEST
status.
HIGH VOLTAGE
indicator
HIGH VOLTAGE
CAUTION 5.0 kVAC MAX.
6.0 kVDC MAX.
The HIGH VOLTAGE indicator
will light up when an output
terminal is active. Only after the
test has finished or stopped will
the indicator turn off.
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com
all-guides.com

GETTING STARTED
17
HIGH VOLTAGE
output terminal
HIGH VOLTAGE
CAUTION 5.0 kVAC MAX.
6.0 kVDC MAX.
The HIGH VOLTAGE terminal
output is used for outputting the
testing voltage. The terminal is
recessed for safety. This terminal
is used in conjunction with the
RETURN terminal.
WARNING
USE EXTREME CAUTION.
Do not touch the HIGH VOLTAGE terminal
during testing.
RETURN terminal
All models except
GPT-9804/9904
RETURN
The RETURN terminal is
used for IR, DCW and ACW
tests.
RETURN, SENSE
and SOURCE
terminals
GPT-9804/9904
SOURCE H
SENSE H
SOURCE L
SENSE L
GB Rx
RETURN
HI-POT
IR
The RETURN terminal is
used for IR, DCW and ACW
tests.
The SOURCE H, SOURCE L,
SENSE H and SENSE L
terminals are used for GB
tests.
Scroll wheel
The scroll wheel is used to edit
parameter values.
UTILITY key
UTILITY
Used to enter the MANU Utility or
Common Utility menu.
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

GPT-9000/9000A Series User Manual
18
EDIT/SAVE key
EDIT/SAVE
Used to start editing
MANU/AUTO tests as well as
save settings and parameters.
MANU/AUTO
key
MANU/AUTO
The MANU/AUTO key is used to
select manual tests (MANU) or
automatic tests (AUTO).
REMOTE
terminal
REMOTE
The REMOTE terminal is used to
connect to a remote controller.
STOP button
STOP
The STOP button is used to
stop/cancel tests. The STOP
button will also put the safety
tester in the READY status to
begin testing.
START button
START
The START button is used to start
tests.
The START button can be used to
start tests when the tester is in the
READY status. Pressing the
START button will put the tester
in the TEST status.
POWER switch
POWER
Turns the power on. The safety
tester will always start up with the
last test setting from when the
instrument was last powered
down.
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

GETTING STARTED
19
GPT-9801/9802/9803/9804 Rear Panels
SIGNAL I/O USB A port RS232 port Fan
Fuse selectorLine voltage
Optional GPIB port
GND
TO AVOID ELECTRIC SHOCK THE POWER CORD
PROTECTIVE GROUNDING CONDUCTOR MUST BE
ONLY WITH SPECIFIED TYPE AND RATED FUSE
.
NO OPERATOR SERVICEABLE COMPONENTS INSIDE
.
DO NOT REMOVE COVERS REFER SERVICING TO
FOR CONTINUED FIRE PROTECTION
.
REPLACE
CONNECTED TO GROUND .
QUALIFIED PERSONNEL.
WARNING
AC
LINEVOLTAGE
100V
230V
220V
120V
SELECTION
207~250V
RANGE
90~110V
198~242V
108~132V
(50/60Hz)
T 5A
250V
FUSE
POWER MAX.
500VA
GND
SIGNAL I / O RS 232
SER. NO . LB
ENSURETHEPOWERIS REMOVEDFROM
THEINSTRUMENTBEFORE REPLACING THEFUSE
GPIB
T 2.5A
250V
GPT-9901A/9902A/9903/9903A Rear Panel
TO AVOID ELECTRIC SHOCK THE POWER CORD
PROTECTIVE GROUNDING CONDUCTOR MUST BE
ONLY WITH SPECIFIED TYPE AND RATED FUSE.
NO OPERATOR SERVICEABLE COMPONENTS INSIDE.
DO NOT REMOVE COVERS. REFER SERVICING TO
FOR CONTINUED FIRE PROTECTION. REPLACE
CONNECTED TO GROUND.
QUALIFIED PERSONNEL.
WARNING
AC
LINE VOLTAGE
100V
230V
220V
120V
SELECTION
207~250V
RANGE
90~110V
198~242V
108~132V
(50/60Hz)
250V
250V
T 10A
FUSE
T 6.3A
MAX.
1000VA
GND
ENSURE THE POWER IS REMOVED FROM
THE INSTRUMENT BEFORE REPLACING THE FUSE
POWER
SIGNAL I / O RS232
GPIB
HIGH VOLTAGE
CAUTION
MAX.
6.0 kVDC
5.0 kVAC
RETURN
SER. NO. LB
Signal I/O, RS232
& USB port Fan vents
Fuse selectorLine voltage
Optional GPIB port
High voltage terminal
GND
Return
terminal
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com

GPT-9000/9000A Series User Manual
20
GPT-9904 Rear Panel
TO AVOID ELECTRIC SHOCK THE POWER CORD
PROTECTIVE GROUNDING CONDUCTOR MUST BE
ONLY WITH SPECIFIED TYPE AND RATED FUSE.
NO OPERATOR SERVICEABLE COMPONENTS INSIDE.
DO NOT REMOVE COVERS. REFER SERVICING TO
FOR CONTINUED FIRE PROTECTION. REPLACE
CONNECTED TO GROUND.
QUALIFIED PERSONNEL.
WARNING
AC
LINE VOLTAGE
100V
230V
220V
120V
SELECTION
207~250V
RANGE
90~110V
198~242V
108~132V
(50/60Hz)
250V
250V
T 10A
FUSE
T 6.3A
MAX.
1000VA
GND
ENSURE THE POWER IS REMOVED FROM
THE INSTRUMENT BEFORE REPLACING THE FUSE
POWER
SIGNAL I / O RS232
GPIB
GB Rx
SENSE H
SOURCE H
SENSE L
SOURCE L
RETURN
HI-POT
IR
HIGH VOLTAGE
CAUTION
MAX.
6.0 kVDC
5.0 kVAC
SER. NO. LB
High voltage terminal
Signal I/O, RS232
& USB port Fan vents
Fuse selectorLine voltage
Optional GPIB port
GND
Return, Sense
and Source
terminals
SIGNAL I/O port
SIGNAL I / O
The SIGNAL I/O port is used to
monitor the tester status (PASS,
FAIL, TEST) and input (START/
STOP signals). It is also used with
the Interlock key.
USB A port
Used for remote control.
RS232 interface
port
RS232
Used for remote control and
firmware updates.
Fan/Fan Vents
Exhaust fan. Allow enough room
for the fan to vent. Do not block the
fan openings.
GND
GND
Connect the GND (ground)
terminal to the earth ground.
www. .com [e-mail]1.800.561.8187
All manuals and user guides at all-guides.com
