Gyroor HR9 User manual

@Gyroorboard @Gyroor @Gyroorboard
www.gyroor.com
@Gyroor1
USER MANUAL
Scan GYROOR Facebook QR code to
get more information.
Foldable
Electric Scooter
HR9
Scan GYROOR Twitter QR code to get more information.
The manufacturer reserves the right to make changes to the product, and updates this manual at any time.
Visit www.gyroor.com to download the latest user manual.
ｗｗｗ．ｇｙｒｏｏｒｂｏａｒｄ．ｃｏｍ

Thanks for choosing our product.
Have fun with this electric scooter.
Contents
1.Configuration & Packing Listing
2.Assembling the Device
3.How to Operate
4.Fold and Transportation
6.Learning Driving
5.Charging e-Scooter
9.Safety Tips for Charging
7.Safety Instructions
8.Preventing Dangerous Driving
10.Safety Recommendations
11.Care & Storage
12.Parameters
01
03
04
05
06
07
09
11
13
14
15
18
13.Warranty
14.Warranty Card
19
20
@Gyroorboard @Gyroor @Gyroorboard @Gyroor1
Scan GYROOR Twitter QR code to get more information.
The manufacturer reserves the right to make changes to the product, and updates this manual at any time.
Visit www.gyroor.com to download the latest user manual.
ｗｗｗ．ｇｙｒｏｏｒｂｏａｒｄ．ｃｏｍ
Email: [e-mail]
Any questions, please get in touch with us at

2
1
1. Configuration & Packing Listing Accessories
HR9 electric scooter package includes the following parts in the box.
Please check it after unboxing. And we recommend keeping the
original packaging for 30 days at least.
Any lack or loss, please do not feel hesitate to contact our email at help @ gyroor.com
e-Scooter（1）
Charger（1）Connecting Pipe for Inflating（1）
Thimble for Air Leak（1）Hexagon Socket Stud（1）
Hexagon Wrench（2）Replaceable Inner Tubes（2）
Screws（4+4 Replacements）User Manual（1）
Brake handle
Headlight
Accelerate button
Control panel
Folding hook
Lock lever
Wheel motor
Clamp
Brake light
Kickstand
Charging port
Rear wheel
Steering rod
Fender
Bell
Front wheel
Running board
@Gyroorboard @Gyroor @Gyroorboard
www.gyroor.com
@Gyroor1
USER MANUAL
Scan GYROOR Facebook QR code to
get more information.
Foldable
Electric Scooter
HR9

4
3
2.Assembling the Device
1.Open the kickstand to fix the e-Scooter body.
Find the groove inside and align them to
complete the connection.
2. Attach the head to the steering rod，
set handlebars vertical, move the lock
lever upward to buckle to fix the
Steering rod.
3.Using the hexagon wrench in the packing
box to tighten the 4 screws on the handlebar.
4. Testing the power switch after
finish assembling.
w to Operate
ffe-Scooter Press the power button 2-3 seconds
One click of the button
Turn on/o fflight Double-click of the button
Switch speed unit Triple-click of the button
2) Cruise Control System: When maintaining a fixed speed for more than 6-7 seconds, the system will
enter the Cruise Mode automatically，and keep the speed of the moment. If you want to disarm the
cruise system, please move the accelerate button or brake handle（Attention: For safety, the cruise
system will not work when the riding speed exceeds 15.5 Mph).
3) Headlight:
When the power is on, double-click the power button to turn on the headlight and double-click again to
4) Brake light:
When the power is on, double-click the power button to turn on the brake light and double-click again to
time it is.
The S indicator light at the upper right corner of the control panel, when the e-Scooter is working in
Econ Mode, the light displays white(Max speed of 6.2 Mph); Orange means Standard Mode(Max speed
of 12.4 Mph)；Red means Power Mode (Max speed of 18.6 Mph).
is on
Turn on/o
Switch speed mode
The controls panel has 4 LEDs, indicating a level of the battery.
During consumption of battery, indications of LEDs are on, then off
one by another.
For example, if all 4 LEDs are on, a battery level is 100%-90%;
when the number of lights is less, the actual battery is less; so we
recommend you charge the e-Scooter when only the last LED is on.
1) Automatic turn off: When the e-Scooter is not being ridden for more than ten minutes when
turned on, the system will automatically turn off.

Step1：
Step2：
Step3：
Step4：
After charging, please cover the charging port and avoid water.
5. Charging Scooter
Charger
Locate and pull out the rubber stopper used to close the charging port on the left
side of the body.
Connect the charger with the charging port (Please make sure the charging port
is dry).
When the charging light on the charger turns red, it is charging（There is no way
to turn the e-Scooter on at this time for safety unless stoping charging）; when
the charging indicator turns green, it is fully charged. After fully charged, please
stop charging. Excessive and long-term charging will reduce battery life.
Transportation
You can transfer the e-Scooter with your hands/one hand, put it in the trunk for transportation for short periods.
4. Fold and Transportation
Ensure the e-Scooter is off. Next, hold the steering rod, press the red button, slowly move the lock lever outward,
and lower a steering rod.
Fold
Add the steering rod in a horizontal position and secure it by inserting a folding hook through a special clamp.
To assemble the e-Scooter, disconnected the folding hook from the clamp and then fit it into a vertical position
and lock a lever.
6
5

7 8
4.When the speed exceeds 3 Mph, stand on
the running board with both legs staggered,
press the accelerate button slowly. (Please
remember not to be too eager and always
pay attention to the road conditions ahead).
6.Lean your body left slightly to turn left. Lean your body right slightly to turn right.
And turn the handlebar slowly.
6.Learning Driving
Please wear helmet and knee pads when practising.
1.Power on and check the battery led light. We
recommend that you choose Econ Mode first
("S" indicator light is white).
2.Stand on the pedal with one leg,
hit the ground with the other leg.
3.Push backwards with one leg to increase the
initial speeds to above 3 Mph(When the speed
exceeds 3 Mph, the accelerate button will work.
Otherwise, it will not).
5.Lose the accelerate button when slowing
down. Energy recovery systems will open
themselves to slow down. Press the left
brake handle tightly if you want to brake
urgently.

While walking with an e-Scooter, do not
press the accelerate button.
When driving, it is recommended to go around
various obstacles on the road.
Please do not hang backpacks and other
heavy objects on handlebars.
When driving is forbidden to place one foot
on the running board or the ground.
910

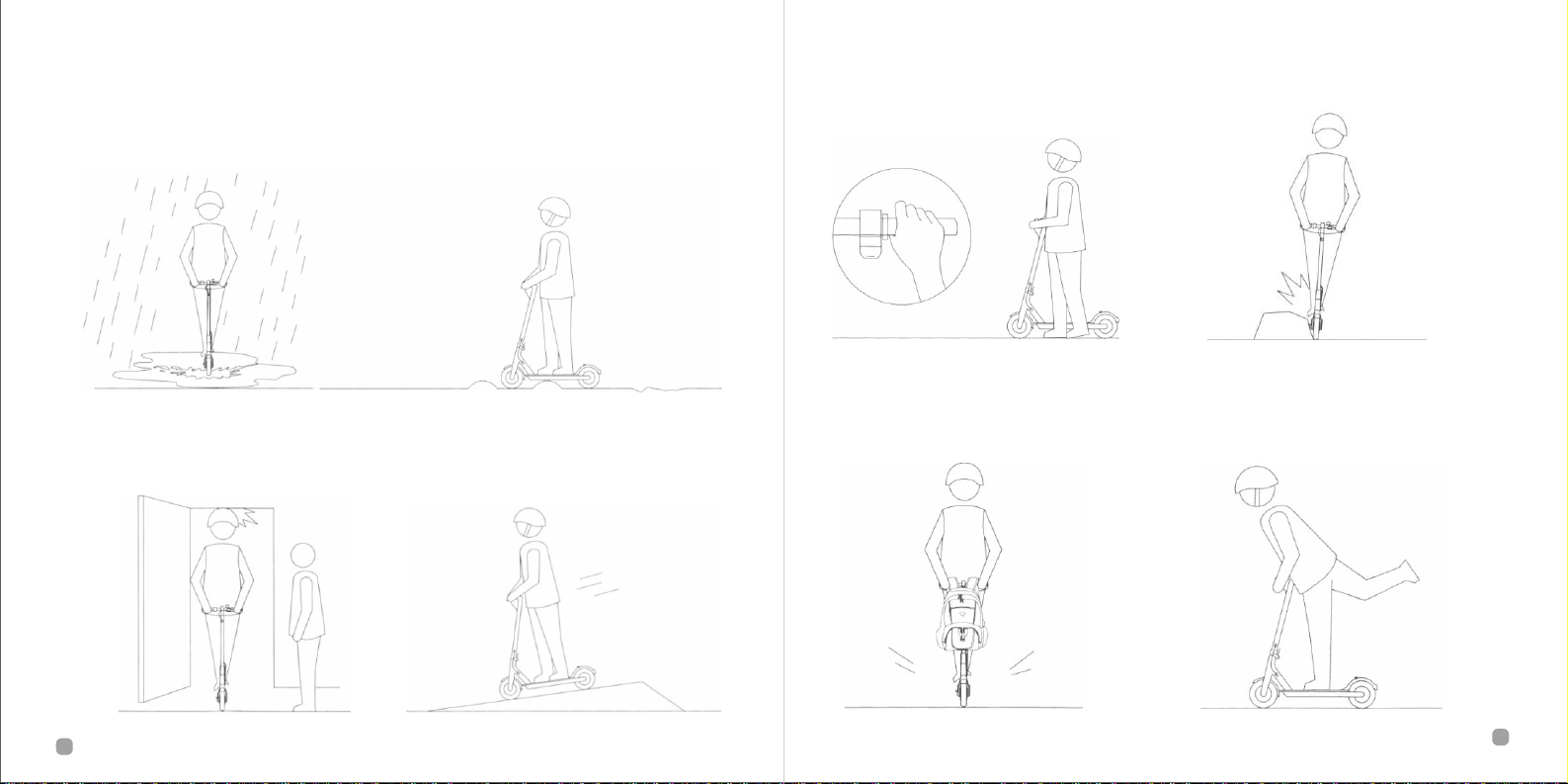

7. Safety Instructions
It is not recommended to drive in the rain.
It is recommended to bend knees to better
adjust to a rough road slightly. If you are
travelling on a rough road, stick to low
speed (3-6 Mph).
Be careful not to be injured by a door
frame when entering any room, elevator,
etc.
Please not add speed when descending
a hill.

12
11
8. Preventing Dangerous Driving
It is forbidden to leave e-Scooters on
motorways or drive at high speeds.
It is forbidden to turn sharply at a residential
area with overflow passers-by.
It is forbidden to drive through puddles,
to which exceeds the depth of 2cm.
Do not ride the e-Scooter by more than one
person or riding with the child in your arms.
Please do not tread the back of the fender. Please do not touch the wheel brake
(Especially when the power is on).
the handlebars when riding.
Do not ride the e-Scooter upstairs
and down or jump over obstacles.

No wet occasions! No wet hands!
9. Safety Tips for Charging
1.Before first use, please charge it for 5 hours at least in the proper temperature and
environment.
2. To extend the battery life to the utmost, please charge it once two days after riding (If you
do not use it for a long time, please charge it once a month).
3.The battery will be damaged without timely charging. As time goes by, the battery capacity
will gradually go out, leading to battery over-discharge.
4. Please use the battery, charger and cable provided by the original manufacturer, avoiding
dangers caused by battery overcharge.
5. Please ensure the correct connection of charger and cable in a well-ventilated environment.
6.Please use it under dry conditions. The charger or cable must not come into contact with
water, for it may result in an electric shock. No touching charger or cable with wet hands.
8. Please make sure to unplug from the plug end, not from the cable.
9. Please do not make the charger or cable come in with sharp or hot articles.
10.Please make regular check with the charger and its cable to avoid an emergency.
11.If there is obvious damage to the charger or cable, please do not use the charger
anymore, and contact us for exchange.
12.Please do not repair the battery, charger or cable personally.
13. If there is any question during charging, please feel totally free to contact us.
1)Electric scooter - it is only a device for entertainment, not a vehicle. But once you are driving
to the public area, the e-Scooter brings certain risks for your safety. Therefore, you must follow
the instructions strictly outlined in this driving manual for your safety and others.
2)You should understand that you must comply with all safety recommendations if you ride
the e-Scooter in a public place. In addition, you must know that even if you follow this user
manual completely, you may be at risk caused by illegal driving/improper operation of others
or vehicles. Just like when you walk or ride a bicycle, you can also be injured by other vehicles.
3)As in other types of vehicles, the higher the speed of the e-Scooter, the greater the braking
distance. On some smooth roads, emergency braking may cause skidding of the e-Scooter,
loss of balance, and even fall. Therefore, during moving of e-Scooter, you need to be vigilant,
adhere to an appropriate speed, keep a safe distance from pedestrians or with other vehicles.
Riding on unfamiliar terrain, keep vigilance and appropriate speed.
4)While riding the e-Scooter, respect the rights of pedestrians. Do not scare them, especially
children. Before you pass the pedestrians, use a bell to remind them and slow down when
passing. If you move in the same direction as pedestrians, keep to the left side as much as
possible(right side for right-hand traffic countries ). If you are moving in the opposite
direction, stick to the right and slow down.
5)Please strictly follow your country road rules to driving and strictly abide by rules set out in
the instructions and safety recommendations. Violation of the above rules may result in financial
expenses, personal injury, the occurrence of traffic accidents, legal disputes, conflict, and other
unpleasant situations. Our company does not bear any direct or joint liability.
6)To avoid personal injury, do not loan e-Scooter to others who do not know how to drive.
Before you transfer your e-Scooter to friends, please let him(her) spend training and teach
he(her)must be wearing the proper safety gear.
7)Please do scrutinize the e-Scooter before each use. If you find all kinds of abnormal symptoms
(such as damaged parts, decreasing battery life, tires leak air or wear excessively, uncharacteristic
sounds when turning, etc), please stop using the e-Scooter immediately. Don't ride it reluctantly.
14
13
10. Safety Recommendations

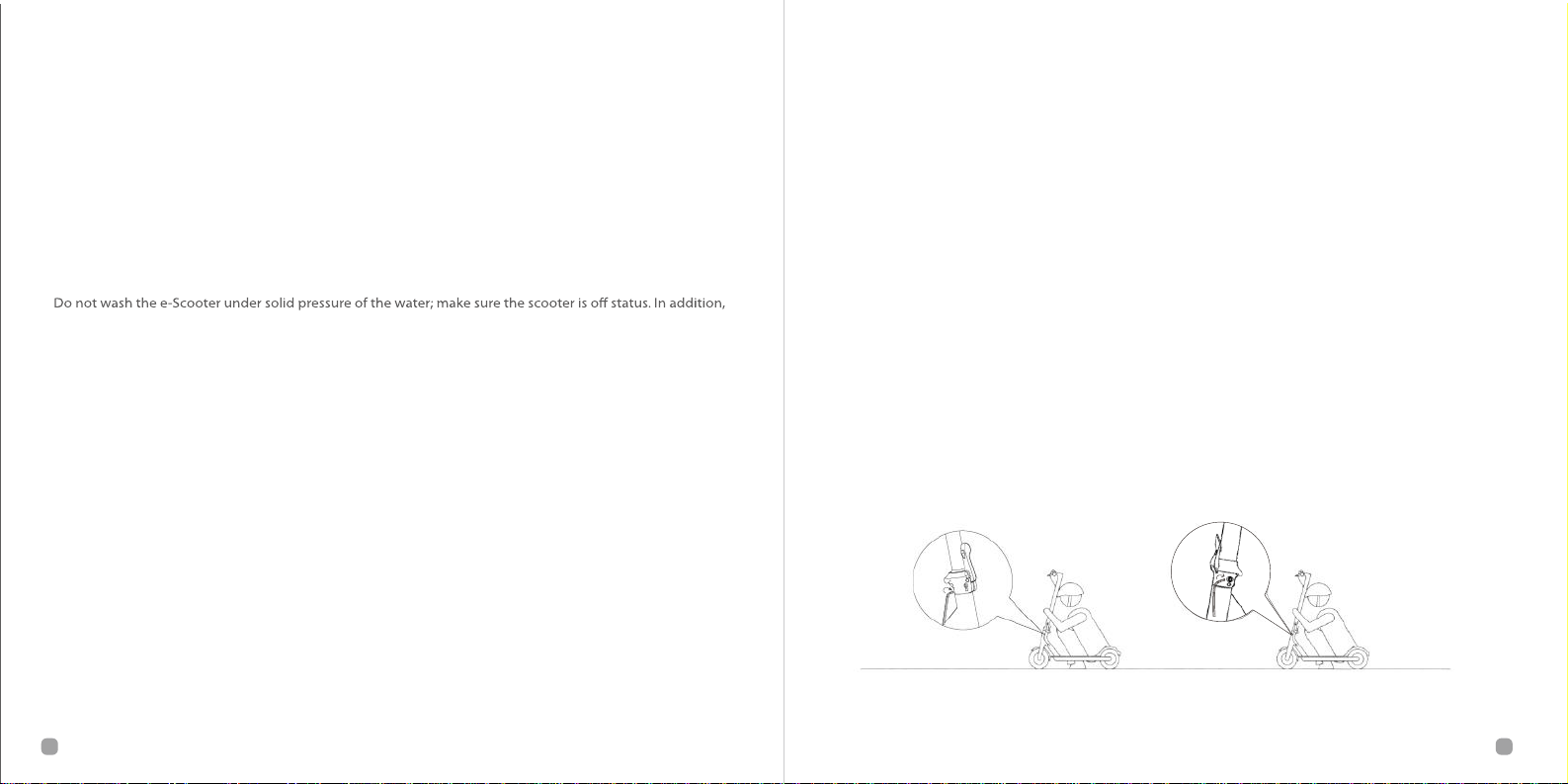

Adjusting the handlebars
Staggering of steering rack: using an M5 hexagon wrench, tighten two screws near the folding mechanism.
16
11.Care & Storage
Clean and store Electric Scooter
If you find any stains on e-Scooter housing, use a soft, damp cloth to wipe it; You can use toothpaste and a
toothbrush to clean the e-Scooter from stains, and then wipe it with a clean damp cloth. If you find
scratches on parts made of plastic, use sandpaper or other grinding materials for polishing.
Warning :
Do not use alcohol, petrol, kerosene or other corrosive solutions, volatile chemical solvents to clean the
e-Scooter. Otherwise, it will cause severe damage to the e-Scooter body and disrupt internal elements'
structure.
after charging the e-Scooter, it is necessary to reclose the charging port with the plug. Otherwise, you may
get an electric shock, or may have severe water damage caused by water falling into this port, may have
severe water damage.
If you do not use the e-Scooter, store it in a dry, cool place, and do not leave the unit outdoor for a long time.
Long-term sunlight exposure/in highly high temperature/over-low temperature can cause rapid aging of an
outer body and wheels of e-Scooter or reduce battery life.
Maintenance of Electric Scooter battery
1)Do not use batteries from other brands to avoid a dangerous situation;
2)Do not open or disassemble the battery to prevent electric shock. Avoid contact with metal objects to
prevent an occurrence of a short circuit. Otherwise, the battery may have malfunctioned or can injure the user;
3)It‘s recommended to use an AC adapter that comes in the original configuration of the device, to prevent
an occurrence of accident or fire of the vehicle;
4)Improper disposal of used batteries and accumulators is the cause of severe environmental pollution. Please
dispose of batteries following local laws. Please do not dispose of batteries together with food waste.
Protecting the environment together!
5)After each use of the device, charge the battery to prolong its service life.
Warning :
Do not store the e-Scooter & battery in rooms with temperatures that exceed 50℃or -20℃ (for example, do
not leave the battery of e-Scooter and other batteries in cars in the hot summer) or put the battery near the fire.
As a result of these actions may deteriorate the battery, overheating and even can cause a fire.
If within 30 days the e-Scooter is not used, charge the battery and keep the device in a cool, dry place. Every
30 days, you need to charge the battery. Otherwise, there is the likelihood of its failure, which is not subject to
warranty services. Avoid a complete discharge of the device, and it will extend battery life.
When using the device at average room temperature, the battery will ride a much greater distance. Its
performance will be better, but if you use the scooter at temperatures below 0°C, its performance and
permeability decrease. At-20°C, a traveled distance is less than the scooter in the standard conditions of half
or even less. If a temperature rises, the traveled distance by the vehicle will also increase.
Note: A complete charge e-Scooter runs about 120-180 days of standby time. The battery has a smart chip
that stores information about its charging-discharging. If you are not charging the battery for a long time, it
can cause severe damage, for which it is impossible to charge the device again. This kind of damage is not
included in the free warranty service. (Caution: Do not disassemble the device by unauthorized people, as
there is a risk of electric shock or severe injury resulting from a short circuit).
15

18
17
Using a connecting pipe to pump wheels
If the tire needs to be inflated, connect a connecting pipe to a wheel nipple to pump it.
First, remove the cap of the pin, then tighten the fitting, and then you start to pump a wheel.
12. Parameters
Model
HR9
Motor Power
Tire Size
Range of Tires
Brake Form
Max Speed
Climbing Gradient
Min/Max Loading
Battery
Range Per Charge
Charging Time
Charger
Charger Voltage
Body Material
Foldable
Net Weight
380W
8.5inch
Pneumatic tires
E-ABS Brake + Drum Brake
18.6 Mph
15 -20 °
66/265lbs
36V10Ah
20-25mi
3-5 hours
42V 2A
AC100-AC240V 50-60Hz
Iron(post and pedal) + aluminum (folder and handle)
Yes
37 lbs
-10 - 40 ℃
-20 - 45 ℃
IPX4
Operating temperature range
Temperature of storage
Waterproof level
Parameters
CE , ROHS , UL
Solid road surface, smooth clay surface to overtime, obstacles high less than 1cm, a
depth of pools no more than 2cm
Suitable area
Certificate
Length*width*Height 43.3*5.7(Running board)/21.3 (Handlebar)*46.5 inch
Folded Length*width*Height 43.3*5.7(Running board)/21.3(Handlebar)*18.7 inch
Adjusting the brake tightness
If you want to loosen the brake, turn the nut
counterclockwise to roll it out to the desired
position, and then tighten the brake handle
to check.
If you want to tighten, turn the nut clockwise
to roll it inward, and then recheck it by your
brake handle.
Note: Please do not loosen or tighten the brake system overly and repeatedly check after adjustment to
make sure it's suitable. And check your brake tightness and system regularly for your riding safety.

Name
Email
Address
Dealer Name
Dealer Address
Phone Call
SN Code
Purchase Date
Phone Call
Order Number
20
19
13. Warranty
Warranty service is carried out following the Law on 《Consumer rights》 and the 《 Law on the quality
of products》. The warranty service includes:
Name Information on warranty maintenance Term
Main Unit
Accessories
Exterior parts that
easily wear out
Frame, hub motor, controller, steering wheel,
handlebar, control panel, rear hub, brakes, disc
brakes (folding) system, fork, front fork
governance system, bus control, brake cable
1 year
6 months
NOT covered by
warranty
Battery, power supply, brake level, switching gears
Anti-collision strip, headlights, instrument cover,
handle sets, tires, inner tubes, bell, fender, brake
lights, decorative cover, stand, battery
compartment cover, footpad, charging port,
rubber stopper.
Recommendation:
Use the packaging for the safe transport of the device. We recommend keeping the original packaging within
30 days after receipt of goods.
Caution:
Hexagon wrench, connecting pipe, and other consumable parts have no warranty.
Non - warranty regulations
1.Authorized maintenance, misuse, collision, negligence, abuse, intake, accident. Improper use of non-product
accessories or tear up the modified label, anti-counterfeit mark.
2.The warranty period has expired;
3.Damage, caused by force majeure;
4.Failures, which do not correspond to the 《List of faults》of EcoRider service center;
5.A failure of the device or its components from the 《Fault list》, which arose in connection with the human
factor, and which interfere with regular operation.
6.Failures that have arisen in connection with the human factors (including, but not limited to, excessive
wetting device, puncture, drop, scratch, and damage an outer casing, which has arisen as a result of the regular
use of goods)
7. If this product is used for commercial purposes, all warranty conditions are not maintained.
14. Warranty Card
