habitat et jardin USAIN 93393 User manual

1
USAIN
1332_93393

2
No. Item Spec. Qt
y
. No. Item Spec. Qt
y
.
1Main Frame 139 Magnet Ring 1
2Base Frame 140 Brown Single Wire 1
3Upright bracket 241 Computer Control board 1
4Computer bracket 142 Computer bottom wire 1
5Motor Bracket 143 Computer up wire 1
6Running board
strengthening tube 144 Rubber Pad 2 2
7Rubber pad 445 Moving wheel cover 2
8 Cylinder 146 EVA 150*20*3 2
9Front Roller 147 Bolt ST4.2*13 7
10 Back Roller 148 Bolt M8*25 1
11 EVA 400*20*5 2 49 Bolt M8*42 1
12 #5 Allen wrench 5MM 1 50 Bolt M8*25 1
13 Start / stop pulse key 151 Bolt M6 10
14 DC Motor 152 Bolt ST4.2*45 2
15 Running Board 153 Bolt M6*30 4
16 Adjustable foot pad 254 Bolt M6*35 4
17 Inner circle end 255 Bolt M8*16 10
18 Motor Up Cover 156 Bolt M6*65 3
19 Motor Bottom Cover 157 Bolt M8*40 2
20 Side Rail 258 Bolt M10*55 2
21 Right Back End Cover 159 Bolt 8 7
22 Left Back End Cover 160 Bolt ST4.2*12 7
23 Fixing plug 261 Bolt M5*8 1
24 Motor Belt 162 Lock Nut M8 6
25 Power Wire Buckle 163 Lock washer 10 2
26 Running Belt 164 Standard spring washer 8 6
27 Foot pad 465 Standard spring washer 5 1
28 Ring wire plug B 266 Bolt ST4.2*19 9
29 Transport Wheel 267 Lock washer 8 10
30 Speed pulse +-Key 168 Lock washer 6 3
31 Power Wire 169 Lock washer 5 1
32 Switch 170 Bolt M8*45 4
33 Foam 271 MP3 OPTION 1
34 Computer cover 172 Bolt ST4.2*20 4
35 Computer face panel 173 Bolt ST4.2*30 2
36 Blot M6*37 2 74 Bolt ST2.9*6.5 2
37 Oil bottle 175 Sensor 1
38 Safety key 176 Bolt ST4.2*25 4
1332_93393
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1
FR : SAV/INFORMATION /VIDEO/CONTACT
EN: AFTER-SALES SERVICE/INFORMATION/VIDEO/CONTACT
DE : REPARATUR-SERVICE UND ERSATZTEILE /INFORMATIONEN /VIDEO/KONTAKT
ES: SERVICIO POST-VENTA/INFORMACIÓN/VIDEO/CONTACTO
IT: SERVIZIO ASSISTENZA/INFORMAZIONI/VIDEO/CONTATTO
PT: SERVIÇO PÓS-VENDA/INFORMAÇÕES/VIDEO/CONTATO
PL: SERWIS TECHNICZNY/INFORMACJE/WIDEO/KONTAKT
NE: AFTER SALES SERVICE/INFORMATIE/VIDEO/CONTACT
HE: רחאל תוריש תוריכמו/עדימ /ואדיווה/רשקתל םע
SAV.HABITATETJARDIN.

3

3
Safety Instructions:
Warning: Now here we suggest that you should consult with your physician or health professional before
starting your workout, especially for the age up to 35 old or once-health problem people. We take no
responsible for any troubles or hurts if you don’t following our specification. Treadmill will be carefully
assembled and covered the motor shield, then connect to the power.
Before the assembly, be sure to check if delivery is complete by using the included
parts-list.
1, Ensuring the safety clamps were attached to the clothing or belts before using the treadmill.
2, Please do not insert any items to any part of the equipments, which would damage the equipment.
3, Position the treadmill on a clear, level surface. Do not place the treadmill on thick carpet as it may
interfere with proper ventilation. Do not place the treadmill near water or outdoors.
4, Never start the treadmill while you are standing on the walking belt. After turning the power on and
adjusting the speed control, there may be a pause before the walking belt begins to move, always
stand on the foot rails on the sides of the frame until the belt is moving.
5, Wear appropriate clothing when exercising on the treadmill. Do not wear long, loose fitting clothing
that may be caught in the treadmill. Always wear running or aerobic shoes with rubber soles.
6, Keep the children and pets away from the treadmill while starting workout.
7, Don’t exercise in 40-Minutes after dinner.
8, The equipment is suitable for adults, Juveniles need be accompanied with adults while workout.
9, You must hold on to the handrails until you become comfortable and familiar with the treadmill at your
first start the workout.
10, Treadmill is indoor-using equipment, not outdoor-using for avoiding damage. Keep the store-place
clean and flat, drying. Prohibiting the other purpose using, only for workout.
11, Please purchase the power-line to the distributor or contact with our company directly, for the
power-line only equip to the treadmill.
12,If the treadmill should suddenly increase in speed due to an electronics failure or the speed being
inadvertently increased, the treadmill will come to a sudden stop when the pull pin is disengaged from
the console.
13, Do not connect line to the middle of cable; do not lengthen cable or change the cable plug; do not put
any heavy thing on cable or put the cable near the heat source; forbid using socket with several
4

holes, these may cause fire or people may be hurt by the power.
14, Cut off the power when the equipment is not used. When the power is cut off , do not pull the power
line to keep the wire unbroken. Insert the plug to the socket with the safety ground circuit, for the
power-line is professional equipment .You must contact with the professional people directly while
the line is damaged.
15,This Treadmill only for home-using.
The owner’s manual is only for customers’ reference.
The supplier can not guarantee for mistakes occurring due to translation or change in technical
specification of the product.
All data displayed are approximate guidance and cannot be used in any medical application.

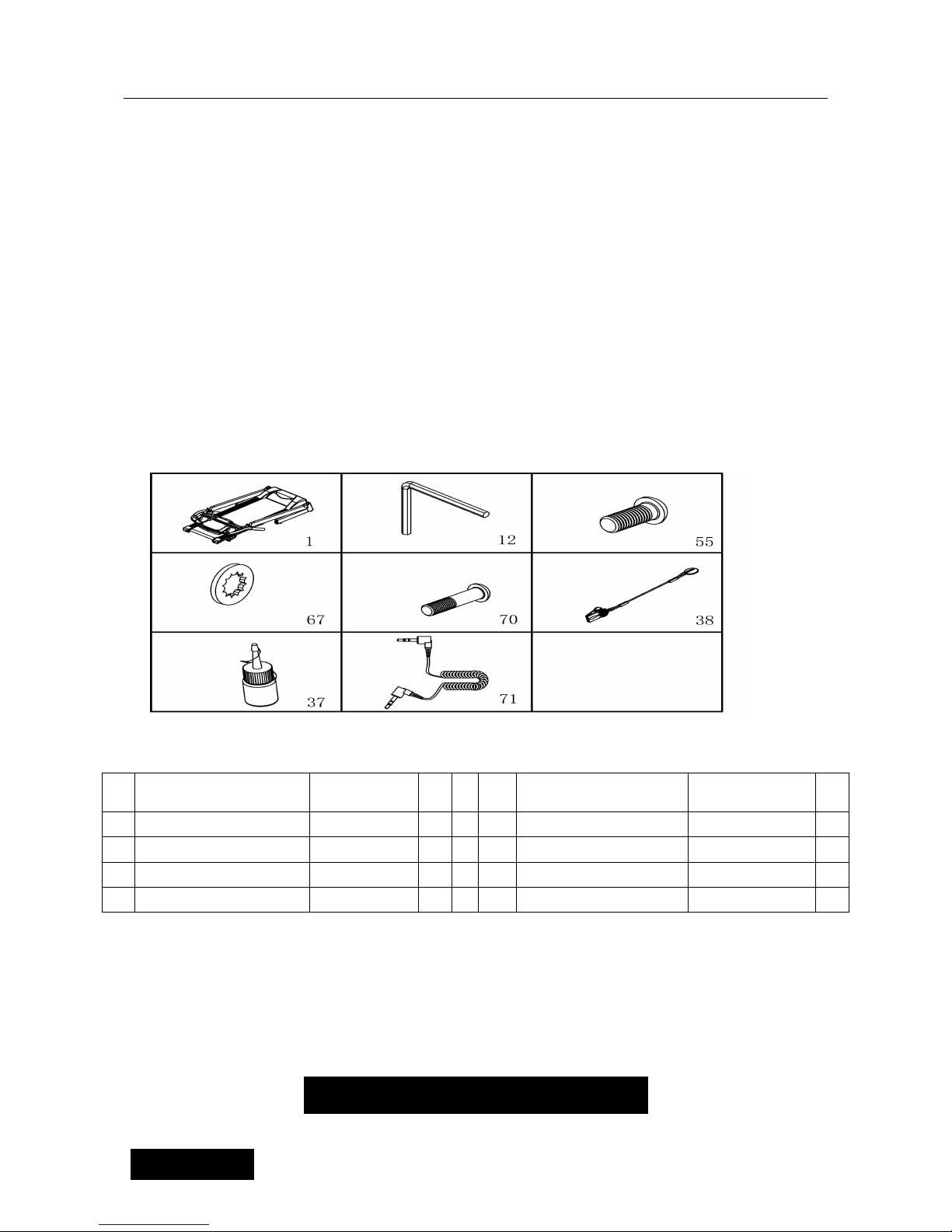

When you open the carton, and you will find the below parts in the carton
PART LIST：
NO. DES. Specification Nos
.. NO. DES. Specification Nos
.
1 Main Frame 1 70 Lock Washer M8*45 2
12 5#Allen wrench 5mm 1 38 Safety key 1
55 Bolt M8*16 4 37 Oil Bottle 1
67 Bolt 8 6 71 MP3 OPTION 1
FIXING TOOLS:
5# Allen Wrench 5mm 1pc
Notice: Do not get through power before complete assembly
Assembly Instructions
5

STEP 1：
STEP 2：
STEP 3：
Open the carton, get out the above
spare parts, and put the Main Frame
onto the level ground.
1. Pull up the uprights.
Notice: Support the upright with
hand to avoid falling down to have
any hurt.
1. Position the computer according to
the diagram.
2. Using the 5# Allen wrench, secure
the Computer frame to Left Upright
and Right Upright by using Bolt
M8*16(55) and Lock washer(67).
6

7
STEP 4：
STEP 5：
Please make sure all parts have been fixed properly. Before you use the treadmill,
please read the instruction carefully

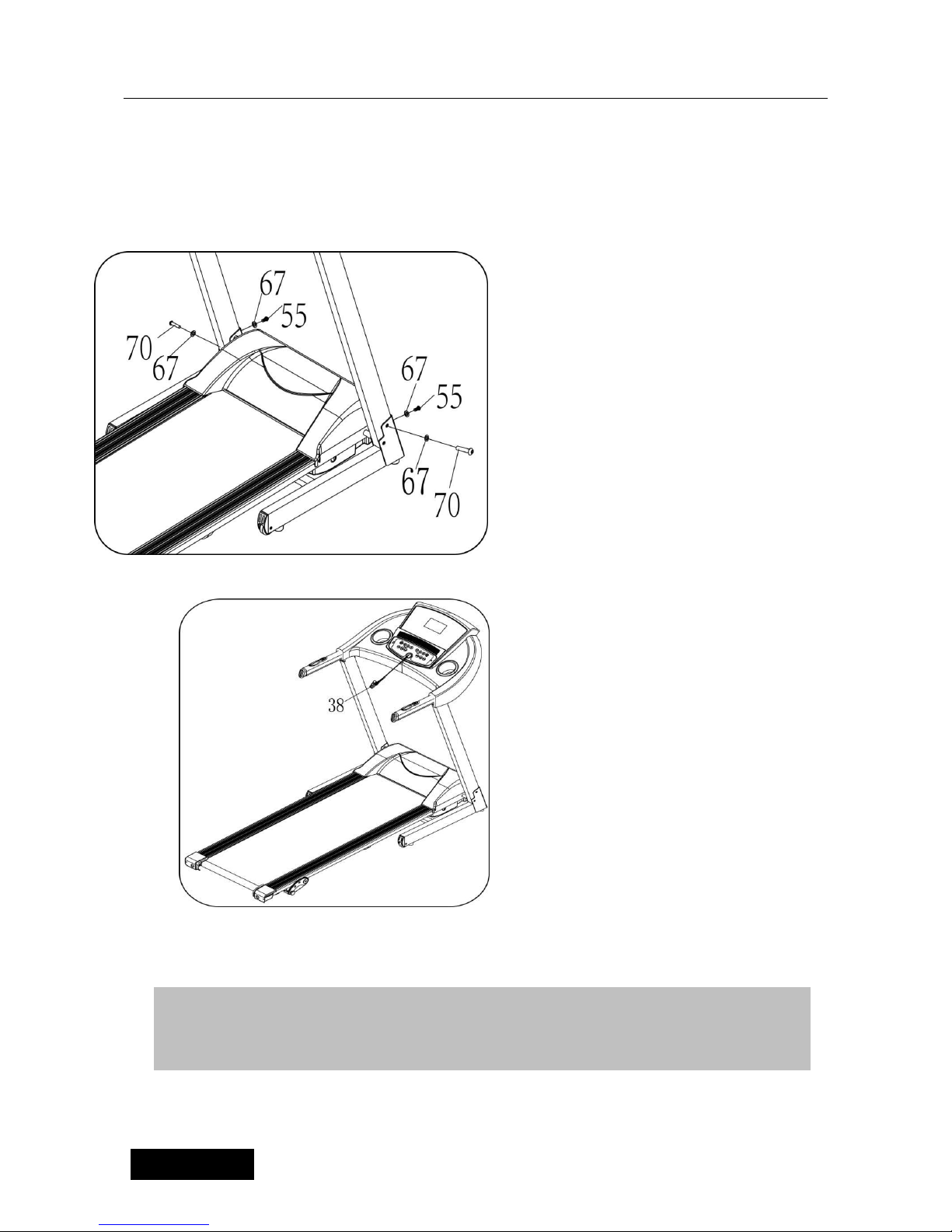

1. Using the 5# Allen wrench (12), screw in
the Bolt M8*16 (70) and Lock washer(67).
2. Attach the Right Upright Tube to the
Main
Frame;
3. Use the 5# Allen wrench (13) to screw
Bolt M8*16 (55) and Lock washer (67) to
the base frame through base and right
upright tube. Reference the picture left.
Repeat this method for the left side
assembly.
Note: Support the upright with your hands
to prevent it falling down and causing
injury
put the safety key (38)on the
computer and start your
exercise.

8

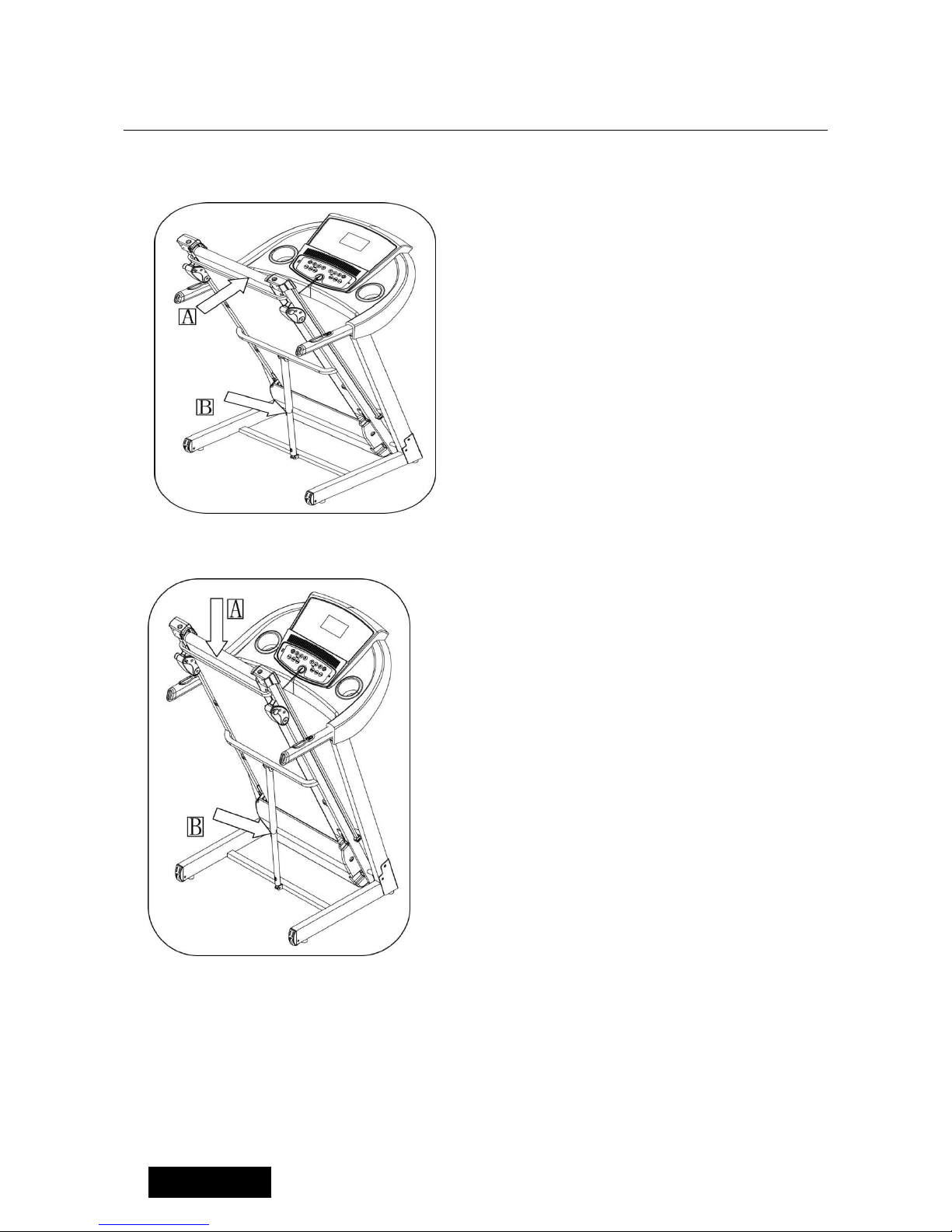

Pulling up:
Pulling down:
Pull up the base frame at position A,
till hearing the sound that the air
pressure bar B is locked into the
round tube
Support place A with hand , kick the
place of air pressure bar, then the
main frame will fall down
automatically ( Please keep anybody
and any pet away the machine when
falling down)

9
Technical Parameter
BUILT UP
SIZE(mm) 1587*670*1225mm POWER As the rating label showing
FOLDABLE
SIZE(mm) 790*670*1390mm Maximum output power As the rating label showing
RUNNING BOARD
SIZE
(
mm
)
400*1200 SPEED RANGE 0.8-16KM/H
NET WEIGHT 43.3KG MAX USER
WEIGHT 100KG
1 LCD WINDOW
WITH BLUE
BACKGROUND
Speed, time, distance, Calories, Pulse
Grounding Methods
This product must be grounded. If it should malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. This
product is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
DANGER –Improper connection of the equipment-grounding conductor can result in
a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided with the
product – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 220-240/100-120 volt circuit and has a grounding plug
thatlooks like the plug illustrated in sketch A in following figure. Make that the product is
connected to an outlet having the same configuration as the plug. No adapter should be
used with this product.(The below picture is just for reference，the actual plug and jack is depends
on import country)
Operation Guide

10

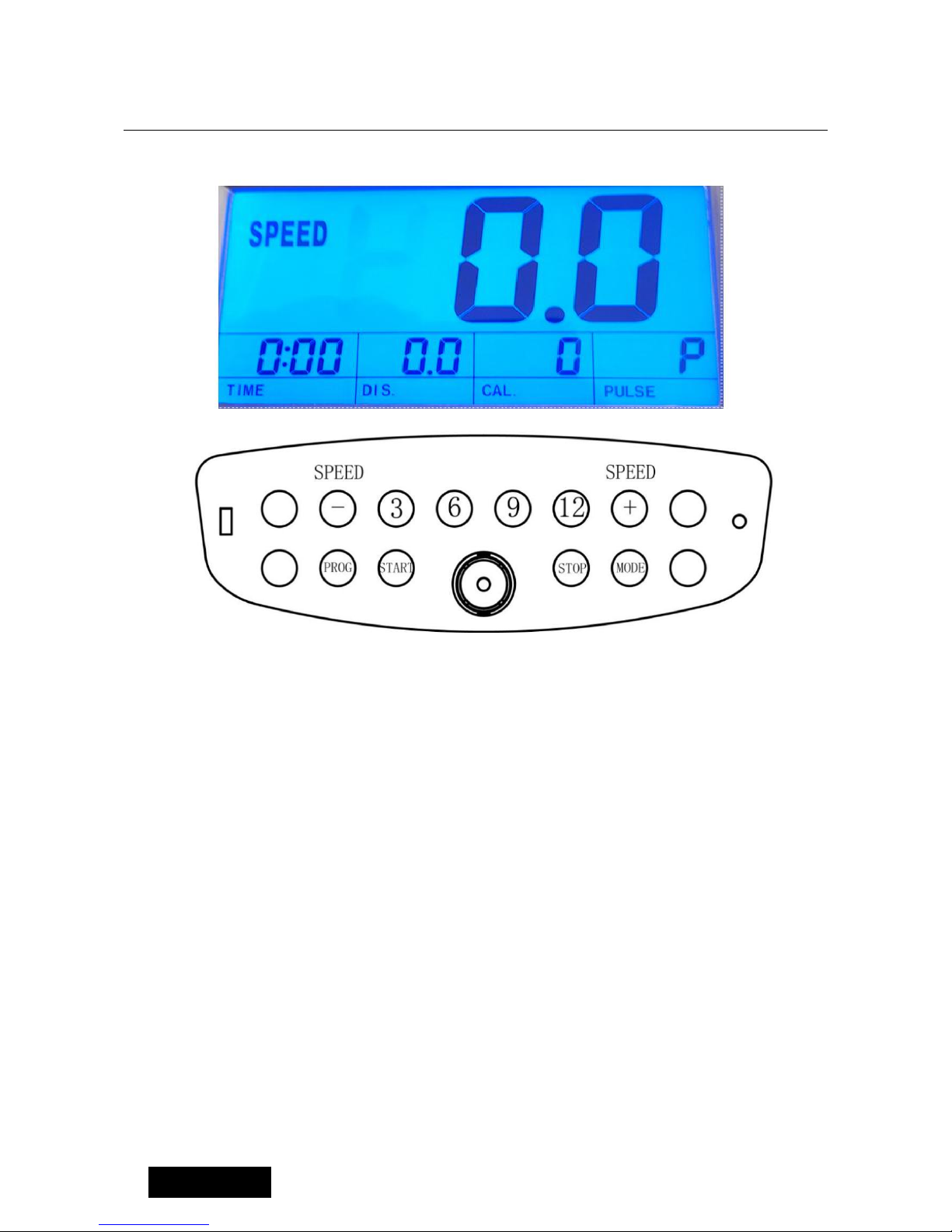

1 OVERVIEW
2. LCD WINDOW DISPLAY
1. SPEED: Shows speed.
2. TIME window: displays exercise time
3. DIST window: shows the running distance
4. CALO window: shows the calories burnt. Calories burnt are an estimate only and are not
to be used as
medical data.
5. PULSE: shows heart rate. (Heart rate data is for reference ONLY.)
3. BUTTON FUNCTIONS
1. “PROGRAM”: choose the program, cycle from manual mode, P1 – P12 to FAT.
2. “MODE”: mode selection button. Press this button to cycle the mode.
During standby mode, use MODE to choose between countdown mode, from TIME
countdown, DISTANCE countdown and CALORIE countdown.
3. “START”: begins workout. When the power is on and safety key correctly placed on the
computer,
