Hadeco Koven MiniDoppler ES-100VX User manual

GTIN: 00894912002050

PRECAUTIONS
PROBE
Non-invasive probes are for transcutaneous use only
Probe transducer tips are thin and delicate. Be careful not to drop or hit the probe tip. After
use, protect the transducer with the probe cap.
ULTRASOUND GEL
Use ultrasound gel. Use of other materials such as baby oil and cream may not produce
correct Doppler sound, and may damage the probe.
Not recommended with patients having a sensitivity or allergic reaction to ultrasound gel.
BATTERY
When battery is low, the power indicator will ash. Replace the battery.
Use only 9-volt alkaline batteries. A non-alkaline battery may cause a shortage of power.
When not using the unit for a long period of time, remove the battery.
MAIN UNIT
Do not place near water or other liquid, where atmospheric pressure, ventilation, sunlight,
dust, salt, sulfur, etc. may cause damage, or where chemicals are stored or gas may be
generated.
Use in environments where temperature is between 10° - 40° C and humidity is less than
75%.
Protect the unit from vibration and shock during transport.
Keep more than 1.5 meters away from computers or other information equipment.
Make sure that there is no damage to the unit or probe before use.
Do not use simultaneously with an electro cautery debrillator or other ultrasound device.
Please do not use the Doppler continuously for more than 1 hour to avoid the possibility of
skin irritation or rash.
The Doppler box should not have direct patient contact or be placed in the sterile eld as it
cannot be sterilized and reprocessed. If contact occurs, please see cleaning instructions for
cleaning the Doppler box.
The Doppler box and non-invasive probes should be cleaned following any patient contact
CAUTION: The ES-100VX has not been evaluated for safety and compatibility in the MR
environment. The ES-100VX has not been tested for heating or migration in the MR environment.
CAUTION: Perform ultrasound testing/procedures prudently using the principle of ALARA (As Low
As Reasonably Acheivable)

TABLE OF CONTENTS
ES-100VX MiniDoppler®
INTRODUCTION 1
CLINICAL APPLICATIONS ................................................................................2
CONTROLS ................................................................................................…3-4
REPLACING THE BATTERY ......................................................................... …5
TURNING THE UNIT ON & OFF .......................................................................5
OPERATION ................................................................................................... 6-7
PROBE SELECTION ..........................................................................................8
PRINCIPLES .......................................................................................................9
BLOCK DIAGRAM ............................................................................................10
SPECIFICATIONS .............................................................................................11
CLEANING ........................................................................................................12
WARRANTY ......................................................................................................12
SAFETY STANDARDS ............................................................................... 13-15

1
Thank you for
choosing the
ES-100VX MINIDOPPLER®…
e ES-100VX MiniDoppler®has four non-invasive interchangeable probe frequencies
of 2.25, 5, 8, and 10 MHz for detection of arterial and venous blood ow in the lower
extremities. e 2.25 MHz focused probe is for fetal heart rate measurement.
FEATURES
• Pocketable, hand-held size
• Great sensitivity
• Wideprobeselectionforuserexibility
• Convenient probe activation button
• Automatic power “off”
MiniDoppler is a registered trademark ® of Koven Technology, Inc., St. Louis, MO

ES-100VX MiniDoppler®
2
CLINICAL APPLICATIONS
The ES-100VX can be used for the following clinical applications:
• Fetal heart sounds
• Peripheral vascular procedures
• Pedal pulse checks
• Blood pressure segmental studies
• Venous compression studies

ES-100VX MiniDoppler®
3
CONTROLS
Front Panel
1) PROBE CONNECTOR
To connect the probe to the Doppler
2) HEADSET CONNECTOR
To connect a headset (not provided)
3) VOLUME CONTROL
To adjust the sound volume
4) POWER INDICATOR
Indicates power ON/OFF
5) SPEAKER
Outputs Doppler sound

ES-100VX MiniDoppler®
4
6) PROBE HOLDER
For probe placement when not in use
7) STRAP HOLES
To connect the carry strap
8) BATTERY COVER
See “Replacing the battery” on page 5
9) PROBE
Choose from 2.25, 5, 8 & 10 MHz frequencies (8 MHz vascular & 2.25 MHz fetal
are most common)
10) PROBE BUTTON
Activates the ES-100VX
11) PROBE CAP
Protects the probe tip when not in use
CONTROLS
Rear Panel

ES-100VX MiniDoppler®
3. REPLACING THE BATTERIES
5
REPLACING THE BATTERY
Press down on the battery cover and slide
in the direction of the arrow, as pictured on
the right.
Place a 9-volt alkaline battery in the unit,
making sure that the positive and negative
electrodes correspond to the + and – marks
on the label inside the battery box.
Replace the battery when the power
indicator LED ashes.
TURNING THE UNIT ON & OFF
1. TURNING THE UNIT ON
Connect the probe with the arrow on the
probe connector pointing up (12 o’clock
position) and press the probe button to turn
the unit ON.
Turn the volume control to the desired level.
2. TURNING THE UNIT OFF
Press the probe button a second time to turn the unit OFF.
3. AUTOMATIC POWER OFF
If the unit is left on while not in use, the power will be automatically shut off after
approximately 3 minutes.
NOTE: Use only 9-volt alkaline
batteries. Use of non-alkaline batteries
may cause a shortage of power.
NOTE: The auto-off time is dependent on room temperature.

ES-100VX MiniDoppler®
OPERATION
1. Connect the probe to the
ES-100VX with the arrow on the
probe connector pointing up (12
o’clock position).
2. Place ultrasonic gel on the probe tip
or the patients skin. Make sure there
is enough gel to cover the tip of the
probe.
Press the probe button to turn the
unit on.
3. Make sure the power indicator on the
unit is lit.
Turn the volume control to the
desired level.
6

ES-100VX MiniDoppler®
7
OPERATION (cont.)
4. Place the probe on the skin and
move slowly to locate the point where
maximum Doppler sounds are heard
(see below for your probe type).

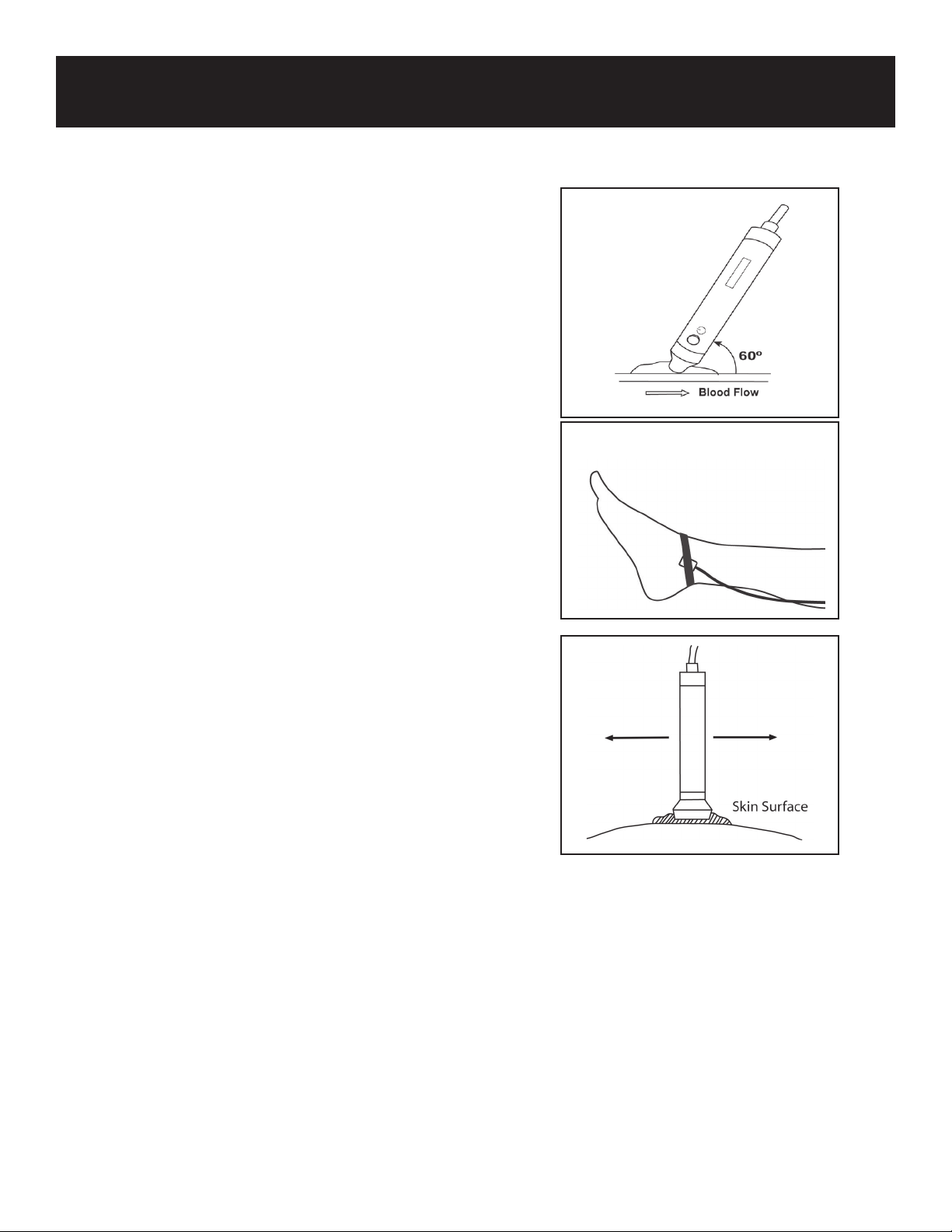

[Pencil Style Probe]
If using the pencil style probe, hold the
probe softly against the measurement
area at an angle of approximately 45
to 60 degrees to the skin surface (see
gure A)
[Flat Vascular Probe (Model BF8)]
If using the at vascular probe, place the
probe over the artery, adjust to locate
the best sounds, and afx in place using
the velcro strap provided (see gure B).
[Fetal Probe (Model BT2M20S8C)]
When using the 2 MHz probe for fetal
heart beat detection, place the probe on
the measurement area at a 90 degree
angle (see gure C) and move slowly to
locate the point where fetal heart sounds
are at the maximum.
Figure A
Figure B
Figure C

ES-100VX MiniDoppler®
8
PROBE SELECTION
The frequency of diagnostic ultrasound is inversely proportional to depth of penetration.
The ES-100VX has 4 interchangeable non-invasive probes with different frequencies.
Probe selection depends on the application.
BT2M20S8C (2.25 MHz) (GTIN# 00894912002326): Fetal heart beat & sounds
BT5M05S8C (5 MHz) (GTIN# 00894912002326): Deep peripheral blood ow
BT8M05S8C (8 MHz) (GTIN# 00894912002326): Supercial blood ow (most commonly used)
BF8M15S8A (8 MHz) (GTIN# 00894912002296): Supercial blood ow (at probe)
BT10M5S8C (10 MHz) (GTIN# 00894912002326): Supercial blood ow
APPLICATIONS
1. Detection of Fetal Heart Sounds
Probes to be used: BT2M20S8C (2.25 MHz)
Evaluation of fetal heart beat & sounds throughout pregnancy except where fetal
heart is not developed sufciently during the rst trimester.
2. Detection of Arterial & Venous Blood Flow
Probes to be used: BT5M05S8C (5 MHz)
BT8M05S8C (8 MHz) (most commonly used)
BF8M15S8A (8 MHz) (at probe)
BT10M5S8C (10 MHz)

ES-100VX MiniDoppler®
9
PRINCIPLES
The ES-100VX MiniDoppler® is designed to receive blood ow velocity information
through the use of ultrasound. A specic frequency is transmitted from the probe to the
patient.
The transceiver amplies a high frequency oscillation output for transmission to the
transducer. The voltage is converted by piezoelectric crystal (transducer) to ultrasound.
The ultrasound beam is transmitted to blood cells owing through arteries or to beating
fetal hearts. The ultrasound beam is reected by the red blood cells or by moving
structures and received by the crystal in the transducer, which converts the ultrasound
into a voltage. A Doppler shift occurs between the emission and reception of the
ultrasound beam.
The voltage is amplied. The electronics amplify the signal, lters out noise and
improves the S/N ratio. The Doppler shift signals are amplied further and converted to
audible sound via the integrated speaker.

ES-100VX MiniDoppler®
10
High Frequency
Amplier
High Frequency
Output
Transducers
Wave
Detection
High Fre-
quency
Oscilator
Band Pass
Filter
Power Supply
Low Freq.
Output
PROBE MAIN UNIT
Speaker Headset
BLOCK DIAGRAM

ES-100VX MiniDoppler®
11
SPECIFICATIONS
Probes: Model Freq.
Multiple frequencies
BT2M20S8C 2.25 MHz
BT5M05S8C 5 MHz
BT8M05S8C 8 MHz
BT10M5S8C 10 MHz
BF8M15S8A 8 MHz (at)
Battery: DC 9-volt, alkaline battery
Battery life: Approximately 3 hours (alkaline)
Automatic shut-off: No signal: 3 min.
Probe button: Power ON/OFF
Speaker output: 300 mW or more
External outputs:
Headset: Cuts off sound from the speaker (3.5 mm jack)
Dimensions: Main unit: 78(W) x 141(D) x 27(H) mm
Probe: 20(Diam) x 105(L) mm
Weight: Approx. 270 grams (including battery & probe)
Operating
Environment: 10 - 40 degrees Centigrade (50 – 104 degrees Fahrenheit)
85% humidity or less with no condensation
Storage and transport
Environment: 0 - 50 degrees Centigrade (32 – 122 degrees Fahrenheit)
85% humidity or less with no condensation
Electrical safety: Conform to IEC-60601-1
Equipment with an INTERNAL ELECTRICAL POWER
SOURCE
Type BF applied part.
Accessories: Carrying case
Ultrasonic gel
9-volt battery
Carry strap
Optional Accessories: Doppler rollcart (CT-1)
Not made with natural rubber latex
* Specications are subject to change

ES-100VX MiniDoppler®
CLEANING
DOPPLER BOXES AND NON-INVASIVE PROBES
The Doppler box and probe can be wiped down using warm water, enzymatic cleaner,
or alcohol with a damp soft cloth after use. If an enzymatic cleaner is used, wipe down
again using warm water or alcohol with a damp soft cloth. Hospital approved alcohol
based wipes are an acceptable alternative to a damp soft cloth.
Caution: Do not submerge Doppler box or probe in any liquid.
WARRANTY
The Doppler box is warrantied for a period of 2 years from the date of purchase when
used under normal conditions. Warranty periods on probes, adaptors & accessories
vary. Please refer to your purchase invoice for additional warranty terms.
In the event of an equipment malfunction during the warranty period, please contact
Koven Technology, Inc. at 800-521-8342 or [email protected]. The warranty does not
cover defects resulting from accidents or misuse and is void if modications or repairs
are attempted without permission.
In case the warranty period has expired, please consult Koven Technology, Inc. for a
charge service.
12

ES-100VX MiniDoppler®
SAFETY STANDARDS
The ES-100VX conforms to the following standards:
Guidance and manufacturer’s declaration - electromagnetic emissions and immunity
Guidance and Manufacturer’s Declarations
Electromagnetic Emissions
The ES-100VX is intended for use in the electromagnetic environment specied below. The user of the
ES-100VX should assure that it is used in such an environment.
Emissions test compliance Electromagnetic environment - guidance
RF emissions Group 1 The ES-100VX uses RF energy only for its internal
function. Therefore, the RF emissions are very low and
CISPR 11 are not likely to cause any interference in nearby
electronic equipment.
RF emissions Class A The ES-100VX is suitable for use in all establishments
other than domestic, and may be used connected to the
CISPR 11 public low-voltage power supply network that supplies
Harmonic Not Applicable buildings used for domestic purposes.
IEC61000-3-2
Voltage Not Applicable
uctuations/
icker emissions
IEC61000-3-3
13

ES-100VX MiniDoppler®
Guidance and Manufacturer’s Declarations (cont.)
Electromagnetic Immunity
The ES-100VX is intended for use in the electromagnetic environment specied below. The user of the
ES-100VX should assure that it is used in such an environment.
Immunity test IEC60601 test level Compliance level Electromagnetic environment
- guidance
Electrostatic ±6kV contact ±6kV contact Floors should be wood,
discharge (ESD) concrete or ceramic tile. If
±8kV air ± 8kV air oors are covered with
IEC61000-4-2 synthetic material, the relative
humidity should be at least 30%.
Electrical fast ± 2kV for power Not Applicable
transient/burst supply lines
IEC61000-4-4 ±1kV for input/output
lines
Surge ±1kV differential Not Applicable
mode
IEC61000-4-5 ±2kV common mode
Voltage dips, short < 5% UTNot Applicable
interruptions and (> 95% dip in UT)
voltage variations for 0,5 cycles
on power supply 40% UT
input lines (60% dip in UT)
for 5 cycles
IEC61000-4-11
70% UT
(30% dip in UT)
for 25 cycles
< 5% UT
(> 95% dip in UT)
for 5 s
Power frequency 3 A/m 3 A/m Power frequency magnetic
(50/60 Hz) elds should be at levels
magnetic eld characteristic of a typical
IEC61000-4-8 location in a typical
commercial or hospital
environment
NOTE UTis the a.c. mains voltage prior to application of the test level.
14

ES-100VX MiniDoppler®
15
Guidance and Manufacturer’s Declarations (cont.)
Electromagnetic Immunity (cont.)
The ES-100VX is intended for use in the electromagnetic environment specied below. The user of the
ES-100VX should assure that it is used in such an environment.
Immunity test IEC60601 test level Compliance level Electromagnetic environment
- guidance
Portable and mobile RF communications
equipment should be used no closer to
any part of the ES-100VX, including
cables, than the recommended
separation distance calculated from the
equation applicable to the frequency
of the transmitter
Recommended separation distance
Conducted RF 3Vrms 3V d = 1,2√P
IEC61000-4-6 150 kHz to 80 MHz
Radiated RF 3V/m 3V/m d = 1,2√P 80 to 800 MHz
IEC61000-4-3 80 MHz to 2.5 GHz
d = 2,3√P 800MHz to 2,5 GHz
where Pis the maximum output power
rating of the transmitter in watts (W)
according to the transmitter manufacturer
and d is the recommended separation
distance in meters (m).
Field strength from xed RF transmitters,
as determined by an electromagnetic
site survey, ashould be less than the
compliance level in each frequency
range.
b
Interference may occur in the vicinity of
equipment marked with the following
symbol
NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reection from structures, objects and people.
a Field strengths from xed transmitters, such as base stations for radio (cellular/cordless) telephones and land
mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with
accuracy. To access the electromagnetic environment due to xed RF transmitters, an electromagnetic site survey
should be considered. If the measured eld strength in the location in which the ES-100VX is used exceeds the appli-
cable RF compliance level above, the ES-100VX should be observed to verify normal operation. If abnormal perfor-
mance is observed, additional measures may be necessary, such as reorienting or relocating the ES-100VX
b Over the frequency range 150 kHz to 80 MHz, eld strengths should be less than 3 V/m

OM-1155
Copyright © Koven Technology, Inc., St. Louis, MO
Koven Technology, Inc.
477 N. Lindbergh Blvd., Suite 220
St. Louis, MO 63141
Tel: [phone] • Fax: [phone]
E-mail: [e-mail]
www.koven.com
GLN: 0894912002005
