hager witty park XEV6 Series Operating instructions

Hager witty park XEV6xx
6LE002975A
6LE002975A
1
zUse
1. Initial precautions
Please refer to the maintenance manual before starting the installation of the charging station. This device is to be installed only by a professional electrician
fitter according to local applicable installation standards. Conform to TBTS installation rules.
2. General description of the charging
station
Strip light
RFID Card Reader
Socket: Mode 3 Type 2S
Socket: Mode 2
Energy meter (version-specific)
Optional: base
3. Using the charging station
The display module will inform you
about the status of the station and the
charge.
o: Station is powered o
solid green: Ready for charging or
fully charged
pulsating white: Authorisation request
slowly flashing green/
white:
Authorisation OK
slowly flashing green: Awaiting charging
authorisation
pulsating green: Communicating with
the EV
pulsing green: Charging
pulsing blue: Charging paused
red: Malfunction, chapter 3

6LE002975A2
3.1. Start a charging operation
Hold the badge
in front of the reader
Indicator light: solid green
Indicator light: flashing white / green Indicator light: flashing white
Connect the vehicle end and station end cable
lock the cable
Charging begins
The vehicle does not
need more energy
Indicator light: pulsing green
Indicator light: solid green
Wait for the exterior
signal
Indicator light: flashing
green
START card
connection
charge
Smartphone
alternative:
Scan the QR Code
with a Smartphone

6LE002975A3
3.2. Stop a charging operation
Indicator light: pulsing green or solid
green
Indicator light: flashing white / green
Disconnect the vehicle
end and station end cable
Wait for a maximum of 3 seconds
Indicator light: steady green
STOP
disconnection
Hold the badge
in front of the reader Or Stop the charging from
a Smartphone
unlock the cable
card Or Remove the
cable if the station
is configured in
Free Release

6LE002975A4

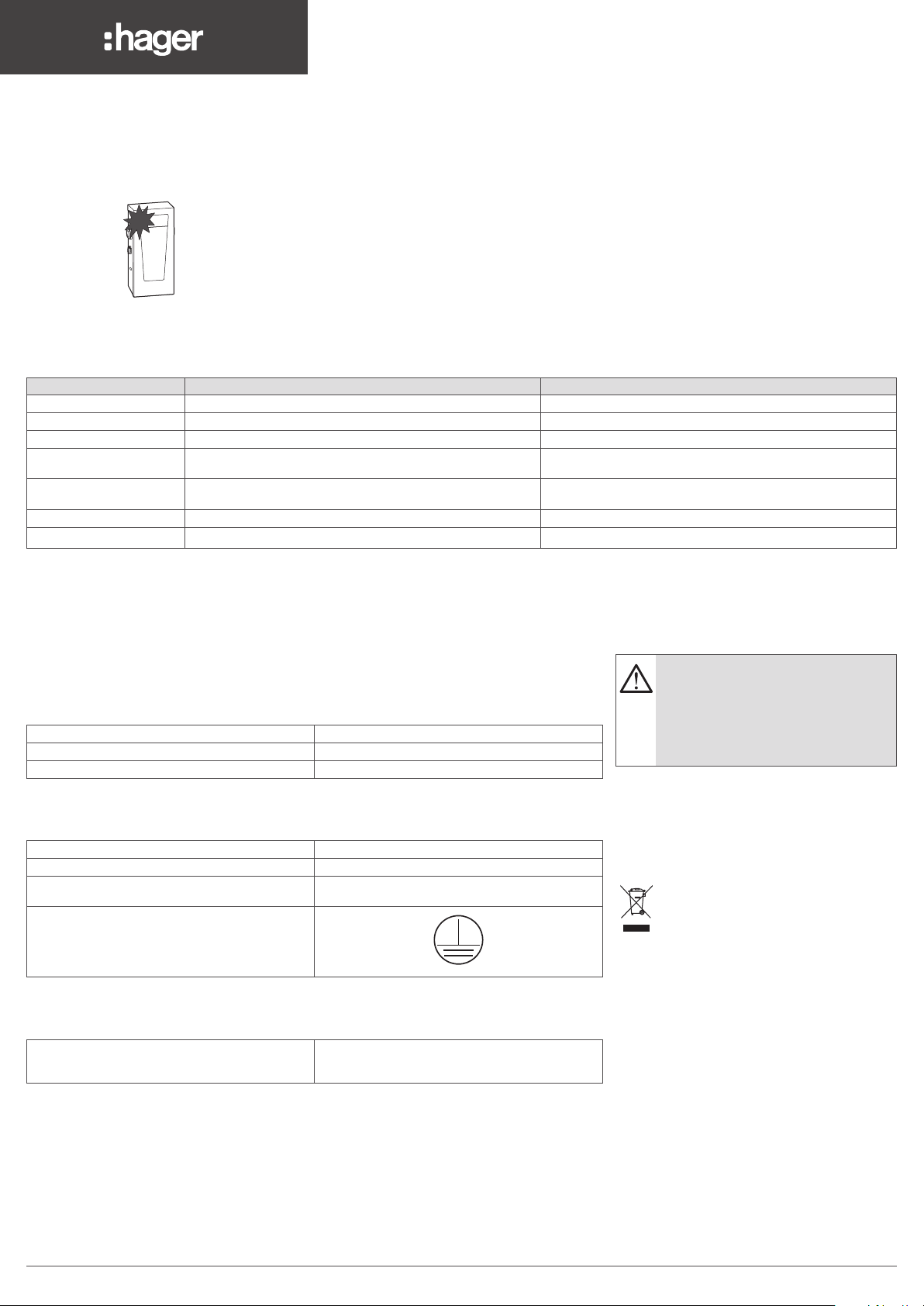

5. Technical data
Number of pulses Type of fault Cause
1 Charging cable fault Defective or incompatible cable (13A)
2 Defective communication Defective cable - short-circuit during communication
3 Electric vehicle is overcharged The EV does not comply with the power limit set by the station
4 Ventilation required The vehicle requires additional ventilation (the charging is
blocked)
5 Fault in charge management The load shedding is too frequent during charging (4x) and the
power supply to the house is not sucient
6 Defective communication Defective cable - problem at the diode
Steady Configuration prohibited
Environmental conditions
Temperature -25°C to +40°C
Humidity 5% to 95%
Protection IP 54 – IK 10
Electrical characteristics
Voltage 230V / 400V (3-phase Version) +/- 10%
Frequency 50 Hz +/- 1%
Maximum power load 32A - 7kW (1-phase Version)
32A - 22kW (3-phase Version)
Class of electrical protection Class 1
RFID
Compatible RFID technologies Mifare 1k
Mifare 4k
Mifare Ultralight NTAG203
4. Malfunction
Indicator light: flashing red
6. Precautions for assembly
All information pertaining to the installation
(assembly, electrical connection and
configuration), connection to the servers as well
as the use and maintenance of the terminals
are provided in the USB key provided with the
terminals and on the Hager website of your
country.
Please refer to the maintenance manual
before starting the installation of the
charging station. This device is to be
installed only by a professional electrician
fitter according to local applicable
installation standards. Conform to TBTS
installation rules.
Usable in all Europe Mand in Switzerland
Correct Disposal of this
product
(Waste Electrical & Electronic
Equipment).
z
(Applicable in the European Union and other
European countries with separate collection systems).
This marking shown on the product or its literature
indicates that it should not be disposed with other
household waste at the end of its working life. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where
they purchased this product, or their local government
oce, for details of where and how they can take this
device for environmentally safe recycling.
Business users should contact their supplier and check
the terms and conditions of the purchase contract. This
product should not be mixed with other commercial
wastes of disposal.
Hager Group - Tehalit GmbH - Seebergstraβe 37 - DE-67716 Heltersberg Hager 09.17 -
