Hager witty park XEV6xx
6LE002981A
6LE002981A
1
zMaintenance

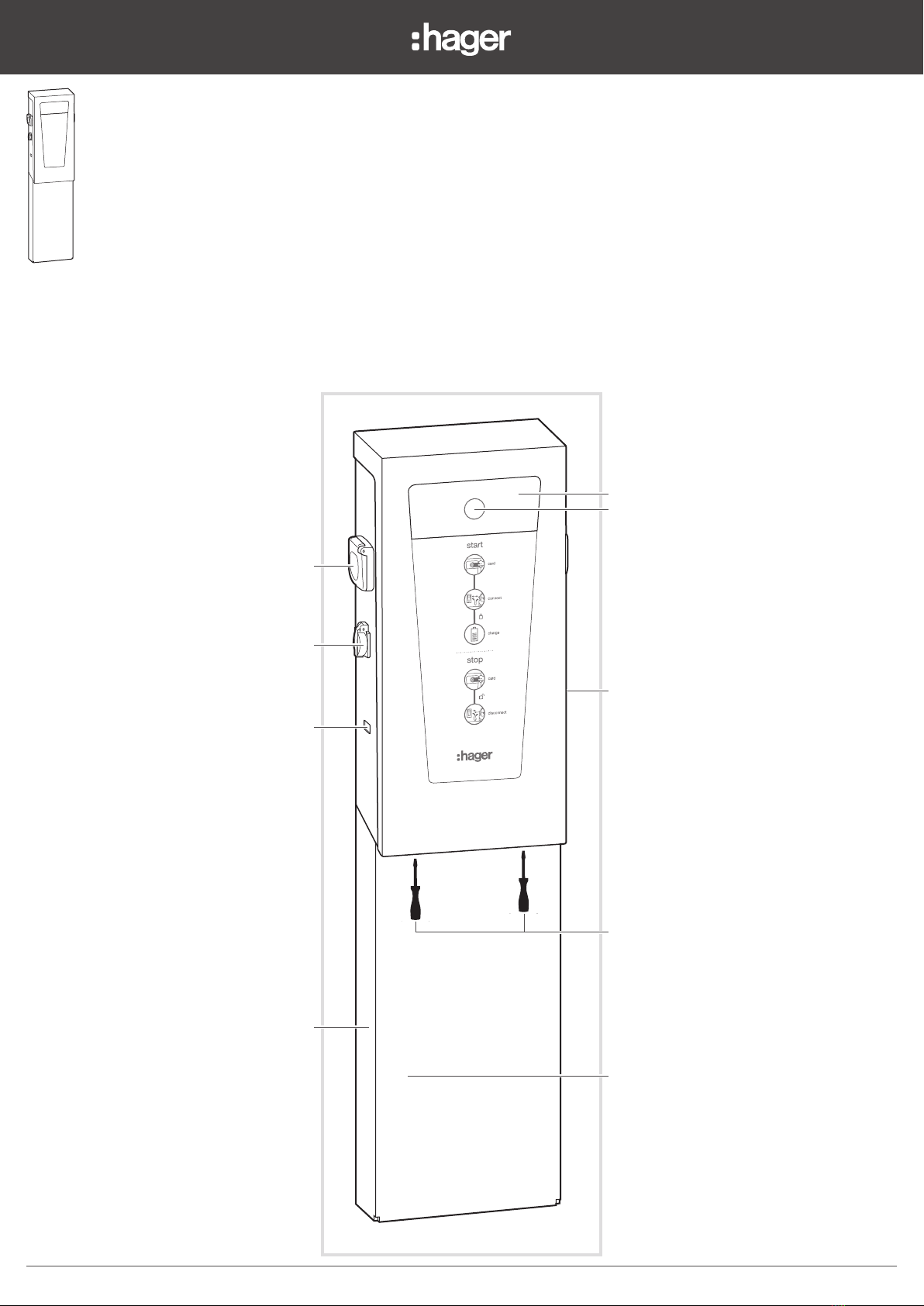

1.1. General description
Strip light
RFID Card Reader
Socket: Mode 3 Type 2S
Socket: Mode 2
Optional: integration of a modem
Energy meter (version-specific)
The outer casing can be removed
by unscrewing two screws
Optional: base
Optional integration of a protective casing

6LE002981A2
1.2. Introduction
The purpose of this document is to provide a service frame to ensure a trouble-free operation for the end user. On this basis, the operator can adapt its
maintenance based on his own experience.
2. Cautions
Warning !
- Read all precautions before using this charging station.
- The charging station can in no case be used for a function other than that provided by the designer. Any modification of the equipment is the sole
responsibility of the customer of the charging station.
- Replace any damaged cable - cables must be in perfect condition.
- The charging station is designed for inside or outside use with electric vehicles for which no ventilation is required.
- This charging station is intended for electric vehicles compatible with the IEC 61 851 only (this information is specified in the vehicle manual).
- Use only cable types recommended in the country of use of the charging station.
- No intervention on the charging cable is tolerated.
Prohibitions !
It is strictly forbidden, to…:
- …access inside the charging station during operation.
- …mount on top of equipment and devices.
- …remove or hide the safety and danger signs.
- …use the charging station when access doors are open, protections are removed / damaged or glass is broken.
- ... use the charging station with safety devices removed or intentionally shorted.
- ... use the charging station despite error messages.
- ... use the charging station under conditions other than those authorised.
- ... use the charging station when any product leaks, smoke appears, or unusual sounds occur.
- …connect anything other than a vehicle running in electric mode 1, 2 or 3.
- ... use an extension cord.
- ... connect a charging cable on the charging station if the red light is on.
- ... introduce an element in the electric vehicle connector, the charging station or charging cable.
- ... park outside the recharge sites dedicated to electric vehicles.
- ... let untrained or unauthorised personnel maintain the charging station.
- ... undertake any change to the charging station.
- …use the charging station while servicing or maintenance has not been performed
- …prevent free access to user interfaces, operating equipment, emergency stop or reserved areas.
Failure guidelines engage the total liability of the operator!
3. Risk management
Risk assessment in the design of the equipment has put forward the following hazards:
• MECHANICAL
• ELECTRIC
These hazards and associated risks have been taken into account in the design of the charging station to integrate maximum health prevention and user
safety.
The operator agrees to train people to maintain the charging station against the risks generated by the charging station. It will also ensure that only trained
personnel are allowed to maintain it.
This training will take into account all prevention and safety instructions specified in the instruction manual, especially the residual risks reported by pictograms
hazardous points.

6LE002981A3

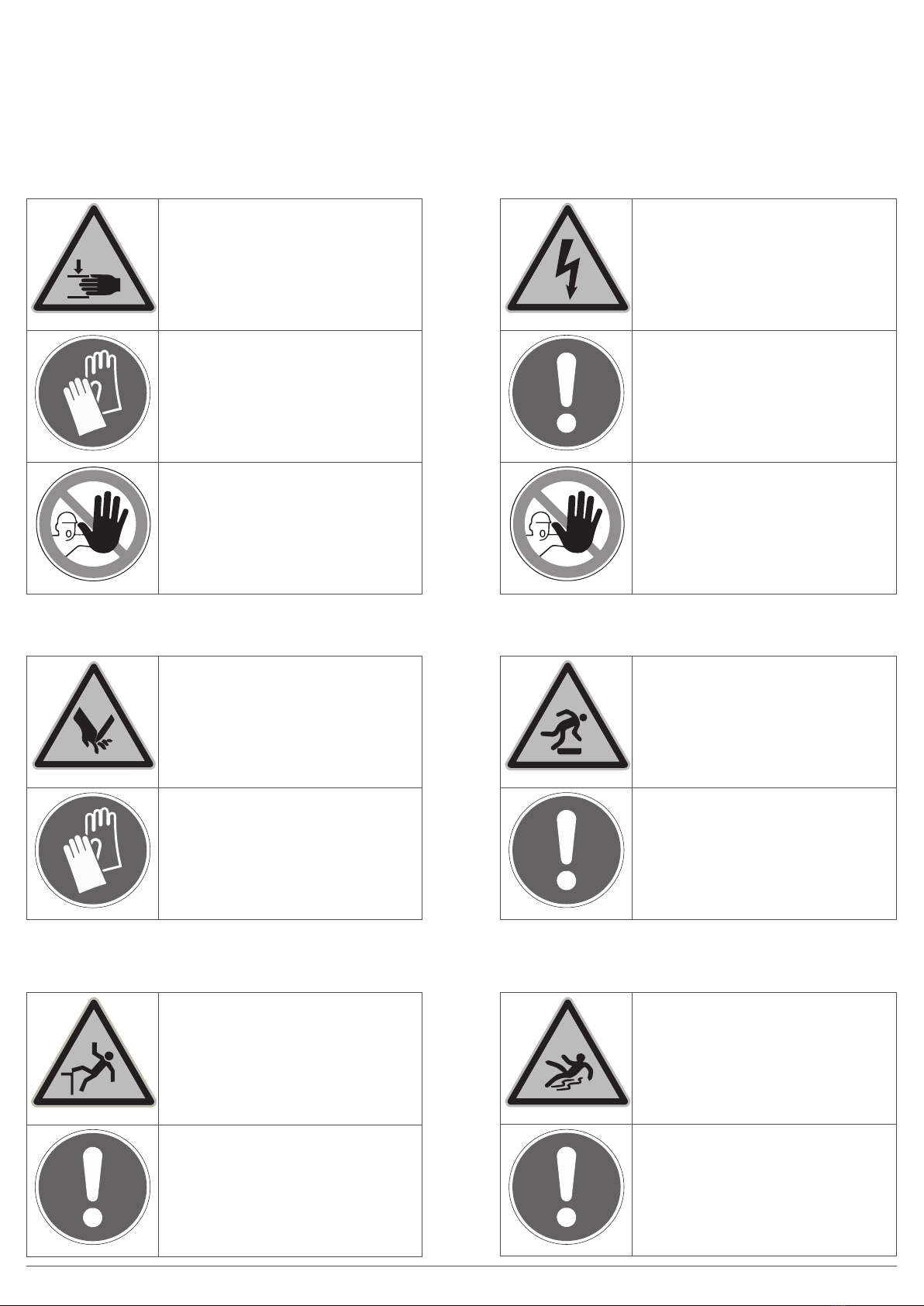

3.1. Hazards & preventive measures
Crushing
Warning !
Risk when handling packages and trays
/ components, during maintenance and
adjustment.
Wear protective gloves appropriate to the
risks.
No entry, when operating the station.
Observe the station before any intervention.
Lacerating
Fall by lowering
Warning !
Risk of injury by edge / cutting tool or blunt
things.
Wear protective gloves appropriate to the
risks.
Warning !
Risk of falling.
It is strictly forbidden to climb on the stations.
Electrical shock
Warning !
The risk associated with electrical installations
is particularly present inside cabinets and at
the connections of the equipment.
Work on electrical installations may only be
carried out by trained and competent sta.
No interventions to live parts. Cut-o the
main power using the circuit-breaker, and
secure the intervention site.
Electrical power will still be upstream of the
circuit-breaker. Check for voltage before
proceeding.
Ensure that nobody is in operation on the
station before reconnecting.
Fall on level ground
Slip accidents
Warning !
Falling Risk.
Ensuring permanent cleanliness and storage
of work areas.
Observe the markings that delineate the work
areas from those of access and movement.
Ensuring storing the cable in its housing when
it is not used to charge an electric vehicle.
Warning !
Falling Risk.
All factors causing risk of falls due to slipping
for example, oils, spilled liquids, slurries,
reserve screw boxes, charging cable on the
floor etc.) should be removed immediately.

6LE002981A4

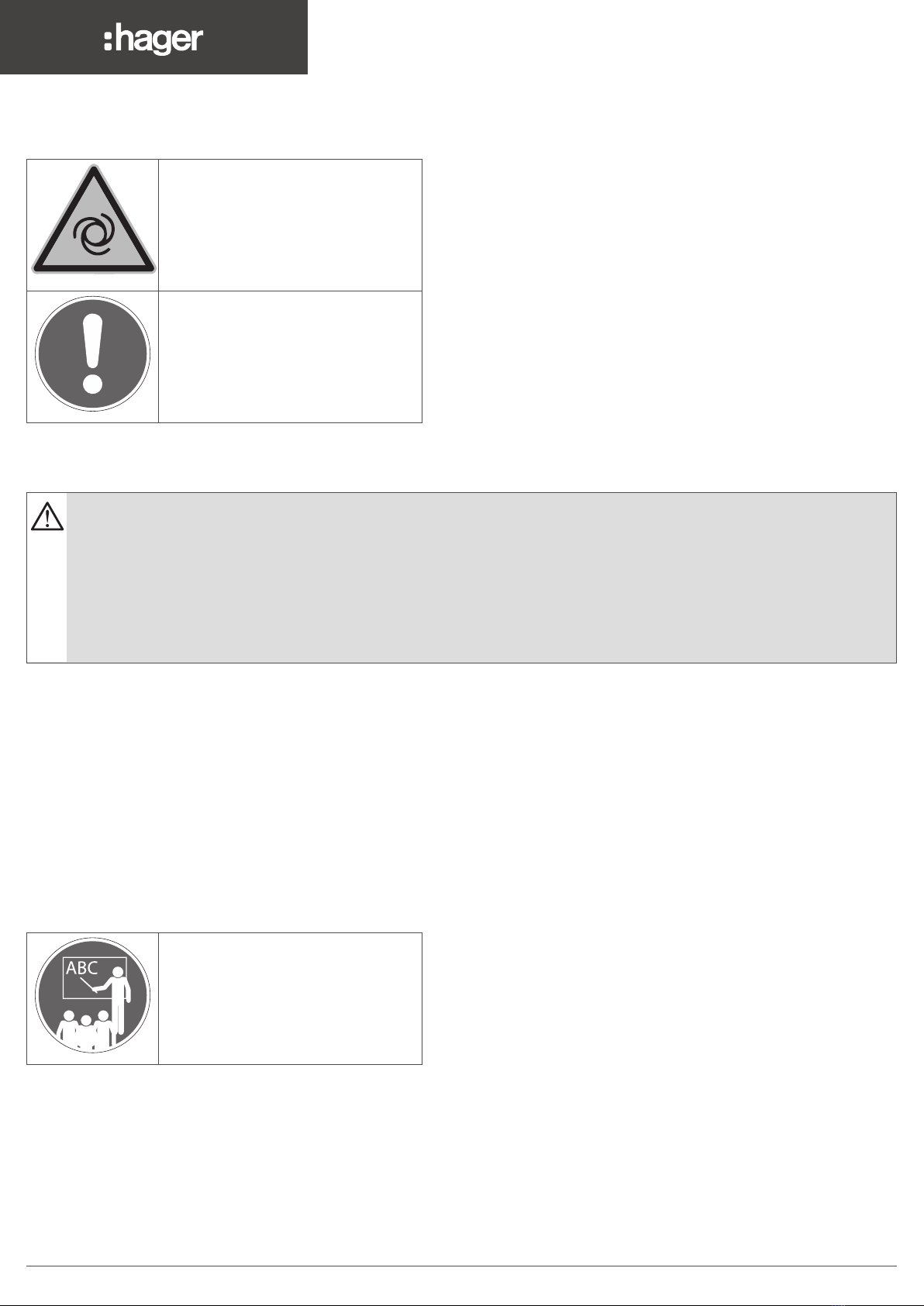

Manual or Automatic cycle start Risk
Warning !
Risk of crushing, shock and electrical shock.
Before any work, wait until the end of the
cycle.
Before starting the station, make sure that
nobody is present in the work / danger zone.
4. Training & Safety Awareness
Warning !
Standard EN 50110-1/-2 is a set of security-related requirements for maneuvers and activities on or near electrical installations:
• The EN 50110-1/-2 set is the technical reference document for the control of operations close to an electrical hazard. It defines the obligations
and responsibilities of owners, school leaders and stakeholders. It describes the clearances necessary securities for each type of intervention
according to voltage ranges.
• All persons who, as part of their work, have access or near electrical circuits, need specific training. This training is designed to inform them
about dangers of electricity and to teach them to protect themselves. Electricians are of course the first concerned, but it also concerns all
those whose work are closely related to electrical installations.
• This training is completed by the delivery of a prequalification. Based on it, the employer may issue an authorisation for sta to work on or near
electrical installations or perform maneuvers on electrical circuits.
The charging station can only completely fulfil its functions when the sta have the skills and knowledge required to settle, lead and assure the maintenance of
all parts of the station.
The operator shall ensure that:
• Interventions requiring specific knowledge (electrical, mechanical, civil engineering) are performed by personnel specially trained and equipped for this
work.
• Any person being entrusted with the handling of the charging station, including managers, are trained in safety instructions.
• Training is ensured by qualified and recognised sta based on the use and maintenance instructions.
• The safety instructions, the presence of signage, visibility and readability are maintained over time.
• The instructions for use and maintenance are made available to all personnel on this equipment.
• Safety rules specified in the operating and maintenance instructions are fully respected.
• All safety equipment is maintained in good condition and functional.
4.1. Skills Recognition
The operator needs to train his/her employees
appropriately and comprehensively.
Thus, an evaluation with recognition of skills
(empowerment, authorisation) is required.

6LE002981A5
5. Maintenance
5.1. General instructions
The inspection and maintenance plan defines clear responsibilities and authorisations for various maintenance works.
Before any intervention, make sure that you are in possession of proper tools in good condition. It is mandatory to have a BR- electrical qualification of any
intervener for the operations described in the "Maintenance" section.
A maintenance file must be filled, dated and signed by the person who made the audit. A copy of the results will be sent to the operation manager that will
ensure compliance and traceability.
5.3. Intervention Area Identification
• Secure the positions of the protective switches and circuit breakers.
• Inform responsible and nearby operators.
• Secure the intervention area.
• Ax the appropriate signage.
• Sichern Sie die Positionen der Schutzschalter und Sicherungsautomaten.
• Informieren Sie Verantwortliche und in der Nähe arbeitende Personen.
• Sichern sie den Arbeitsbereich ab.
• Bringen Sie entsprechende Beschilderung an.
Prior to any work, clean the station.
Only use non-corrosive cleaning agents and lint-free cloths.
Do not use flammable liquids to clean the station.
Before cleaning:
Close or recover all openings through which the cleaning fluid could enter, for reasons of safety and / or operation.
After cleaning:
Completely remove the protections.
Check the tightness of the pipes, tighten the couplings. Immediately remedy any defects found.
Warning !
Cleaning with high-pressure cleaner is strictly prohibited.
5.2. Cleaning

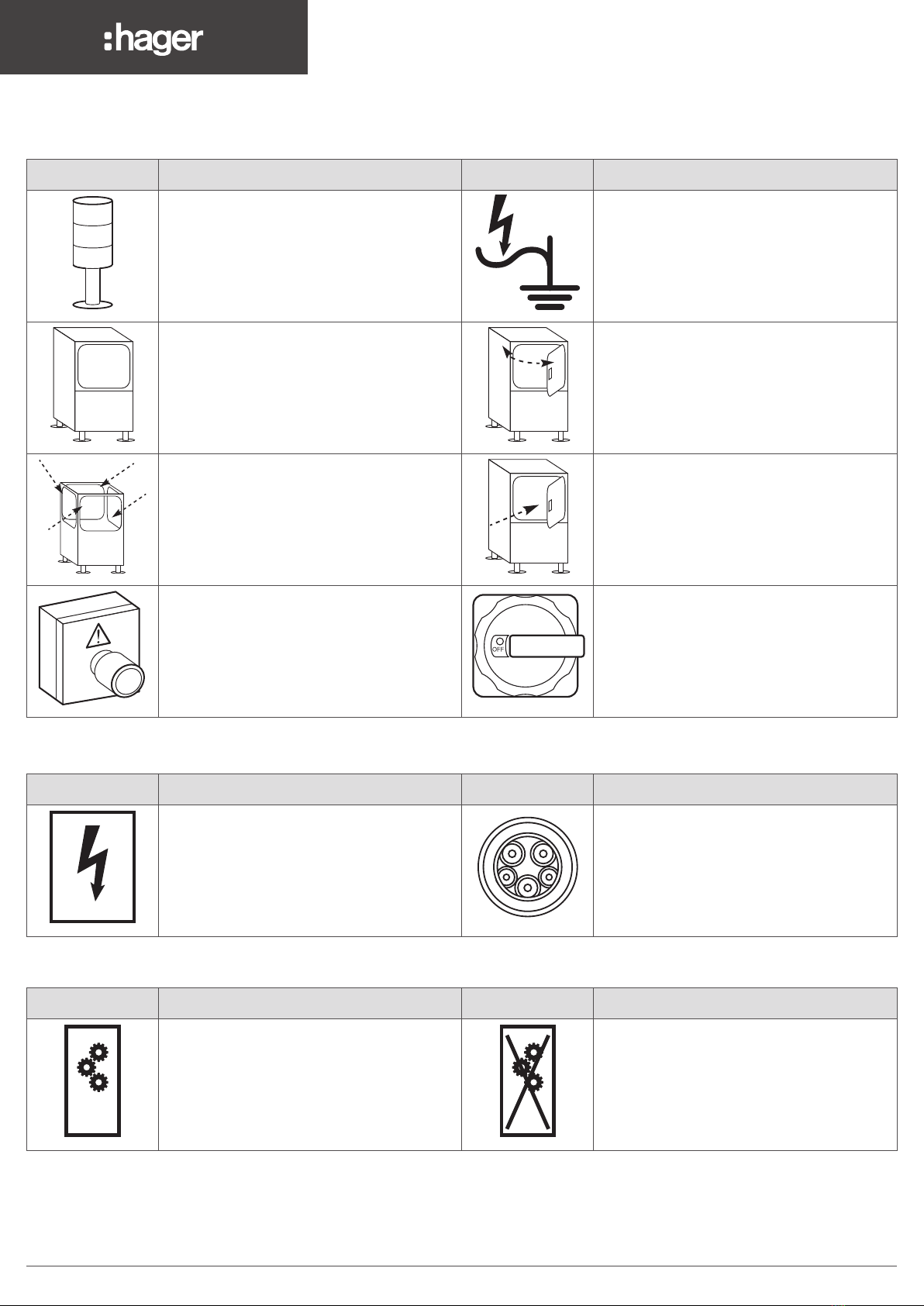

5.4. Legend

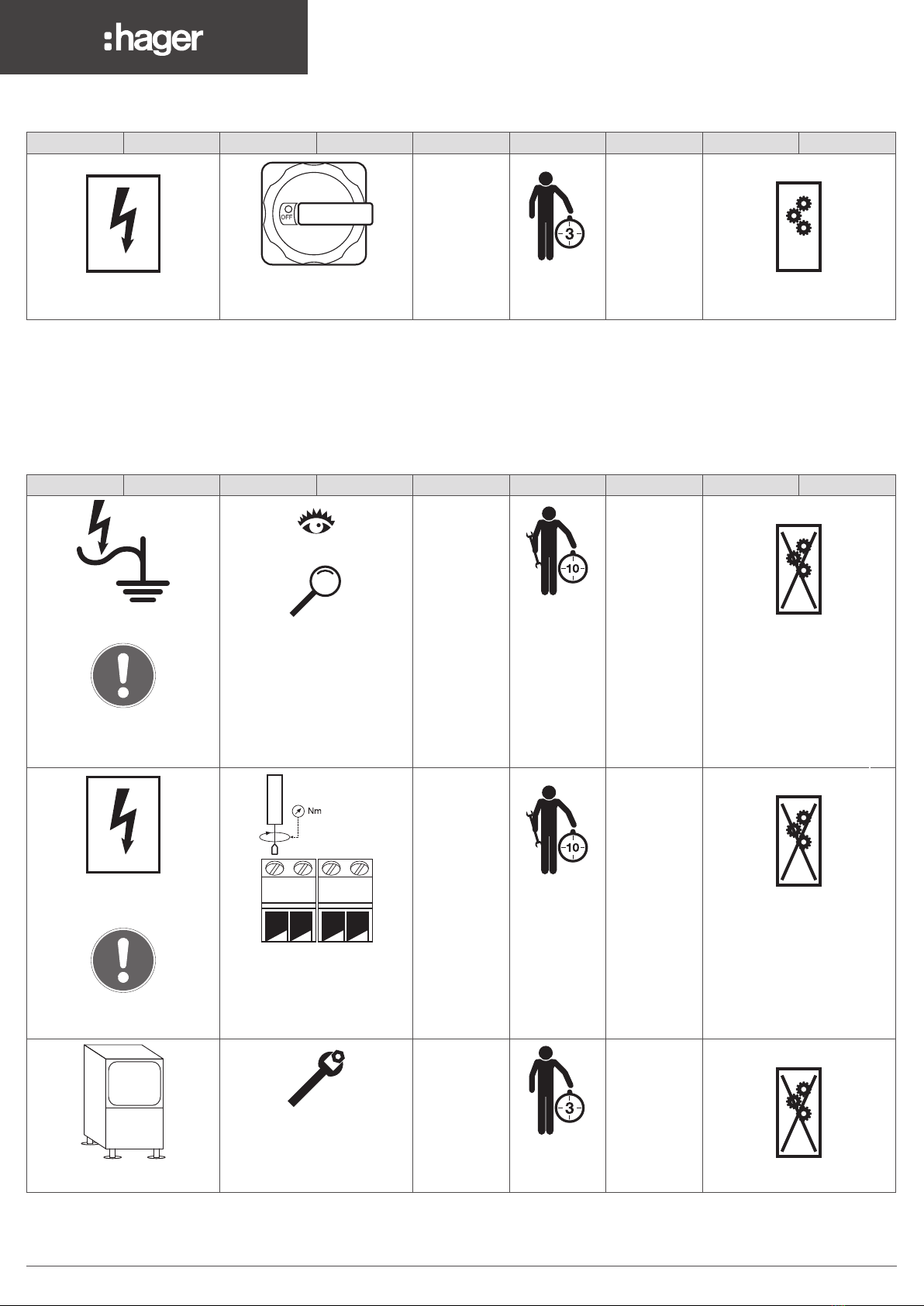

Operation Symbols
SY Descriptions SY Descriptions
Manually clean Visual check
Check operation. Adjust or repair if necessary. Check the tightening torque
Tighten if necessary.
Check / tighten the screw terminal blocks.
