hager XEV6 Series User manual

Witty Light commercial XEV6xx
6LE005084B
6LE005084B
1
zBase-mounting with XEV426
and XEV428
1. Initial precautions
Please refer to the maintenance manual before starting the installation of the charging station. This device is to be installed only by a professional electrician
fitter according to local applicable installation standards. Conform to SELV installation rules.
2. General description
Strip light
RFID Card Reader
Socket: Mode 3 Type 2S
Socket: Mode 2
Optional: integration of a modem
Energy meter (version-specific)
The outer casing can be removed
by unscrewing two screws
Optional: base
Optional integration of a protective casing

6LE005084B2
Floor mounting diagrams for XEV426 + XEV428
Station Installation
Area
1472
1239
1089
202
175
355
175
110
325
650
325
70
350
250
190
250
500
250
Foundation
C20/25, X0 Depth
80 cm
Bedding Layer
5 cm, C8/10
XEV426
In case of a chemical seal, use
threaded rods with diameter of 12 mm.
XEV428
Base-mounting with XEV426 and XEV428
3
1
2

6LE005084B3
➞
➞
➞
➞
The station MUST be mounted
on its base BEFORE attaching
the vector cabinet.
The equipotential bonding
must be established between
the terminal, foot and base.
O
* The screws are
tightened from the
bottom
*
*
**

6LE005084B4
➞
➞
➞
➞
2 Nm
2 Nm
2 Nm
2 Nm
2 Nm
2 Nm

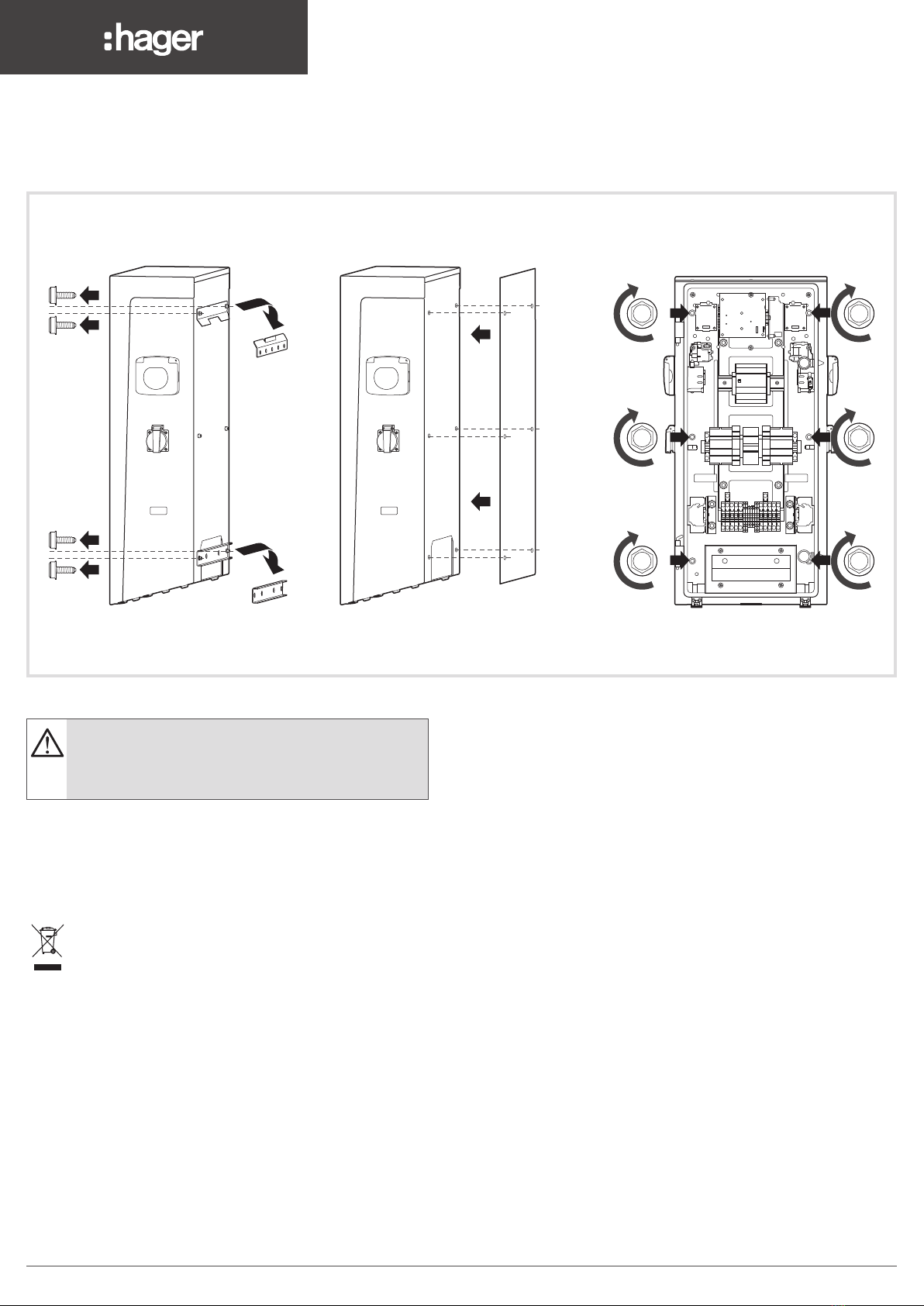

3. Precautions for assembly
All information pertaining to the installation (assembly, electrical
connection and configuration), connection to the servers as well as
the use and maintenance of the terminals are provided in the USB key
provided with the terminals and on the Hager website of your country.
Please refer to the maintenance manual before starting
the installation of the charging station. This device is to be
installed only by a professional electrician fitter according
to local applicable installation standards. Conform to SELV
installation rules.
Usable in all Europe Mand in Switzerland
Correct Disposal of this product
(Waste Electrical & Electronic Equipment). z
(Applicable in the European Union and other European countries with
separate collection systems).
This marking shown on the product or its literature indicates that it should
not be disposed with other household waste at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government oce, for details of where and how they can
take this device for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product should not be mixed with other commercial
wastes of disposal.
Hager Group - Tehalit GmbH - Seebergstraβe 37 - DE-67716 Heltersberg Hager 10.18 -
