OPERATION MANUAL
No.0010541136
F
CASSETTE AIR CONDITIONER
AB182ACMCA
AU182AFMCA
(HBU-18CC03)
AB182ACACA
AU182AFACA
(HBU-18HC03)
AB182ACNAA
AU182AFNAA
(HBU-18CA03/R1)
AB182ACBBA
AU182AFBAA
(HBU-18HC03/R1)
AB184ACMAA
AU184AFMCA
(HBU-18C13)
AB182ACNBA
AU182AFNBA
(HBU-18CC03/R1)

1
CONTENTS
CAUTIONS.................................................................................
THE NAME OF EACH PART AND ITS FUNCTION...............
INTRODUCTION TO SPARE PARTS ..................................
REMOTE CONTROLLER OPERATION ..................................
GUIDE TO OPERATION ......................................................
AIR FLOW DIRECTION ADJUSTMENT PROCEDURE
.......
FOR COMFORTABLE USE .....................................................
CARE AND MAINTENANCE..............................................
WARNING OPERATION ....................................................
2-3
4
5-6
7
8-12
13-15
16
17-19
20-24

2
CAUTIONS
Disposal of the old air conditioner
Before disposing an old air conditioner
that goes out of use, please make sure
it's inoperative and safe. Unplug the
air conditioner in order to avoid the risk
of child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which
require specialized waste disposal.
The valuable materials contained in a
air conditioner can be recycled.
Contact your local waste disposal
center for proper disposal of an old air
conditioner and contact your local
authority or your dealer if you have
any question. Please ensure that the
pipework of your air conditioner does
not get damaged prior to being picked
up by the relevant waste disposal
center, and contribute to
environmental awareness by insisting
on an appropriate, anti-pollution
method of disposal.
Disposal of the packaging of your
new air conditioner
All the packaging materials employed
in the package of your new air
conditioner may be disposed without
any danger to the environment.
Consult your local authorities for the name
and address of the waste materials
collecting centers and waste paper
disposal services nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read
the information given in the User's Guide
carefully. The User's Guide contains very
important observations relating to the
assembly, operation and maintenance
of the air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the
following instruction.
Damaged air conditioners are not to
be put into operation. In case of doubt,
consult your supplier.
All these valuable materials may be taken
to a waste collecting center and used
again after adequate recycling.
The cardboard box may be broken or cut
into smaller pieces and given to a waste
paper disposal service. The wrapping
bag made of polyethylene and the
polyethylene foam pads contain no
fluorochloric hydrocarbon.

3
CAUTIONS
All electrical repairs must be carried
out by qualified electricians.
Inadequate repairs may result in a
major source of danger for the user of
the air conditioner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air
conditioner's tubes with sharp or
pointed items, crushing or twisting any
tubes, or scraping the coatings off the
surfaces. If the refrigerant spurts out
and gets into eyes, it may result in
serious eye injuries.
For the purpose of safety, the air
conditioner must be properly grounded
in accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill.
Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from
the outlet.
Use of the air conditioner is to be
carried out in strict compliance with the
relative instructions set forth in the
User's Guide.
Installation shall be done by
professional people, don't install unit
by yourself.
Do not obstruct or cover the
ventilation grille of the air conditioner.
Do not put fingers or any other things
into the inlet/outlet and swing louver.
Do not allow children to play with the
air conditioner. In no case should
children be allowed to sit on the
outdoor unit.

4
THE NAME OF EACH PART AND ITS FUNCTION
Indoor unit
Unitindicationsection
(Power,Timer,Run,Pump)
Remotecontrollersignalreceiver
The signal is received.
Backupswitch
Swinglouver
Airblowsoutfromhere.
Airflowdirectionisadjusted.
WirelessRemotecontroller
Air inlet grille
Takesintheindoorair.
Air filter
Removesdustordirtoutoftheinletair.
(In the Air inlet grille)
Airinlet
Outdoor unit
Airoutlet
Compressor(insideofunit)

INTRODUCTION TO SPARE PARTS
5
Buttons and display of the remote controller.
Operation
CLOCK
MODE
SWING
Power ON/OFF TEMP
FAN
SLEEP
SET
HOUR
RESET
LOCK
TIMER
Usedforunitstartand
stop.
Used to set auto fan
direction.
Used to select AUTO run,
COOL,DRY,HEAT and
FAN operation.
Usedtoset correct time.Usedtoset correct time.
Used to select
TIMER ON, TIMER OFF,
TIMER ON/OFF.
Used to lock buttons
and LCD display. Usedtoresetthecontroller
back to normal condition.
Used to set clock and
timer setting.
Used to confirm Timer
and Clock settings.
Used to select sleep
mode.
Used to select fan speed:
LO, MID, HI, AUTO
Used to select your
desired temp.
Cautions:
Oncoolingonlyunit,heatingmodeisnotavailable.
Afterreplacingbatteries,pressON/OFF,anddisplay
becomes as follows:
Operation mode: AUTO, Temp: 24 C
Timer mode: No, Fan speed: AUTO
Note:
1.Theaboveinformationisthe explanationof
thedisplayed informationthereforevaries
withthose displayedinactualoperation.
2.Thistypeonlyhastherelevantfunctionand
displayasindicatedinthe abovefigure.
TEMP
SWING FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
AUTO
ON OFF
AMPM AMPM

INTRODUCTION TO SPARE PARTS
6
Hints
LO MID
HI AUTO AUTO
Buttons and display of the remote controller.
Operation
DRY
COOL
AUTO
SWING
FAN SPEED
SLEEP
Clock set
TIMER ON
TIMER OFF
LOCK
CLOCK
TEMP.
SIGNAL SENDING
FAN OPERATION
HEAT
Whenunitisstartedforthefirsttimeandafterreplacingbatteriesinremotecontroller,
clock should be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min. If the
button is kept depressed, time will change quickly.
After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock
starts working.
After replacing with new batteries, remote controller will conduct self-check, displaying
all information on LCD. Then, it will become normal.
TEMP
SWING FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
AUTO
ON OFF
AMPM AMPM

REMOTE CONTROLLER OPERATION
7

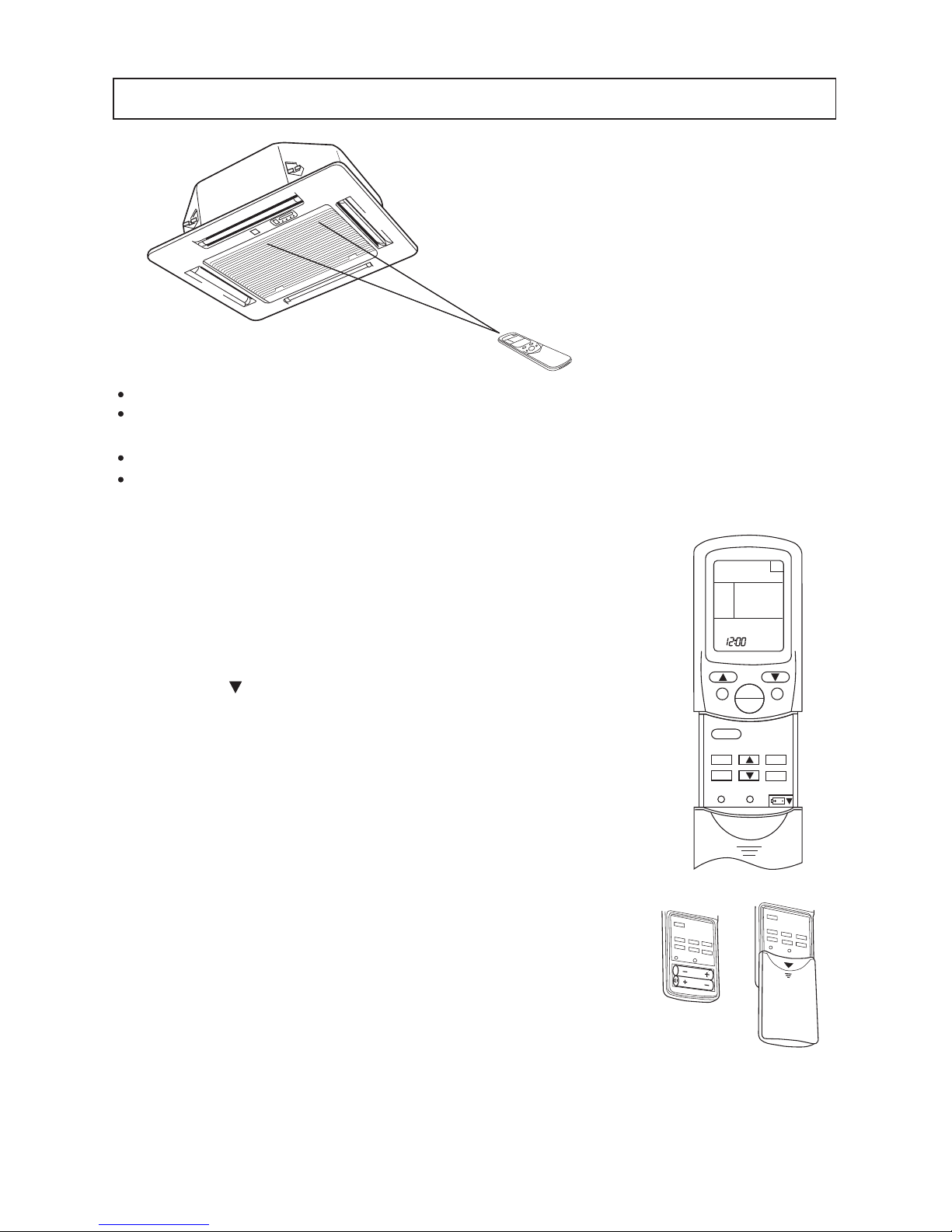

Remote controller's operation
When in use, put the signal transmission head directly to the receiver hole on the indoor unit.
The distance between the signal transmission head and the receiver hole should be within 7m
without any obstacle as well.
Don't throw the controller, prevent it from being damaged.
When electronic-started type fluorescent lamp or change-over type fluorescent lamp or wireless
telephoneisinstalledintheroom,thereceiverisapttobedisturbedinreceivingthesignalsso
the distance to the indoor unit should be shorter.
Loading of the battery
Load the batteries as illustrated.
2R-03batteries,resettingkey(cylinder)
Remove the battery cover :
Slightly press " " and push down the cover.
Load the battery :
Besure that theloadingis in linewith the "+" /"- " polerequest
as illustrated.
Put on the cover again
Confirmation indicator :
Indisorderation, reloadthe batteries orload thenew batteries
after 5mins.
Note :
Use two new same-typed batteries when loading.
Iftheremotecontrollercan'trunnormallyordoesn'tworkatall,
use a sharp pointed item to press the reset key.
Hint : Remove the batteries in case unit won't be in usage for a long period.
If there is any display after taking-out just need to press reset key.
TEMP
SWING FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
AM

GUIDE TO OPERATION
8
FAN operation
Remote controller can memorize settings in each operation mode. To run it next
time just select the operation mode and it will start with the previous setting.
No reselecting is needed.(TIMER ON/OFF needs reselecting)
Hints
(1) Unit start
(2) Select operation mode
(3) Fan
(4) Unit stop
AUTO COOL DRY HEAT FAN
Press ON/OFF button, unit starts.
Previous operation status appears on display.
(Not Timer setting)
Power indicator on indoor unit lights up.
Press MODE button. For each press, operation
mode changes as follows:
Unit will run in selected mode.
stop display at " " FAN.
Press FAN button. For each press, fan speed changes
as follows:
Unit will run at selected fan speed.
Adjustairflowdirectionifnecessary,refertopage13.
Press ON/OFF button.
Only time remains on LCD.
Allindicatorsonindoorunitgoout.
Verticalflapclosed automatically.
LO MID HI
TEMP
SWING FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
AM
2
413

GUIDE TO OPERATION
9

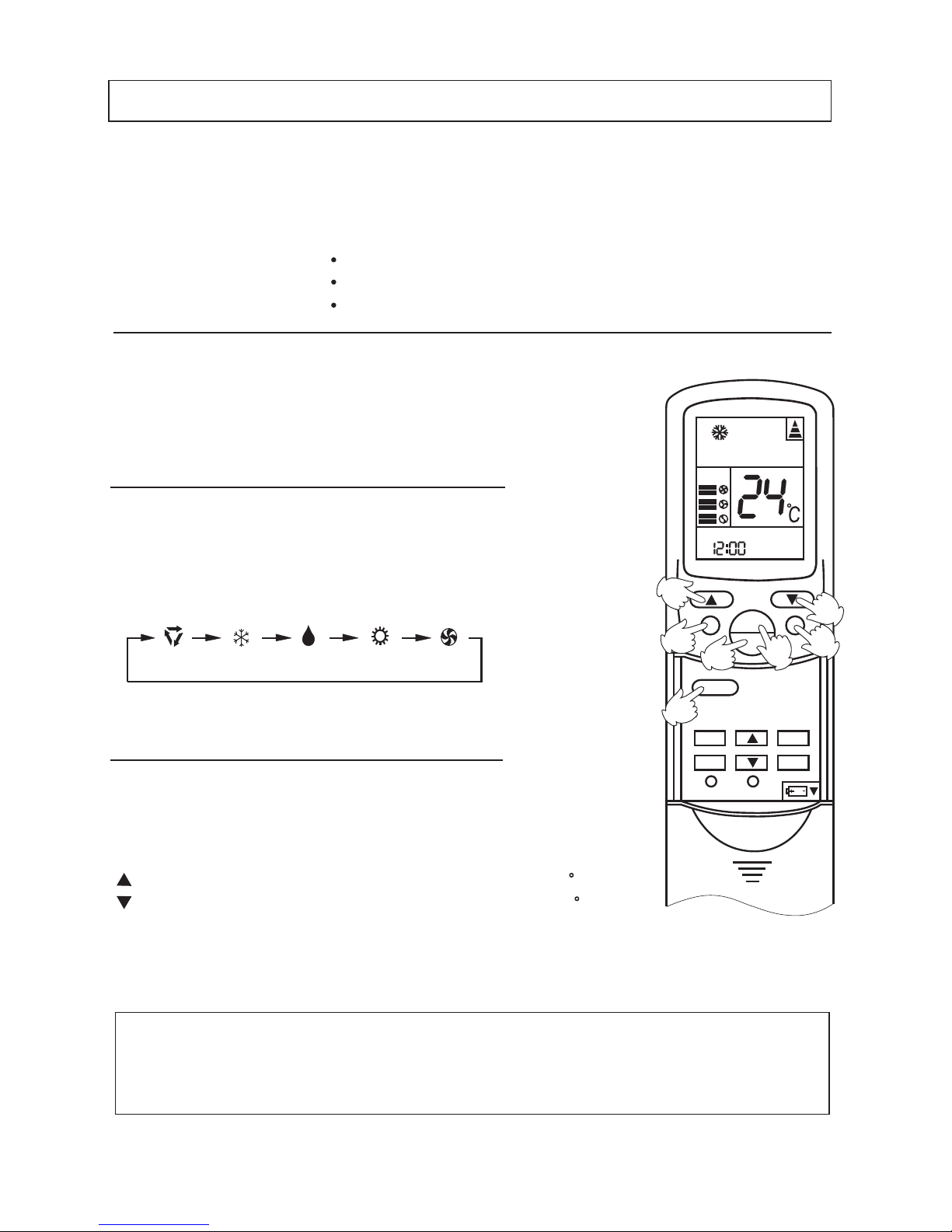

AUTO run, COOL,HEAT and DRY operation
Use COOL in summer.
Use HEAT in winter.
Use DRY in spring,autumn and in damp climate.
(1) Unit start
(2) Select operation mode
(3) Select temp.setting
Press ON/OFF button, unit starts.
Previous operation status appears on display.(Not Timer setting)
Power indicator on indoor unit lights up.
Press MODE button. For each press, operation
mode changes as follows:
Unit will run in operation mode displayed on LCD.
Stop display at your desired mode.
Hints
Unitwillstart running toreachthetemp. setting onLCD.
Remote controller can memorize each operation status. When starting it next time,
just press ON/OFF button and unit will run in previous status.
AUTO COOL DRY HEAT FAN
Press TEMP button
Every time the button is pressed, temp. setting increases 1 C
Every time the button is pressed, temp. setting decreases 1 C
Recommendations
TEMP
SWING FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
AM
14
3
2
3
6
5
