Haier HDY6-1 User manual

Front Load Electric Dryer
Secheuse Electrique a Chargement Frontal
Secadora eléctrica con carga frontal
User Manual
Model # HDY6-1 / HDY6-1C
Guide de l’Utilisateur
Modéle # HDY6-1 / HDY6-1C
Manual del Usuario
Para Modelo de # HDY6-1 / HDY6-1C
Quality ßInnovation ßStyle

IMPORTANT SAFETY
INSTRUCTIONS
Warning – To reduce the risk of fire, electric shock, or injury to
persons when using your appliance, follow basic precautions,
including the following:
1. Read all instructions before using the appliance.
2. Do not dry articles that have been previously cleaned in, washed in,
soaked in, or spotted with gasoline, dry-cleaning solvents, or other
flammable or explosive substances, as they give off vapors that
could ignite or explode.
3. Do not allow children to play on or in the appliance. Close
supervision of children is necessary when the appliance is used
near children.
4. Before the appliance is removed from service or discarded, remove
the door to the drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to water
and/or to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any
servicing unless specifically recommended in the user-maintenance
instructions or in published user-repair instructions that you
understand and have skills to carry out.
9. Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or product.
10. Do not use heat to dry articles containing foam rubber or similarly
textured rubber-like materials.
11. Clean lint screen before or after each load.
12. Keep area around the exhaust opening and adjacent surrounding
areas free from the accumulation of lint, dust and dirt.
13. The interior of the appliance and the exhaust duct should be cleaned
periodically by qualified service personnel.
14. Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
21
EnglishEnglish

15. If material has been used with any flammable liquids or solids it
should not be used in the dryer until all traces of the flammable
liquids and its fumes have been removed.
16. This dryer must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions
in the installation section.
17. Proper grounding must be ensured to reduce the risk of electric shock
and fire. Check with a qualified electrician or service personnel if you
are in doubt as to whether the dryer is properly grounded.
18. Use the dryer only for its intended purpose, drying clothes.
19. Always disconnect dryer from electrical supply before attempting any
service. Disconnect power cord by grasping the plug, not the cord.
20. Replace worn power cords and/or loose plugs.
21. To reduce the risk of electric shock or fire, do not use extension cords
or adapters to connect dryer to electrical power source.
SAVE THESE INSTRUCTIONS
For Future Use
21
EnglishEnglish

3
As dry cleaning solvents, gasoline, vegetable and cooking oils are highly
hazardous materials, items soaked in or spotted with such should not
be used in the dryer. Items may still contain a substantial amount of the
hazardous material after being washed. When such items are exposed
to heat they could ignite. As clothes are stacked and piled up in the dryer
the heat cannot escape. Due to this, items become hot enough to possibly
ignite. Washing in hot water with extra detergent would reduce but not
eliminate the risk of fire.
WARNING
Thank you for using our Haier
product. This easy-to-use manual
will guide you in getting the best
use of your dryer.
Remember to record the model and
serial number. They are on a label
in back of the dryer.
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
You will need it to obtain warranty service.
DANGER
Risk of child entrapment. Before you throw away your old
dryer, take off the door so that children may
not easily get trapped inside.
EnglishEnglish

4
TABLE OF CONTENTS
EnglishEnglish
PAGE
SAFETY INSTRUCTIONS ..................................................................1
PARTS AND FEATURES ....................................................................5
INSTALLATION INSTRUCTIONS.......................................................6
Unpacking Your Dryer..........................................................................6
Tools and Materials Required................................................................6
Door Reversal......................................................................................8
Location of Your Dryer..........................................................................9
Installation in Mobile Home.................................................................10
EXHAUST SYSTEM CONNECTION ...........................................11-16
Electrical Requirement.........................................................................11
3 Wire Cord Connection....................................................................15
4 Wire Cord Connection............................................................... 16-17
ELECTRICAL REQUIREMENT FOR CANADA .............................18-19
GROUNDING INSTRUCTIONS...................................................... 19
PREPARATION .............................................................................. 20
Drying Tips........................................................................................21
OPERATING INSTRUCTIONS ........................................................ 22
Control Panel ............................................................................... 22-23
Programming Guide...........................................................................24
OPERATIONAL STEPS ................................................................... 25
NORMAL OPERATING SOUNDS .................................................. 26
ENERGY SAVINGS TIPS................................................................ 26
CLEANING AND MAINTENANCE ................................................. 27
TROUBLE SHOOTING...............................................................28-29
SPECIFICATIONS ........................................................................... 29
LIMITED WARRANTY .................................................................... 30

5

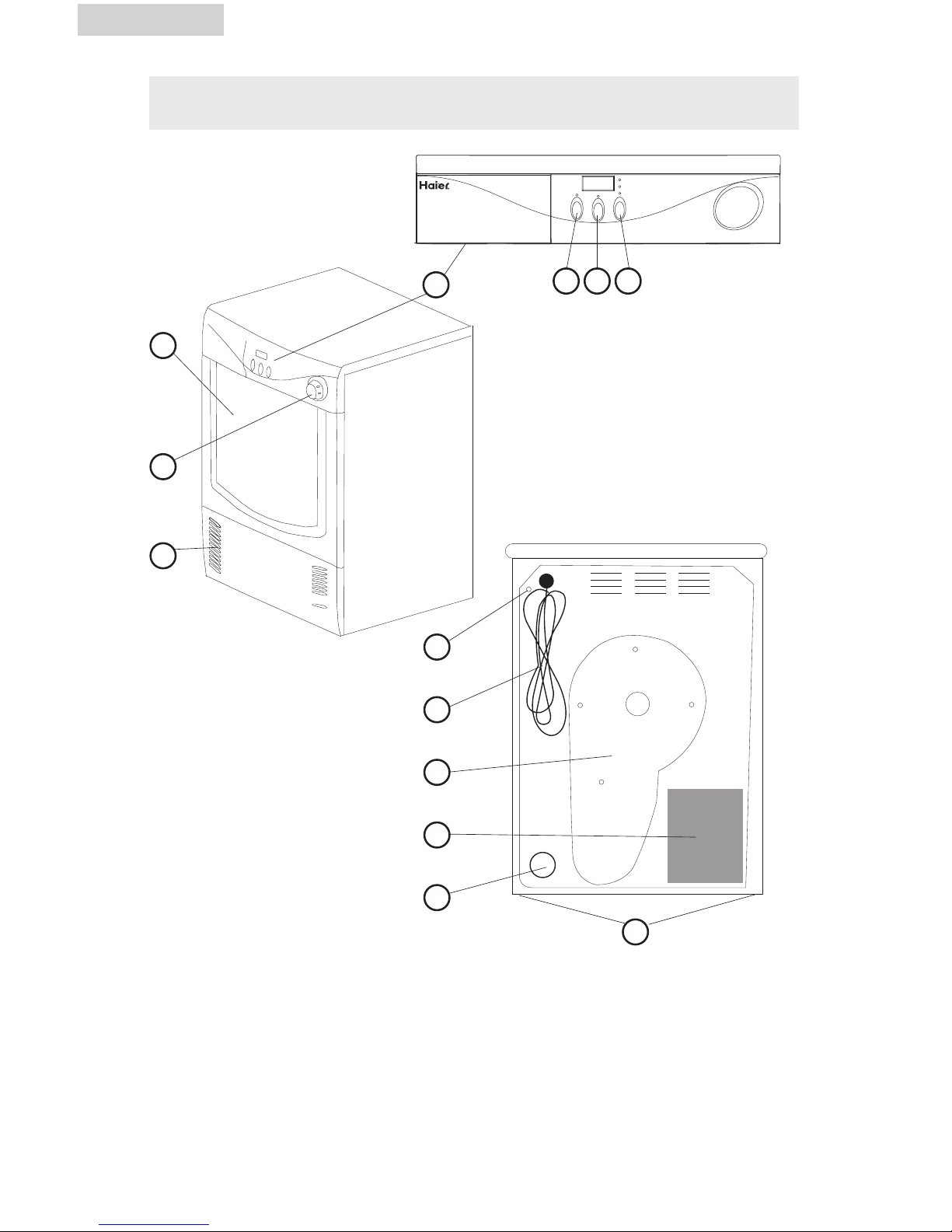

PARTS AND FEATURES
1. Control Panel
a. Wrinkle Saver
b. Low Temp
c. Start / Pause
2. Door
3. Program Selector
4. Front Service Cover
5. Grounding Terminal Connection
6. Power Supply Cable
(Canadian version only)
7. Back Plate
8. Back Cover Board
9. Vent Connection
10. Leveling Legs (not shown)
1
2
3
4
5
6
7
8
9
10
Drying
Air Dry / Cool Down
Low Temp
Wrinkle Saver
HDY6-1
Start / Pause Program
a b c
EnglishEnglish

6
• Select a suitable location for the dryer on a hard, even surface away from
direct sunlight or heat source, e.g. radiators, baseboard heaters, cooking
appliances, etc. Any floor unevenness should be corrected with the leveling
legs located on the bottom of the dryer.
Unpacking Your Dryer
1. Remove all packaging material. This includes the foam base and all adhesive
tape holding the dryer accessories inside and outside.
2. Inspect and remove any remains of packaging, tape or printed materials
before using the dryer.
Tools and Materials Required
• Phillips head and flathead screwdrivers
• Channel-lock adjustable pliers
• 1/2 inch open end wrench
• Carpenter’s level
• Measuring tape (12ft. min.)
• Duct tape
• Rigid or flexible metal 4 inch (10.2 cm) duct
• Vent hood
• To ensure that the dryer is operating efficiently, attention must be paid to the
following:
• The dryer must be horizontally installed. Its bottom is equipped
with adjustable legs. Adjust these 4 legs to level before operation.
• Check whether there is any damage to the dryer during transportation. Any
damaged dryer must not be installed.
• The dryer must be kept away from flammable or detonable substances.
• The surrounding environment must be dry and ventilated.
• Do not install the dryer on any carpet.
• To allow the dryer to perform better, the ambient temperature should not be
lower than 50˚C or higher than 95˚F.
INSTALLATION INSTRUCTIONS
EnglishEnglish

7
EnglishEnglish
Packaging Accessories
Checklist of the accessories and materials provided with the machine:

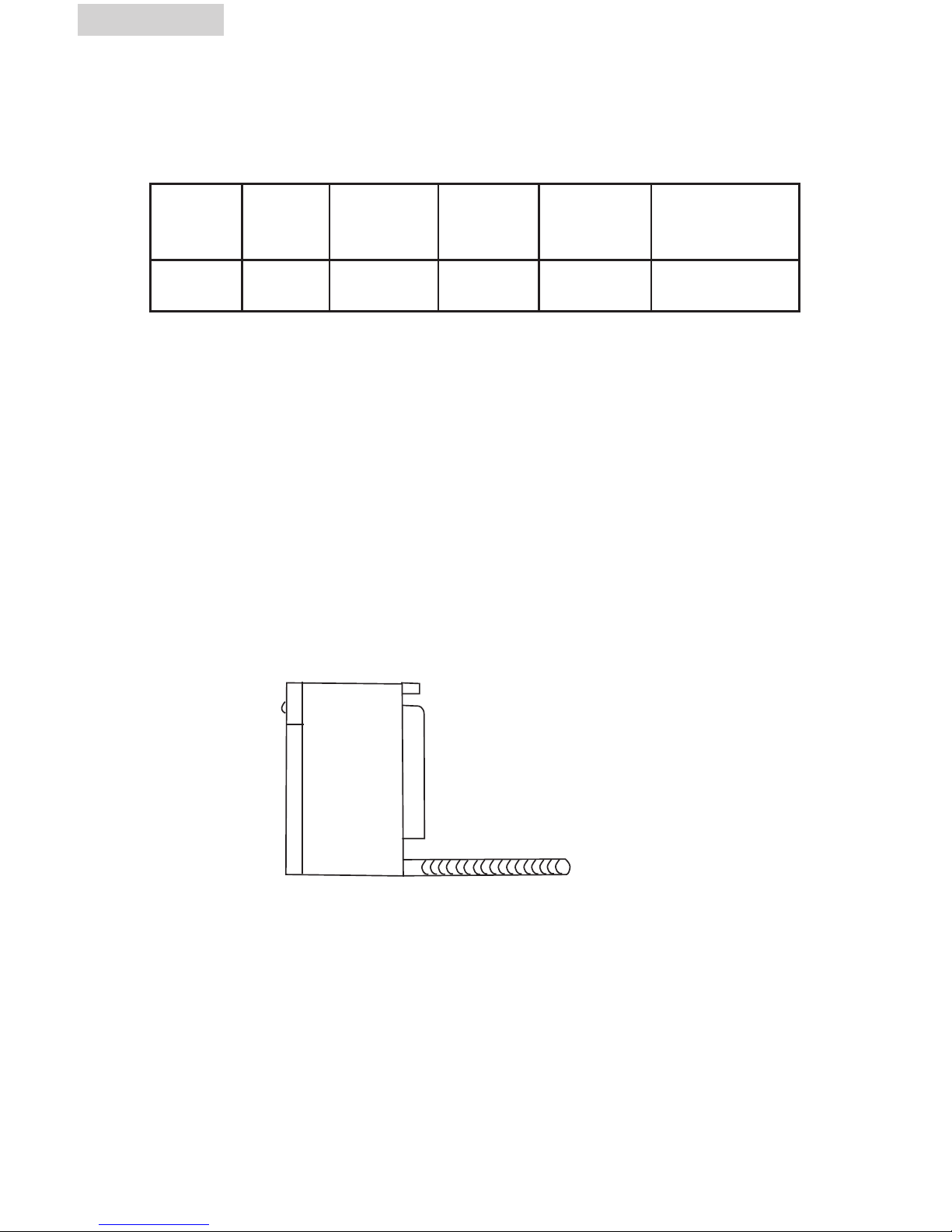

Connect Exhaust Pipe
It is recommended to extract the air outdoors if there is a venting hole where the
dryer is installed. Please use the attached extension hose, connecting sleeve and
hose clip. Before connecting the machine to the power supply, please connect
the small-diameter end of the connecting sleeve to the air exit, and large diam-
eter end of the sleeve to the air exit, and large diameter end of the sleeve to the
extension hose, and tighten it up with a flat screwdriver. Stretch the extension
hose to join it with the venting hole (if no venting hole is available, just stretch the
extension hose out through the window). Keep the hose level and straight.
Put into the venting hole
(or out through the window)
Name Owner's
Manual Certificate of
Conformity
Hose
Clip Extension Hose Connecting Sleeve
Quantity 1 1 1 1 1

8
EnglishEnglish

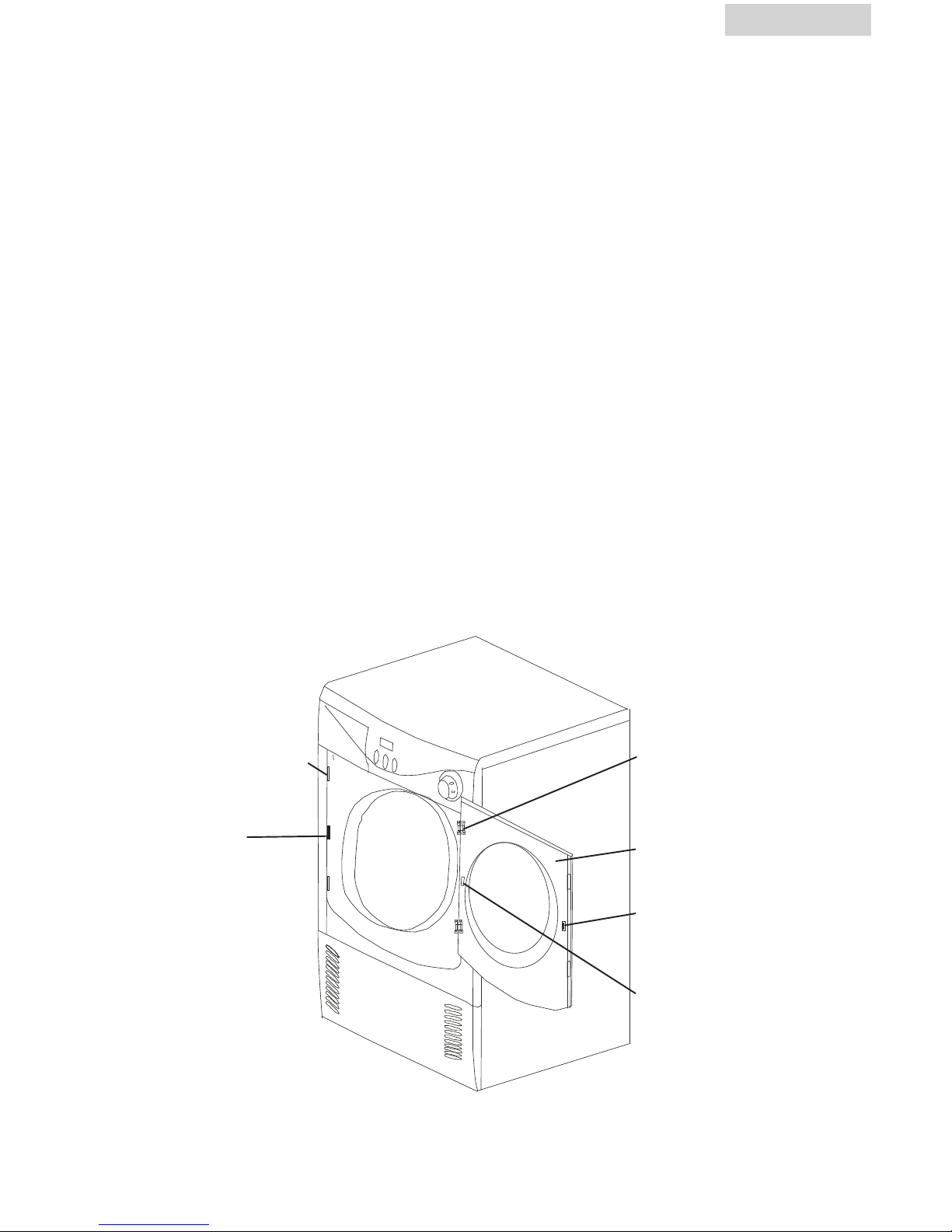

Door Reversal
• To reverse the door opening of your dryer, follow the below procedures.
a. Using a Phillips head screwdriver, remove the 4 screws that fix the door
hinge to the cabinet. This will un-attach the door from the cabinet.
b. Now unscrew the 4 screws that attach the door hinge to the door.
c. Remove the 2 hinge covers from the opposite side of the door and in its
place attach the just-removed door hinges.
d. Replace the hinge covers to the open slots of the original door hinge
position on the door.
e. Unscrew the 2 screws that attach the door latch to the door, and fix it on
the opposite side after removing the door latch cover.
f. Replace the door latch cover on the door in the place of the just-removed
latch.
g. Using a putty knife, remove the 4 hinge screw covers.
h. Install these on the opposite side.
i. Install the door lock cover on the cabinet on the opposite side.
j. Screw the 4 screws attaching the 2 door hinges to the cabinet.
Door Hinge Cover
Door Lock
Door Hinge
Door
Door Latch
Door Latch Cover

9
Do Not Install Your Dryer:
• In an area exposed to dripping water or outside weather conditions.
• In an area where it will come in contact with curtains, drapes, or anything that
will obstruct the flow of combustion and ventilation air.
• On carpet. Floor must be solid with a maximum slope of 1inch (2.54 cm).
Installation in Recess or Closet:
• A dryer installed in a bedroom, bathroom, recess or closet must be
exhausted outdoors.
• Your dryer needs space around it for proper ventilation.
• A minimum of 120 square inches (774.2 square cm) of opening,
equally divided at the top and bottom of the door, is required. Air
openings are required to be unobstructed when a door is installed.
A louvered door with equivalent air openings for the full length of the door
is acceptable.
Location of Your Dryer
36 3/4”
(93.3 cm.)
DOOR OPEN 90˚
24 3/8”
(61.9 cm.)
33 1/2”
(86 cm)
23 7/16”
(59.4 cm)
ROUGH-IN DIMENSIONS
EnglishEnglish

10
EnglishEnglish
• Dryer must be exhausted outside (outdoors, not beneath the mobile home) using
metal ducting that will not support combustion. Metal ducting must be 4 inches
(10.16 cm) in diameter with no obstructions. Rigid metal duct is preferred.
• If dryer is exhausted through the floor and area beneath the mobile home is
enclosed, the exhaust system must terminate outside the enclosure with the
termination securely fastened to the mobile home structure.
• Refer to previous pages for other important venting requirements.
• Installation must conform to current Manufactured Home Construction & Safety
Standard (which is a Federal Regulation Title 24 CFR-Part 32-80) or when such
standard is not applicable, with American National Standard for
Mobile Homes.
Warning: The dryer is designed under ANSI Z21.5.1 standard
for home use only.
Installation in Mobile Home
DO
Correct
DON’T
Incorrect
DO
Correct
DON’T
Incorrect

11
The following are specific requirements for proper and safe
operation of your dryer. Failure to follow these instructions can create
excessive drying times and fire hazards.
WARNING
1. Do not use plastic flexible duct to exhaust the dryer. Excessive lint can build up
inside exhaust system and create a fire hazard and restrict air flow. Restricted
air flow will increase dryer times. If your present system is made up of plastic
duct or metal foil duct, replace it with a rigid or flexible metal duct. Ensure
present duct is free of any lint prior to installing dryer duct.
2. If the dryer is not exhausted outdoors, some fine lint will be expelled into the
laundry area. An accumulation of lint in any area of the home can create a
health and fire hazard. To reduce risk of fire, dryer MUST BE
EXHAUSTED OUTDOORS.
3. Do not allow combustible material (for example: clothing, draperies/curtains,
paper) to come in contact with exhaust system. The dryer must not be
exhausted into a chimney, a wall, a ceiling, or any concealed space of a
building which can accumulate lint, resulting in a fire hazard.
4. Exceeding the length of duct pipe or number of elbows allowed in the
“Maximum Length” charts can cause an accumulation of lint in the exhaust
system. Plugging the system could create a fire hazard, as well as increase
drying times.
5. Do not screen the exhaust ends of the vent system, or use any screws or rivets
to assemble the exhaust system. Lint can become caught in the screen, on the
screws or rivets, clogging the duct work and creating a fire hazard as well
as increasing drying times. Use an approved vent hood to terminate the duct
outdoors, and seal all joints with duct tape. All male duct pipe fittings must be
installed downstream with the flow of air.
Explosion hazard:
Do not install the dryer where gasoline or other flammables are kept or
stored. If the dryer is installed in a garage, it must be minimum of 18
inches (45.7 cm) above the floor. Failure to do so can result in death,
explosion, fire or burns.
Requirements and Instructions
EXHAUST SYSTEM CONNECTIONS
EnglishEnglish

12
EnglishEnglish
Materials
INSTALL MALE FITTINGS IN THE CORRECT DIRECTION
Use only 4 inch (10.2 cm) diameter (minimum) rigid or flexible metal duct and
approved vent hood that has a swing-out damper hat open when the dryer is
in operation. When the dryer stops, the dampers automatically close to prevent
drafts and the entrance of insects and rodents. To avoid restricting the outlet,
maintain a minimum of 12 inches (30.5 cm) clearance between the vent hood
and the ground or any other obstruction. The vent flap should be able to
move freely.
MAXIMUM EXHAUST LENGTH
""
""

13
After installation is completed, the following method must be used to
determine if the exhaust system is acceptable:
1. Connect an inclined or digital manometer between the dryer and the point the
exhaust connects to the dryer.
2. Set the dryer timer and temperature to air fluff (cool down) and start the dryer.
3. Read the measurement on the manometer.
4. The system back pressure must not be higher than 0.75 inches of water
column. If the system back pressure is less than 0.75 inches of water column,
the system is acceptable. If the manometer reading is higher than 0.75 inches
of water column, the system is too restrictive and the installation
is unacceptable.
Although vertical orientation of the exhaust system is acceptable, certain
extenuating circumstances could affect the performance of the dryer:
1. Only the rigid metal duct work should be used.
2. Venting vertically through a roof may expose the exhaust system to down
drafts causing an increase in vent restriction.
3. Running the exhaust system through an area not insulated may cause
condensation and faster accumulation of lint.
4. Compression or crimping of the exhaust system will cause an increase in
vent restriction.
The exhaust system should be inspected and cleaned a minimum of every 18
months with normal usage. The more the dryer is used, the more often you should
check the exhaust system and vent hood for proper operation.
EnglishEnglish
The following are specific requirements for proper and safe
electrical installation of your dryer. Failure to follow these instructions
can create electrical shock and/or fire hazard.
WARNING
Requirements and Instructions
ELECTRICAL CONNECTIONS

14
EnglishEnglish
1. This appliance must be properly grounded. Electrical shock can result if the
dryer is not properly grounded. Follow the instructions in this manual for
proper grounding.
2. Do not use an extension cored with this dryer. Some extension cords are not
designed to withstand the amounts of electrical current this dryer utilizes and
can melt, creating electric shock and/or fire hazard. Locate the dryer within
reach of the receptacle for the length power cord to be purchased, allowing
some slack in the cord. Refer to the electrical requirements in this manual for
the power cord to be purchased.
3. A U.L. approved strain relief must be installed onto power cord. If the strain
relief is not attached, the cord can be pulled out of the dryer and can be cut
by any movement of the cord, resulting in electrical shock.
4. Do not use an aluminum wire receptacle with copper wired power cord and
plug (or vice versa). A chemical reaction occurs between copper and
aluminum and can cause electrical shorts. The proper wiring and receptacle is
a copper wired power cord with a copper wired receptacle.
Note: Dryers operating on 208 Volt power supply will have longer drying times
than operating on 240 Volt power supply.
Danger: Improper connection of the equipment-grounding conductor can result in
a risk of electrical shock. Check with a licensed electrician if you are
in doubt as to whether the appliance is properly grounded. The dryer
must be connected to a grounded metal, permanent wiring
system, or an equipment-grounding conductor must be run with the
circuit conductors and connected to the equipment-grounding terminal
or lead on the appliance.
Power Supply:
3 or 4 wire, 240 Volt, 30 Amp, 60Hz, 1 Phase
Power Supply Cord Kit: (not supplied when sold in the United States)
The dryer MUST employ a 3-conductor power supply cord NEMA 10-30 type
SRDT rated at 240 Volt AC minimum, 30 Amp., with 3 open end spade lug
connectors with upturned ends or closed loop connectors and marked for use
with clothes dryers. If being installed in a manufactured (mobile) home, the dryer
MUST employ a 4-conductor power supply cord NEMA 14-30 type SRDT or ST
(as required) rated at 240 Volt AC minimum, 30 Amp., with 4 open end spade
lug connectors with upturned ends or closed loop connectors and marked for use
with clothes dryers. See Electrical Connections for A 4-Wire System.

15

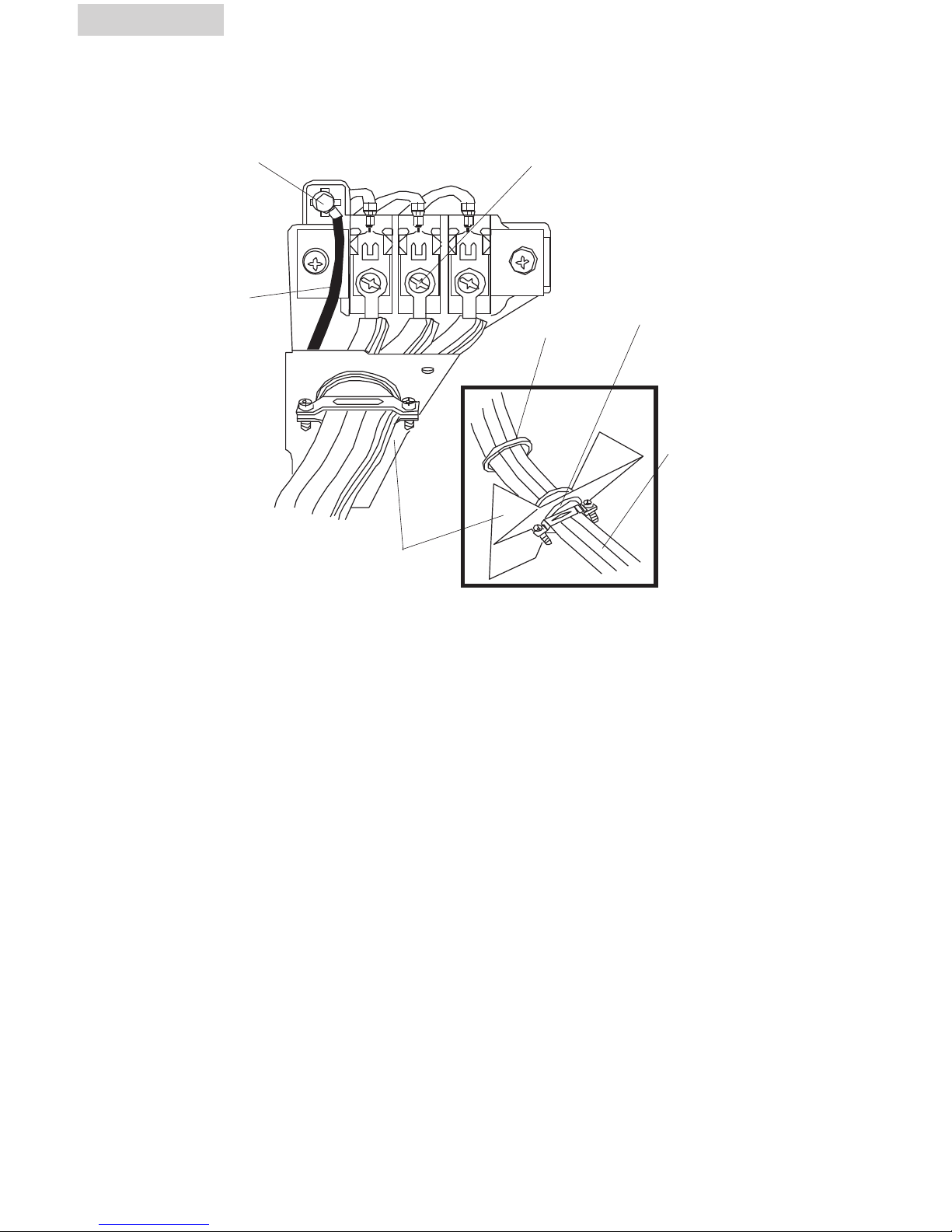

3-Wire Cord Connections
1. Remove the screws securing the terminal block access cover and the strain
relief mounting bracket located on the back of the dryer upper corner.
2. Install a U.L. approved strain relief into the power cord entry hole of the
mounting bracket. Finger tighten the nut only at this time.
3. Thread a U.L. Approved 30 Amp. power cord, NEMA 10-30 Type SRDT,
through the strain relief.
4. Attach the power cord neutral (center wire) conductor to the silver-colored
center terminal on the terminal block. Tighten the screw securely.
5. Attach the remaining two power cord outer conductors to the outer brass
colored terminals on the terminal block. Tighten both screws securely.
WARNING: Do not make a sharp bend or crimp wiring/conductor
at connections.
6. Reattach the strain relief mounting bracket to the back of the dryer with two
screws. Tighten screws securely.
7. Tighten the screws securing the cord restraint firmly against the power cord.
8. Tighten the strain relief nut securely so that the strain relief does not turn.
9. Reinstall the terminal block cover.
green ground screw
green neutral
ground wire
strain relief
mounting bracket
silver terminal
nut tighten nut
to these threads
power cord
EnglishEnglish

16
EnglishEnglish
4-Wire Cord Connections
1. Remove the screws securing the terminal block access cover and the strain
relief mounting bracket located on the back of the dryer upper corner.
2. Install a U.L. approved strain relief into the power cord entry hole of the
mounting bracket. Finger tighten the nut only at this time.
3. Remove the green neutral ground wire fom the green ground scrcew located
above the terminal block.
green ground screw
typical conductor
receptacle
typical 4
conductor cord
black 240V
white neutral
red 240V
green ground
30 AMP NEMA 14-30 TYPE SRDT OR ST
green power cord
ground wire silver terminal
terminal block
black
white
green neutral
ground wire
red
power cord strain relief
mounting bracket
nut
tighten nut to
these threads

17
4. Thread a U.L. approved 30 Amp power cord, NEMA 14-30 type ST or SRDT
through the strain relief.
5. Attached the green power cord ground wire to the cabinet with green
ground screw.
6. Attached the white (neutral) power cord conductor from the power cord and
the green ground wire from the dryer harness to the silver-colored center
terminal on the terminal block. Tighten the screw securely.
7. Attached the red and black power cord conductors to the outer brass-colored
terminals on the terminal block. WARNING: Do not make a sharp bend or
crimp wiring/conductor at connections.
8. Tighten the screws securing the cord restraint firmly against the power cord.
9. Tighten the strain relief nut securely so that the strain relief does not turn.
10. Reinstall the terminal block cover.
Caution: Label all wires prior to disconnection, when servicing
controls. Wiring errors can cause improper operations
and be dangerous. Check unit for proper operation
after servicing.
Warning: Discard or destroy the carton anbd plastic bags after the
dryer is unpacked. Children should not be allowed to use
them to play with. Cartons covered with rugs, bedspreads,
or plastic sheets can become an airtight chamber and cause
suffocation leading to death. Make all packing materials
inaccessible to children.
Warning: The instructions in this manual and all other literature
included with this dryer can not cover every possible
condition and situation that may occur. Good safe practice
and caution must be applied when installing, operating and
maintaining any appliances. After installing, if you
are in doubt, call a certified electrician to install and
wire the dryer.
EnglishEnglish

18
EnglishEnglish
It is your responsibility
• To connect a qualified electrical installer.
• To be sure that the electrical connection is adequate and in
conformance with CAN1-B149 (.1 or .2) installation codes and/or
local codes.
• A 4 wire, single phase, 115/230-volt, 60-Hz., AC-only electrical
supply is required on a separate 30-amp circuit, fused on both sides
of the line. A time-delay fuse or circuit breaker is recommended.
Connect to an individual branch circuit.
• This dryer is equipped with a CSA International Certified Power Cord
intended to be plugged into a standard 14-30R wall receptacle. The
cord is 5 ft (1.52 m) in length. Be sure wall receptacle is within reach
of dryer’s final location.
• Do not modify the plug provided with the appliance: if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
4-wire receptacle 14-30R
If using a replacement power supply cord, it is recommended that you use Power
Supply Cord Replacement. For further information, please reference the service
numbers located in the “Assistance or Service” section of this manual.
Electrical Shock Hazard
Plug into a grounded 4 prong outlet.
Failure to do so can result in death or electrical shock.
Warning
(For Model HDY6-1C)
ELECTRICAL REQUIREMENTS (FOR CANADA)

19
Replacement Power Supply Cord must be:
• UL Listed or CSA International Certified
• Marked for use with clothes dryers
• Rated 115/230 volt minimum
• 30 amp
• Type SRD or SRDT
• 4 Conductors
• At least 5 ft (1.52 m) long.
Grounding Instructions
• For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or breakdown,
grounding will reduce the risk of electric current. This dryer is equipped
with a cord having an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
Warning: Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualified electrician
or service representative or personnel if you are in doubt as to whether
the dryer is properly grounded. Do not modify the plug provided with
the dryer: if it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
Save These Instructions
EnglishEnglish
