LCD TV RECEIVER
USER MANUAL
Please read this manual carefully before using
your television and keep this manual in a good
place for future reference.
MODEL:
LET19C430
LET22C430
LET24C430

P.02
Thanks for buying this 19"/ 22"/24" LED LCD TV. This guide will help you set up and begin using your TV.
19" HD Ready LED LCD TV.
Remote control
AAA ba x2
Instruction Manual
Quick start guide
ttery
22" Full HD 1080P Digital LED LCD TV
Remote control
AAA ba x2
Instruction Manual
Quick start guide
ttery
24" Full HD 1080P Digital LED LCD TV
Remote control
AAA ba x2
Instruction Manual
Quick start guide
ttery

P.03

WARNINGS AND CAUTIONS
Warning
High voltages are used in the operation
of this television receiver. Do not remove
the cabinet back from your set. Refer
servicing to qualified service personnel.
Warning
To prevent fire or electrical shock
hazard, do not expose the television
receiver to rain or moisture.
Warning
Do not drop or push objects into the
television cabinet slots or openings.
Never spill any kind of liquid on the
television receiver.
Caution
Do not block the ventilation holes in the
back cover. Adequate ventilation is
essential to prevent failure of electrical
components.
Caution
Do not trap the power supply cord under
the television receiver.
Caution
Never stand on, lean on, or suddenly push
the television or its stand. You should pay
special attention to children. Serious injury
may result if it should fall.
Caution
Do not place your television on an unstable
cart, stand, shelf or table. Serious injury to
an individual , and damage to the
television, may result if it should fall.
Caution
When the television receiver is not
used for an extended period of time, it
is advisable to disconnect the AC power
cord from the AC outlet.
Dim:5 15*320m m(不包括底 座）
Caution
If the television is to be built into a
compartment or similar enclosure, the
minimum distances must be maintained.
Heat build-up can reduce the service life of
your television, and can also be dangerous.
P.04
01
Safety and warnings

Introduction
INSTALLATION
CAUTION
*Locate the TV in the room where light
does not strike the screen directly.
*Total darkness or a reflection on the
picture screen can cause eyestrain. Soft
and indirect lighting is recommended for
comfortable viewing.
*Allow enough space between the TV and
the wall to permit ventilation.
*Avoid excessively warm locations to
prevent possible damage to the cabinet or
premature component failure.
*Do not cover the ventilation openings
when using theTV.
Never tamper with any components inside
the TV, or any other adjustment controls
not mentioned in this manual. All LED-TVs
are high voltage instruments. When you
clean up dust or water drops on the LED
PANEL or CABINET, the power cord should
be pulled out from the receptacle, then
wipe the TV with a dry soft cloth. During
thunder and lighting, unplug the power cord
and antenna cord to prevent damage to
your TV. All repairs to this TV should only
be performed by qualified TV service
personnel.
Panel
Power supply
2x3W
Composite Video input >=350
YPbPr >=400
19" / 22" / 24"
Main parameter
Main features
① Used as Television, display terminal,
PC display；
② High luminance, wide viewing
Angle；
3 HDMI interface and SCART
Interface；
4 NICAM；
02
DC 12V, 3A (Power adaptor supplied)
Terminals: Analog RGB(PC)x1
Vdeo Input x1i
Audio Input x2
USB Input x1
YPbPr x1
Mini SCART x 1
P.05
Horizontal definition (TV line)
Audio Output Power (THD 7%)
High-Definition Multimedia Interface (HDMI) x 2

PRESET MODE
PC
2
1
3
4
640*480
800*600
1024*768
1280*1024
60
60
60
60
31.47
37.88
48.36
63.98
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)
P.06
02 Introduction

INSTALLATION NOTES
Locate the TV in a room where light does not strike the screen directly. Total darkness
or a reflection on the screen can cause eyestrain. Soft and indirect lighting is
recommended for comfortable viewing.
Allow enough space between the TV and the wall to permit ventilation.
Avoid excessively warm locations to prevent possible damage to the cabinet or
premature component failure.

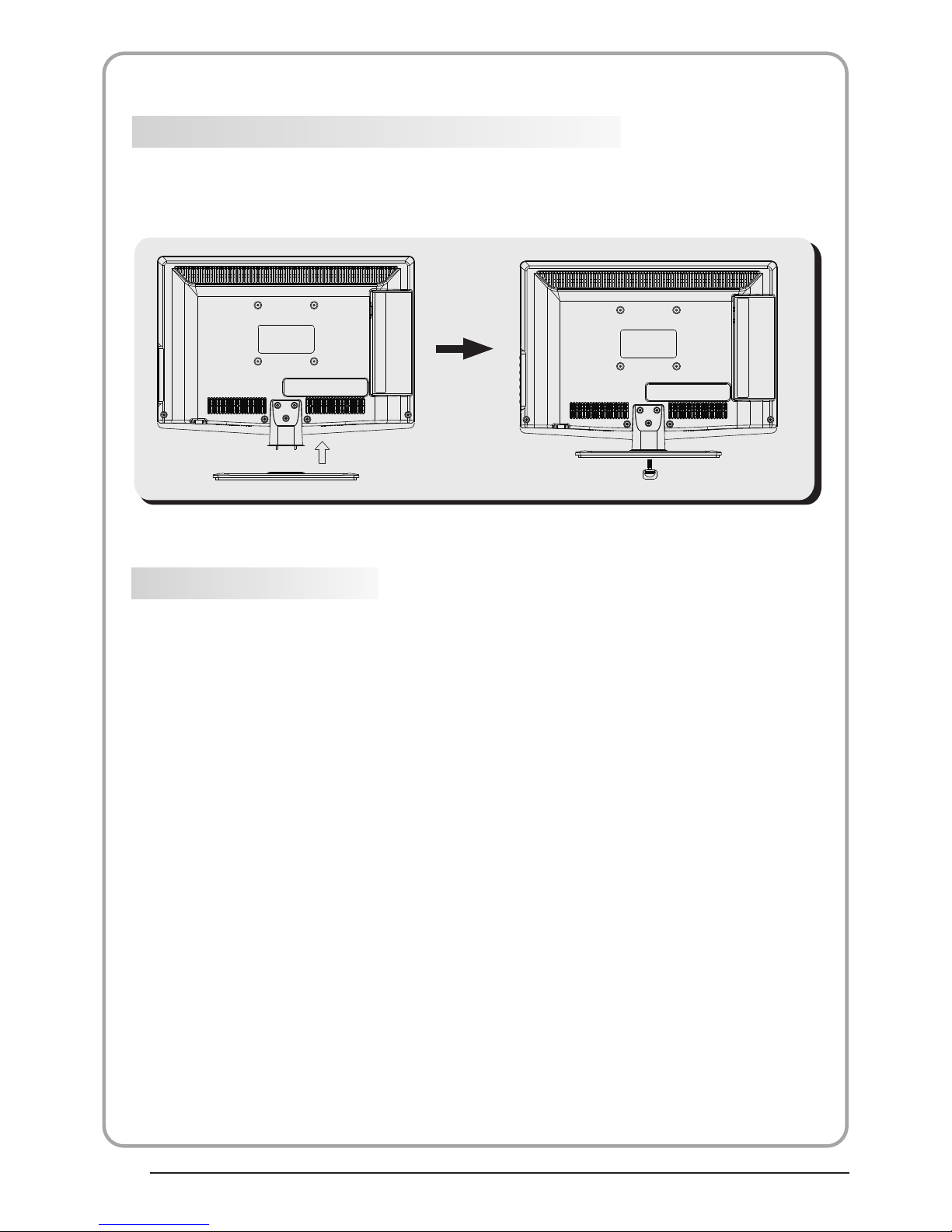

Base Stand Assembly Instruction
1. Place the TV with the display side down
on a flat surface.Use a cloth to protect.
Locate the bottom at the stand.
2. Fix the bottom with turning the screw
tightly on the stand.
P.07

WALL MOUNTING INSTALLATION GUIDELINES
This television can be wall mounted as follows:
1.Place the LED LCD Television onto a solid surface. Please place some soft material
over the front of the screen to protect it from any damage.
2.Remove the screws from the lower part of the television, where the base joins to the
TV, and take away the stand (put the stand somewhere safe for future use).
3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included)
via the four VESA standard holes on the back of the television.
100mm
100mm
P.08
02 Introduction

1AV
2
input
3
YPbPr
input
4
input
5input
input
7
SCART
input
8PC AUDIO input
9
L/R AUDIO
Intput
10
11
Input
12 input
3
1
2
Front control panel
1
2
3
Remote control sensor.
Indicator LED:
BLUE: POWER ON. RED: STAND BY.
Key board.
Rear/Side Sockets
1SOURCE
Display the input source menu.
MENU Display main MENU.
3
4
CH+/CH- In TV mode,press CH+ or CH- to change
the channel up and down.
In MENU, press CH+ or CH- to select items .
In standby mode, it can Turn on the TV.
STANDBY
2
VOL+/VOL- Adjust sound level.
In MENU,adjust the item that you Selected.
5
Remote Control
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
AV L R Y Pb Pr
HDMI2
1 2 3 4 5
HDMI1 USB PC AUDIO VGA ANT
SCART
COMMON INTERFACE (CI)
6 7 8 10 911 12
DC Power Source
HDMI2
6
input
HDMI1
USB
COMMON IN INTERFACE(CI)
VGAINPUT
ANT
Intput
