Haier HVB050ABH - Designer Series 50 Bottle Capacity Wine... User manual

HVB050ABH manual 8/29/02 8:37 AM Pag_/N_
What The World Comes Home To _
para
_er ManuaIo Model#
G_de de _'Ut_J_sa_r _ Modele
Man_J d_ U$_r_ _ParaModelode
rt #RF-9999_C1

HVB050ABH manual 8/29/02 8:37 AM Pag_
SAFETYPRECAUTIONS
Read all of the instructions before using this appliance.
When using this appliance, always exercise basic safety
precautions, including the following:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This wine cooler must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your wine cooler by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your wine cooler before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) If your old wine cooler is not being used, we recommend that you remove
the door and leave the shelves in place. This will reduce the possibility
of danger to children.
7) Do not operate your wine cooler in the presence of explosive fumes.
8) Do not store foods in wine cooler as interior temperature may not be cool
enough to prevent spoilage.

HVB0S0ABH manual 8/29/02 8:37 AM Pag_b_
SAVETHESEINSTRUCTIONS
ForFutureReference
DANGER
Risk of child entrapment. Before you throw away your old
wine cooler, take off the doors. Leave the shelves in place so
that children may not easily climb inside.
As per UL 250 Standards
Thank you for using our Haler
product. This easy-to-use manual will
guide you in getting the best use of
your wine cooler.
Remember to record the model and
serial number. They are on a label in
back of the wine cooler,
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.

_HVB050ABH manual 8/29/02 8:37 AM Pag_ I_
PAGE
Safety Precautions .......................................................................... 1
Parts And Features .......................................................................... 4
Installing Your Wine Cooler .......................................................... 5
Unpacking Your Wine Cooler .................................................................. 5
Leveling Your Wine Cooler ...................................................................... 5
Electrical Requirements ............................................................................ 5
Wine Cooler Features And Use .......................................................... 6
Initial Set Up .......................................................................................... 6
Shelving ................................................................................................ 7
Interior Light .......................................................................................... 7
Normal Operating Sounds ...................................................................... 7
Wine Cooler Installation ...................................................................... 8
Limitations .............................................................................................. 8
Dimensions ............................................................................................ 8
Door Reversal ........................................................................................ 9
Replace Light Bulbs .............................................................................. 10
Proper Wine Cooler Care and Cleaning .................................... 11
Cleaning and Maintenance .................................................................. 11
Power Interruptions .............................................................................. 12
Vacation and Moving Care .................................................................. 12
Troubleshooting .............................................................................. 13
Warranty Information .................................................................. 14

HVB050ABH manual 8/29/02 8:37 AM Pag_P\
©

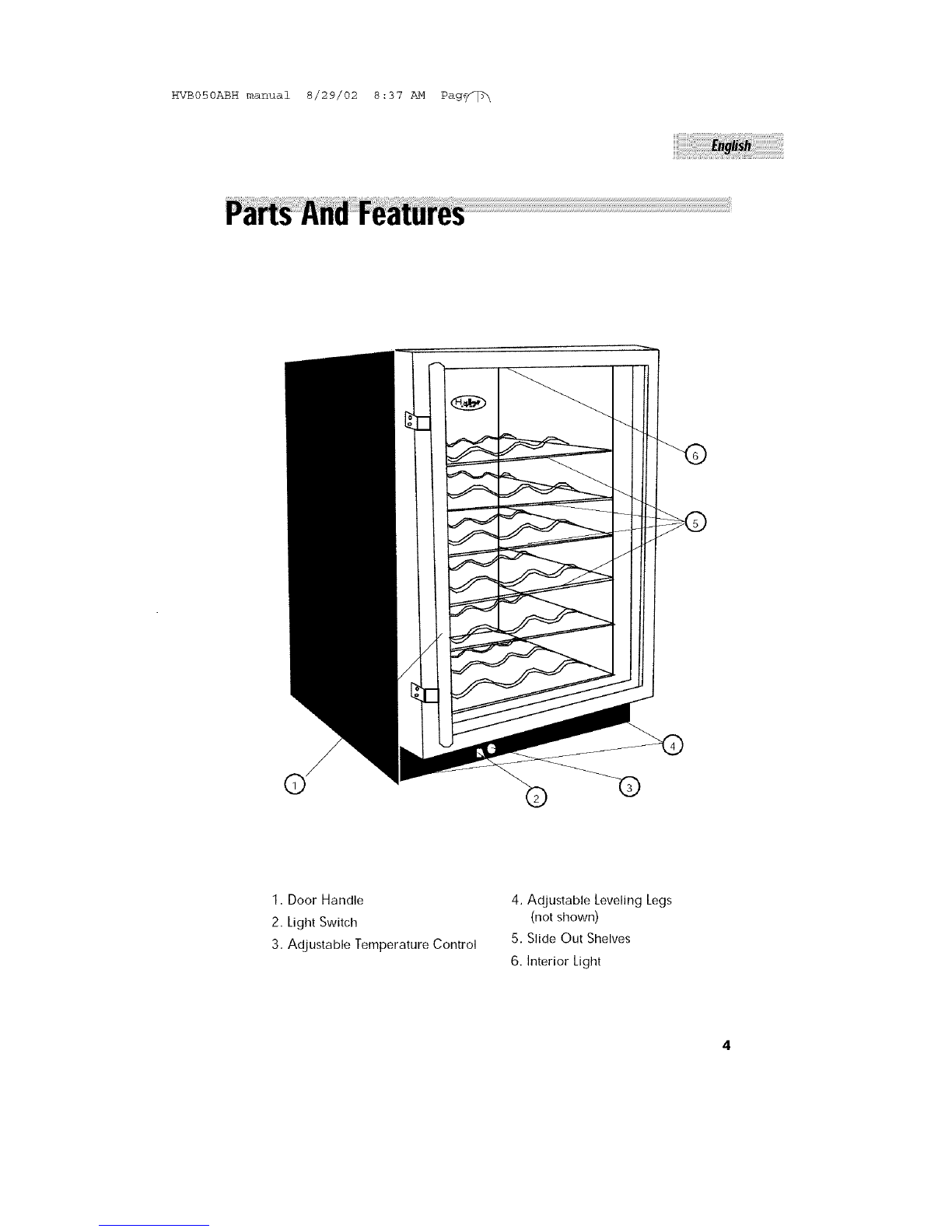

1. Door Handle
2. Light Switch
3. Adjustable Temperature Control
4. Adjustable Leveling Legs
(not shown)
5, Slide Out Shelves
6. Interior light

HVBOBOABH manual 8/29/02 8 :37 AM Pag_ I/_

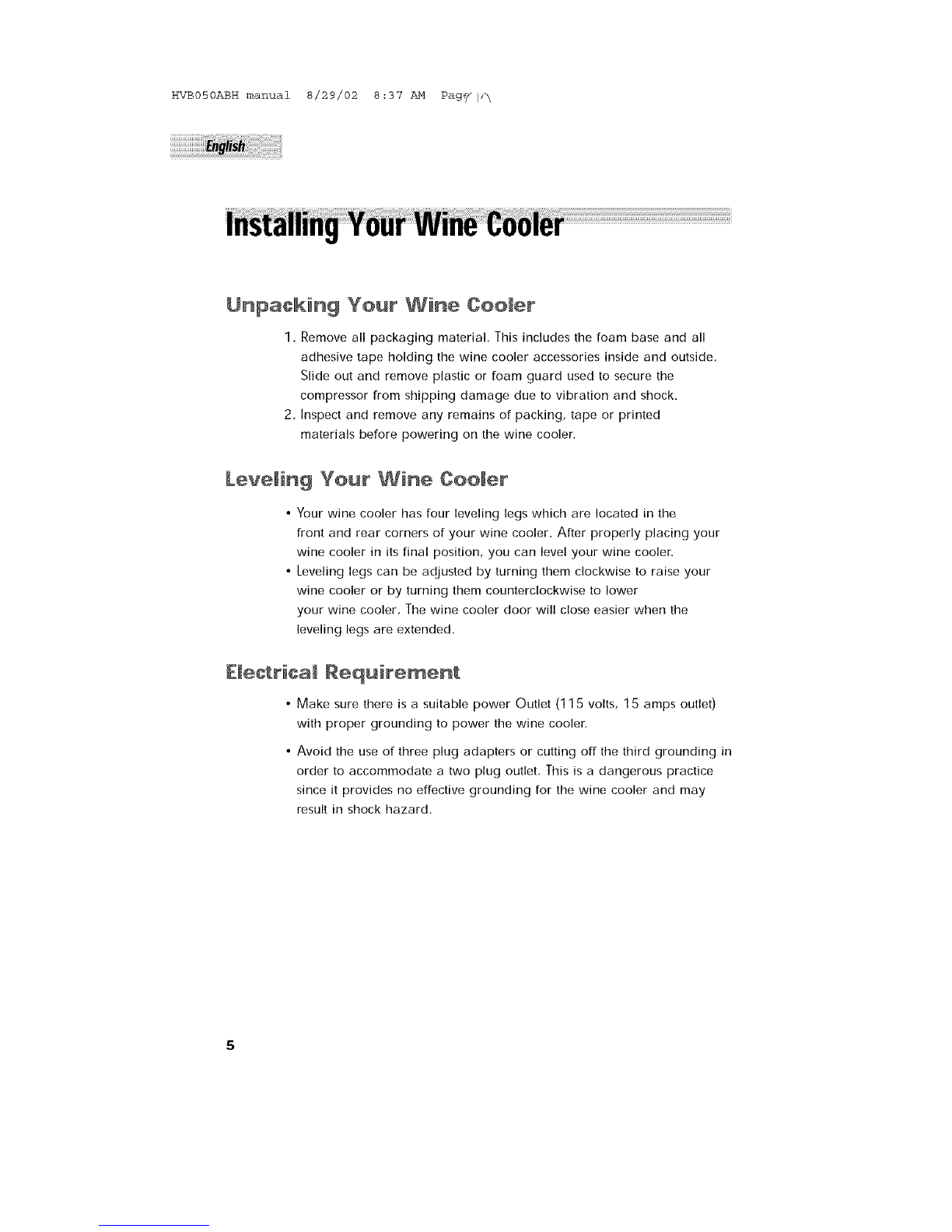

Unpacking Your Wine ¢oo ÷r
1, Remove all packaging material. This includes the foam base and all
adhesive tape holding the wine cooler accessories inside and outside,
Slide out and remove plastic or foam guard used to secure the
compressor from shipping damage due to vibration and shock
2, Inspect and remove any remains of packing, tape or printed
materials before powering on the wine cooler
[÷ve ing Your Wine Ooo ÷r
• Your wine cooler has four leveling legs which are located in the
front and rear corners of your wine cooler After properly placing your
wine cooler in its final position, you can level your wine cooler
• Leveling legs can be adjusted by turning them clockwise to raise your
wine cooler or by turning them counterclockwise to lower
your wine cooler, The wine cooler door will close easier when the
leveling legs are extended
De¢tri¢am Requirement
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)
with proper grounding to power the wine cooler.
• Avoid the use of three plug adapters or cutting off the third grounding in
order to accommodate a two plug outlet. This is a dangerous practice
since it provides no effective grounding for the wine cooler and may
result in shock hazard,

HVB050ABH manual 8/29/02 8:37 AM Pag_l_ _

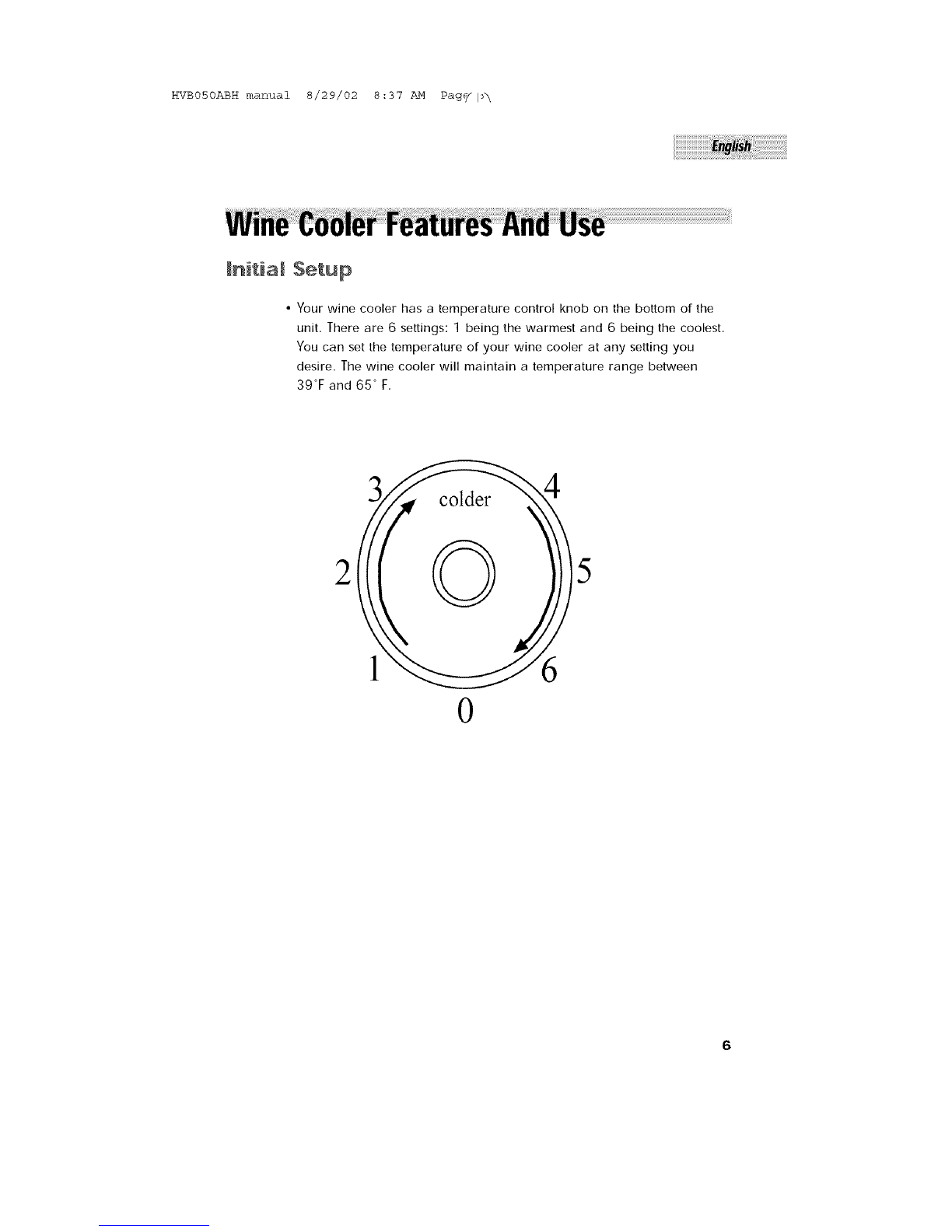

[nitia_ Setup
• Your wine cooler has a temperature control knob on the bottom of the
unit. There are 6 settings: 1 being the warmest and 6 being the coolest.
You can set the temperature of your wine cooler at any setting you
desire. The wine cooler will maintain a temperature range between
39°F and 65 ° F.
2
06
5

HVB050ABH manual 8/29/02 8:37 AM Pag_ I_
•The shelves are chrome plated and designed for flexibility and easy
cleaning. To accommodate different sized bottles the shelves slide out
and can be moved up or down into any of the tracks molded into the
cooler cabinet. Larger bottles or Magnums can be more easily
accommodated on the bottom of the cooler. You will notice that the
shelves are designed so the bottles do not line-up directly over one
another. This allows free air movement and provides more space.
Interior fight
• To complement the look ofyour wine collection,a softlighthas been
builtintothe wine cooler.The lightswitch 18on the frontbottom.
Norma_ Operating Sounds You May Hear
• Boiling water, gurgling sounds or slight vibrations that are the result of
the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.

HVBOSOABH manual 8/29/02 8:38 AM Pag_
[imi[a[ions
Do not install your wine cooler in any location not properly insulated or
heated e.g. garage etc. Your wine cooler was not designed to operate
in temperature settings below 55 ° Fahrenheit.
Select a suitable location for the wine cooler on a hard even
surface away from direct sunlight or heat source e.g. radiators,
baseboard heaters, cooking appliances etc, Any floor unevenness
should be corrected with the leveling legs located on the front and rear
bottom corners of the wine cooler.
• Built-in wine coolers need to be ventilated from the front. This feature
allows the unit to be built in an enclosed area, The bottom front grille
should be clear of all obstructions, This is absolutely necessary for the
air to circulate and for the unit to operate efficiently, The dimensions for
installation are as follows. (W x D x H)
Unit Dimensions: 23 7/8 x 23 3/4 x 34 11/16
Built-In Dimensions: 24 1/8 x 23 5/8 x 35 3/16
233/4
\

HVB050ABH manual 8/29/02 8:38 AM Pag_Ni _

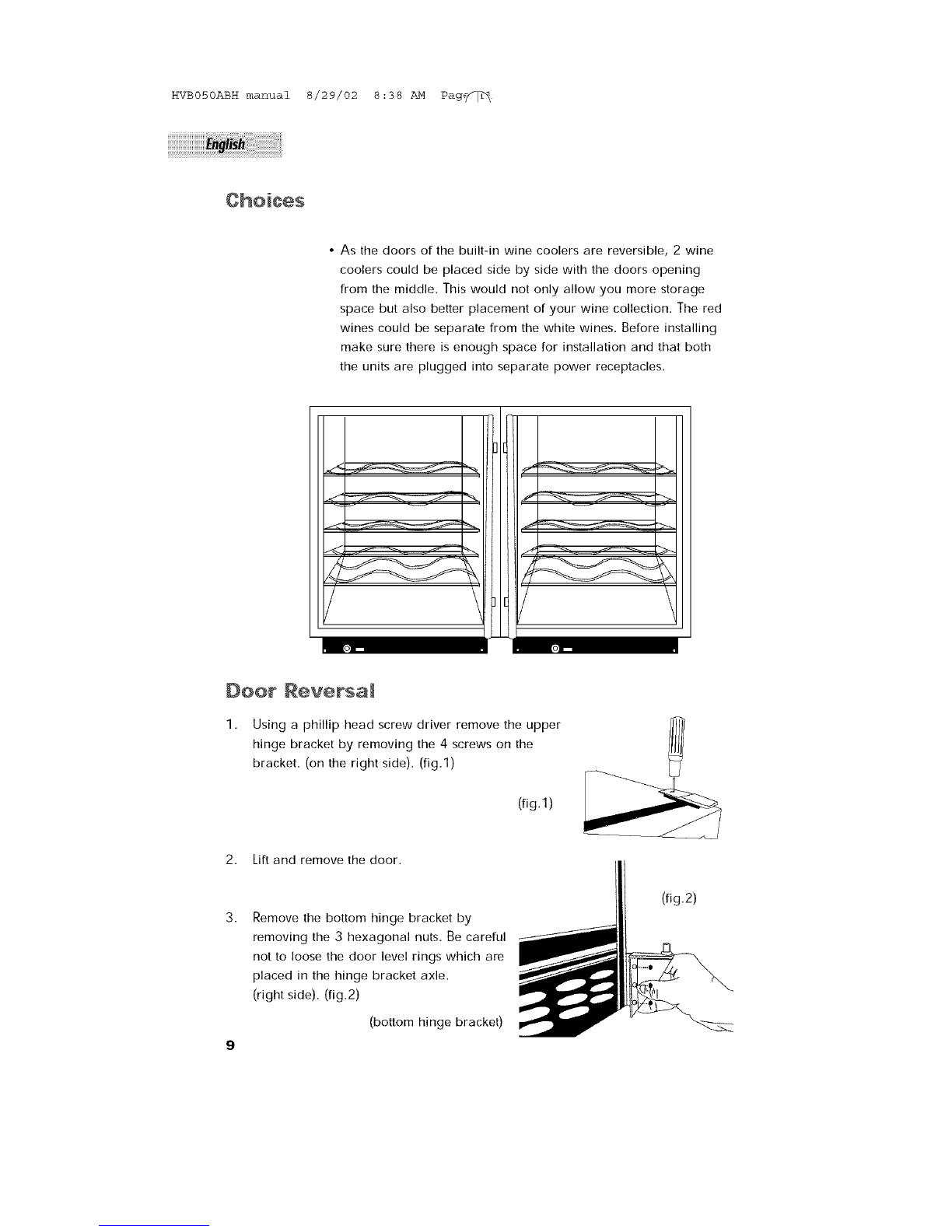

• As the doors of the built-in wine coolers are reversible, 2 wine
coolers could be placed side by side with the doors opening
from the middle. This would not only allow you more storage
space but also better placement of your wine collection. The red
wines could be separate from the white wines. Before installing
make sure there is enough space for installation and that both
the units are plugged into separate power receptacles.
Door Reversa_
1. Using a phillip head screw driver remove the upper
hinge bracket by removing the 4 screws on the
bracket. (on the right side). (fig.l)
(fig.l)
2. Lift and remove the door.
Remove the bottom hinge bracket by
removing the 3 hexagonal nuts. Be careful
not to loose the door level rings which are
placed in the hinge bracket axle.
(right side). (fig.2)
(bottom hinge bracket)
(fig.2)

HVB050ABH manual 8/29/02 8:38 AM Pag_
4. Remove the door support bracket from the opposite
side (left side), by removing the 2 screws, (fig,3)
(fig.3)
(door suppport bracket)
5. To install the bottom hinge bracket on the opposite side (left side), you will also
have to remove one screw hole plug from the left side,
6, Install the door support bracket on the opposite side (right side), place the
screw hole plug in the bottom hole.
7, Remove the light switch bracket from the bottom of the door by removing the 2
screws, (fig,4)
(fig,4)
8. Install the light switch bracket on the opposite
side of the door (upper part), after removing the screw hole plugs.
9, Rotate the door by 180 °, This way the light switch bracket will now be on the
bottom side and the handle on the opposite side. (right side) Place the screw
hole plugs in its appropriate hole on top of the door.
10. Carefully align the bottom hinge axle hole on the door with the axle of the
lower hinge bracket. Remember to have the door level rings in place before you
place the door on its axle.
11, Install the upper hinge bracket (left side hinge bracket supplied
as an accessory) on the left side.
12, Make sure the door is aligned and then tighten the screws,
Replacing [i@h[ BuMb
1. Turn off and unplug the power cord of the wine cooler.
2, To remove the light bulb cover use a philliphead screw driver to remove the 2
screws,
3, Make sure the light bulb is cool before removing it, Replace using a light bulb
20 watts or less.
4, After the bulb is secure, install the light bulb cover and replace both the screws.
5. Turn unit on to its original setting after plugging in the power cord.
lO

HVBOBOABH manual 8/29/02 8:38 AM Pag_/_
CMeaning and Maintenance
Warning: To avoid electric shock always unplug your
wine cooler before cleaning. Ignoring this warning
may result in death or injury,
Door Gaskets:
Caution: Before using cleaning products, always read and
follow manufacturer's instructions and warnings to
avoid personal injury or product damage,
General:
•Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or
soft cloth, dampened with the cleaning solution, to
wipe down your wine cooler.
• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. SOME of these chemicals may
dissolve, damage and/or discolor your wine cooler.
• Clean door gaskets every three months according to
general instructions, Gaskets must be kept clean and
pliable to assure a proper seal,
• Petroleum jelly applied lightly on the hinge side of
gaskets will keep the gasket pliable and assure a
good seal.
11

HVB050ABH manual 8/29/02 8:38 AM Pag_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii i! ii!!"
Power interruptions
•Occasionally there may be power interruptions due to
thunderstorms or other causes, Remove the power cord from AC outlet
when a power outage occurs. When power has been restored,
replug power cord to AC outlet.
Vacation and Moving Care
• [or long vacations or absences, unplug the wine cooler and clean the
wine cooler and door gaskets according to "General cleaning" section,
Prop doors open, 8o air can circulate inside. When moving always
move the wine cooler vertically, Do not move with the unit lying down.
Possible damage to the sealed system could occur.
12

HVB050ABH manual 8/29/02 8:38 AM Pag_

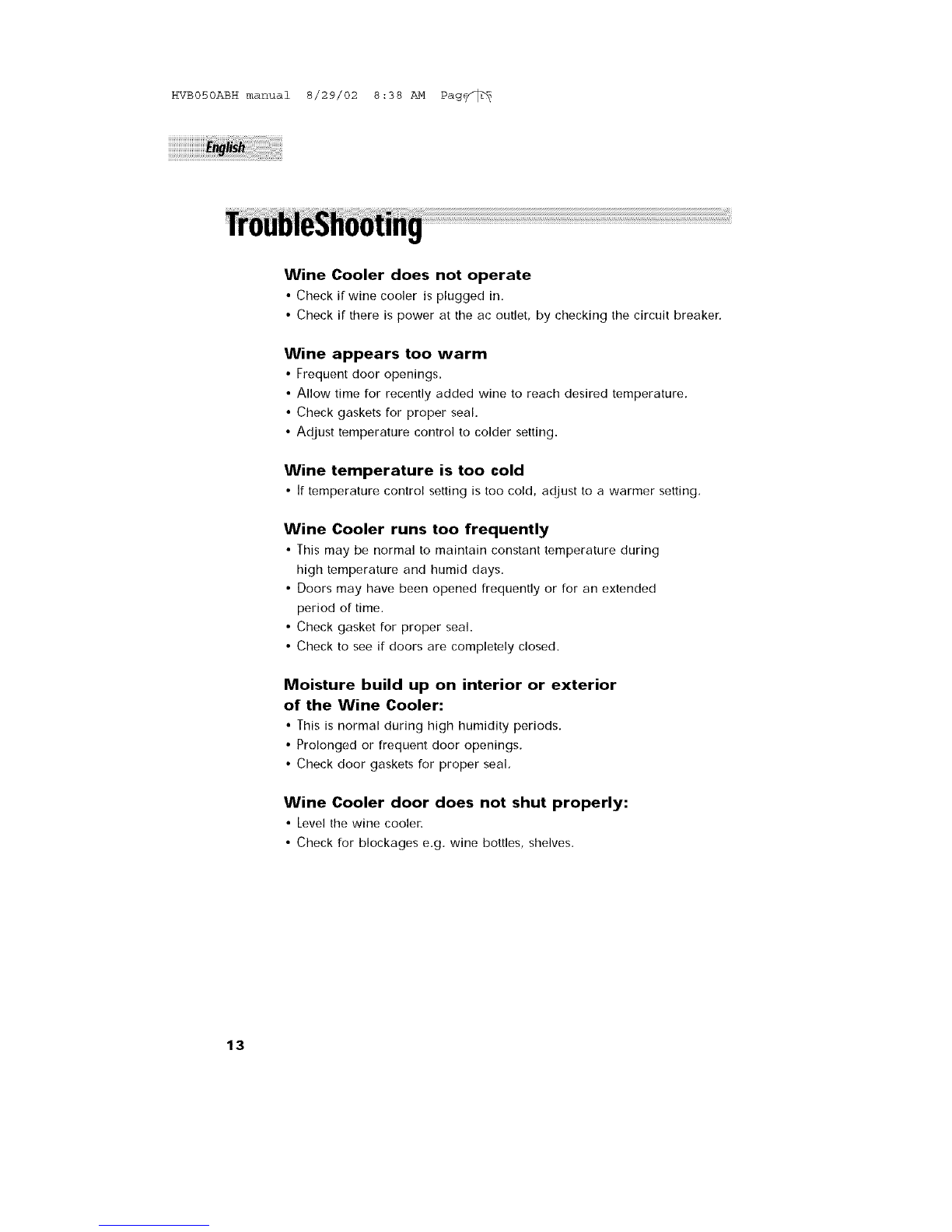

Wine Cooler does not operate
• Check if wine cooler is plugged in.
• Check if there is power at the ac outlet, by checking the circuit breaker.
Wine appears too warm
• Frequent door openings
• Allow time for recently added wine to reach desired temperature.
• Check gaskets for proper seal.
• Adjust temperature control to colder setting.
Wine temperature is too cold
• If temperature control setting is too cold, adjust to a warmer setting.
Wine Cooler runs too frequently
• This may be normal to maintain constant temperature during
high temperature and humid days.
• Doors may have been opened frequently or for an extended
period of time.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
Moisture build up on interior or exterior
of the Wine Cooler:
• This is normal during high humidity periods.
• Prolonged or frequent door openings,
• Check door gaskets for proper seal,
Wine Cooler door does not shut properly:
•level the wine cooler
• Check for blockages e g wine bottles, shelves
13

HVBOBOABH manual 8/29/02 8:38 AM Pag_

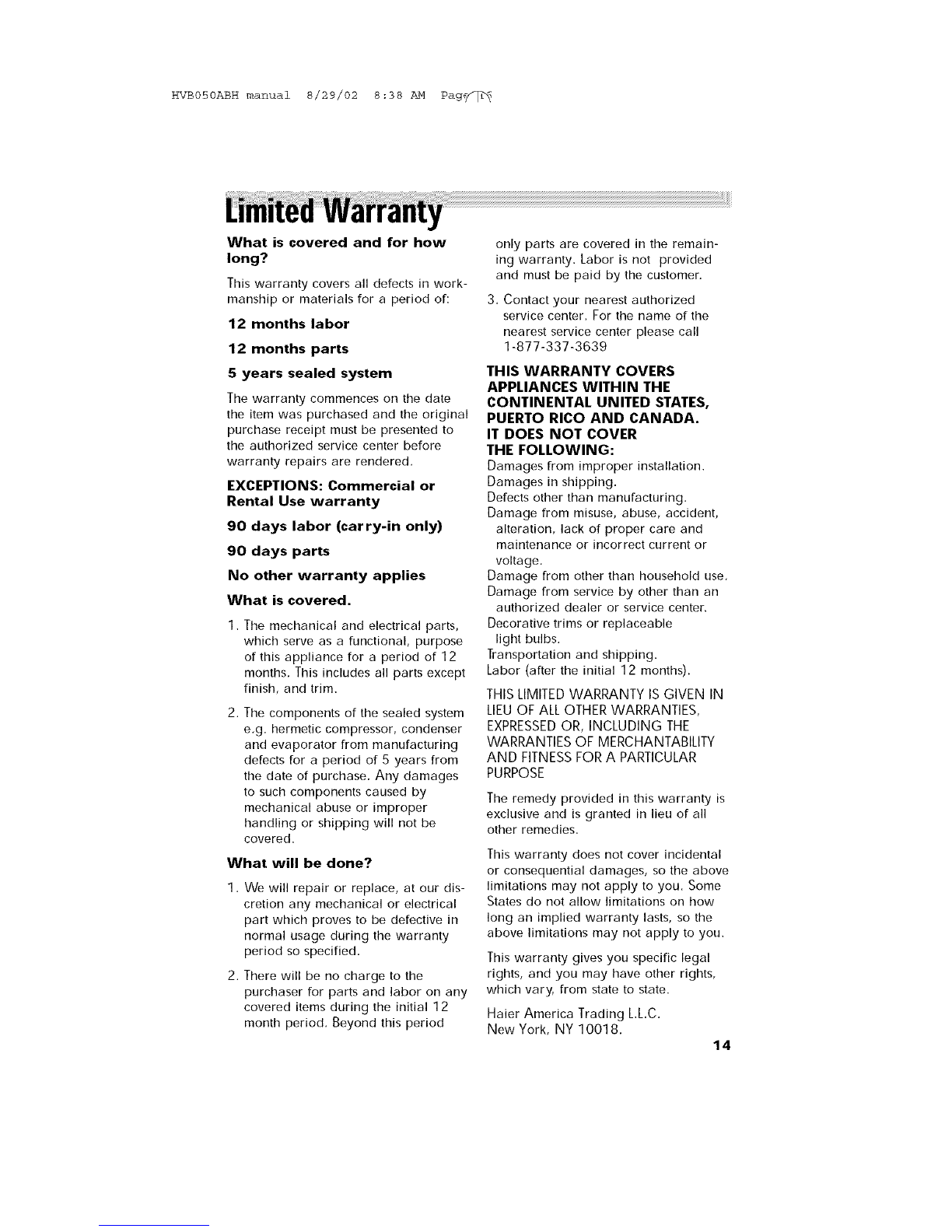

What is covered and for how
long?
This warranty covers all defects in work-
manship or materials for a period of:
12 months labor
12 months parts
5years sealed system
The warranty commences on the date
the item was purchased and the original
purchase receipt must be presented to
the authorized service center before
warranty repairs are rendered,
EXCEPTIONS: Commercial or
Rental Use warranty
90 days labor (carry-in only)
90 days parts
No other warranty applies
What is covered.
1.
2.
The mechanical and electrical parts,
which serve as a functional, purpose
of this appliance for a period of 12
months, This includes all parts except
finish, and trim.
The components of the sealed system
e,g. hermetic compressor, condenser
and evaporator from manufacturing
defects for a period of 5 years from
the date of purchase. Any damages
to such components caused by
mechanical abuse or improper
handling or shipping will not be
covered.
What will be done?
1. We will repair or replace, at our dis-
cretion any mechanical or electrical
part which proves to be defective in
normal usage during the warranty
period so specified,
2. There will be no charge to the
purchaser for parts and labor on any
covered items during the initial 12
month period, Beyond this period
only parts are covered in the remain-
ing warranty. Labor is not provided
and must be paid by the customer.
3. Contact your nearest authorized
service center. For the name of the
nearest service center please call
1-877-337-3639
THIS WARRANTY COVERS
APPLIANCES WITHIN THE
CONTINENTAL UNITED STATES,
PUERTO RICO AND CANADA.
IT DOES NOT COVER
THE FOLLOWING:
Damages from improper installation.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident,
alteration, lack of proper care and
maintenance or incorrect current or
voltage.
Damage from other than household use.
Damage from service by other than an
authorized dealer or service center.
Decorative trims or replaceable
light bulbs.
Transportation and shipping.
Labor (after the initial 12 months).
THIS LIMITED WARRANTY IS GIVEN IN
LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR, INCLUDING THE
WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR
PURPOSE
The remedy provided in this warranty is
exclusive and is granted in lieu of all
other remedies.
This warranty does not cover incidental
or consequential damages, so the above
limitations may not apply to you. Some
States do not allow limitations on how
long an implied warranty lasts, so the
above limitations may not apply to you.
This warranty gives you specific legal
rights, and you may have other rights,
which vary, from state to state.
Haler America Trading LL.C.
New York, NY 10018. 14

HVBOBOABH manual 8/29/02 8:38 AM Pag_ I_

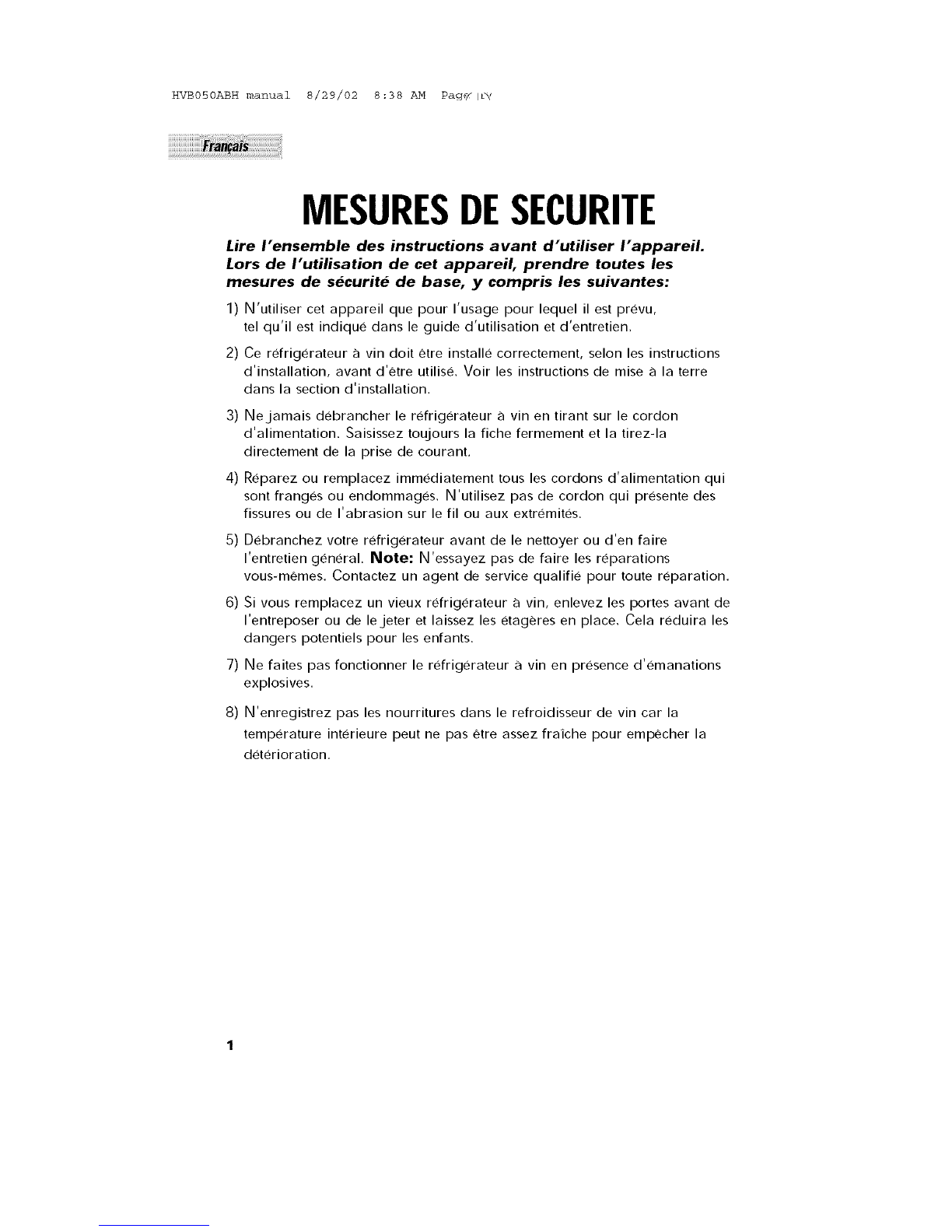

MESURESDESECURITE
Lire I'ensemble des instructions avant d'utiliser I'appareil.
Lors de I'utilisation de cet appareil, prendre toutes les
mesures de securite de base, ycompris les suivantes:
1) N'utiliser cet appareil que pour I'usage pour lequel il est prevu,
tel qu'il est indique dans le guide d'utilisation et d'entretien.
2) Ce refrigerateur a vin doit etre installe correctement, selon les instructions
d'installation, avant d'etre utilise. Voir les instructions de raise a la terre
dans la section d'installation.
3) Nejamais debrancher le refrigerateur a vin en tirant sur le cordon
d'alimentation. Saisissez toujours la fiche fermement et la tirez-la
directement de la prise de courant.
4) Reparez ou remplacez immediatement tousles cordons d'alimentation qui
sont flanges ou endommages. N'utilisez pas de cordon qui presente des
fissures ou de I'abrasion sur le fil ou aux extremites.
5) Debranchez votre refrigerateur avant de le nettoyer ou d'en faire
I'entretien general. Note: N'essayez pas de faire les reparations
vous-memes. Contactez un agent de service qualifie pour route reparation.
6) Si vous remplacez un vieux refrigerateur a vin, enlevez les portes avant de
I'entreposer ou de lejeter et laissez les etageres en place. Cela reduira les
dangers potentiels pour les enfants.
7) Ne faites pas fonctionner le refrigerateur a vin en presence d'emanations
explosives.
8) N'enregistrez pas les nourritures dans le refroidisseur de vin car la
temperature interieure peut ne pas etre assez fraiche pour empecher la
deterioration.

HVB050ABH manual 8/29/02 8:38 AM Pag_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii__ii_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i
VEUILLEZCONSERVERCES
INSTRUCTIONS
pourlareferenced'avenir
DANGER
Les enfants pourraJent se retrouver coJnces dans votre
refrigerateur a vin usage avant que vous ne puissiez vous en
debarrasser. Retirer les portes. Laisser les etageres en place
de maniere a ce que les enfants ne
puissent pas grimper facilement a I'interieur".
Conseils de I,UL 250 Normes
Nous vous remercions d'avoir choisi
ce produit Haier. Ce guide
d'utilisation facile d'emploi permet
une utilisation optimum du
refrigerateur a vin. Ne pas oublier
de prendre note du numero de
modele et de serie. IIs sont inscrits
sur une plaquette apposee sur
I'arriere du refrigerateur _, vim
Numero de modele
Numero de serie
Date d'achat
Agrafer le ticket de caisse au guide, II devra _tre presente pour tout
service apres-vente sous garantie.

HVB080ABH manual 8/29/02 8:38 AM Pag_
PAGE
Mesures de Securitee ...................................................................... 1
Pieces et Caracteristiques .............................................................. 4
Installation du Refrigeratuer d Vin .............................................. 5
Desemballage du Refrig,brateur a Vin ...................................................... 5
Reglage du Refrigerateur a Vin .............................................................. 5
Caracteristique8 Electrique8 .................................................................... 5
Caracteristques du Refrigerateur d Vin ........................................ 6
Montage Initial ...................................................................................... 6
Tablette8 ................................................................................................ 7
Lumiere Interieure .................................................................................. 7
Bruits de Fonctionnement Iors d'une Exploitation Normale ........................ 7
Installation du Compartiment a Vin ............................................ 8
Limitations .............................................................................................. 8
Dimensions ............................................................................................ 8
Changer I'emplacement de la Porte ........................................................ 9
Remplacer le8 Ampoule8 ........................................................................ 9
Entretien et Nettoyage du Refrigerateur d Vin ........................ 12
Nettoyage et Maintenance .................................................................... 12
Coupure8 de Courant .......................................................................... 13
Entretien Ior8 des Vacance8 ou d'un Demenagement .............................. 13
Guide de Depannage ........................................................................ 14
Garantie .......................................................................................... 15

HVBOBOABH manual 8/29/02 8:38 AM Pag_
©©
1. Poignee de porte
2. Interrupteur
3. Commande reglable de temperature
4. Jambes de mise 2, niveau
(non indiquees)
5. Etagere8 coulissantes
6. Lumiere interieure

EVB050ABH manual 8/29/02 8:38 AM Paa_/_

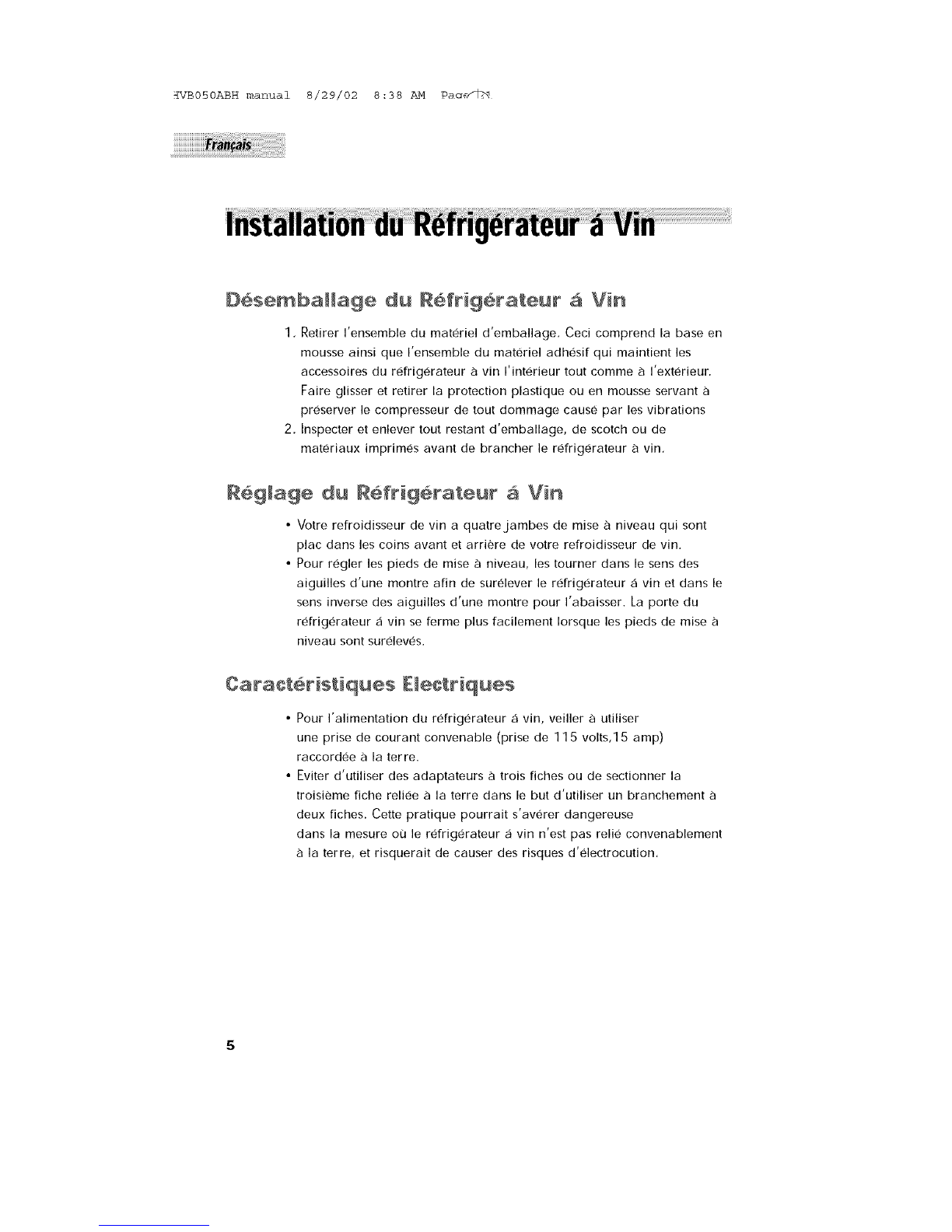

DesembaHage du Refrigerateur a Vin
1, Retirer I'ensemble du materiel d'emballage, Ceci comprend la base en
mousse ainsi que I'ensemble du materiel adhesif qui maintient le8
accessoire8 du refrigerateur `9vin I'interieur tout comme `9 I'exterieur.
Faire glisser et retirer la protection plastique ou en mousse servant `9
preserver le compresseur de tout dommage cause par les vibrations
2, Inspecter et enlever tout restant d'emballage, de scotch ou de
materiaux imprimes avant de brancher le refrigerateur `9 vin,
Reglage du Refrigerat÷ur a Vim
• Votre refroidisseur de vin a quatrejambe8 de mise `9 niveau qui sont
plac dans le8 coins avant et arriere de votre refroidisseur de vin.
• Pour regler le8 pieds de raise `9 niveau, les tourner dans le sens des
aiguilles d'une montre afin de surelever le refrigerateur a vin et dans le
sens inverse des aiguilles d'une montre pour I'abaisser. La porte du
refrigerateur a vin se ferme plus facilement Iorsque les pieds de mise
niveau sont sureleves.
Oaraeteristiqu÷s Deetriques
• Pour I'alimentation du refrigerateur `9vin, veiller `9 utiliser
une prise de courant convenable (prise de 115 volts,15 amp)
raccordee a la terre.
• Eviter d'utiliser des adaptateurs `9 trois fiches ou de sectionner la
troisieme fiche reliee `9 la terre dans le but d'utiliser un branchement
deux fiches. Cette pratique pourrait s'averer dangereuse
dans la mesure or] le refrigerateur .9vin n'est pas relie convenablement
`9 la terre, et risquerait de causer des risques d'electrocution,
