HAMPTON BAY Bryant User manual

Bryant
in Ceiling Fan
Owner’s Manual
Bryant
Ventilador de Techo de 1.17m
Manual del Propietario
46
823 338

4

Lifetime Limited Warranty
Hampton Bay Lifetime Limited Warranty
Date purchased
Store Purchased
UL Model No. CF546KR
Serial No.
Vendor No. 82598
UPC 845952000032
The retailer warrants the fan motor to be free from defects in workmanship and
material present at time of shipment from the factory for a lifetime after the date
of purchase by the original purchaser. The retailer also warrants that all other fan
parts, excluding any glass or plexiglass blades, to be free from defects in
workmanship and material at the time of shipment from the factory for a period
of one year after the date of purchase by the original purchaser. We agree to
correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of
removing and reinstalling the product are your responsibility. Damage to any
part such as by accident or misuse or improper installation or by affixing any
accessories, is not covered by this warranty. Because of varying climatic
conditions in the United States this warranty does not cover any changes in brass
finish, including rusting, pitting, corroding, tarnishing or peeling. Brass
finishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of wobble is normal and should not be
considered a defect. Servicing performed by unauthorized persons shall render
the warranty invalid. There is no other express warranty. The retailer hereby
disclaims any and all warranties, including but not limited to. Those of
merchantability and fitness for a particular purpose to the extent permitted
by law. The duration of any implied warranty which cannot be disclaimed is
limited to the time period as specified in the express warranty. Some states do
not allow limitation on how long an implied warranty lasts, so the above
limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with
product use or performance except as may otherwise be accorded by law.
Some states do not allow the exclusion of incidental or consequential damages,
so the above exclusion or limitation may not apply to you. This warranty gives
specific legal rights, and you may also have other rights which vary from state to
state. This warranty supersedes all prior warranties.

Table of Contents
Safety Rules
Unpacking Your Fan
Installing Your Fan
Hanging Your Fan
Making the Electrical Connections
Finishing the Installation
Attching the Fan Blades
Installing the Light Kit
Installing without the Light Kit
Operating Your Transmitter
Care of Your Fan
Troubleshooting
Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13

Safety Rules 1.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
1 . To reduce the risk of electric shock, ensure electricity has been turned off
at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two steel
screws (and lock washers) provided with the outlet box for mounting to
the outle t box . Most outlet boxe s commonly used fo r the support of
lighting fixtures are not acceptable for fan support and may need to be
replaced, consult a qualified electrician if in doubt.
5. The outlet box and support structure must be securely mounted and capable
o f reliably supporting a minimum of 35 pounds. Use only UL Listed outlet
boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from
the trailing edge of the blades to the floor.
7. Do not operate reversing switch while fan blades are in motion. Fan
must be turned off and blades stopped before reversing blade
direction.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After marking electrical connections, spliced conductors should be
turned upward and pushed carefully up into outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
12. Electrical diagrams are reference only. Light kits that are not packed
with the fan must be UL Listed and marked suitable for use with the
model fan you are installing. Switches must be UL General Use
Switches. Refer to the Instructions packaged with the light kits and
switches for proper assembly.
NOTE
READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.

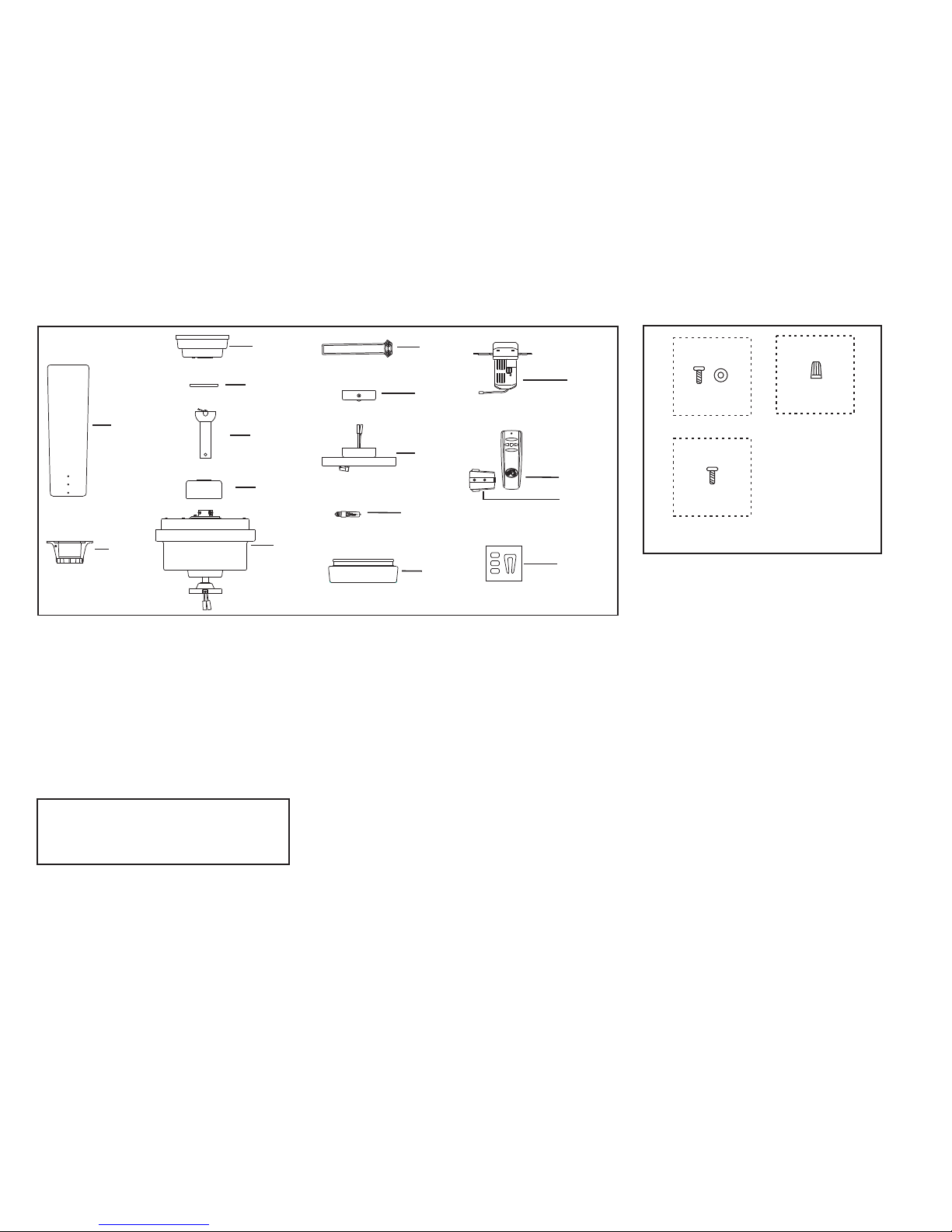

2. Unpacking Your fan
3
1
2
6
4
7
9
16
b
a
c
5
10
8
11
13
12 15
14
14A
9. Switch cup (1)
10. Light kit (1)
11. 50 Walt E11 bulb (1)
12. Glass shade (1)
13. Receiver (1)
14. Transmitter (1)
14A.Mounting plate with 2 mounting screws
for Remove Control
15. Balancing kit (1)
1.
2. Hanger bracket (1)
3. Canopy (1)
4. Canopy cover (1)
5. Ball/downrod assembly (1)
6. Collar cover (1)
7. Fan motor assembly ( 1 )
8. Set of blades brackets (5)
Set of blades (5) (MDF blades)
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 888-886-1579
16. Loose parts bag containing:
a . Blade attachment hardware (16 screws
and paper washers)
b. Mounting hardware (3 plastic wire
connectors)
c. Set of blade bracket hardware (11 screws)
Unpack your fan and check the contents. You should have the following items:

Tools Required
P h i l l i p s s c r e w d r i v e r , s t r a i g h t s l o t
screwdriver, adjustable wrench, step ladder,
and wire cutters.
Mounting options
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 40 lbs). Do
not use plastic outlet boxes.

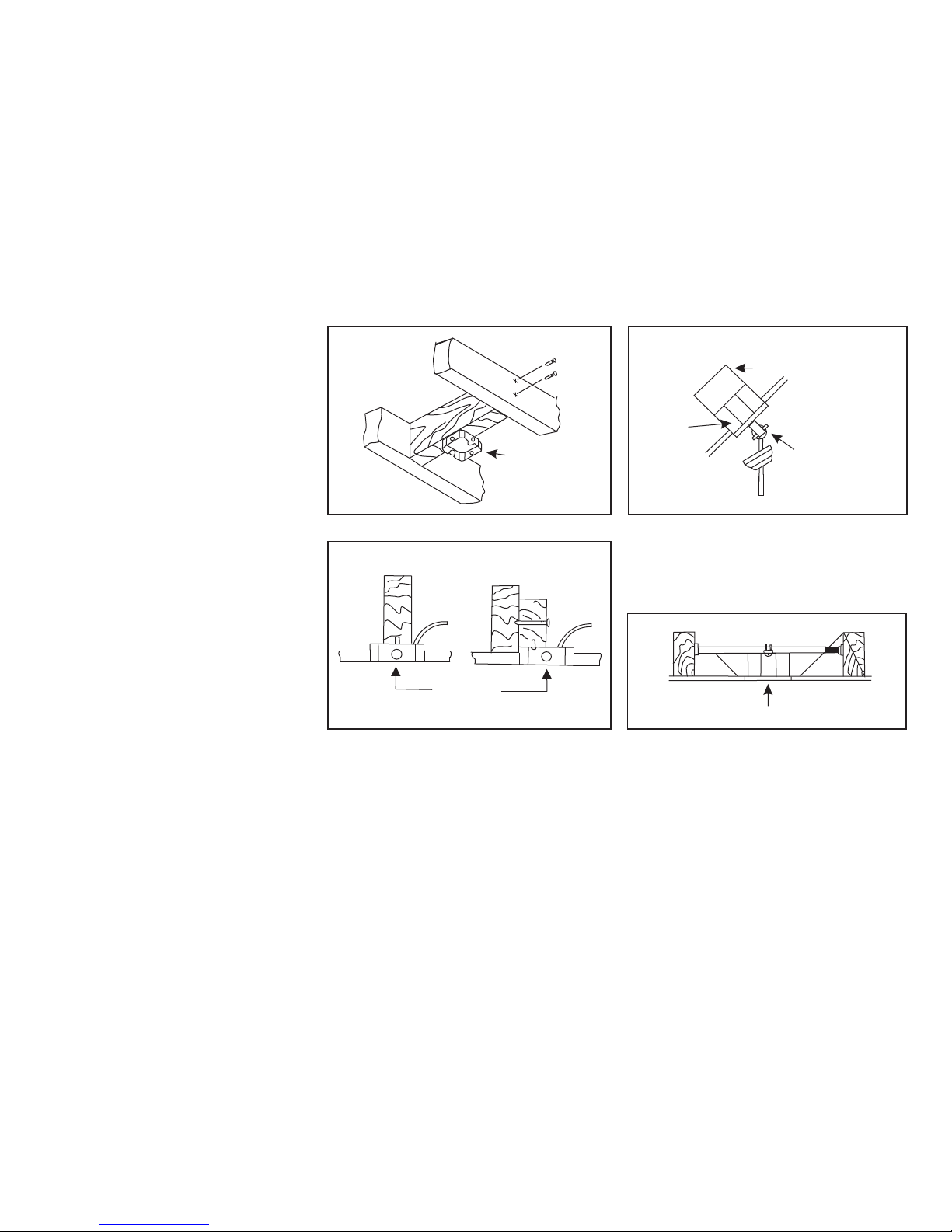

Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
Installing Your Fan 3.
Note: You may need a longer downrod to
m a i n ta i n p r o p er b l ad e c le a r a nc e wh e n
installing on a steep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at your Hampton Bay Retailer).
Outl et bo x
Figure 2
Outlet box
Figure 1
Provi de st rong
sup por t
Reces sed
out let box
Moun ting brac ke t
ope ning must be
towar d the top
Figure 3
Angled ceiling
maximum
15°angle
Outlet box
Figure 4

Hanging the Fan
REMEMBER to turn off the power. Follow the steps
below to hang your fan properly:
Step 1. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket ( Figure 5)
Step 2. Secure the hanger bracket to the ceiling outlet
box with the screws and washers provided with your
outlet box.
Step 3 . Remove the pivot pin, lock pin and set screws
from the downrod assembly.
Step 4. Route wires exiting from the top of the fan
motor through the collar cover, canopy cover, ball,
downrod and ball cover. (Figure 6)
Step 5. Align the holes at the bottom of the downrod
with the holes in the collar on top of the motor
housing (Figure 6). Carefully insert the pivot pin
through the holes in the collar and downrod. Be
careful not to jam the pin against the wiring inside the
downrod. Insert the split pin through the hole near the
end of the pivot pin until it snaps into its locked
position, as noted in the circle inset of Figure 6A.
.
Step 6. Tighten two set screws on top of the fan
motor firmly. (Figure 6)
Step 7. Place the downrod ball into the hanger bracket
socket.
IF YOU WANT TO CHANGE THE DOWNROD
NOTE: Your fan comes with a 4.5" downrod attached to
the hanger ball. (Longer downrods are available at
Hamton Bay Retailer)
Step 1. Remove the hanger ball from the 4.5" downrod
by loosening the set screw at the top of the downrod
which holds the hanger ball to the downrod.
Step 2. Slide the hanger ball down the downrod and
removet he support pin.
Step 3. Insert the support pin in the holes at the top of
the 66" downrod and slide the hanger ball up the 6"
downrod. M ake sure the support pin is properly seated
in the grooves in the top of the hanger ball.
Step 4. T ighten the set screw firmly.
Please refer to Figure 6A and .Figure 6
WARNING
FAILURE TO PROPERLY INSTALL LOCKING
PIN AS NOTED IN STEP 7 COULD RESULT
IN FAN LOOSENING AND POSSIBLY
FALLING.
4. Hanging Your Fan
Mounting
screws
(supplied with
electrical box)
Hook
Ceiling
mounting
plate
UL Listed
electrical
box
Figure 5 120V Wires
Washers
Split Pin
Collar Cover
Pivot Pin
Motor Collar
Figure 6
Lead Wires
Ball/Downrod
Assembly
Canopy
Pin in
locked
position
Figure 6A

Making the Electrical Connections 5.
Figure 8
Receiver
Mounting
bracket
ON
Figure 7
Code switch
Rubber
cover
Making the Electrical
Connections
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at the
main fuse box before wiring.
NOTE: This remote control unit is equipped
with 16 code combinations to prevent possible
interference from or to other remote units.
The frequency switches on your receiver and
transmitter have been preset at the factory.
Please recheck to make sure the switches on
transmitter and receiver are set to the same
position, any combination of settings will
operate the fan as long as the transmitter and
receiver are set to the same position. (Figure
7)
Step 1. Insert the receiver into the mounting
bracket with the flat side of the receiver
facing the ceiling. (Figure 8)
S t e p 2 . M o t o r t o R e c e i v e r E l e c t r i c a l
Connections: Connect the black wire from
the fan to black wire marked "TO MOTOR L".
Connect the white wire from the fan to
thewhite wire marked "TO MOTOR N" from
the receiver. Connect the blue wire from the
fan to the blue wire marked "For Light" from
the receiver. Secure the wire connections with
the plastic wire nuts provided. (Figure 9)
Step 3. Receiver to House Supply Wires
Electrical Connections: Connect the black
(hot) wire from the ceiling to the black wire
marked "AC in L" from the receiver.
Connect the white (neutral) wire from the
ceiling to the white wire marked "AC in N"
f r o m t h e R e c e i v e r . S e c u r e t h e w i r e
connections with th e pla stic wire nuts
provided. (Figure 9)
S t e p 4 . If your outlet box has a ground wire
( g r e e n o r b a r e c o p p e r ) c o n n e c t i t
to the fan ground wires; otherwise connect
the hanging bracket ground wire to the
m o u n t i n g b r a c k e t . S e c u r e d t h e w i r e
connection with a plastic nut provided. After
connecting the wires spread them apart so
that the green and white wires are on one side
of the outlet box and black and blue wires are
on the other side. Carefully tuck the wire
connections up into the outlet box. (Figure 9)

Figure 10
Outlet box
Mounting
bracket
Canopy
Screw
Screw
Finishing the Installation
Step 1. Tuck connections neatly into ceiling outlet box.
Step 2. Remove one screw from the hanger bracket
and loosen the other screw approximately 1/4″.
Step 3. Align the canopy up to ceiling and over the
loosened screw. Place the canopy into key hole and
rotate canopy clockwise. (Figure 10)
Step 4. Secure the canopy by using previous
removed screw.
Step 5. Place the canopy over the canopy and
rotate canopy cover clockwise until locked
into right position.(Figure 10)
6. Finishing the Installation
WARNING
MAKE SURE TAB AT BOTTOM OF HANGER
BRACKET IS HANGER PROPERLY SEATED IN
GROOVE OF HANGER BALL BEFORE
ATTACHING CANOPY TO BRACKET. FAILURE TO
PROPERLY SEAT TAB IN GROOVE COULD CAUSE
DAMAGE TO ELECTRICAL WIRING.
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
WHITE
WHITE
BLACK
BLACK
BLACK
BLUE
BLUE
GREEN
Figure 9
ON
Canopy Cover

Attaching the Fan Blades 7.
Attaching the Fan Blades
Step 1. Attach the blades to the blade brackets
using the screws provided as shown in Figure 11.
Start a screw into the blade bracket, but do not
tighten. Repeat for the 2 remaining screws and
washers.
Step 2. Tighten each screw securely. Make sure the
blade is straight.
Step 3. Use the 10 screws from the loose parts bag
containing(c). Fasten the blade assemblies to the
motor (Figure 12) then tighten the two screws to
each blade assemblies (Figure 12A).
Step 4.
Install an optional light kit if you wish.
Follow the instructions installing with the light kit.
Touching
ceiling
Figure 13
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT
BEND THE BLADE HOLDERS WHILE INSTALLING,
BALANCING THEBLADES, OR CLEANING THE FAN.
DO NOT INSERT FOREIGN OBJECTS BETWEEN
ROTATING FAN BLADES.
The following procedure should correct most fan
wobble issues. Check after each step.
Step 1. Check that all blades and blade bracket
screws are secure.
(Please refer to
the introduction provide in the blade balancing kit,
which is individually packed.)
Step 2. M ost fan wobble problems are caused
when blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of one
of the blades. Measure this distance as shown in
Figure 13. Rotate the fan until the next blade is
positioned for measurement. Repeat for each
blade. The distance should be equal within 1/8".
If all blade levels are not equal, you can adjust the
blade level with the following procedure.
Step 3. Use the enclosed Blade Balancing Kit if the
blade wobble is still noticeable.
Step 4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side) blades
can redistribute the weight and possibly result in
smoother operation.
Figure 12
Motor assembly
Blade Bracket
Blade
bracket
Blade
Screws
Figure 11
Washer
Figure 12A
Blade Bracket
Screw
Motor Assembly

8. Installing with the Light Kit
Step 1. Remove three screws from the switch housing. Position
the Switch Housing on the Light Kit Fitter and connect the
connector from the light kit and fan. Secure the light kit by
tightening three screws previously removed. (Figure 14)
Step 2. Place the Halogen Bulb into the Light Kit. (Figure 14)
Figure 14
Step 3. Twist the Glass onto Light Kit Fitter securely. (Figure 15)
Step 4.
(Figure 16)
Restore power and your Light Kit is ready for operations.
Figure 16
Connection plugs
Halogen Bulb
Switch Housing
Light Kit Fitter
Figure 15
Light Kit Fitter
Glass Shade
NOTE: Light bulb have no warranty, can be purchased
at local home improvement store or from our service
center.
REMEMBER to disconnect the power. The fan blades must
already be attached to the fan.
Your fan and light kit though pre-wired have been
disassembled at the factory to ease in shipping. Please
follow these steps to complete the installation of your fan
and light. TO REDUCE THE RISK OF FIRE DO NOT
EXCEED MAXIMUM WATTAGE RATING.
Light Kit
Screw

Installing w 9.ithout the Light Kit

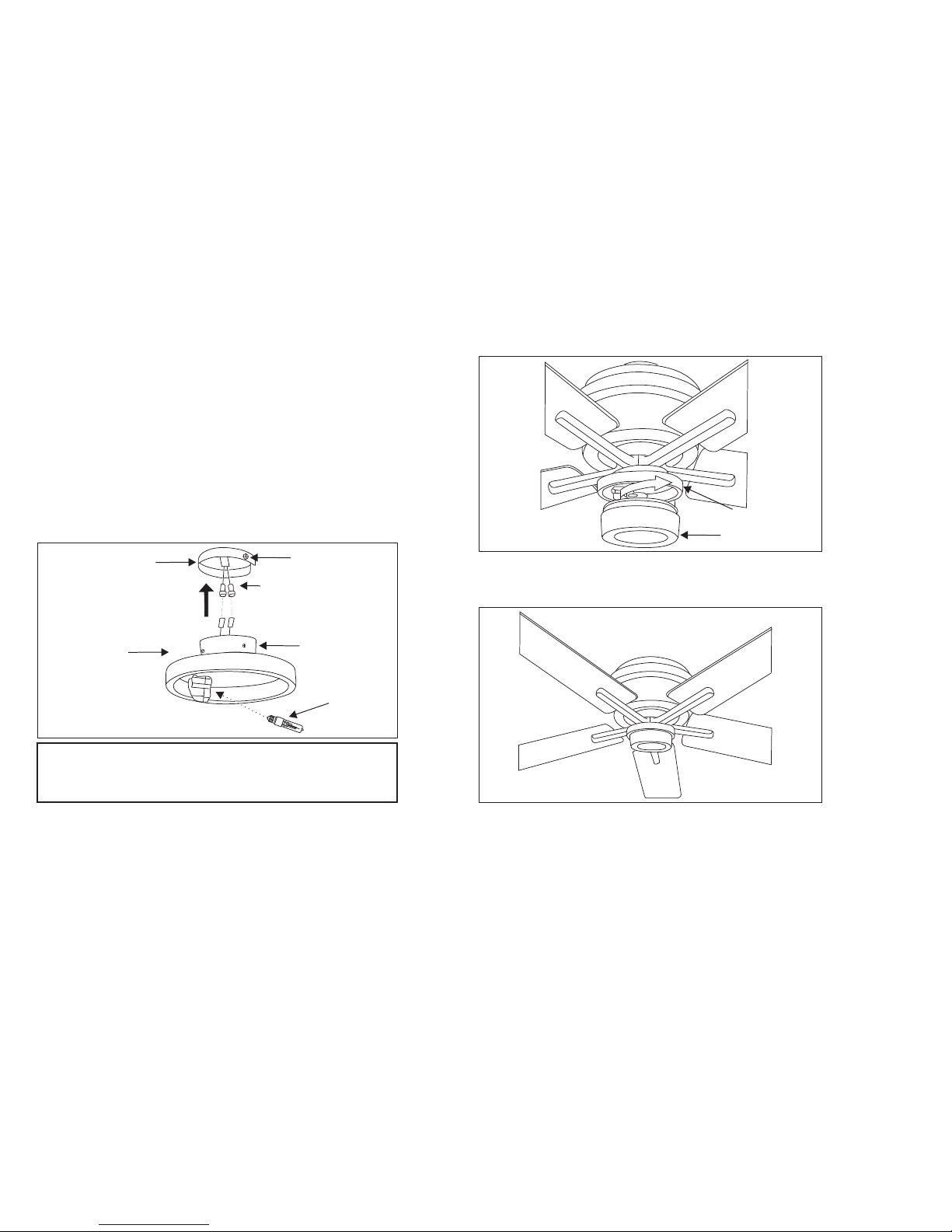

Step 1. Remove the light kit from the fan.
Disassemble the screw on the light kit. ( Figure 17)
Step 3. Finish look of fan assembly without Light kit. (Figure 19)
Figure 17
Screws
Light Kit
Step 2.
the fan motor assembly) and attach securely using previouly
remove screws. ( Figure 18)
Position the switch cup on the switch box (Included in
REMEMBER to disconnect the power. The fan blades must
already be attached to the fan.
Your fan and light kit though pre-wired have been
disassembled at the factory to ease in shipping. Please
follow these steps to complete the installation of your fan
and light. TO REDUCE THE RISK OF FIRE DO NOT
EXCEED MAXIMUM WATTAGE RATING.
Figure 18
Motor Assembly
Screws
Switch Cup
Switch Box
Figure 19

Restore power to ceiling fan and test for
proper operation.
1. " LOW, MED, HI" buttons:
These three buttons are used to set the fan
speed as follows:
LO= Low speed MED= Medium speed
HI= High speed
2. "OFF" button:
This button turns the fan off.
3. The "LIGHT" button turns the light ON or
OFF . Press and release the button to turn the
light ON or OFF.
T he control also controls the brightness
setting of the light.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans, etc.
The Reverse switch is located on top of the
motor assembly. Slide the switch to the Left
for warm weather operation. Slide the switch
to the Right for cool weather operation.
NOTE: Wait for fan to stop before changing
the setting of the slide switch.
Warm weather - (Forward) A downward
air flow creates a cooling effect as shown in
Figure 21. This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Figure 22. This allows you to set your
heating unit on a lower setting without
affecting your comfort.
Figure 21
Figure 22
Figure 20
10. Operating Your Transmitter
LIGHT /DIMMER
LO MED HI
FAN OFF

Installing the battery:
Install 9 volt battery (not included), to
prevent damage to transmitter, remove the
battery if not used for long periods.
Here are some suggestions to help you maintain your fan
1. Because of the fan's natural movement, some connections may become loose. Check the
support connections, brackets, and blade attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from ceiling)
2. Clean your fan periodically to help maintain its new appearance over the years. Use only
a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a
lacquer to minimize discoloration or tarnishing. Do not use water when cleaning. This
could damage the motor, or the wood, or possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to the wood blades for additional
protection and enhanced beauty. Cover small scratches with a light application of shoe
polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL
BOX BEFORE YOU ATTEMPT ANY REPAIRS. REFER
TO THE SECTION "MAKING ELECTRICAL CONNECTIONS”
Care of Your Fan 11.
Figure 23

Problem
Fan will not start.
Fan sounds noisy.
Remote control
malfunction:
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight.
Check that light bulb is also secure.
6. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Do not connect the fan with wall mounted variable speed control (s)
2. Make sure the dip switches are set correctly.
12. Troubleshooting

c

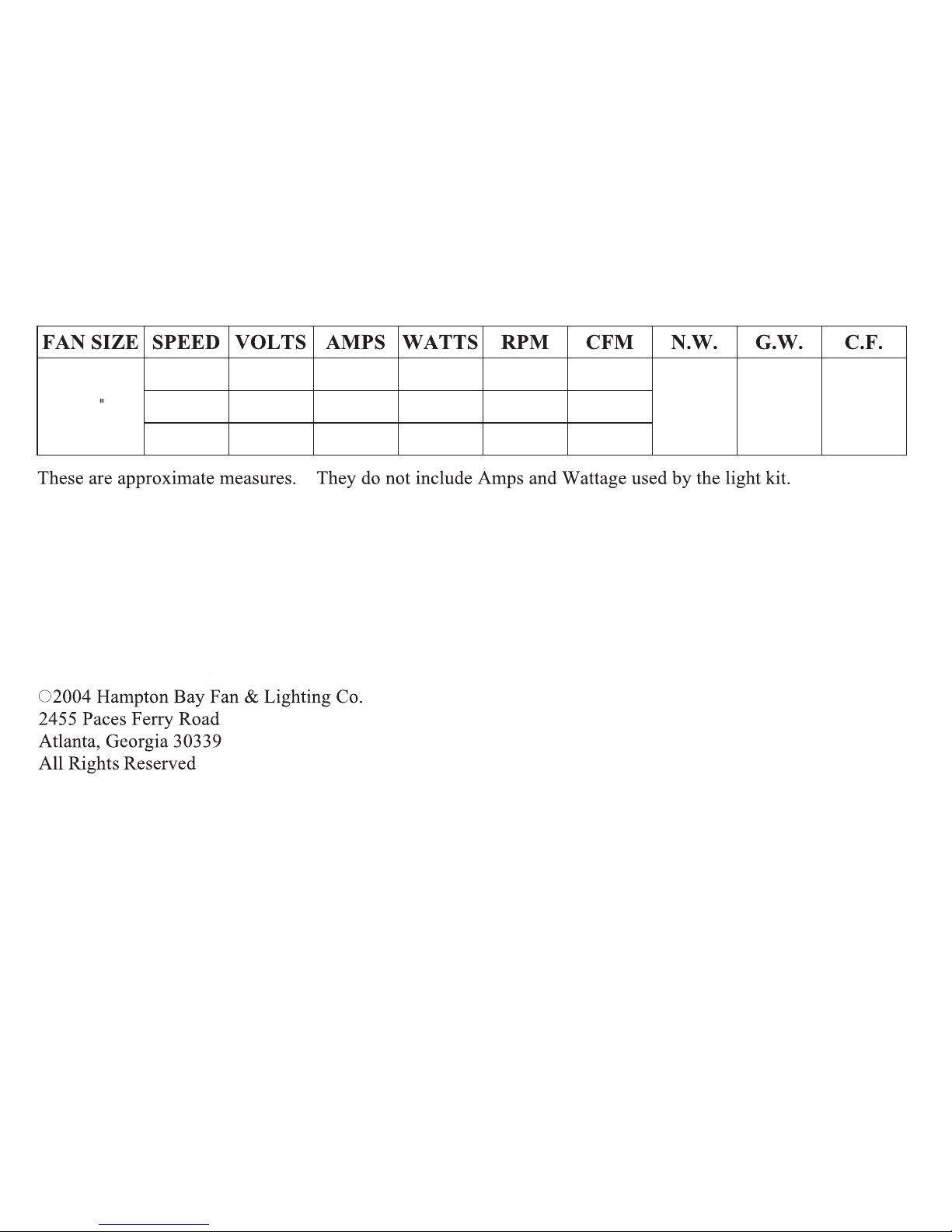

Specifications 13.
120
120
120 0.304
0.389
0.443
15.6
30.8
51.8
92
135
183
1670.26
2457.28
3311.34
kgs
7.28 kgs
7.9 1.50
Low
Med
High
46
