Cohutta
in Ceiling Fan
Owner’s Manual
Ventilador de Techo de m
Manual del Propietario
Cohutta
52
1,32
705 114

®
Cohutta by Hampton Bay

Cohutta
Ceiling Fan by Hampton Bay
Date Purchased
Store Purchased
ETL Model No.
Serial No.
Vendor No.
UPC
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Y our Fan . . . . . . . . . . . . . . 2
Installing Y our Fan . . . . . . . . . . . . . . . 3
Installing the Light Kit. . . . . . . . . . . . . 8
Care of Y our Fan . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . 11
Warranty Information . . . . . . . . . . . . 12
222875
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
52
CF652KR-CHT
845952000216

Safety Rules - Read and Save These Instructions
WARNING
WARNING
ATTENTION
To reduce the risk of electric shock, insure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
WARNING: To reduce the risk of electrical shock or fire, do not
use this fan with any solid-state fan speed control device. It will
permanently damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the
screws provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 pounds. Use only
UL Listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7 feet clearance from
the trailing edge of the blades to the floor.
Avoid placing objects in path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades.
A dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
1.
2.
3.
4.
5.
6.
7.
8.
9.
After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box and
ungrounded conductor on the other side of the outlet box.
All set screws must be checked and retightened where necessary
before installation.
10.
11.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN
INSTALLING THE BRACKETS, BALANCING THE BLADES OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –
BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET
BOX.
FAN INCLUDES A 190W LIMITER TO COMPLY WITH THE
DEPARTMENT OF ENERGY 2009 REGULATION. LAMPING THIS
PRODUCT OVER 190W WILL CAUSE THIS FAN TO NOT LIGHT.
PLEASE USE BULBS WITH A TOTAL WATTAGE UNDER THE 190W
REGULATION.
1

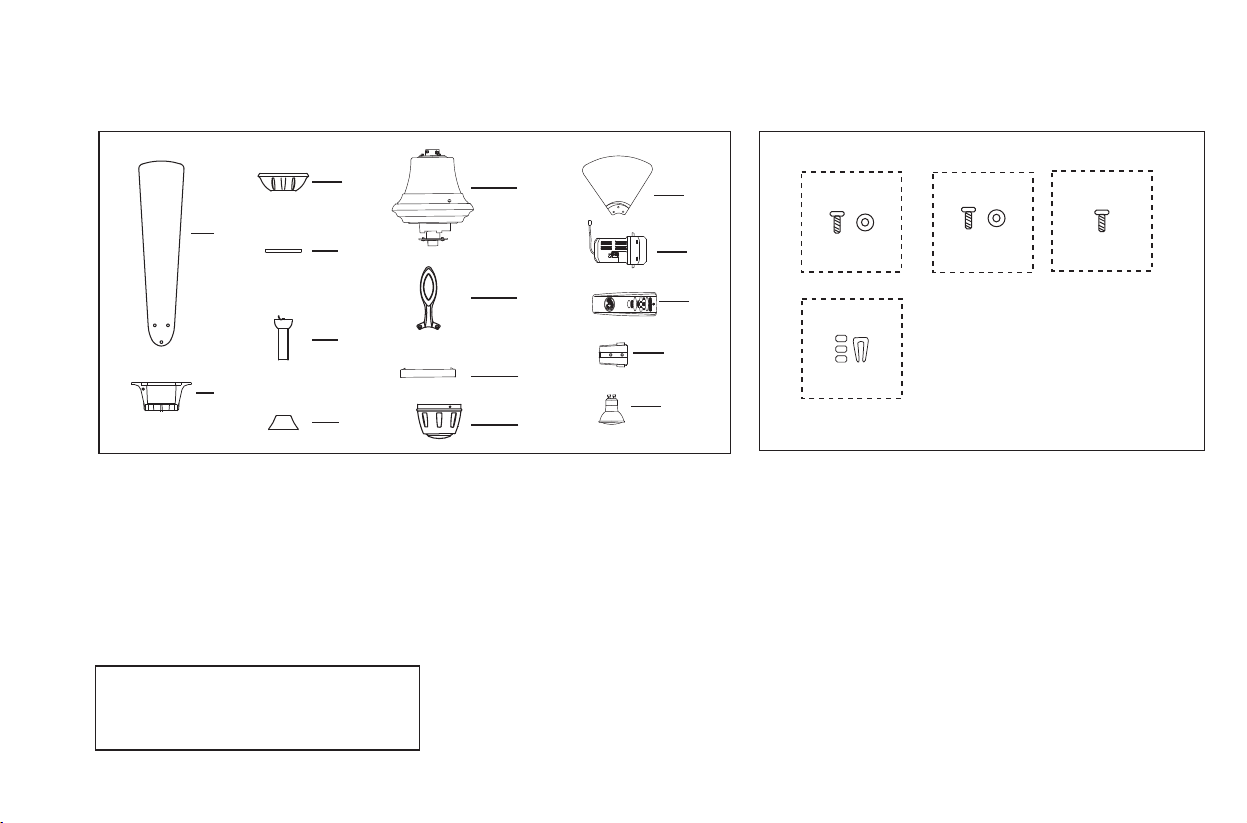

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
9. Compartment cover (1)
10. Light fitter (1)
11. Small fan blades (3)
12. Receiver(1)
13. Transmitter (1)
13A. holder with 2 mounting screws Transmitter
14. Bulb(1)
1. Fan
2. Hanger bracket(1)
3. Canopy (1)
4. Canopy cover(1)
5. Downrod assembly (1)
6. Coupling cover(1)
7. Fan motor assembly(1)
8. Blade holders (3 )
blades (3) 15. Loose parts bag containing:
a. Blade hardware
(10 screws ( )and paper washers)6 mm
b. Small fan blade attachment hardware
c.
d.
attachment
Set of b hardware (1 screw) lade holders
Balancing kit (1)
(10 screws ( )and paper 13 mm washers)
3
6
4
5
1
2
8
10
7
9
11
12
ca
d
b
13
13A
14
2
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-262-7511

Installing Your Fan
WARNING
Outlet Box
Outlet Box
Outlet Box
Figure 2
Figure 1
Ceiling
Mounting
Plate
Provide Strong
Support
Recessed
Outlet Box
Figure 3
Figure 4
Tools Required
Mounting Options
Phillips screwdriver, straight slot
screwdriver, step ladder and wire cutters.
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 35 lbs). Do
not use plastic outlet boxes.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPT-
ABLE FOR FAN SUPPORT AND USE THE
MOUNTING SCREWS PROVIDED WITH THE
OULET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE
MAY NOT BE ACCEPTABLE FOR FAN SUPPORT
AND MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Figures 1~3 are examples of different ways to
mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. The
maximum angle allowable is 18°. If the
canopy touches downrod, remove the
decorative canopy bottom cover and turn the
canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at any Home Depot store).
3

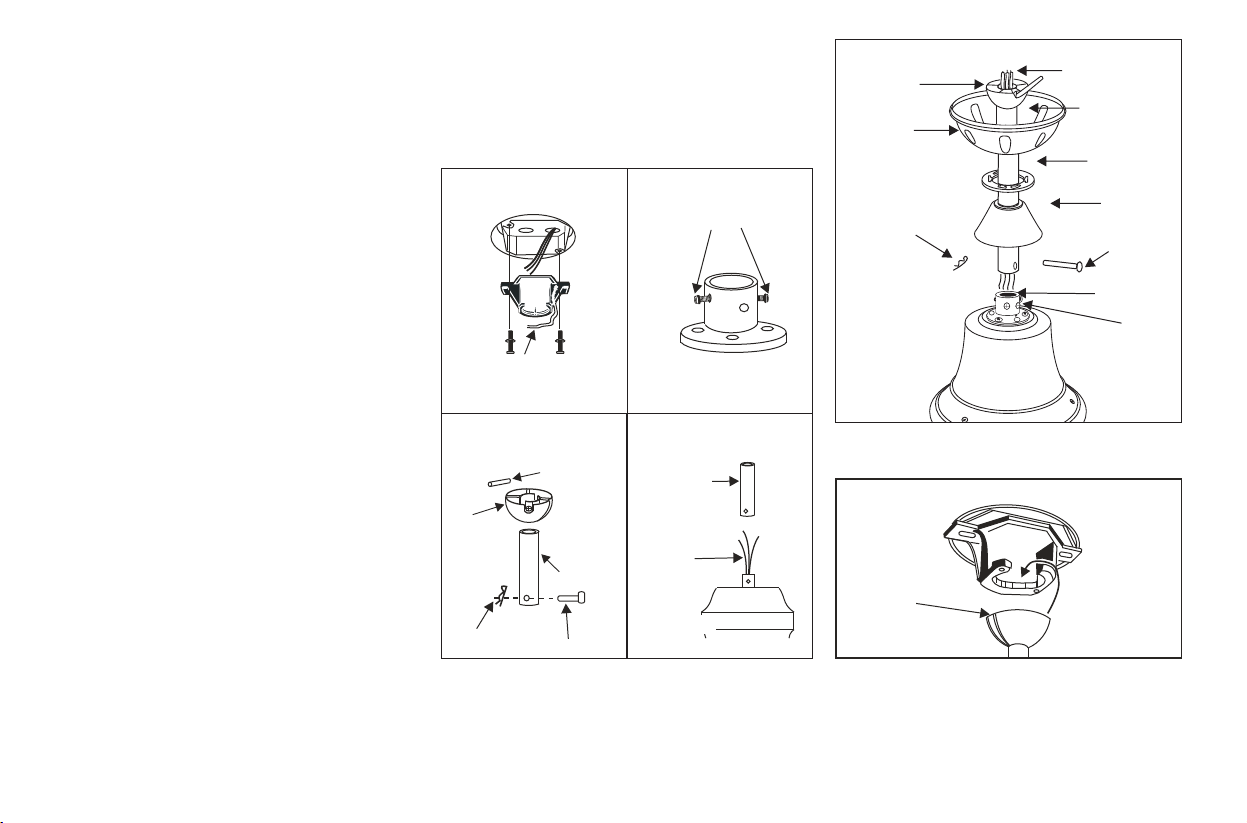

Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
1.
2.
3.
4. Carefully feed fan wires up through the
downrod. (Figure 8) Thread the rod into the
coupling. Next, line up holes and replace lock
pin and hitch pin. Tighten set screws.
5. Slip coupling cover, canopy cover and
canopy onto downrod. (Figure 9) Carefully
reinstall hanger ball onto rod being sure that
cross pin is in correct position, set screws are
tighten and wires are not twisted.
Secure the hanger bracket to the ceiling
outlet box with the screws and washers
provided with your outlet box. (Figure 5)
from the motor
assembly.(Figure 6)
Loosen the two set screws
6. Now lift motor assembly into position and place
hanger ball into hanger bracket. Rotate until the
check groove
rotate if this is done correctly.
drops into the registration slot and
seats firmly. (Figure 10) Downrod should not
Figure 6
Downrod
Supply
wires
Figure 8 Figure 10
Registration
slot
Figure 5
Cross pin
Hanger
ball
Downrod
Figure 7
Outlet box
Hanger bracket
Hitch pin Lock pin
Set
screws
Motor Collar
Tighten
Screws
Firmly
Hitch Pin
Hanger ball
Ceiling
Canopy
Lock Pin
Coupling
cover
Canopy cover
Downrod
Lead Wires
Figure 9
4
Remove the hitch pin and lock pin
from downrod .Remove hanger ball from
downrod assembly by loosening set screw,
removing the cross pin,and sliding ball
off rod .
(Figure 7)

Figure 12
Receiver
Hanger
bracket
ON
Figure 11
Code switch
Rubber
cover
Making the Electrical
Connections
1. Insert the receiver into the hanger
bracket with the flat side of the receiver
facing the ceiling. (Figure 12)

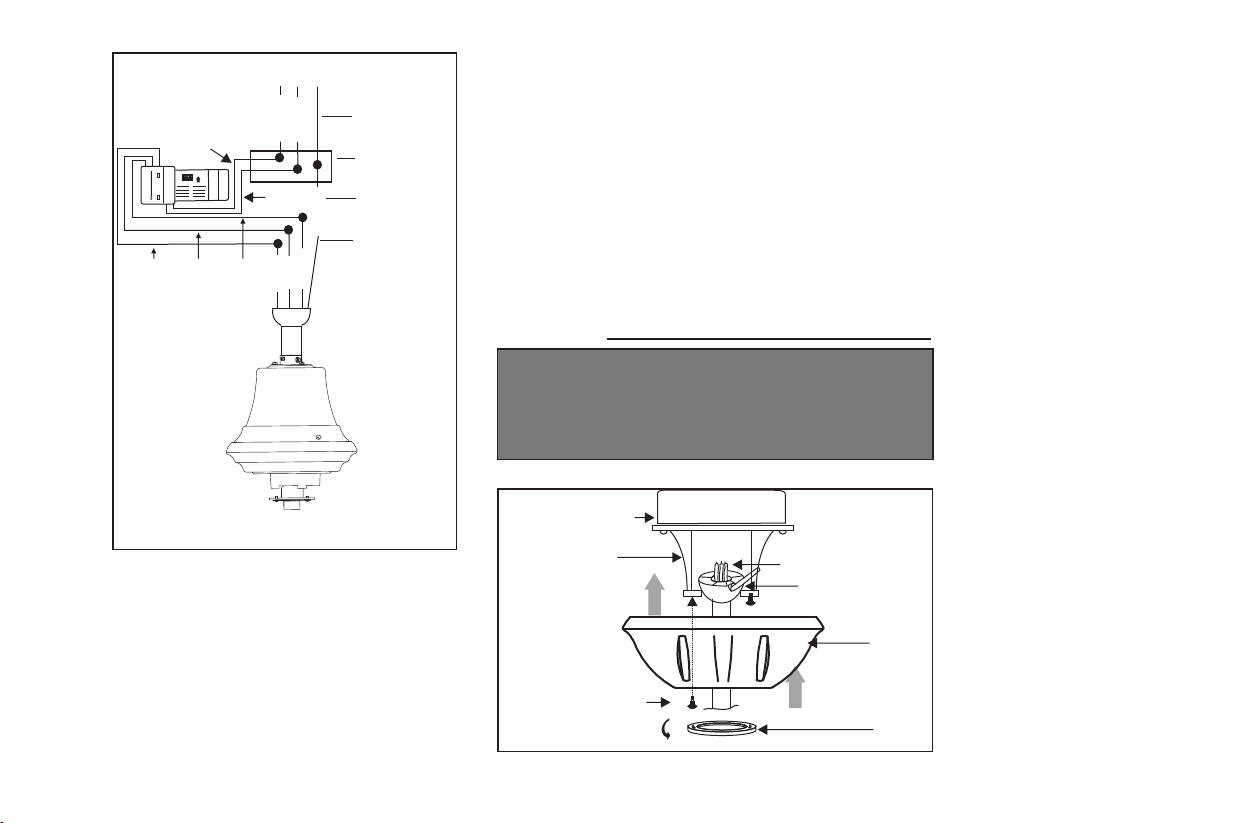

2. Motor to Receiver Electrical Connections:
Connect the black wire from the fan to black
wire marked "TO MOTOR L".
Connect the white wire from the fan to
thewhite wire marked "TO MOTOR N" from
the receiver. Connect the blue wire from the
fan to the blue wire marked "For Light" from
the receiver. Secure the wire connections
with the plastic wire nuts provided. (Figure
13)
3. Receiver to House Supply Wires Electrical
Connections: Connect the black (hot) wire
from the ceiling to the black wire marked
“AC in L" from the receiver. Connect the
white (neutral) wire from the ceiling to the
white wire marked “AC in N" from the
4 . If your outlet box has a ground wire
(green or bare copper) connect it to the fan
ground wires and the hanger bracket ground
(Figure 13)
5
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at
the main fuse box before wiring.
Receiver. Secure the wire connections
with plastic wire nuts provided.
(Figure 13)
wire. Secured the wire connection with a
plastic nut provided. After connecting the
wires spread them apart so that the green
and white wires are on one side of the
outlet box and black and blue wires are on
the other side. Carefully tuck the wire
connections up into the outlet box.
NOTE:
This remote control unit is equipped with
16 code combinations to prevent possible
interference from or to other remote units.
The frequency switches on your receiver
and transmitter have been preset at the
factory. Please recheck to make sure the
switches on transmitter and receiver are set
to the same position, any combination of
settings will operate the fan as long as the
transmitter and receiver are set to the same
position. (Figure 11)

MAKE SURE TAB AT BOTTOM OF HANGER
BRACKET IS PROPERLY SEATED IN GROOVE OF HANGER
BALL BEFORE
ATTACHING CANOPY TO BRACKET. FAILURE
TO PROPERLY SEAT TAB IN GROOVE COULD CAUSE
DAMAGE TO ELECTRICAL WIRING.
Figure 14
Outlet box
Hanger
bracket
Canopy
Screw
Canopy
cover
Lead Wires
Ball/Downrod
Assembly
Finishing the Installation
1. Tuck connections neatly into ceiling outlet box.
2. Remove one screw from the hanger bracket and loosen the other screw around
1/4″.
3. Align the canopy up to ceiling and over the loose screw. Place the canopy into
key hole and rotate canopy clockwise. (Figure 14)
4.Secure the canopy by use previous removed and loosened screw.
5. Place the canopy cover to the canopy and rotate canopy cover clockwise until
it is locked into right position.(Figure 14)
WARNING
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
WHITE
WHITE
BLACK
BLACK
BLACK
BLUE
BLUE
GREEN
ON
6
Figure 13

Attaching the Fan Blades
The following procedure should correct
most fan wobble. Check after each step.
1. Check that all blades and blade holder
screws are secure.
2. Most fan wobble problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
this distance as shown in Figure 18. Rotate
the fan until the next blade is positioned for
measurement. Repeat for each blade. The
distance should be equal within 1/8".
(Figure18)
If all blade levels are not equal, you can
adjust the blade level with the following
procedure.
3. Use the enclosed Blade Balancing Kit if
the blade wobble is still noticeable. Please
refer to the introduction provide in the
blade balancing kit, which is individual
packed.
4. If the blade wobble is still noticeable,
interchanging two adjacent (side
by side)
blades can redistribute the weight and
possibly result in smoother operation.
Touching
ceiling
Figure 18
Figure 17
Figure 16
7
1.Attach the fan blades to the blade holders
by using three screws ( the loose parts bag: a)
and paper washers as shown in Figure 15.
Start a screw into the blade holder, do not
tighten. Repeat for the 2 remaining screws
and washers.
2 .Tighten each screw securely starting with the
center screw. Make sure the blade is straight.
Repeat process for the other blades.
3.Remove the plastic blocks before installing
the blade holder to the fly wheel, discard the
plastic blocks but keep the screws. (Figure
16)
Tighten the blade assemblies onto fly
wheel by tightening two screws previously
removed from the fly wheel. Repeat process
for the other blade holders. (Figure 16)
5. Tighten a small fan blade to the fly wheel
with 3 blade screws (the loose parts bag: b )
provided. Repeat process for the other
blades.(Figure 17)
4.
Blade
holder Blade
Screws
Paper
Washer
Figure 15

Installing the
Light Kit
CAUTION
To Reduce The Risk Of Electric
Your fan and light kit though pre-wired
have been disassembled at the factory to
ease in shipping. Please follow these steps
to complete the installation of your fan and
ATTENTION: The Energy Policy Act of
2005 requires this fan to be equipped with a
190 watt limiting device. If lamping exceeds
190 watts, the ceiling fan's light kit will shut
off automatically.
1. Remove 3 screws on the bottom of light
kit. (Figure 19)
2.Adjust the compartment cover align at the
holes on the bottom of light kit. (Figure 19)
LIGHT BULB HAVE NO WARRANTY, CAN BE
PURCHASED AT LOCAL LIGHT BULB
SPECIALTY STORE OR FROM OUR SERVICE
CENTER.
3. Secure the compartment cover by
tightening 3 screws previously removed.
(Figure 19)
4. Install a bulb to the light kit.(Figure 20)
5.Install the light fitter to the light kit by
aligning slotted on the top of the light filter
and twisting tightly.(Figure 21)
6.Restore power and your ceiling fan is
ready for operations.
NOTE
Figure 20
Figure 21
Light fitter
Light kit
Light Kit
Light fitter
Bulb
Figure 19
8
Shock, Disconnect The Electrical Supply
Circuit To The Fan Before Installing
Light Kit.
REMEMBER The fan blades must
already be attached to the fan.
TO REDUCE THE RISK OF FIRE
DO NOT EXCEED MAXIMUM
WATTAGE RATING.
light.

Operating Your Fan
9
Restore power to ceiling fan and test for
proper operation.
1. " LOW, MED, HI" buttons:
These three buttons are used to set the fan
speed as follows:
LO= Low speed MED= Medium speed
HI= High speed
2. "OFF" button:
This button turns the fan off.
3. The "LIGHT/DIMMER" button turns the
light ON or OFF . Press and release the
button to turn the light ON or OFF.
The Reverse switch is located on top of the
motor assembly. Slide the switch to the Left
for warm weather operation. Slide the switch
to the Right for cool weather operation.
NOTE: Wait for fan to stop before changing
the setting of the slide switch.
Warm weather - (Forward) A downward air
flow creates a cooling effect as shown in
(Figure 23). This allows you to set your air
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in (Figure 24). This allows you to set your
heating unit on a lower setting without
affecting your comfort.
Figure 23
Figure 24
Figure 22
LIGHT/DIMMER
LO MED HI
FAN OFF
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, etc.
Installing the battery:
Install battery (not included), to
prevent damage to transmitter, remove the
battery if not used for long periods.
Figure 25
The button also control the brightness
setting of the light.(Figure 22)
conditioner on a higher setting without
affecting your comfort.
REVER SE

WARNING
1.
2.
3.
4.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
1.
Fan will not start
Fan sounds noisy
Lights shut off and
will not come back
on.
Care of Your Fan Troubleshooting
PROBLEM SOLUTION
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain
its new appearance over the years. Do not use
water when cleaning. Use only a soft brush or
lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish
to the wood blades for additional protection
and enhanced beauty. Cover small scratches
with a light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball
bearings.1.2.3.4.
Here are some suggestions to help you
maintain your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan and switch wire
connections in the switch housing.
Check to make sure the dip switches from the transmitter and
receiver are set to the same frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the
motor hub is tight.
Make sure wire nut connections are not rattling against each
other or the interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated
with a new fan disappear during this time.
If using ceiling fan light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
Make sure there is a short distance from the ceiling to the
canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads
are used between mounting bracket and outlet box.
This unit is equipped with a wattage limiting device. Lamping
in excess of 190 watts will disable your ceiling fan's light kit. To
reset your light kit you must turn the power off and relamp,
keeping the wattage under 190 watts. Restore power to your
ceiling fan and continue normal operation.
Do not connect the fan with a wall mounted variable speed
control(s).
Make sure the dip switches are set correctly.
Remote control 1.
2.
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPY ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
For any additional information on your
Hampton Bay Ceiling Fan, please write to:
10
Summerwind International, LLC.
751 Port America Place,
Suite 850Grapevine,
TX 76051-8301

Specifications
FAN SIZ E SPEED VOLT S AMPS WATT S RPM CF M N.W.G.W.C.F.
LOW
MED
HIGH
These are approximate measures. They do not include Amps and Wattage used by the light kit.
52 120
11
1.64
Distributed by
Your Other Warehouse,
LLC 12100 Little Cayman
Dr. Baton Rouge, LA 70809
0.292
0.372
0.405
14
28
48
74
123
170
2200
3276
4750
6.63 kgs
14.58 lbs
7.53 kgs
16.57 lbs

Lifetime Limited Warranty
(lifetime warranty on motor)
Attach receipt here for easy
location
The Hampton Bay warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a period of lifetime after the date of purchase by the
original purchaser. Hampton Bay also warrants that all other fan parts, excluding any glass or
acrylic blades, to be free from defects in workmanship and material at the time of shipment from the
factory for a period of one year after the date of purchase by the original purchaser. We agree to
correct such defects without charge or at our option replace with a comparable or superior model if
the product is returned to Hampton Bay. To obtain warranty service, you must present a copy of the
receipt as proof of purchase. All costs of removing and reinstalling the product are your
responsibility. Damage to any part such as by accident or misuse or improper installation or by
affixing any accessories, is not covered by this warranty. Because of varying climatic conditions
this warranty does not cover any changes in brass finish, including rusting, pitting, corroding,
tarnishing or peeling. Brass finishes of this type give their longest useful life when protected from
varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no
other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not
limited to. Those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period
as specified in the express warranty. Some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for
incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specific legal rights, and you may also have other rights which vary from state
to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as
part of a claim on the warranty must be paid by the customer.
You must present a copy of the original
purchase receipt to obtain warranty
service.
For any additional information on your
Hampton Bay Ceiling Fan, please write to:
Summer wind International, LTD.
751 Port America Place,
Suite 850 Grapevine,
TX 76051-8301
12
