HAMPTON BAY Rapallo User manual

Rapallo
52" Flush Mount Ceiling Fan
Owner’s Manual
Hampton Bay®
Contemporary Collection
Rapallo
Ventilador de Techo con Instalación al Ras de 52"
Manual del Propietario

110-083
792145352006
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varying climatic conditions in the United States this warranty does
not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or
peeling. Brass finishes of this type give their longest useful life when protected from
varying weather conditions. A certain amount of wobble is normal and should not be
considered a defect. Servicing performed by unauthorized persons shall render the warranty
invalid. There is no other express warranty. The retailer hereby disclaims any and all
warranties, including but not limited to. Those of merchantability and fitness for a
particular purpose to the extent permitted by law. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specified in the express
warranty. Some states do not allow limitation on how long an implied warranty lasts, so the
above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion or limitation may
not apply to you. This warranty gives specific legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties.
Lifetime Limited Warranty
11289

Table of Contents
Safety Rules.....................................................................................................................................
Unpacking Your Fan ...........................................................................................................................
Installing Your Fan .............................................................................................................................
Installing the Light Kit........................................................................................................................
.............................................................................................................................
Care of Your Fan ...............................................................................................................................
Troubleshooting ................................................................................................................................
Specifications ...................................................................................................................................
Operating Your Fan
1.
2.
3.
7.
8.
9.
10.
11.

1. Safety Rules
1.To reduce the risk of electric shock, insure electricity has been
turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not
use this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for
the support of lighting fixtures are not acceptable for fan support
and may need to be replaced, consult a qualified electrician if in
doubt.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the outlet
box.
12. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for
use with the model fan you are installing. Switches must be UL
General Use Switches. Refer to the Instructions packaged with
the light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 50 pounds. Use
only UL Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance
from the trailing edge of the blades to the floor.
7. Do not operate the reverse switch while the fan blades are in
motion. The fan must be turned off and the blades stopped before
reversing the blades direction.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY
OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH OF
THE BLADES.
NOTE
READ AND SAVE ALL INSTRUCTIONS!

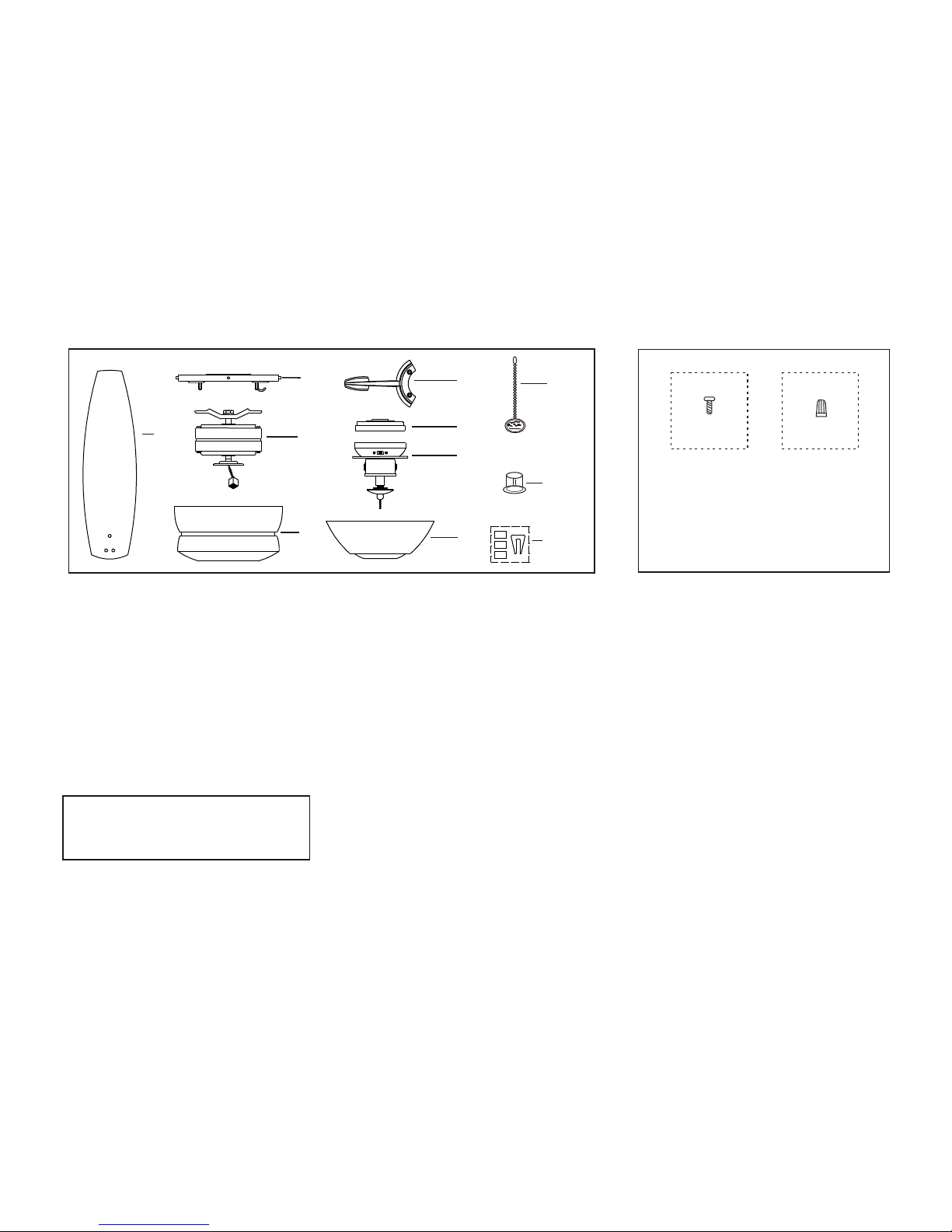

Unpack your fan and check the contents. You should have the following items;
.
1 Fan blades (3)
2. Mounting bracket
3. Fan motor assembly
4. Motor housing
6. Mounting plate
5. Blade holders (3)
7. Light kit
8. Glass shade
9. Pull chain fobs (2)
11. Balancing kit
10. Extra plug
3
1
29
4
6
7
5
811
12
10
ab
12. Loose parts bag containing:
a. Blade attachment hardware
()
b. Mounting hardware
( 3 plastic wire connectors)
10 screws
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGEDOR MISSING.
CALL TOLL FREE 1-877-898-1881 Unpacking Your Fan 2.

Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustable wrench, step
ladder, and wire cutters.
Mounting Options
If there isn't an existing UL listed
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and building materials. The
outlet box and its support must be able
to fully support the moving weight of the
fan (at least 50 lbs). Do not use plastic
outlet boxes.

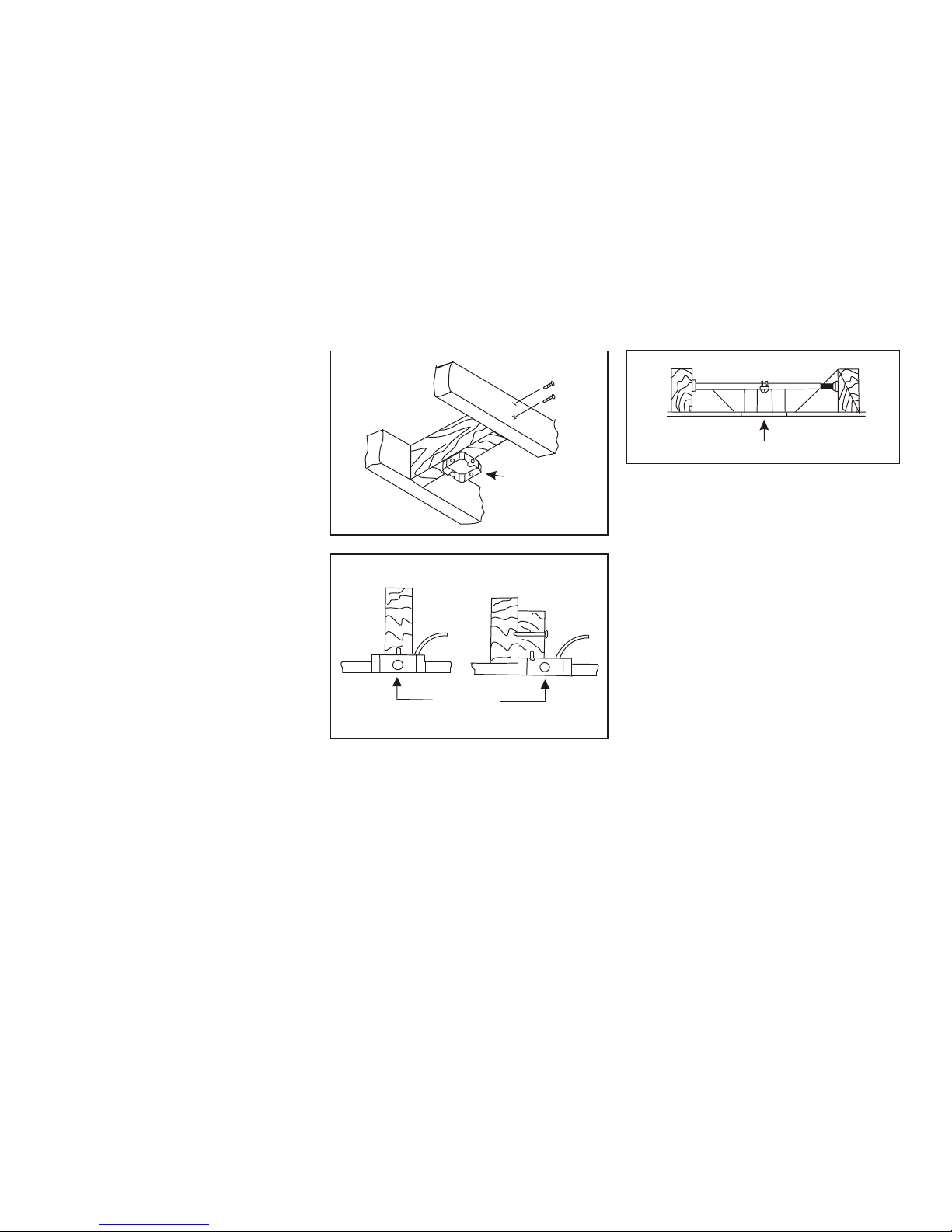

Figures 1 and 2 are examples of different
ways to mount the outlet box.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need
an installation hanger bar.(Fig.3)
(available at any Home Depot store).
Outlet box
Outlet box
Outletbox
Figure 1
Figure 2
Figure 3
3. Installing Your Fan

Hanging the Fan
REMEMBER to turn off the power.
Follow the steps below to hang your fan
properly:
Step 1. Attach the mounting bracket to
the outlet box with two screws and
washers provided with the outlet box.
Make sure the bracket is tight and
secured. (Fig. 4)
Step 2. Lift fan into position by hanging
the motor assembly onto the hook from
the ceiling mounting bracket allowing it
to hang freely. (Fig. 5)
Outlet box
Mounting bracket
Figure 4
Figure 5
Motor
Making the Electrical
Connections
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at
the circuit breaker or main fuse box before
wiring.
Follow the steps below to connect the fan
to your house supply wires. Secure the
wire nuts supplied with your fan by
wrapping the connections with electrical
tape.
Step 1. Connect the Black (hot) wire from
the ceiling to the black and blue wires from
the fan. Connect the white (neutral) wire
from the ceiling to the white wire from the
fan. (Fig. 6)
Step 2. If your outlet box has a ground wire
(green or bare copper) connect the fan and
mounting bracket ground wires to it. If your
outlet box does not have a ground wire,
then connect the fans and mounting
bracket wires together. Secure wire
connection with the plastic wire nuts
provided.
4.

SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Fan
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
Figure 6
Diagram indicates optionallight kit wiring.
5.
Finishing the
Installation
Step 1. Move fan into position over the
four mounting studs and secure with the
provided washers and nuts.
Raise the motor housing up
against the mounting bracket, the four
supports inside the housing should be
placed against the four studs on
, twist the housing clockwise until
snug. (Fig. 8)
(Fig. 7)
Step 2.
mounting
bracket
Figure 7
Figure 8
Washers
Nuts
Mounting
studs
Motor
housing
Studs
WHITE
BLUE
BLACK WHITE

6.
Rubber
washer
Blade
arm
Figure 9
Blade
Screws
Attaching the Fan
Blades
Step 1 Attach blades to blade arms using
three screws and rubber washers.
Start a screw into the arm, do not
tighten. Repeat for the 2 remaining
screws and washers.
Step 2 Tighten each screw securely
starting with the center screw. Make sure
the blade is straight.
(Fig. 9)
blade
Repeat steps for the
remaining blades.
Step 3 Fasten the blade arms to the motor
by inserting the tab from the blade arms
to the slot in the bottom motor housing,
then tighten the two screws and washers
already installed in the blade arms. (Fig.
10)
Figure 10
Motor
Blade arm
Slot
Tab
Installing the Mounting
Plate
Step 1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened
from the mounting ring, turn mounting plate
until it locks in place at the narrow section of
the key holes. Secure by tightening the 2
screws previously loosened and the one
previously removed. (Fig. 11)
Figure 11
Mounting plate Mounting ring
Screws
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE ARMS WHILE
INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.

Figure 12
7. Installing the Light Kit
Screws
Pull chain
Glass
shade
Bulbs
Light kit
assembly
Glass cap
Metal nut
Decorative nut
Mounting plate
Wire connection
plugs
NOTE: Before starting installation, disconnect the power by turning off the circuit
breaker or removing the fuse at fuse box.
Turning power off using the fan switch is not sufficient to prevent electric shock.
1.
(Fig. 12)
2. Carefully push all wires back into the switch housing, then install the light kit
assembly onto the mounting plate with 3 screws provided. Be sure to tighten all
screws. (Fig. 12)
3. Install 3 x 40W bulbs (not included).
4. Remove the metal nut, glass cap and decorative nut from the light kit. Place
glass shade over the light kit stem, secure with the metal nut (rubber side on
the top), glass cap and decorative nut. Do not overtighten. (Fig. 12)
5. Insert the 2 pull chain through the eyelet in the shade and cap. Secure the
glass cap and decorative nut provided. (Fig. 12)
6. Restore power and your light kit is ready for operation.
Note: Make sure to leave enough space between the fan pull chain and the bulbs
so the chain doesn't rub against any of the bulbs.
While holding the light kit assembly under your fan, snap together the wire
connection plugs.
candelabra

Restore power to ceiling fan and test for proper
operation.
Speed Pull Chain Operation:
This pull chain controls the fan speed as follows;
:
1-Pull = High Speed
2-Pulls = Medium Speed
3-Pulls = Low Speed
4-Pulls = Fan Off
The reverse slide switch located on the side of the
switch housing controls the direction of the blade
rotation:.
Speed settings for warm or cold weather depend
on factors such as room size, ceiling height and
number of fans, etc.
NOTE: Wait for the fan to stop before changing
the setting of the slide switch
A
downward airflow creates a cooling effect.
This allows you to set your air conditioner on
a warmer setting without affecting your comfort.
An upward
airflow moves warmer air off the ceiling area.
This allows you to set your heating unit on a
cooler setting without affecting your comfort.
Warm weather - (Counter-Clockwise direction)
(Fig.
14)
Cool weather- (Clockwise direction)
(Fig.
15)
Operating your Fan 8.
Figure 14
Figure 15
Fan without Light Kit (Optional)
Disassemble the switch housing from
the light kit , you can keep the light kit
for future use.
2. Attach the plastic plug to the switch
housing. (Fig. 13)
H switch housing
Install the switch housing to the mounting
plate with screws provided. (Fig. 13)
1.
3. olding the under your fan,
snap together the wire connection plugs .
4.
Screws
Light kit
assembly
Mounting plate
Wire connection
plugs
Plastic plug
Figure 13

9. Care of Your Fan
Here are some suggestions to help you
maintain your fan
1.Because of the fan's natural movement,
some connections may become loose. Check
the support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan
from ceiling.)
2. Clean your fan periodically to help maintain
its new appearance over the years. Use only a
soft brush or lint-free cloth to avoid scratching
the finish. The plating is sealed with a
lacquer to minimize discoloration or
tarnishing. Do not use water when cleaning.
This could damage the motor, or the wood, or
possibly cause an electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades
for additional protection and
enhanced beauty. Cover small
scratches with a light application of
shoe polish.
4. There is no need to oil your fan.
The motor has permanently
lubricated bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT
THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT ANY
REPAIRS. REFER TO THE SECTION
"MAKING ELECTRICAL
CONNECTIONS"
Figure 16
Touching
ceiling

Troubleshooting 10.
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch
housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this
time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that the
light bulb is also secure.
6. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have
installed this type of control, choose and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting

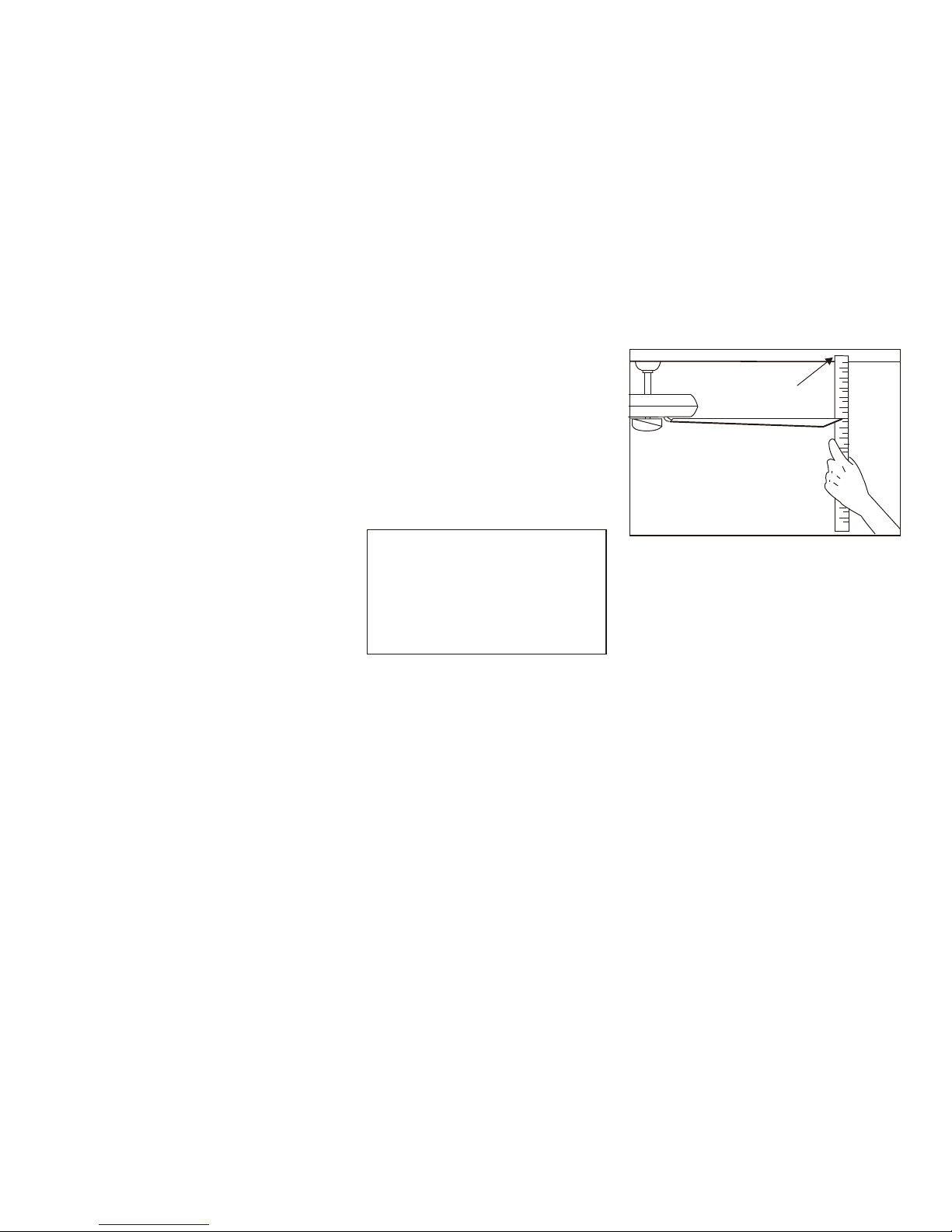

a point on the ceiling above the tip of one of the blades. Measure this distance.(Fig. 16) Rotate the
fan until the next blade is positioned for measurement. Repeat for each blade. The distance deviation
should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARM WHILE INSTALLING, BALANCING
THE BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

1.49'7.3
kgs
8.24
kgs
11. Specifications
These are approximate measures. They do not include Amps and Wattage used by the light kit.
RPM CFM N.W. G.W.
C.F.
52"
120
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
Distributed by Home Depot U.S.A., Inc.
2455 Paces Ferry Rd. N.W.
Atlanta, Georgia 30339
0.21
0.37
0.47
14
36
56
70
125
165
1507
3207
4144
