HAMPTON BAY Altura 128 925 User manual

128 925
129 954
s/o

68” Altura
Ceiling Fan by Hampton Bay
Light Kit Adaptable
3-Speed Reverse Function for
Year-Round Comfort and Savings
ENERGY STAR Certied
Dual-Mount Installation
QUESTIONS, PROBLEMS, MISSING PARTS:
Before returning to your local Home Depot, please call our
Customer Service Team at 1-877-527-0313 or visit www.homedepot.com.
Please reference your SKU (128 925 brushed nickel)
or UPC (082392 680565 brushed nickel).
Thank you for purchasing this Hampton Bay ceiling
fan. This product has been manufactured with the
highest standards of safety and quality. The nish
of this fan is weather resistant, but over time will
naturally weather and fade.
Safety Rules .................................. 1
Unpacking Your Fan.................... 2
Installing Your Fan ...................... 3
Operating Your Fan ..................... 9
Operating Your Remote............... 10
Care of Your Fan.......................... 11
Troubleshooting............................ 11
Specications ................................ 12
Warranty Information................. 13
Table of Contents
UL Model No. 68-ATR

Safety Rules .................................. 1
Unpacking Your Fan.................... 2
Installing Your Fan ...................... 3
Operating Your Fan ..................... 9
Operating Your Remote............... 10
Care of Your Fan.......................... 11
Troubleshooting............................ 11
Specications ................................ 12
Warranty Information................. 13
1. To reduce the risk of electric shock, insure electricity
has been turned off at the circuit breaker or fuse box
before beginning.
2. All wiring must be in accordance with the National
Electrical Code ANSI/NFPA 70-1999 and local electrical
codes. Electrical installation should be performed by a
qualied licensed electrician.
3. WARNING: To reduce the risk of re or electric shock,
this fan should only be used with fan speed control part no.
UC7067RC, manufactured by Rhine Electronic Co., Ltd.
4. CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
5. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of
50 pounds. Use only UL Listed outlet boxes marked “FOR
FAN SUPPORT.”
6. The fan must be mounted with a minimum of 7 feet
clearance from the trailing edge of the blades to the oor.
7. Avoid placing objects in path of the blades.
8. To avoid personal injury or damage to the fan and
other items, be cautious when working around or
cleaning the fan.
9. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
10. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding
conductor on one side of the outlet box.
11. Electrical diagrams are for reference only. Light kits that are
not packed with the fan must be UL Listed and marked suit-
able for use with the model fan you are installing. Switches
must be UL General Use Switches. Refer to the instructions
packaged with the light kits and switches for proper assembly.
12. All set screws must be checked and retightened where
necessary before installation.
Safety Rules 1.
READ AND SAVE THESE INSTRUCTIONS
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT TO A REINFORCED OUTLET BOX CAPABLE OF RELI-
ABLY SUPPORTING 50 LBS MINIMUM (22.7 KGS) USING THE MOUNT-
ING SCREWS PROVIDED WITH THE OUTLET BOX. NOTE: MOST
OUTLET BOXES DESIGNED TO SUPPORT LIGHT FIXTURES ARE NOT
ACEPTABLE FOR SUPPORTING A FAN, AND MAY NEED TO BE RE-
PLACED. CONSULT A QUALIFIED, LICENSED ELECTRICIAN FOR EX-
ACT SPECIFICATIONS.
TO REDUCE THE RISK OF SHOCK. THIS FAN MUST BE INSTALLED
WITH AN ISOLATION WALL CONTROL/SWITCH.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.

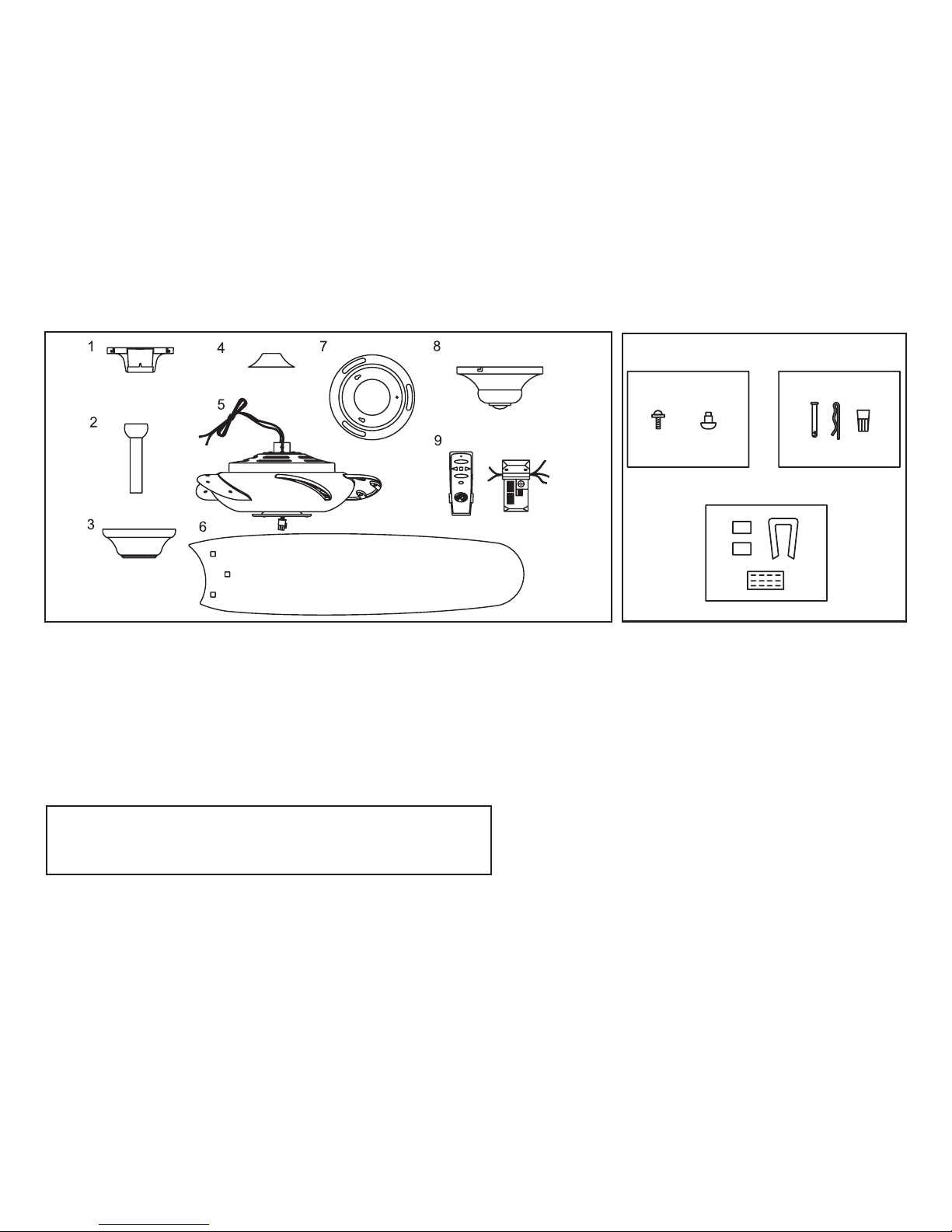

a. Blade attachment hardware
(15 screws, 15 decorative screws)
b. Mounting & Electrical Hardware
(1 hanger pin, 1 locking pin,
3 plastic wire connectors)
c. Blade Balancing Kit
7. Switch Box Adaptor
8. Switch Box
9. Hand Unit/Receiver
1. Mounting Plate (inside canopy)
2. Downrod and Ball Assembly
3. Canopy
4. Decorative Motor Collar Cover
5. Fan Motor Assembly
6. Blades (5)
2. Unpacking Your Fan
IMPORTANT:THIS PRODUCTAND/OR COMPONENTSARECOVERED BY
ONEOR MORE OF THEFOLLOWINGU.S.PATENTS: 5,947,436; 5,988,580;
5,971,573; 6,010,110; 6,010,306; 6,039,541; 6,046,416 AND OTHER
PATENTS PENDING.
Unpack your fan and check the contents. You should have the following items:
ab
c

Installing Your Fan 3.
Tools Required
Phillips screw driver, straight slot screw
driver, adjustable wrench, step ladder, and
wire cutters.
Mounting Options
If there isn’t an existing outlet box, then read
the following instructions. Disconnect the
power by removing fuses or turning off
circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs.)
Do not use plastic outlet boxes.
Figures 1, 2, and 3 are examples of different
ways to mount the outlet box.
Outlet Box
Note: You may need a longer downrod to
maintain proper blade clearance when install-
ing on a steep, sloped ceiling. The maximum
angle allowable is 30˚. If the canopy touches
downrod, remove the decorative canopy
bottom cover and turn the canopy 180˚ before
attaching the canopy to the mounting plate.
Outlet Box
To hang your fan where there is an existing
xture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at your Hampton Bay retailer).
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT TO A
REINFORCED OUTLET BOX CAPABLE OF RELI-
ABLY SUPPORTING 50 LBS MINIMUM (22.7 KGS)
USING THE MOUNTING SCREWS PROVIDED
WITH THE OUTLET BOX. NOTE: MOST OUTLET
BOXES DESIGNED TO SUPPORT LIGHT FIX-
TURES ARE NOT ACEPTABLE FOR SUPPORT-
ING A FAN, AND MAY NEED TO BE REPLACED.
CONSULT A QUALIFIED, LICENSED ELECTRI-
CIAN FOR EXACT SPECIFICATIONS.
Figure 1
Figure 2
Figure 4
Figure 3

non-slotted screws and loosen the slotted
screws. This will enable you to remove the
mounting plate (Figure 6).
4.
Hanging the Fan
REMEMBER to turn off the pow-
er. Follow the steps below to hang your
fan properly.
NOTE: This fan is recommended for the
standard ceiling mounting using the downrod
provided with this fan. When using standard
ceiling installation with the 18 inch downrod
provided, the distance from the ceiling to the
bottom of the fan blades will be approximate-
ly 21.5 inches.
IF YOU FEEL THAT YOU DO NOT
HAVE ENOUGH ELECTRICAL WIRING
KNOWLEDGE OR EXPERIENCE, HAVE
YOUR FAN INSTALLED BY A LICENSED
ELECTRICIAN.
Standard Ceiling Mounting

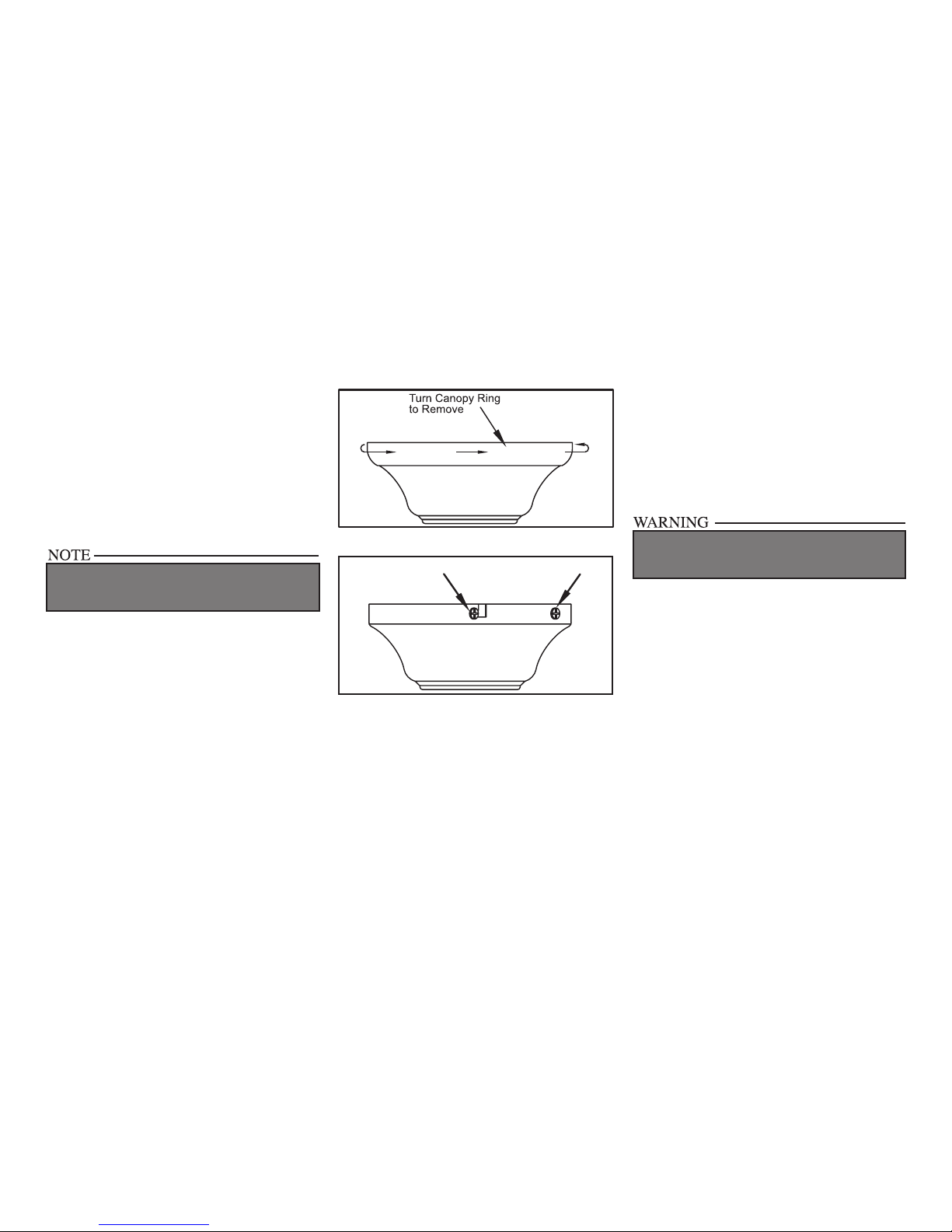

1. Remove the canopy ring from the canopy
by turning the ring to the right until it
unlocks (Figure 5).
2. Remove the mounting plate from the
canopy by loosening the four screws on
the top of the canopy. Remove the two
Remove
Loosen but Do
Not Remove
Figure 5
Figure 6
3. Route the wires exiting the top of the
fan motor through the decorative motor
collar cover then the canopy ring. Make sure
the slot openings are on top. Route the wires
through the canopy and then through the
ball/downrod assembly (Figure 7).
4. Loosen, but do not remove, the set
screws on the collar on the top of the
motor housing.
5. Align the holes at the bottom of the
downrod with the holes in the collar
on top of the motor housing (Figure 7).
Carefully insert the hanger pin through
the holes in the collar and downrod. Be
careful not to jam the hanger pin against
the wiring inside the downrod. Insert the
locking pin through the hole near the
end of the bolt until it snaps into its
locked position, as noted in the circle inset
of Figure 7.
6. Re-tighten the set screws on the collar on top
of the motor housing.
7. Make sure the grommet is properly installed
in the collar cover, then slide the collar cover
on the downrod until it rests on the motor
housing. Be sure that the canopy and the col-
lar cover are both oriented correctly.
8. Proceed to “Installing the Fan” section.
FAILURE TO PROPERLY INSTALL SET SCREWS
IN STEP 6 COULD RESULT IN FAN LOOSENING
AND POSSIBLY FALLING.
THE FAN MUST BE MOUNTED WITH A MINIMUM
OF 7 FEET CLEARANCE FROM THE TRAILING
EDGE OF THE BLADES TO THE FLOOR.

5.
Figure 7
Figure 8
Installing Fan to
the Outlet Box
WHEN MOUNTING THE FAN ON A SLOPED
CEILING, THE STANDARD BALL/DOWNROD
MOUNTING METHOD MUST BE USED. THE
MOUNTING PLATE MUST BE MOUNTED SO
THAT THE SLOT OPENINGS ARE ON THE
LOWER SIDE BY SLIDING THE MOUNTING
PLATE FROM THE TOP DOWN.
2. Install the ceiling mounting plate on the out-
let box, by sliding the mounting plate over
the two screws provided with the outlet box
(Figure 8). If necessary, use leveling wash-
ers (not included) between the mounting
plate and the outlet box. Note that the at
side of the mounting plate is toward the out-
let box (Figure 8).
3. Securely tighten the two mounting screws.
4. Carefully lift the fan assembly up to the
ceiling mounting plate. Make sure the tab
on the mounting plate is properly seated in
the groove in the hanger ball.
installed by a licensed electrician.

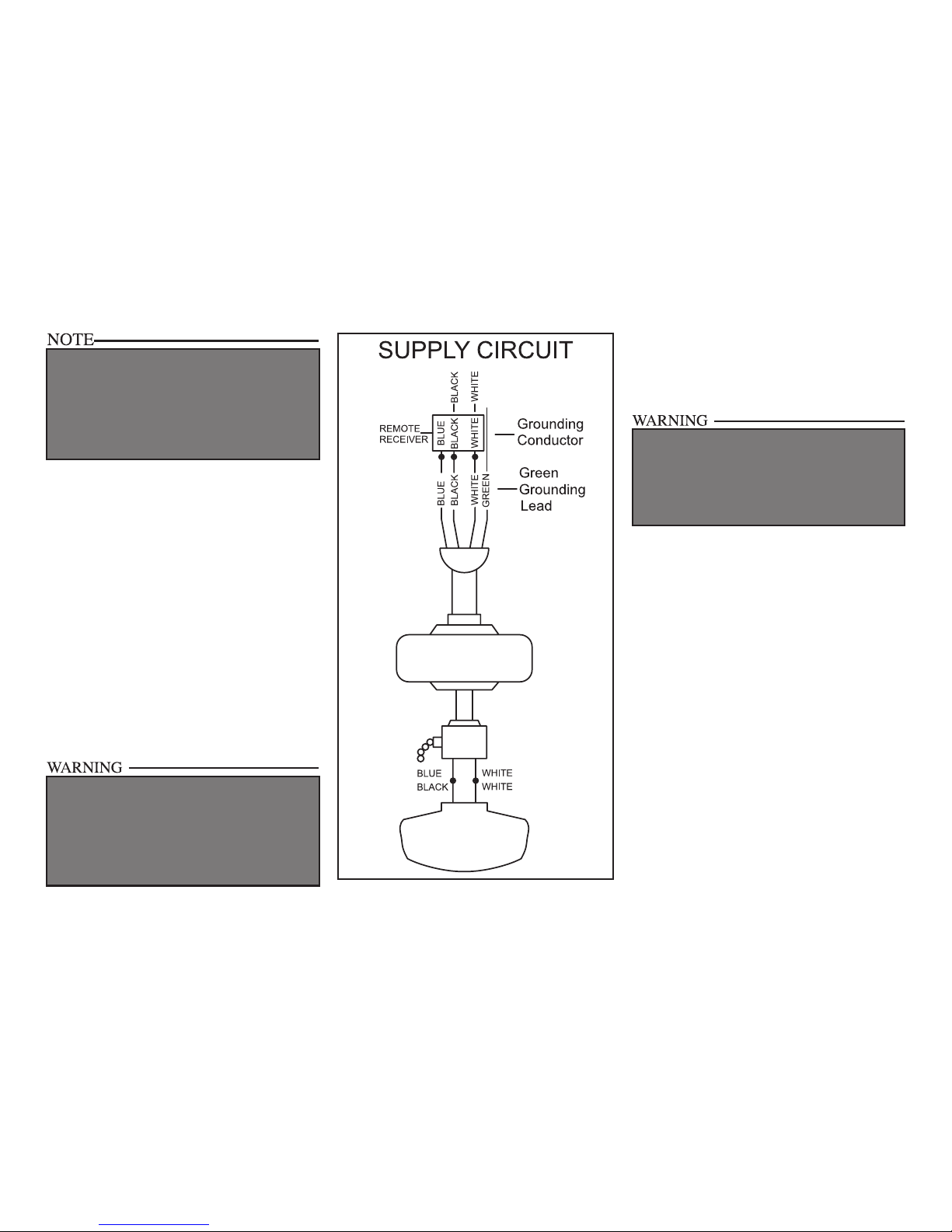

Follow the steps below to connect the fan
to your household wiring. Use the wire
connecting nuts supplied with your fan
and supplied with remote control. Se-
cure the connectors with electrical tape.
Make sure there are no loose strands or
connections (Figure 9).
1. Connect both green wires from the down-
rod and mounting plate to the bare copper
(Ground) from the outlet box
2. Connect the black wire (AC IN L) from
the receiver unit to the black wire from the
outlet box.
3. Connect the white wire (AC IN N) from
the receiver unit to the white wire from the
outlet box.
4. Connect the white wire (To Motor N) from
the receiver unit to the white wire from the
fan assembly.
5. Connect the black wire (To Motor L) from
the receiver unit to the black wire from the
fan assembly.
After wires are connected, carefully tuck them
into the outlet box. Insert the receiver unit into
the mounting plate; make sure the black antenna
wire sits on top of the receiver unit.
1. Pass the 120-volt supply wires through the
center hole in the ceiling mounting plate as
shown in Figure 8.
Making the Electrical
Connections
REMEMBER to disconnect the power. If
you feel you do not have enough electrical
wiring knowledge or experience, have your fan

6.
Setting the Code
This unit has 16 different code combinations.
To set the code, perform the following steps:
A. Setting the code on the transmitter:
a. Remove the battery cover. Press rmly
below arrow and slide battery cover off.
b. Slide code switches to your choice of up
or down position. (Factory setting is all up).
B. Setting the code on the receiver.
a. Slide code switches to the same position
as set on your transmitter.
b. Replace battery cover on transmitter.
CAUTION:
Ceiling angle shall not exceed 30 degrees.
Controller Model: UC7067RC
EACH WIRE NUT (WIRE CONNECTOR) SUP-
PLIED WITH THIS FAN IS DESIGNED TO ACCEPT
UP TO ONE 12 GAUGE HOUSE WIRE AND TWO
WIRES FROM THIS FAN. IF YOU HAVE LARGER
THAN 12 GAUGE HOUSE WIRING OR MORE
THAN ONE HOUSE WIRE TO CONNECT TO THE
FAN WIRING, CONSULT AND ELECTRICIAN FOR
THE PROPER SIZE WIRE NUTS TO USE.
THE FREQUENCIES ON YOUR RECEIVER AND
TRANSMITTER HAVE BEEN PRESET AT THE
FACTORY. BEFORE INSTALLING THE RECEIV-
ER, MAKE SURE THE DIP SWITCHES ON THE
RECEIVER AND TRANSMITTER ARE SET TO
THE SAME FREQUENCY. THE DIP SWITCHES
ON THE TRANSMITTER ARE LOCATED INSIDE
THE BATTERY COMPARTMENT.
Finishing the Fan
Installation
STANDARD CEILING MOUNTING
1. Align the locking slots of the ceiling canopy
with the two screws in the mounting plate.
Push up to engage the slots and turn clock-
wise to lock in place. Immediately tighten
the two mounting screws rmly.
2. Install the remaining two mounting
screws into the holes in the canopy and
tighten rmly.
3. Install the decorative canopy ring by
aligning the ring’s slots with the screws
in the canopy. Rotate the ring counter-
clockwise to lock in place.
4. You may now proceed to attaching the
fan blades.
WHEN USING THE STANDARD BALL/DOWNROD
MOUNTING, THE TAB IN THE RING AT THE BOT-
TOM OF THE MOUNTING PLATE MUST REST IN
THE GROOVE OF THE HANGER BALL. FAILURE
TO PROPERLY SEAT THE TAB IN THE GROOVE
COULD CAUSE DAMAGE TO WIRING.
Figure 9

7.
Attaching the
Fan Blades

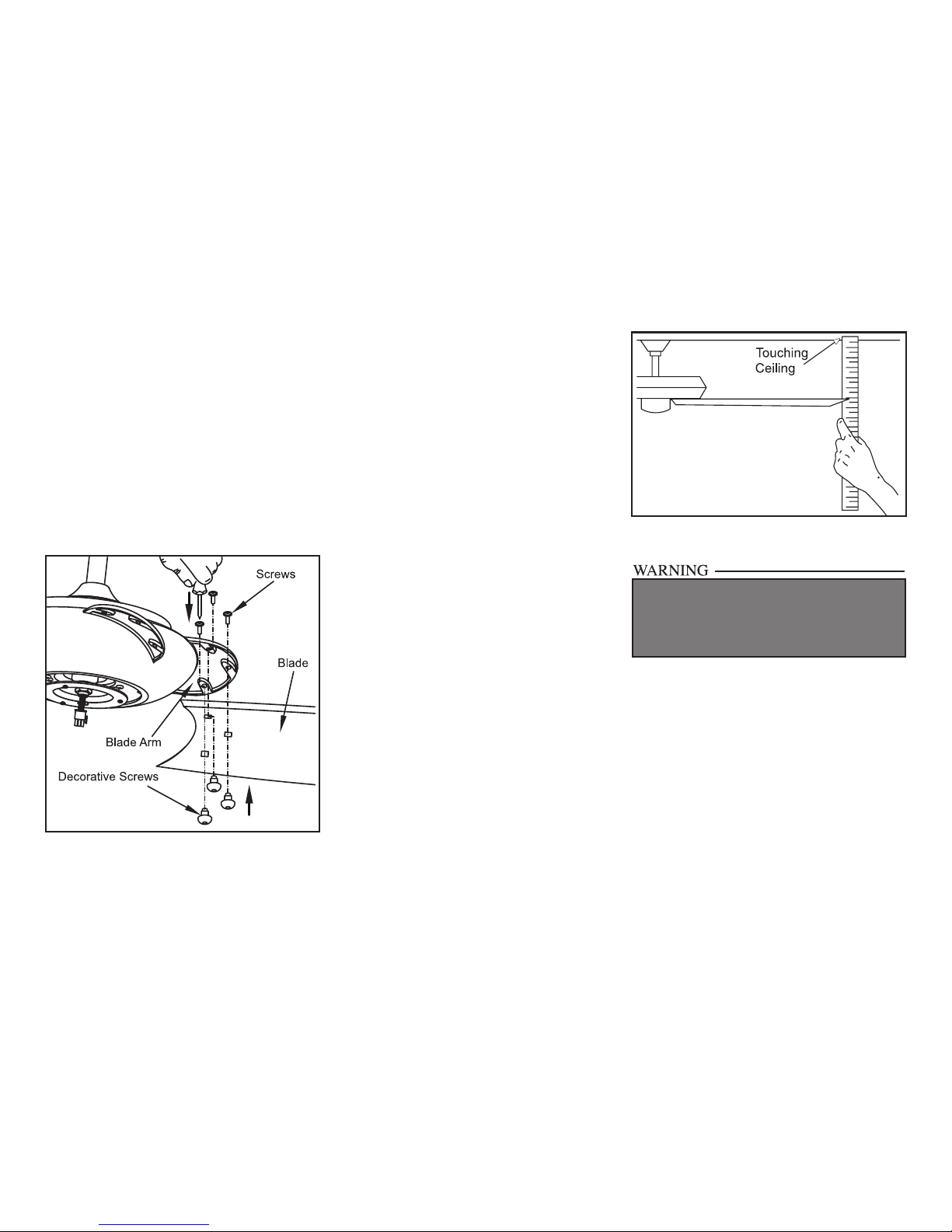

1. Attach blade to blade arm using decorative
screws and screws as shown in Figure 10.
Start a screw into decorative screws. Repeat
for the two remaining decorative screws and
screws.
2. Tighten each screw securely.
3. Repeat steps 1 & 2 for the remaining
blades.
Figure 10
Figure 11
Blade Balancing
All blades are grouped by weight. Because nat-
ural woods vary in density, the fan may wobble
even though the blades are weight matched.
The following procedure should correct most
fan wobble. Check after each step.
1. Check that all blade screws are secure.
2. Most fan wobble problems are caused when
blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip
of one of the blades. Measure from a point
on the center of each blade to the point on
the ceiling. Measure this distance as shown
in Figure 11. Rotate the fan until the next
blade is positioned for measurement. Repeat
for each blade. Measurement deviations
should be within 1/8”. Run the fan for 10
minutes.
3. Use the enclosed Blade Balancing Kit if the
blade wobble is still noticeable.
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE HOLDERS WHILE
INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NOT INSERT FOREIGN
OBJECTS BETWEEN ROTATING BLADES.

8.
Installing the
Switch Box
CAUTION - To reduce the risk of electrical
shock, disconnect the electrical supply circuit to
the fan before installing the switch box.
1. Remove one serrated head screw from the
black bracket below the fan motor assembly.
Loosen, but do not remove the other two
serrated head screws (Figure 12).
2. Align the key hole slots in the switch box
adaptor with the two serrated head screws in
the black bracket.
3. Turn the switch box adaptor clockwise until
the two serrated head screws are situated in
the narrow end of the keyholes.
4. Re-install the one serrated head screw that
was removed in step 1. Tighten all three ser-
rated head screws rmly.
5. Remove one serrated head screw from the
switch box adaptor. Loosen but do not re-
move the other two serrated head screws
(Figure 13).
6. Connect the molded adaptor plugs.
7. Aligning the “L” shape holes on the switch
box with the serrated head screw on the
switch box adaptor. Turn the switch box to
hold in position.
8. Install the other serrated head screw that
was removed in step 5. Tighten all 3 serrated
head screws securely.
Figure 12
Figure 13

Operating Your Fan 9.
The hand unit controls directions
(forward or reverse).
Speed settings for warm or cool weather
depend on factors such as room size, ceil-
ing height, number of fans, and so on.
Warm weather - (Forward) A downward
air ow creates a cooling effect as shown
in Figure 14. This allows you to set your
air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward air
ow moves warm air off the ceiling are as
shown in Figure 15. This allows you to set
your heating unit on a lower setting with-
out affecting your comfort.
Figure 14
Figure 15

10. Operating Your Remote Control
Remote Control
Your fan is equipped with a remote control
to operate the speed and lights of your new
ceiling fan. For more information on how
to install the remote control, see the remote
control instruction along with the remote
control components.
Transmitter Operation
NOTE: This remote is equipped with 16 code
combinations. To prevent possible interference
from or to other remote units such as garage
door openers, car alarm or security system,
simply change the combination code but be
sure that the code on both the hand held trans-
mitter and receiver in the fan are matched.
Install a 9 volt battery (not included).
Operating the Fan:
Hi Key - High Speed
Med Key - Medium Speed
Low Key - Low Speed
Off Key - Fan Off
Light Key - Light On/Off and Dimmer
(available when an optional light kit is
installed)
Reverse key - Fan Reversing Function

Care of Your Fan and Troubleshooting 11.
Care of Your Fan
Here are some suggestions to help you
maintain your fan.
1. Because of the fan’s natural movement,
some connections may become loose.
Check the support connections, brackets,
and blade attachments twice a year. Make
sure they are secure. (It is not necessary to
remove fan from ceiling.)
2. Clean your fan periodically to help maintain
its new appearance over the years. Do not
use water when cleaning, this could damage
the motor, or the wood or possibly cause
an electrical shock. Use only a soft brush
or lint-free cloth to avoid scratching the
nish. The plating is sealed with a lacquer
to minimize discoloration or tarnishing.
Warning - Make sure the power is off
before cleaning your fan.
3. You apply a light coat of furniture polish to
the wood for additional protection and en-
hanced beauty. Cover small scratches with a
light application of shoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
sealed ball bearings. MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BE-
FORE YOU ATTEMPT TO MAKE ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS.”
Fan will not start
Fan sounds noisy
1. Check main and branch circuit fuses or breakers
2. Check line wire connections to the fan and switch wire connections in
the switch housing. CAUTION: Make sure main power is off.
3. Check batteries in the transmitter. Does the red LED light come on? Are
you standing close enough to the fan? (Normal range is 10-20 feet.) Are
the dip switch settings the same on the transmitter (hand unit) and re-
ceiver? REMEMBER TO TURN OFF POWER SUPPLY BEFORE
CHECKING THE DIP SWITCH SETTINGS IN RECEIVER.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub
are tight.
3. Make sure wire nut connections are not rattling against each other or
the interior wall of the switch housing.
CAUTION: Make sure power is off.
4. Allow a 24-hour “breaking in” period. Most noises associated with a
new fan disappear during this time.
5. If using the Ceiling Fan light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
6. Make sure the canopy is a short distance from the ceiling.
It should not touch the ceiling.
7. Make sure your outlet box is secure and rubber isolator pads were used
between the mounting bracket and outlet box.
Troubleshooting
Problem Solution

Specications 12.
FAN SIZE SPEED VOLTS AIRFLOW
CFM
FAN POWER
CONSUMPTION
(WITHOUT
LIGHTS) WATT
AIRFLOW EFFICIENCY
(HIGHER IS BETTER)
CFM/WATT
N.W. G.W. C.F.
68”
Low 120 3780 16 225
33.9
Lbs
38.5
Lbs 3.5Med 120 5453 36 148
High 120 8752 95 91
These are approximate measures. They do not include Amps and Wattage used by the light kit.
Distributed by
Your Other Warehouse LLC
12100 Little Cayman Dr.
Baton Rouge, LA 70809
Vendor number: 219030

Warranty Information 13.
Hampton Bay Lifetime Limited Warranty
Lifetime Warranty on Motor
Hampton Bay warrants the fan motor to be free from defects in workmanship and material present at
time of shipment from the factory for a lifetime after the date of purchase by the original purchaser.
Hampton Bay also warrants that all other fan parts, excluding any glass or acrylic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of
two years after the date of purchase by the original purchaser. We agree to correct such defects with-
out charge or at our option replace with a comparable or superior model if the product is returned to
Hampton Bay. To obtain warranty service, you must present a copy of the receipt as proof of pur-
chase. All costs of removing and reinstalling the product are your responsibility. Damage to any part
such as by accident or misuse or improper installation or by afxing any accessories, is not covered
by this warranty. Because of varying climatic conditions, this warranty does not cover any changes
in plated nishes, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this
type give their longest useful life when protected from varying weather conditions. Acertain amount
of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized
persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby
disclaims any and all warranties, including but not limited to, those of merchantability and tness
for a particular purpose to the extent permitted by law. The duration of any implied warranty which
cannot be disclaimed is limited to the time period as specied in the express warranty. Some states
do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply
to you. Hampton Bay shall not be liable for incidental, consequential, or special damages arising out
of or in connection with product use or performance except as may otherwise be accorded by law.
Some states do not allow the exclusion of incidental or consequential damages, so the above exclu-
sion or limitation may not apply to you. This warranty gives specic legal rights, and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties. Ship-
ping costs for any return of product as part of a claim on the warranty must be paid by the customer.
IMPORTANT NOTE:
To ensure warranty service, if ever
necessary, please register your fan at:
gpwarranty.com
You must present a copy of the original
purchase receipt to obtain warranty service.
G.P. WARRANTY SERVICE CENTER, INC.
WARRANTY SECTION
1951 N.W. 22nd STREET
FORT LAUDERDALE, FLORIDA 33311
Attach receipt here for
easy location.

Altura de 68”
Ventilador de techo de Hampton Bay
Adaptable para kit de luces
Función de reversa de 3 velocidades para
confort y ahorro durante todo el año
Clasicado ENERGY STAR
Instalación de Montaje Doble
¿PREGUNTAS, PROBLEMAS O PIEZAS FALTANTES?
Antes de volver a tu tienda local de The Home Depot, por favor llama a nuestro
Equipo de Servicio al Cliente al 1-877-527-0313 o visita www.homedepot.com.
Por favor usa como referencia el Nº de SKU (128 925 níquel cepillado)
o UPC (082392 680565 níquel cepillado).
Gracias por comprar este ventilador de techo de
Hampton Bay. Este producto se ha fabricado con las
normas de seguridad y calidad más altas. El acabado
de este ventilador es resistente a la intemperie, pero
con el tiempo, exhibirá un desgaste y decoloración
naturales.
Normas de seguridad............................ 1
Cómo Desempacar el Ventilador ......... 2
Cómo Instalar el Ventilador................. 3
Cómo Operar el Ventilador.................. 9
Cómo Manejar el Control Remoto...... 10
Cuidado del Ventilador......................... 11
Solución de Problemas.......................... 11
Especicaciones..................................... 12
Información de la Garantía.................. 13
Índice
No. de Modelo UL 68-ATR

1. Para disminuir el riesgo de descarga eléctrica, asegúrate de que
la electricidad ha sido apagada en el cortacircuitos o la caja de
fusibles antes de comenzar la instalación.
2. Todo el cableado debe cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70-1999 y con los códigos locales
de electricidad. La instalación eléctrica debe ser hecha por un
electricista certicado y calicado.
3. ADVERTENCIA: Para disminuir el riesgo de incendio o des-
carga eléctrica, este ventilador sólo debe ser usado con un con-
trol identicado con el N0 de pieza UC7067RC, fabricado por
Rhine Electronic Co., Ltd.
4. PRECAUCIÓN: Para disminuir el riesgo de lesiones físicas,
usa sólo los tornillos provistos con la caja eléctrica.
5. La caja eléctrica y la estructura de soporte deben montarse
de forma segura y tener capacidad para sostener de manera
conable un mínimo de 50 libras. Usa solamente cajas eléc-
tricas aprobadas por UL marcadas como “PARA SOPORTE
DE VENTILADOR”.
6. El ventilador debe ir montado con un mínimo de 7 pies de
separación entre el borde trasero de las aspas y el piso.
7. Evita colocar objetos en la trayectoria de las aspas.
8. Para evitar lesiones, o daños al ventilador y otros objetos; ten
cuidado al trabajar cerca del ventilador o al limpiarlo.
9. No usar agua o detergentes para limpiar el ventilador o las
aspas. En general a la hora de limpiar, bastará con usar un paño
seco o ligeramente humedecido.
10. Después de realizar las conexiones eléctricas, debes voltear
los conductores empalmados hacia arriba y empujarlos con
cuidado hacia dentro de la caja eléctrica. Los cables deben
estar separados, con el cable a tierra y el conductor a tierra del
equipo hacia uno de los lados de la caja eléctrica.
11. Los diagramas eléctricos son sólo una referencia. Los kits de
luces no empaquetados con el ventilador deben estar aproba-
dos por UL y marcados como apropiados para montarse con
el modelo de ventilador a instalar. Los interruptores deberán
estar clasicados por UL como de Uso General. Consulta las
instrucciones adjuntas a los kits de luces e interruptores para
obtener información sobre el ensamblado adecuado.
12. Todos los tornillos colocados se deben vericar y ajustar donde
sea necesario antes de la instalación.
1. Normas de Seguridad
LEE LAS INSTRUCCIONES Y GUÁRDALAS
PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA ELÉCTRICA O
LESIONES PERSONALES, MONTA EL VENTILADOR SÓLO SOBRE UNA
CAJA ELÉCTRICA REFORZADA CON CAPACIDAD MÍNIMA DE 50 LB
(22.7 KG) USANDO LOS TORNILLOS DE MONTAJE QUE VIENEN CON
LA CAJA ELÉCTRICA. NOTA: LAS CAJAS ELÉCTRICAS UTILIZADAS
COMÚNMENTE PARA EL SOPORTE DE ARTÍCULOS DE ILUMINACIÓN
PUEDEN NO SERVIR COMO SOPORTE DE VENTILADOR, Y TAL VEZ
DEBAN REEMPLAZARSE. CONSULTA A UN ELECTRICISTA CALIFICA-
DO PARA DETERMINAR LAS ESPECIFICACIONES EXACTAS.
PARA REDUCIR EL RIESGO DE LESIONES PERSONALES, NO DOBLAR
LOS BRAZOS DE LAS ASPAS (TAMBIÉN LLAMADOS “REBORDES”)
DURANTE O DESPUÉS DE LA INSTALACIÓN. NO COLOCAR OBJETOS
EN MEDIO DE LA TRAYECTORIA DE LAS ASPAS.
PARA REDUCIR EL RIESGO DE DESCARGA ELÉCTRICA, ESTE VENTI-
LADOR DEBE SER INSTALADO CON UN CONTROL/INTERRUPTOR DE
AISLAMIENTO DE MONTAJE EN LA PARED.

a. Herrajes de montaje de las aspas
(15 tornillos, 15 tornillos decorativos)
b. Herrajes de montaje y electricidad
(1 pasador de soporte, 1 pasador de cierre,
3 cables conectores de plástico)
c. Kit de compensación de las aspas
7. Adaptador de la caja del Interruptor
8. Caja del Interruptor
9. Unidad de mano/Receptor
1. Placa de montaje (cubierta interna)
2. Ensamblado de tubo bajante y bola
3. Cubierta
4. Cubierta decorativa del collarín del motor
5. Ensamblado del motor del ventilador
6. Aspas (5)
Cómo desempacar el ventilador 2.
IMPORTANTE: ESTE PRODUCTO Y/O SUS COMPONENTES ESTÁN
PROTEGIDOS POR UNA O MÁS DE LAS SIGUIENTES PATENTES DE
EE.UU.: 5,947,436; 5,988,580; 5,971,573; 6,010,110; 6,010,306; 6,039,541;
6,046,416 y OTRAS PATENTES PENDIENTES.
Desempaca tu ventilador y revisa el contenido. Deberá tener los siguientes artículos:
ab
c

3. Cómo instalar el ventilador
Herramientas necesarias
Destornillador Phillips, destornillador plano,
llave ajustable, escalera de tijera y cortacables.
Opciones de montaje
Si no hay una caja de montaje existente,
entonces lee las siguientes instrucciones.
Desconecta la energía retirando los fusibles
o apagando los cortacircuitos.
Asegura la caja eléctrica directamente a la
estructura del edicio. Usa sujetadores y ma-
teriales de construcción apropiados. La caja
eléctrica y su soporte deben sostener comple-
tamente el peso en movimiento del ventilador
(al menos 50 libras).
No uses cajas de eléctricas plásticas.
Las guras 1, 2 y 3 son ejemplos de diferentes
formas de montar la caja de eléctrica.
Nota: Tal vez necesites un tubo bajante más
largo para mantener la altura mínima adecuada
de las aspas al instalar el ventilador en un techo
inclinado. El ángulo máximo permitido es de
30º. Si la cubierta toca el tubo bajante, retira
la cubierta inferior decorativa y gira la cubi-
erta 180º antes de jar la cubierta al soporte
de montaje.
Para colgar tu ventilador donde haya una
lámpara pero ninguna viga de techo, tal vez
necesites una barra colgante de instalación
como se muestra en la gura 4 (disponible en la
tienda minorista local de Hampton Bay).
PARA REDUCIR EL RIESGO DE INCEN-
DIO, DESCARGA ELÉCTRICA O LESIONES
PERSONALES, MONTA EL VENTILADOR SÓLO
SOBRE UNA CAJA ELÉCTRICA REFORZADA
CON CAPACIDAD MÍNIMA DE 50 LB (22.7 KG)
USANDO LOS TORNILLOS DE MONTAJE QUE
VIENEN CON LA CAJA ELÉCTRICA. NOTA: LAS
CAJAS ELÉCTRICAS UTILIZADAS COMÚN-
MENTE PARA EL SOPORTE DE ARTÍCULOS
DE ILUMINACIÓN PUEDEN NO SERVIR COMO
SOPORTE DE VENTILADOR, Y TAL VEZ DEBAN
REEMPLAZARSE.
CONSULTA A UN ELECTRI-
CISTA CALIFICADO PARA DETERMINAR LAS
ESPECIFICACIONES EXACTAS.
Figura 1
Figura 2
Figura 4
Figura 3

4.
Cómo colgar el ventilador
RECUERDA desconectar la electricidad.
Sigue estos pasos para colgar correctamente tu
ventilador.
NOTA: Se recomienda instalar este ventilador
en un techo estándar usando el tubo bajante
suministrado con el ventilador. Cuando uses
una instalación en un techo estándar con el tubo
bajante de 18 pulgadas suministrado, la distan-
cia desde el techo a la parte inferior de las aspas
será de 21.5 pulgadas aproximadamente.
SI CREES QUE NO TIENES SUFICIENTE
EXPERIENCIA O CONOCIMIENTOS EN
CABLEADO ELÉCTRICO, CONTRATA A
UN ELECTRICISTA CERTIFICADO PARA
QUE INSTALE EL VENTILADOR.
Montaje de techo estándar
1. Retira el aro en la cubierta, girando el aro a
la derecha hasta destrabarlo (Figura 5).
2. Retira la placa de montaje de la cubierta
aojando los cuatro tornillos de la parte
superior de la misma. Quita los dos tornillos
sin ranura y aoja los tornillos ranurados.
Esto te permitirá retirar la placa de mon-
taje (Figura 6).
Figura 5
Figura 6
3. Inserta los cables para que salgan por la parte
superior del motor del ventilador a través de
la cubierta decorativa del collarín del motor.
Asegúrate de que las aberturas en forma de
ranura estén en la parte superior. Pasa los ca-
bles que salen por la parte superior del motor
del ventilador, a través de la cubierta decora-
tiva del collarín del motor. (Figura 7).
4. Aoja, sin quitarlos, los 2 tornillos en el col-
larín ubicado en la parte superior de la car-
casa del motor.
5. Alinea los oricios en la parte inferior del
tubo bajante con los oricios en el collarín
de la parte superior de la carcasa del motor
(Figura 7). Inserta el pasador de soporte en
los oricios del collarín y del tubo bajante
con cuidado. Evita apretarlo contra el cab-
leado dentro del tubo bajante. Inserta el pasa-
dor de cierre en el oricio cercano al extremo
del perno hasta que quede encajado en su
posición como se muestra en el círculo de la
Figura 7.
6. Vuelve a ajustar los tornillos del collarín en la
parte superior de la carcasa del motor.
7. Asegúrate de que el ojal esté instalado cor-
rectamente en la cubierta del collarín, luego
desliza la cubierta del collarín por el tubo ba-
jante hasta que quede en la carcasa del motor.
Asegúrate de que la cubierta y la cubierta del
collarín tengan la orientación apropiada.
8. Sigue con la sección “Cómo instalar el ven-
tilador”.
SI NO COLOCAS CORRECTAMENTE LOS TOR-
NILLOS SEGÚN LO INDICADO EN EL PASO 6
SE PUEDEN AFLOJAR Y POSIBLEMENTE SE
CAIGA EL VENTILADOR.
EL VENTILADOR DEBE IR MONTADO CON UN
MÍNIMO DE 7 PIES DE SEPARACIÓN ENTRE LA
PARTE INFERIOR DE LAS ASPAS Y EL PISO.
