HAMPTON BAY AG510-BN User manual

Item #635-080
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-877-527-0313
HAMPTONBAY.COM
Model #AG510-BN
THANK YOU
THANK YOU
WATERTON II 52 IN. CEILING FAN

Table of Contents
2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-Installation ..............................................................
Specifications ..........................................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Installation .....................................................................
Assembly ........................................................................
Assembling the Fan Body..........................................................
Hanging the Fan .....................................................................
Making Electrical Connections...............................................
Completing the Fan Body........................................................
Attaching the Fan Blades .......................................................
Installing the Light Kit ............................................................
2
3
4
4
4
4
5
6
7
8
8
9
10
11
12
13
Operation ......................................................................
Pull Chain Operating Instructions ..........................................
Reverse Switch Operating Instructions ..................................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
Service Parts ...............................................................
15
15
15
16
17
18

Safety Information
3 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs. Use only UL-listed outlet boxes marked “FOR FAN
SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. clearance
from the trailing edge of the blades to the floor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of electrical shock or fire, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as flanges), when
installing the brackets, balancing the blades, or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified electrician if
in doubt.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.

SPECIFICATIONS
TOOLS REQUIRED
Phillips
screwdriver
Electrical
tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-877-527-0313 or visit www.hamptonbay.com.
52 in.
Low
Medium
High
120
Fan size Watts RPM CFMSpeed Volts Amps
2.79 ft.
N.W. G.W. C.F.
0.21
0.36
0.51
9.77
29.48
61.46
60.72
112.71
162.90
1637.31
3210.45
4734.56
11.3 kgs
(24.86 lbs)
12.8 kgs
(28.16 lbs)

5 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
Pre-Installation (continued)
HARDWARE INCLUDED
HARDWARE INCLUDED
NOTE: Hardware shown to actual size unless noted
otherwise in the table below.
AA
DD
GG
HH
II
JJ
KK
EE
FF
BB
CC
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
Plastic wire nut
Blade attachment screw and fiber washer
Mounting bracket screw (preassembled)
Balance kit (not to scale)
Clevis pin (preassembled)
Cotter pin (preassembled)
Collar setscrew (preassembled)
Blade arm screw (preassembled)
Light kit mounting plate screw (preassembled)
Light kit mounting screw (preassembled)
Glass shade thumbscrew (preassembled)
Part
Part
Description
Description
3
16
2
1
1
1
2
10
3
3
6
Quantity
Quantity

Part
Part
I
J
K
L
M
N
O
Description
Description
Blade arm
Light kit mounting plate
Switch housing
Light kit
Glass shade
13 Watt compact fluorescent bulb
Pull chain and fob
Plastic plug
Part
A
B
C
D
E
F
G
H
Quantity
Quantity
1
1
1
1
1
1
5
Quantity
Quantity
1
1
5
1
3
3
2
1
Description
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade
PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6
A
H
I
K
J
L
M
N
O
B
C
D
E
F
G

To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (MM) (not
included) as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (LL) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (LL) (not included).
LL
LL
MM
LL
LL
A
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
7 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
WARNING: To reduce the risk of fire, electric shock, or
other personal injury, mount the fan only on an outlet box or
supporting system marked acceptable for fan support of 35
lbs (15.9 kg) or less and use mounting screws provided with
the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified electrician if
in doubt.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy touches the downrod, then remove the decorative
canopy bottom cover (C) and turn the canopy (B) 180° before
attaching the canopy (B) to the mounting bracket (A).

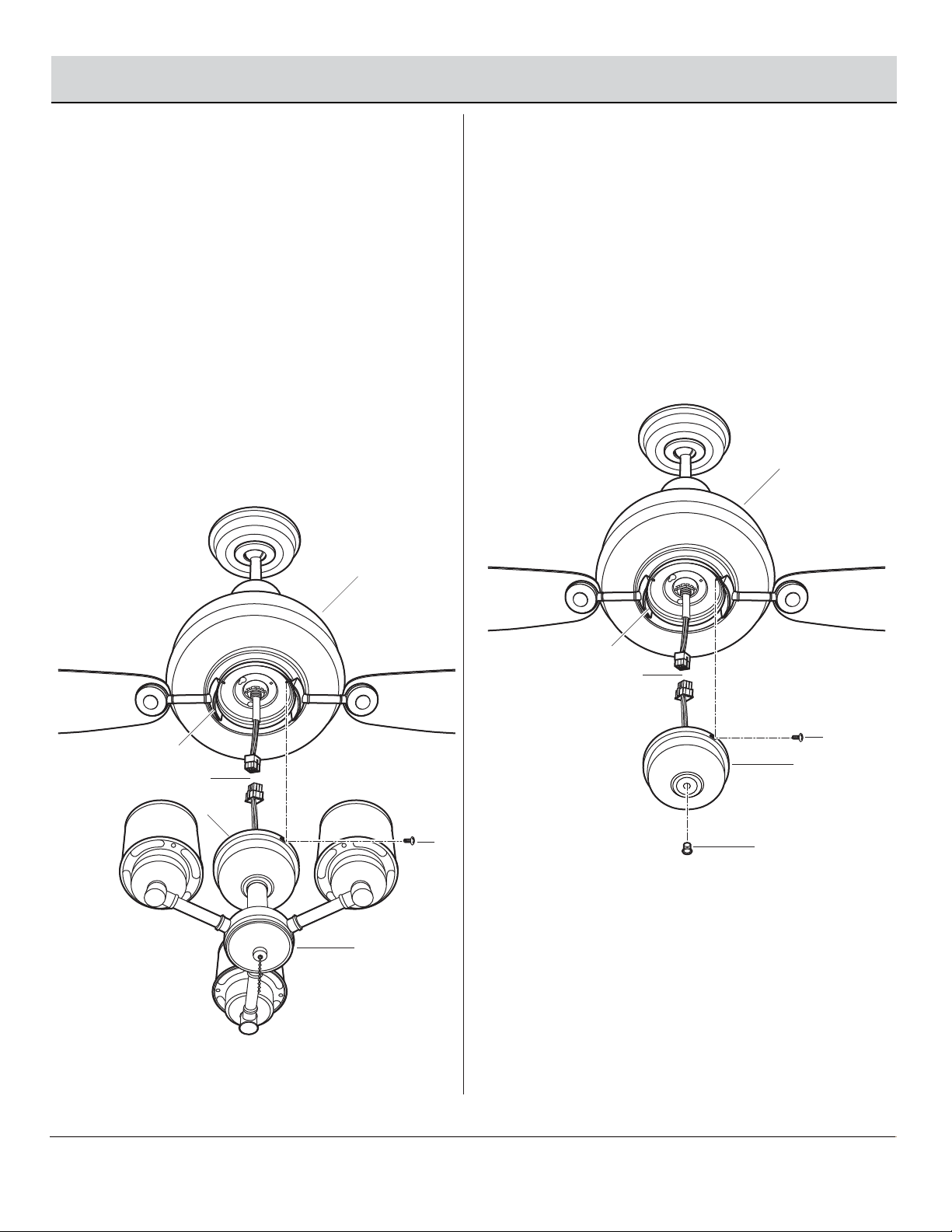

1Preparing the canopy 2Preparing the motor
□Remove the clevis pin (EE) and cotter pin (FF), and
loosen the two collar setscrews (GG) from the fan
motor assembly (F) collar.
3Assembling the fan
8
□Remove the canopy bottom cover (C) from the canopy
(B) by turning the canopy bottom cover (C) counter-
clockwise.
□Remove the mounting bracket (A) from the canopy (B)
by removing the non-slotted mounting bracket screw
(CC) from the bottom of the canopy (B) and loosening
the slotted mounting bracket screw (CC) a half turn
from the screw head. Next, turn the canopy (B)
counterclockwise to remove the mounting bracket (A)
from the canopy (B).
□Route the wires exiting from the top of the fan motor
assembly (F) through the coupling cover (E) and the
canopy bottom cover (C). Ensure the slot openings
are on top.
□Route the wires through the canopy (B) and then
through the hanger ball/downrod assembly (D).
□Align the holes at the bottom of the hanger
ball/downrod assembly (D) with the holes in the collar
on top of the fan motor assembly (F).
□Carefully insert the clevis pin (EE) through the holes
in the collar and the hanger ball/downrod assembly
(D). Be careful not to jam the clevis pin (EE) against
the wiring inside the hanger ball/downrod assembly
(D).
WARNING: Failure to properly install the cotter pin (FF)
could result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take
out the screw located in the hanger ball, lower the hanger
ball, and remove the pin. Remove all three pieces from the
downrod and assemble them onto the new, longer downrod
before proceeding to the downrod installation.
□Insert the cotter pin (FF) through the hole near the
end of the clevis pin (EE) until it snaps into the locked
position.
□Tighten the two collar setscrews (GG) on top of the
fan motor assembly (F) firmly.
Assembly - Assembling the Fan Body
CC
A
B
C
CC
C
F
E
D
B
GG
GG
EE
FF
FF
EE
GG
GG
F

4Attaching the mounting bracket
to the electrical box
Hanging the fan from the
mounting bracket
□Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□
□Securely tighten the two mounting screws.
□Carefully lift the fan motor assembly (F) up to the
mounting bracket (A), and seat the hanger
ball/downrod assembly (D) in the mounting bracket
(A) socket. Make sure the tab on the mounting
bracket (A) socket is properly seated in the groove in
the hanger ball/downrod assembly (D). This will help
to balance the ceiling fan.
A
LL
5
Assembly — Hanging the Fan
MOC.YABNOTPMAH9
Please contact 1-877-527-0313 for further assistance.
WARNING: To reduce the risk of fire, electric shock, or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (D). Failure to properly
seat the tab in the groove could cause damage to the wiring.
A
D
F
Attach the mounting bracket (A) to the outlet box (LL)
(not included) with the screws and washers provided
with the outlet box (LL).

6Making the electrical
connections
If you feel you do not have enough electrical wiring
knowledge or experience, have your fan installed by a
licensed electrician.
Follow the steps below to connect the fan to your
household wiring. Use the plastic wire nuts (AA) with your
fan. Secure the wire nuts with electrical tape. Make sure
there are no loose strands or connections.

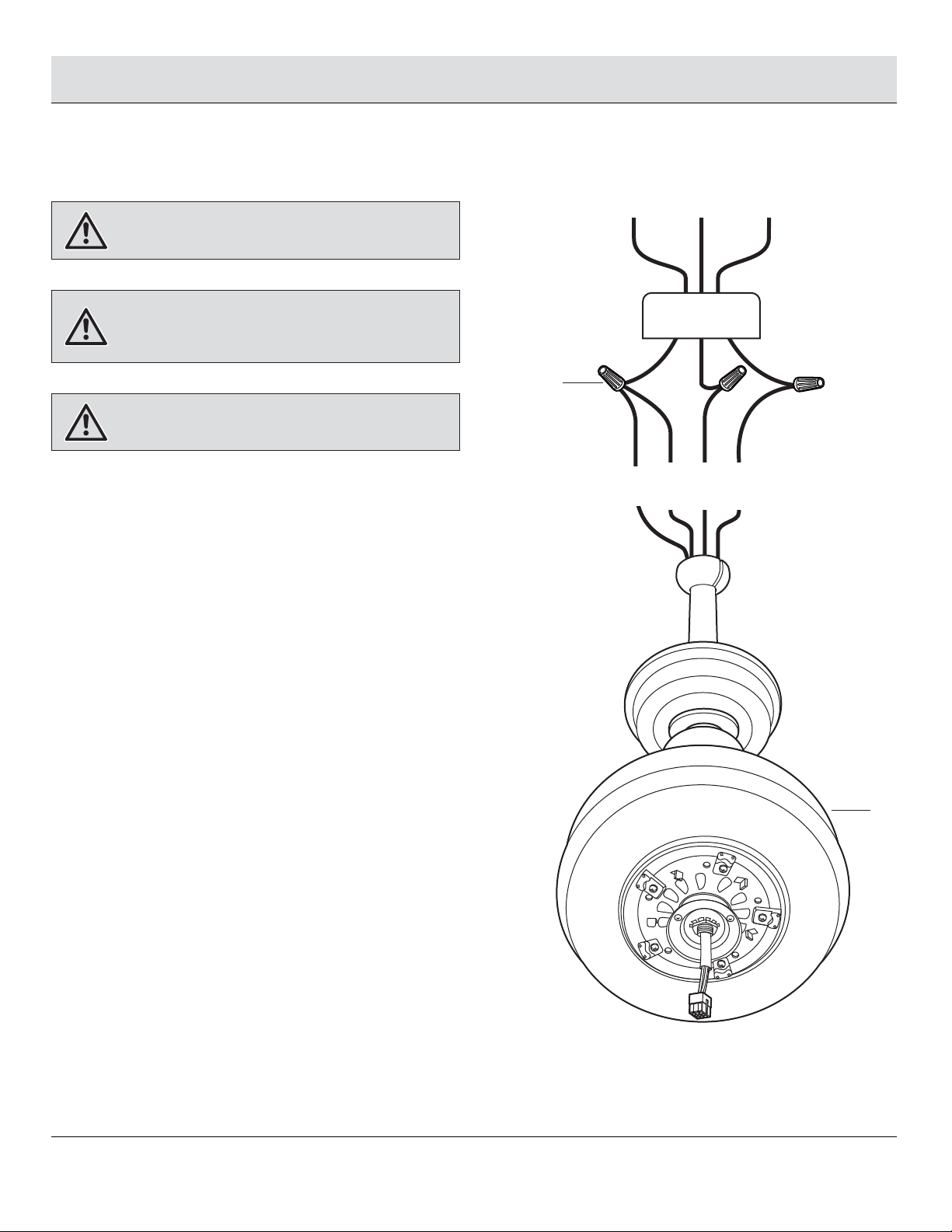

□Connect the ground conductor (TT) of the 120V supply
(this may be a bare wire or a wire with green colored
insulation) to the green ground lead(s) (QQ) of the fan
using a plastic wire nut (AA).
□Connect the fan motor white wire (PP) to the supply
white (neutral) wire (SS) using a plastic wire nut (AA).
□Connect the fan motor black wire (OO) and the blue
wire (NN) to the supply black (hot) wire (RR) using a
plastic wire nut (AA).
□Turn the wire nut connections upward, spreading
them apart so the green (ground) wire (QQ) will be on
one side of the outlet box (LL) and the white (PP),
black (OO), and blue (NN) wires will be on the other
side. Carefully tuck the connections up into the outlet
box (LL).
Assembly — Making Electrical Connections
10
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To reduce the risk of fire or electric shock, do
not use this fan with any solid-state speed control device.
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
NN
OO
QQ
PP
RR TT
SS
AA
LL
F

7Installing the canopy 8
Assembly — Completing the Fan Body
11 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
□Tuck the connections neatly into the ceiling outlet box
(LL).
□Slide the canopy (B) up to the mounting bracket (A),
and place the key hole on the canopy (B) over the
loose mounting bracket screw (CC) on the mounting
bracket (A). Turn the canopy (B) clockwise until it
locks in place at the narrow section of the key holes.
□Align the circular hole on the canopy (B) with the
remaining hole on the mounting bracket (A). Insert
the mounting bracket screw (CC) previously removed
into the hole, and tighten the two mounting bracket
screws (CC).
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (D) before
attaching the canopy (B) to the mounting bracket (A) by
turning the canopy housing until it drops into place.
NOTE: Adjust the mounting bracket screws (CC) as
necessary until the canopy (B) and canopy bottom cover (C)
are snug.
□Attach the canopy bottom cover (C) to the mounting
bracket screw (CC) heads on the bottom of the
canopy (B) by inserting the screw heads into the key
slots in the canopy bottom cover (C) and rotating the
canopy bottom cover (C) clockwise.
Attaching the canopy
bottom cover
B
CC
C
B
CC
CC
A
LL
C

Assembly — Attaching the Fan Blades
11 Fastening the blade
assemblies to the motor
10 Attaching the blades to the
blade arms
□The fan motor assembly (F) is shipped with rubber
packing mounts (UU) to prevent movement during
transportation. Remove the five rubber packing
mounts (UU) from the fan motor assembly (F) and
discard prior to attaching the blade arms.
□Attach the blades (G) to the blade arms (H) using the
three blade attachment screws and fiber washers
(BB). Start a screw with fiber washer (BB) into the
blade arm (H), but do not tighten.
□Repeat for the two remaining blade attachment
screws and fiber washers (BB).
□Tighten each screw securely, starting with the center
screw. Make sure the blade (G) is straight.
□Repeat these steps for the remaining blades (G).
9Removing the rubber
packing mounts
12
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (H) while installing the blade arms (H),
balancing the blades (G), or cleaning the fan. Do not insert
foreign objects between rotating fan blades (G).
□Fasten the blade assemblies to the fan motor
assembly (F) by lining up the slot (VV) of the blade
arms (H) with the tab on the motor (WW).
□Tighten the two blade arm screws and lock washers
(HH) already installed in the blade arms (H).
□Repeat this procedure for the remaining blade arms
(H).
F
UU
BB
H
G
H
G
B
F
VV
HH
WW

Assembly — Installing the Light Kit
13 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
12 Attaching the light kit mounting
plate to the mounting ring 13
□Remove one of the three light kit mounting plate
screws (II) from the mounting ring (XX), and loosen
the other two screws. (Do not remove.)
□Place the key holes in the light kit mounting plate (I)
over the two light kit mounting plate screws (II)
previously loosened from the mounting ring (XX).
Turn the light kit mounting plate (I) until it locks in
place at the narrow section of the key holes. Secure
by tightening the two light kit mounting plate screws
(II) previously loosened and the one previously
removed.
Install the bulb and glass shade
to the light kit
□
□Remove two glass shade thumbscrews (KK) from the
bottom of the glass shade (L). Install the glass shade
(L) onto the light kit with two glass shade thumb
screws (KK) that previously removed. Be sure to
tighten all screws.
□Repeat these steps for the remaining glass shades
(L).
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
II
I
XX
L
M
K
KK
Install the 13 Watt compact fluorescent bulb (M) to
the light kit (K) socket.

Assembly — Installing the Light Kit
14
14 15
Attaching the light kit to
the light kit mounting plate
Installing the fan without the
light kit (optional)
□Disassemble the switch housing (J) from the light kit (K).
You can keep the light kit (K) for future use.
□Attach the plastic plug (O) to the switch housing (J).
□Holding the switch housing (J) under your fan, snap
together the wire connection plugs (YY).
□Install the switch housing to the light kit mounting
plate (I) with light kit mounting screws (JJ) provided.
I
J
YY
F
F
JJ
K
O
J
JJ
YY
I
□Remove one of the three light kit mounting screws
(JJ) from the light kit mounting plate (I), and loosen
the other two screws (JJ). (Do not remove.)
□While holding the light kit (K) with the switch housing
(J) under the fan motor assembly (F), snap together
the wire connection plugs (YY).
□Place the key holes in the switch housing (J) over the
two screws (JJ) previously loosened from the light kit
mounting plate (I). Turn the light kit (K) with the
switch housing (J) until it locks in place at the narrow
section of the key holes. Secure by tightening the two
light kit mounting screws (JJ) previously loosened
and the one previously removed.

Operation
PULL CHAIN OPERATING INSTRUCTIONS
PULL CHAIN OPERATING INSTRUCTIONS
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
The pull chain controls the fan speed as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off.
Speed settings for warm or cool weather depend on factors such
as the room size, ceiling height, and number of fans.
To turn the light kit (K) on or off, pull the chain that is attached to
the light kit (K).
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the surface of the light kit. Slide
the switch to the left for warm weather operation. Slide the switch
to the right for cool weather operation.
Warm weather - (Counterclockwise Direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
15
HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
M
K
J
Install two pull chains and fobs (M) onto the pull chains located in
the switch housing (J) and light kit (K). Turn on the power, and
check the operation of the fan.

Care and Cleaning
Do
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
16

The fan wobbles.
MOC.YABNOTPMAH71
Please contact 1-877-527-0313 for further assistance.
□Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a
point on the ceiling above the tip of one of the blades. Measure from a point on the center of each blade
to the point on the ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for
each blade. Measurement deviations should be within 1/8 in. Run the fan for ten minutes.
□Use the enclosed blade balancing kit if the blade wobble is still noticeable.
Troubleshooting
Problem Solution
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 6
“Making the electrical connections” on page 10.
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade arm to the motor hub are tight.
□Make sure wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the light bulb is secure.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket
and outlet box.
The fan will not start.
The fan sounds noisy.

Service Parts
Part
Part
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
Description
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
5 blades
5 blade arms
Light kit mounting plate
Switch housing
Light kit
Glass shade
13 Watt compact fluorescent bulb
Pull chain and fob
Plastic plug
Part
Part
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
Description
Description
Plastic wire nut
Blade attachment screw and fiber washer
Mounting bracket screw (preassembled)
Balance kit
Clevis pin (preassembled)
Cotter pin (preassembled)
Collar setscrew (preassembled)
Blade arm screw (preassembled)
Light kit mounting plate screw (preassembled)
Light kit mounting screw (preassembled)
Glass shade thumbscrew (preassembled)
18
A
HAA GG
HH
II
JJ
KK
BB
CC
DD
EE
FF
I
K
J
L
M
N
O
B
C
D
E
F
G

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-877-527-0313
HAMPTONBAY.COM
Retain this manual for future use.
AG510000001-Y
