HAMPTON BAY Carrison 499 461 User manual

Model
499 461
52" CEILING FAN
CARRISON
Model
499 461
52" CEILING FAN
CARRISON

Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varyingclimatic conditions inthe United States this warranty does not
cover any changesin brass finish, including rusting, pitting, corroding, tarnishing orpeeling.
Brass finishes of this type give their longest useful life when protectedfrom varying weather
conditions. A certain amount of wobble is normal and should not be considered a defect.
Servicing performed by unauthorized persons shallrender the warranty invalid. There is no
other express warranty. The retailer hereby disclaims any and all warranties,
including but not limited to. Those of merchantability and fitness for a particular
purpose to the extent permitted by law. The duration of any implied warranty which
cannot be disclaimedis limited to the time period as specified inthe express warranty. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance except
as may otherwise be accorded by law. Some states do not allow theexclusion of incidental
or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all priorwarranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
Xxx-xxx
14826
792145xxxxxx

Safety Rules.....................................................................................................................................
Unpacking Your Fan ........................................................................................................................
Installing Your Fan ...........................................................................................................................
Installing the Light Kit....................................................................................................................
Your .............................................................................................................
Care of Your Fan ............................................................................................................................
Troubleshooting ............................................................................................................................
Specifications ...............................................................................................................................
Operating Transmitter
1.
2.
3.
9.
10.
11.
12.
13.
Table of Contents

1. Safety Rules
1. To reduce the risk of electric shock, insure electricity has been
turned off at the circuitbreaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should be
performed by aqualified licensed electrician.
3. WARNING: To reduce the risk of electrical shockand fire, donot
use this fanwith any solid-state fan speed control device.
4. Secure the mounting bracket directly to building structure joist
via the outlet box. The joist and its support must be able to
support the movingweight of the fan. (at least 50lbs.). Consult a
qualified electrician ifin doubt.
5. The fan must be mounted with a minimum of 7 feet clearance
from the trailingedge of theblades to the floor.
6. Do not operate the reverse switch while fan blades are in motion. Fan
must be turned off and blades stopped before reversing blade
direction.
7. Avoid placing objects in the pathof the blades.
8. To avoid personal injury or damage to the fan and other items, be
cautious when workingaround or cleaningthe fan.
9. Do not usewater or detergents when cleaningthe fan or fan blades.
A dry dust cloth or lightly dampened cloth will be suitable for
most cleaning.
10. After marking electrical connections, spliced conductors should
be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor onone side ofthe outlet box.
11. Electrical diagrams are reference only. Light kit that are not
packed with the fan must be CUL Listed and marked suitable for
use with the model fan you are installing. Switches must be CUL
General Use Switches. Refer to the Instructions packaged with
the light kitsand switches forproper assembly.
WARNING: SUITABLE FOR USE WITH SOLID-STATE SPEED
CONTROLS.
WARNING
TO REDUCETHE RISK OFPERSONAL INJURY, DO NOTBEND THE
BLADE BRACKETS (ALSOREFERRED TOAS FLANGES)DURING
ASSEMBLYOR AFTERINSTALLATION. DO NOTINSERT OBJECTS IN
THE PATHOF THE BLADES.
NOTE
READ AND SAVE ALLINSTRUCTIONS!

Unpack your fanand check the contents. You should havethe following items;
.
1. Fan blades (5)
2. Canopy assembly
3.
4. Coupling cover
5. Fan motor assembly
6. Blade arms(5)
7. Switch housing
Ball/downrod assembly
8. Switch housingcover
9. Light kit
10. Glass shades
11.
12.
14. Balancing kit
(4)
Receiver with 6wire nuts
Transmitter+holder+2 mounting screws
+ 2 plastic plugs
13. Extra plasticplug
1
2
3
5
47
8
9
10
11
12
14
13
6
15
Unpacking Your Fan 2.
WARNING
DO NOT INSTALL ORUSE FAN
IF ANYPARTIS DAMAGED OR MISSING.
CALL TOLLFREE 1-877-902-5588
15. Loose partsbag containing:
a.
(2 #14 Wood screws, 2 lockwashers,
2 metal washers,2 star washers,3
plastic wire connectors)
b. Blade attachmenthardware
(16 screws, 16rubber washers )
Mounting hardware
ab

3. Installing Your Fan
Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustablewrench, step ladder,
and wire cutters.
Mounting Options
If there isn't an existing CUL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and buildingmaterials. The outlet
box and its support must be able to fully
support the moving weight of the fan (at
least 50 lbs).Do not useplastic outlet boxes.
Figures 1,2 and 3 are examples of different
ways to mountthe outlet box.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar.(Fig.4) (available at
any Home Depotstore).
Outlet box
Outlet box
Provide strong
support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Figure 1 Figure 3
Figure 2
Angled ceiling
maximum
25 angle

4.
Figure 4
Ceiling
hanger
bracket
Screws
Ceiling
canopy
Canopy
cover
Collar cover
Hitch pin
Figure 5
Downrod
Canopy
Canopy cover
Set screws
Lock pin
Hanger ball
Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Remove the decorative canopy bottom
cover from the canopy by turning the cover
counter clockwise. (Fig. 4)
Step 2. Remove the hanger bracket from the
canopy by loosening the two screws on the bottom
of the hanging bracket a half turn from the screw
head and turning the canopy counter clockwise.
(Fig. 4)
Step 3. Remove the hanger pin, lock pin and set
screws from the top of the motor assembly. (Fig.
5)
Step 4. Route wires exiting from the top of the fan
motor through the collar cover, canopy cover,
canopy and then through the ball / downrod. (Fig.
5)
Step 5. Align the holes at the bottom of the
downrod with the holes in the collar on top of the
motor housing (Fig.5). Carefully insert the hanger
pin through the holes in the collar and downrod.
Be careful not to jam the pin against the wiring
inside the downrod. Insert the locking pin through
the hole near the end of the hanger pin until it
snaps into its locked position, as noted in the
circle inset of Fig. 5.
Step 6. Tighten two set screws on top of the fan
motor firmly. (Fig. 5)
Place the downrod ball into the hanger
bracket socket. Rotate the downrod ball until
the groove of the downrod ball lines up with the
hook of the hanger bracket. (This will help
balance the fan.)

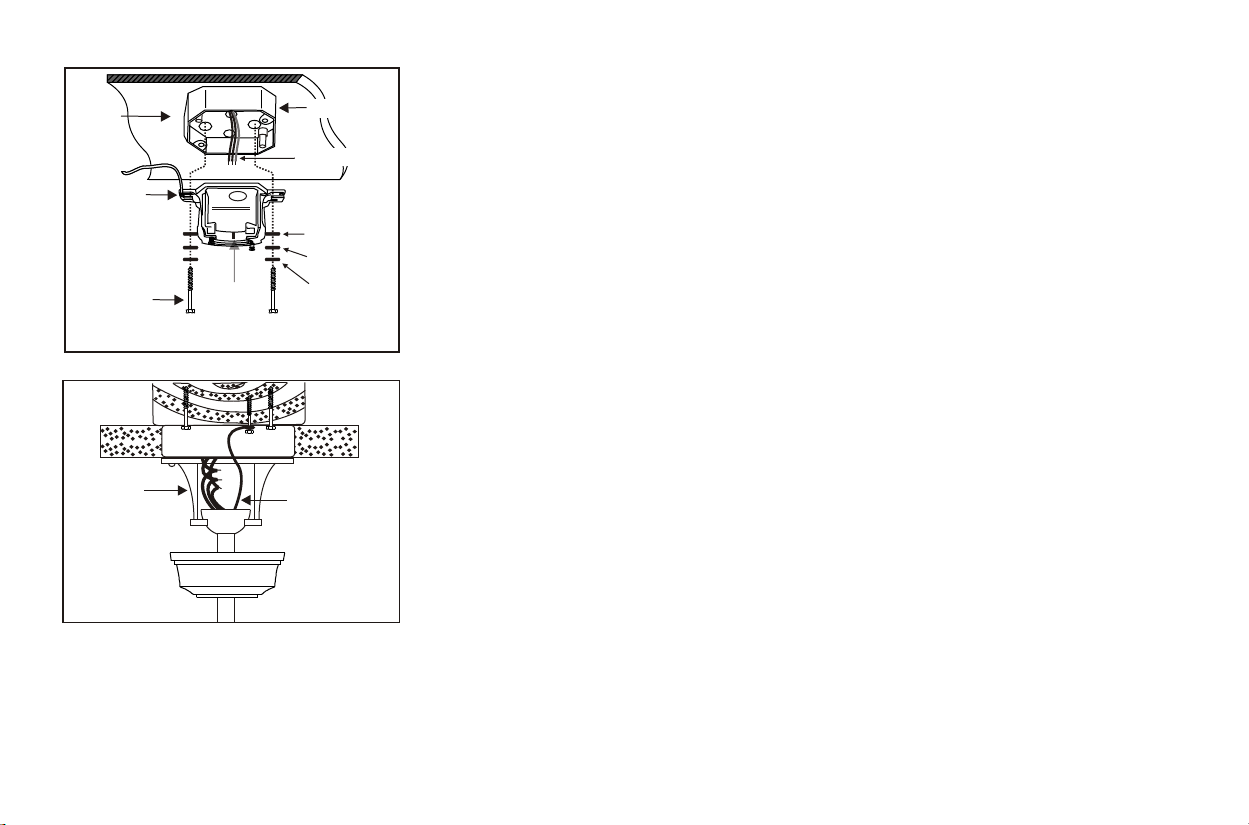

Step 7. Secure hanger bracket assembly
directly to a joist from the building structure
via the two knock out holes on the outlet box.
Use only the appropriate wood screws, star
washers, metal washers and lock washers
included with your fan. (Fig. 6)
Step 8.
(Fig. 7)
Step 9. Secure the safety cable to the building
structure. (Fig. 7)
Step 10. Connecting the wires (see making the
electrical connections)
WARNING
FAILURETO PROPERLY INSTALL LOCKING
PIN ASNOTED IN STEP5 COULD RESULT IN
FAN LOOSENINGAND POSSIBLY FALLING.

5.
Figure 7
Hanger
bracket Safety cable
Ceiling
joist
Hanger
bracket
Hook
Lock
washers
Star
washers
Metal
washers
#14 Wood
screws
AC Wires
Outlet box
Figure 6
Make the Electrical Connections
WARNING: To avoid possible electrical shock,
be sure electricity is turned off at the main fuse
box before wiring.

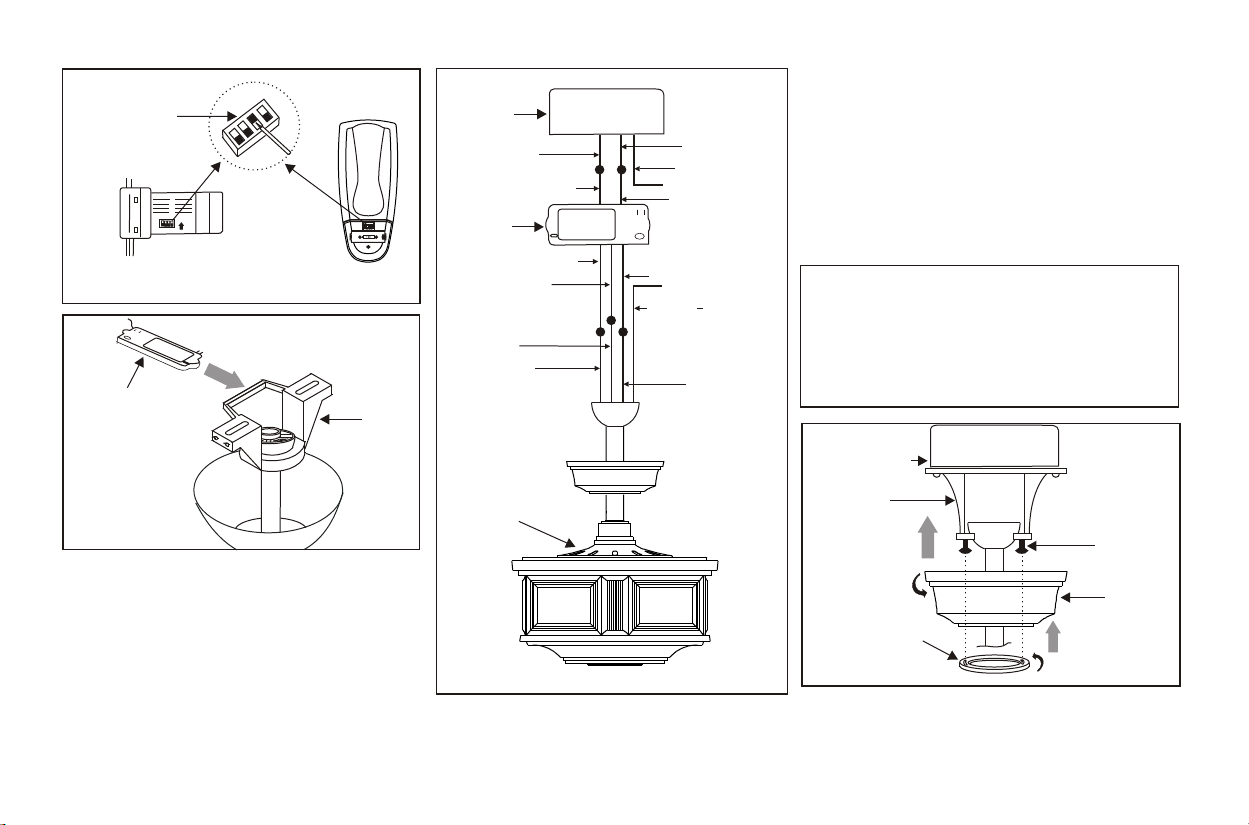

NOTE: This remote control unit is equipped
with 16 code combinations to prevent possible
interference from or to other remote units. The
frequency switches on your receiver and
transmitter have been preset at the factory.
Please recheck to make sure theswitches on the
transmitter and the receiver are set to the same
position, any combination of settings will
operate the fan as long as the transmitter and
receiver are setto the sameposition.(Fig. 8)
Step 1. (Figure 9) Insert the receiver into the
mounting bracket with the flat side of the
receiver facing theceiling.
Step 2. (Fig. 10) Motor to Receiver Electrical
Connections: Connect the black wire from
the fan to black wire marked "TO MOTOR L".
Connect the white wire from the fan to the
white wire marked "TO MOTOR N" from the
receiver. Connect the blue wire from the fanto
the blue wire marked "For Light" from the
receiver. Secure the wire connections with the
plastic wire nutsprovided.
Step 3. (Fig. 10) Receiver to House Supply
Wires Electrical Connections: Connect the
black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver.
Connect the white(neutral) wire from the
ceiling to the white wire marked "AC in N"
from the Receiver. Secure the wire
connections with the plastic wire nuts
provided.
Step 4. (Fig. 10) If your outlet box has a
ground wire (green or bare copper) connect it
to the fanground wires; otherwiseconnect the
hanging bracket ground wire to the mounting
bracket. Secure the wire connection with a
plastic nut provided. After connecting the
wires spread them apart so that the green
and white wires are on one side of the outlet
box and blackand blue wires are on the other
side. Carefully tuck the wire connections up
into the outletbox.
Note: Fan must be installed at a maximum
distance of 20 feet from the transmitting unit
for proper signal transmission between the
transmitting unit andthe fan's receivingunit.

Figure 9
Receiver
Hanger
bracket
Figure 8
ONON
Code switch
6.
Figure 10
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC INN")
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC INL")
Black ("to motor L")
Receiver
Blue ("for light")
Blue (light)
Black (motor)
Fan
Figure 11
Outlet box
Hanger
bracket
Canopy
Canopy
cover
Screws
Finishing the Installation
Step 1. Slide the canopy up to ceiling and over
the 2 screws on the hanger bracket. Rotate
canopy clockwise. Next, while holding the
canopy with one hand, slide the canopy cover
over the screwsand rotate clockwise until tight.
Note: adjust the canopy screws as necessary
until the canopy and canopy cover are snug.
(Fig. 11)
WARNING
Make sure thenotch on thehanging bracket
properly sits inthe groove inthe hanger ball
before attaching thecanopy to thebracket by
turning the housinguntil it dropsinto place.

7.
Rubber
washer
Blade
arm
Blade
Screws
Figure 13
Figure 14
Motor
Blade arm
Slot
Tab
Attaching the Fan Blades
Step 1 Attach blades to blade arms using three
screws and rubber washers. Start a screw
into the arm, do not tighten. Repeat for the
2 remaining screws and washers.
Step 2 Tighten each screw securely starting with
the center screw. Make sure the blade is straight.
(Fig. 13)
blade
Repeat steps for the remaining blades.
Step 3 Fasten the blade arms to the motor by
inserting the tab from the blade arms to the slot in
the bottom motor housing, then tighten the two
screws and washers already installed in the blade
arms. (Fig. 14)
WARNING
TO REDUCE THERISK OF PERSONALINJURY,
DO NOT BENDTHE BLADEARMS WHILE
INSTALLING, BALANCINGTHE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
CAUTION: Remove the screws from the
motor support plate, discard the motor
support plate and screws. (Fig. 12)
Motor support
plate
Screws
Figure 12

8.

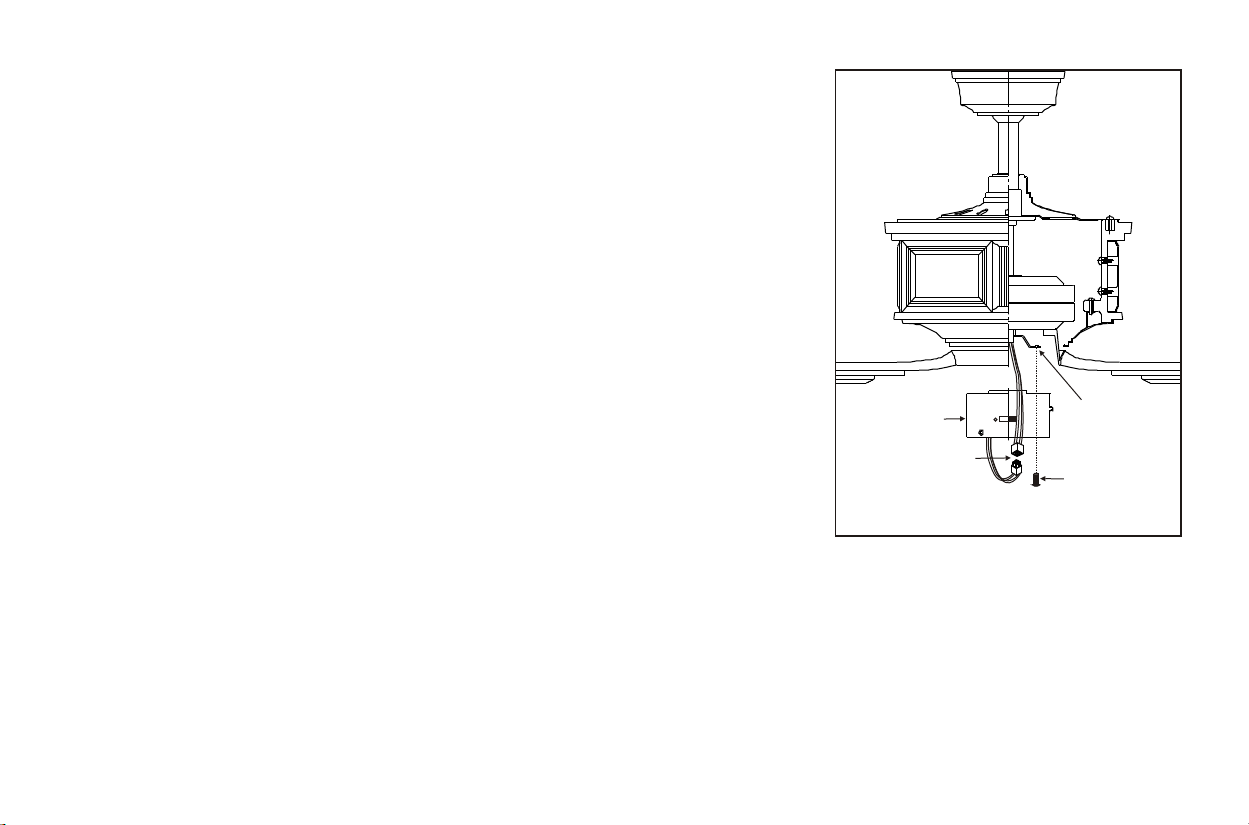

Installing the Switch Housing
Step 1. Remove 1 of the 3 screws from the mounting ring and loosen the other 2 screws. (Do
not remove)
Step 2. Place the key holes on the switch housing over the 2 screws previously loosened from
the mounting ring, turn switch housing until it locks in place at the narrow section of the key
holes. Secure bytightening the 2 screws previously loosenedand the one previously removed.
(Fig. 15)
Step 3. Snap together thewire connection plugs.
Switch
housing
Mounting ring
Screws
Wire connection
plugs
Figure 15

Lock ring
Bulbs
Glass shade
Screws
Light kit
assembly
Wire connection
plugs
NOTE: Before starting installation,
disconnect the power by turning off the
circuit breaker or removing the fuse at fuse
box.
Turning power off using the fan switch is
not sufficient to prevent electric shock.
1. Remove and discard the plug from the
switch housing cover. Attach the light kit
to the switch housing cover by feeding the
light kit wires (black and white) through
the hole of switch housing cover and then
screw it onto the switch housing cover by
nut & lock washer. Be sure it is tight
enough to prevent light kit from vibrating
loose. (Fig. 16)
2.
Make the polarized plug
connections: (Fig. 17)
- White to white
- Blue to black
3. Carefully push all wires back into the
switch housing, then install the light kit
assembly onto the switch housing with 3
screws provided. Be sure to tighten all
screws. (Fig. 17)
4. Remove the lock ring from the socket by
turning the lock ring counter-clockwise
Until it unlocks. Insert the glass into the
glass holder and turn the lock ring
clockwise to tighten the glass. Repeat for
the remaining glass. (Fig. 17)
While holding the light kit assembly under
your fan,
5.With the power off, insert the light bulbs
(not included) into the light kit sockets.
Max. 60 watts.
6. Restore power and your light kit is ready
for operation.
NOTE: When you tighten up the light kit,
be sure to align it so it will allow the pull
chain to dropfree and clear.
Figure 17
Figure 16
Switch housing
cover
Light kit
Nut
Lock washer
Plug
9. Installing the Light Kit

Operating Your Transmitter 10.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, numberof fans, etc.
The Reverse switch is located on the switch
housing. Slide the switch to the Left for
warm weather operation. Slide the switch to
the Right forcool weather operation.
NOTE: Wait for fan to stop before changing
the setting ofthe slide switch.

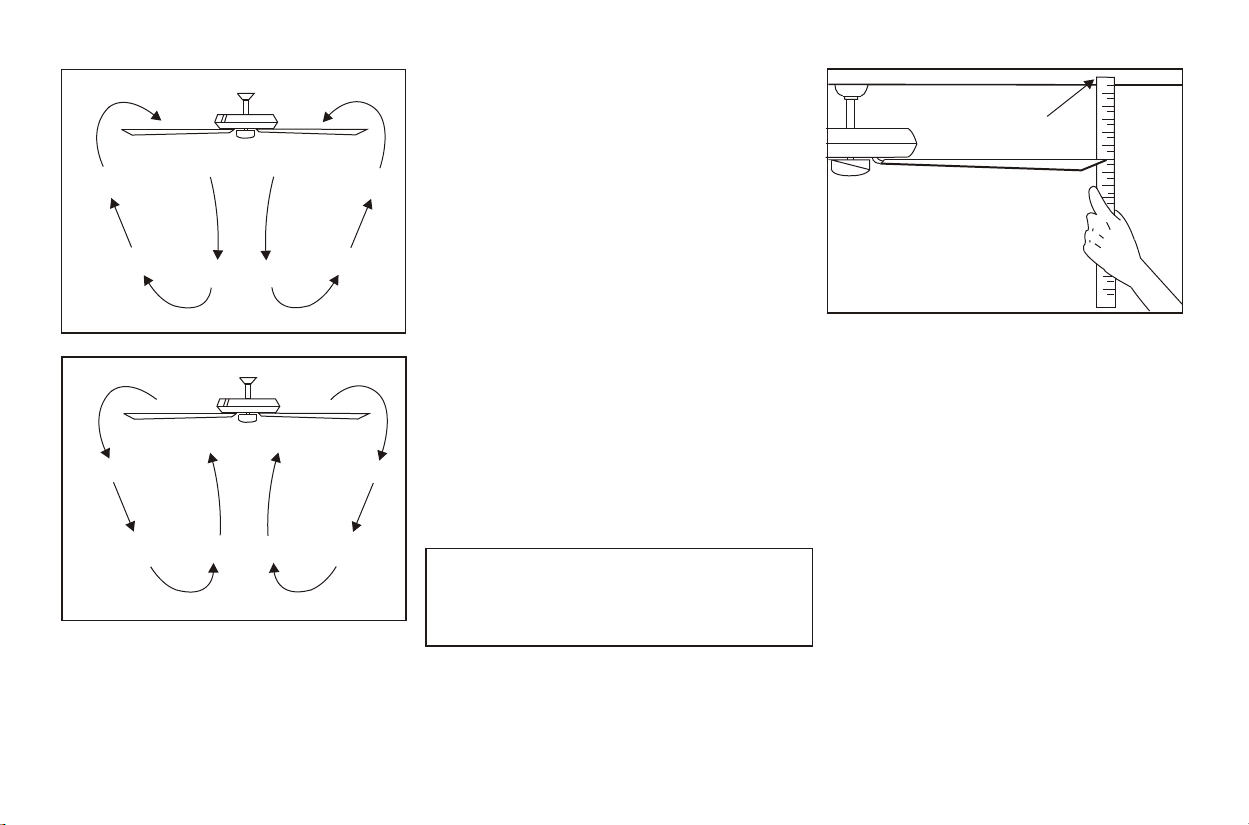

Warm weather - (Counter-Clockwise
direction) A downward airflow creates a
cooling effect. (Fig. 20) This allows you to
set your air conditioner on a higher setting
without affecting your comfort.
Cool weather-(Clockwise direction) An
upward airflow moves warm air off the
ceiling area. (Fig. 21) This allows you to set
your heating unit on a lower setting without
affecting your comfort.
Restore power to the ceiling fan and test
for proper operation.
1. "HI, MED, LOW"buttons:
These three buttons are used to set the fan
speed as follows:
LOW=Low speed MED= Medium speed
HI=High speed
2. "OFF" button:
This button turnsthe fan off.
3.The " " button turns the light ON or OFF
and also controls the brightness setting.
Press and release the button to turn the light
ON or OFF. Press and hold the button to set
the desired brightness. The light key has an
auto-resume, it will stay at the same
brightness as thelast time itwas turned off.
Figure19
Figure18
Installing the battery:
Install 12V MN21/A23 battery (not
included), to prevent damage to
transmitter, remove the battery if not used
for long periods.

Here are some suggestions to help you maintain
your fan
1.Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
2. Clean your fan periodically to help maintain its
new appearance over the years. Use only a soft
brush or lint-free cloth to avoid scratching the
finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not use
water when cleaning. This could damage the motor,
or the wood, or possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
4. There is no need to oil your fan. The motor has
permanently lubricated bearings.
IMPORTANT
MAKE SURE THEPOWER IS OFFAT THE
ELECTRICAL PANEL BOX BEFOREYOU ATTEMPT ANY
REPAIRS. REFER TOTHE SECTION "MAKING
ELECTRICAL CONNECTIONS".
11. Care of Your Fan
Figure 20
Figure 21
Figure 22
Touching
ceiling

Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction:
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noiseassociated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that light bulb is also
secure.
6.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
the
Do not connect the fan with a wall mounted variable speed control (s)
1. Do not connect the fan with a wall mounted variable speed control(s).
2. Make sure the dip switches are set correctly.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure this distance.(Fig. 22) Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and
possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OFPERSONAL INJURY, DO NOT BEND THE BLADE ARM WHILE INSTALLING, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NOT INSERTFOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
Troubleshooting 12.

These are approximatemeasures. They do not include Amps andWattageused by the light kit.
RPM CFM N.W. G.W.
C.F.
52"
120 3.04'Xx
kgs
Xx
kgs
Xxx Xx Xx Xxxx
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
13. Specifications
Distributed by/
Home Depot ofCanada Inc.
900-1 Concorde Gate
Toronto, Ontario
M3C 4H9
