HAMPTON BAY Gazebo II User manual

USE AND CARE GUIDE
GAZEBO II 42 IN. CEILING FAN
THANK YOU
THANK YOU
1-855-HD-HAMPTON
HAMPTONBAY.COM
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
Item #1000 408 062
Model #YG187-BN

2
Table of Contents
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-Installation ..............................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Dual Mounting Instructions ......................................................
Installation .....................................................................
Assembly ........................................................................
Standard Ceiling Mounting .......................................................
Close-to-Ceiling Mounting .....................................................
Hanging the Fan ....................................................................
Attaching the Fan Blades .......................................................
2
3
4
4
4
4
5
6
7
8
9
9
10
11
15
Operation .....................................................................
Pull Chain Operating Instructions ..........................................
Reverse Switch Operating Instructions ..................................
Care and Cleaning .......................................................
Troubleshooting ...........................................................
Service Parts ................................................................
16
16
16
17
17
19
READ AND SAVE THESE INSTRUCTIONS

Safety Information
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg). Use only UL-listed outlet boxes marked “FOR
FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft (2.1m)
clearance from the trailing edge of the blades to the oor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of electrical shock or re, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as anges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
3 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

SPECIFICATIONS
SPECIFICATIONS
Warranty
4
Pre-InstallationPre-Installation
42 in.
Low
Medium
High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
1.35 cu. ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.19
0.3
0.38
10.82
27.47
45.43
100
171
192
1668
2768
3299
6.3 kg
(13.9 lbs.)
7.2 kg
(15.8 lbs.)
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the
date of purchase by the original purchaser. The manufacturers also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.

Pre-Installation (continued)
HARDWARE INCLUDED
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
AA
BB
CC
DD
EE
FF
GG
HH
II
Plastic wire nut
Canopy mounting screws with lock washer (preassembled)
Blade attachment screw and rubber washer
Blade arm screw with lock washer (preassembled)
Clevis pin (preassembled)
Cotter pin (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
Pull chain and fob
Part
Part
Description
Description
3
4
16
10
1
1
2
6
1
Quantity
Quantity
II
EE
FF
GG
HH
AA
BB
CC
DD

Part
Part
F
G
H
I
Description
Description
Coupling cover
Fan motor assembly
Blade
Blade arm
Quantity
Quantity
1
1
5
5
Part
Part
A
B
C
D
E
Quantity
Quantity
1
1
1
1
1
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly

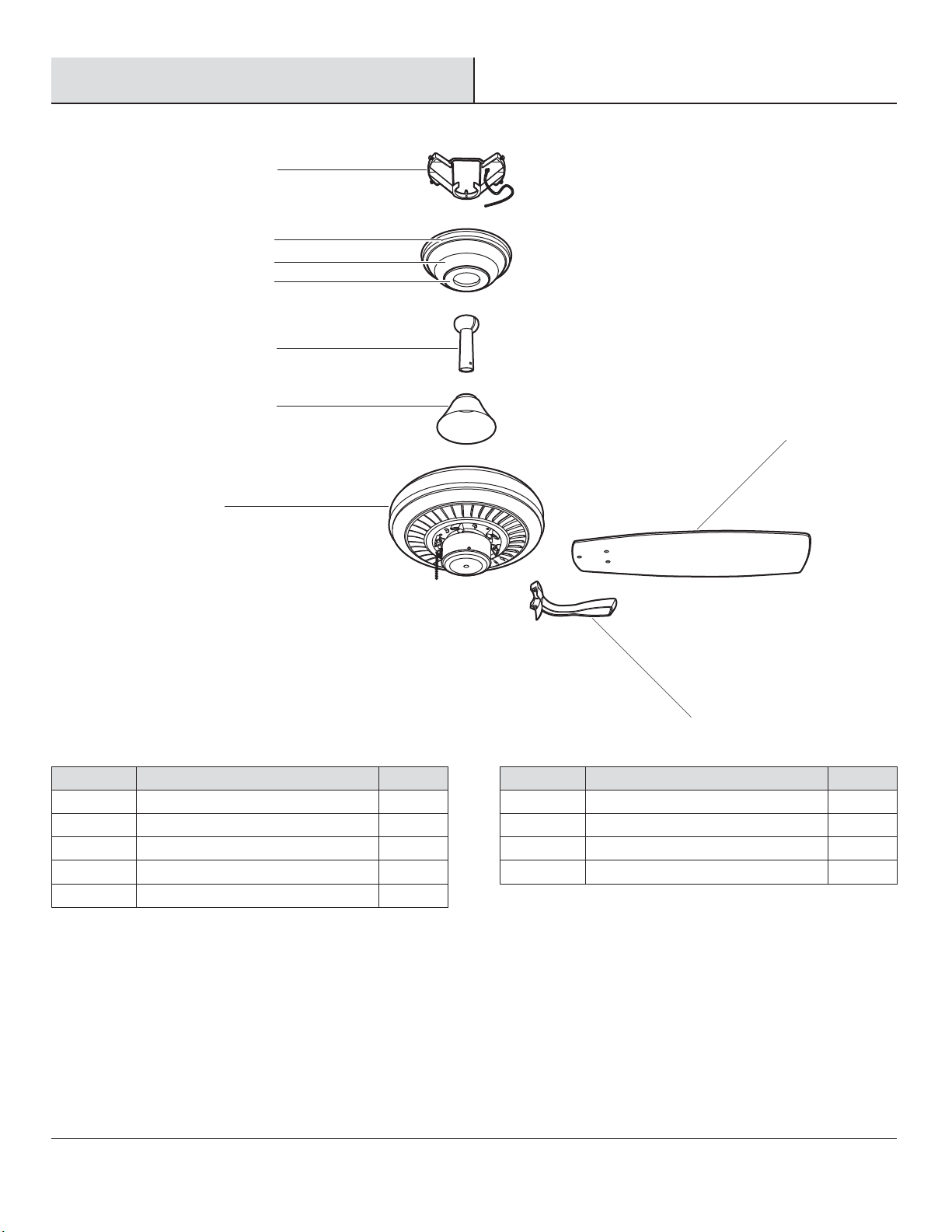

PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6
H
I
F
G
A
E
B
C
D

Pre-Installation (continued)
DUAL MOUNTING INSTRUCTIONS
DUAL MOUNTING INSTRUCTIONS
This ceiling fan is supplied with two types of hanging assemblies:
the standard ceiling installation using the downrod with ball and
socket mounting, and the "close-to-ceiling" mounting. The
"close-to-ceiling" mounting is recommended in rooms with less
than 8 ft. ceilings or in areas where additional space is desired
from the oor to the fan blades.
When using the standard downrod installation, the distance from
the ceiling to the bottom of the fan blades will be approximately 12
in. The "close-to-ceiling" installation reduces the distance from
the ceiling to the bottom of the fan blades to approximately 9 in.
Once you have decided which ceiling installation you will use, refer
to the corresponding sections and procedures during the assembly
period. Where necessary, each section of the instructions will note
the different procedures to follow for the two types of installation. Standard Ceiling Mounting
Close-to-Ceiling Mounting
7 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (KK) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (JJ) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (JJ) (not included).
JJ
JJ
KK
JJ
JJ
A
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (C) touches the hanger ball/downrod assembly (E),
then remove the decorative canopy bottom cover (D) and turn
the canopy (C) 180° before attaching the canopy (C) to the
mounting bracket (A).
8

1Preparing the canopy 2Preparing the motor
9 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
□Remove the canopy ring (B) from the canopy (C).
□Remove the two non-slotted canopy mounting
screws with lock washers (BB) from the canopy (C),
and loosen the slotted canopy mounting screws with
lock washers (BB) on the canopy (C).
□Remove the canopy (C) from the mounting bracket
(A) by turning the canopy (C) counterclockwise.
A
BB
BB
C
B
□Remove the cotter pin (FF) and clevis pin (EE), and
loosen the two collar setscrews (GG) from the fan
motor assembly (G) collar.
FF
G
EE
GG
GG
3Assembling the fan
F
G
FF
EE
GG GG
E
C
B
WARNING: Failure to properly install the cotter pin (FF)
could result in the fan loosening and possibly falling.
□Route the wires exiting from the top of the fan motor
assembly (G) through the coupling cover (F). Ensure
the slot openings are on top.
□Route the wires through the coupling cover (F),
canopy ring (B), canopy (C) and then through the
hanger ball/downrod assembly (E).
□Align the holes at the bottom of the hanger
ball/downrod assembly (E) with the holes in the collar
on top of the fan motor assembly (G).
□Carefully insert the clevis pin (EE) through the holes
in the collar and the hanger ball/downrod assembly
(E). Be careful not to jam the clevis pin (EE) against
the wiring inside the hanger ball/downrod assembly
(E).
□Insert the cotter pin (FF) through the hole near the
end of the clevis pin (EE) until it snaps into the locked
position.
□Firmly tighten the two collar setscrews (GG) on top of
the fan motor assembly (G).
Assembly — Standard Ceiling Mounting
NOTE: If a longer downrod is needed (not included), take
out the screw located in the hanger ball, lower the hanger
ball and remove the pin. Remove all three pieces from the
downrod, and assemble them onto the new longer downrod
before proceeding to the downrod installation.

10
Assembly — Close-to-Ceiling Mounting
12
3Assembling the fan
Preparing the motorPreparing the canopy
□Remove the cotter pin (FF), clevis pin (EE) and two
collar setscrews (GG) from the fan motor assembly
(G) collar.
□Remove three of the six collar mounting screws with
lock washers (HH) (every other one) from the collar
on top of the fan motor assembly (G).
WARNING: Failure to completely tighten the three collar
mounting screws (HH) could result in the fan becoming loose
and possibly falling.
HH
G
D
□Make sure the slot openings of the canopy ring (B)
are on top, and then proceed to place the canopy ring
(B) and canopy (C) over the collar at the top of the fan
motor assembly (G).
□Align the mounting holes in the bottom of the canopy
(C) with the holes in the top of the fan motor
assembly (G). Fasten using the three collar mounting
screws with lock washers (HH) previously removed.
□Tighten the collar mounting screws (HH) securely.
□Remove the canopy ring (B) from the canopy (C).
□Remove the mounting bracket (A) from the canopy (C)
by loosening the four canopy mounting screws with
lock washers (BB) on the top of the canopy (C).
Remove the two non-slotted canopy mounting
screws with lock washers (BB) and loosen the slotted
canopy mounting screws with lock washers (BB).
□Remove the canopy bottom cover (D) from the
canopy (C).
A
BB
BB
C
B
C
B
G
HH
FF
EE
GG
GG

Assembly — Hanging the Fan
11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
4Attaching the fan to the
electrical box
5b5a Hanging instructions for
standard mounting
Hanging instructions for
close-to-ceiling mounting
WARNING: The tab in the ring must rest in the groove of
the hanger ball (E). Failure to properly seat the tab in the
groove could cause damage to the wiring.
WARNING: The hook is only to hold the fan while attaching
wiring. Failure to hang as instructed may result in the tab
breaking causing the fan to fall. The hook must pass from the
inside to the outside of the canopy.
□Carefully lift the fan motor assembly (G) up to the
mounting bracket (A) and seat the hanger ball (E) in
the mounting bracket (A) socket. Make sure the tab
on the mounting bracket (A) socket is properly seated
in the groove in the hanger ball (E). This will help to
balance the ceiling fan.
□Carefully lift the fan motor assembly (G) up to the
mounting bracket (A) and hang the fan on the hook
provided using one of the holes at the outer rim of the
canopy (C).
E
G
A
A
C
G
□Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□Install the mounting bracket (A) to the outlet box (JJ)
with the screws and washers provided with your
outlet box. When using “close-to-ceiling” mounting, it
is important that the mounting bracket (A) be level. If
necessary, use leveling washers (not included)
between the mounting bracket (A) and the outlet box
(JJ). Note that the at side of the mounting bracket
(A) is toward the outlet box (JJ).
□Securely tighten the two mounting screws.
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
C
A
JJ

12
Assembly — Hanging the Fan (continued)
6a Making the electrical connections
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To reduce the risk of re or electric shock, do
not use this fan with any solid-state speed control device.
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed
electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
□Make wire connections as follows, using the wire nuts
(AA).
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/ downrod assembly (E)
if installed.
□Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on
one side of the outlet box (JJ) and the black and blue
wires will be on the other side. Carefully tuck the
connections up into the outlet box (JJ).
AA
NeutralHot
Black
Ground
conductor
White
A
Blue
Black
Green
White
Green
E
JJ

13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly — Hanging the Fan (optional)
6b Single Switch Connections 6c Dual Switch Connections
□On a single switch the fan and light can be turned on or
off together. Make wire connections as follows, using
the wire nuts (AA). Wall switch not included.
□On a dual switch the fan and light can be turned on or off
separately. Make wire connections as follows, using the
wire nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
From Fan To Outlet Box
Black Wire (for Fan) --------- Black Wire (Hot #1)
Blue Wire (for Light) --------- Red Wire (Hot #2)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
AA
SINGLE SWITCH
NeutralAC IN
Black
Ground
conductor
White
AA
Neutral
Ground
conductor
White
AC IN
Black
Red
DUAL SWITCH
AA
E
Blue
Black
Green
White
Green
JJ
E
JJ
Blue
Black
Green
White
Green

Assembly — Hanging the Fan (continued)
7a Standard ceiling mounting 7b Close-to-ceiling mounting
WARNING: The locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (BB) are engaged and rmly tightened.
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (E) before
attaching the canopy (C) to the mounting bracket (A) by
turning the canopy (C) until it drops into place.
WARNING: Locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (BB) are engaged and rmly tightened.
BB
JJ
A
BB
E
BB
A
BB
B
C
B
C
□Slide the canopy (C) up to the ceiling. Make sure you
have placed the wires safely into the outlet box (JJ).
□Secure the canopy (C) to the mounting bracket (A)
with the four canopy mounting screws with lock
washers (BB) included with your fan.
□Raise up the canopy ring (B), and line up the four tabs
with the four grooves on the canopy (C).
□Once lined up, slide the canopy ring (B) and secure it
to the canopy (C) until snug.
□Remove the fan from the hook on the mounting
bracket (A).
□Secure the canopy (C) to the mounting bracket (A)
with the four canopy mounting screws with lock
washers (BB).
□Raise up the canopy ring (B), and line up the four tabs
with the four grooves on the canopy (C).
□Once lined up, slide the canopy ring (B) and secure it
to the canopy (C) until snug.
14

10 Fastening the blade
assemblies to the motor
9Attaching the blades to
the blade arms
CC
IH
8Removing the rubber
packing mounts
I
H
G
MM
DD
NN
□The fan motor assembly (G) is shipped with rubber
packing mounts (LL) to prevent movement during
transportation. Remove the ve rubber packing
mounts (LL) from the fan motor assembly (F) and
discard prior to attaching the blade arms (I).
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (I) while installing, balancing the blades
(H), or cleaning the fan. Do not insert foreign objects between
rotating fan blades (H).
□Attach the blades (H) to the blade arms (I) using the
three blade attachment screws and rubber washers
(CC). Start a screw and rubber washer (CC) into the
blade arm (I), but do not tighten.
□Repeat for the two remaining blade attachment
screws and rubber washers (CC).
□Tighten each screw securely starting with the center
screw. Make sure the blade (H) is straight.
□Repeat these steps for the remaining blades (H).
□Fasten the blade assemblies to the fan motor
assembly (G) by lining up the slots of the blade arms
(MM) with the tabs on the motor (NN).
□Tighten the two blade arm screws and lock washers
(DD) already installed in the blade arms (I).
□Repeat this procedure for the remaining blade arms
(I).
G
LL
Assembly — Attaching the Fan Blades
15 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

OO
II
Operation
PULL CHAIN OPERATING INSTRUCTIONS
PULL CHAIN OPERATING INSTRUCTIONS
Install the pull chains and fobs (II) onto the pull chains located in
the switch housing (OO). Turn on the power and check the
operation of the fan.
The pull chain controls the fan speed as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off.
Speed settings for warm or cool weather depend on factors such
as the room size, ceiling height, and numbers of fans.
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the surface of the switch housing.
This switch controls directions: forward (switch down) or reverse
(switch up).
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit
on a cooler setting without affecting your comfort.
16
Reverse switch

Care and Cleaning
Troubleshooting
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the nish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 6
“Making the Electrical Connections” on page 12.
Problem
Problem
Solution
Solution
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade arm to the motor hub are tight.
□Make sure wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the glassware are secured tight. Check that the light bulb is also
secure.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket
and outlet box.
The fan will not start.
The fan sounds noisy.
17 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

Troubleshooting (continued)
Problem
Problem
Solution
Solution
The fan wobbles.
□Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and
measure from the center of the selected blade to the point on the ceiling. Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-855-HD-HAMPTON) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-855-HD-HAMPTON) to order
complimentary replacements of your brackets.
18

Service Parts
Part
A
B
C
D
E
F
G
H
I
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade
Blade arm
Part
AA
BB
CC
DD
EE
FF
GG
HH
II
Description
Plastic wire nut
Canopy mounting screws with lock washer (preassembled)
Blade attachment screw and rubber washer
Blade arm screw with lock washer (preassembled)
Clevis pin (preassembled)
Cotter pin (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
Pull chain and fob
A
AA
BB
CC
DD
EE
FF
GG
HH
II
H
I
E
F
G
B
C
D
19 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
