HAMPTON BAY Beverley II 325-475 User manual

Beverley II
52 in Ceiling Fan
Owner’s Manual
Beverley II
Ventilador de Techo de 1,32 m
Manual del Propietario
325 475

Beverley II by Hampton Bay
®

52” BeverleyII
Ceiling Fan by Hampton Bay
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your Fan . . . . . . . . . . . . . . 2
Installing Your Fan . . . . . . . . . . . . . . . 3
Installing the Light Kit. . . . . . . . . . . . .10
Operating Your Fan . . . . . . . . . . . . . . 12
Care of Your Fan . . . . . . . . . . . . . . . . 13
Troubleshooting . . . . . . . . . . . . . . . . . 13
Specifications . . . . . . . . . . . . . . . . . . 14
Warranty Information . . . . . . . . . . . . 15
325-475
219032
792145356097

Safety Rules - Read and Save These Instructions
1
To reduce the risk of electric shock, insure electricity has been turned off
at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
WARNING: To reduce the risk of electrical shock or fire, do not use this
fan with any solid-state fan speed control device. It will permanently
damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the screws
provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 pounds. Use only UL
Listed outlet boxes marked “FOR FAN SUPPORT”.

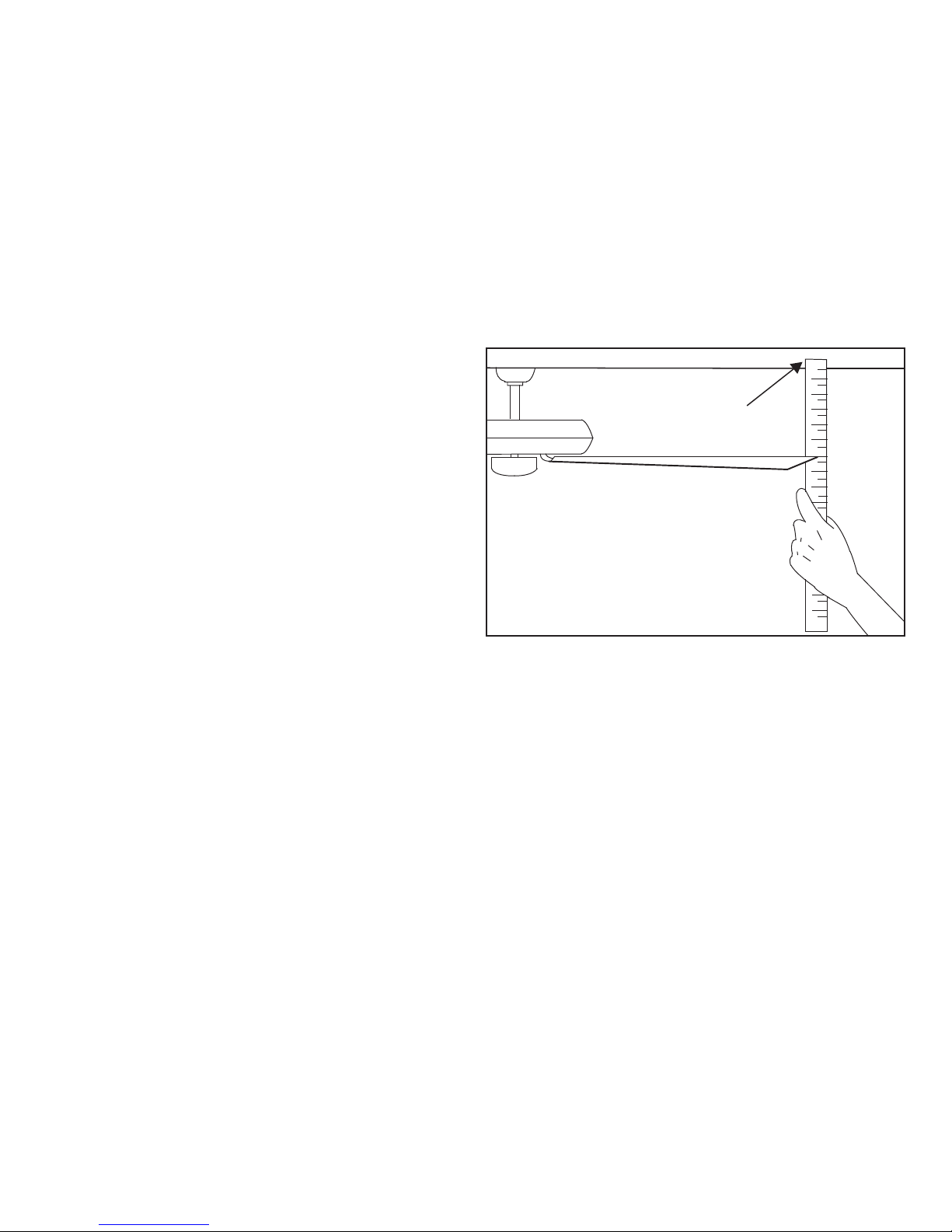

The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
Avoid placing objects in path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and ungrounded conductor on the
other side of the outlet box.
All set screws must be checked and retightened where necessary before
installation.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
WARNING
TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN
INSTALLING THE BRACKETS, BALANCING THE BLADES OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –
BETWEEN ROTATING FAN BLADES.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE
FOR FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE
OUTLET BOX.
ATTENTION
FAN INCLUDES A 190W LIMITER TO COMPLY WITH THE
DEPARTMENT OF ENERGY 2009 REGULATION. LAMPING THIS
PRODUCT OVER 190W WILL CAUSE THIS FAN TO NOT LIGHT.
PLEASE USE BULBS WITH A TOTAL WATTAGE UNDER THE 190W
REGULATION.

2

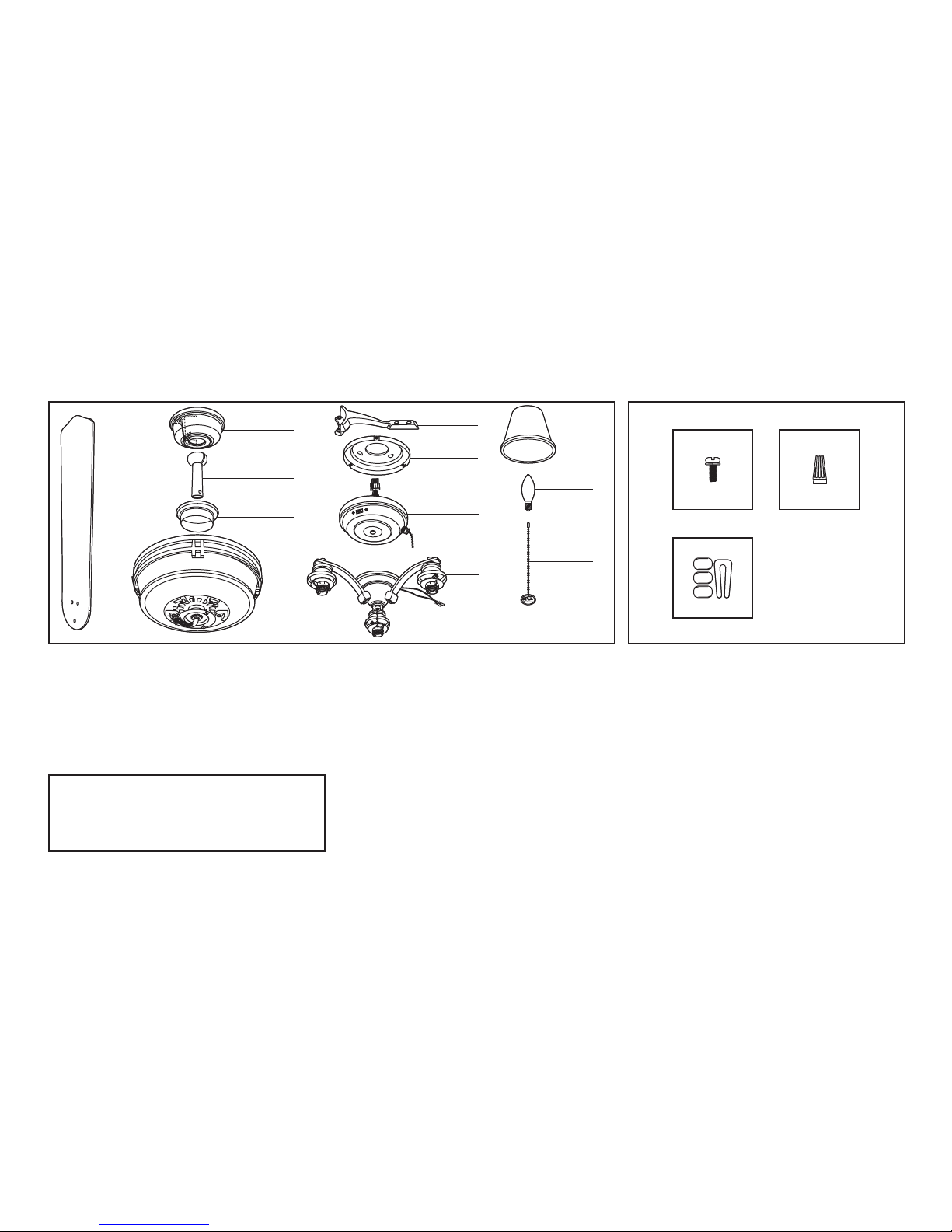

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
Set of blades (5)
Canopy assembly
Ball/downrod assembly
Coupling cover
Fan motor assembly
1.
2.
3.
4.
5.
Set of blade arms (5)
Mounting plate
Switch housing
Light kit
Glass shades (3)
60 Watt candelabra bulbs (3)
Pull chains and fobs (2)
6.
7.
8.
9.
10.
11.
12.
WARNING
DO NOT INSTALL OR USE FAN IF ANY
PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-902-5588.
1
26
5
8
9
10
11
12
7
3
4
AB
C
Blade Attachment Hardware
(16 Screws with Fiber Washers)
Electrical Hardware
(3 Plastic Wire Nuts)
Balancing Kit
A.
B.
C.

3
Installing Your Fan
Figures 1~3 are examples of different ways to
mount the outlet box.
If there isn't an existing UL listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 35 lbs). Do not use plastic outlet boxes.
Tools Required
Mounting Options
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPT-
ABLE FOR FAN SUPPORT AND USE THE
MOUNTING SCREWS PROVIDED WITH THE
OULET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE
MAY NOT BE ACCEPTABLE FOR FAN SUPPORT
AND MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Outlet Box
Outlet Box
Outlet Box
Figure 2
Figure 1
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling. The maximum angle
allowable is 17°. If the canopy touches downrod,
remove the decorative canopy bottom cover and
turn the canopy 180°before attaching the canopy
to the mounting plate.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 4 (available at any
Home Depot store).
Ceiling
Mounting
Plate
Provide Strong
Support
Recessed
Outlet Box
Figure 3
Figure 4
Phillips screwdriver, straight slot screwdriver, step
ladder and wire cutters.

4
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
Hanging the Fan
WARNING
FAILURE TO PROPERLY INSTALL COTTER PIN
AS NOTED IN STEP 5 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
Tighten two set screws at top of the fan motor
collar firmly and evenly. (Fig. 6)
6.
Align the holes at the bottom of the downrod
with the holes in the coupling on top of the
motor housing (Figure 6). Carefully insert the
clevis pin through the holes in the collar and
downrod. Be careful not to jam the clevis pin
against the wiring inside the downrod. Insert
the cotter pin through the hole near the end of
the clevis pin until it snaps into its locked
position, as noted in the circle inset of Fig. 6.
5.
Remove the decorative canopy bottom cover
from the canopy by turning the cover counter
clockwise. (Figure 5)
Remove the mounting bracket from the canopy
by removing the 1 of 2 screws from the bottom
of the mounting bracket and loosening the
other one a half turn from the screw head.
Next, turn the canopy counter clockwise to
removing the mounting bracket from the
canopy. (Figure 5)
Remove the clevis pin, cotter pin and set
screws from the top of the motor assembly.
(Figure 6)
NOTE: If a longer downrod is needed, take out
the screw located in the hanger ball, lower the
hanger ball and remove the pin, remove all 3
pieces from the downrod and assemble them
onto the new longer downrod before
proceeding step 4. (The longer downrod is
available at any Home Depot store)
Route wires exiting from the top of the fan
motor through the coupling cover, canopy
cover, canopy and then through the ball/
downrod. (Figure 6)
1.
2.
3.
4.
Figure 5
Ceiling
Mounting
Bracket
Ceiling Canopy
Canopy Bottom
Cover
Motor Wires
Ball/Downrod
Assembly
Ceiling
Canopy
Canopy
Bottom
Cover
Coupling
Cover
Tighten
Screw
Firmly
Figure 6
Pin in Locked
Positioon
Clevis Pin
Motor
Collar
Cotter
Pin

5
Installing Fan to
the Electrical Box
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR OTHER PERSONAL INJURY.
MOUNT FAN ONLY TO AN OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE
FOR FAN SUPPORT AND USE THE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
Figure 8
Groove
Tab
Ceiling
Mounting
Bracket
120V
Wires
Figure 7
Tab
UL Listed
Outlet Box
WARNING
THE TAB IN THE RING MUST REST IN THE
GROOVE OF THE HANGER BALL AS FIGURE 8.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.

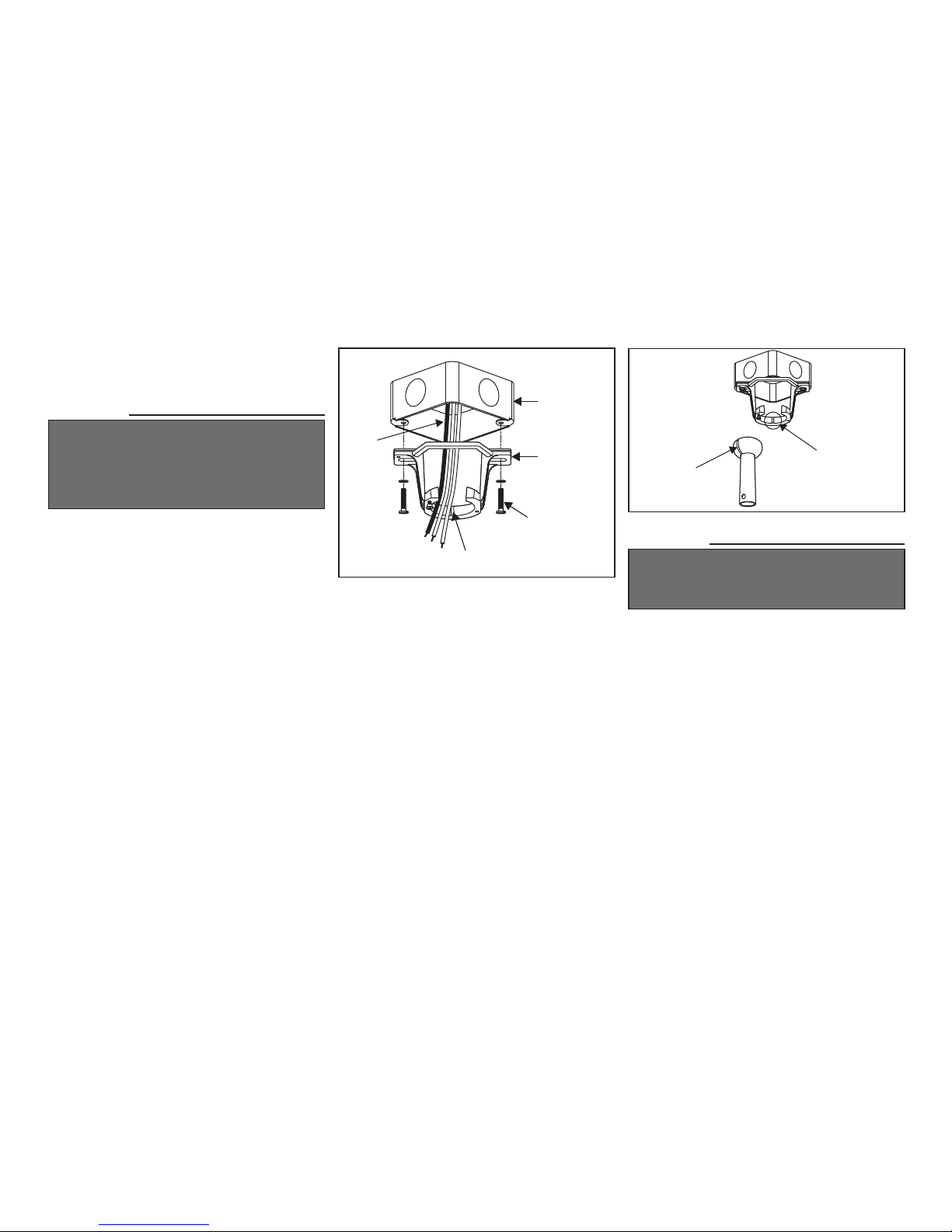

Pass the 120-volt supply wires through the
center hole in the ceiling mounting bracket as
shown in Figure 7.
Install the ceiling mounting bracket on the
outlet box with the screws and washers
provided with your outlet box (Figure 7).
Security tighten the two mounting screws.

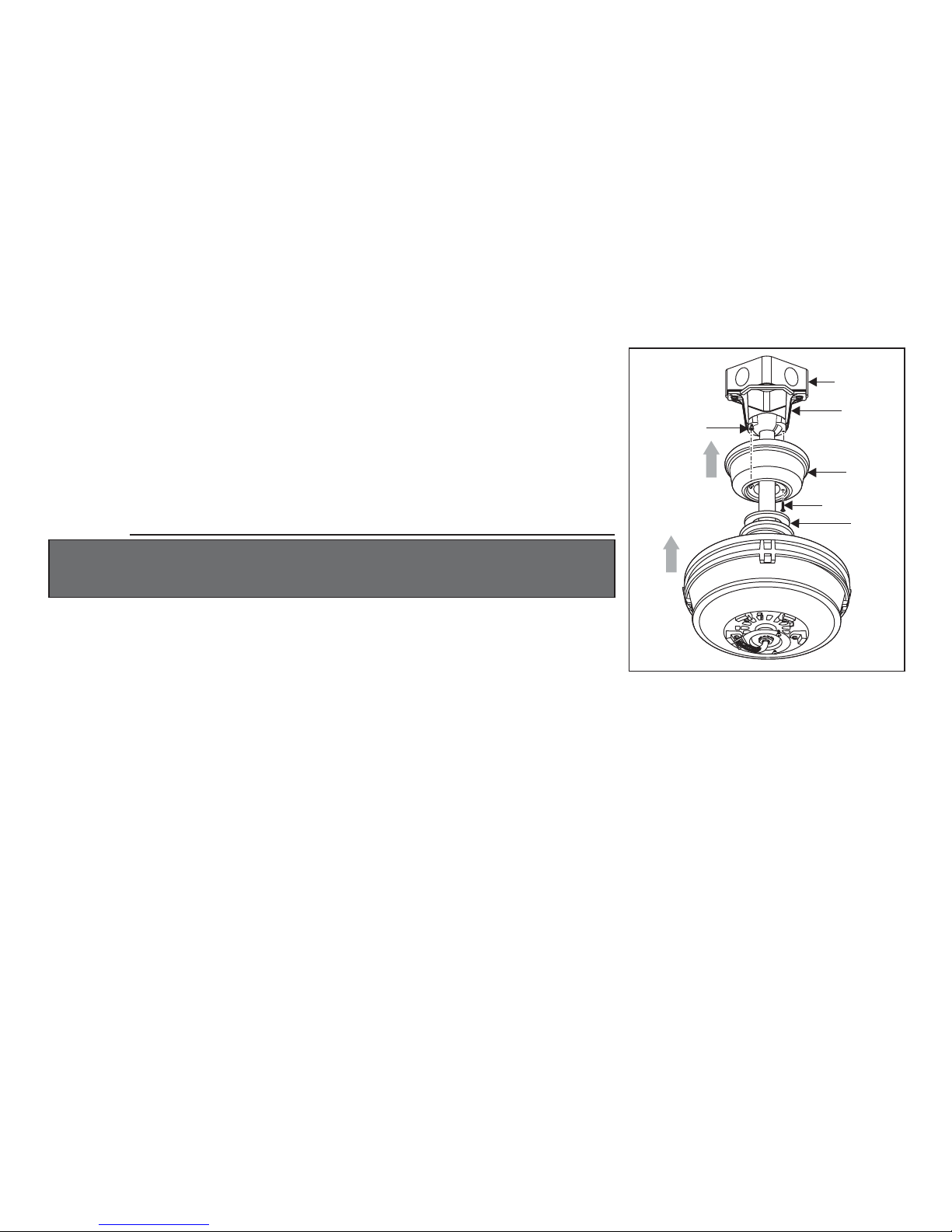

Carefully lift the fan assembly up to the ceiling
mounting bracket and seat the hanger ball in the
mounting bracket socket. Make sure the tab on
the mounting bracket socket is properly seated
in the groove in the hanger ball (Figure 8). This
will help to balance the ceiling fan.
1.
2.
3.
4.
Mounting
Screws (Supplied
with Electrical Box)

6
SUPPLY CIRCUIT
Figure 9
BLACK
WHITE
BLACK
WHITE
BLUE
GREEN
Outlet Box
Ground
Conductor
Green
Ground
Lead
Ground to
Downrod
Making the Electrical
Connections
WARNING
CHECK TO SEE THAT ALL CONNECTIONS ARE
TIGHT, INCLUDING GROUND, AND THAT NO
BARE WIRE IS VISIBLE AT THE WIRE NUTS.
EXCEPT FOR THE GROUND WIRE.
WARNING
ELECTRICAL DIAGRAMS ARE FOR REFER-
ENCE ONLY. OPTIONAL USE OF ANY LIGHT
KIT SHALL BE UL LISTED AND MARKED
SUITABLE FOR USE WITH THIS FAN.
Turn wire nut connections upward, spreading
them apart so the green (ground) will be on one
side of the outlet box and the white, black and
blue wire will be on the other side, and push
carefully up into the outlet box.
5.
Connect the ground conductor of the 120V
supply (this may be a bare wire or a wire with
green colored insulation) to the green ground
lead(s) of the fan. (Figure 9)
Connect the fan motor white wire to the supply
white (neutral) wire using a wire nut. (Figure
9)
Connect the fan motor black wire to the supply
black (hot) wire using a wire nut. (Figure 9)
Connect the blue wire for light kit to the black
household supply wire.
1.
2.
3.
4.
REMEMBER to disconnect the power.
If you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
Follow the steps below to connect the fan to your
household wiring. Use the wire nuts supplied with
your fan. Secure the wire nuts with electrical tape.
Make sure there are no loose strands or
connections.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK. DO NOT USE THIS FAN WITH ANY
SOLID-STATE SPEED CONTROL DEVICE.

7
Tuck connections neatly into ceiling outlet box.
Slide the canopy up to mounting bracket and place the key hole on the canopy over the screw on the
mounting bracket, turn canopy until it locks in place at the narrow section of the key holes. (Fig. 10)
Align the circular hole on canopy with the remaining hole on the mounting bracket, secure by
tightening the two set screws. Note: Adjust the canopy screws as necessary until the canopy and
canopy cover are snug.
1.
2.
3.
Figure 10
Outlet Box
Ceiling
Mounting
Bracket
Screws
Screws
Canopy
Canopy
Bottom
Cover
WARNING
MAKE SURE THE TAB ON THE HANGER BRACKET PROPERLY SITS IN THE GROOVE IN THE
HANGER BALL BEFORE ATTACHING THE CANOPY TO THE BRACKET BY TURNING THE HOUSING
UNTIL IT DROPS INTO PLACE.
Finishing the Fan Installation

8
Attaching the Fan Blades
Attach blades to blade arm using the screws
with fiber washers provided (Fig. 12). Start a
screw into the blade arm, do not tighten.
Repeat for the 2 remaining screws and
washers.
Tighten each screw securely starting with the
center screw. Make sure the blade is straight.
Repeat steps for the remaining blades.
Fasten the blade assemblies to the motor
housing by lining up the slots of the blade arms
with the tabs on the motor housing, then
tighten the two screws and washers already
installed in the blade arms (Figure 13).
1.
2.
3.
CAUTION
MOTOR IS SHIPPED WITH RUBBER PACKING
MOUNTS TO PREVENT MOVEMENT DURING
TRANSPORTATION. REMOVE 5 RUBBER
PACKING MOUNTS FROM FAN MOTOR
ASSEMBLY AND DISCARD PRIOR TO ATTACH-
ING BLADE ARMS. (FIG. 11)
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE ARMS WHILE
INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.

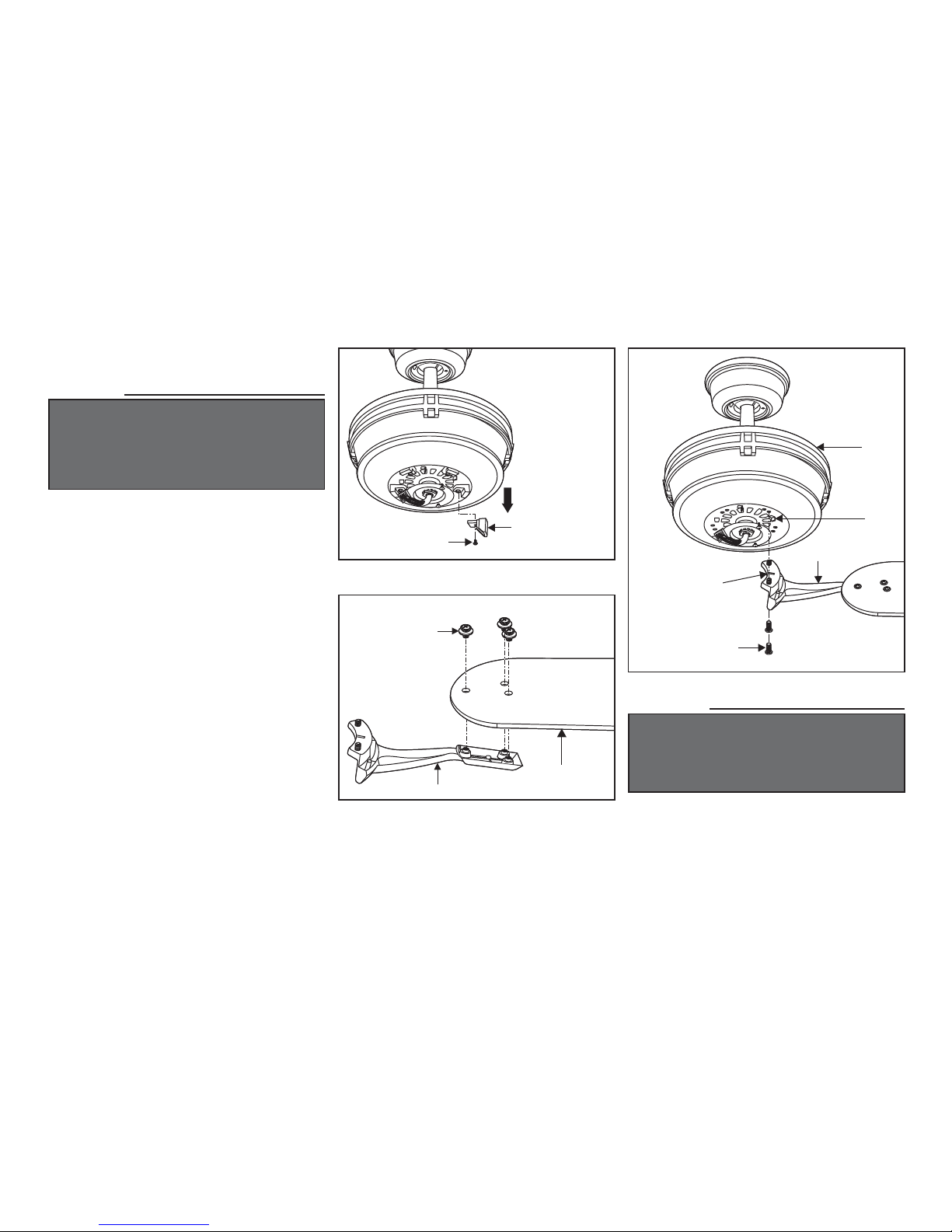

Figure 11
Figure 12
Screws
Rubber Packing
Mounts
Blade Arm
Blade
Screws
with Fiber
Washer
Figure 13
Motor
Tab
Blade Arm
Slot
Screw

Blade Balancing
Figure 14
Check that all blade and blade bracket screws are secure.
Most fan wobble problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of
the blades. Measure from a point on the center of each blade to the point
on the ceiling. Measure this distance as shown in Figure 14. Rotate the fan
until the next blade is positioned for measurement. Repeat for each blade.
Measurements deviation should be within 1/8˝. Run the fan for 10
Minutes.
Use the enclosed Blade Balancing Kit if the blade wobble is still
noticeable.
1.
2.
3.
The following procedure should correct most fan wobble. Check after each
step.
Touching Ceiling
9

Installing the Mounting
Plate
Remove 1 of 3 screws from the mounting ring
and loosen the other 2 screws. (Do not remove)
Place the key holes on the mounting plate over
the 2 screws previously loosened from the
mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 15)
1.
2.
Installing the
Light Kit
CAUTION
BEFORE STARTING INSTALLATION, DISCON-
NECT THE POWER BY TURNING OFF THE
CIRCUIT BREAKER OR REMOVING THE FUSE
AT FUSE BOX. TURNING POWER OFF USING
THE FAN SWITCH IS NOT SUFFICIENT TO
PREVENT ELECTRIC SHOCK.
Remove the plug from the switch housing.
Attach the light kit to the switch housing by
feeding the light kit wires (black and white)
through the hole of switch housing and then
screw it onto the switch housing by nut & lock
washer. Be sure it is tight enough to prevent
light kit from vibrating loose. (Fig. 16)
While holding the light kit assembly under
your fan, snap together the wire connection
plugs. (Fig. 17)
Carefully push all wires back into the switch
housing, then install the light kit assembly onto
the mounting plate with 3 screws provided. Be
sure to tighten all screws. (Fig. 17)
1.
2.
3.

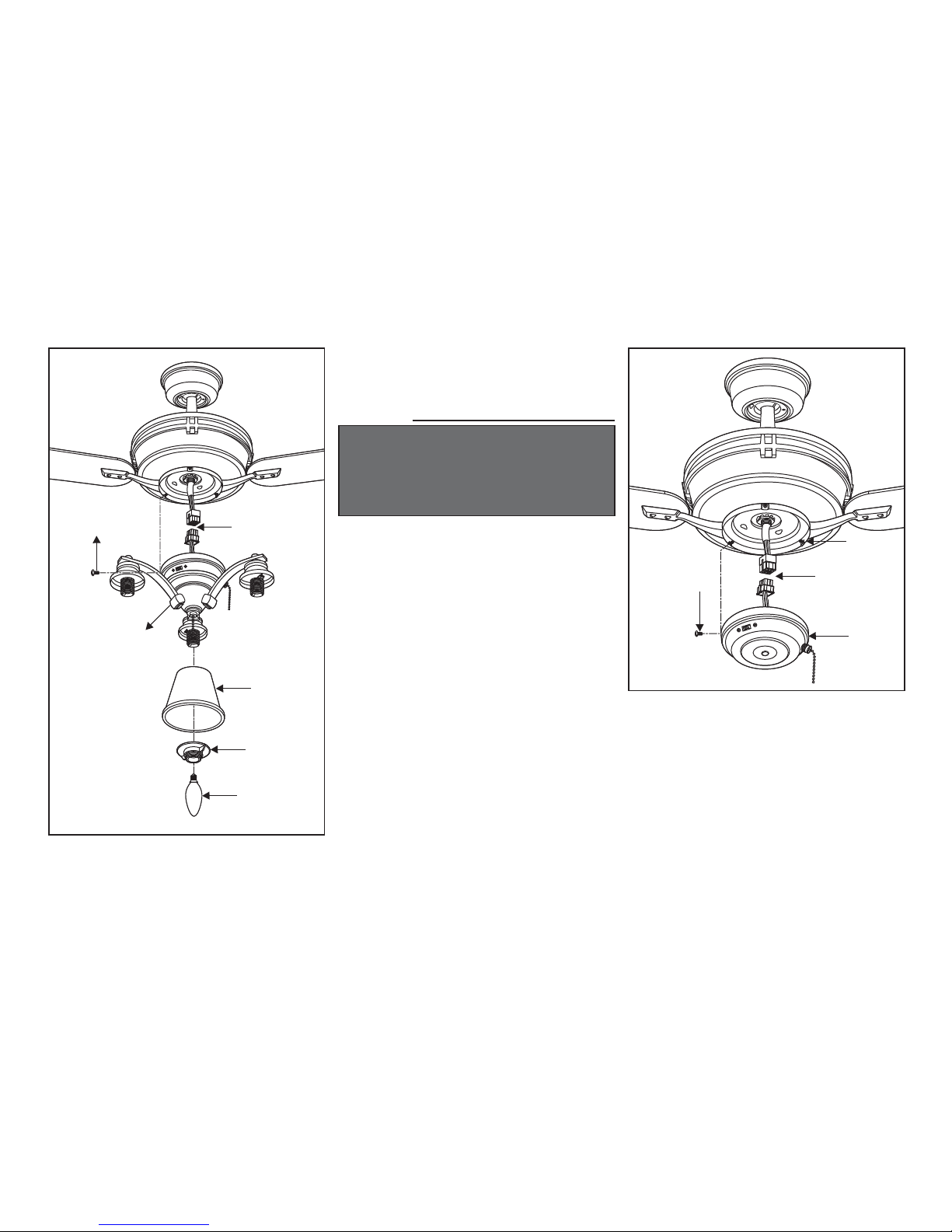

Figure 16
Nut
Switch
Housing
Light Kit
Lock Washer
Aditional
plastic plug
Remove the lock ring from the socket by
turning the lock ring clockwise until it unlocks.
Insert the glass into the glass holder and turn
the lock ring counter-clockwise to tighten the
glass. Repeat for the remaining glass. (Fig. 17)
Install 3 x 60 Watt candelabra bulbs (included).
Restore power and your light kit is ready for
operation.
4.
5.
6.
NOTE
IF YOU DO NOT PLAN TO INSTALL THE LIGHT
KIT WITH YOUR FAN AT THIS TIME, SKIP STEP
1-6.
Figure 15
Mounting
Ring
Screws
Mounting
Plate
10

Fan without Light Kit
(Optional)
Figure 18
Figure 17
Wire Connection
Plugs
Screws
Lock Ring
Bulbs
Glass Shade
Light Kit
Assembly
Holding the switch housing under your fan,
snap the wire connection plugs together .
Install the switch housing to the mounting
plate with screws provided. (Fig. 18)
1.
2.
CAUTION
BEFORE STARTING INSTALLATION, DISCON-
NECT THE POWER BY TURNING OFF THE
CIRCUIT BREAKER OR REMOVING THE FUSE
AT FUSE BOX. TURNING POWER OFF USING
THE FAN SWITCH IS NOT SUFFICIENT TO
PREVENT ELECTRIC SHOCK.
11
Mounting
Plate
Wire
Connection
Plugs
Screws
Switch
Housing

Operating Your Fan
Turn on the power and check the operation of your
fan. There are two pull chains available in your
fan:
1. 3-speed pull chain- it controls the fan speed as
follows: 1 pull- High, 2 pulls- Medium, 3 pulls-
Low, and 4 pulls- Off.
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, and so on.
2. Light kit pull chain- it controls the light kit in
"ON" or "OFF".
The slide switch controls directions: forward
(switch left) or reverse (switch right).
NOTE
WAIT FOR FAN TO STOP BEFORE REVERSING
THE DIRECTION OF THE BLADE ROTATION.

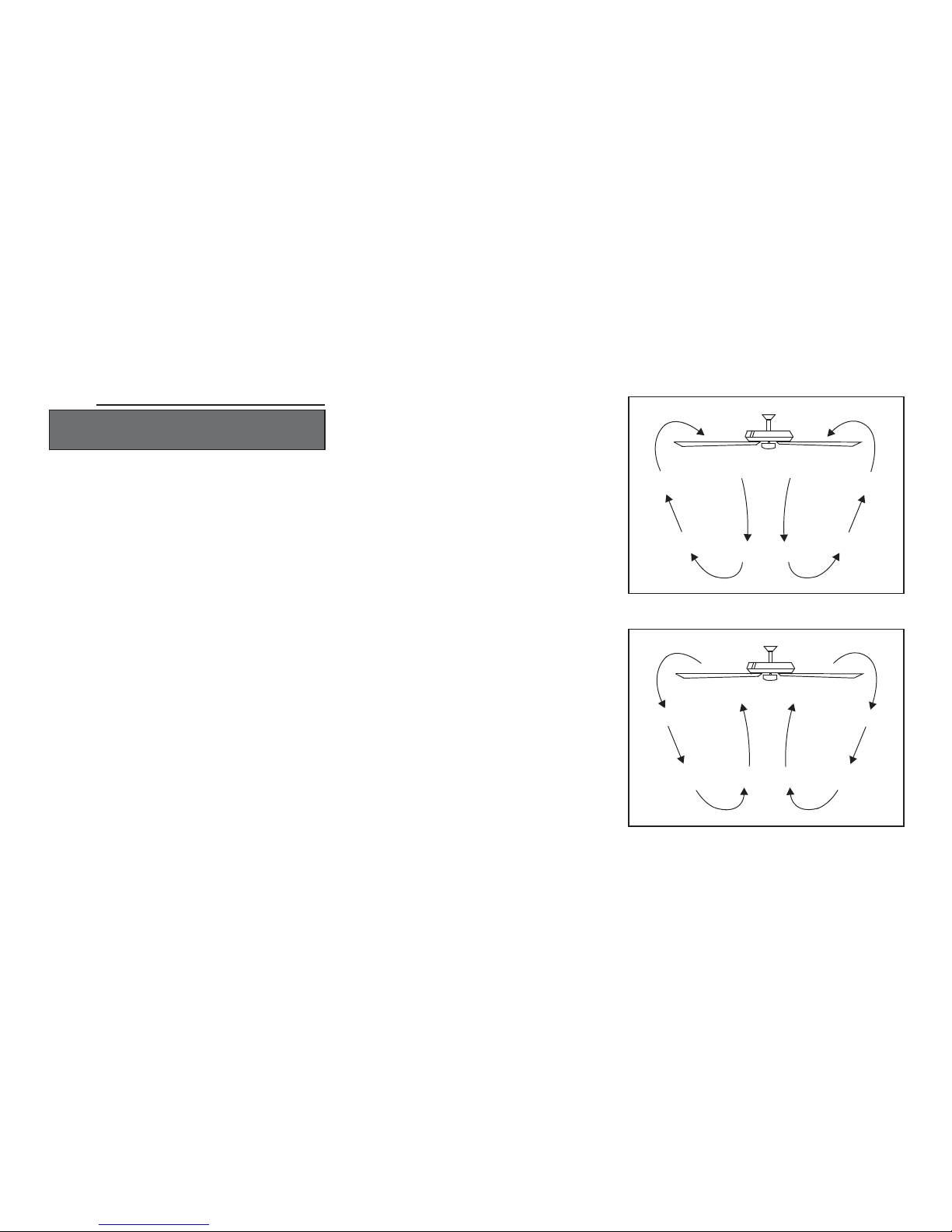

Figure 19
Figure 20
Warm weather - (Counter-Clockwise direction)
A downward air flow creates a cooling effect as
shown in Figure 19. This allows you to set your air
conditioner on a higher setting without affecting
your comfort.
Cool weather - (Clockwise direction) An upward
air flow moves warm air off the ceiling are as
shown in Figure 20. This allows you to set your
heating unit on a lower setting without affecting
your comfort.
12

13
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPY ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain its
new appearance over the years. Do not use
water when cleaning. Use only a soft brush or
lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball bearings.
1.
2.
3.
4.
Here are some suggestions to help you maintain
your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan and switch wire connections in
the switch housing.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the motor hub
is tight.
Make sure wire nut connections are not rattling against each other or
the interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a
new fan disappear during this time.
If using ceiling fan light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
Make sure there is a short distance from the ceiling to the canopy. It
should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads are used
between mounting bracket and outlet box.
This unit is equipped with a wattage limiting device. Lamping in excess
of 190 watts will disable your ceiling fan's light kit. To reset your light
kit you must turn the power off and relamp, keeping the wattage under
190 watts. Restore power to your ceiling fan and continue normal
operation.
1.
2.
1.
2.
3.
4.
5.
6.
7.
1.
Fan will not start
Fan sounds noisy
Lights shut off and
will not come back
on.
Care of Your Fan Troubleshooting
PROBLEM SOLUTION

14
Specifications
FAN SIZE SPEED VOLTS AMPS WATTS RPM CFM N.W. G.W. C.F.
52” 120
LOW
MED.
HIGH
These are approximate measures. They do not include Amps and Wattage used by the light kit .
0.20
0.35
0.48
10
30
58
57
106
154
1716
3419
4884
10.8 kgs
(23.76 lbs)
12.3 kgs
(27.06 lbs) 2.41'

15
The Hampton Bay warrants the fan motor to be free from defects in workmanship and material present at time
of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser.
Hampton Bay also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from
defects in workmanship and material at the time of shipment from the factory for a period of one year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option
replace with a comparable or superior model if the product is returned to Hampton Bay. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the
product are your responsibility. Damage to any part such as by accident or misuse or improper installation or
by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling.
Brass finishes of this type give their longest useful life when protected from varying weather conditions. A
certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by
unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay
hereby disclaims any and all warranties, including but not limited to. Those r a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time
period as specified in the express warranty. Some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you. The Hampton Bay shall not be liable for
incidental, consequential, or special damages arising out of or in connection with product use or performance
except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or
consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives
specific legal rights, and you may also have other rights which vary from state to state. This warranty
supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must
be paid by the customer.
Hampton Bay Lifetime Limited Warranty
(lifetime warranty on motor)
IMPORTANT NOTE:
To ensure warranty service if ever
needed, please register your fan at:
www.tal-usa.com/registration
You must present a copy of the original
purchase receipt to obtain warranty
service.
Ceiling Fan Parts & Service Department
2919 E. Philadelphia Street
Ontario, CA 91761
U.S.A.
Attach receipt here for easy
location
