HAMPTON BAY 670-787 User manual

Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
670-787
445993
718212341629
Hampton Bay Lifetime Motor Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varyingclimatic conditions inthe United States this warranty does not
cover any changesin brass finish,including rusting, pitting,corroding, tarnishing orpeeling.
Brass finishes of this type give their longest useful life when protected from varying weather
conditions. A certain amount of wobble is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no
other express warranty. The retailer hereby disclaims any and all warranties,
including but not limited to. Those of merchantability and fitness for a particular
purpose to the extent permitted by law. The duration of any implied warranty which
cannot be disclaimedis limited to the time period as specified in the express warranty. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance except
as may otherwise be accorded by law. Some states do not allow the exclusion of incidental
or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties.
Lifetime Motor Warranty

Table of Contents
SAFETY RULES....................................................................................................
PACKAGE CONTENTS ........................................................................................
INSTALLING YOUR FAN.....................................................................................
HANGING THE FAN.............................................................................................
ELECTRICAL CONNECTIONS ..........................................................................
FINISHING THE INSTALLATION.......................................................................
BLADE INSTALLATION .....................................................................................
............................................................
...........................................................................
OPERATING YOUR FAN....................................................................................
CARE OF YOUR FAN..........................................................................................
TROUBLESHOOTING.......................................................................................
SPECIFICATIONS..............................................................................................
INSTALLING THE MOUNTING PLATE
INSTALLING THE LIGHT KIT
1
2
3
4
5
6
7
8
9
10
11
12
13

1. Before you begin installing the fan, shut power off at
the circuit breakeror the fuse box.
2. Be cautious! Read all instructions and safety
information before installing your new fan. Review
accompanying assembly diagrams.
3. Make sure that all electrical connections comply with
local codes, ordinances, or National Electrical Codes.
Hire a qualified electrician or consult a do-it-yourself
wiring handbook if you are unfamiliar with installing
electrical wiring.
4. Make sure the installation site you choose allows the fan
blades to rotate without any obstructions. Allow a
minimum clearance of 7 feet from the floor and 18
inches from thetip of the blades to the wall.
5. If you are mounting the fan to a ceiling outlet box, use
U.L. Listed metal octagonal outlet box marked
"Acceptable for fan support". Secure the box directly to
the building structure. The outlet box and its support
must be able to support the moving weight of the fan (at
least 50 lbs.)Do not use a plastic box.
6. Caution: To reduce the risk of personal injury use only
the screws providedwith the outletbox.
7. If you are mounting the fan to a joist, make sure it is able
to support themoving weight of the fan (at least 50 lbs.).
1. Safety Rules
8. After you install the fan, make sure that all mountings are
secured to preventthe fan from falling.
9. Do not insert anything into the fan blades while the fan is
operating.
10. Turn the fan off and wait for it to stop completely beforechanging
the fan direction.
NOTE: The important safeguardsand instructions appearing in this
manual are notmeant to cover all possible conditions and situations
that may occur. It must be understood thatcommon sense, cautionand
care are factorswhich can not be built into this product. These factors
must be suppliedby the person(s) installing, caring for and operating
the unit.
TO REDUCETHE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER PERSONAL
INJURY, MOUNT FAN ONLY TOAU.L. LISTED OUTLETBOX OR SUPPORTING
SYSTEM MARKEDACCEPTABLE FORFAN SUPPORT ANDUSE MOUNTING
SCREWS PROVIDED WITHTHE OUTLETBOX IN CONJUNCTIONWITH THE
LOCK WASHERS PROVIDED WITHTHE FAN, MOST OUTLETBOXES
COMMONLYUSED FOR THESUPPORT OFLIGHTING FIXTURES ARE NOT
ACCEPTABLE FORFAN SUPPORT ANDNEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IFIN DOUBT.
TO REDUCETHE RISK OF PERSONAL INJURY,DO NOT BENDTHE BLADE
HOLDERS WHILE INSTALLING, BALANCING THEBLADES, OR CLEANING
THE FAN.DO NOT INSERT FOREIGN OBJECTSBETWEEN ROTATING FAN
BLADES.
TO REDUCETHE RISK OF FIRE OR ELECTRIC SHOCK, DO NOTUSE THIS FAN
WITH ANYSOLID-STATE SPEED CONTROLDEVICE
WARNING
NOTE
READ AND SAVE ALL INSTRUCTIONS!

Unpack your fanand check thecontents. You should havethe following items;
.
1 Fan blades (5)
2. Hanger bracket
3. Canopy
4. Canopy cover
5. Downrod assembly
6.
7. Fan motorassembly
Coupling cover
8. Blade holders(5)
9. Mounting plate
10. Light kit
11. Glassshade
12. Pull chain fob (2)
13. 13 Watt compact fluorescent bulbs (2)
15. Balancing kit
14. Extra plug
Package Contents 2.
3
1
2
10
9
11
12
4
5
7
6
815
14
13 ab
a. Mounting hardware:
Wire nuts(3)
b. Blade attachmenthardware:
Screws (16)

Phillips screw driver; slotted screw driver; step-
ladder; wire cutters;electrical tape.
If there isn't an existing mounting box, then read
the following instructions. Disconnect the power
by removing fusesor turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 50 lbs.). Use a UL Listed metal outlet box.
Do not usea plastic outlet box.
Figure 1, 2 and 3 are examples of different ways to
mount the outletbox.
Note: You may need a longer downrod to maintain
proper blade clearance when installing on a steep,
sloped ceiling. Longer downrods are available
from your HamptonBay dealer.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need to install a
hanger bar as shown in Fig. 4 (available at your
Hampton Bay dealer).
Tools Required
Mounting Options
3. Installing Your Fan
Outlet box
Figure 1
Ceiling
joist
Ceiling
joist
Cross brace
Outlet box
Figure 2
Ceiling joist
or cross brace Parallel
wood brace
Provide strong
support
Recessed
outlet box
Hanger bracket
opening must
be facing up-side
Figure 3
Outlet box
Figure 4
Ceiling
joist
Hanger bar
(optional)
Hanger
bracket
Angled ceiling
maximum
20 angle

Figure 9
Figure 10
Registration
slot
Downrod
Canopy
Canopy cover
Set screws
Hitch pin
Lock pin
Hanger ball

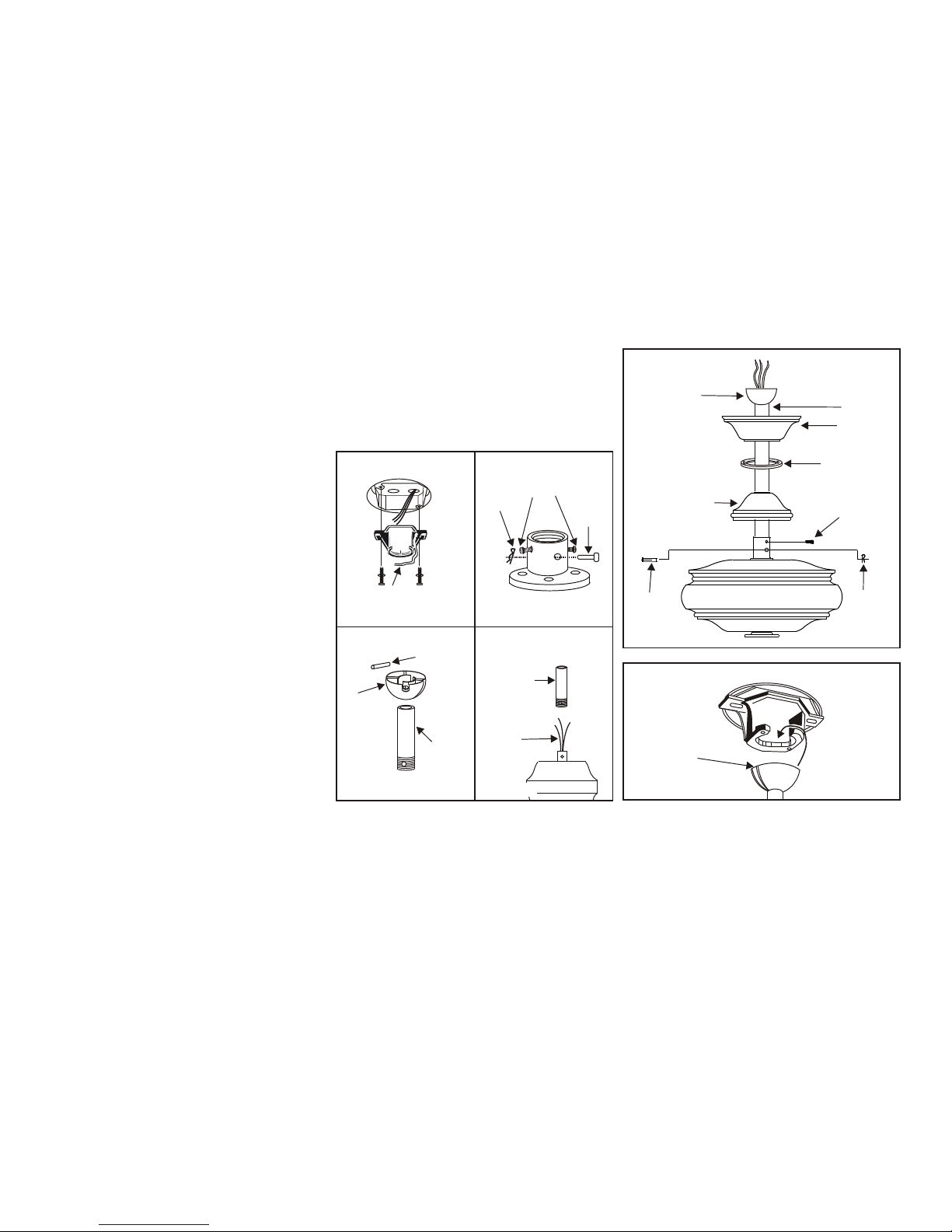

4.Hanging the Fan
REMEMBER to turn off the power.
Follow the stepsbelow to hang your fan
properly:
Step 1. Secure the hanger bracket to the
ceiling outlet box using screws and lock
washers included with your outlet box.
(Fig.5)
Step 2. Loosen the two set screws and
remove the hitch pin and lock pin from the
top coupling ofthe motor assembly. (Fig.6)
Step 3. Remove hanger ball from downrod
assembly by looseningset screw, removing
the cross pin, and sliding ball off rod.
(Fig.7)
Step 4. Carefully feed fanwires up through
the downrod. (Fig. 8) Thread the rod into
the coupling. Next, line up holes and
replace lock pin and hitch pin. Tighten set
screws.
Step 5. Slip coupling cover, canopy cover
and canopy onto downrod. (Fig.9)
Carefully reinstall hanger ball onto rod
being sure that cross pin is in correct
position, set screws are tighten and wires
are not twisted.
Step 6. Now lift motor assembly into
position and place hanger ball into hanger
bracket. Rotate until the check groove has
dropped into the registration slot and seats
firmly. (Fig. 10) Rod should not rotate if
this is donecorrectly.
Outlet box
Hanger bracket
Cross pin
Hanger
ball
Downrod
Downrod
Supply
wires
Figure 5
Figure 7 Figure 8
Figure 6
Hitch
pin Lock
pin
Set
screws
Coupling cover

5. Electrical Connections
WARNING: To avoid possible electricalshock, be
sure electricity is turned off at the circuit breaker
or main fusebox before wiring.
Follow the steps below to connect the fan to your
house supply wires. Secure the wire nuts supplied
with your fan by wrapping the connections with
electrical tape.
Step 1. Connect the Black (hot) wire from the
ceiling to the black and blue wires from the fan.
Connect the white (neutral) wire from the ceiling
to the whitewire from the fan. (Fig. 11)
Step 2. If your outlet box has a ground wire (green
or bare copper) connect the fan ground wire from
hanger ball and hanger bracket to it; otherwise
connect the fan ground wire from the hanger ball
and hanger brackettogether.

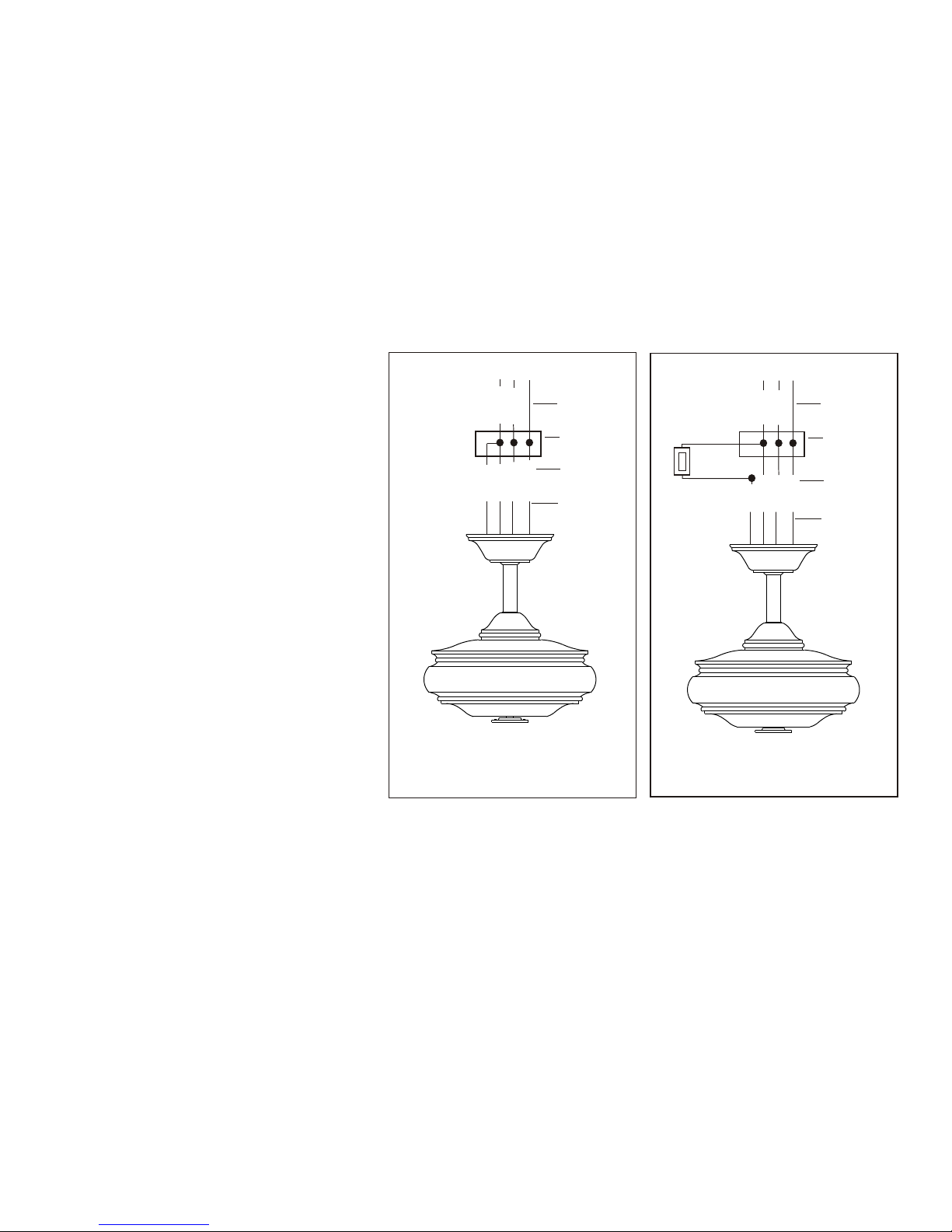

Step 3. Figures 12 and 13 illustrate the wiring
connections for optional wall control (available at
your Hampton Bay Retailer, the wire color out of
wall control may vary, see wall control's
installation manual forcorrect wire connections.)
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
Figure 11
Diagram indicates optionallight kit wiring.
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 12
Diagram indicates optionallight kit wiring.
Light Switch

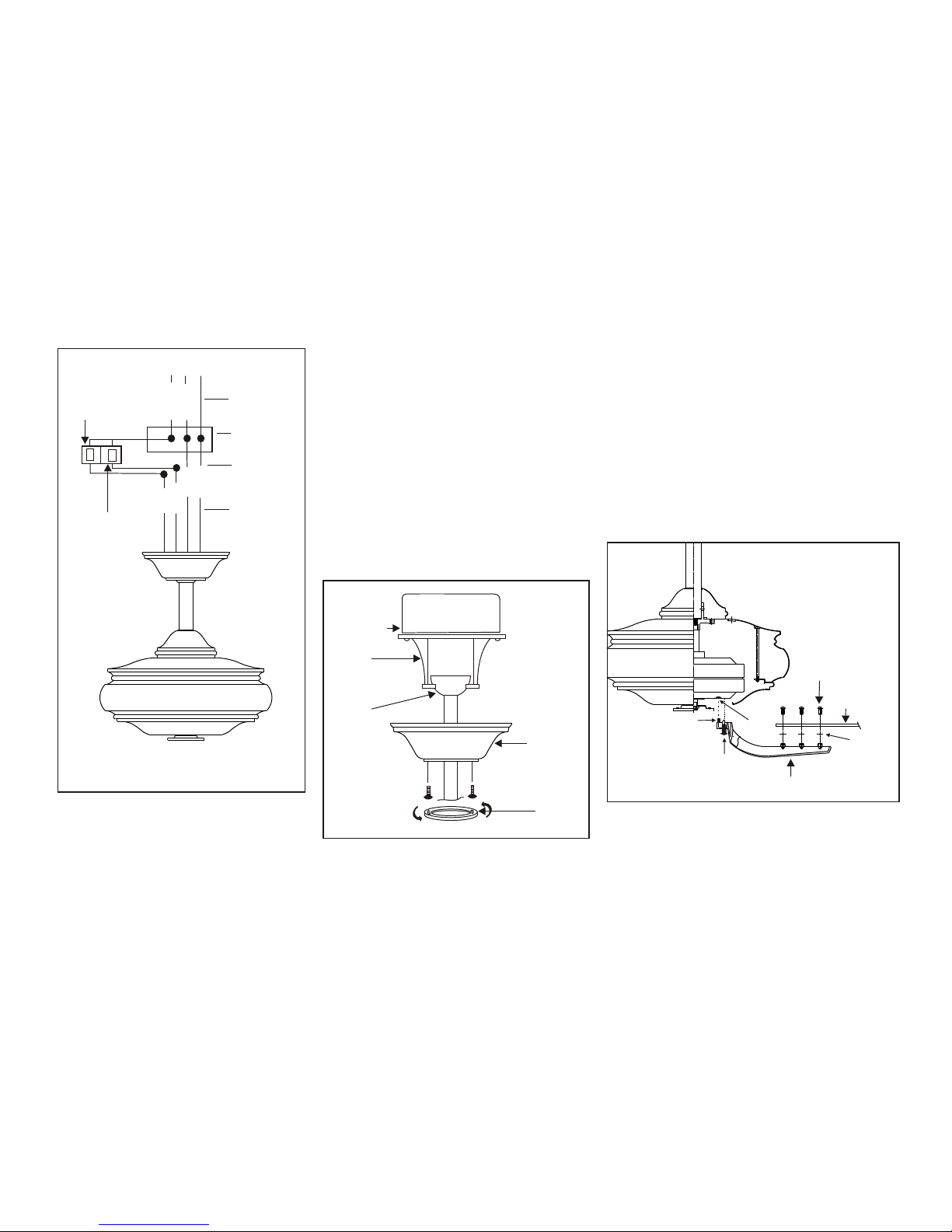

6. Finishing the
Installation
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to ceiling and
over the two crews on hanger bracket. Rotate
canopy clockwise. Next, while holding the
canopy with one hand, slide the canopy
cover over the screws and rotate clockwise
until tight. Note: adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig.14)
Figure 14
Outlet box
Hanger
bracket
Hanger
ball
Canopy
Canopy
cover
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 13
Diagram indicates optionallight kit wiring.
Light
Fan
7. Blade Installation
Step 1. Attach the fan blades to the blade
holders using the screws and rubber washers
provided, tighten screwssecurely. (Fig. 15)
Step 2. Remove rubber stops from motor.
Rotate motor so that the screw holes are
revealed through the opening on switch cap
plate. Align motor holes to blade holders and
secure with screws provided, tighten screws
securely. (Fig. 15)
Screws
Blade holders
Blades
Screws
Rubber
washer
Slot
Tab
Figure 15

Connectors
Screws
Pull chain
Glass
shade
Bulbs
Light kit
assembly
Glass cap
Metal nut
Finial
Mounting plate
Figure 17
9. Installing the Light
Kit
While holding the light kit assembly
under your fan, snap together the wire
connection plugs .
NOTE: Before starting installation,
disconnect the power by turning off the
circuit breaker or removing the fuse at fuse
box.
1.
2. Carefully push all wires back into the
switch housing, then install the light kit
assembly onto the mounting plate with 3
screws provided. Be sure to tighten all
screws. (Fig.17)
3. Install 2 x 13 Watt compact fluorescent
bulbs (included).
4. Remove the metal nut, glass cap and finial
from the light kit. Raise the glass shade
up against the light kit. Place the metal
nut with rubber on the top over the stem
and turn it clockwise until it locks up
against the glass shade. Do not
overtighten. (Fig. 17)
5. Raise the glass cap and final against the
glass shade and secure it to the stem by
turning the final clockwise until snug. Do
not overtighten. (Fig.17)
Note: Make sure to leave enough space
between the fan pull chain and the bulbs so
the chain doesn'trub against any of the bulbs.
8. Installing the Mounting
Plate
Step 1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened from
the mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 16)
Figure 16
Mounting plate
Mounting ring
Screws

Restore power to ceiling fan and test for proper
operation.
Speed Pull ChainOperation:
This pull chaincontrols the fan speed as follows;
:
1-Pull = HighSpeed
2-Pulls = MediumSpeed
3-Pulls = LowSpeed
4-Pulls = FanOff
The reverse slide switch located on the side of the
switch housing controls the direction of the blade
rotation:.
Speed settings for warm or cold weather depend on
factors such as room size, ceiling height and number
of fans, etc.
NOTE: Wait for the fan to stop before changing the
setting of theslide switch
Warm weather (Forward) A downward airflow
creates a cooling effect as shown in Figure 19. This
allows you to set your air conditioner on a warmer
setting without affecting your comfort.
Cool weather (Reverse) An upward airflow moves
warmer air off the ceiling area as shown in Figure 20.
This allows you to set your heating unit on a cooler
setting without affecting your comfort.
Operating your Fan 10.
Figure 19
Figure20
Fan without Light Kit
1.
lease keep the nut and washer
for install theplug to the switch housing)
3. olding the under your fan,
snap together the wire connection plugs.
4.
Disassemble the switch housing from the
light kit (p
,
you can keepthe light kit for future use.
2. Attachthe plug tothe switch housing with
the washer and nut previously removed.
(Fig. 18)
H switch housing
(Fig. 18)
Install the switch housing to the mounting
plate with screws provided. (Fig. 18)
Figure18
Switch
housing
Washer
Nut
Plug
Connectors
Screws
Mounting plate

11. Care of Your Fan
Here are some suggestions to help
maintain your fan.
1. Because of the fan's natural movement
some connections may become loose.
Check the support connections, brackets
and blade attachments twice a year. Make
sure they are secure. (It is not necessary to
remove fan fromthe ceiling).
2. Clean your fan periodically to help
maintain its newappearance over the years.
Use only a soft brush or lint free cloth to
avoid scratching the finish. Plated finishes
are sealed with lacquer to minimize
discoloration or tarnishing. Do not use
water when cleaning, this could damage
the motor, wood blades or possibly cause
an electrical shock.
3. If your fan is provided with wood veneer
blades; you can apply a light coat of
furniture polish for additional protection
and enhanced beauty. Cover small
scratches with a light application of shoe
polish.
4. Use a lint free lightly damp cloth or duster
to remove dustfrom the blades.
5. There is no need to oil your fan. The motor
has permanently lubricatedbearings.
6. If your fan is provided with glass shades,
clean with lukewarm soapy water and a soft
cloth or sponge. DO NOT IMMERSE GLASS
SHADES IN HOT WATER. DO NOT PUT
GLASS SHADES INTO AN AUTOMATIC
DISHWASHER.
THE HAMPTON BAY FAN & LIGHTING CO.
P.O. Box 395
Norco, CA92860
Call toll free 1-800-527-0998
WARNING
Make sure the power is off at the electrical
panel box Beforeyou attempt anyrepairs.
Refer to thesection, "Making Electrical
Connections".

12.Troubleshooting
Problem
Fan will notstart
Fans/Light TurnOn
and Off intermittently
Fan Sounds Noisy
Fan Wobble.
Solution
1. Check tomake sure the wall switch isturned on
2. Check circuitfuses or breakers
Caution! Make sure thepower is turned off before performing the followingsteps;
3. Remove canopyand check wire connections
NOTE: All blade setsare grouped by weight. Because woodand plastic bladesvary in density, the fanmay
wobble even thoughblades are matched.
1. Make sureall blade attachment screws are tight.
2. Make sureOutlet box is secured to buildingstructure, if necessaryuse the wood screws provided tofurther
Secure outlet boxto joist.
3. Make sureHanger Bracket is secure to theoutlet box, screwsare tight.
4. Use thebalancing kit provided if the wobbleis excessive (followinstructions included with balancing kit).
1. Make sureall motor housing screws are snug.
2. Make surethe screws that attach the fanblade bracket tothe motor hub is tight.
3. Make surewire nut connections are not rubbingagainst each otheror the interior wall of theswitch housing.
CAUTION: Make suremain power isoff.
4. Allowa 24-hour "breaking-in" period. Most noiseassociated with a new fan disappearduring this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that the light bulb
is also secure.
6. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have installed this
type of control,choose and install another type ofcontrol.
7. Make surethe upper canopy is a shortdistance from theceiling. It should not touch theceiling.

13. Specifications
These are typicalreadings. Your actual fan may vary. They do not includeAmps andWattage used by the light kit.
Distributed by
Home Depot U.S.A.,Inc.
2455 Paces Ferry Rd., N.W.
Atlanta, GA30339
RPM CFM N.W. G.W.
C.F.
120 2.56'10.70 kgs
(23.56 lbs)
12.21 kgs
(26.89 lbs)
0.30
0.45
0.60
15
35
67
65
105
155
3800
4950
5600
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
54"
(137 cm)
