Safety Rules
Unpacking Your Fan
Installing Your Fan
Hanging the Fan
Make the Electric Connections
Finishing the Installation
Attching the Fan Blades
Installing the Switch Housing
Operating Your Fan
Troubleshooting
Specifications
1
2
3
4
5
6
7
8
9
10
11
Table of Contents

1. To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not
use this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for
the support of lighting fixtures are not acceptable for fan support
and may need to be replaced, consult a qualified electrician if in
doubt.
5. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 pounds. Use
only UL Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from
the trailing edge of the blades to the floor.
NOTE
READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS
IN THEPATH OF THE BLADES.
Safety Rules1.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN
SUPPORT.
7. Do not operate reversing switch while fan blades are in motion. Fan must
be turned off and blades stopped before reversing blade direction.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be cautious
when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
11. After marking electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box.
12. Electrical diagrams are reference only. Light kits that are not packed with
the fan must be UL Listed and marked suitable for use with the model fan
you are installing. Switches must be UL General Use Switches. Refer to
the Instructions packaged with the light kits and switches for proper
assembly.

Unpack your fan and check the contents. You should have the following items:
1.
2. Canopy assembly(1)
3. Ball/downrod assembly (1)
& shorter downrod (1)
4. Collar cover(1)
5. Scroll with collar(1)
Set of blades (5) 6. Scroll(2)
7. Fan motor assembly(1)
8. Set of blade bracket (5)
9. Switch housing(1)
10. Balancing kit (1)
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 888-886-1579
2. Unpacking Your fan
10
1
11
11. Loose parts bag containing:
a . Blade attachment hardware (16 screws
and 16 paper washers)
b. Mounting hardware( 3 plastic wire
connectors)
c. Screw for scroll(1 screws)
d . Pull china fob(1)
8
6
ab
cd
4
2
7
9
5
3

Tools Required
Ph i lli p s sc r ewd r iver , st r aigh t sl o t
screwdriver, adjustable wrench, step
ladder, and wire cutters.
Mounting Options
If there isn't an existing UL listed
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the
build ing structure. Use a ppropriate
fasteners and building materials. The
outlet box and its support must be able
to fully support the moving weight of
the fan (at least 50 lbs). Do not use
plastic outlet boxes.

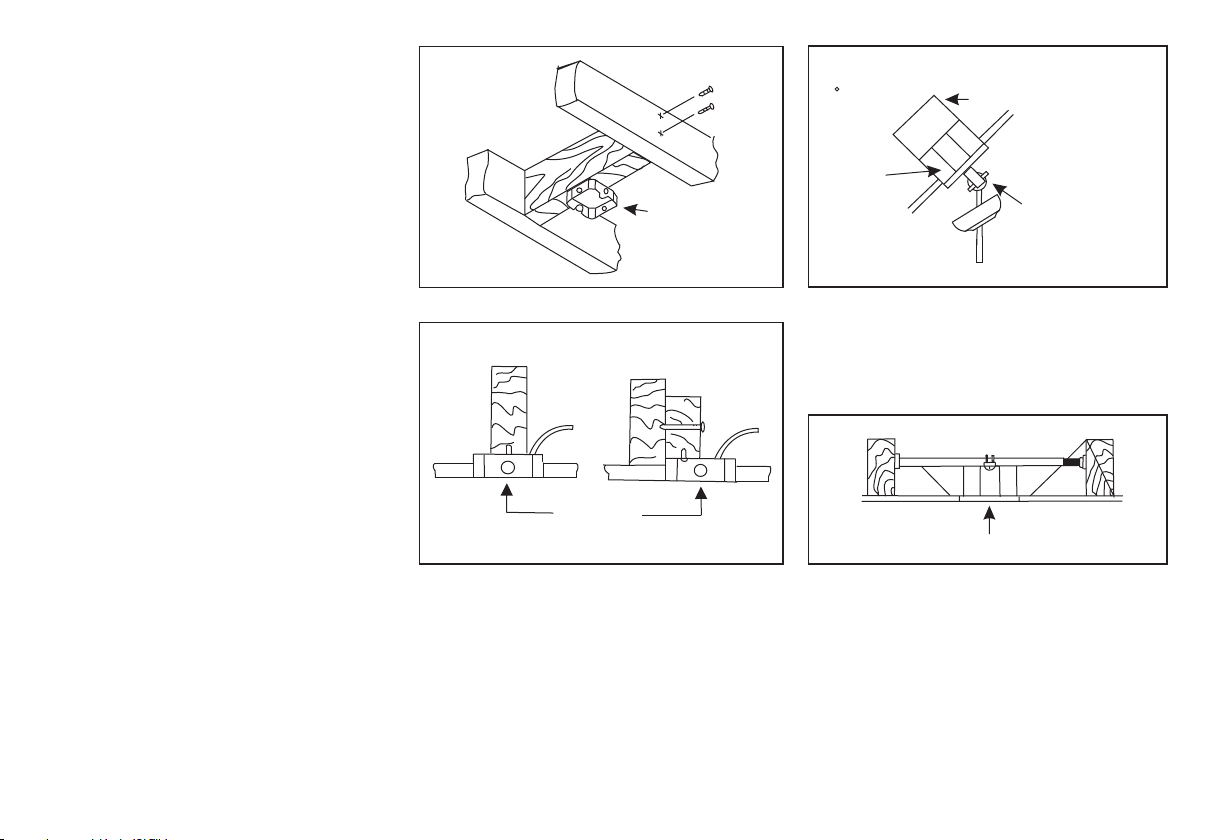

Fig,1,2 and 3 are examples of different
ways to mount the outlet box.
Installing Your Fan 3.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling.
To hang your fan where there is an
existing fixture but no ceiling joist, you
may need an installation hanger bar as
shown in Figure 4 (available at your
Provi de st rong
sup por t
Reces sed
out let box
Moun ting br ac ket
ope ni ng mus t be
towar d the top
Figure 3
Angled ceiling
maximum
20 angle
Outl et bo x
Figure 2
Outlet box
Figure 1
Outlet box
Figure 4

4. Hanging the Fan
WARNING
FAIL URE TO PROPERLY IN STALL LOCKIN G
PIN AS NOTED IN STEP 7 COULD RESULT
IN FAN LOOSENING AND POSSIB LY
FALLING.
Mounting
screws
(supplied with
outlet box)
Hook
Ceiling
mounting
plate
UL Listed
outlet box
Figure 6
120V Wires
Washers

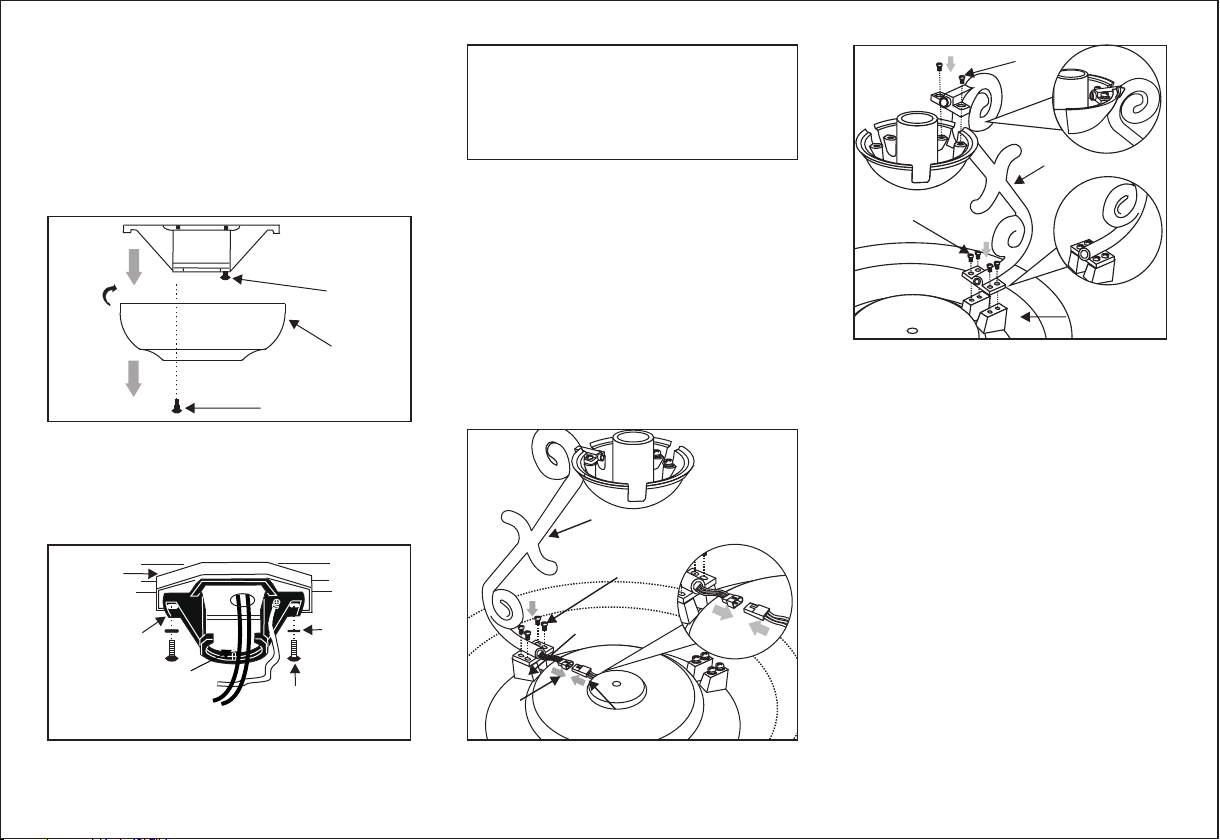

Step 2. Pass the 120-volt supply wires through the center
hole in the ceiling hanger bracket as shown in (Fig. 6)
Step 3. Secure the hanger bracket to the ceiling outlet box
with the screws and washers provided with your outlet
box.(Fig. 6)
C H A N G I N G T H E D O W N R O D
(OPTIONAL)
NOTE
attached to the hanger ball. In addition you
have been provided with a 4½ "downrod to
use if desired. If you choose to use the
4½"downrod, perform the following steps:
1. Remove the hanger ball from the 6"
downrod by loosening the set screw at
t h e t o p o f t h e
downrod which holds the hanger ball to
t h e
downrod.
2. Slide the hanger ball down the downrod
and remove the support pin.
3. Insert the support pin in the holes at the top of
the 4½" downrod and slide the hanger ball up
the 4½" downrod. Make sure the support pin
is properly seated in the grooves in the top of
the hanger ball.
4. Tighten the set screw firmly.
: Your fan comes with a 6" downrod
Hanging the Fan
REMEMBER to turn off the power. Follow the steps
below to hang your fan properly:
Step 1. Uninstal
lthe hanger bracket from the canopy by
remove the screw of the round hole and loosen the
screw of the key hole on the bottom of the hanging
bracket in 1/4" from the screw head and turning the
canopy counter clockwise.(Fig. 5)
Figure 5
Ceiling
mounting
plate
Ceiling
canopy
Screw of
the key
hole
Screw of the round hole
Figure 8
Scroll
Bracket screws
The bracket
Collar screws
Figure 7
Socket Plug
The bracket
near the plug
Bracket screws
Scroll with collar
Step 4. There are three brackets on the upper fan
motor assembly, and one of them is near the plug.
Remove the 4 screws from the bracket near the plug.
Attach the scroll with collar to the bracket near the
plug by screws previously removed.(Fig.7) Do not
over tighten the 4 screws.Connect the socket from
the scroll with collar to the plug from the fan motor
assembly.(Fig.7) Remove the 4 screws on the
bracket,attach the scroll to the bracket by screws
previously removed.Do not over tighten the 4
screws. Remove the 2 screws on the collar, attach
the scroll to the collar by the screws previously
removed. Repeat with the remaining scroll.
Tighten all screws on the scrolls securely.(Fig. 8)

Make the Electric Connections 5.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
OTHER PERSONAL INJURY. MOUNT FAN ONLY ON AN
OUTLET BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK.
DO NOT USE THIS FAN WITH ANY SOLID-STATE
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
WHITE
BLUE
BLACK WHITE
Figure 10
Diagram indicates optional light kit wiring.
NOTE
LIGHT KITS ARE AVAILABLE AT YOU
HAMPTON BAY RETAILER. THE FAN IS ALREADY WIRED TO
SUPPORT THE LIGHT KIT OPTION.
BEFORE ATTACH THE LIGHT KITS MAKE SURE OUTLET BOX
CAN SUPPORT 50 IBS IN ORDER TO AVOID ANY DAMAGE.
Pin in
locked
position
Motor wires
Ceiling
canopy
Figure 9
Hanger pin
Locking pin
Collar cover
M a k i n g t h e E l e c t r i c a l
C o n n e c t i o n s
Remember to disconnect the power.
Step 1. Connect the fan supply (black) wire and light supply (blue) wire
to the black household supply wire as shown in (Fig. 10)
Step 2. C onnect th e netura fan (white) wire to the white netura
household wire.
Step 3. Connect the fan ground wire (green) to the household ground
wire.
Step 4. After connecting the wires, spread them apart so that the green
and white wires are on one side of the outlet box and the black and the
blue wires are on the other side.
Step 5. Turn the connecting nuts upward and push the wiring into the
outlet box.
Figures 10 and 13 illustrate the wiring connections for optional wall
control (available at your Hampton Bay Retailer, the wire color out of
wall control may vary, see wall control's installation manual for correct
wire connections.)
Step 5. Route wires exiting from the top of the
fan motor through the collar cover, canopy and
then through the ball / downrod. (Fig. 9)
Step 6. Align the holes at the bottom of the
downrod with the holes in the collar on top of
the motor housing (Fig.9). Carefully insert the
hanger pin through the holes in the collar and
downrod. Be careful not to jam the pin against
the wiring inside the downrod. Insert the
locking pin through the hole near the end of the
hanger pin until it snaps into its locked
position, as noted in the circle inset of (Fig. 9)
Step 7. Tighten two set screws on the collar
(Fig. 9)
Step 8. Place the downrod ball into the hanger
bracket socket.

6. Finishing the Installation
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 12
Diagram indicates optional light kit wiring.
Light
Fan
WHITE
BLUE
BLACK WHITE
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 11
Diagram indicates optional light kit wiring.
Light Switch
WHITE
BLUE
BLACK WHITE
Figure 13
Outlet box
Hanger
bracket
Canopy
Screw of the
key hole
Screw of the round hole
WARNING
MAKE SURE TAB AT BOTTOM OF HANGER
BRACKET IS HANGER PROPERLY SEATED IN
GROOVE OF HANGER BALL BEFORE
ATTACHING CANOPY TO BRACKET. FAILURE TO
PROPERLY SEAT TAB IN GROOVE COULD CAUSE
DAMAGE TO ELECTRICAL WIRING.
Finishing the Installation
Step 1. Tuck connections neatly into ceiling outlet box.
Step 2 . Align the canopy up to ceiling and over the loosing screw.Place
the canopy into key hole and rotate canopy clockwise.Secure the
screws of the round hole and the key hole tightenly.

Attching the Fan Blades7.
Al l b lad es a re g ro u pe d b y w ei gh t .
Because natural woods very in density,
the fan may wobble even though the
blades are weight matched.
The following procedure should correct
most fan wobble. Check after each step.
1. Check that all blade and blade bracket
screws are secure.
2. Most fan wobble problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades.
Measure this distance as shown in Figure
16. Rotate the fan until the next blade is
positioned for measurement. Repeat for
each blade. The distance should be equal
within 1/8".
Paper
washer
Blade
bracket
Figure 14
Blade
Screws
Touching
ceiling
Figure 16
Figure 15
Motor
Blade Bracket
Attaching the Fan Blades
(Optional)
Step 1 Attach blades to blade brackets using three
screws and paper washers as shown in (Fig.14).
Start a screw into the bracket, do not tighten.
Repeat for the 2 remaining screws and washers.
Step 2 Tighten each screw securely starting with
the center screw. Make sure the blade is straight.
Step 3 Remove the two screws on the motor.Attach
the blade assmeblies to the motor by screws
pr evi ous ly re mov ed. Rep e at w ith r ema i nin g
blades(Fig.15). Tighten all screws securely.

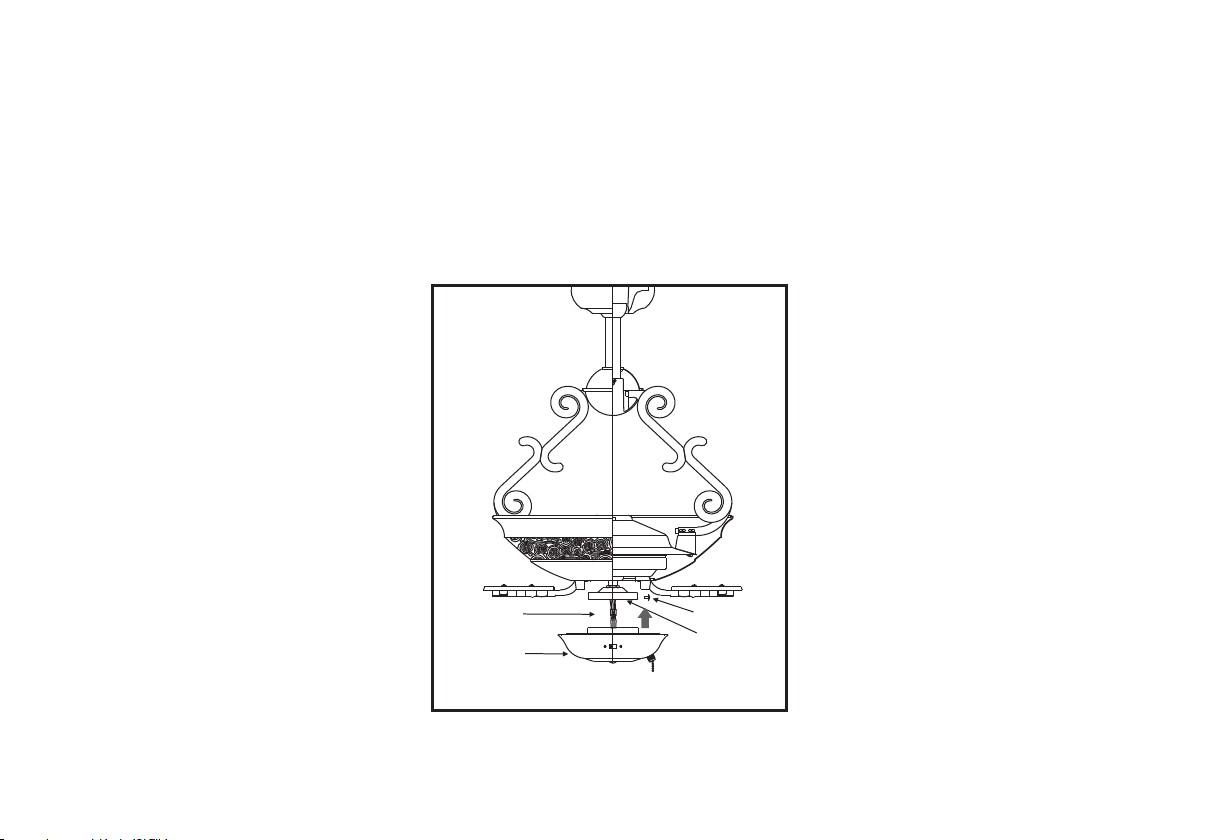

Step 4 Install an optional light kit if you wish.
Follow the instructions included with the kit.

8 Installing the Switch Housing .
9-Pin plugs
Switch housing
Switch housing
plate
Screws
Figure 17
NOTE Turning power off using the fan switch is not
sufficient to prevent electric shock.
1.
2. Remove the 1 of 3 screws from the switch housing plate and keep it for future use. Loosen the other 2 screws (Do not remove)
3. Install the switch housing to the switch housing plate by feeding the wires from fan through the hole of switch housing, then place the switch housing key holes over the 2
screws previously loosened from the switch housing plate, turn switch housing until it locks in place at the narrow section of the key holes. Secure by tightening the 2
screws previously loosened and the one previously removed. (Fig.17)
4. Carefully push all wires back into the switch housing, then install the switch housing cover by aligning its keyhole slots with the three screws holes and reversing switch
on the side of switch housing. Tighten the three screws securely.(Fig.17)
: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box.
Make wire connections: Connect the 9-pin plug from the fan to the 9-pin plug from the switch housing.(Fig.17)

Turn on the power and check the operation of
your fan. There are three pull chains
available in your fan:
1. 3-speed pull chain- it controls the fan
speed as follows: 1 pulls- High, 2 pulls-
Medium, 3 pulls- Low, and 4 pulls- Off.
Speed settings for warm or cool weather depend on
factors such as the room size, ceiling height,
number of fans, and so on. on a lower setting
without affecting your comfort.
2. Light kit pull chain- it controls the light
kit in "ON" or "OFF".
The slide switch controls directions: forward
(switch down ) or reverse (switch up ).

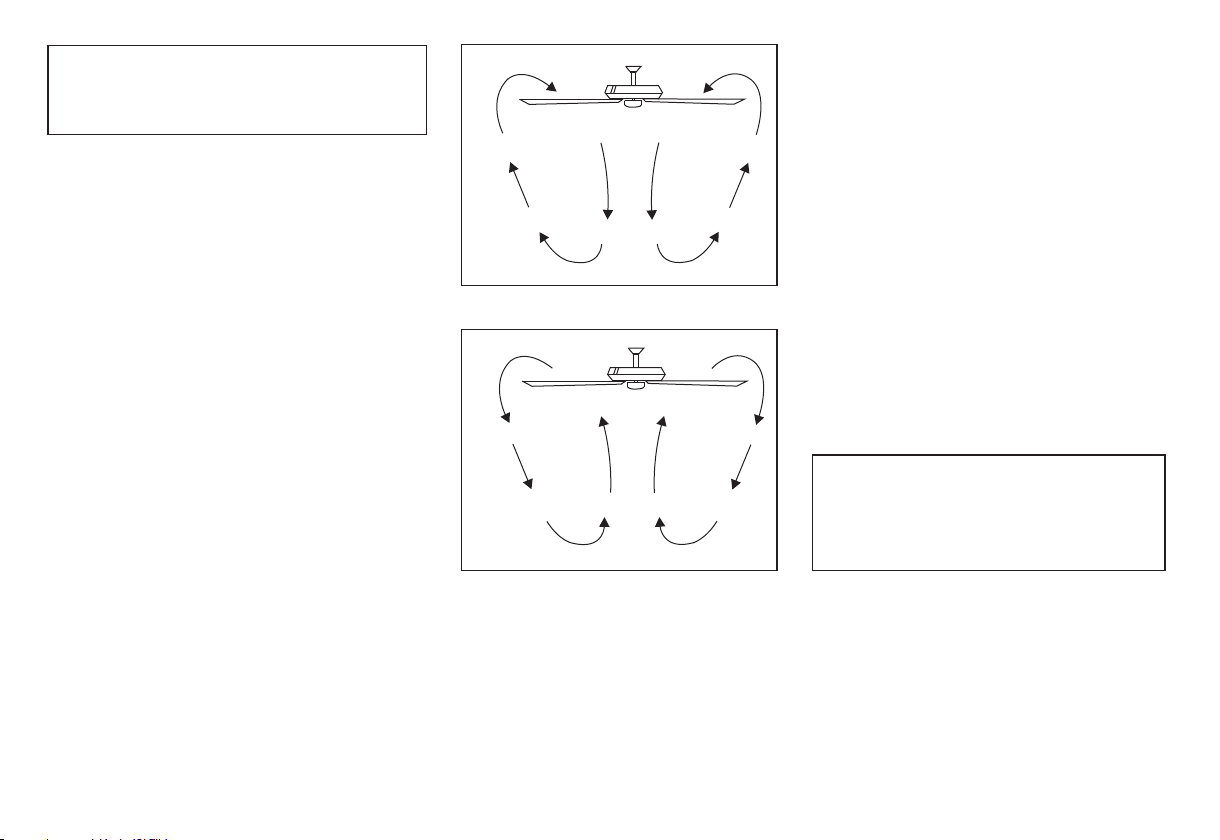

Warm weather - (Forward) A downward air
flow creates a cooling effect as shown in
(Fig.18). This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in (Fig.19). This allows you to set your
heating unit on a lower setting without
affecting your comfort.
NOTE
WAIT FOR FAN TO STOP BEFORE
CHANGING THE SETTING OF THE
SLIDE SWITCH.
Here are some suggestions to help you
maintain your fan
1 . B e c a u s e o f t h e f a n ' s n a t u r a l
m o v e m en t, some connections may
become loose. Check the support
co n nec t ion s , br a cke t s, a nd b l ade
attachments twice a year. Make sure
they are secure. (It is not necessary to
remove fan from ceiling.)
2. Clean your fan periodically to help
maintain its new appearance over the
years. Use only a soft brush or lint-
free cloth to avoid scratching the
finish. The plating is sealed with a
lacquer to minimize discoloration or
tarnishing. Do not use water when
cleaning. This could damage the
motor, or the wood, or possibly cause
an electrical shock.
3. You can apply a light coat of furniture
p o l i s h t o t h e w o o d b l a d e s f o r
additional protection and enhanced
beauty. Cover small scratches with a
Operating Your Fan 9.
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
Figure 19
Figure 18

Problem
Fan will not start.
Fan sounds noisy.
Remote control
malfunction:
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch
housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this
time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that light
bulb is also secure.
6.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
Do not connect the fan with wall mounted variable speed control (s)
1. Do not connect the fan with wall mounted variable speed control (s)
10.Troubleshooting

c
56
120
120
120
13kgs 14.8kgs
Low
Med
High
Specifications11.
0.45 36
0.62 73 143 5500
98 3750 2.89
0.28 1900
14 56
