HAMPTON BAY 266-848 Installation guide

Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
266-848
445993
718212340127
Hampton Bay Lifetime Motor Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass parts, to be free from defects in workmanship and material at the time of shipment
from the factory for a period of one year after the date of purchase by the original purchaser.
We agree to correct such defects without charge or at our optionreplace with acomparable or
superior model ifthe product isreturned to theretailer. To obtain warranty service, you must
present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the
product are your responsibility. Damage to any part such as by accident or misuse or
improper installation or by affixing any accessories, is not covered by this warranty.
Because of varying climatic conditions in the United States this warranty does not cover any
changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass
finishes of this type give their longest useful life when protected from varying weather
conditions. A certain amount of wobble is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no
other express warranty. The retailer hereby disclaims any and all warranties,
including but not limited to. Those of merchantability and fitness for a particular
purpose to the extent permitted by law. The duration of any implied warranty which
cannot be disclaimedis limited tothe time period as specified in the express warranty. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance except
as may otherwise be accorded by law. Some states do not allow the exclusion of incidental
or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties.
Lifetime Motor Warranty

Table of Contents
SAFETY RULES.........................................................................................................
PACKAGE CONTENTS .............................................................................................
INSTALLING YOUR FAN..........................................................................................
HANGING THE FAN..................................................................................................
ELECTRICAL CONNECTIONS ................................................................................
FINISHING THE INSTALLATION............................................................................
BLADE INSTALLATION ..........................................................................................
.................................................................
INSTALLING THE LIGHT KIT................................................................................
INSTALLING THE LIGHT BULBS & GLASS SHADE..............................................
OPERATING THE TRANSMITTER.........................................................................
CARE OF YOUR FAN...............................................................................................
TROUBLESHOOTING.............................................................................................
SPECIFICATIONS...................................................................................................
INSTALLING THE MOUNTING PLATE
1
2
3
4
5
6
7
8
9
10
11
12
13
14

1. Before you begin installing the fan, shut power off at the
circuit breaker orthe fuse box.
2. Be cautious! Read all instructions and safety information
before installing your new fan. Review accompanying
assembly diagrams.
3. Make sure that all electrical connections comply with local
codes, ordinances, or National Electrical Codes. Hire a
qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical
wiring.
4. Make sure the installation site you choose allows the fan
blades to rotatewithout any obstructions.Allow aminimum
clearance of 7 feet from the floor and 18 inches from the tip
of the bladesto the wall.
5. If you are mounting the fan to a ceiling outlet box, use U.L.
Listed metal octagonal outlet box marked "Acceptable for
fan support". Secure the box directly to the building
structure. The outlet box and its support must be able to
support the moving weight of the fan (at least 50 lbs.) Do
not use aplastic box.
6. Caution: To reduce the risk of personal injury use only the
screws provided withthe outlet box.
7. If you are mounting the fan to a joist, make sure it is able to
support the movingweight of thefan (at least50 lbs.).
8. After you install the fan, make sure that all mountings are
secured to preventthe fan from falling.
1. Safety Rules
9. Do notinsert anything into the fan bladeswhile the fanis operating.
10. Turnthe fan off and wait for it to stop completely before changing the
fan direction.
ATTENTION: The Energy Policy Act of 2005 requires this fan to be
equipped with a 190 watt limiting device. If lamping exceeds 190
watts, the ceilingfan's light kit will shut off automatically.
NOTE: The important safeguards and instructions appearing in this
manual are not meant to cover all possible conditions and situations that
may occur.It must be understood that commonsense, caution andcare are
factors which can not be built into this product. These factors must be
supplied by theperson(s) installing, caring for and operatingthe unit.
TO REDUCETHE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER PERSONAL
INJURY, MOUNT FAN ONLY TOAU.L. LISTED OUTLETBOX OR SUPPORTING
SYSTEM MARKEDACCEPTABLE FORFAN SUPPORT ANDUSE MOUNTING
SCREWS ANDLOCK WASHERS PROVIDED WITHTHE OUTLET BOX, MOST
OUTLET BOXES COMMONLY USEDFOR THE SUPPORT OF LIGHTING
FIXTURES ARENOT ACCEPTABLE FOR FAN SUPPORTAND NEEDTO BE
REPLACED. CONSULT AQUALIFIED ELECTRICIAN IF IN DOUBT.
TO REDUCETHE RISK OF PERSONAL INJURY,DO NOT BENDTHE BLADE
HOLDERS WHILE INSTALLING, BALANCING THEBLADES, OR CLEANING
THE FAN.DO NOT INSERT FOREIGN OBJECTSBETWEEN ROTATING FAN
BLADES.
TO REDUCETHE RISK OF FIRE OR ELECTRIC SHOCK, DO NOTUSE THIS FAN
WITH ANYSOLID-STATE SPEED CONTROLDEVICE
WARNING
NOTE
READ AND SAVE ALLINSTRUCTIONS!

Unpack your fanand check thecontents. You should havethe following items;
.
1 Fan blades (5)
2. Hanger bracket
3. Canopy
4. Canopy cover
5. Downrod assembly
6. Decorative scroll
7. Coupling cover
8. Fan motorassembly
9. Blade holders (5)
10. Mounting plate
11. Lightkit
12. Decorative nut
13. Glass shade
14. Receiver with 6 wire nuts
15.
16. 40W bulbs (3)
17. Balancing kit
Transmitter+holder+2 mountingscrews
candelabra
a. Mounting hardware:
Wire nuts(3)
b. Blade attachment hardware:
Screws (16), Rubberwashers (16)
c. Blade holderhardware:
Screws with lockwashers (11)
d. 4 mmAllen wrench
Package Contents 2.
3
1
2
5
8
9
6
7
10
4
15
11
12
13
14
16
17
ab
d
c

Phillips screw driver; slotted screw driver; step-
ladder; wire cutters;electrical tape.
If there isn'tan existing mounting box, then read the
following instructions. Disconnect the power by
removing fuses orturning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 50 lbs.). Use a UL Listed metal outlet box.
Do not usea plastic outlet box.

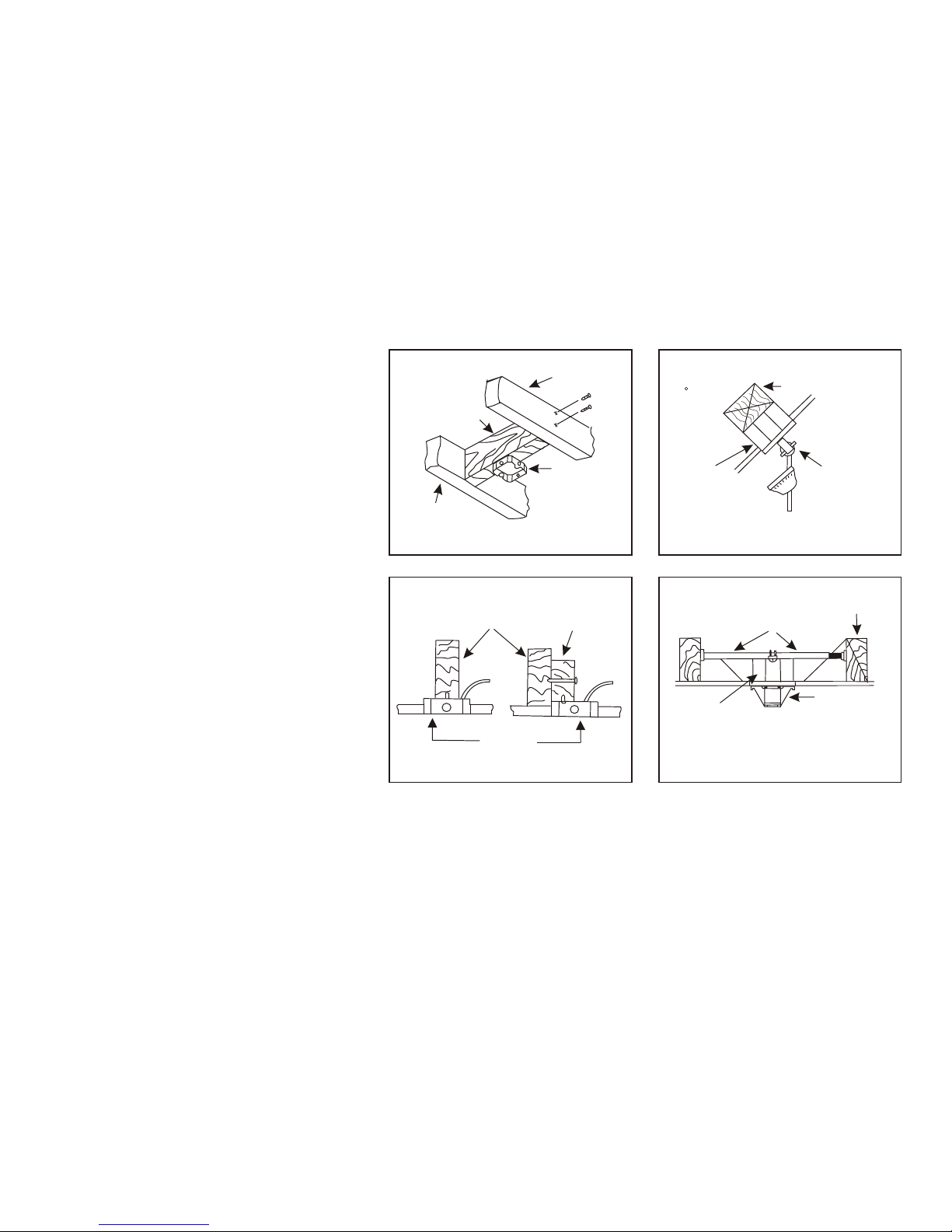

Figure 1, 2 and 3 are examples of different ways to
mount the outletbox.
Note: You may need a longer downrod to maintain
proper blade clearance when installing on a steep,
sloped ceiling. Longer downrods are available from
your Hampton Baydealer.
To hang your fan where there is an existing fixture
but no ceilingjoist, you mayneed to install a hanger
bar as shown in Fig. 4 (available at your Hampton
Bay dealer).
Tools Required
Mounting Options
3. Installing Your Fan
Outlet box
Figure 1
Ceiling
joist
Ceiling
joist
Cross brace
Outlet box
Figure 2
Ceiling joist
or cross brace Parallel
wood brace
Provide strong
support
Recessed
outlet box
Hanger bracket
opening must
be facing uphill
Figure 3
Angled ceiling
maximum
17 angle
Outlet box
Figure 4
Ceiling
joist
Hanger bar
(optional)
Hanger
bracket

Figure 9
Figure 10
Registration
slot
Downrod
Canopy
Set screw
Canopy cover
Set screws
Tab
Hole
Hitch pin
Lock pin
Hanger ball
Decorative
scroll
REMEMBER to turn off the power.
Follow the steps below to hang your fan
properly:
Loosen the two set screws and
remove the hitch pin and lock pin from the
top coupling ofthe motor assembly.
Step 7. Now lift motor assembly into
position and place hanger ball into hanger
bracket. Rotate until the check groove has
dropped into the registration slot and seats
firmly. (Fig. 10) Rod should not rotate if
this is donecorrectly.
Step 1. Secure the hanger bracket to the
ceiling outlet box using screws and washers
included with youroutlet box. (Fig. 5)
Step 2.
(Fig. 6)

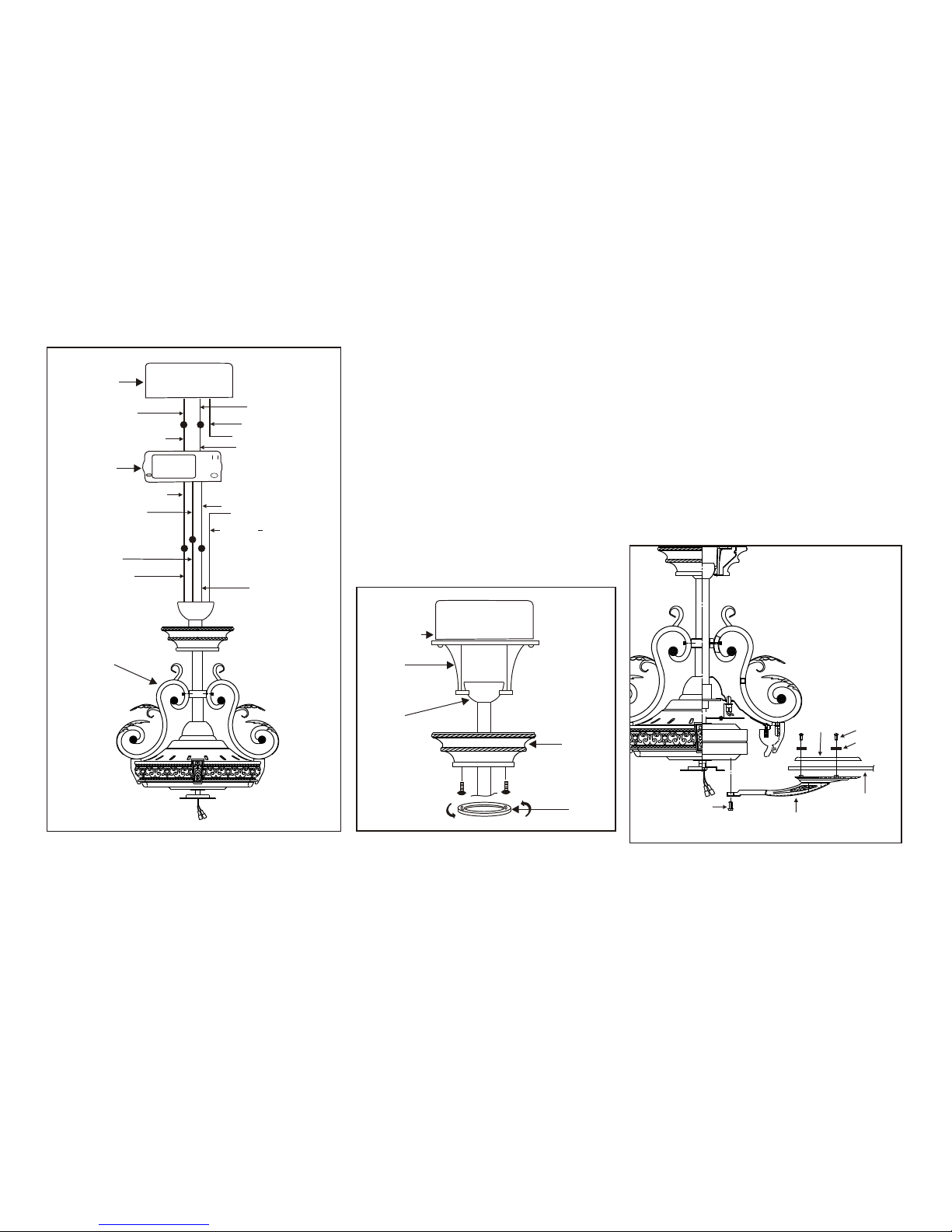

Step 3. Remove hanger ball from downrod
assembly by loosening set screws, removing
the cross pin,and sliding ball off rod. (Fig. 7)
Step 4. Unfold the decorative scroll arms and
space them evenly. Secure assembly by
tightening the screws with the Allen wrench
provided. (Fig. 8)
Step 5. Carefully feed fan wires up through
the downrod. Insert the rod into the coupling
and tighten onto fan until the holes are
aligned. Next, replace lock pin and hitch pin.
Tighten the set screws.(Fig.9)
Step 6. Slip coupling cover, decorative scroll,
canopy cover and canopy onto downrod. Let
canopy rest on top of the decorative scroll.
Carefully reinstall hanger ball onto rod being
sure that cross pin is in correct position, the
set screw on hanger ball are tight and wires
are not twisted. Be sure the tab on decorative
scroll and hole on motor housing are aligned.
Tighten the set screws on the decorative
scroll. (Fig.9)
Outlet box
Hanger bracket
Screws
Allen wrench
Decorative
scroll
Cross pin
Hanger
ball
Downrod
Figure 5
Figure 7
Figure 8
Figure 6
Hitch
pin Lock
pin
Set
screws
Coupling cover
Hanging the Fan 4.

Receiver
Hanger bracket
Figure 11
Figure 12
WARNING: To avoid possible electrical
shock be sure electricity is turned off at the
main fuse orbreaker box before wiring.
NOTE: The Hand Held Remote or Wall
Control units included with your ceiling fan
are equipped with 16 code combinations to
prevent possible interference from or to other
remote units. The dip switches on your
Receiver and Transmitter units have been
preset at the factory, please re-check to make
sure the switches on both units are set to the
same positions. The frequency settings should
be changed only in case of interference or if a
second or more remote controlled ceiling fans
are installed in the same structure. Any code
combination will operate the ceiling fan and
light as long as the Receiver and Transmitter
units are setto the same codes (Fig. 11)
Step 1. Insert Receiver into Hanger Bracket
with the flat side of the Receiver facing the
ceiling. (Fig. 12)
Step 2. Motor to Receiver Electrical
Connections: Connect the WHITE wire from
the fan to the WHITE wire marked "TO
MOTOR N" from the Receiver. Connect the
BLACK wire fromthe fan to the BLACK Wire
marked "TO MOTOR L" from the Receiver.
Connect the BLUE wire from the fan to the
BLUE wire marked "For Light" from the
Receiver. NOTE: If your ceilingfan features
an UP Light: Connect the ORANGE wire
from the fan to the ORANGE wire marked
"For Up Light"from the Receiver. Otherwise
disregard this step and proceed to secure all
wire connections with the plastic wire nuts
provided. (Fig. 13)
connectors
Step 3. Receiver to House Supply Wires
Electrical Connections: Connect the WHITE
wire (Neutral) from the outlet box to the
WHITE wire marked "AC in N" from the
receiver. Connect the BLACK wire (Hot)
from the outlet box to the BLACK wire
marked "AC in L" from the receiver. Secure
all wire connections with the plastic wire
nuts provided. (Fig.13
Step 4. If your outlet box has a GROUND
wire (Green or Bare Copper) connect this
wire to the Hanger Ball and Hanger Bracket
Ground wires. If your outlet box does not
have a Ground Wire, then connect the
Hanger Ball and Hanger Bracket Ground
Wires together. Secure wire connection with
the plastic wirenut provided. (Fig. 13 )
After all are made, check to make
sure there are no loose strands. As an
additional precaution we suggest to secure
the plastic wire connectors to the wires with
electrical tape.
Note: The transmitter only works within 40
feet from receiver.
ONON
5. Electrical Connections

6. Finishing the
Installation
Step 1. Tuck connections neatly into
ceiling outlet box.
Step 2. Slide the canopy up to ceiling and
over the two crews on hanger bracket.
Rotate canopy clockwise. Next, while
holding the canopywith one hand, slide the
canopy cover over the screws and rotate
clockwise until tight. Note: adjust the
canopy screws as necessary until the
canopy and canopycover are snug. (Fig. 14)
7. Blade Installation
Step 1. Attach fan blades to the blade
holder medallions and blade holders using
the screws and rubber washers provided.
Tighten screws securely, repeat procedure
with remaining blades. (Fig. 15)
Step 2. Align motor holes to blade holders
and secure with screws provided, tighten
screws securely. (Fig. 15)
Figure 14
Outlet box
Hanger
bracket
Hanger
ball
Canopy
Canopy
cover
Figure 15
Blade holder
medallion
Blade
Blade holders
Screws
Screws
Rubber
washers
Figure 13
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC INN")
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC INL")
Black ("to motor L")
Receiver
Blue ("for light")
Blue (light)
Black (motor)
Fan

8. Installing the Mounting
Plate
Step 1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened from
the mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 16)
Figure 16
Mounting plate
Mounting ring
Screws
9. Installing the Light
Kit
REMEMBER: To disconnect the power.
The fan blades must be already attached to
the fan.
Step 1. Loosen the 3 screws from the
mounting plate. (Donot remove)
Step 2. Raise and hold the light kit close to
the mounting plate and proceed to do the
wire connections. Connect the white wire
connector from the light kit and fan, follow
the same procedure with the black wire
connectors. (Fig. 17)
Step 3. Place the key holes on the light kit
over the 3screws previously loosened from the
mounting plate, turn light kit until it locks in
place at the narrow section of the key holes.
Secure by tightening the 3 screws previously
loosened. (Fig. 17).
Figure 17
Connector
plugs
Screws
Mounting plate
Light kit

NOTE: Before starting installation, disconnect the power by turning off the
circuit breaker orremoving the fuse at fuse box.
ATTENTION: The Energy Policy Act of 2005 requires this fan to be
equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the
ceiling fan's lightkit will shut off automatically.
1. Install 3x 40W bulbs (included).
2. Place glass shade over the light kit stem, secure with the metal nut (rubber side
on the top)anddecorative nut. Do not overtighten. (Fig.18)
candelabra
10. Installing the Light Bulbs & Glass Shade
Figure 18
Glass shade
Bulbs Light kit stem
Metal nut
Decorative nut

Operating the Transmitter 11.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, numberof fans, etc.
The Reverse switch is located on the top of
the motor housing. Slide the switch to the
Left for warm weather operation. Slide the
switch to the Right for cool weather
operation.
NOTE: Wait for fan to stop before changing
the setting ofthe slide switch.
Warm weather - (Forward) A downward
air flow creates a cooling effect as shown in
Figure 21. This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Figure 22. This allows you to set your
heating unit on a lower setting without
affecting your comfort.
Restore power to the ceiling fan and test
for properoperation.
1. "HI, MED, LOW"buttons:
These three buttons are used to set the fan
speed as follows:
LOW=Low speed MED= Medium speed
HI=High speed
2. "OFF" button:
This button turnsthe fan off.
3.The " " button turns the light ON or OFF
and also controls the brightness setting.
Press and release the button to turn the light
ON or OFF. Press and hold the button to set
the desired brightness. The light key has an
auto-resume, it will stay at the same
brightness as thelast time it was turned off.
Figure 19
Installing the battery:
Install 12V MN21/A23 battery (not
included), to prevent damage to
transmitter, remove the battery if not used
for long periods.
Figure 20

Figure 21
Figure 22
Figure 23
Holder
Screws
Plugs
Installing the
1. Remove the two plugs from the holder.
Note that the plugs have unique tabs that
allows them to fit only in one hole. (Fig. 23)
2.
3.
Attach the holder with the two screws
provided.
Transmitter Holder
Replace the two plugs each into its own
hole.

Here are some suggestions to help you maintain
your fan
1.Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
2. Clean your fan periodically to help maintain
its new appearance over the years. Use only a
soft brush or lint-free cloth to avoid scratching
the finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not use
water when cleaning. This could damage the
motor, or the wood, or possibly cause an
electrical shock.
3. Use only a soft brush or lint-free cloth to avoid
scratching the finish. The plating is sealed with a
lacquer to minimizediscoloration or tarnishing.
4. You can applya light coat of furniture polishto
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application ofshoe polish.
12.Care of Your Fan
For any additional information on your
Hampton Bay CeilingFan, please writeto:
THE HAMPTON BAY FAN & LIGHTING CO.
P.O. Box 395
Norco, CA92860
Call toll free 1-800-527-0998
WARNING: Make sure the power
is off atthe electrical panel box
Before you attempt any repairs.
Refer to the section, "Making
Electrical Connections".
5. There is no need to oil your fan. The
motor has permanentlylubricated bearings.
6. All glass should be cleaned using
lukewarm soapy water and a soft cloth or
sponge.
DO NOT IMMERSE GLASS IN HOT
WATER. DO NOT PUT GLASS INTO AN
AUTOMATICDISHWASHER.

Troubleshooting 13.
Problem
Fan will notstart.
Fan sounds noisy.
Remote control
malfunction.
Lights shut off and will
not come backon.
Fan Wobble.
Solution
1. Check circuitfuses or breakers.
2. Check linewire connections to the fan andswitch wire connectionsin the switch housing.
CAUTION: Make suremain power is off.
1. Make sureall motor housing screws are snug.
2. Make surethe screws that attach the fanblade bracket tothe motor hub is tight.
3. Make surewire nut connections are not rubbingagainst each otheror the interior wall of theswitch housing.
CAUTION: Make suremain power is off.
4. Allowa 24-hour "breaking-in" period. Most noise associated with anew fan disappearduring this time.
5. If usingan optional light kit, make surethe screws securingthe glassware are tight. Check thatthe light bulb
is also secure.
6. Do notconnect the fan with a wall mounted variable speedcontrol (s)
7. Make surethe upper canopy is a shortdistance from theceiling. It should not touch the ceiling.
1. Do notconnect the fan with a wall mounted variable speedcontrol (s).
2. Check tomake sure the dip switches fromthe transmitter andreceiver are set to the samefrequency.
1. This unit is equipped with a wattagelimiting device. Lampingin excess of 190 watts willdisable your ceiling
fan's light kit. Toreset your lightkit you must turn the poweroff and re lamp, keepingthe wattage under190
watts. Restore powerto your ceiling fan and continuenormal operation.
3. Check tomake sure the dip switches fromthe transmitter andreceiver are set to the samefrequency.
NOTE: All blade setsare grouped byweight. Because wood and plastic bladesvary in density, the fan
may wobble eventhough blades arematched.
1. Make sureall blade attachmentscrews are tight.
2. Make sureOutlet box issecured to building structure, if necessaryuse the woodscrews provided to
further secure outletbox to joist.
3. Make sureHanger Bracket issecure to the outlet box, screws are tight.
4. Use the balancing kit provided if the wobble is excessive (follow instructions included with balancing kit)

14. Specifications
These are typicalreadings. Your actual fanmay vary. They do not includeAmps andWattageused by thelight kit.
RPM CFM N.W. G.W.
C.F.
120 1970
3780
5360
17
44
74
73
130
170
0.38
0.55
0.61
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
Distributed by
Home Depot U.S.A.,Inc.
2455 Paces Ferry Rd., N.W.
Atlanta, GA30339
3.26'13.9 kgs
(30.61 lbs)
15.5 kgs
(34.13 lbs)
52"
(132 cm)
