HAMPTON BAY Marlston N375B-BN User manual

THANK YOU
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
USE AND CARE GUIDE
60 IN. MARLSTON
INDOOR/COVERED OUTDOOR CEILING FAN
1-855-HD-HAMPTON
HAMPTONBAY.COM
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Hampton Bay!
Item #1008 748 731
1008 747 999
Model #N375B-BN
N375B-MBK
1008 748 325
1008 744 000
N375B-MBK+V8
N375B-MWH

Table of Contents ..................................
Safety Information .................................
Warranty .........................................
Pre-installation ....................................
Installation .......................................
Assembly ........................................
Operation ........................................
Care and Cleaning .................................
Troubleshooting ...................................
2
Table of Contents
2
2
3
3
6
7
12
16
16
READ AND SAVE THESE INSTRUCTIONS
Safety Information
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70” and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lb (15.9 kg)
or less. Use only UL Listed outlet boxes marked “FOR FAN
SUPPORT.”
The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the outlet
box and ungrounded conductor on the other side of the outlet box.
All set screws must be checked and retightened where necessary
before installation.
Suitable for use with solid-state speed control (JY1156H-LD-F1
only).
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: N375B-BN, N375B-MBK, N375B-MWH, N375B-MBK+V8
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Telephone Number: [phone] Fax: [phone]
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (also referred to as anges), when installing
the brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to an outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
NOTE: Suitable for use in DAMP locations.

Pre-Installation
SPECIFICATIONS
TOOLS REQUIRED
Warranty
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
3
60 in.
Low (Speed 1)
Medium (Speed 4)
High (Speed 6)
120
Fan size Watts RPM CFMSpeed Volts Amps N.W.
0.05
0.21
0.46
2.60
13.00
33.00
36
98
138
2126
6068
8489
5.40 kg
(11.88 lb)
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the
date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.

4
NOTE: Hardware not shown to actual size.
AA
BB
CC
DD
EE
Plastic wire nut
Blade attachment screw with lock washer (additional)
1.5V AAA battery
2-pin extension cord
3-pin extension cord
Part Description
3
1
2
1
1
Quantity
HARDWARE INCLUDED
Pre-Installation (continued)
AA
EE
BB CC DD

5
Part
G
I
J
K
H
Description
Blade
Blade support plate with screw and lock
washer
Quantity
3
1
1
1
3
Part
A
B
C
D
E
F
Quantity
1
1
1
1
1
1
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
PACKAGE CONTENTS
Pre-Installation (continued)
G
H
J K
A
B
D
E
F
I
C
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
20 watt LED light kit
Receiver
Remote control
1
2
3
4
5
6
1H 3 6H H

6
If your ceiling fan does not have an existing UL Listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (not included) directly to the building
structure. Use appropriate fasteners and materials (not
included). The outlet box and its bracing must be able to fully
support the weight of the moving fan (at least 35 lb). Do not
use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (not included).
To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (not included) as
shown above.
Outlet Box
Outlet Box
Hanger Bar
Outlet Box
Recessed
Outlet
Box A
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
MOUNTING OPTIONS
Installation
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (B) touches the hanger ball/downrod assembly (D),
remove the decorative canopy bottom cover (C) and turn the
canopy (B) 180° before attaching the canopy (B) to the mounting
bracket (A).

7
Assembly
1Preparing the canopy
3Assembling the fan
WARNING: Failure to properly install the cotter pin (GG) could
result in the fan loosening and possibly falling.
Preparing the motor
2
Remove the canopy bottom cover (C) from the canopy (B) by
turning the canopy bottom cover (C) counterclockwise.
Remove the mounting bracket (A) from the canopy (B) by
loosening canopy mounting screws (FF) a half turn from the
screw head. Next, turn the canopy (B) counterclockwise to
remove the mounting bracket (A) from the canopy (B).
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
F
HH II
II
GG
KK
JJ
LL
MM
D
Remove the cotter pin (GG) and clevis pin (HH), and loosen
the two collar set screws (II) from the motor collar.
Take out the set screw (JJ) located in the hanger ball (KK),
lower the hanger ball (KK) and remove the cross pin (LL).
Remove the hanger ball (KK) from the hanger ball/downrod
assembly (D).
Remove the ground lead (MM) from the downrod assembly (D).
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (KK), lower the hanger ball
(KK) and remove the pin (LL). Remove all three pieces from the
downrod and assemble them onto the new longer downrod before
proceeding to the downrod installation. Be sure to snap together
the 2-pin and 3-pin connectors, the two male plugs from the
fan and female plugs from the extension cord (DD and EE).
FF
A
B
FF
C
F
GG
B
E
C
HH
II
II
JJ
LL
KK
NN
MM
EE
DD
Carefully feed the motor wires up through the downrod (NN).
Thread the downrod (NN) into the collar.
Align the holes and replace the clevis pin (HH) and cotter pin
(GG). Tighten the two collar set screws (II).

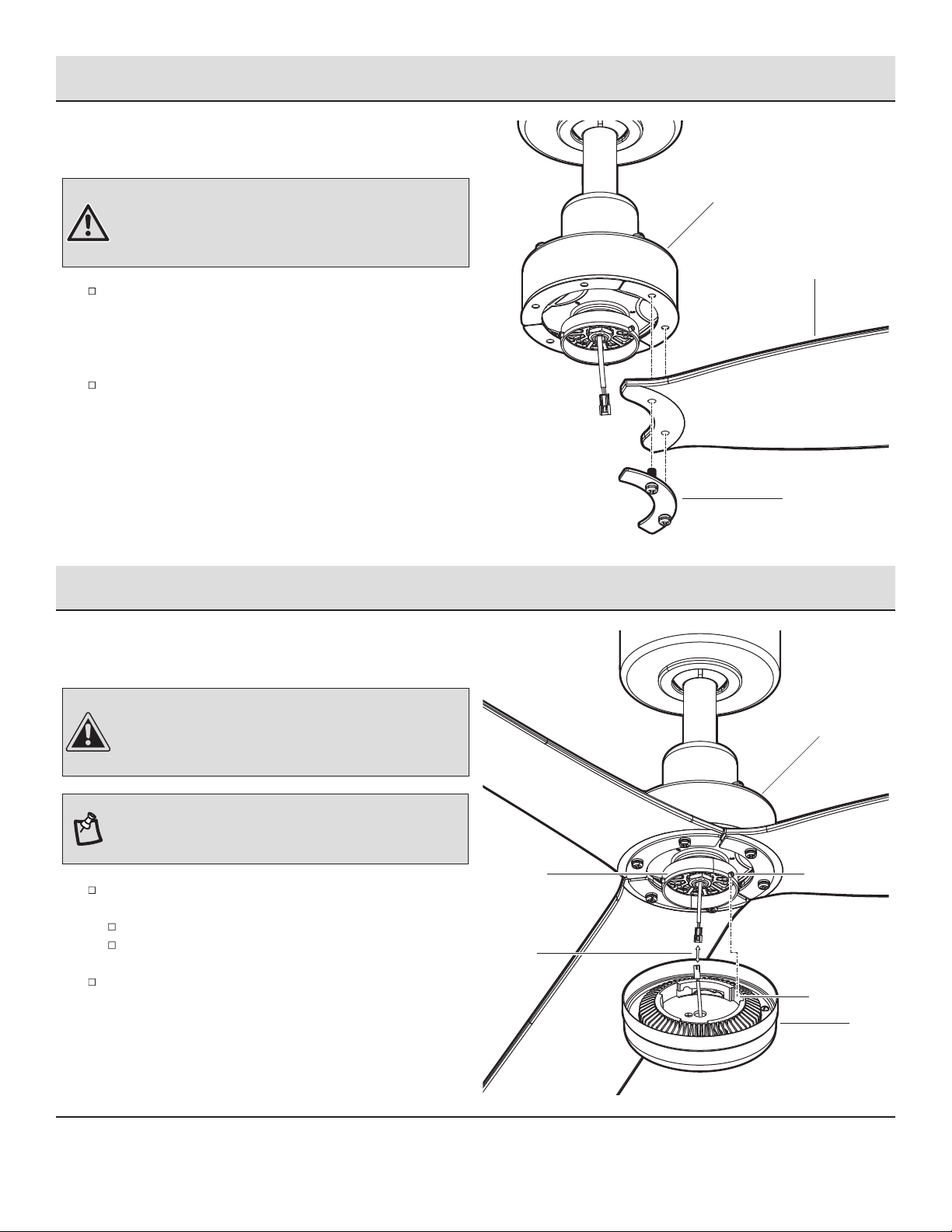

Slip the coupling cover (E), the canopy bottom cover (C), and
the canopy (B) onto the downrod (NN).
Carefully reinstall the hanger ball (KK) and the ground lead
(MM) onto the downrod (NN).
Replace the cross pin (LL) and make sure it is in the correct
position.
Tighten the set screw (JJ) and make sure wires are not twisted.

8
Assembly — Hanging the Fan
4Attaching the mounting bracket to the
electrical box
Hanging the fan on the mounting
bracket
5

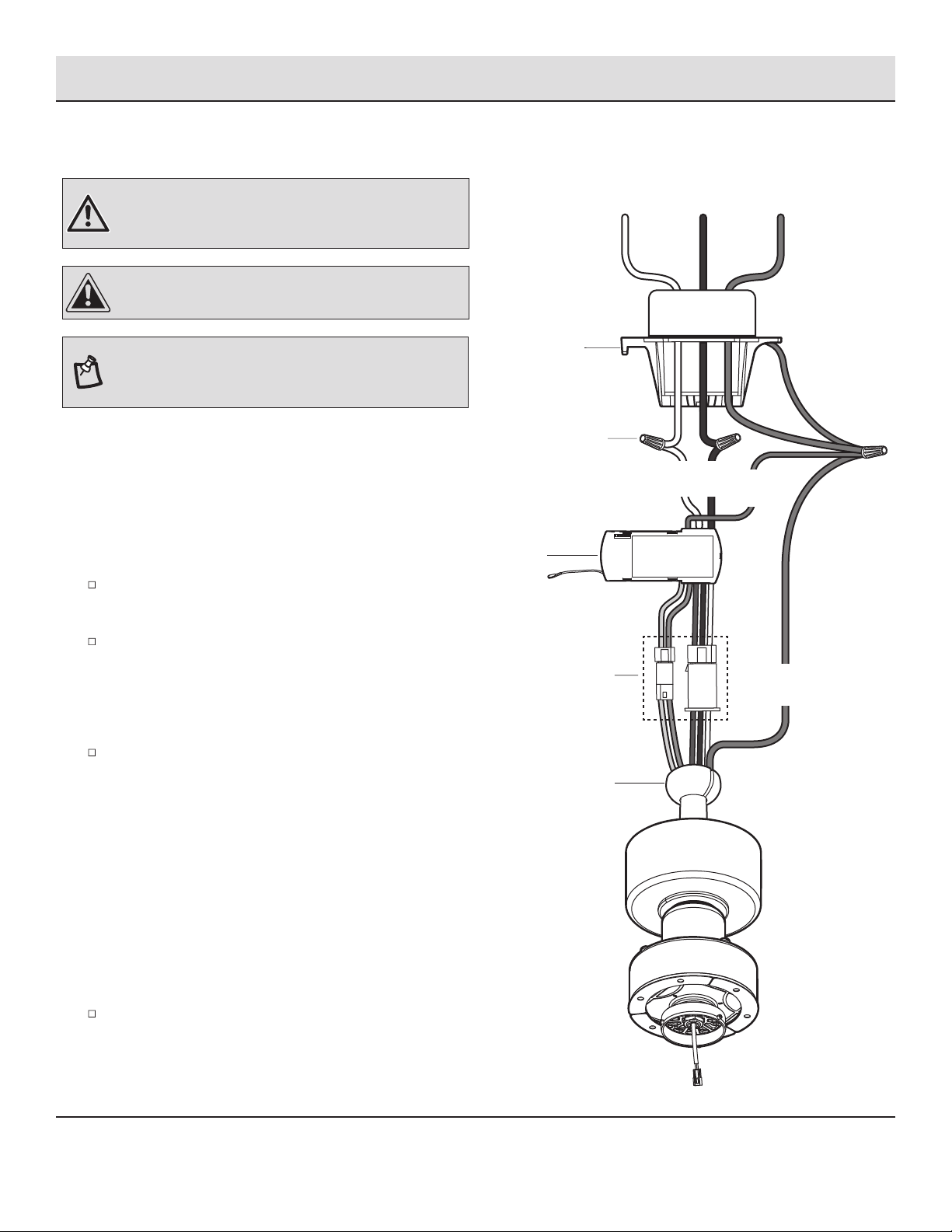

Pass the 120-volt supply wires through the center hole in
the mounting bracket (A).
Attach the mounting bracket (A) on the outlet box by sliding
the mounting bracket (A) over the screws provided with the
outlet box. Note that the at side of the mounting bracket
(A) is toward the outlet box.
Securely tighten the two mounting screws.
Carefully lift the fan motor assembly (F) up to the mounting
bracket (A) and seat the hanger ball/downrod assembly (D)
in the mounting bracket (A) socket. Make sure the tab on the
mounting bracket (A) socket is properly seated in the groove
in the hanger ball/downrod assembly (D). This will help to
balance the ceiling fan.
WARNING: To reduce the risk of re, electric shock or other
personal injury, mount the fan only to an outlet box or supporting
system marked acceptable for fan support and use the mounting
screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (D). Failure to properly
seat the tab in the groove could cause damage to the wiring.
Outlet Box
A
D
F
A

9
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
Assembly — Hanging the Fan (continued)
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
Insert the receiver (J) into the mounting bracket (A) with the
at side of the receiver (J) facing the ceiling.
Make wire connections from the fan to the receiver (J).
From fan To receiver
2-pin connector--------------- 2-pin connector
3-pin connector--------------- 3-pin connector
Make wire connections from the receiver (J) and fan to the
outlet box as follows, using the wire nuts (AA).
From receiver To outlet box
Black wire "AC in L" --------- Black wire (Hot)
White wire "AC in N" --------- White wire (Neutral)
From fan and receiver To outlet box
Green wires* ----------------- Green or bare wire (Ground)
* There are three green grounding leads: one from the mounting
bracket (A), one from the hanger ball/downrod assembly (D) and
one from the receiver (J).
Turn the wire nut connections upward, spreading them apart
so the green (ground) and white wires will be on one side of
the outlet box and the black wire will be on the other side.
Carefully tuck the connections up into the outlet box.
6Making the electrical connections
CAUTION: To reduce the risk of electric shock, this fan must
be installed with an isolating wall control/switch.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
AA
2-pin and 3-pin
connectors
J
White
Green
Black
Black
Ground
White conductor
Green
Outlet Box
D
A

10
Assembly — Hanging the Fan (continued)
7Installing the canopy
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (KK) before attaching
the canopy (B) to the mounting bracket (A) by turning the canopy
housing until it drops into place.
Attach the canopy bottom cover (C) to the canopy by inserting
the screw heads into the key slots in the canopy bottom cover
(C) and rotating it clockwise.
NOTE: Adjust the canopy mounting screws (FF) as necessary
until the canopy (B) and canopy bottom cover (C) are snug.
C
B
FF
Attaching the canopy bottom cover
8
Make sure connections are neatly tucked into the ceiling
outlet box.
Slide the canopy (B) up to the mounting bracket (A) and place
the key holes on the canopy (B) over the loose canopy mounting
screws (FF) on the mounting bracket (A). Turn the canopy (B)
clockwise until it locks in place at the narrow section of the
key holes. Make sure the positioning pin (OO) on the mounting
bracket falls into one of two holes (PP) on the canopy, and
then tighten the two canopy mounting screws (FF).
Outlet Box
FF
A
B
FF
OO
PP

11
9Fastening the blades to the motor
Assembly — Attaching the Fan Blades
H
F
G
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
WARNING: To reduce the risk of personal injury, do not bend
the blades (G) while installing, balancing the blades (G), or
cleaning the fan. Do not insert foreign objects between
rotating fan blades (G).
Align the holes from the blade (G) to the holes from the fan
motor assembly (F), and secure the blade in place with blade
support plate with blade attachment screws and lock washers
(H) provided.
Repeat this procedure for the remaining blades (G).
10
Assembly — Installing the Light Kit
I
RR
SS
QQ
TT
F
While holding the 20W LED light kit (I) under the fan motor
assembly (F), snap together the wire connection plugs (QQ):
White to white
Black to black
Position the notches (RR) on the inner edge of the 20W LED
light kit (I) so they match the tabs (SS) on the outside of the
rim on the light kit mounting plate (TT). Carefully lift the 20W
LED light kit (I) inside the light kit mounting plate (TT) and
secure it to the fan by turning the 20W LED light kit (I)
clockwise until snug.
CAUTION: Before starting installation, disconnect the power
by turning off the circuit breaker or removing the fuse at the
fuse box. Turning power off using the fan switch is not sufcient
to prevent electric shock.
Attaching the LED light kit to the
light kit mounting plate
NOTE: If the light kit could be wobbled by hand, it means the
light kit is not twisted completely till the right position. Keep
twisting the light kit till it could not be wobbled by hand.

12
Operation
SETTING UP THE TRANSMITTER
NOTE: Batteries will weaken with age and should be replaced
before leaking takes place as this will damage the remote
control. Dispose of used batteries properly and keep them out
of the reach of children.
LEARNING PROCESS
Remove the battery cover by pressing rmly on the arrow and
sliding the cover off.
Install two 1.5V AAA batteries (CC) (included).
Replace the battery cover on the remote control (K).
Ensure AC power to the fan is OFF to begin the learning process.
Turn the fan’s AC power ON.
NOTE: If installing multiple fans on separate remotes, only
the fan being programmed should have AC power turned ON.
All other fans, even if they have already been programmed,
should have AC power OFF so they do not memorize other
remotes during the learning process. Separate the fan power
switches by approximately 2 meters.
Within 60 seconds of turning AC power on, press and release the
"LEARN" button located in the remote's battery compartment to
enter the learning function. Once the fan has detected the remote
controls's frequency, the down light of your fan, if applicable, will
blink, and the fan blades will start to spin.
The fan will now accept commands from the added remote.
The learning process causes any installed fan within range to
memorize a remote control. Fans can learn ve remotes.
To add a remote to your fan’s memory, use the steps below:
NOTE: The remote has been pre-paired in the factory for your
convenience.
IMPORTANT: If you have two or more fans, please follow
steps below to control each fan independently. Also follow
steps below to re-pair the remote and the receiver when needed.
CC
K
K
LEARN

13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Operation (continued)
1
2
3
4
5
6
1H 3 6H H
Dimmer
Signal light
Comfort BreezeTM
Timer
Light on/off
Correlated Color Temperature
(CCT) changing
Fan reverse
Fan speed
Power on/off
NOTE: The fan will store the last used speed setting for the next time it is turned on.
NOTE: You must turn the fan on prior to using the speed or time functions.
NOTE: On each start up of your ceiling fan, the fan blades will oscillate back and forth. This is a NORMAL OPERATION for DC motor ceiling
fans as they go through a calibration cycle. The fan is NOT DEFECTIVE.
OPERATING YOUR FAN AND REMOTE CONTROL
button - Press and release the button to turn the fan and light on or off.
When turned on, the fan will begin spinning using its last speed settings.
Speed functions
1 = Low speed
2 = Medium low speed
3 = Medium speed
4 = Medium high speed
5 = High speed
6 = Extra high speed

14
Operation (continued)
Pressing the button will activate the Comfort BreezeTM mode. If you are using Comfort BreezeTM mode, pressing the button or
the fan speed buttons will cancel Comfort BreezeTM mode and resume normal fan operation.
Controls fan direction.
Dimmer
Press and hold the button to activate the dimmer function.
Light
Press and release the light button to turn the light on or off.
Light on: The fan memory function will resume the light setting (on or off and dim) on the fan prior to the power being turned off.
Correlated Color Temperature (CCT) changing
Push and release the button to cycle through the three color temperature options.
Option 1: 3000K (Soft White).
Option 2: 4000K (Bright White).
Option 3: 5000K (Daylight).
NOTE: The default temperature of the ceiling fan light is 3000K (Soft White).
Timer
Pressing the timer button will automatically turn fan and light (if light is on) off after 1, 3, or 6 hours.
1H 3 6H H
Comfort BreezeTM
Fan reverse button (Must be pushed when the fan is in operation)

15 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Operation (continued)
WARM/COOL WEATHER OPERATING
INSTRUCTIONS
NOTE: The fan reverse buttons must be pressed while the
fan is running.
Speed settings for warm or cool weather depend on factors such as
the room size, ceiling height, numbers of fans.
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves warm
air off the ceiling. This allows you to set your heating unit on a cooler
setting without affecting your comfort.
Attach the remote control holder (UU) with the two remote control
holder mounting screws (VV).
INSTALLING THE REMOTE CONTROL HOLDER
VV
UU

Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s
natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the nish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing.
(Optional) Apply a light coat of furniture polish to the wood blades.
(Optional) Cover small scratches with a light application of shoe polish.
Do
Care and Cleaning
Use water when cleaning. Water could damage the motor, or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has permanently-lubricated sealed ball bearings.
Do not
Troubleshooting
16
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
Select a point on the ceiling above the tip of one of the blades, then select any fan blade and measure
from the center of the selected blade to the point on the ceiling. Rotate the fan until the next blade is
positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in.
If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-855-HD-HAMPTON) to order a complimentary blade balancing kit.
If deviation is greater than 1/8 in., please call Customer Service (1-855-HD-HAMPTON) to order
complimentary replacements of your brackets.
Problem Solution
The fan will not start.
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
Turn the AC power off, and turn the AC power on after 10 seconds.
Reset the transmitter by going through the transmitter “LEARNING PROCESS”.
The fan sounds noisy.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the glassware is secured tightly.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The remote control is
not working.
Do not connect the fan with wall mounted variable speed control(s).
Make sure the frequency switches are set correctly.
Reset the transmitter by going through the transmitter “LEARNING PROCESS”.
The fan wobbles.
Fan moves backwards and
forwards when turned on.
This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result
of the DC motor aligning the internal magnetic poles for proper motor operation. This design saves
electricity and allows the fan to operate much quieter than standard AC motor fans.

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
