Hanlong UC804(P) User manual

http://arttel.ru

Notices Information
Notices Information
Copyright
Copyright © 2005 - 2013 Nanjing Hanlong Technology CO., LTD. All rights reserved.
Nanjing Hanlong Technology Co., LTD. owns all the right to revise and change this document at
any time. And all the illustrations and instructions in this paper are subject to the copyright
protection of legal law. No parts of this document may be used or reproduced, transmitted by the
third parties for any purposes without the express written permission of Nanjing Hanlong
Technology Co., LTD.
When this document is made available on Hanlong’s web page, hanlong Technology Co., LTD.
gives its right to download and print copies of this content only for private use as a user manual.
No parts shall have the right to alter, modify or use as commercial means without the express
written permission of Nanjing Hanlong Technology Co., LTD.
Safety cautions
zTo use the Phone follow the instructions in this manual.
zTo use the power adapter that delivered with the phone. Other power adapters may damage
the phone.
zThe phone is only for indoor use. And also avoid in high humidity, water and some other
liquids.
zDo not use the phone during thunderstorms.
zCE
zFCC
Disposal of the phone
This symbol indicates that the product is classified as electrical orelectronic equipment
and should not be disposed of with other commercial or household waste at the end of
its working life.
1
http://arttel.ru

Notices Information
2
Cleaning
To clean the device, use an anti-static cloth. Please avoid cleaning liquids as they might damage
the surface or internal electronics of the phone.
http://arttel.ru

Table of Content
3
Table of Content
Notices Information........................................................................................................................1
Copyright ..................................................................................................................................1
Safety cautions..........................................................................................................................1
Disposal of the phone................................................................................................................1
Cleaning....................................................................................................................................2
Table of Content .............................................................................................................................3
Getting Started................................................................................................................................5
Packing List ..............................................................................................................................5
Phone Installation......................................................................................................................7
1. Attach the Foot stand.....................................................................................................7
2. Connect the Handset and optional Headset...................................................................8
3. Connect the Network and Power...................................................................................9
Initialization..............................................................................................................................9
Getting Familiar with Your Phone ..............................................................................................11
Hardware Components Preview..............................................................................................11
Icon Preview ...........................................................................................................................14
Line Key Function Overview..................................................................................................16
Basic Features Configuration.....................................................................................................18
Web Login...............................................................................................................................18
Administrator Password..........................................................................................................19
Language.................................................................................................................................20
Time and Date.........................................................................................................................21
Ring Tone................................................................................................................................25
Volume....................................................................................................................................28
Directory.................................................................................................................................28
Basic Call Features......................................................................................................................31
Place a Call .............................................................................................................................31
End a Call................................................................................................................................32
Redial a Call............................................................................................................................33
Receive a Call .........................................................................................................................33
Auto Answer ...........................................................................................................................34
Call Hold.................................................................................................................................34
Call Transfer............................................................................................................................35
Call Conference.......................................................................................................................37
Call Forward ...........................................................................................................................38
Call Return..............................................................................................................................42
Hide Caller ID.........................................................................................................................43
Reject Anonymous..................................................................................................................44
Call Mute ................................................................................................................................45
http://arttel.ru

Getting Started
4
DND........................................................................................................................................45
Key as Send.............................................................................................................................46
No Key Entry Timeout............................................................................................................47
Keypad Lock...........................................................................................................................48
Hot Line..................................................................................................................................49
Advanced Features......................................................................................................................50
Voice Message.........................................................................................................................50
Intercom..................................................................................................................................51
Speed Dial...............................................................................................................................53
Direct Pickup ..........................................................................................................................53
Group Pickup ..........................................................................................................................54
BLF.........................................................................................................................................55
Shared Line.............................................................................................................................56
Record.....................................................................................................................................58
Call Park..................................................................................................................................58
Paging .....................................................................................................................................59
DTMF .....................................................................................................................................60
Prefix.......................................................................................................................................60
Upgrade.........................................................................................................................................62
Factory Reset ..........................................................................................................................62
Upgrade...................................................................................................................................62
Troubleshooting............................................................................................................................65
Why is the phone LCD screen blank?.....................................................................................65
Why does the phone display "Network Unavailable"? ...........................................................65
Why can’t I get a dial tone? ....................................................................................................65
http://arttel.ru

Getting Started
Getting Started
Packing List
The package contains the following parts, please check if all the items are not missed:
1. The phone device
2. The footstand
3. Handset
5
http://arttel.ru

Getting Started
4. Headset cord
5. Power adapter
6. Ethernet cable
6
http://arttel.ru

Getting Started
7. Quick installation reference
Phone Installation
1. Attach the Foot stand
7
http://arttel.ru

Getting Started
2. Connect the Handset and optional Headset
8
http://arttel.ru

Getting Started
3. Connect the Network and Power
Initialization
After your phone has been powered up, the system boots up and performs the following steps:
Automatic Phone Initialization
The phone finishes the initialization process by loading the saved configuration. The phone LCD
screen will display "Booting"
9
http://arttel.ru

Getting Started
And then show “Initializing “during the initialization.
By default the phone attempts to contact a DHCP server in your network in order to obtain its
valid network settings, e.g. IP address, subnet mask, default gateway, DNS server.
10
http://arttel.ru

Getting Familiar with Your Phone
Getting Familiar with Your Phone

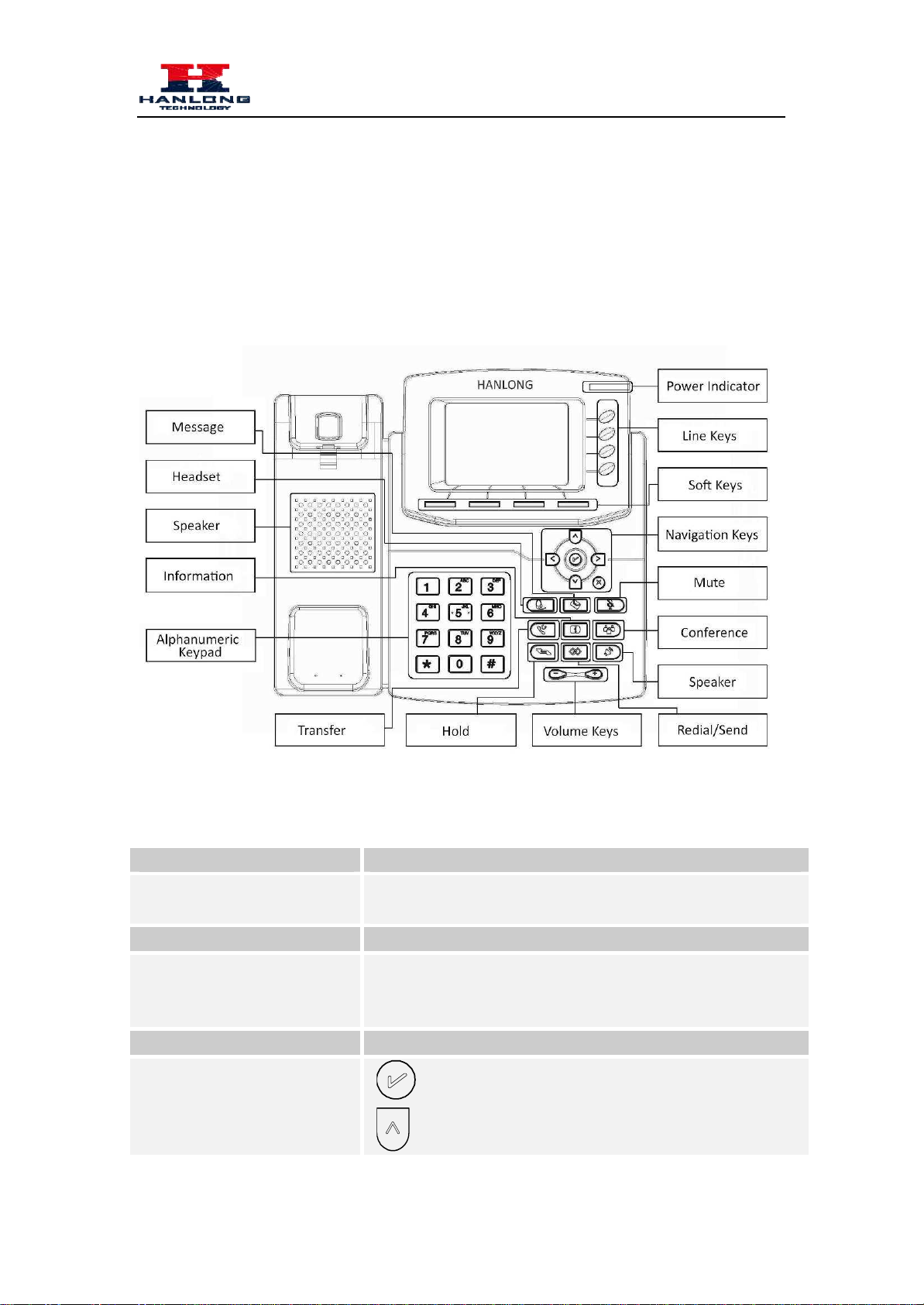

Hardware Components Preview
Item Description
LCD screen To Presentation all information about the date& time, accounts,
soft keys, messages, calls and other some information.
Power Indicator LED To indicate the power status
Line keys
The phone supported up to 4 accounts
1. Steady green: idle interface, during a call..
2. Blink red: a call incoming
Soft keys Labels automatically to identity their context-sensitive features.
Navigation keys
1. OK.

Up arrow key: To move up of the selection shows on the
screen.
11
http://arttel.ru

Getting Familiar with Your Phone
Right arrow key: To move right of the selection
shows on the screen.
12
Left arrow key: To move left of the selection shows on
the screen.
Down arrow key: To move down of the selection shows
on the screen.
1. To return to idle screen.
2. To cancel the information or call on the screen.

Mute key 1. To mute the voice during the call (green light).
2. To un-mute the call.
Conference To place a conference call
Line Keys
To be configured as different function as:
1. Line
2. Speed Dial
3. BLF
4. BLF List
5. Voice mail
6. Direct Pickup
7. Group Pickup
8. Call Park
9. Intercom
10. DTMF
11. Prefix
12. Hold
13. Conference
14. DND
15. Redial
16. Transfer
17. SMS
18. Hot-desking
19. Call Return
20. Paging
21. Record
22. Shared Line
The LED lights status when set as Shared line:
Stay green: Idle
Stay red: Busy
Blinked green: Ring Back
http://arttel.ru

Getting Familiar with Your Phone
Blinked red: A call incoming
Steady orange: During a call
Blinked orange: Public Hold
Blinked green: Private Hold
Light Drown: Unregistered
Speaker Press this button to place a call in hands-free mode.
Redial To dial the previous dialed number.
To act as send key.
Volume
To decrease the volume.

To increase the volume.
Hold To hold or to resume a call during a conversation.
13
Information To show the accounts status and some other relevant
information.
Transfer To transfer a call to a third party.
To enable or disable Forward feature during the idle page.
Alphanumeric keypad To enter the phone numbers, letters and so on.
Message To indicator the New message, and press to read.
Headset To indicate that the phone is or not in Headset mode.
http://arttel.ru

Getting Familiar with Your Phone
Icon Preview
Icon Description
Network down
Registered succeed
Unregistered
Speakerphone mode
Handset mode
Headset mode
Voice messages
Text message
Mute
Do Not Disturb
Volume is 0
Hold
Received calls
Dialed Calls
14
http://arttel.ru

Getting Familiar with Your Phone
Missed calls
Forward calls
Conference
Keypad locked
Keypad unlocked
15
http://arttel.ru

Getting Familiar with Your Phone
16
Line Key Function Overview
Line
Speed Dial
BLF
BLF List
Voice Mail
Direct Pick Up
Group Pick Up
Call Park
Intercom
DTMF
Prefix
Conference
Forward
Transfer
Hold
DND
Redial
http://arttel.ru

Getting Familiar with Your Phone
17
Call Return
Record
URL Record
Paging
Group Listening
Public Hold
Private Hold
Shared Line
URL
http://arttel.ru

Basic Features Configuration
Basic Features Configuration
This part will mainly introduce the basic configuration as the Time, Language, and Volume…

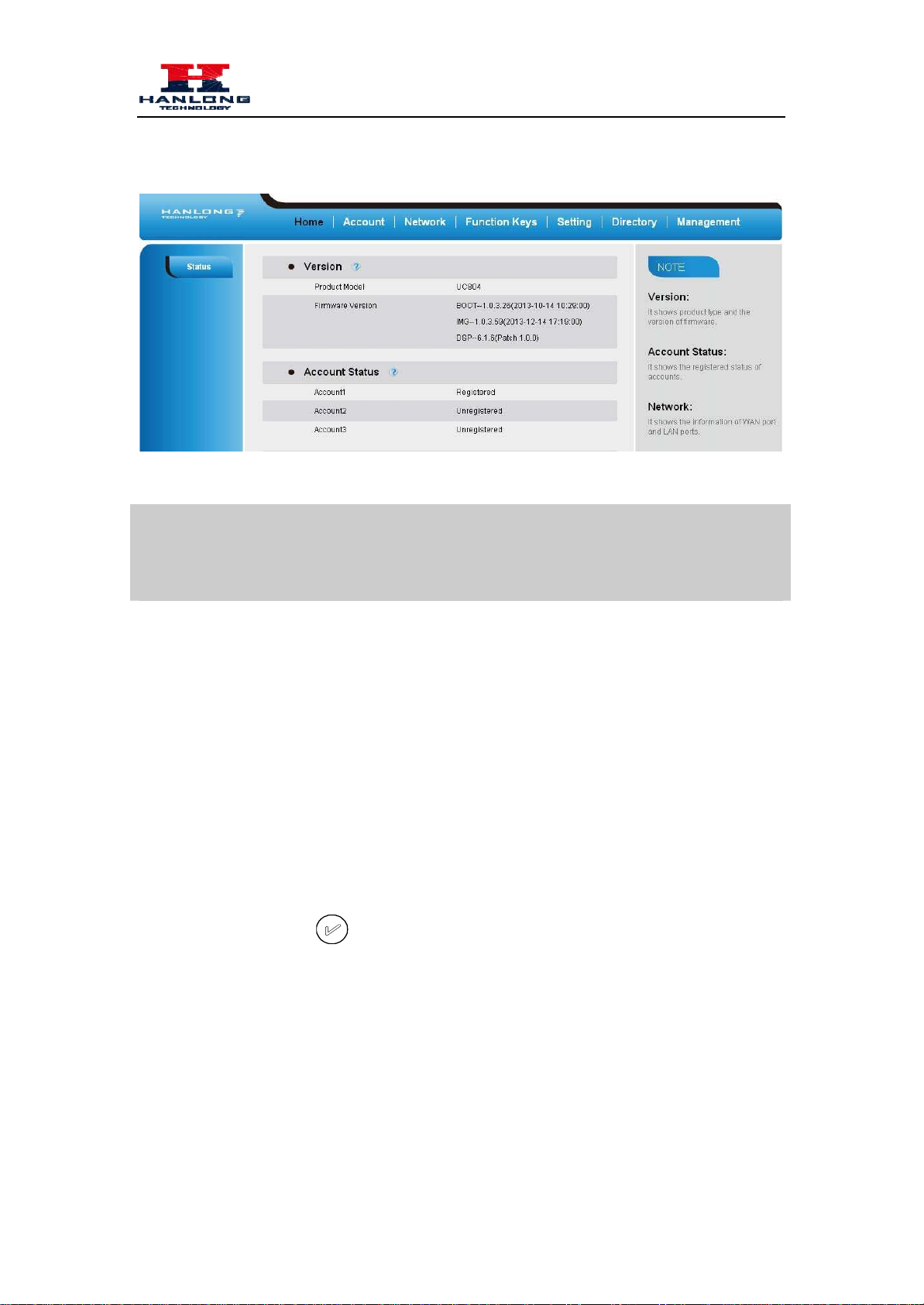

Web Login
1. Get the IP address: Press Menu Status Information.
2. Input the IPAddress in the web browser.
3. Input the user name (default is admin), password (default is admin).
18
http://arttel.ru

Basic Features Configuration
4. Login successfully.
Note:
The PC and phone should be in the same segment.
When register the accounts in web and the server port is not “5060”, then “SIP Server” should be
set as “SIP Server’s IP address: server port.”, for example, “192.168.0.122: 5090”.
Administrator Password
The password is mainly used for login the web interface or set the advanced settings through
phone interface. And the default password of the administrator is: admin
To change to password via Phone Interface
1. Press Menu setting Advanced settings password (default admin) Set
Password
2. Enter the current PWD (password), new password and confirm the new password.
3. Press save soft key or to save the new password.
19
http://arttel.ru
