Hanna Instruments HI769828 User manual

HI769828
Multiparameter Probe
Dear Customer,
Thank you for choosing aHanna
Instruments product. Please read carefully this
instruction manual before using the
product.
This product is in compliance with the CE
directives.
PRELIMINARY EXAMINATION
Remove the probe/sensors from the
packing material and examine it
carefully to make sure that no damage has
occurred during shipment. If there is any
damage, please contact your local Hanna
Instruments Office.
Note Conserve all packing material until
the product has been observed to
function correctly. Any defec-tive
item must be returned in its original
packing.
INSTRUCTION MANUAL
SPARE PARTS
HI769828/4 Probe body with tem-
perature sensor & 4 m
cable
HI769828/10 Probe body with tem-
perature sensor &
10 m cable
HI769828/20 Probe body with tem-
perature sensor & 20
m cable
HI769828-0 pH sensor
HI769828-1 pH/ORP sensor
HI769828-2 DO sensor
HI769828-3 EC sensor
pH/ORP sensor
DO sensor
EC sensor
Hook for
safety rope
Temperature
sensor
Protection sleeve Calibration beaker
Hanna Instruments reserves the right to modify the design,
construction and appearance of its products without ad-vance
notice.
IST769828 12/17
www.calcert.com [email protected]1.888.610.7664 0
5
10
15
20
25
30
GENERAL DESCRIPTION
HI769828-0 HI769828-1 HI769828-2 HI769828-3
Sensor Type pH pH/ORP DO EC
Measurement pH; mV (pH) pH; mV (pH); mV DO% sat; DO
conc.
EC; TDS; Resistivity;
Salinity
Range 0.00 to 14.00
±600.0 mV (pH)
0.00 to 14.00
±600.0 mV (pH)
±2000.0 mV
0.0 to 500.0 %
0.00 to
50.00 mg/L
0.000-200.000 mS/cm
0-400000 mg/L
0 to 1.0000 MΩ˙cm 0.00
to 70.00 PSU
Color Code Red Red White Blue
Materials Tip: glass (pH)
Junction: cloth Body:
PEI Electrolyte: gel
Reference: double
Tip: glass (pH); Pt
(ORP)
Junction: cloth Body:
PEI Electrolyte: gel
Reference: double
Cat/An: Ag/Zn
Membrane: PTFE
Body: PVC
Stainless Steel AISI
316
Body:PVC
Maintenance
Solution
HI70300 (storage) HI70300
(storage)
HI7042S (refilling)
Dimensions 100 x 14 Ø mm 100 x 14 Ø mm 101 x 16.5 Ø mm 111 x 14 Ø mm
HI769828 is the multisensor probe for
HI9828.
The probe has been designed to resist to all
harsh operating conditions. It is very easy-to-
use and can be installed for direct pipe
measurements.
The protection sleeve allows to dip the probe
for a long period without damag-ing the sensors
and the calibration beaker permits to perform
maintenance opera-tions directly on field.
Calibration data are stored in the probe internal
memory, so that sensors can be changed
without needing recalibration. The user can
disconnect all sensors sepa-rately for a better
cleaning and to change the probe body, if for
example a different cable length is required.
SPECIFICATIONS
HI9828-25 Quick calibration so-
lution, 500 mL bottle
HI9828-27 Quick calibration so-
lution, 1 G bottle
HI7698282 Probe maintenance kit
HI7698283 Calibration beaker
HI7698284 Flow cell
HI7040L Zero oxygen solution,
500 mL bottle
HI7042S Electrolyte solution for
D.O. sensor, 30 mL bottle
HI76409A/P D.O. membrane, 5 pcs.
HI70300L Storage solution,
500 mL bottle
ACCESSORIES
www.calcert.com [email protected]1.888.610.7664 0
5
10
15
20
25
30
INSTALLATION
D.O. sensor
The temperature sensor built near
the galvanic D.O. sen-sor allows
stable temperature compensated
D.O. readings in a few seconds.
The thin permeable membrane isolates the sensor
elements from the testing solu-tion, but allows oxygen
to enter. Oxygen that passes through the membrane
causes a current flow, from which the oxygen
concentration is determined.
The D.O. sensor is shipped dry. Activate it before
installing the probe. To hydrate the sensor and
prepare it for use proceed as follows:
• Remove the black & red plastic cap. This cap is used
for shipping purposes only and can be thrown
away.
•Insert the O-ring in the membrane.
•Rinse the membrane with HI7042S electrolyte
solution while shaking it gently. Refill with clean
electrolyte. Gen-tly tap the membrane over a
surface to ensure that no air bubbles remain
trapped. To avoid damaging the mem-brane, do
not touch it with your fingers.
•With the sensor facing down screw the cap
clockwise to the end of the threads. Some electrolyte
will overflow.
•Insert the sensor in the probe body with the right
alignment to the corresponding white connector.
•With the supplied tool screw the locking nut to fix
the sensor.
Conductivity sensor
The conductivity sensor uses the 4-
ring technology that allows stable
and linear readings without any
inter-ference in the whole range.
• Insert the sensor in the probe body with the right
alignment to the corresponding blue connector.
• With the supplied tool screw the locking nut to fix
the sensor.
pH and pH/ORP sensor
The pH and pH/ORP sen-sors are
gel filled and fea-ture cloth
junction, glass and Pt sensors
respectively. The external plastic
body is built to last even in harsh
environmental conditions.
• Insert the sensor in the probe body with the right
alignment to the corresponding red connector.
• After mounting the sensors, screw the protection
sleeve for taking measure-ments or the
transparent beaker for performing calibration.
• With the meter off, connect the probe to the DIN
socket on the bottom of the meter by aligning the
pins and pushing in the plug. Tighten the nut to
ensure a good connection.
www.calcert.com [email protected]1.888.610.7664 0
5
10
15
20
25
30
PROBE MAINTENANCE
General maintenance
After use, rinse the probe with tap water
and dry it. The pH electrode bulb must be
kept moist, while the D.O. and EC sensors
should be stored dry.
Maintenance of D.O. sensor
For a top performance probe, replace
the membrane every 2 months and the
electrolyte once a month. Proceed as
follows:
• Unscrew the membrane by
turning itcounterclockwise.
• Rinse the spare membrane
with some electrolyte while
shaking it gently. Refill with
clean electrolyte.
•Gently tap the membrane over a surface to
ensure that no air bubbles remain
trapped.
• With the sensor facing down, screw the
cap clockwise to the end of the threads.
Some electrolyte will overflow.
If any deposit scales the sensors, gently brush
the sensor surface with the brush supplied in
the maintenance kit, while paying attention
to not damage the plastic body.
Maintenance of EC sensor
After every series of measurements, rinse
the probe with tap water.
If a more thorough cleaning is required,
clean the probe with the brush supplied
in the maintenance kit or a nonabrasive
detergent.
After cleaning the probe, always re-
calibrate the instrument.
Maintenance of pH & pH/ORP sensors
• Remove the protective cap. Do not be
alarmed if any salt deposits are present.
This is normal with electrodes and they
will disappear when rinsed with water.
• Shake the electrode down as you would
do with a clinical thermometer to elimi-
nate any air bubbles inside the glass
bulb.
• If the bulb and/or junction are dry, soak
the electrode in HI70300 storage solu-
tion for at least one hour.
• To minimize clogging and ensure a quick
response time, the glass bulb and the
junction should be kept moist and not
allowed to dry.
• Replace the solution in the protective cap
with a few drops of HI70300 storage
solution. Tap water may also be used
for a very short period (couple of days).
NEVER STORE THE ELECTRODE
IN DISTILLED OR DEIONIZED
WATER.
• Inspect the electrode for scratches or
cracks. If any present, replace the elec-
trode.
• Cleaning procedure: clean frequently
the probe by soaking it for 1 minute in
HI70670 or HI70671 cleaning solu-
tions. After performing this procedure,
soak the electrode in HI70300 storage
solution before taking measurements.
NOTE For additional information about
calibration, connections and
readings, please refer to the instru-
ment (HI9828 multiparameter)
instruction manual.
www.calcert.com [email protected]1.888.610.7664 0
5
10
15
20
25
30

Other Hanna Instruments Measuring Instrument manuals

Hanna Instruments IC-HI98165 User manual

Hanna Instruments

Hanna Instruments IC-HI98165 User manual

Hanna Instruments HI96000 Series User manual

Hanna Instruments

Hanna Instruments HI96000 Series User manual

Hanna Instruments HI 84533 User manual

Hanna Instruments

Hanna Instruments HI 84533 User manual

Hanna Instruments HI 93720 User manual

Hanna Instruments

Hanna Instruments HI 93720 User manual

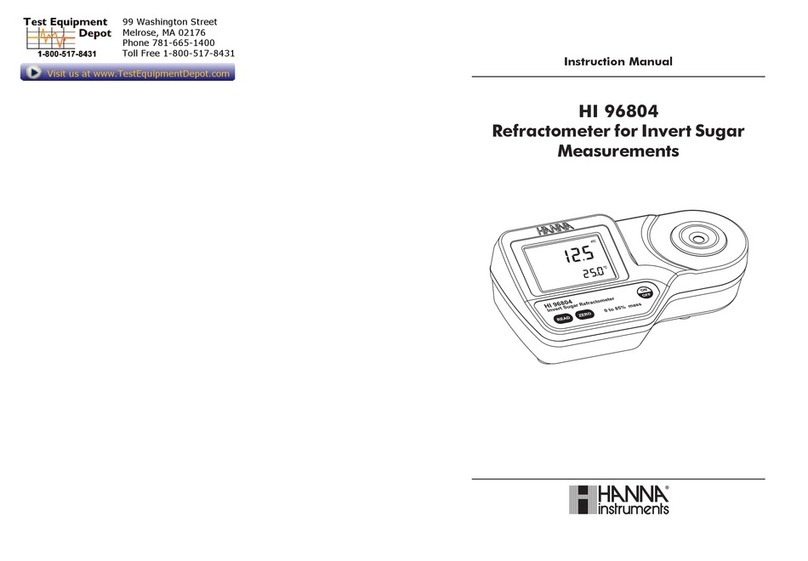

Hanna Instruments HI 96804 User manual

Hanna Instruments

Hanna Instruments HI 96804 User manual

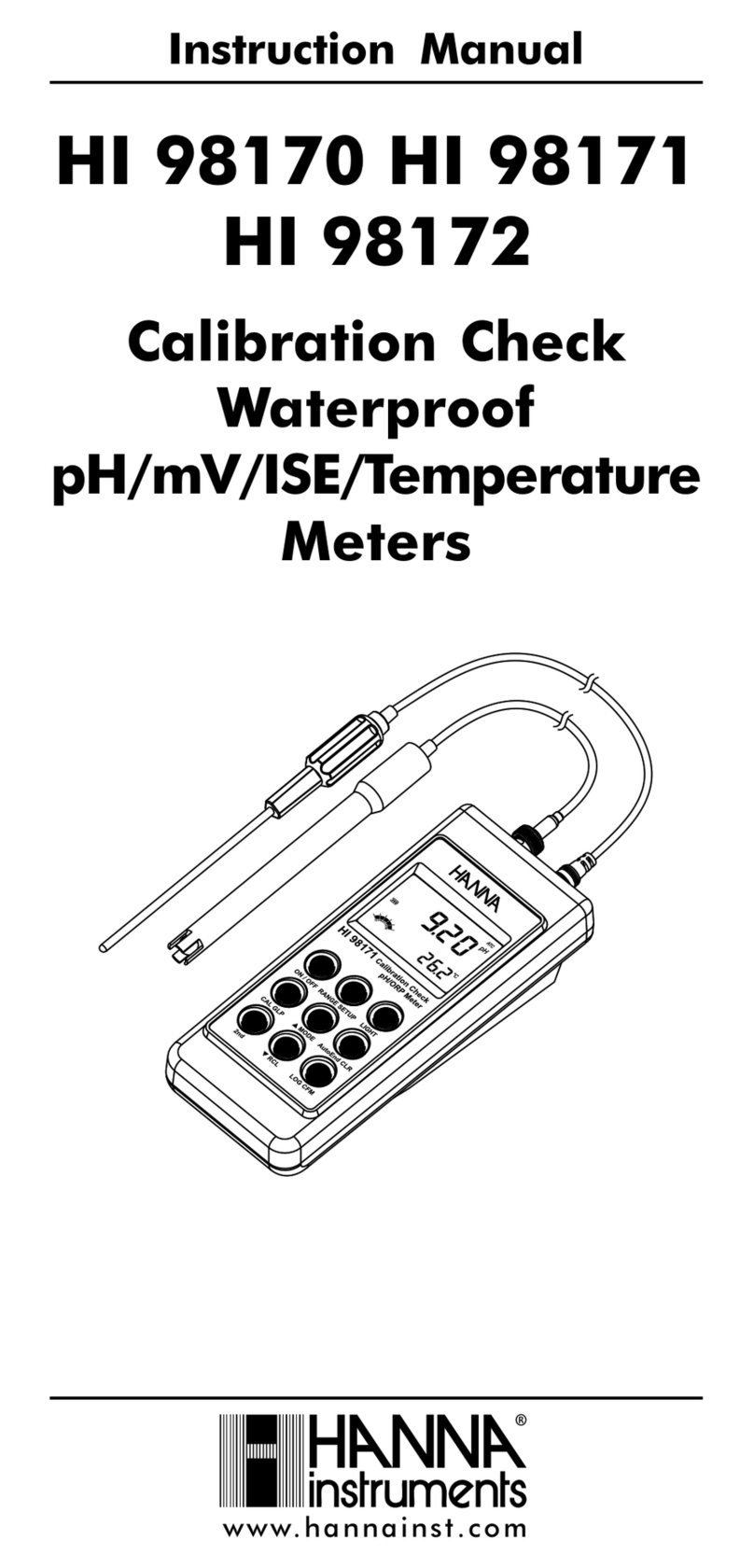

Hanna Instruments HI 98171 User manual

Hanna Instruments

Hanna Instruments HI 98171 User manual

Hanna Instruments HI 96707C User manual

Hanna Instruments

Hanna Instruments HI 96707C User manual

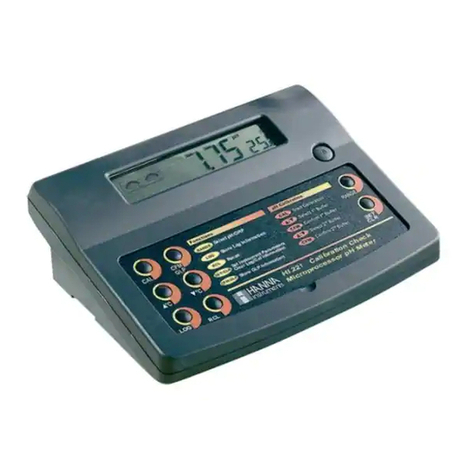

Hanna Instruments HI 221 User manual

Hanna Instruments

Hanna Instruments HI 221 User manual

Hanna Instruments HI96700C User manual

Hanna Instruments

Hanna Instruments HI96700C User manual

Hanna Instruments HI 9146 User manual

Hanna Instruments

Hanna Instruments HI 9146 User manual

Hanna Instruments HI 9214 User manual

Hanna Instruments

Hanna Instruments HI 9214 User manual

Hanna Instruments HI98162 User manual

Hanna Instruments

Hanna Instruments HI98162 User manual

Hanna Instruments HI 723 User manual

Hanna Instruments

Hanna Instruments HI 723 User manual

Hanna Instruments HI97710 User manual

Hanna Instruments

Hanna Instruments HI97710 User manual

Hanna Instruments HALO 2 HI9810362 User manual

Hanna Instruments

Hanna Instruments HALO 2 HI9810362 User manual

Hanna Instruments HI 9829 User manual

Hanna Instruments

Hanna Instruments HI 9829 User manual

Hanna Instruments HI 2209 User manual

Hanna Instruments

Hanna Instruments HI 2209 User manual

Hanna Instruments HI 96104C User manual

Hanna Instruments

Hanna Instruments HI 96104C User manual

Hanna Instruments HI 98180 User manual

Hanna Instruments

Hanna Instruments HI 98180 User manual

Hanna Instruments HI 8064 User manual

Hanna Instruments

Hanna Instruments HI 8064 User manual

Hanna Instruments Combo Grochek HI 991404 User manual

Hanna Instruments

Hanna Instruments Combo Grochek HI 991404 User manual

Hanna Instruments HI 84181 User manual

Hanna Instruments

Hanna Instruments HI 84181 User manual

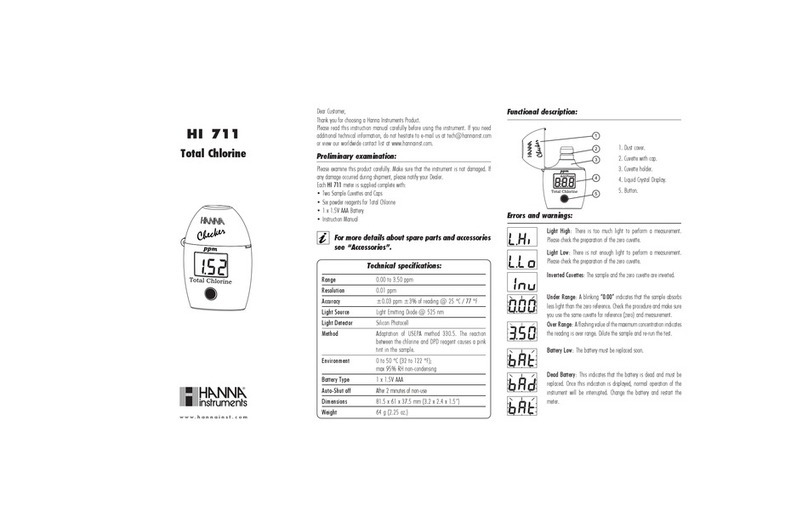

Hanna Instruments Total Chlorine HI 711 User manual

Hanna Instruments

Hanna Instruments Total Chlorine HI 711 User manual

Hanna Instruments HI 8424 User manual

Hanna Instruments

Hanna Instruments HI 8424 User manual

Popular Measuring Instrument manuals by other brands

Amprobe CO2-200 user manual

Amprobe

Amprobe CO2-200 user manual

TESTO 606-2 instruction manual

TESTO

TESTO 606-2 instruction manual

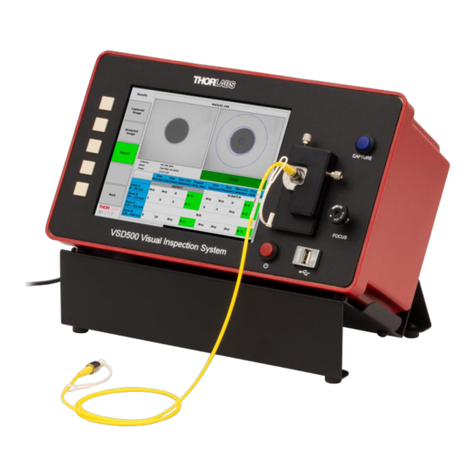

THORLABS VSD500 user guide

THORLABS

THORLABS VSD500 user guide

Oakton PD 300 instruction manual

Oakton

Oakton PD 300 instruction manual

Tascam dr-44wl Reference manual

Tascam

Tascam dr-44wl Reference manual

Siemens Veeder-Root Driver installation instructions

Siemens

Siemens Veeder-Root Driver installation instructions

Kramp Wile Operator's manual

Kramp

Kramp Wile Operator's manual

VOLTCRAFT BS-100 X - V07-10 manual

VOLTCRAFT

VOLTCRAFT BS-100 X - V07-10 manual

Maico MA 28 quick guide

Maico

Maico MA 28 quick guide

Wulfsberg CDM-451 Operator's manual

Wulfsberg

Wulfsberg CDM-451 Operator's manual

Cyber Sciences CyTime SER-32e quick start guide

Cyber Sciences

Cyber Sciences CyTime SER-32e quick start guide

Amprobe ACD-10 PRO instruction manual

Amprobe

Amprobe ACD-10 PRO instruction manual

Novus NHDR-6116-H2-II user manual

Novus

Novus NHDR-6116-H2-II user manual

Agilent Technologies E3238S Installation and Configuration Reference

Agilent Technologies

Agilent Technologies E3238S Installation and Configuration Reference

LifeBasis RN-PRO200 instruction manual

LifeBasis

LifeBasis RN-PRO200 instruction manual

DeWalt DW080LRS manual

DeWalt

DeWalt DW080LRS manual

Endress+Hauser RIA452 operating instructions

Endress+Hauser

Endress+Hauser RIA452 operating instructions

Pixsys STR560 user manual

Pixsys

Pixsys STR560 user manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
