Assembly Instructions
GFM30731C
9.8'x9.8'x9.5' Hard Top Gazebo
Questions, problems, or missing parts?
Before returning to the store, call Customer Service.
1-866-988-3300
8 a.m. -5 p.m., PST Monday - Friday
Retain this manual for future use.

GFM30731C
1
Parts & Tools
PART
QTY
PICTURE & DESCRIPTION
PART
QTY
PICTURE & DESCRIPTION
A
4
Post
Q1
8
Middle Connecting Part
B
4
Long Beam 1
R
8
Incline Outer Metal Part
B1
4
Long Beam 2
R1
4
Border Tube Outer Metal Part
C
4
Corner Incline Tube
S
1
Top Plate
C1
4
Middle Incline Tube
T
1
Bottom Plate
C2
4
Top Corner Incline Tube
T1
1
Hook
D
8
Short Horizontal Tube
AA
184+1
M6x15 Combination Bolt
D1
8
Long Horizontal Tube
BB
18+1
M6x30 Combination Bolt
E
4
Top Frame Tube
CC
28+1
M6x40 Combination Bolt
F
4
Border Tube 1
DD
8+1
M6x75 Combination Bolt
F1
4
Border Tube 2
EE
8+1
M6 Nut

GFM30731C
2
F2
4
Top Border Tube
FF
2+1
Plastic Washer
G
4
Top Cover Plate
GG
8+1
Ground Spike
G1
4
Cover Plate
HH
1
Wrench
H
4
Metal Plate 1
II
2
Hex Wrench
H1
4
Metal Plate 2
H2
4
Metal Plate 3
J
4
Metal Plate 4
J1
4
Metal Plate 5
K
4
Metal Plate 6
K1
4
Metal Plate 7
L
4
Post Base Plate
L1
4
Post Base Cap
M
4
Beam Decorator
M1
4
Beam Lining

GFM30731C
3
N
4
Right Corner Support Bar
N1
4
Left Corner Support Bar
N2
4
Corner Fitting
N3
4
Middle Fitting
WARNING: To avoid damage of this production,
please use either the carton or another soft
surface such as carpet as a working surface to
prevent product damage during assembly.
Need for assembly:
P
4
Top Frame Plug
P1
4
Metal Plate Cover Component
Q
8
Incline Connecting Plate
WARNING: Please keep children out of the assembly area before assembly.
WARNING: Do not leave the gazebo where there is a risk of high wind, as possible damage will occur to
the structure.
WARNING: Keep all flame and heat sources away from the fabric.
CAUTION: Do not climb on the top of the gazebo. Falling off the gazebo can result in serious injury, possibly
even death.

GFM30731C
4
Gazebo Assembly
Step 1:
Attach the post base cap (L1) and the
post base plate (L) to the posts (A)
using M6x15 combination bolts (AA).
Repeat this step for the other three
posts (A).
Fully tighten the bolts using the hex
wrench (II).
Step 2:
Attach the long beam 1 (B) and long
beam 2 (B1) to the beam lining (M1).
Attach the long beam 1 (B) and long
beam 2 (B1) to the beam decorator
(M) by using M6x75 combination bolts
(DD) and M6 nuts (EE).
Do not fully tighten all the bolts at this
step.

GFM30731C
5

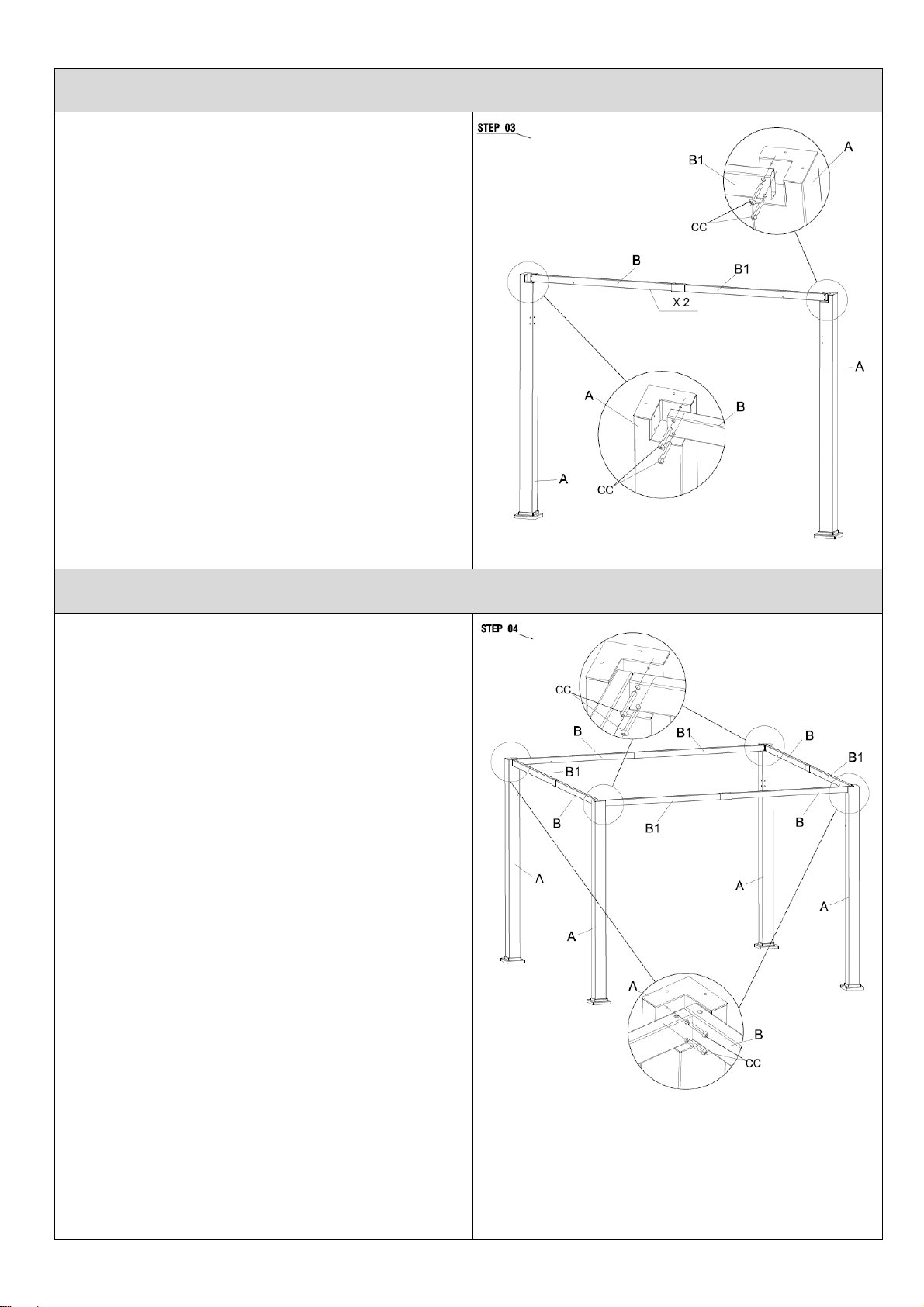

Step 3:
Attach the assembled long beam (B &
B1) to the two posts (A) using M6x40
combination bolts (CC).
Repeat this step for the other two posts
(A).
Do not fully tighten all the bolts at this
step.
Step 4:
Attach the assembled long beam (B &
B1) to the assembled posts (A) using
M6x40 combination bolts (CC) as
shown below.
Do not fully tighten all the bolts at this
step.

GFM30731C
6
Step 5:
Attach the left corner support bar (N1)
to the long beam 2 (B1) by using M6x15
combination bolts (AA).
Attach the right corner support bar (N)
to the long beam1 (B) by using M6x15
combination bolts (AA).
Attach the other end of the left corner
support bar (N1) and the other end of
the right corner support bar (N) to the
posts (A) using M6x15 combination bolts
(AA) as shown below.
Do not fully tighten all the bolts at this
step.
Step 6:
Attach the corner fitting (N2) to the
corner incline tube (C) using M6x15
combination bolt (AA).
Attach the middle fitting (N3) to the
middle incline tube (C1) using M6x15
combination bolt (AA).
Repeat this step for the other three
corner incline tubes (C) and the other
three middle incline tubes (C1).
Do not fully tighten all the bolts at this
step.

GFM30731C
7

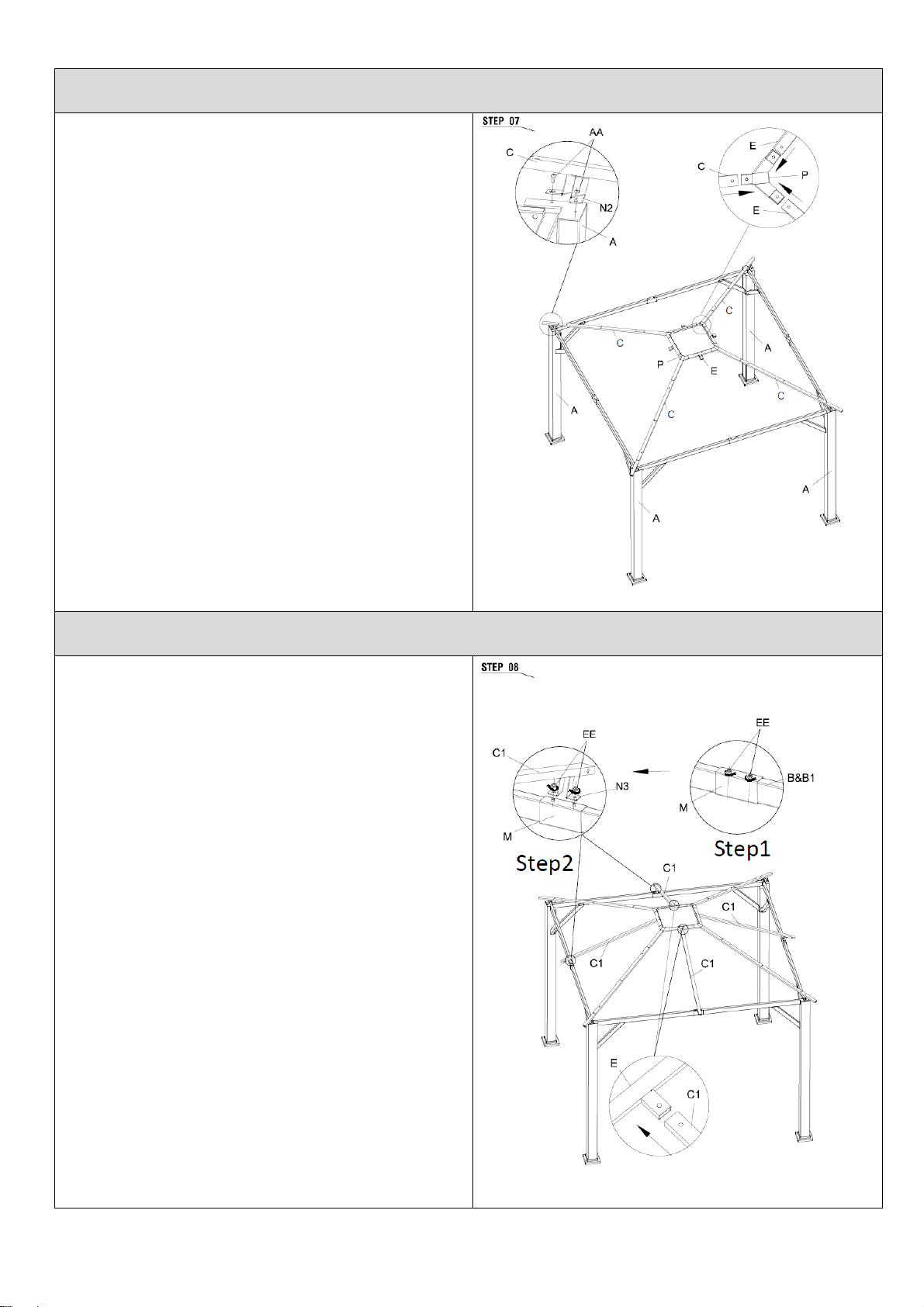

Step 7:
Attach the corner incline tube (C) to
the post (A) by using M6x15
combination bolts (AA) through the
corner fitting.
Insert the top frame plug (P) into the
corner incline tube (C) and the top
frame tube (E) as shown below.
Do not fully tighten all the bolts at this
step.
Step 8:
Attach the middle incline tube (C1) to
the assembled beam (B & B1) by using
the M6 nuts (EE) through the middle
fitting (N3.)
Insert the middle incline tube (C1) into
the top frame tube (E) as shown below.
Do not fully tighten all the bolts at this
step.
NOTE: Make sure to unscrew the M6 nut
(EE) on the M6x75 combination bolts
(DD) first to assemble step 1.

GFM30731C
8
Step 9:
Attach the top corner incline tube (C2)
and the top border tube (F2) to the
incline outer metal part (R) using the
M6x15 combination bolt (AA) as shown
below.
Insert the top corner incline tube (C2)
into the bottom plate (T).
Do not fully tighten all the bolts at this
step.
Step 10:
Attach the metal plate 1 (H) to the top
border tube (F2) using the M6x15
combination bolts (AA).
Do not fully tighten all the bolts at this
step.

GFM30731C
9
Step 11:
Attach the top cover plate (G) to the
metal plate 1 (H) using the M6x40
combination bolts (CC).
Attach the top plate (S) to the bottom
plate (T) by using the M6x30
combination bolt (BB) and plastic
washer (FF).
Screw the hook (T1) into the bottom
plate (T).
Do not fully tighten all the bolts at this
step.
Step 12:
Attach the top corner incline tube (C2)
to the top frame plug (P) using the
M6x15 combination bolts (AA).
Attach the short horizontal tube (D), the
long horizontal tube (D1) and the
corner incline tube (C), to the incline
connecting plate (Q) using the M6x15
combination bolt (AA).
Attach the short horizontal tube (D),
long horizontal tube (D1) and the
middle incline tube (C1), to the middle
connecting part (Q1) using the M6x15
combination bolt (AA).
Do not fully tighten all the bolts at this
step.

GFM30731C
10
Step 13:
Attach the border tube1 (F) and the
border tube 2 (F1) to the corner incline
tube (C) using the M6x15 combination
bolts (AA).
Attach the border tube1 (F) and the
border tube 2 (F1) to the middle incline
tube (C1) using the M6x15 combination
bolts (AA).
Do not fully tighten all the bolts at this
step.
Step 14:
Attach the metal plate 7 (K1) and the
metal plate 6 (K) to the border tube (F
& F1) using the M6x15 combination
bolts (AA) as shown below.
Attach the metal plate 7 (K1) and the
metal plate 6 (K) to the corner incline
tube (C) by using the M6x15
combination bolts (AA) as shown
below.
Do not fully tighten all the bolts at this
step.

GFM30731C
11
Step 15:
Attach the metal plate 7 (K1) and the
metal plate 6 (K) to metal plate cover
component (P1) using the M6x15
combination bolts (AA).
Do not fully tighten all the bolts at this
step.
Step 16:
Attach the metal plate 4 (J) and metal
plate 5 (J1) to border tube (F & F1)
using the M6x15 combination bolts (AA)
and M6x30 combination bolts (BB) as
shown below.
Attach the metal plate 4 (J) and metal
plate 5 (J1) to the corner incline tube
(C) by using the M6x15 combination
bolts (AA) as shown below.
Do not fully tighten all the bolts at this
step.

GFM30731C
12
Step 17:
Attach the metal plate 2 (H1) and the
metal plate 3 (H2) to the border tube (F
& F1) using the M6x30combination bolts
(BB).
Attach the metal plate 2 (H1) and the
metal plate 3 (H2) to the corner incline
tube (C) using the M6x15 combination
bolts (AA).
Do not fully tighten all the bolts at this
step.
Step 18:
Attach the cover plate (G1) to the
assembled frame by using the M6x40
combination bolts (CC) as shown
below.
Do not fully tighten all the bolts at this
step.

GFM30731C
13
Step 19:
Attach the incline outer metal part (R)
and the border tube outer metal part
(R1) to the assembled frame using the
M6x15 combination bolts (AA) as shown
below.
Do not fully tighten all the bolts at this
step.
Step 20:
Once all of the bolts are in place, fully
tighten all the bolts using wrench (HH)
and hex wrench (II).
Secure the post (A) to the ground by
using ground spike (GG).
